OperationBindingCheck Class Reference

#include <OperationBindingCheck.hh>

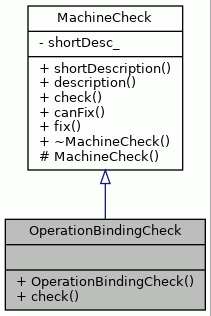

Inheritance diagram for OperationBindingCheck:

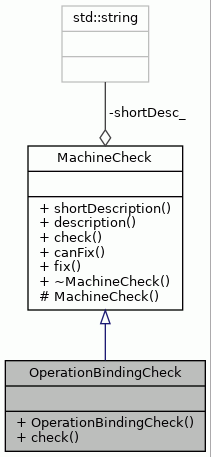

Collaboration diagram for OperationBindingCheck:

Public Member Functions
	OperationBindingCheck ()
virtual bool	check (const TTAMachine::Machine &mach, MachineCheckResults &results) const
Public Member Functions inherited from MachineCheck
virtual std::string	shortDescription () const
virtual std::string	description () const
virtual bool	canFix (const TTAMachine::Machine &mach) const
virtual std::string	fix (TTAMachine::Machine &mach) const
virtual	~MachineCheck ()

Additional Inherited Members
Protected Member Functions inherited from MachineCheck
	MachineCheck (const std::string &shortDesc_)

Detailed Description

Check that tests port bindings in machine

Definition at line 42 of file OperationBindingCheck.hh.

Constructor & Destructor Documentation

OperationBindingCheck()

OperationBindingCheck::OperationBindingCheck

(

)

Definition at line 45 of file OperationBindingCheck.cc.

                                             :
    MachineCheck("Check operation binding, port directions, triggers") {}

Member Function Documentation

check()

bool OperationBindingCheck::check ( const TTAMachine::Machine &  mach, MachineCheckResults &  results  ) const

virtual

Checks that machine's FU's have legal port and trigger bindings

Parameters

mach	machine to check
results	place where to put detailed error descriptions

Returns

true if everything is ok, false if something is wrong

Implements MachineCheck.

Definition at line 55 of file OperationBindingCheck.cc.

                                                                       {

    TTAMachine::Machine::FunctionUnitNavigator fuNav =
        mach.functionUnitNavigator();

    bool retval = true;
    bool triggerok = true;
    for (int i = 0; i < fuNav.count(); i++) {
        FunctionUnit& fu = *fuNav.item(i);

        // find trigger port
        FUPort* triggerPort = NULL;
        for (int j = 0; j < fu.operationPortCount(); j++) {
            FUPort* port = fu.operationPort(j);
            if (port->isTriggering()) {

                // check that we do not have multiple trigger ports.
                if ( triggerPort != NULL) {
                    results.addError(
                        *this, (boost::format("Multiple trigger ports are "
                                              "not supported, Used in FU: %s")
                                % fu.name()).str());
                    retval = false;
                    triggerok = false;
                }
                else {
                    // check trigger and fu ports are the same
                    triggerPort = port;
                    if (!port->isOpcodeSetting()) {
                        results.addError(
                            *this, (boost::format("Opcode setting and trigger "
                                                  "port differ in FU: ")
                                    % fu.name()).str());
                        retval = false;
                        triggerok = false;
                    }
                }
            }
        }
        // check that we have a trigger port
        if ( triggerPort == NULL) {
            results.addError(
                *this, (boost::format("Trigger port not found in FU: %s")
                        % fu.name()).str());
            return false;
        }

        // check all operations
        for (int j = 0; j < fu.operationCount(); j++) {

            HWOperation& hwop = *fu.operation(j);
            bool triggerRead = false;

            // check read port bindins
            ExecutionPipeline& pipe = *hwop.pipeline();
            const ExecutionPipeline::OperandSet reads = pipe.readOperands();
            for (ExecutionPipeline::OperandSet::const_iterator iter =
                     reads.begin(); iter != reads.end(); iter++) {
                Port* readPort = hwop.port(*iter);
                if ( readPort->inputSocket() == NULL) {
                    std::string errorMsg =
                        (boost::format(
                            "Operation %s in FU %s reads operand %d which "
                            "is not connected to input socket. "
                            "Check port bindings!")
                         % hwop.name() % fu.name() % *iter).str();

                    results.addError(*this, (errorMsg));
                    retval = false;
                } else {
                    // check if this was read from the trigger
                    if (readPort == triggerPort) {
                        triggerRead = true;
                    }
                }
            }

            // was trigger actually read?
            if ( triggerok && !triggerRead) {
                std::string errorMsg =
                    (boost::format(
                         "Trigger not bound for operation: %s in FU %s") %
                     hwop.name() % fu.name()).str();
                results.addError(*this, errorMsg);
                retval = false;
            }

            // check write port bidings
            const ExecutionPipeline::OperandSet writes =
                pipe.writtenOperands();
            for (ExecutionPipeline::OperandSet::const_iterator iter =
                     writes.begin(); iter != writes.end(); iter++) {
                Port* writePort = hwop.port(*iter);
                if ( writePort->outputSocket() == NULL) {
                    results.addError(
                        *this, (boost::format("Operation %s in FU %s "
                                              "writes operand %d"
                                              "which is not connected to "
                                              "output socket. "
                                              "Check port bindings!")
                                % hwop.name() % fu.name() % *iter).str());
                    retval = false;
                }
            }
        }
    }
    return retval;
}

References MachineCheckResults::addError(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Port::inputSocket(), TTAMachine::FUPort::isOpcodeSetting(), TTAMachine::FUPort::isTriggering(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::HWOperation::name(), TTAMachine::Component::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), TTAMachine::Port::outputSocket(), TTAMachine::HWOperation::pipeline(), TTAMachine::HWOperation::port(), TTAMachine::ExecutionPipeline::readOperands(), and TTAMachine::ExecutionPipeline::writtenOperands().

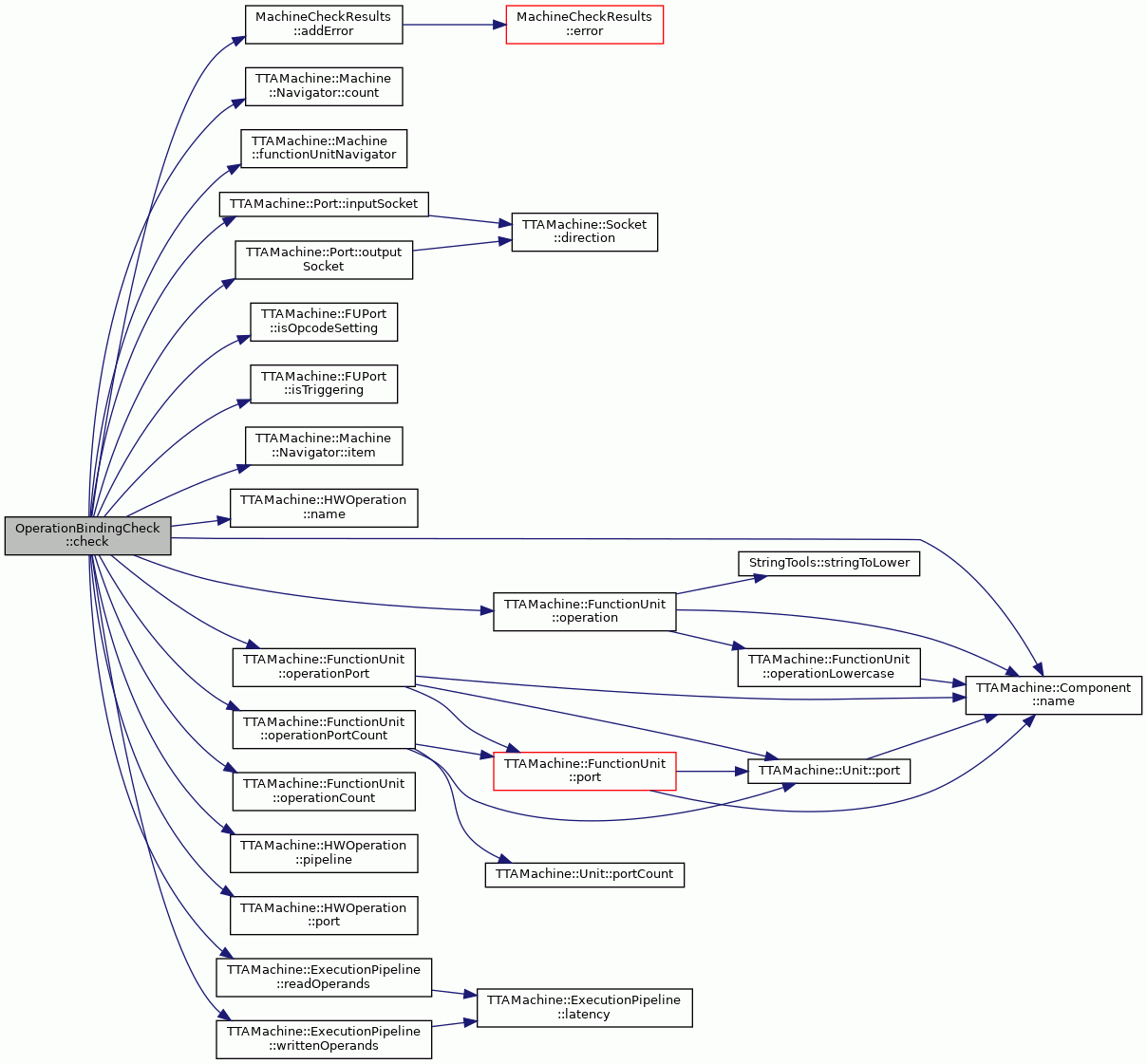

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• OperationBindingCheck.hh
• OperationBindingCheck.cc
