OperationPool Class Reference

#include <OperationPool.hh>

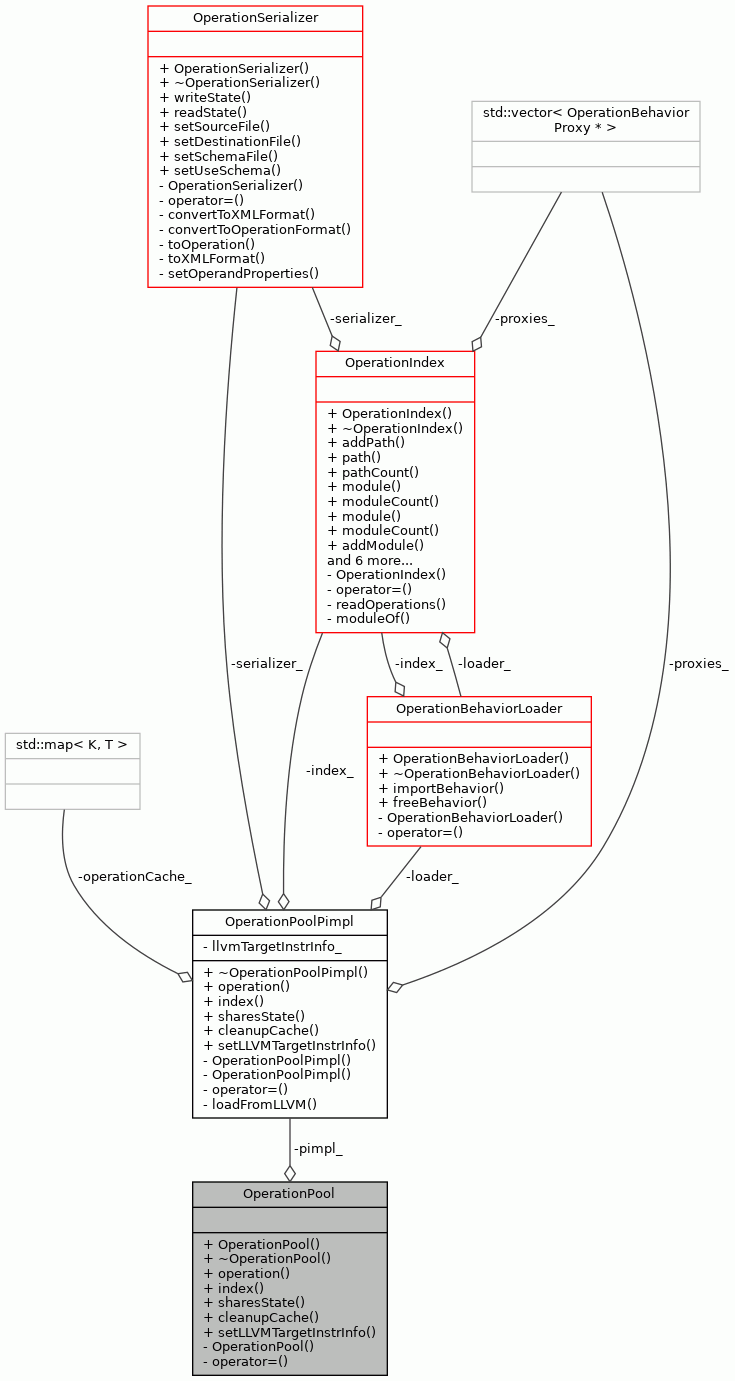

Collaboration diagram for OperationPool:

Public Member Functions
	OperationPool ()
virtual	~OperationPool ()
Operation &	operation (const char *name)
OperationIndex &	index ()
bool	sharesState (const Operation &op)

Static Public Member Functions
static void	cleanupCache ()
static void	setLLVMTargetInstrInfo (const llvm::MCInstrInfo *tid)

Private Member Functions
	OperationPool (const OperationPool &)
	Copying not allowed.
OperationPool &	operator= (const OperationPool &)
	Assignment not allowed.

Private Attributes
OperationPoolPimpl *	pimpl_
	Private implementation in a separate source file.

Detailed Description

OperationPool provides interface for obtaining operations of the target architecture template.

Definition at line 52 of file OperationPool.hh.

Constructor & Destructor Documentation

OperationPool() [1/2]

OperationPool::OperationPool

(

)

Constructor.

Records the search paths of the operation modules.

Definition at line 64 of file OperationPool.cc.

                             : pimpl_(new OperationPoolPimpl()) {
}

~OperationPool()

OperationPool::~OperationPool ( )

virtual

Destructor.

Cleans proxies and operations.

Definition at line 72 of file OperationPool.cc.

                              {
    delete pimpl_;
    pimpl_ = NULL;
}

References pimpl_.

OperationPool() [2/2]

OperationPool::OperationPool ( const OperationPool &  )

private

Copying not allowed.

Member Function Documentation

cleanupCache()

void OperationPool::cleanupCache ( )

static

Cleans up the static Operation cache.

Deletes also the Operation instances, so be sure you are not using them after calling this!

Definition at line 84 of file OperationPool.cc.

                            {
    OperationPoolPimpl::cleanupCache();
}

References OperationPoolPimpl::cleanupCache().

Referenced by OpsetDialog::TransferDataToWindow().

Here is the call graph for this function:

index()

OperationIndex & OperationPool::index

(

)

Returns the operation index of operation pool.

Returns

The operation index.

Definition at line 109 of file OperationPool.cc.

                     {
    return pimpl_->index();
}

References OperationPoolPimpl::index(), and pimpl_.

Referenced by ProGeTools::generateableDAGOperations(), Automagic::generateableDAGOperations(), and FUGen::parseOperations().

Here is the call graph for this function:

operation()

Operation & OperationPool::operation

(

const char *

name

)

Looks up an operation identified by its name and returns a reference to it.

The first found operation is returned. If operation is not found, a null operation is returned.

Parameters

name	The name of the operation.

Returns

The wanted operation.

Definition at line 99 of file OperationPool.cc.

                                         {
    return pimpl_->operation(name);
}

References OperationPoolPimpl::operation(), and pimpl_.

Referenced by TDGen::analyzeMachineVectorRegisterClasses(), ControlFlowGraph::buildMBBFromBB(), AddressSpaceCheck::check(), OperationDAGBuilder::createOperationNode(), TDGen::createSelectPatterns(), FUGen::DAGNodeOperandWidth(), SocketBusConnCmd::Do(), llvm::LLVMTCEBuilder::emitGlobalXXtructorCalls(), OperationDAGSelector::findDags(), TDGen::gatherAllMachineOperations(), ProGeTools::generateableDAGOperations(), Automagic::generateableDAGOperations(), CompiledSimCodeGenerator::generateTriggerCode(), RISCVTDGen::getFormatType(), CompiledSimCodeGenerator::handleOperation(), UniversalFunctionUnit::hasOperation(), MachineConnectivityCheck::isPortApplicableToWidths(), MultiLatencyOperationExecutor::MultiLatencyOperationExecutor(), operandBindingsString(), MachineInfo::operandFromPort(), MachineConnectivityCheck::operandWidth(), OsalInterpreter::operation(), UniversalFunctionUnit::operation(), MachineInfo::osalOperation(), MIDDGNode::osalOperationName(), FUGen::parseOperations(), printLatexFunctionUnitDescription(), ConstantTransformer::runOnMachineFunction(), FUGen::scheduleOperations(), TTAProgram::TerminalFUPort::setHintOperation(), TTAProgram::TerminalFUPort::setOperation(), BFCopyRegWithOp::splitMove(), TDGen::writeInstrInfo(), TDGen::writeIntegerImmediateDefs(), RISCVTDGen::writePatternDefinitions(), TDGen::writeScalarOperationExploitations(), and TDGen::writeVectorLoadStoreOperationExploitations().

Here is the call graph for this function:

operator=()

OperationPool & OperationPool::operator= ( const OperationPool &  )

private

Assignment not allowed.

setLLVMTargetInstrInfo()

void OperationPool::setLLVMTargetInstrInfo ( const llvm::MCInstrInfo *  tid )

static

Used to force loading of OSAL data straight from LLVM backend data instead of the .opp XML files.

Definition at line 132 of file OperationPool.cc.

                                                                {
    OperationPoolPimpl::setLLVMTargetInstrInfo(tid);
}

References OperationPoolPimpl::setLLVMTargetInstrInfo().

Referenced by llvm::LLVMTCEScheduler::runOnMachineFunction().

Here is the call graph for this function:

sharesState()

bool OperationPool::sharesState

(

const Operation &

op

)

Checks globally from all the loaded operations whether the given operation shares state with any of them.

In case another operation affects this operation or vice-versa, they are assumed to share state. The shares-property has to be in only one of the operation's description.

Definition at line 123 of file OperationPool.cc.

                                              {
    return pimpl_->sharesState(op);
}

References pimpl_, and OperationPoolPimpl::sharesState().

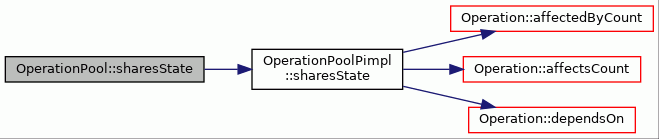

Here is the call graph for this function:

Member Data Documentation

pimpl_

OperationPoolPimpl* OperationPool::pimpl_

private

Private implementation in a separate source file.

Definition at line 71 of file OperationPool.hh.

Referenced by index(), operation(), sharesState(), and ~OperationPool().

---

The documentation for this class was generated from the following files:

• OperationPool.hh
• OperationPool.cc
