Public Member Functions | Static Public Member Functions | Private Types | Private Member Functions | Private Attributes | Static Private Attributes | Friends | List of all members
OperationPoolPimpl Class Reference

#include <OperationPoolPimpl.hh>

Collaboration diagram for OperationPoolPimpl:
Collaboration graph

Public Member Functions

 ~OperationPoolPimpl ()

Operationoperation (const char *name)

OperationIndexindex ()

bool sharesState (const Operation &op)


Static Public Member Functions

static void cleanupCache ()

static void setLLVMTargetInstrInfo (const llvm::MCInstrInfo *tid)


Private Types

typedef std::map< std::string, Operation * > OperationTable
 Container for operations indexed by their names.


Private Member Functions

 OperationPoolPimpl ()

 OperationPoolPimpl (const OperationPoolPimpl &)
 Copying not allowed.

OperationPoolPimploperator= (const OperationPoolPimpl &)
 Assignment not allowed.

OperationloadFromLLVM (const llvm::MCInstrDesc &tid)


Private Attributes

OperationSerializer serializer_


Static Private Attributes

static OperationBehaviorLoaderloader_
 Operation pool uses this to load behavior models of the operations.

static OperationIndexindex_
 Indexed table used to find out which operation module contains the given operation.

static OperationTable operationCache_
 Contains all operations that have been already requested by the client.

static std::vector< OperationBehaviorProxy * > proxies_
 Contains all operation behavior proxies.

static const llvm::MCInstrInfo * llvmTargetInstrInfo_
 If this is set, OSAL data is loaded from the TargetInstrInfo instead of .opp XML files. Used when calling the TCE scheduler from non-TTA LLVM targets.


Friends

class OperationPool


Detailed Description

A private implementation class for OperationPool

Definition at line 53 of file OperationPoolPimpl.hh.

Member Typedef Documentation

◆ OperationTable

typedef std::map<std::string, Operation*> OperationPoolPimpl::OperationTable
private

Container for operations indexed by their names.

Definition at line 71 of file OperationPoolPimpl.hh.

Constructor & Destructor Documentation

◆ ~OperationPoolPimpl()

OperationPoolPimpl::~OperationPoolPimpl ( )

The destructor

Definition at line 90 of file OperationPoolPimpl.cc.

90 {
91}

◆ OperationPoolPimpl() [1/2]

OperationPoolPimpl::OperationPoolPimpl ( )
private

The constructor

Definition at line 75 of file OperationPoolPimpl.cc.

75 {
76 // if this is a first created instance of OperationPool,
77 // initialize the OperationIndex instance with the search paths
78 if (index_ == NULL) {
79 index_ = new OperationIndex();
80 vector<string> paths = Environment::osalPaths();
81 for (unsigned int i = 0; i < paths.size(); i++) {
82 index_->addPath(paths[i]);
83 }
84 }
85}
static std::vector< std::string > osalPaths()
void addPath(const std::string &path)
static OperationIndex * index_
Indexed table used to find out which operation module contains the given operation.

References OperationIndex::addPath(), index_, and Environment::osalPaths().

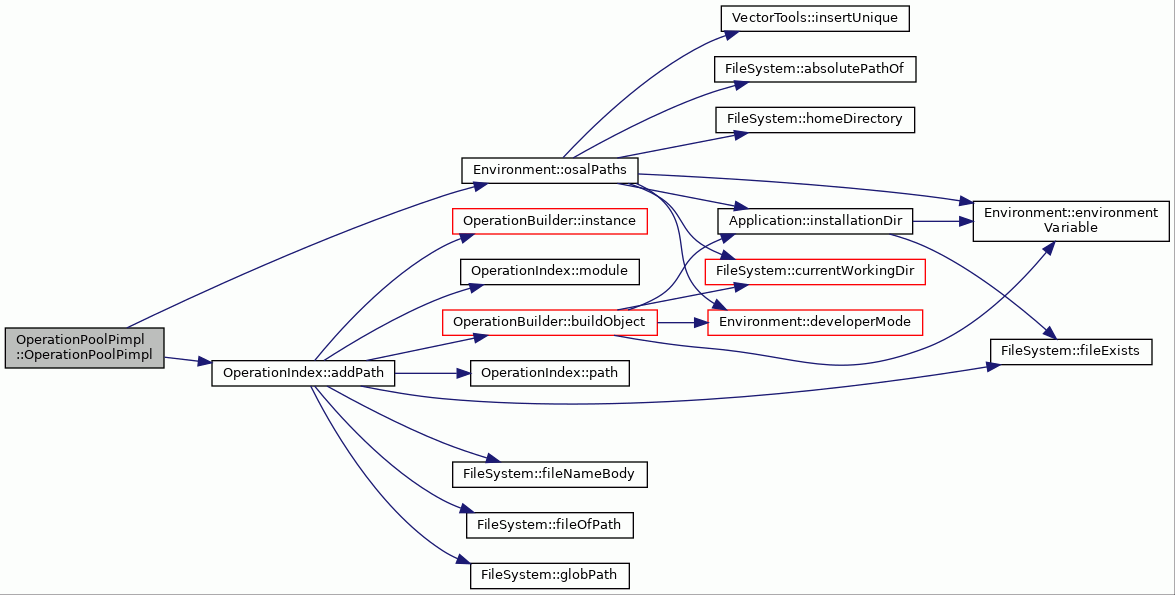

Here is the call graph for this function:

◆ OperationPoolPimpl() [2/2]

OperationPoolPimpl::OperationPoolPimpl ( const OperationPoolPimpl )
private

Copying not allowed.

Member Function Documentation

◆ cleanupCache()

void OperationPoolPimpl::cleanupCache ( )
static

Cleans up the static Operation cache.

Deletes also the Operation instances, so be sure you are not using them after calling this!

Definition at line 100 of file OperationPoolPimpl.cc.

100 {
102 delete index_;
103 index_ = NULL;
104}
static void deleteAllValues(ContainerType &aMap)
static OperationTable operationCache_
Contains all operations that have been already requested by the client.

References AssocTools::deleteAllValues(), index_, and operationCache_.

Referenced by OperationPool::cleanupCache().

Here is the call graph for this function:

◆ index()

OperationIndex & OperationPoolPimpl::index ( )

Returns the operation index of operation pool.

Returns
The operation index.

Definition at line 213 of file OperationPoolPimpl.cc.

213 {
214 assert(index_ != NULL);
215 return *index_;
216}
#define assert(condition)

References assert, and index_.

Referenced by OperationPool::index().

◆ loadFromLLVM()

Operation * OperationPoolPimpl::loadFromLLVM ( const llvm::MCInstrDesc &  tid)
private

Loads an OSAL Operation from LLVM TargetInstrDesc.

Used for avoiding the need for .xml OSAL databases when TCE scheduler is called directly for non-TTA LLVM targets.

Definition at line 164 of file OperationPoolPimpl.cc.

166 {
167 TCEString opName = llvmTargetInstrInfo_->getName(tid.getOpcode()).str();
169
170 unsigned outputs = tid.getNumDefs();
171 unsigned inputs = tid.getNumOperands() - outputs;
172
173 // at least a minimal implicit trigger input
174 // RET of SPU does not include the implicit link register
175 // operand even though it will be generated in the final
176 // assembly to just an absolute jump to it
177 if (inputs == 0)
178 inputs = 1;
179
180 for (unsigned opr = 0; opr < outputs; ++opr) {
181 Operand* operand =
182 new Operand(false, inputs + opr + 1, Operand::UINT_WORD);
183 op->addOutput(operand);
184 }
185
186 for (unsigned opr = 0; opr < inputs; ++opr) {
187 Operand* operand = new Operand(true, opr + 1, Operand::UINT_WORD);
188 op->addInput(operand);
189 }
190 if (tid.isCall()) {
191 op->setCall(true);
192 op->setControlFlowOperation(true);
193 }
194 if (tid.isBranch() || tid.isReturn()) {
195 op->setBranch(true);
196 op->setControlFlowOperation(true);
197 }
198 if (tid.mayLoad()) {
199 op->setReadsMemory(true);
200 }
201 if (tid.mayStore()) {
202 op->setWritesMemory(true);
203 }
204 return op;
205}
static NullOperationBehavior & instance()
@ UINT_WORD
Definition Operand.hh:60
static const llvm::MCInstrInfo * llvmTargetInstrInfo_
If this is set, OSAL data is loaded from the TargetInstrInfo instead of .opp XML files....
virtual void setWritesMemory(bool setting)
Definition Operation.cc:639
virtual void setCall(bool setting)
Definition Operation.cc:359
virtual void addOutput(Operand *operand)
Definition Operation.cc:513
virtual void setControlFlowOperation(bool setting)
Definition Operation.cc:335
virtual void addInput(Operand *operand)
Definition Operation.cc:508
virtual void setBranch(bool setting)
Definition Operation.cc:368
virtual void setReadsMemory(bool setting)
Definition Operation.cc:631

References Operation::addInput(), Operation::addOutput(), NullOperationBehavior::instance(), llvmTargetInstrInfo_, Operation::setBranch(), Operation::setCall(), Operation::setControlFlowOperation(), Operation::setReadsMemory(), Operation::setWritesMemory(), and Operand::UINT_WORD.

Referenced by operation().

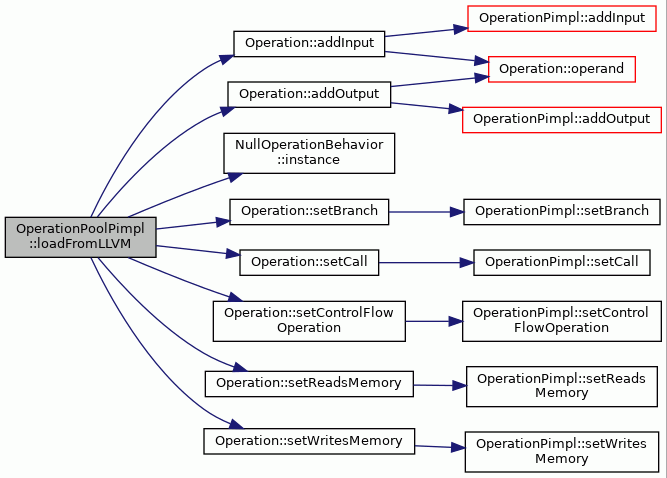

Here is the call graph for this function:

◆ operation()

Operation & OperationPoolPimpl::operation ( const char *  name)

Looks up an operation identified by its name and returns a reference to it.

The first found operation is returned. If operation is not found, a null operation is returned.

Parameters
nameThe name of the operation.
Returns
The wanted operation.

Definition at line 116 of file OperationPoolPimpl.cc.

116 {
117
118 OperationTable::iterator it =
120 if (it != operationCache_.end()) {
121 return *((*it).second);
122 }
123
124 // If llvmTargetInstrInfo_ is set, the scheduler is called
125 // directly from LLVM code gen. Use the TargetInstrDesc as
126 // the source for operation info instead.
127 if (llvmTargetInstrInfo_ != NULL) {
128 for (unsigned opc = 0; opc < llvmTargetInstrInfo_->getNumOpcodes();
129 ++opc) {
130 const llvm::MCInstrDesc& tid = llvmTargetInstrInfo_->get(opc);
131 TCEString operName =
132 TCEString(llvmTargetInstrInfo_->getName(opc).str()).lower();
133 if (operName == TCEString(name).lower()) {
134 Operation* llvmOperation = loadFromLLVM(tid);
135 operationCache_[operName] = llvmOperation;
136 return *llvmOperation;
137 }
138 }
140 TCEString("Did not find info for LLVM operation ") + name);
141 }
142
143 OperationModule& module = index_->moduleOf(name);
144 if (&module == &NullOperationModule::instance()) {
146 }
147
148 Operation* effective = index_->effectiveOperation(name);
149 if (effective != NULL) {
151 return *effective;
152 } else {
153 return NullOperation::instance();
154 }
155}
#define abortWithError(message)
static NullOperationModule & instance()
static NullOperation & instance()
Operation * effectiveOperation(const TCEString &name)
Operation * loadFromLLVM(const llvm::MCInstrDesc &tid)
static std::string stringToLower(const std::string &source)
TCEString lower() const
Definition TCEString.cc:78

References abortWithError, OperationIndex::effectiveOperation(), index_, NullOperation::instance(), NullOperationModule::instance(), llvmTargetInstrInfo_, loadFromLLVM(), TCEString::lower(), operationCache_, and StringTools::stringToLower().

Referenced by OperationPool::operation().

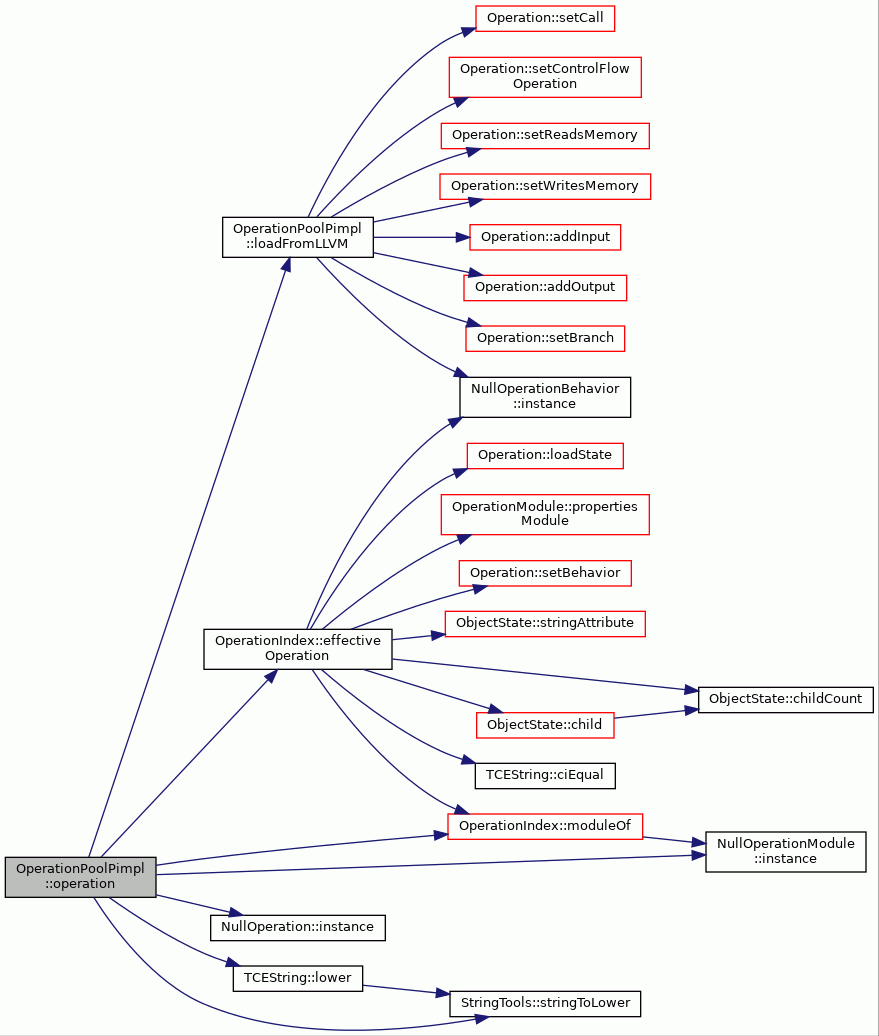

Here is the call graph for this function:

◆ operator=()

OperationPoolPimpl & OperationPoolPimpl::operator= ( const OperationPoolPimpl )
private

Assignment not allowed.

◆ setLLVMTargetInstrInfo()

static void OperationPoolPimpl::setLLVMTargetInstrInfo ( const llvm::MCInstrInfo *  tid)
inlinestatic

Definition at line 64 of file OperationPoolPimpl.hh.

64 {
66 }

References llvmTargetInstrInfo_.

Referenced by OperationPool::setLLVMTargetInstrInfo().

◆ sharesState()

bool OperationPoolPimpl::sharesState ( const Operation op)

Definition at line 219 of file OperationPoolPimpl.cc.

219 {
220 if (op.affectsCount() > 0 || op.affectedByCount() > 0)
221 return true;
222 for (const auto& entry : operationCache_) {
223 const Operation& other = *entry.second;
224 if (other.dependsOn(op))
225 return true;
226 }
227 return false;
228}
virtual int affectedByCount() const
Definition Operation.cc:416
virtual bool dependsOn(const Operation &op) const
Definition Operation.cc:458
virtual int affectsCount() const
Definition Operation.cc:402

References Operation::affectedByCount(), Operation::affectsCount(), Operation::dependsOn(), and operationCache_.

Referenced by OperationPool::sharesState().

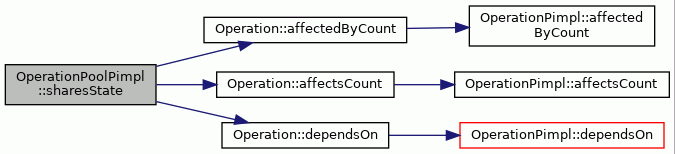

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ OperationPool

friend class OperationPool
friend

Definition at line 55 of file OperationPoolPimpl.hh.

Member Data Documentation

◆ index_

OperationIndex * OperationPoolPimpl::index_
staticprivate

Indexed table used to find out which operation module contains the given operation.

Definition at line 82 of file OperationPoolPimpl.hh.

Referenced by cleanupCache(), index(), operation(), and OperationPoolPimpl().

◆ llvmTargetInstrInfo_

const llvm::MCInstrInfo * OperationPoolPimpl::llvmTargetInstrInfo_
staticprivate

If this is set, OSAL data is loaded from the TargetInstrInfo instead of .opp XML files. Used when calling the TCE scheduler from non-TTA LLVM targets.

Definition at line 93 of file OperationPoolPimpl.hh.

Referenced by loadFromLLVM(), operation(), and setLLVMTargetInstrInfo().

◆ loader_

OperationBehaviorLoader* OperationPoolPimpl::loader_
staticprivate

Operation pool uses this to load behavior models of the operations.

Definition at line 79 of file OperationPoolPimpl.hh.

◆ operationCache_

OperationPoolPimpl::OperationTable OperationPoolPimpl::operationCache_
staticprivate

Contains all operations that have been already requested by the client.

Definition at line 87 of file OperationPoolPimpl.hh.

Referenced by cleanupCache(), operation(), and sharesState().

◆ proxies_

std::vector<OperationBehaviorProxy*> OperationPoolPimpl::proxies_
staticprivate

Contains all operation behavior proxies.

Definition at line 89 of file OperationPoolPimpl.hh.

◆ serializer_

OperationSerializer OperationPoolPimpl::serializer_
private

Definition at line 84 of file OperationPoolPimpl.hh.


The documentation for this class was generated from the following files:
