#include <PIGCmdLineOptions.hh>

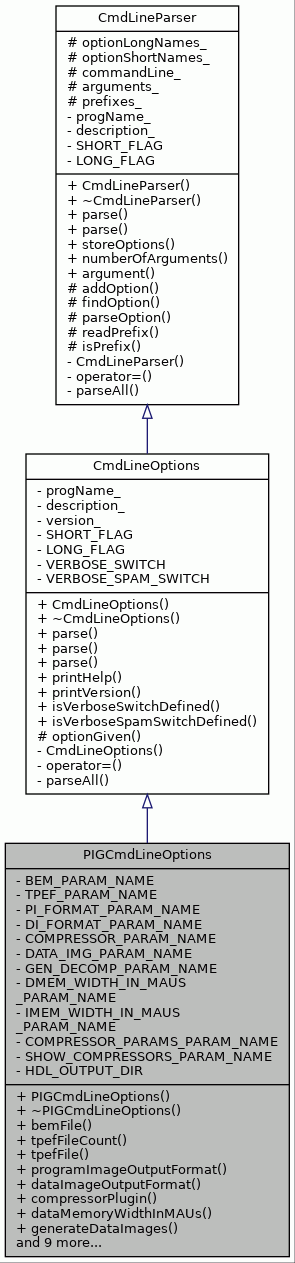

Inheritance diagram for PIGCmdLineOptions:

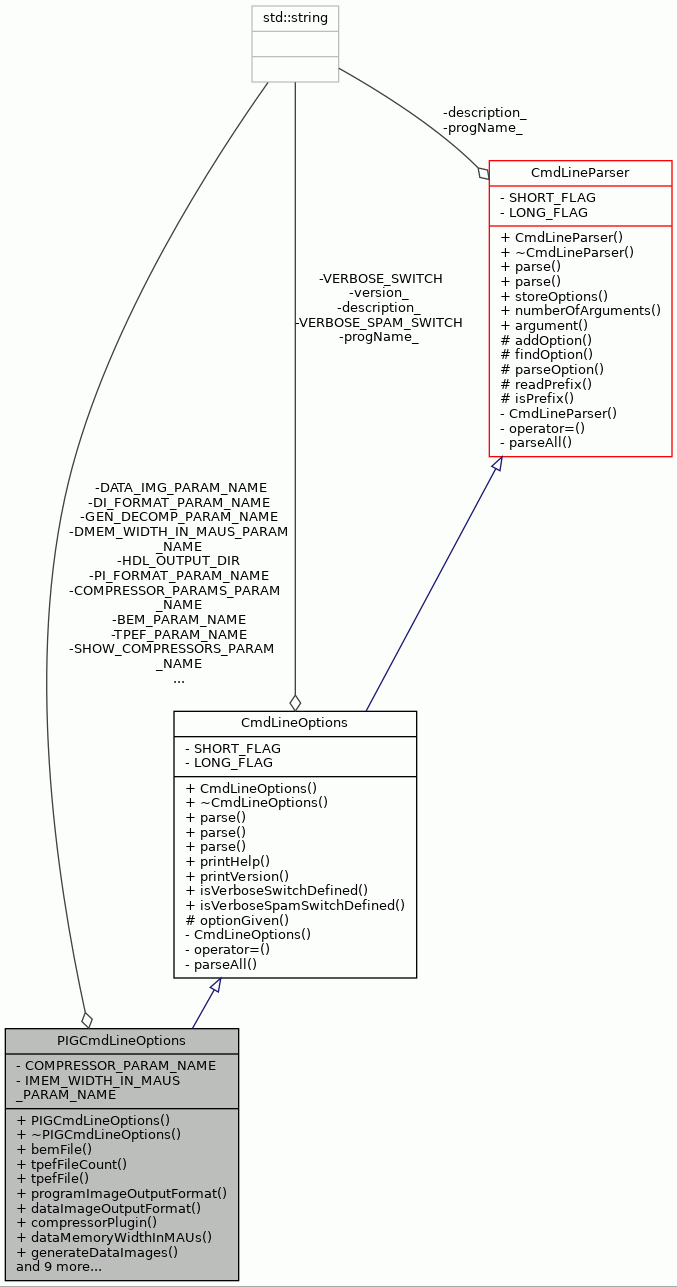

Collaboration diagram for PIGCmdLineOptions:

Public Member Functions
	PIGCmdLineOptions ()

virtual	~PIGCmdLineOptions ()

std::string	bemFile () const

int	tpefFileCount () const

std::string	tpefFile (int index) const

std::string	programImageOutputFormat () const

std::string	dataImageOutputFormat () const

std::string	compressorPlugin () const

int	dataMemoryWidthInMAUs () const

bool	generateDataImages () const

bool	generateDecompressor () const

int	compressorParameterCount () const

std::string	compressorParameter (int index) const

bool	showCompressors () const

std::string	progeOutputDirectory () const

std::string	entityName () const

CmdLineOptionParser *	dataStart () const

virtual void	printVersion () const

virtual void	printHelp () const

void	printUsage () const

Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")

virtual	~CmdLineOptions ()

void	parse (char *argv[], int argc)

void	parse (std::string argv[], int argc)

void	parse (std::vector< std::string > argv)

virtual bool	isVerboseSwitchDefined () const

virtual bool	isVerboseSpamSwitchDefined () const

Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)

virtual	~CmdLineParser ()

virtual void	storeOptions (Options &options)

virtual int	numberOfArguments () const

virtual std::string	argument (int index) const

Static Private Attributes
static const std::string	BEM_PARAM_NAME = "bem"
	Long name of the BEM file parameter.

static const std::string	TPEF_PARAM_NAME = "program"
	Long name of the TPEF file parameter.

static const std::string	PI_FORMAT_PARAM_NAME = "piformat"
	Long name of the program image output format parameter.

static const std::string	DI_FORMAT_PARAM_NAME = "diformat"
	Long name of the data image output format parameter.

static const std::string	COMPRESSOR_PARAM_NAME = "compressor"
	Long name of the plugin file parameter.

static const std::string	DATA_IMG_PARAM_NAME = "dataimages"
	Long name of the parameter that defines whether to create data images.

static const std::string	GEN_DECOMP_PARAM_NAME = "decompressor"
	Long name of the parameter that tells whether to generate decompressor or not.

static const std::string	DMEM_WIDTH_IN_MAUS_PARAM_NAME
	Long name of the parameter that tells the width of data mem in MAUs.

static const std::string	IMEM_WIDTH_IN_MAUS_PARAM_NAME
	Long name of the paramter that tells the width of inst mem in MAUs.

static const std::string	COMPRESSOR_PARAMS_PARAM_NAME
	Long name of parameter passed to code compressor plugin.

static const std::string	SHOW_COMPRESSORS_PARAM_NAME
	Long name of the parameter that tells whether to show compressors.

static const std::string	HDL_OUTPUT_DIR = "hdl-dir"
	Long name of the parameter which tells the proge-output dir.

static const std::string	DATA_START = "data-start"

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const

Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)

CmdLineOptionParser *	findOption (std::string name) const

bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const

bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const

bool	isPrefix (std::string name) const

Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key.

std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key.

std::vector< std::string >	commandLine_
	Command line is stored here.

std::vector< std::string >	arguments_
	Command line arguments are stored here.

std::vector< std::string >	prefixes_
	Legal prefixes are stored here.

Detailed Description

Command line options for the command line interface of PIG (generatebits).

Definition at line 41 of file PIGCmdLineOptions.hh.

Constructor & Destructor Documentation

◆ PIGCmdLineOptions()

PIGCmdLineOptions::PIGCmdLineOptions ( )

The constructor.

Definition at line 62 of file PIGCmdLineOptions.cc.

                                     : CmdLineOptions("") {

    StringListCmdLineOptionParser* tpefFile =
        new StringListCmdLineOptionParser(
            TPEF_PARAM_NAME, "The TPEF program file(s)", "p");
    addOption(tpefFile);

    StringCmdLineOptionParser* bemFile = new StringCmdLineOptionParser(
        BEM_PARAM_NAME, "The BEM file", "b");
    addOption(bemFile);

    StringCmdLineOptionParser* piOutputMode = new StringCmdLineOptionParser(
        PI_FORMAT_PARAM_NAME,
        "The output format of program image(s) ('ascii', 'array', 'mif', "
        "'coe', 'vhdl', 'hex', 'binary' or 'bin2n'). Default is 'ascii'.",
        "f");
    addOption(piOutputMode);

    StringCmdLineOptionParser* diOutputMode = new StringCmdLineOptionParser(
        DI_FORMAT_PARAM_NAME, "The output format of data image(s) "
        "('ascii', 'array', 'mif', 'coe', 'vhdl', 'hex', 'bin2n' or 'binary'). Default "
        "is 'ascii'.", "o");
    addOption(diOutputMode);

    StringCmdLineOptionParser* pluginFile = new StringCmdLineOptionParser(
        COMPRESSOR_PARAM_NAME, "Name of the code compressor plugin file.",
        "c");
    addOption(pluginFile);

    BoolCmdLineOptionParser* createDataImages = new BoolCmdLineOptionParser(
        DATA_IMG_PARAM_NAME,
        "Create data images.",
        "d");
    addOption(createDataImages);

    BoolCmdLineOptionParser* createDecompressor =
        new BoolCmdLineOptionParser(
            GEN_DECOMP_PARAM_NAME, "Generate decompressor block.", "g");
    addOption(createDecompressor);

    IntegerCmdLineOptionParser* dmemMAUsPerLine =
        new IntegerCmdLineOptionParser(
            DMEM_WIDTH_IN_MAUS_PARAM_NAME,
            "Width of data memory in MAUs. Default is 1.", "w");
    addOption(dmemMAUsPerLine);

    StringListCmdLineOptionParser* compressorParams =
        new StringListCmdLineOptionParser(
            COMPRESSOR_PARAMS_PARAM_NAME,
            "Parameter to the code compressor in form 'name=value'.", "u");
    addOption(compressorParams);

    BoolCmdLineOptionParser* showCompressors = new BoolCmdLineOptionParser(
        SHOW_COMPRESSORS_PARAM_NAME, "Show compressor plugin descriptions.",
        "s");
    addOption(showCompressors);

    string hdlDirDesc("Directory root where ProGe generated HDL files. "
                      "Generatebits will write imem_mau_pkg and "
                      "decompressor, if it is needed, under the given "
                      "directory. Otherwise they are written to cwd.");

    StringCmdLineOptionParser* hdlDir = new StringCmdLineOptionParser(
        HDL_OUTPUT_DIR, hdlDirDesc, "x");
    addOption(hdlDir);

    string dataStartDesc(
        "Data-start option is used "
        "to set the global data start address for the address spaces. "
        "The default is the first address of the address space. "
        "data-start option must either be just the start "
        "of the default address space (a single unsigned integer), "
        "or a list consisting of pairs: "
        "<Address-Space Name>,<Address-Space Start>");
    StringListCmdLineOptionParser* dataStart =
        new StringListCmdLineOptionParser(DATA_START, dataStartDesc);
    addOption(dataStart);

    StringCmdLineOptionParser* entityName =
        new StringCmdLineOptionParser(
            ENTITY_NAME,
            "String to use to make the generated VHDL entities unique. This "
            "should be the same which was given to ProGe when the processor "
            "was generated (default is 'tta0').", "e");
    addOption(entityName);
}

References CmdLineParser::addOption(), BEM_PARAM_NAME, bemFile(), COMPRESSOR_PARAM_NAME, COMPRESSOR_PARAMS_PARAM_NAME, DATA_IMG_PARAM_NAME, DATA_START, dataStart(), DI_FORMAT_PARAM_NAME, DMEM_WIDTH_IN_MAUS_PARAM_NAME, ENTITY_NAME, entityName(), GEN_DECOMP_PARAM_NAME, HDL_OUTPUT_DIR, PI_FORMAT_PARAM_NAME, SHOW_COMPRESSORS_PARAM_NAME, showCompressors(), TPEF_PARAM_NAME, and tpefFile().

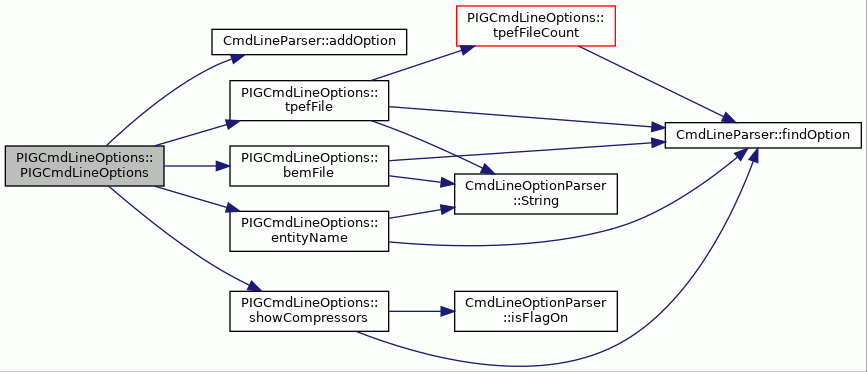

Here is the call graph for this function:

◆ ~PIGCmdLineOptions()

PIGCmdLineOptions::~PIGCmdLineOptions ( )

virtual

The destructor.

Definition at line 153 of file PIGCmdLineOptions.cc.

153 {

154}

Member Function Documentation

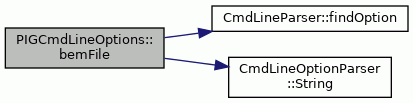

◆ bemFile()

std::string PIGCmdLineOptions::bemFile ( ) const

Returns the name of the BEM file given as command line parameter.

Returns: The name of the BEM file.

Definition at line 163 of file PIGCmdLineOptions.cc.

                                 {
    return findOption(BEM_PARAM_NAME)->String();
}

References BEM_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by PIGCmdLineOptions().

Here is the call graph for this function:

◆ compressorParameter()

std::string PIGCmdLineOptions::compressorParameter ( int index ) const

By the given index, returns a parameter given to code compressor.

Parameters

index The index.

Exceptions

OutOfRange If the given index is negative or not smaller than the number of parameters given to compressor.

Definition at line 281 of file PIGCmdLineOptions.cc.

                                                      {
    if (index < 0 || index >= compressorParameterCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return findOption(COMPRESSOR_PARAMS_PARAM_NAME)->String(index + 1);
}

References __func__, COMPRESSOR_PARAMS_PARAM_NAME, compressorParameterCount(), CmdLineParser::findOption(), and CmdLineOptionParser::String().

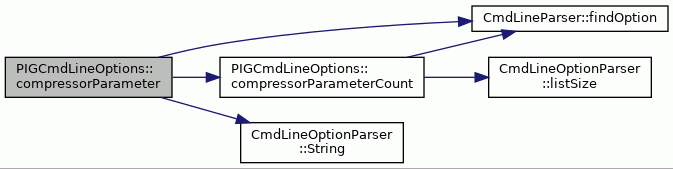

Here is the call graph for this function:

◆ compressorParameterCount()

int PIGCmdLineOptions::compressorParameterCount ( ) const

Returns the number of parameters given to compressor.

Returns: The number of parameters.

Definition at line 268 of file PIGCmdLineOptions.cc.

                                                  {
    return findOption(COMPRESSOR_PARAMS_PARAM_NAME)->listSize();
}

References COMPRESSOR_PARAMS_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::listSize().

Referenced by compressorParameter().

Here is the call graph for this function:

◆ compressorPlugin()

std::string PIGCmdLineOptions::compressorPlugin ( ) const

Returns the code compressor plugin file name.

Returns: The plugin file.

Definition at line 222 of file PIGCmdLineOptions.cc.

                                          {
    return findOption(COMPRESSOR_PARAM_NAME)->String();
}

References COMPRESSOR_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Here is the call graph for this function:

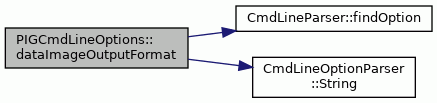

◆ dataImageOutputFormat()

std::string PIGCmdLineOptions::dataImageOutputFormat ( ) const

Returns the data image output format given as command line parameter.

Returns: The output format.

Definition at line 211 of file PIGCmdLineOptions.cc.

                                               {
    return findOption(DI_FORMAT_PARAM_NAME)->String();
}

References DI_FORMAT_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Here is the call graph for this function:

◆ dataMemoryWidthInMAUs()

int PIGCmdLineOptions::dataMemoryWidthInMAUs ( ) const

Returns the given width of data memory in MAUs.

Returns: The width.

Definition at line 233 of file PIGCmdLineOptions.cc.

                                               {
    CmdLineOptionParser* option = findOption(
        DMEM_WIDTH_IN_MAUS_PARAM_NAME);
    if (option->isDefined()) {
        return option->integer();
    } else {
        return 1;
    }
}

References DMEM_WIDTH_IN_MAUS_PARAM_NAME, CmdLineParser::findOption(), CmdLineOptionParser::integer(), and CmdLineOptionParser::isDefined().

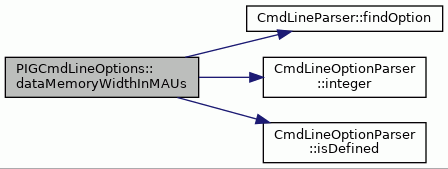

Here is the call graph for this function:

◆ dataStart()

CmdLineOptionParser * PIGCmdLineOptions::dataStart ( ) const

Definition at line 308 of file PIGCmdLineOptions.cc.

                                   {
    return findOption(DATA_START);
}

References DATA_START, and CmdLineParser::findOption().

Referenced by PIGCmdLineOptions().

Here is the call graph for this function:

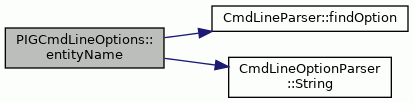

◆ entityName()

std::string PIGCmdLineOptions::entityName ( ) const

Definition at line 313 of file PIGCmdLineOptions.cc.

                                    {
    return findOption(ENTITY_NAME)->String();
}

References ENTITY_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by PIGCmdLineOptions().

Here is the call graph for this function:

◆ generateDataImages()

bool PIGCmdLineOptions::generateDataImages ( ) const

Tells whether to create data images or not.

Definition at line 248 of file PIGCmdLineOptions.cc.

                                            {
    return findOption(DATA_IMG_PARAM_NAME)->isFlagOn();
}

References DATA_IMG_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

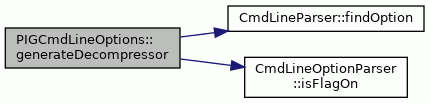

◆ generateDecompressor()

bool PIGCmdLineOptions::generateDecompressor ( ) const

Tells whether to generate decompressor block or not.

Definition at line 257 of file PIGCmdLineOptions.cc.

                                              {
    return findOption(GEN_DECOMP_PARAM_NAME)->isFlagOn();
}

References CmdLineParser::findOption(), GEN_DECOMP_PARAM_NAME, and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

◆ printHelp()

void PIGCmdLineOptions::printHelp ( ) const

virtual

Prints the help menu of the program.

Reimplemented from CmdLineOptions.

Definition at line 336 of file PIGCmdLineOptions.cc.

                                   {
    printVersion();
    printUsage();
    CmdLineOptions::printHelp();
}

References CmdLineOptions::printHelp(), printUsage(), and printVersion().

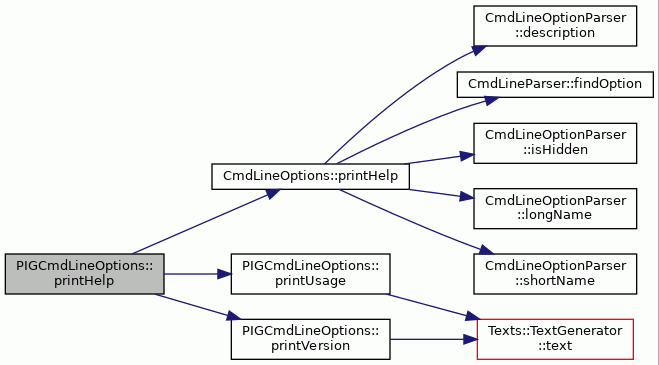

Here is the call graph for this function:

◆ printUsage()

void PIGCmdLineOptions::printUsage ( ) const

Prints the usage of the CLI.

Definition at line 347 of file PIGCmdLineOptions.cc.

                                    {
    PIGCLITextGenerator textGen;
    std::cerr << textGen.text(PIGCLITextGenerator::TXT_CLI_USAGE).str()
              << std::endl;
}

References Texts::TextGenerator::text(), and PIGCLITextGenerator::TXT_CLI_USAGE.

Referenced by printHelp().

Here is the call graph for this function:

◆ printVersion()

void PIGCmdLineOptions::printVersion ( ) const

virtual

Prints the version of the user interface.

Implements CmdLineOptions.

Definition at line 322 of file PIGCmdLineOptions.cc.

                                      {
    PIGCLITextGenerator textGenerator;
    std::cerr <<
        textGenerator.text(PIGCLITextGenerator::TXT_CLI_TITLE).str()
              << " "
              << textGenerator.text(PIGCLITextGenerator::TXT_CLI_VERSION).
        str() << std::endl;
}

References Texts::TextGenerator::text(), PIGCLITextGenerator::TXT_CLI_TITLE, and PIGCLITextGenerator::TXT_CLI_VERSION.

Referenced by printHelp().

Here is the call graph for this function:

◆ progeOutputDirectory()

std::string PIGCmdLineOptions::progeOutputDirectory ( ) const

Returns the proge output directory. Empty if not given

Returns: proge output directory

Definition at line 303 of file PIGCmdLineOptions.cc.

                                              {
    return findOption(HDL_OUTPUT_DIR)->String();
}

References CmdLineParser::findOption(), HDL_OUTPUT_DIR, and CmdLineOptionParser::String().

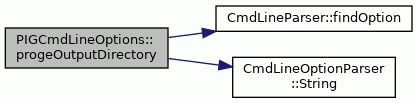

Here is the call graph for this function:

◆ programImageOutputFormat()

std::string PIGCmdLineOptions::programImageOutputFormat ( ) const

Returns the program image output format given as command line parameter.

Returns: The output format.

Definition at line 200 of file PIGCmdLineOptions.cc.

                                                  {
    return findOption(PI_FORMAT_PARAM_NAME)->String();
}

References CmdLineParser::findOption(), PI_FORMAT_PARAM_NAME, and CmdLineOptionParser::String().

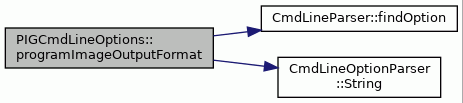

Here is the call graph for this function:

◆ showCompressors()

bool PIGCmdLineOptions::showCompressors ( ) const

Tells whether to show code compressor descriptions or not.

Definition at line 293 of file PIGCmdLineOptions.cc.

                                         {
    return findOption(SHOW_COMPRESSORS_PARAM_NAME)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SHOW_COMPRESSORS_PARAM_NAME.

Referenced by PIGCmdLineOptions().

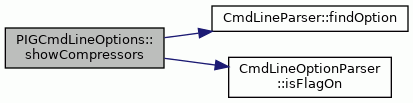

Here is the call graph for this function:

◆ tpefFile()

std::string PIGCmdLineOptions::tpefFile ( int index ) const

Returns the name of the TPEF file given as command line parameter.

Returns: The name of the TPEF file.

Definition at line 185 of file PIGCmdLineOptions.cc.

                                           {
    CmdLineOptionParser* option = findOption(TPEF_PARAM_NAME);
    if (index < 0 || index >= tpefFileCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return option->String(index + 1);
}

References __func__, CmdLineParser::findOption(), CmdLineOptionParser::String(), TPEF_PARAM_NAME, and tpefFileCount().

Referenced by PIGCmdLineOptions().

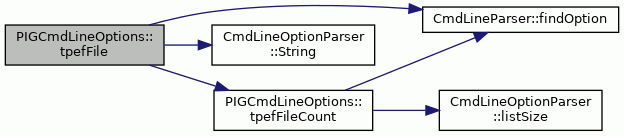

Here is the call graph for this function:

◆ tpefFileCount()

int PIGCmdLineOptions::tpefFileCount ( ) const

Returns the number of TPEF files given.

Returns: The number of TPEF files.

Definition at line 174 of file PIGCmdLineOptions.cc.

                                       {
    return findOption(TPEF_PARAM_NAME)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and TPEF_PARAM_NAME.

Referenced by tpefFile().

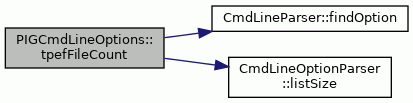

Here is the call graph for this function:

Member Data Documentation

◆ BEM_PARAM_NAME

const std::string PIGCmdLineOptions::BEM_PARAM_NAME = "bem"

staticprivate

Long name of the BEM file parameter.

Definition at line 67 of file PIGCmdLineOptions.hh.

Referenced by bemFile(), and PIGCmdLineOptions().

◆ COMPRESSOR_PARAM_NAME

const std::string PIGCmdLineOptions::COMPRESSOR_PARAM_NAME = "compressor"

staticprivate

Long name of the plugin file parameter.

Definition at line 75 of file PIGCmdLineOptions.hh.

Referenced by compressorPlugin(), and PIGCmdLineOptions().

◆ COMPRESSOR_PARAMS_PARAM_NAME

const std::string PIGCmdLineOptions::COMPRESSOR_PARAMS_PARAM_NAME

staticprivate

Initial value:

=

"compressor param"

Long name of parameter passed to code compressor plugin.

Definition at line 87 of file PIGCmdLineOptions.hh.

Referenced by compressorParameter(), compressorParameterCount(), and PIGCmdLineOptions().

◆ DATA_IMG_PARAM_NAME

const std::string PIGCmdLineOptions::DATA_IMG_PARAM_NAME = "dataimages"

staticprivate

Long name of the parameter that defines whether to create data images.

Definition at line 78 of file PIGCmdLineOptions.hh.

Referenced by generateDataImages(), and PIGCmdLineOptions().

◆ DATA_START

const std::string PIGCmdLineOptions::DATA_START = "data-start"

staticprivate

Definition at line 93 of file PIGCmdLineOptions.hh.

Referenced by dataStart(), and PIGCmdLineOptions().

◆ DI_FORMAT_PARAM_NAME

const std::string PIGCmdLineOptions::DI_FORMAT_PARAM_NAME = "diformat"

staticprivate

Long name of the data image output format parameter.

Definition at line 73 of file PIGCmdLineOptions.hh.

Referenced by dataImageOutputFormat(), and PIGCmdLineOptions().

◆ DMEM_WIDTH_IN_MAUS_PARAM_NAME

const std::string PIGCmdLineOptions::DMEM_WIDTH_IN_MAUS_PARAM_NAME

staticprivate

Initial value:

=

"dmemwidthinmaus"

Long name of the parameter that tells the width of data mem in MAUs.

Definition at line 83 of file PIGCmdLineOptions.hh.

Referenced by dataMemoryWidthInMAUs(), and PIGCmdLineOptions().

◆ GEN_DECOMP_PARAM_NAME

const std::string PIGCmdLineOptions::GEN_DECOMP_PARAM_NAME = "decompressor"

staticprivate

Long name of the parameter that tells whether to generate decompressor or not.

Definition at line 81 of file PIGCmdLineOptions.hh.

Referenced by generateDecompressor(), and PIGCmdLineOptions().

◆ HDL_OUTPUT_DIR

const std::string PIGCmdLineOptions::HDL_OUTPUT_DIR = "hdl-dir"

staticprivate

Long name of the parameter which tells the proge-output dir.

Definition at line 91 of file PIGCmdLineOptions.hh.

Referenced by PIGCmdLineOptions(), and progeOutputDirectory().

◆ IMEM_WIDTH_IN_MAUS_PARAM_NAME

const std::string PIGCmdLineOptions::IMEM_WIDTH_IN_MAUS_PARAM_NAME

staticprivate

Long name of the paramter that tells the width of inst mem in MAUs.

Definition at line 85 of file PIGCmdLineOptions.hh.

◆ PI_FORMAT_PARAM_NAME

const std::string PIGCmdLineOptions::PI_FORMAT_PARAM_NAME = "piformat"

staticprivate

Long name of the program image output format parameter.

Definition at line 71 of file PIGCmdLineOptions.hh.

Referenced by PIGCmdLineOptions(), and programImageOutputFormat().

◆ SHOW_COMPRESSORS_PARAM_NAME

const std::string PIGCmdLineOptions::SHOW_COMPRESSORS_PARAM_NAME

staticprivate

Initial value:

=

"showcompressors"

Long name of the parameter that tells whether to show compressors.

Definition at line 89 of file PIGCmdLineOptions.hh.

Referenced by PIGCmdLineOptions(), and showCompressors().

◆ TPEF_PARAM_NAME

const std::string PIGCmdLineOptions::TPEF_PARAM_NAME = "program"

staticprivate

Long name of the TPEF file parameter.

Definition at line 69 of file PIGCmdLineOptions.hh.

Referenced by PIGCmdLineOptions(), tpefFile(), and tpefFileCount().

The documentation for this class was generated from the following files:

Public Member Functions

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PIGCmdLineOptions()

◆ ~PIGCmdLineOptions()

Member Function Documentation

◆ bemFile()

◆ compressorParameter()

◆ compressorParameterCount()

◆ compressorPlugin()

◆ dataImageOutputFormat()

◆ dataMemoryWidthInMAUs()

◆ dataStart()

◆ entityName()

◆ generateDataImages()

◆ generateDecompressor()

◆ printHelp()

◆ printUsage()

◆ printVersion()

◆ progeOutputDirectory()

◆ programImageOutputFormat()

◆ showCompressors()

◆ tpefFile()

◆ tpefFileCount()

Member Data Documentation

◆ BEM_PARAM_NAME

◆ COMPRESSOR_PARAM_NAME

◆ COMPRESSOR_PARAMS_PARAM_NAME

◆ DATA_IMG_PARAM_NAME

◆ DATA_START

◆ DI_FORMAT_PARAM_NAME

◆ DMEM_WIDTH_IN_MAUS_PARAM_NAME

◆ GEN_DECOMP_PARAM_NAME

◆ HDL_OUTPUT_DIR

◆ IMEM_WIDTH_IN_MAUS_PARAM_NAME

◆ PI_FORMAT_PARAM_NAME

◆ SHOW_COMPRESSORS_PARAM_NAME

◆ TPEF_PARAM_NAME
