#include <CmdLineOptions.hh>

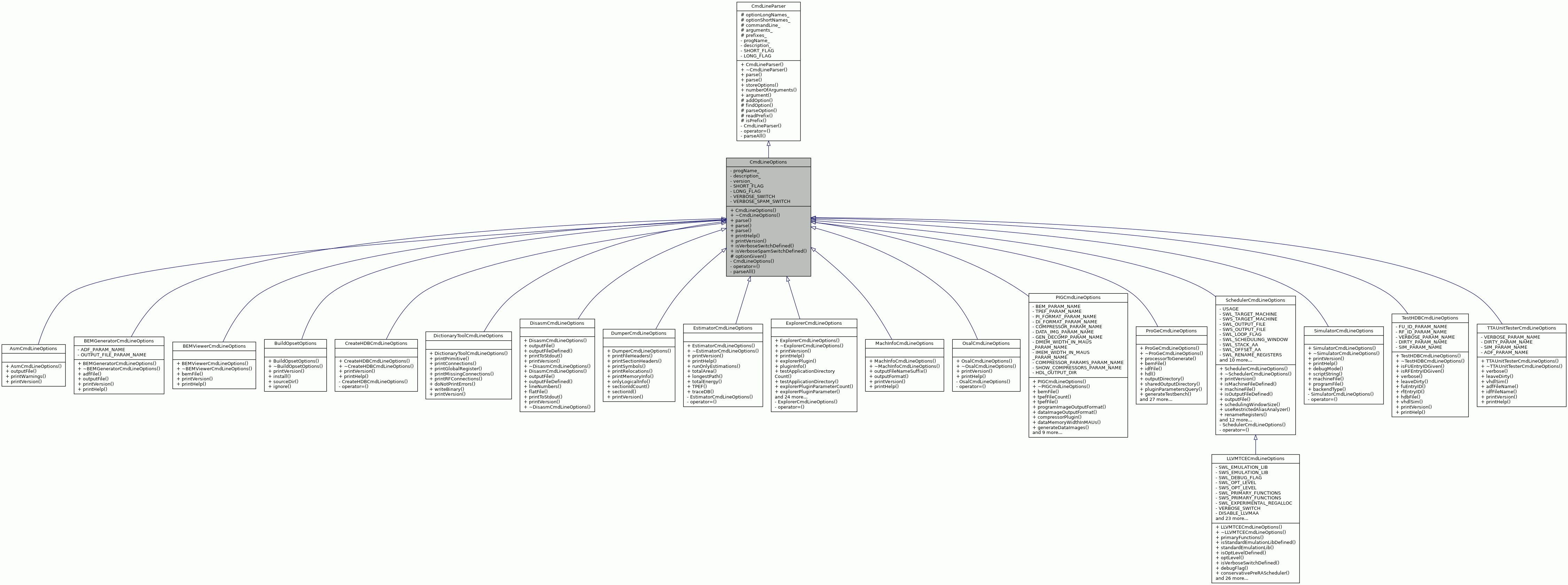

Inheritance diagram for CmdLineOptions:

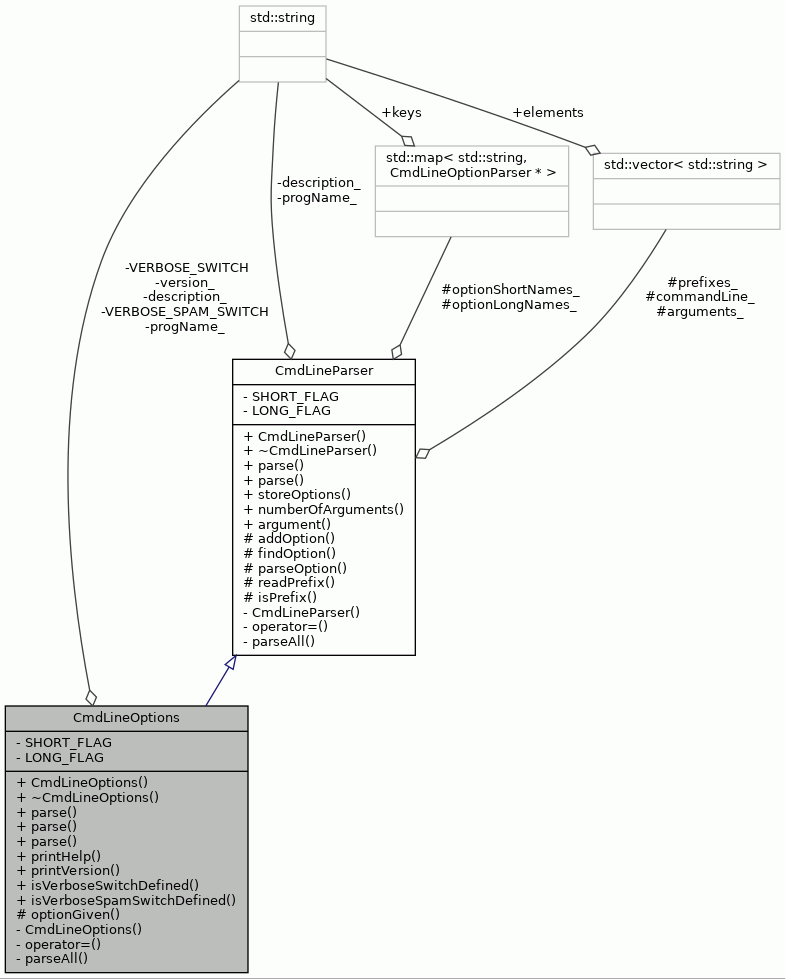

Collaboration diagram for CmdLineOptions:

Public Member Functions
	CmdLineOptions (std::string description, std::string version="")

virtual	~CmdLineOptions ()

void	parse (char *argv[], int argc)

void	parse (std::string argv[], int argc)

void	parse (std::vector< std::string > argv)

virtual void	printHelp () const

virtual void	printVersion () const =0

virtual bool	isVerboseSwitchDefined () const

virtual bool	isVerboseSpamSwitchDefined () const

Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)

virtual	~CmdLineParser ()

virtual void	storeOptions (Options &options)

virtual int	numberOfArguments () const

virtual std::string	argument (int index) const

Protected Member Functions
bool	optionGiven (std::string key) const

Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)

CmdLineOptionParser *	findOption (std::string name) const

bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const

bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const

bool	isPrefix (std::string name) const

Private Types
typedef std::map< std::string, CmdLineOptionParser * >::value_type	valType
	For adding new values to maps.

typedef std::map< std::string, CmdLineOptionParser * >::iterator	mapIter
	For traversing non-const maps.

typedef std::map< std::string, CmdLineOptionParser * >::const_iterator	constMapIter
	For traversing const maps.

Private Member Functions
	CmdLineOptions (const CmdLineOptions &)
	Copying not allowed.

CmdLineOptions &	operator= (const CmdLineOptions &)
	Assignment not allowed.

void	parseAll ()

Private Attributes
std::string	progName_
	The name of the program.

std::string	description_
	The description of usage of program.

std::string	version_
	The version of the program.

Static Private Attributes
static const int	SHORT_FLAG = 2
	Number of characters reserved for printing short version of commandline flag.

static const int	LONG_FLAG = 22
	Number of characters reserved for printing long version of commandline flag.

static const std::string	VERBOSE_SWITCH = "verbose"
	Switch for verbose output listing scheduler modules.

static const std::string	VERBOSE_SPAM_SWITCH = "verbose_spam"
	Switch for verbose output listing spam from scheduler internals.

Additional Inherited Members
Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key.

std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key.

std::vector< std::string >	commandLine_
	Command line is stored here.

std::vector< std::string >	arguments_
	Command line arguments are stored here.

std::vector< std::string >	prefixes_
	Legal prefixes are stored here.

Detailed Description

Abstract base class for command line parsers.

Is capable of storing and parsing commmand line options.

Definition at line 54 of file CmdLineOptions.hh.

Member Typedef Documentation

◆ constMapIter

typedef std::map<std::string,CmdLineOptionParser*>::const_iterator CmdLineOptions::constMapIter

private

For traversing const maps.

Definition at line 77 of file CmdLineOptions.hh.

◆ mapIter

typedef std::map<std::string,CmdLineOptionParser*>::iterator CmdLineOptions::mapIter

private

For traversing non-const maps.

Definition at line 74 of file CmdLineOptions.hh.

◆ valType

typedef std::map<std::string,CmdLineOptionParser*>::value_type CmdLineOptions::valType

private

For adding new values to maps.

Definition at line 72 of file CmdLineOptions.hh.

Constructor & Destructor Documentation

◆ CmdLineOptions() [1/2]

CmdLineOptions::CmdLineOptions	(	std::string	description,
		std::string	version = `""`
	)

Constructor.

Parameters

description Brief description of the program and how to use it. Only prefix is currently "no-".

Definition at line 73 of file CmdLineOptions.cc.

                       :
    CmdLineParser(description),
    progName_(""),
    description_(description),
    version_(version) {

    BoolCmdLineOptionParser* verboseSwitch =
        new BoolCmdLineOptionParser(
            VERBOSE_SWITCH, "The verbose switch", "v");
    addOption(verboseSwitch);

    BoolCmdLineOptionParser* verboseSpamSwitch =
        new BoolCmdLineOptionParser(
            VERBOSE_SPAM_SWITCH, "The verbose spam - switch", "V");
    addOption(verboseSpamSwitch);
}

References CmdLineParser::addOption(), VERBOSE_SPAM_SWITCH, and VERBOSE_SWITCH.

Here is the call graph for this function:

◆ ~CmdLineOptions()

CmdLineOptions::~CmdLineOptions ( )

virtual

Destructor.

Definition at line 95 of file CmdLineOptions.cc.

95 {

96}

◆ CmdLineOptions() [2/2]

CmdLineOptions::CmdLineOptions ( const CmdLineOptions & )

private

Copying not allowed.

Member Function Documentation

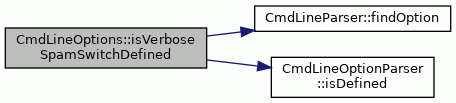

◆ isVerboseSpamSwitchDefined()

bool CmdLineOptions::isVerboseSpamSwitchDefined ( ) const

virtual

Return true if the verbose spam switch was defined in the command line.

Returns: True if the verbose spam switch was defined in the command line.

Definition at line 310 of file CmdLineOptions.cc.

                                                 {
    return findOption(VERBOSE_SPAM_SWITCH)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and VERBOSE_SPAM_SWITCH.

Referenced by GenerateProcessor::generateProcessor(), main(), and Application::setCmdLineOptions().

Here is the call graph for this function:

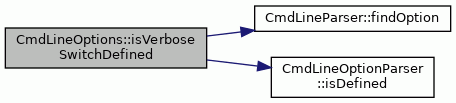

◆ isVerboseSwitchDefined()

bool CmdLineOptions::isVerboseSwitchDefined ( ) const

virtual

Return true if the verbose switch was defined in the command line.

Returns: True if the verbose switch was defined in the command line.

Reimplemented in LLVMTCECmdLineOptions.

Definition at line 300 of file CmdLineOptions.cc.

                                             {
    return findOption(VERBOSE_SWITCH)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and VERBOSE_SWITCH.

Referenced by GenerateProcessor::generateProcessor(), main(), Application::setCmdLineOptions(), and llvm::LLVMTCEIRBuilder::~LLVMTCEIRBuilder().

Here is the call graph for this function:

◆ operator=()

CmdLineOptions & CmdLineOptions::operator= ( const CmdLineOptions & )

private

Assignment not allowed.

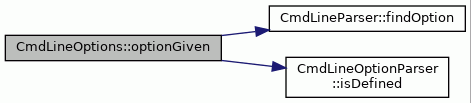

◆ optionGiven()

bool CmdLineOptions::optionGiven ( std::string key ) const

protected

Returns true if there is a value available for given option.

Returns: True if the option is defined.

Todo:: : This returns always true if trying to find added CmdLineOption...

Definition at line 320 of file CmdLineOptions.cc.

                                               {
    try {
        /// @todo: This returns always true if trying to find added
        /// CmdLineOption...
        return findOption(key)->isDefined();
    } catch (const IllegalCommandLine&) {
        return false;
    }
    return true;
}

References CmdLineParser::findOption(), and CmdLineOptionParser::isDefined().

Referenced by SimulatorCmdLineOptions::backendType(), SimulatorCmdLineOptions::debugMode(), SchedulerCmdLineOptions::dumpIfConversionCFGs(), SchedulerCmdLineOptions::enableOffsetAA(), SchedulerCmdLineOptions::enableStackAA(), SchedulerCmdLineOptions::killDeadResults(), SchedulerCmdLineOptions::printResourceConstraints(), SchedulerCmdLineOptions::renameRegisters(), and SimulatorCmdLineOptions::scriptString().

Here is the call graph for this function:

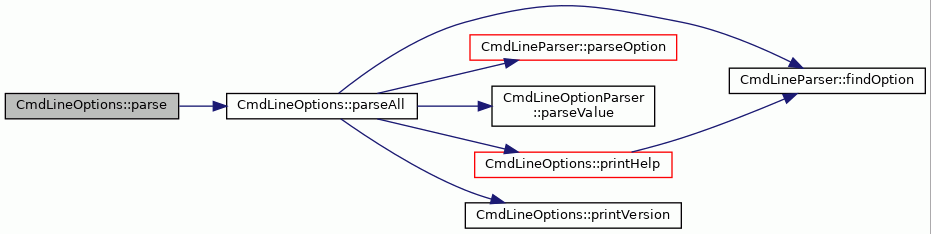

◆ parse() [1/3]

void CmdLineOptions::parse	(	char *	argv[],
		int	argc
	)

virtual

Loads all command line arguments and parses them.

Parameters

options	Command line options pre-parsed in char* array.
argc	The number of command line options.

Exceptions

IllegalCommandLine	If parsing is not succesfull.
ParserStopRequest	If help or version option is found.

Reimplemented from CmdLineParser.

Definition at line 107 of file CmdLineOptions.cc.

                                            {
    // command line is emptied
    commandLine_.clear();
    progName_ = string(argv[0]);

    for (int i = 1; i < argc; i++) {
        commandLine_.push_back(string(argv[i]));
    }

    parseAll();
}

References CmdLineParser::commandLine_, parseAll(), and progName_.

Referenced by GenerateProcessor::generateProcessor(), llvm::LLVMTCEScheduler::LLVMTCEScheduler(), and main().

Here is the call graph for this function:

◆ parse() [2/3]

void CmdLineOptions::parse	(	std::string	argv[],
		int	argc
	)

Loads all command line arguments and parses them.

Parameters

options	Command line options pre-parsed in string array.
argc	The number of command line options.

Exceptions

IllegalCommandLine	If parsing is not succesfull.
ParserStopRequest	If help or version option is found.

Definition at line 128 of file CmdLineOptions.cc.

                                             {
    // command line is emptied
    commandLine_.clear();
    progName_ = argv[0];

    for (int i = 1; i < argc; i++) {
        commandLine_.push_back(argv[i]);
    }

    parseAll();
}

References CmdLineParser::commandLine_, parseAll(), and progName_.

Here is the call graph for this function:

◆ parse() [3/3]

void CmdLineOptions::parse ( std::vector< std::string > argv )

virtual

Loads all command line arguments and parses them.

Parameters

options Command line options pre-parsed in string vector.

Exceptions

IllegalCommandLine	If parsing is not succesfull.
ParserStopRequest	If help or version option is found.

Reimplemented from CmdLineParser.

Definition at line 147 of file CmdLineOptions.cc.

                                            {
    // command line is emptied
    commandLine_.clear();
    progName_ = argv.at(0);

    for (unsigned int i = 1; i < argv.size(); i++) {
        commandLine_.push_back(argv[i]);
    }

    parseAll();
}

References CmdLineParser::commandLine_, parseAll(), and progName_.

Here is the call graph for this function:

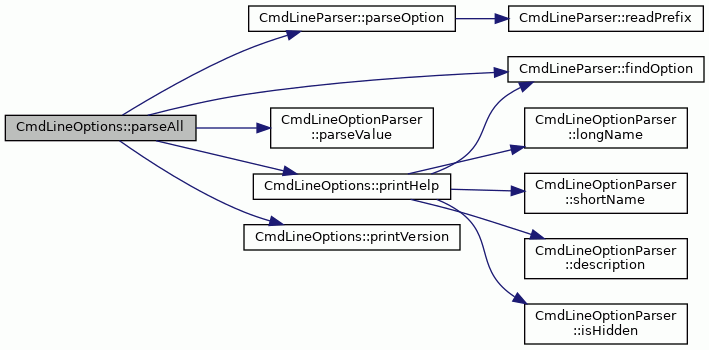

◆ parseAll()

void CmdLineOptions::parseAll ( )

private

Parses all command line options.

Exceptions

IllegalCommandLine	If parsing fails.
ParserStopRequest	The client should not proceed.

Definition at line 165 of file CmdLineOptions.cc.

                         {
    // finished is set to true when options are parsed and the rest are
    // command line arguments
    bool finished = false;

    // checkArguments is set to false when command line arguments can start
    // with "-" or "--"
    bool checkArguments = true;
    unsigned int i = 0;

    while (i < commandLine_.size()) {
        string optString = commandLine_[i];

        if (!finished) {
            string prefix = "";
            string name = "";
            string arguments = "";

            // hasArgument is true when option has argument
            bool hasArgument = true;

            if (!parseOption(
                    optString, name, arguments, prefix, hasArgument)) {
                finished = true;
                if (optString == "--") {
                    checkArguments = false;
                    i++;
                    continue;
                } else {
                    arguments_.push_back(optString);
                    i++;
                    continue;
                }
            }

        //
            if (name == "help" || name == "h") {
                printHelp();
                string msg = "The client should not proceed";
                string method = "CmdLineParser::parseAll()";
                throw ParserStopRequest(__FILE__, __LINE__, method, msg);
            } else if (name == "version") {
                printVersion();
                string msg = "The client should not proceed";
                string method = "CmdLineParser::parseAll()";
                throw ParserStopRequest(__FILE__, __LINE__, method, msg);
            }

            CmdLineOptionParser* opt = findOption(name);

            if (arguments == "" &&
                dynamic_cast<BoolCmdLineOptionParser*>(opt) == NULL) {

                // argument for an option may be separated with space
                if (i < commandLine_.size() - 1 &&
                    commandLine_[i+1].substr(0, 1) != "-") {
                    hasArgument = true;
                    arguments = commandLine_[i+1];
                    i++;
                }
            }

            bool doneWithParsing = opt->parseValue(arguments, prefix);

            if (!doneWithParsing) {
                if (hasArgument) {
                    // all the rest in command line are "extra" strings
                    arguments_.push_back(arguments);
                    finished = true;
                    i++;
                } else {
                    // this is the situation when we have something like
                    // -abcd (multible flags put together)
                    for (unsigned int i = 0; i < arguments.length(); i++) {
                        opt = findOption(arguments.substr(i, 1));
                        opt->parseValue("", prefix);
                    }
                }
            }
        } else {

            // finished reading options, all rest are command line arguments
            if (checkArguments && optString[0] == '-') {
                string msg = "Illegal command line argument: " + optString;
                string method = "CmdLineOptions::parse()";
                throw IllegalCommandLine(__FILE__, __LINE__, method, msg);
            }
            arguments_.push_back(optString);
        }
        i++;
    }
}

References CmdLineParser::arguments_, CmdLineParser::commandLine_, CmdLineParser::findOption(), CmdLineParser::parseOption(), CmdLineOptionParser::parseValue(), printHelp(), and printVersion().

Referenced by parse(), parse(), and parse().

Here is the call graph for this function:

◆ printHelp()

void CmdLineOptions::printHelp ( ) const

virtual

Prints the help menu of the program.

Reimplemented in ExplorerCmdLineOptions, SimulatorCmdLineOptions, BEMGeneratorCmdLineOptions, BEMViewerCmdLineOptions, PIGCmdLineOptions, EstimatorCmdLineOptions, OsalCmdLineOptions, CreateHDBCmdLineOptions, TestHDBCmdLineOptions, MachInfoCmdLineOptions, ProGeCmdLineOptions, and TTAUnitTesterCmdLineOptions.

Definition at line 262 of file CmdLineOptions.cc.

                                {
    cout << description_ << endl;
    cout << "Options:" << endl;
    constMapIter i;
    for (i = optionLongNames_.begin(); i != optionLongNames_.end(); i++) {
        CmdLineOptionParser* opt = findOption((*i).first);
        if (opt->isHidden()) continue;
        if (opt->shortName() != "") {
            cout << left << setw(SHORT_FLAG) << "-" + opt->shortName() + ", "
                 << left << setw(LONG_FLAG) << "--" + opt->longName();
        } else {
            cout << "    "
                 << left << setw(LONG_FLAG) << "--" + opt->longName();
        }

        std::stringstream str(opt->description());
        int charsPrintedInRow = 0;
        while (!str.eof()) {
            std::string nextToken = "";
            str >> nextToken;
            if (nextToken.size() + charsPrintedInRow > 60) {
                cout << std::endl;
                cout << std::left << setw(SHORT_FLAG + LONG_FLAG + 2) << " ";
                charsPrintedInRow = 0;
            }
            cout << nextToken << " ";
            charsPrintedInRow += nextToken.size();
        }
        cout << std::endl;
    }
}

References CmdLineOptionParser::description(), description_, CmdLineParser::findOption(), CmdLineOptionParser::isHidden(), LONG_FLAG, CmdLineOptionParser::longName(), CmdLineParser::optionLongNames_, SHORT_FLAG, and CmdLineOptionParser::shortName().

Referenced by parseAll(), ExplorerCmdLineOptions::printHelp(), SimulatorCmdLineOptions::printHelp(), BEMGeneratorCmdLineOptions::printHelp(), PIGCmdLineOptions::printHelp(), EstimatorCmdLineOptions::printHelp(), CreateHDBCmdLineOptions::printHelp(), TestHDBCmdLineOptions::printHelp(), MachInfoCmdLineOptions::printHelp(), ProGeCmdLineOptions::printHelp(), and TTAUnitTesterCmdLineOptions::printHelp().

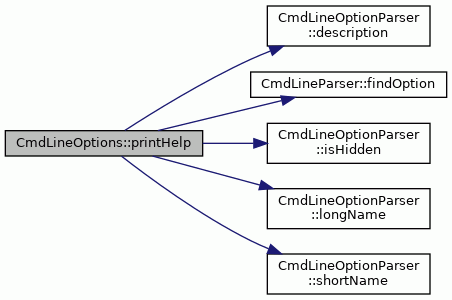

Here is the call graph for this function:

◆ printVersion()

virtual void CmdLineOptions::printVersion ( ) const

pure virtual

Member Data Documentation

◆ description_

std::string CmdLineOptions::description_

private

The description of usage of program.

Definition at line 89 of file CmdLineOptions.hh.

Referenced by printHelp().

◆ LONG_FLAG

const int CmdLineOptions::LONG_FLAG = 22

staticprivate

Number of characters reserved for printing long version of commandline flag.

Definition at line 99 of file CmdLineOptions.hh.

Referenced by printHelp().

◆ progName_

std::string CmdLineOptions::progName_

private

The name of the program.

Definition at line 87 of file CmdLineOptions.hh.

Referenced by parse(), parse(), and parse().

◆ SHORT_FLAG

const int CmdLineOptions::SHORT_FLAG = 2

staticprivate

Number of characters reserved for printing short version of commandline flag.

Definition at line 95 of file CmdLineOptions.hh.

Referenced by printHelp().

◆ VERBOSE_SPAM_SWITCH

const std::string CmdLineOptions::VERBOSE_SPAM_SWITCH = "verbose_spam"

staticprivate

Switch for verbose output listing spam from scheduler internals.

Definition at line 105 of file CmdLineOptions.hh.

Referenced by CmdLineOptions(), and isVerboseSpamSwitchDefined().

◆ VERBOSE_SWITCH

const std::string CmdLineOptions::VERBOSE_SWITCH = "verbose"

staticprivate

Switch for verbose output listing scheduler modules.

Definition at line 102 of file CmdLineOptions.hh.

Referenced by CmdLineOptions(), and isVerboseSwitchDefined().

◆ version_

std::string CmdLineOptions::version_

private

The version of the program.

Definition at line 91 of file CmdLineOptions.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ constMapIter

◆ mapIter

◆ valType

Constructor & Destructor Documentation

◆ CmdLineOptions() [1/2]

◆ ~CmdLineOptions()

◆ CmdLineOptions() [2/2]

Member Function Documentation

◆ isVerboseSpamSwitchDefined()

◆ isVerboseSwitchDefined()

◆ operator=()

◆ optionGiven()

◆ parse() [1/3]

◆ parse() [2/3]

◆ parse() [3/3]

◆ parseAll()

◆ printHelp()

◆ printVersion()

Member Data Documentation

◆ description_

◆ LONG_FLAG

◆ progName_

◆ SHORT_FLAG

◆ VERBOSE_SPAM_SWITCH

◆ VERBOSE_SWITCH

◆ version_
