MachInfo.cc File Reference
#include "Machine.hh"
#include "ControlUnit.hh"
#include "MachInfoCmdLineOptions.hh"
#include "OperationPool.hh"
#include "HWOperation.hh"
#include "Operation.hh"
#include "Conversion.hh"
#include "FUPort.hh"
#include <iostream>
#include <fstream>
#include <stdlib.h>

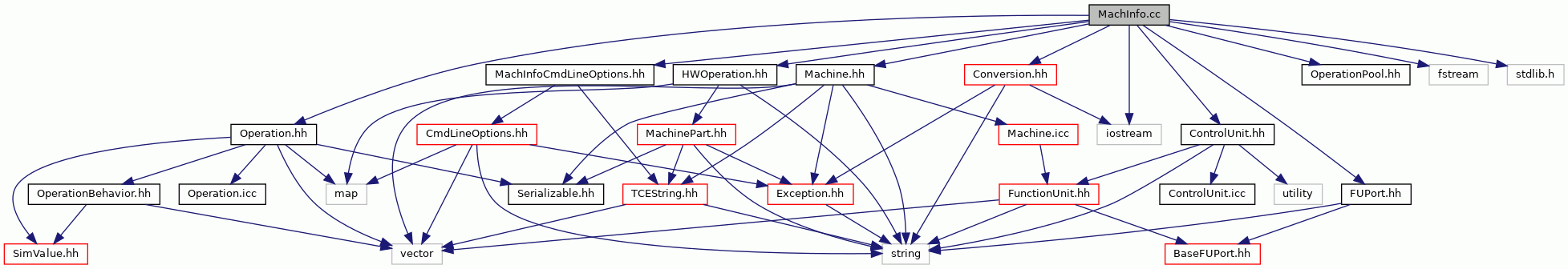

Include dependency graph for MachInfo.cc:

Go to the source code of this file.

Functions

TCEString operandBindingsString (TTAMachine::HWOperation &hwop)

void printLatexFunctionUnitDescription (const TTAMachine::Machine &machine, std::ofstream &output)

void printLatexAddressSpaceDescription (const TTAMachine::Machine &machine, std::ofstream &output)

int main (int argc, char *argv[])


Variables

static MachInfoCmdLineOptions options


Detailed Description

MachInfo tool prints out information of a given processor design, for documentation purposes.

Author
Pekka Jääskeläinen 2014

Definition in file MachInfo.cc.

Function Documentation

◆ main()

int main ( int  argc,
char *  argv[]
)

Definition at line 198 of file MachInfo.cc.

198 {
199 try {
200 options.parse(argv, argc);
201 } catch (const ParserStopRequest&) {
202 // In case --help was asked, or illegal command line parameters.
203 return EXIT_SUCCESS;
204 } catch (const IllegalCommandLine& exception) {
205 std::cerr << exception.errorMessage() << std::endl;
206 return EXIT_FAILURE;
207 }
208
209 if (options.numberOfArguments() != 1) {
210 std::cerr << "Single ADF file required." << std::endl;
211 return EXIT_FAILURE;
212 }
213 TCEString ADFFile = options.argument(1);
214
215 if (options.outputFormat() != "latex") {
216 std::cerr << "Unsupported output format." << std::endl;
217 return EXIT_FAILURE;
218 }
219
220 const TTAMachine::Machine* mach = NULL;
221 try {
222 mach = TTAMachine::Machine::loadFromADF(ADFFile);
223 } catch (const Exception& e) {
224 std::cerr << e.errorMessage() << std::endl;
225 return EXIT_FAILURE;
226 }
227 std::ofstream fuDescOutput;
228 std::ofstream asDescOutput;
229 try {
230 fuDescOutput.open(
231 (options.outputFileNameSuffix() + ".fu_table.tex").c_str(),
232 std::ios::trunc);
233 asDescOutput.open(
234 (options.outputFileNameSuffix() + ".as_table.tex").c_str(),
235 std::ios::trunc);
236
237 } catch (std::exception& e) {
238 std::cerr << e.what() << std::endl;
239 return EXIT_FAILURE;
240 }
241 if (options.outputFormat() == "latex") {
242 printLatexFunctionUnitDescription(*mach, fuDescOutput);
243 printLatexAddressSpaceDescription(*mach, asDescOutput);
244 }
245 fuDescOutput.close();
246 asDescOutput.close();
247 return EXIT_SUCCESS;
248}
void printLatexAddressSpaceDescription(const TTAMachine::Machine &machine, std::ofstream &output)
Definition MachInfo.cc:149
void printLatexFunctionUnitDescription(const TTAMachine::Machine &machine, std::ofstream &output)
Definition MachInfo.cc:72
static MachInfoCmdLineOptions options
Definition MachInfo.cc:46
void parse(char *argv[], int argc)
virtual std::string argument(int index) const
virtual int numberOfArguments() const
std::string errorMessage() const
Definition Exception.cc:123
TCEString outputFileNameSuffix() const
static Machine * loadFromADF(const std::string &adfFileName)
Definition Machine.cc:899

References CmdLineParser::argument(), Exception::errorMessage(), TTAMachine::Machine::loadFromADF(), CmdLineParser::numberOfArguments(), options, MachInfoCmdLineOptions::outputFileNameSuffix(), MachInfoCmdLineOptions::outputFormat(), CmdLineOptions::parse(), printLatexAddressSpaceDescription(), and printLatexFunctionUnitDescription().

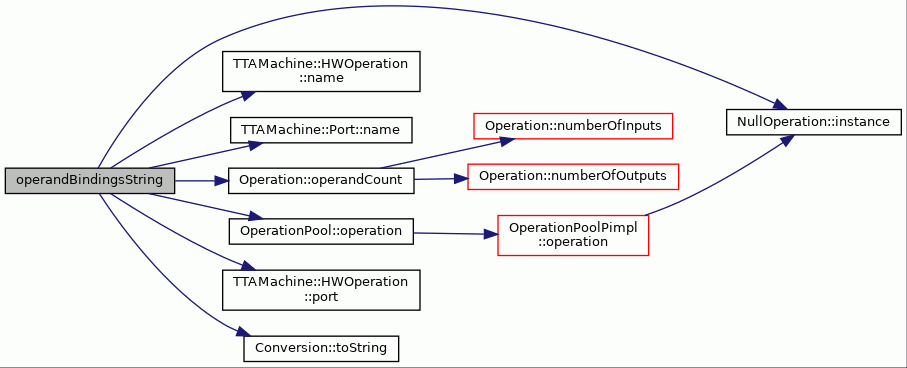

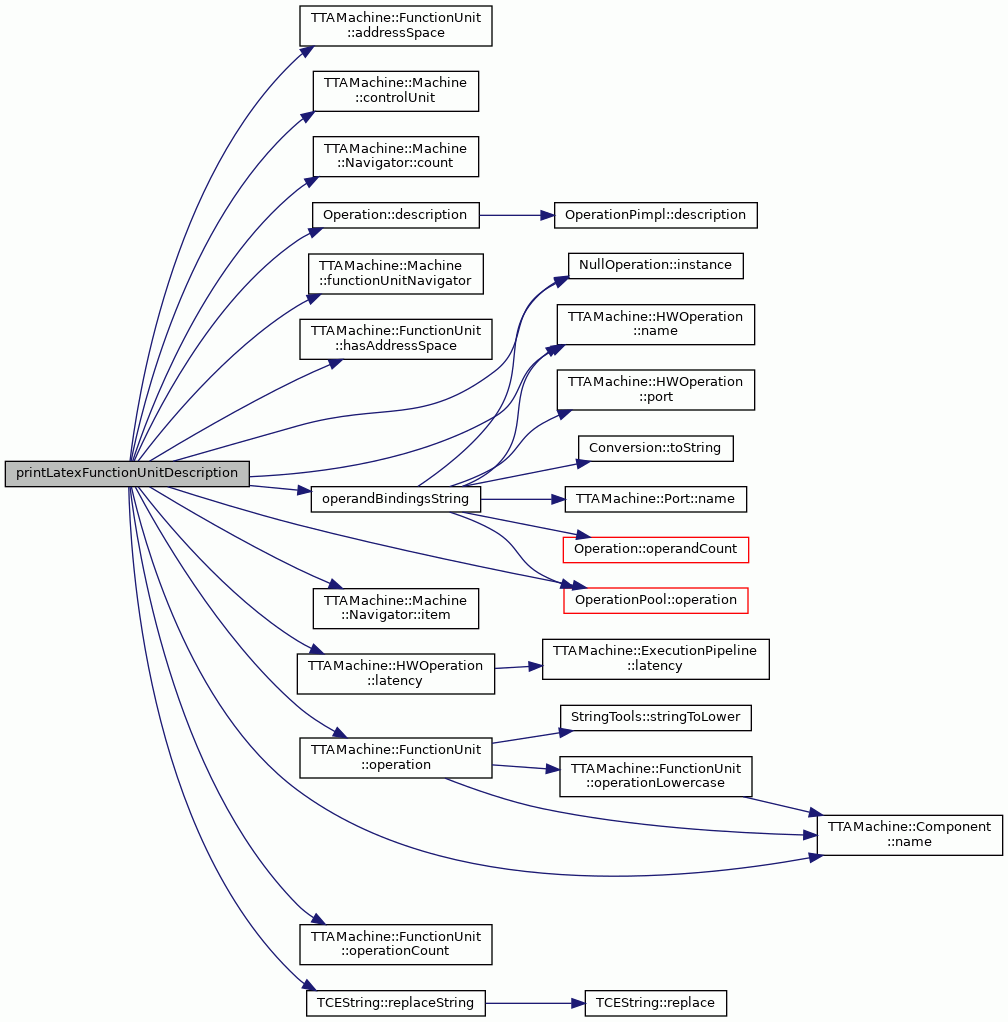

Here is the call graph for this function:

◆ operandBindingsString()

TCEString operandBindingsString ( TTAMachine::HWOperation hwop)

Definition at line 49 of file MachInfo.cc.

49 {
50 OperationPool OSAL;
51 Operation* osalOp = &OSAL.operation(hwop.name().c_str());
52 if (osalOp == &NullOperation::instance()) {
53 return TCEString("");
54 }
55 TCEString operandBindings = "";
56 for (int i = 1; i < osalOp->operandCount() + 1; i++) {
57 if (hwop.port(i) == NULL) {
58 std::cerr << "Warning: Operand " << i << " of " << hwop.name()
59 << " was not bound to any port." << std::endl;
60 continue;
61 }
62 if (i > 1) {
63 operandBindings += ", ";
64 }
65 operandBindings += Conversion::toString(i) + ": "
66 + hwop.port(i)->name();
67 }
68 return operandBindings;
69}
static std::string toString(const T &source)
static NullOperation & instance()
Operation & operation(const char *name)
virtual int operandCount() const
Definition Operation.cc:212
virtual FUPort * port(int operand) const
const std::string & name() const
virtual std::string name() const
Definition Port.cc:141

References NullOperation::instance(), TTAMachine::HWOperation::name(), TTAMachine::Port::name(), Operation::operandCount(), OperationPool::operation(), TTAMachine::HWOperation::port(), and Conversion::toString().

Referenced by printLatexFunctionUnitDescription().

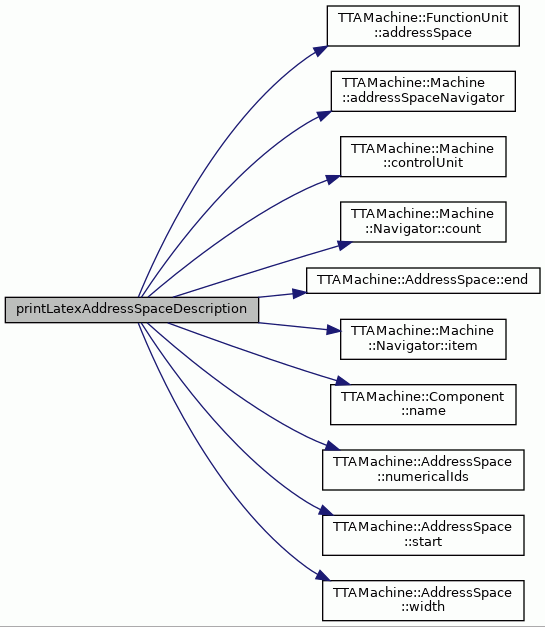

Here is the call graph for this function:
