#include <PSocketResource.hh>

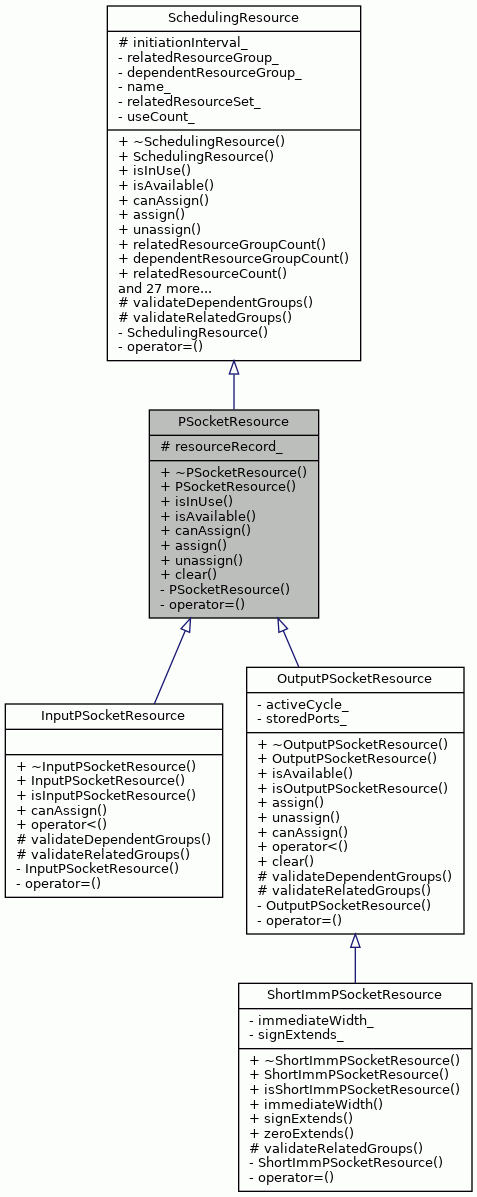

Inheritance diagram for PSocketResource:

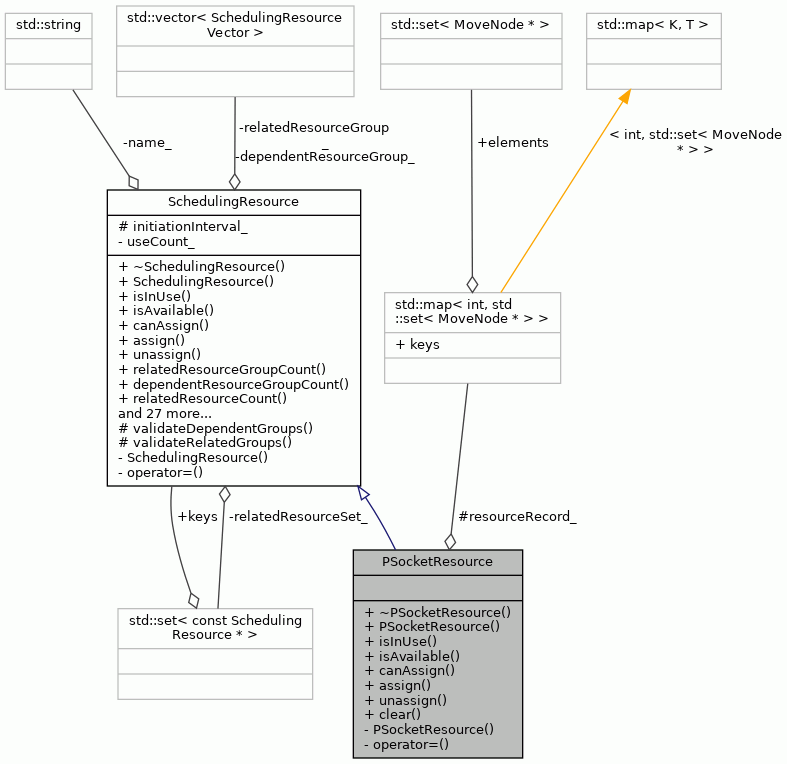

Collaboration diagram for PSocketResource:

Public Member Functions
virtual	~PSocketResource ()

	PSocketResource (const std::string &name, unsigned int initiationInterval=0)

virtual bool	isInUse (const int cycle) const override

virtual bool	isAvailable (const int cycle) const override

virtual bool	canAssign (const int cycle, const MoveNode &node) const override

virtual void	assign (const int cycle, MoveNode &node) override

virtual void	unassign (const int cycle, MoveNode &node) override

void	clear () override

Public Member Functions inherited from SchedulingResource
virtual	~SchedulingResource ()

	SchedulingResource (const std::string &name, const unsigned int ii=0)

virtual int	relatedResourceGroupCount () const

virtual int	dependentResourceGroupCount () const

int	relatedResourceCount (const int group) const

int	dependentResourceCount (const int group) const

virtual void	addToRelatedGroup (const int group, SchedulingResource &resource)

virtual void	addToDependentGroup (const int group, SchedulingResource &resource)

virtual SchedulingResource &	relatedResource (const int group, const int index) const

virtual SchedulingResource &	dependentResource (const int group, const int index) const

virtual bool	hasRelatedResource (const SchedulingResource &sResource) const

virtual bool	hasDependentResource (const SchedulingResource &sResource) const

virtual const std::string &	name () const

virtual int	useCount () const

virtual void	increaseUseCount ()

virtual void	decreaseUseCount ()

virtual bool	isInputPSocketResource () const

virtual bool	isOutputPSocketResource () const

virtual bool	isShortImmPSocketResource () const

virtual bool	isInputFUResource () const

virtual bool	isOutputFUResource () const

virtual bool	isExecutionPipelineResource () const

virtual bool	isBusResource () const

virtual bool	isSegmentResource () const

virtual bool	isIUResource () const

virtual bool	isITemplateResource () const

int	instructionIndex (int cycle) const

void	setInitiationInterval (unsigned int ii)

int	initiationInterval () const

virtual bool	operator< (const SchedulingResource &other) const

virtual void	setMaxCycle (unsigned int)

Protected Types
typedef std::map< int, std::set< MoveNode * > >	ResourceRecordType

Protected Attributes
ResourceRecordType	resourceRecord_

Protected Attributes inherited from SchedulingResource
int	initiationInterval_

Private Member Functions
	PSocketResource (const PSocketResource &)

PSocketResource &	operator= (const PSocketResource &)

Additional Inherited Members
Protected Member Functions inherited from SchedulingResource
virtual bool	validateDependentGroups ()

virtual bool	validateRelatedGroups ()

Detailed Description

An interface for scheduling resources of Resource Model.

The derived class PSocketResource represents a combined resource of a FU/RF port and a socket that connects it to a bus.

Definition at line 48 of file PSocketResource.hh.

Member Typedef Documentation

◆ ResourceRecordType

typedef std::map<int, std::set<MoveNode*> > PSocketResource::ResourceRecordType

protected

Definition at line 61 of file PSocketResource.hh.

Constructor & Destructor Documentation

◆ ~PSocketResource()

PSocketResource::~PSocketResource ( )

virtual

Empty constructor

Definition at line 52 of file PSocketResource.cc.

52{}

◆ PSocketResource() [1/2]

PSocketResource::PSocketResource	(	const std::string &	name,
		unsigned int	initiationInterval = `0`
	)

Constructor defining name of resource

Parameters

name	Name of resource

Definition at line 46 of file PSocketResource.cc.

46 :

47 SchedulingResource(name, initiationInterval) {}

SchedulingResource

Definition SchedulingResource.hh:52

SchedulingResource::name

virtual const std::string & name() const

SchedulingResource::initiationInterval

int initiationInterval() const

Definition SchedulingResource.cc:385

◆ PSocketResource() [2/2]

PSocketResource::PSocketResource ( const PSocketResource & )

private

Member Function Documentation

◆ assign()

void PSocketResource::assign	(	const int	cycle,
		MoveNode &	mn
	)

overridevirtual

Assign resource to given node for given cycle.

Parameters

cycle	Cycle to assign
node	MoveNode to assign

Exceptions

In	case PSocket can not be assigned

Note: Exception is internal error, resource should be tested with canAssign() before assign() is called.

Implements SchedulingResource.

Reimplemented in OutputPSocketResource.

Definition at line 105 of file PSocketResource.cc.

{
    resourceRecord_[instructionIndex(cycle)].insert(&mn);
    increaseUseCount();
    return;
}

References SchedulingResource::increaseUseCount(), SchedulingResource::instructionIndex(), and resourceRecord_.

Referenced by OutputPSocketResource::assign().

Here is the call graph for this function:

◆ canAssign()

bool PSocketResource::canAssign	(	const int	cycle,
		const MoveNode &	node
	)		const

overridevirtual

Return true if resource can be assigned for given resource in given cycle.

Parameters

cycle	Cycle to test
node	MoveNode to test

Returns: true if node can be assigned to cycle

Implements SchedulingResource.

Reimplemented in InputPSocketResource, and OutputPSocketResource.

Definition at line 139 of file PSocketResource.cc.

                                                                      {

    ResourceRecordType::const_iterator iter = resourceRecord_.find(cycle);
    if (iter != resourceRecord_.end()) {
        const std::set<MoveNode*>& movesInCycle = iter->second;
        for (std::set<MoveNode*>::const_iterator i = movesInCycle.begin();
             i != movesInCycle.end(); i++) {
            MoveNode* mn = *i;
#ifdef NO_OVERCOMMIT
            return false;
#else
            if (node.move().isUnconditional() ||
                mn->move().isUnconditional()) {
                return false;
            }
            if (!node.move().guard().guard().isOpposite(
                    mn->move().guard().guard())) {
                return false;
            }
#endif
        }
    }
    return true;
}

References TTAProgram::Move::guard(), TTAProgram::MoveGuard::guard(), TTAMachine::Guard::isOpposite(), TTAProgram::Move::isUnconditional(), MoveNode::move(), and resourceRecord_.

Here is the call graph for this function:

◆ clear()

void PSocketResource::clear ( )

overridevirtual

Clears bookkeeping of the scheduling resource.

After this call the state of the resource should be identical to a newly-created and initialized resource.

Reimplemented from SchedulingResource.

Definition at line 171 of file PSocketResource.cc.

                       {
    SchedulingResource::clear();
    resourceRecord_.clear();
}

References SchedulingResource::clear(), and resourceRecord_.

Referenced by OutputPSocketResource::clear().

Here is the call graph for this function:

◆ isAvailable()

bool PSocketResource::isAvailable ( const int cycle ) const

overridevirtual

Test if resource PSocketResource is available

Parameters

cycle Cycle which to test

Returns: True if p-socket is available in cycle

Implements SchedulingResource.

Reimplemented in OutputPSocketResource.

Definition at line 80 of file PSocketResource.cc.

                                                  {
    ResourceRecordType::const_iterator iter =
        resourceRecord_.find(instructionIndex(cycle));
    if (iter != resourceRecord_.end() && iter->second.size() > 0) {
        const std::set<MoveNode*>& movesInCycle = iter->second;
        for (std::set<MoveNode*>::const_iterator i = movesInCycle.begin();
             i != movesInCycle.end(); i++) {
            if ((*i)->move().isUnconditional()) {
                return false;
            }
        }
    }
    return true;
}

References SchedulingResource::instructionIndex(), and resourceRecord_.

Here is the call graph for this function:

◆ isInUse()

bool PSocketResource::isInUse ( const int cycle ) const

overridevirtual

Test if resource PSocketResource is used in given cycle

The PSocket is inUse if it is read from or written to at least once.

Parameters

cycle Cycle which to test

Returns: True if p-socket is already used in cycle

Implements SchedulingResource.

Definition at line 64 of file PSocketResource.cc.

                                              {
    ResourceRecordType::const_iterator iter =
        resourceRecord_.find(instructionIndex(cycle));
    if (iter != resourceRecord_.end() && iter->second.size() > 0) {
        return true;
    }
    return false;
}

References SchedulingResource::instructionIndex(), and resourceRecord_.

Referenced by unassign().

Here is the call graph for this function:

◆ operator=()

PSocketResource & PSocketResource::operator= ( const PSocketResource & )

private

◆ unassign()

void PSocketResource::unassign	(	const int	cycle,
		MoveNode &	mn
	)

overridevirtual

Unassign resource from given node for given cycle.

Parameters

cycle	Cycle to remove assignment from
node	MoveNode to remove assignment from

Exceptions

In	case the PSocket was not assigned before.

Implements SchedulingResource.

Reimplemented in OutputPSocketResource.

Definition at line 120 of file PSocketResource.cc.

{
    if (isInUse(cycle)) {
        resourceRecord_[instructionIndex(cycle)].erase(&mn);
        decreaseUseCount();
        return;
    }
    std::string msg = "PSocket was not assigned so it can not be unassigned!";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
}

References __func__, SchedulingResource::decreaseUseCount(), SchedulingResource::instructionIndex(), isInUse(), and resourceRecord_.

Referenced by OutputPSocketResource::unassign().

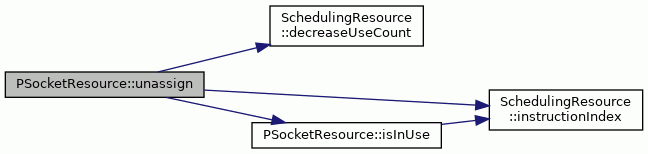

Here is the call graph for this function:

Member Data Documentation

◆ resourceRecord_

ResourceRecordType PSocketResource::resourceRecord_

protected

Definition at line 63 of file PSocketResource.hh.

Referenced by assign(), InputPSocketResource::canAssign(), OutputPSocketResource::canAssign(), canAssign(), clear(), isAvailable(), isInUse(), OutputPSocketResource::operator<(), and unassign().
