#include <NetlistPortGroup.hh>

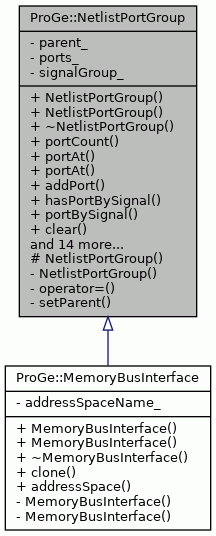

Inheritance diagram for ProGe::NetlistPortGroup:

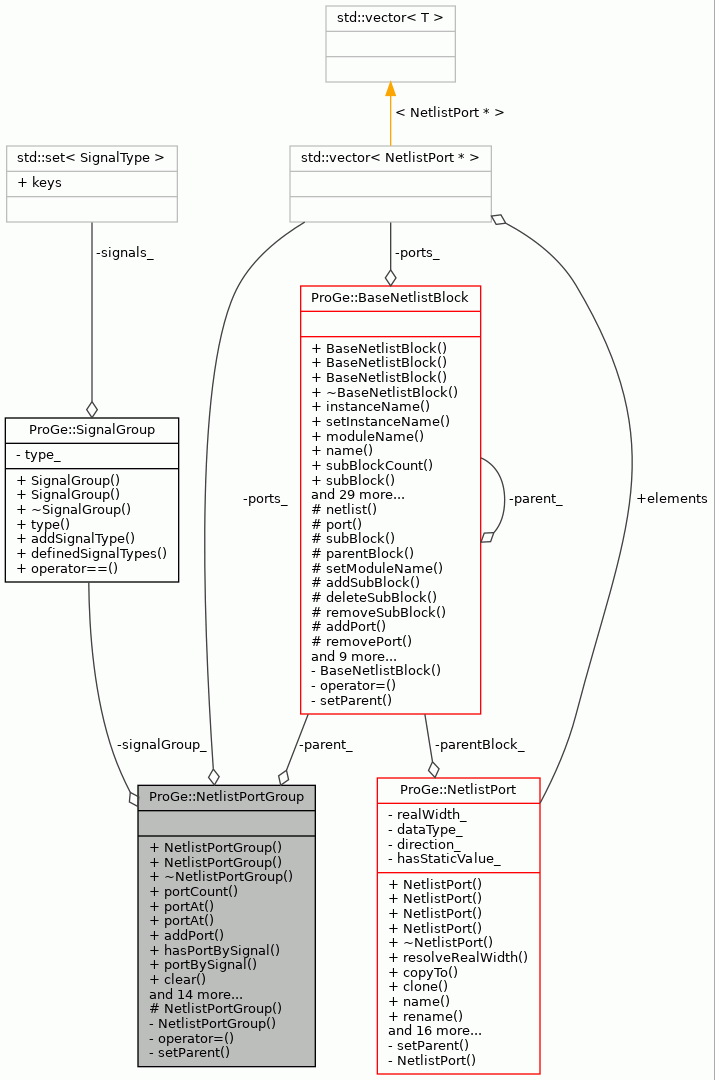

Collaboration diagram for ProGe::NetlistPortGroup:

Public Types
typedef std::vector< NetlistPort * >	PortContainerType

typedef PortContainerType::iterator	iterator

typedef PortContainerType::const_iterator	const_iterator

typedef PortContainerType::reverse_iterator	reverse_iterator

typedef PortContainerType::const_reverse_iterator	const_reverse_iterator

Public Member Functions
	NetlistPortGroup (SignalGroup signalGroup=SignalGroup())

template<typename... PortType>
	NetlistPortGroup (SignalGroup groupType, PortType... ts)

virtual	~NetlistPortGroup ()

size_t	portCount () const

const NetlistPort &	portAt (size_t index) const

NetlistPort &	portAt (size_t index)

void	addPort (NetlistPort &port)

bool	hasPortBySignal (SignalType type) const

const NetlistPort &	portBySignal (SignalType type) const

void	clear ()

bool	hasParent () const

const BaseNetlistBlock &	parent () const

BaseNetlistBlock &	parent ()

void	assignSignalGroup (SignalGroup signalGroup)

SignalGroup	assignedSignalGroup () const

virtual NetlistPortGroup *	clone (bool asMirrored=false) const

iterator	begin ()

iterator	end ()

const_iterator	begin () const

const_iterator	end () const

reverse_iterator	rbegin ()

reverse_iterator	rend ()

const_reverse_iterator	rbegin () const

const_reverse_iterator	rend () const

Protected Member Functions
	NetlistPortGroup (const NetlistPortGroup &, bool asMirrored=false)

Private Member Functions
	NetlistPortGroup ()

NetlistPortGroup &	operator= (const NetlistPortGroup &)

void	setParent (BaseNetlistBlock *newParent)

Private Attributes
BaseNetlistBlock *	parent_
	The parent block where the group belongs to.

PortContainerType	ports_
	The ports belonging to this group by reference.

SignalGroup	signalGroup_
	The usage/implemented interface of the group.

Friends
class	BaseNetlistBlock

Detailed Description

Definition at line 53 of file NetlistPortGroup.hh.

Member Typedef Documentation

◆ const_iterator

typedef PortContainerType::const_iterator ProGe::NetlistPortGroup::const_iterator

Definition at line 86 of file NetlistPortGroup.hh.

◆ const_reverse_iterator

typedef PortContainerType::const_reverse_iterator ProGe::NetlistPortGroup::const_reverse_iterator

Definition at line 88 of file NetlistPortGroup.hh.

◆ iterator

typedef PortContainerType::iterator ProGe::NetlistPortGroup::iterator

Definition at line 85 of file NetlistPortGroup.hh.

◆ PortContainerType

typedef std::vector<NetlistPort*> ProGe::NetlistPortGroup::PortContainerType

Definition at line 58 of file NetlistPortGroup.hh.

◆ reverse_iterator

typedef PortContainerType::reverse_iterator ProGe::NetlistPortGroup::reverse_iterator

Definition at line 87 of file NetlistPortGroup.hh.

Constructor & Destructor Documentation

◆ NetlistPortGroup() [1/4]

ProGe::NetlistPortGroup::NetlistPortGroup ( SignalGroup signalGroup = SignalGroup() )

Constructs empty port group with given SignalGroup.

Definition at line 65 of file NetlistPortGroup.cc.

66 : parent_(nullptr), ports_(), signalGroup_(signalGroup) {}

ProGe::NetlistPortGroup::ports_

PortContainerType ports_

The ports belonging to this group by reference.

Definition NetlistPortGroup.hh:112

ProGe::NetlistPortGroup::signalGroup_

SignalGroup signalGroup_

The usage/implemented interface of the group.

Definition NetlistPortGroup.hh:114

ProGe::NetlistPortGroup::parent_

BaseNetlistBlock * parent_

The parent block where the group belongs to.

Definition NetlistPortGroup.hh:110

◆ NetlistPortGroup() [2/4]

template<typename... PortType>

ProGe::NetlistPortGroup::NetlistPortGroup	(	SignalGroup	groupType,
		PortType...	ts
	)

◆ ~NetlistPortGroup()

ProGe::NetlistPortGroup::~NetlistPortGroup ( )

virtual

Definition at line 68 of file NetlistPortGroup.cc.

                                    {
    if (!hasParent()) {
        SequenceTools::deleteAllItems(ports_);
    }
}

References SequenceTools::deleteAllItems(), hasParent(), and ports_.

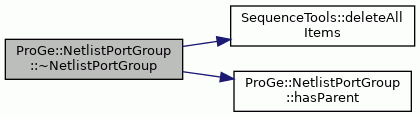

Here is the call graph for this function:

◆ NetlistPortGroup() [3/4]

ProGe::NetlistPortGroup::NetlistPortGroup	(	const NetlistPortGroup &	other,
		bool	asMirrored = `false`
	)

protected

Copy constructor. Copies everything except parent block reference.

Definition at line 52 of file NetlistPortGroup.cc.

    : parent_(nullptr), ports_(), signalGroup_(other.signalGroup_) {
    std::insert_iterator<PortContainerType> portInserter(
        ports_, ports_.begin());
    for (size_t i = 0; i < other.portCount(); i++) {
        portInserter = other.portAt(i).clone(asMirrored);
    }
}

References ProGe::NetlistPort::clone(), portAt(), portCount(), and ports_.

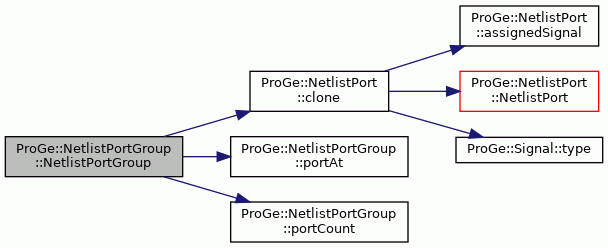

Here is the call graph for this function:

◆ NetlistPortGroup() [4/4]

ProGe::NetlistPortGroup::NetlistPortGroup ( )

private

Definition at line 46 of file NetlistPortGroup.cc.

47 : parent_(nullptr), ports_(), signalGroup_() {}

Referenced by clone().

Member Function Documentation

◆ addPort()

void ProGe::NetlistPortGroup::addPort ( NetlistPort & port )

Definition at line 93 of file NetlistPortGroup.cc.

                                           {
    ports_.push_back(&port);
}

References ports_.

Referenced by ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), AlmaIFIntegrator::addPortToGroup(), FUGen::createExternalInterfaces(), ProGe::NetlistBlock::shallowCopy(), and ProGe::BaseNetlistBlock::shallowCopy().

◆ assignedSignalGroup()

SignalGroup ProGe::NetlistPortGroup::assignedSignalGroup ( ) const

Definition at line 160 of file NetlistPortGroup.cc.

                                            {
    return signalGroup_;
}

References signalGroup_.

Referenced by ProGe::BaseNetlistBlock::portGroupsBy(), ProGe::ProcessorWrapperBlock::ProcessorWrapperBlock(), and ProGe::PortFactory::registerPortGroup().

◆ assignSignalGroup()

void ProGe::NetlistPortGroup::assignSignalGroup ( SignalGroup signalGroup )

Definition at line 155 of file NetlistPortGroup.cc.

                                                           {
    signalGroup_ = signalGroup;
}

References signalGroup_.

◆ begin() [1/2]

NetlistPortGroup::iterator ProGe::NetlistPortGroup::begin ( )

Definition at line 181 of file NetlistPortGroup.cc.

                        {
    return ports_.begin();
}

References begin(), and ports_.

Referenced by begin().

Here is the call graph for this function:

◆ begin() [2/2]

NetlistPortGroup::const_iterator ProGe::NetlistPortGroup::begin ( ) const

Definition at line 191 of file NetlistPortGroup.cc.

                              {
    return ports_.begin();
}

References ports_.

◆ clear()

void ProGe::NetlistPortGroup::clear ( )

Clears all ports associated to the port group.

The Ports are deleted and detached from the parent block.

Definition at line 128 of file NetlistPortGroup.cc.

                        {
    SequenceTools::deleteAllItems(ports_);
}

References SequenceTools::deleteAllItems(), and ports_.

Referenced by ProGe::NetlistBlock::shallowCopy(), and ProGe::BaseNetlistBlock::shallowCopy().

Here is the call graph for this function:

◆ clone()

NetlistPortGroup * ProGe::NetlistPortGroup::clone ( bool asMirrored = false ) const

virtual

Clones the NetlistPort and and its ports without parent block reference since it would break unique port name constraint.

Reimplemented in ProGe::MemoryBusInterface.

Definition at line 169 of file NetlistPortGroup.cc.

                                             {
    NetlistPortGroup* newGroup = new NetlistPortGroup(*this, asMirrored);
    assert(this->portCount() == newGroup->portCount());
    for (size_t i = 0; i < portCount(); i++) {
        assert(
            this->portAt(i).assignedSignal().type() ==
            newGroup->portAt(i).assignedSignal().type());
    }
    return newGroup;
}

References assert, ProGe::NetlistPort::assignedSignal(), NetlistPortGroup(), portAt(), portCount(), and ProGe::Signal::type().

Referenced by ProGe::PortFactory::createPortGroup(), AlmaIFIntegrator::initAlmaifBlock(), ProGe::NetlistBlock::shallowCopy(), and ProGe::BaseNetlistBlock::shallowCopy().

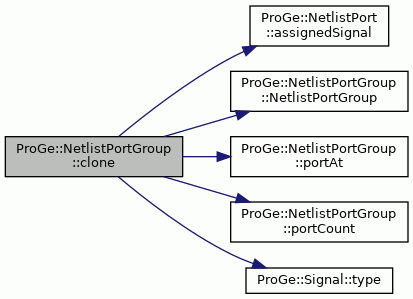

Here is the call graph for this function:

◆ end() [1/2]

NetlistPortGroup::iterator ProGe::NetlistPortGroup::end ( )

Definition at line 186 of file NetlistPortGroup.cc.

                      {
    return ports_.end();
}

References ports_.

◆ end() [2/2]

NetlistPortGroup::const_iterator ProGe::NetlistPortGroup::end ( ) const

Definition at line 196 of file NetlistPortGroup.cc.

                            {
    return ports_.end();
}

References ports_.

◆ hasParent()

bool ProGe::NetlistPortGroup::hasParent ( ) const

Definition at line 133 of file NetlistPortGroup.cc.

                                  {
    return parent_ != nullptr;
}

References parent_.

Referenced by parent(), parent(), and ~NetlistPortGroup().

◆ hasPortBySignal()

bool ProGe::NetlistPortGroup::hasPortBySignal ( SignalType type ) const

Definition at line 98 of file NetlistPortGroup.cc.

                                                       {
    for (const NetlistPort* p : *this) {
        if (p->assignedSignal() == type) {
            return true;
        }
    }
    return false;
}

Referenced by ProGe::Netlist::connectBy().

◆ operator=()

NetlistPortGroup & ProGe::NetlistPortGroup::operator= ( const NetlistPortGroup & )

private

◆ parent() [1/2]

BaseNetlistBlock & ProGe::NetlistPortGroup::parent ( )

Definition at line 144 of file NetlistPortGroup.cc.

                         {
    assert(hasParent());
    return *parent_;
}

References assert, hasParent(), and parent_.

Here is the call graph for this function:

◆ parent() [2/2]

const BaseNetlistBlock & ProGe::NetlistPortGroup::parent ( ) const

Definition at line 138 of file NetlistPortGroup.cc.

                               {
    assert(hasParent());
    return *parent_;
}

References assert, hasParent(), and parent_.

Here is the call graph for this function:

◆ portAt() [1/2]

NetlistPort & ProGe::NetlistPortGroup::portAt ( size_t index )

Definition at line 88 of file NetlistPortGroup.cc.

                                     {
    return *ports_.at(index);
}

References ports_.

◆ portAt() [2/2]

const NetlistPort & ProGe::NetlistPortGroup::portAt ( size_t index ) const

Definition at line 83 of file NetlistPortGroup.cc.

                                           {
    return *ports_.at(index);
}

References ports_.

Referenced by ProGe::BaseNetlistBlock::addPortGroup(), clone(), and NetlistPortGroup().

◆ portBySignal()

const NetlistPort & ProGe::NetlistPortGroup::portBySignal ( SignalType type ) const

Returns first found port by given signal type.

Definition at line 111 of file NetlistPortGroup.cc.

                                                    {
    for (const NetlistPort* p : *this) {
        if (p->assignedSignal() == type) {
            return *p;
        }
    }
    THROW_EXCEPTION(
        InstanceNotFound,
        "The port group does not have port by given signal type.");
}

References THROW_EXCEPTION.

Referenced by ProGe::ProcessorWrapperBlock::addDataMemory(), ProGe::ProcessorWrapperBlock::addDataMemory2(), ProGe::ProcessorWrapperBlock::addInstructionMemory(), ProGe::Netlist::connect(), and ProGe::Netlist::connectBy().

◆ portCount()

size_t ProGe::NetlistPortGroup::portCount ( ) const

Returns number of ports in the group.

Definition at line 78 of file NetlistPortGroup.cc.

                                  {
    return ports_.size();
}

References ports_.

Referenced by ProGe::BaseNetlistBlock::addPortGroup(), clone(), ProGe::Netlist::connect(), ProGe::Netlist::connectGroupByName(), NetlistPortGroup(), and ProGe::NetlistTools::renamePorts().

◆ rbegin() [1/2]

NetlistPortGroup::reverse_iterator ProGe::NetlistPortGroup::rbegin ( )

Definition at line 201 of file NetlistPortGroup.cc.

                         {
    return ports_.rbegin();
}

References ports_.

◆ rbegin() [2/2]

NetlistPortGroup::const_reverse_iterator ProGe::NetlistPortGroup::rbegin ( ) const

Definition at line 211 of file NetlistPortGroup.cc.

                               {
    return ports_.rbegin();
}

References ports_.

◆ rend() [1/2]

NetlistPortGroup::reverse_iterator ProGe::NetlistPortGroup::rend ( )

Definition at line 206 of file NetlistPortGroup.cc.

                       {
    return ports_.rend();
}

References ports_.

◆ rend() [2/2]

NetlistPortGroup::const_reverse_iterator ProGe::NetlistPortGroup::rend ( ) const

Definition at line 216 of file NetlistPortGroup.cc.

                             {
    return ports_.rend();
}

References ports_.

◆ setParent()

void ProGe::NetlistPortGroup::setParent ( BaseNetlistBlock * newParent )

private

Definition at line 150 of file NetlistPortGroup.cc.

                                                       {
    parent_ = newParent;
}

References parent_.

Referenced by ProGe::BaseNetlistBlock::addPortGroup().

Friends And Related Symbol Documentation

◆ BaseNetlistBlock

friend class BaseNetlistBlock

friend

Definition at line 56 of file NetlistPortGroup.hh.

Member Data Documentation

◆ parent_

BaseNetlistBlock* ProGe::NetlistPortGroup::parent_

private

The parent block where the group belongs to.

Definition at line 110 of file NetlistPortGroup.hh.

Referenced by hasParent(), parent(), parent(), and setParent().

◆ ports_

PortContainerType ProGe::NetlistPortGroup::ports_

private

The ports belonging to this group by reference.

Definition at line 112 of file NetlistPortGroup.hh.

Referenced by addPort(), begin(), begin(), clear(), end(), end(), NetlistPortGroup(), portAt(), portAt(), portCount(), rbegin(), rbegin(), rend(), rend(), and ~NetlistPortGroup().

◆ signalGroup_

SignalGroup ProGe::NetlistPortGroup::signalGroup_

private

The usage/implemented interface of the group.

Definition at line 114 of file NetlistPortGroup.hh.

Referenced by assignedSignalGroup(), and assignSignalGroup().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ const_iterator

◆ const_reverse_iterator

◆ iterator

◆ PortContainerType

◆ reverse_iterator

Constructor & Destructor Documentation

◆ NetlistPortGroup() [1/4]

◆ NetlistPortGroup() [2/4]

◆ ~NetlistPortGroup()

◆ NetlistPortGroup() [3/4]

◆ NetlistPortGroup() [4/4]

Member Function Documentation

◆ addPort()

◆ assignedSignalGroup()

◆ assignSignalGroup()

◆ begin() [1/2]

◆ begin() [2/2]

◆ clear()

◆ clone()

◆ end() [1/2]

◆ end() [2/2]

◆ hasParent()

◆ hasPortBySignal()

◆ operator=()

◆ parent() [1/2]

◆ parent() [2/2]

◆ portAt() [1/2]

◆ portAt() [2/2]

◆ portBySignal()

◆ portCount()

◆ rbegin() [1/2]

◆ rbegin() [2/2]

◆ rend() [1/2]

◆ rend() [2/2]

◆ setParent()

Friends And Related Symbol Documentation

◆ BaseNetlistBlock

Member Data Documentation

◆ parent_

◆ ports_

◆ signalGroup_
