#include <SchedulerPass.hh>

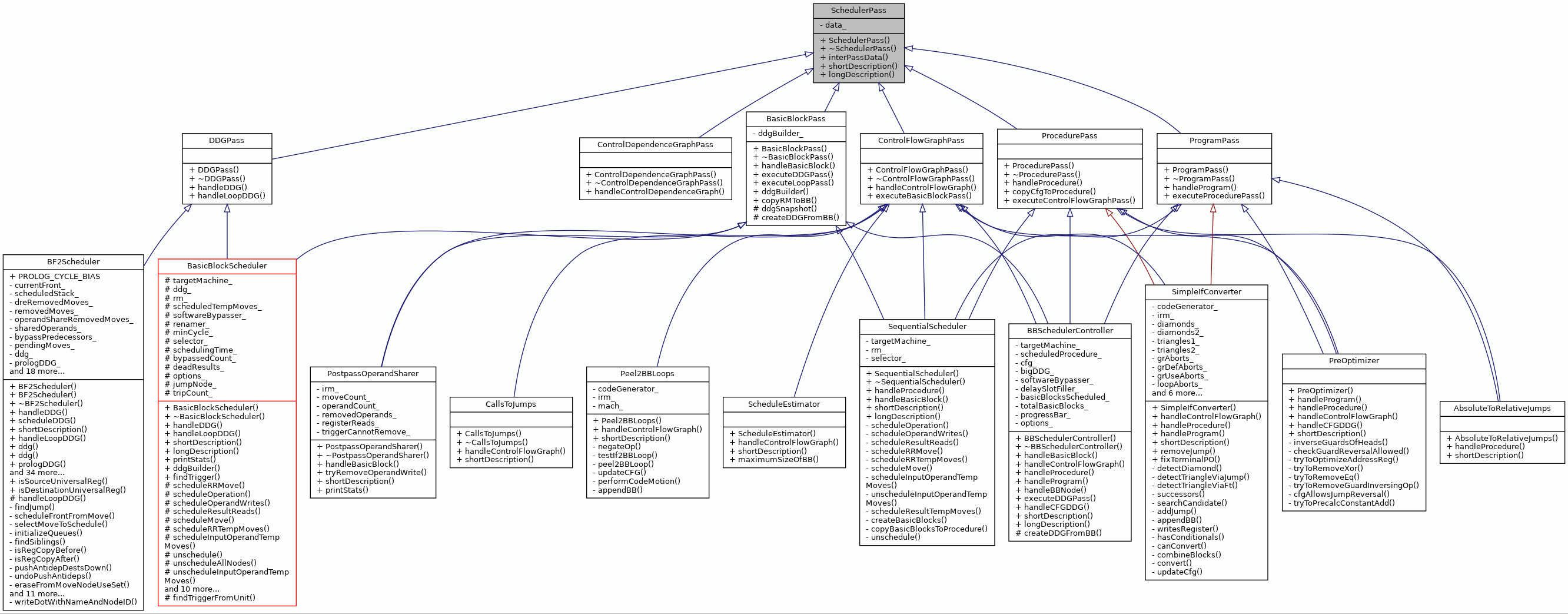

Inheritance diagram for SchedulerPass:

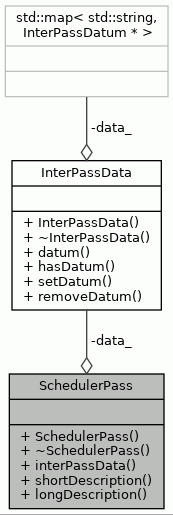

Collaboration diagram for SchedulerPass:

Public Member Functions
	SchedulerPass (InterPassData &data)

virtual	~SchedulerPass ()

InterPassData &	interPassData ()

virtual std::string	shortDescription () const =0

virtual std::string	longDescription () const

Private Attributes
InterPassData *	data_
	arbitrary data stored by different passes for inter-pass communication

Detailed Description

Interface for scheduler passes with different scopes.

Definition at line 43 of file SchedulerPass.hh.

Constructor & Destructor Documentation

◆ SchedulerPass()

SchedulerPass::SchedulerPass ( InterPassData & data )

Constructor.

Parameters

data	The container that stores data passed between scheduler passes.

Definition at line 40 of file SchedulerPass.cc.

                                                :
    data_(&data) {
}

◆ ~SchedulerPass()

virtual SchedulerPass::~SchedulerPass ( )

inlinevirtual

Definition at line 46 of file SchedulerPass.hh.

46{};

Member Function Documentation

◆ interPassData()

InterPassData & SchedulerPass::interPassData ( )

Returns the inter-pass data container that can be used by the pass.

The object is a generic container for data passed between scheduler passes.

Parameters

data	The data object.

Definition at line 53 of file SchedulerPass.cc.

                             {
    return *data_;
}

References data_.

Referenced by ProgramPass::executeProcedurePass(), BBSchedulerController::handleBasicBlock(), BBSchedulerController::handleCFGDDG(), PreOptimizer::handleControlFlowGraph(), BBSchedulerController::handleProcedure(), BF2Scheduler::possibleTempRegRFs(), BasicBlockScheduler::scheduleOperation(), BUBasicBlockScheduler::scheduleOperation(), SequentialScheduler::scheduleOperation(), SequentialScheduler::scheduleRRMove(), BasicBlockScheduler::scheduleRRMove(), and BUBasicBlockScheduler::scheduleRRMove().

◆ longDescription()

std::string SchedulerPass::longDescription ( ) const

virtual

Optional longer description of the pass.

This description can include usage instructions, details of choice of algorithmic details, etc.

Returns: The description as a string.

Reimplemented in BasicBlockScheduler, BUBasicBlockScheduler, SequentialScheduler, and BBSchedulerController.

Definition at line 77 of file SchedulerPass.cc.

                                     {
    return "";
}

◆ shortDescription()

std::string SchedulerPass::shortDescription ( ) const

pure virtual

A short description of the pass, usually the optimization name, such as "basic block scheduler".

Returns: The description as a string.

Implemented in BasicBlockScheduler, BUBasicBlockScheduler, CallsToJumps, PostpassOperandSharer, PreOptimizer, ScheduleEstimator, SequentialScheduler, SimpleIfConverter, AbsoluteToRelativeJumps, BBSchedulerController, BF2Scheduler, and Peel2BBLoops.

Definition at line 64 of file SchedulerPass.cc.

                                      {
    return "";
}

Member Data Documentation

◆ data_

InterPassData* SchedulerPass::data_

private

arbitrary data stored by different passes for inter-pass communication

Definition at line 55 of file SchedulerPass.hh.

Referenced by interPassData().

The documentation for this class was generated from the following files:
