#include <ScheduleEstimator.hh>

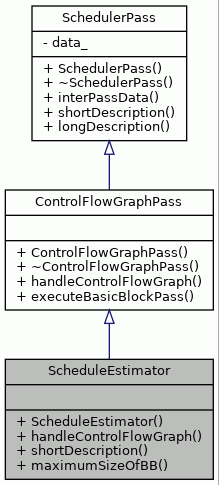

Inheritance diagram for ScheduleEstimator:

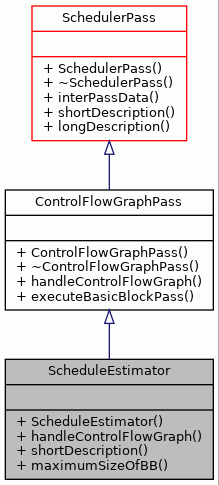

Collaboration diagram for ScheduleEstimator:

Public Member Functions
	ScheduleEstimator (InterPassData &data)

virtual void	handleControlFlowGraph (ControlFlowGraph &cfg, const TTAMachine::Machine &mach) override

virtual std::string	shortDescription () const

Public Member Functions inherited from ControlFlowGraphPass
	ControlFlowGraphPass (InterPassData &data)

virtual	~ControlFlowGraphPass ()

void	executeBasicBlockPass (ControlFlowGraph &cfg, const TTAMachine::Machine &targetMachine, BasicBlockPass &bbPass)

Public Member Functions inherited from SchedulerPass
	SchedulerPass (InterPassData &data)

virtual	~SchedulerPass ()

InterPassData &	interPassData ()

virtual std::string	longDescription () const

Static Public Member Functions
static int	maximumSizeOfBB (TTAProgram::BasicBlock &bb, const TTAMachine::Machine &mach)

Detailed Description

Definition at line 46 of file ScheduleEstimator.hh.

Constructor & Destructor Documentation

◆ ScheduleEstimator()

ScheduleEstimator::ScheduleEstimator ( InterPassData & data )

inline

Definition at line 49 of file ScheduleEstimator.hh.

49: ControlFlowGraphPass(data) {}

ControlFlowGraphPass

Definition ControlFlowGraphPass.hh:50

Member Function Documentation

◆ handleControlFlowGraph()

void ScheduleEstimator::handleControlFlowGraph	(	ControlFlowGraph &	cfg,
		const TTAMachine::Machine &	targetMachine
	)

overridevirtual

Handles a single control flow graph.

The pass should work with any kind of control flow graph, it should not assume the CFG represents a whole procedure, for example.

Parameters

cfg	The control flow graph to handle.
machine	The target machine if any. (NullMachine::instance() if target machine is irrelevant).

Exceptions

In	case handling is unsuccesful for any reason (cfg might still get modified).

Reimplemented from ControlFlowGraphPass.

Definition at line 85 of file ScheduleEstimator.cc.

                                                          {

    for (int bbIndex = 0; bbIndex < cfg.nodeCount(); ++bbIndex) {
        BasicBlockNode& bbn = cfg.node(bbIndex);
        if (!bbn.isNormalBB()) {
            bbn.setMaximumSize(0);
        } else {
            auto& bb = bbn.basicBlock();
            bbn.setMaximumSize(
                bbn.isScheduled() ?
                bb.instructionCount() - bb.skippedFirstInstructions() :
                maximumSizeOfBB(bb, mach));
        }
    }
}

References BasicBlockNode::basicBlock(), BasicBlockNode::isNormalBB(), BasicBlockNode::isScheduled(), maximumSizeOfBB(), BoostGraph< GraphNode, GraphEdge >::node(), BoostGraph< GraphNode, GraphEdge >::nodeCount(), and BasicBlockNode::setMaximumSize().

Referenced by BBSchedulerController::handleCFGDDG().

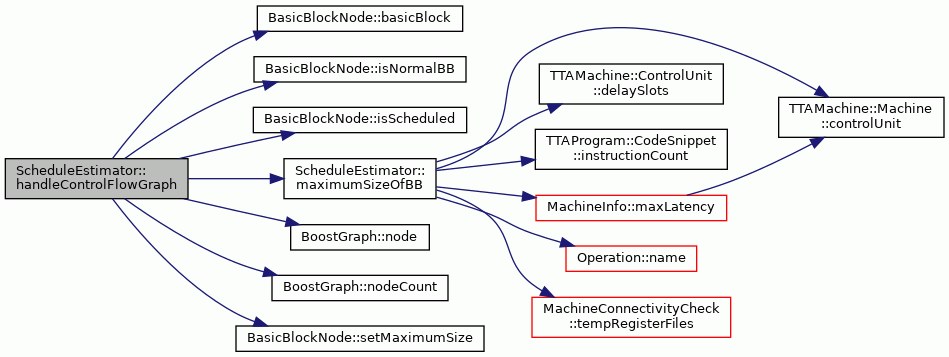

Here is the call graph for this function:

◆ maximumSizeOfBB()

int ScheduleEstimator::maximumSizeOfBB	(	TTAProgram::BasicBlock &	bb,
		const TTAMachine::Machine &	mach
	)

static

Definition at line 49 of file ScheduleEstimator.cc.

                                                             {

    auto tempRegFiles = MachineConnectivityCheck::tempRegisterFiles(mach);
    int tempRegCount = tempRegFiles.size();

    int size = 0;
    int iCount = bb.instructionCount();

    for (int i = 0; i < iCount; i++) {
        auto& ins = bb[i];
        for (int j = 0; j < ins.moveCount(); j++) {
            size++;
            // temp reg copies may make schedule longer.
            size += tempRegCount;
            auto& m = ins.move(j);
            auto& src = m.source();

            if (m.isControlFlowMove()) {
                size += mach.controlUnit()->delaySlots() + 1;
            }
            if (src.isFUPort() && !src.isRA()) {
                const Operation& o = src.hintOperation();
                TCEString opName = o.name();
                int lat = MachineInfo::maxLatency(mach,opName);
                if (lat > 0) {
                    size += lat-1;
                }
            }
        }
    }
    return size;
}
