StrictMatchRFEstimator Class Reference

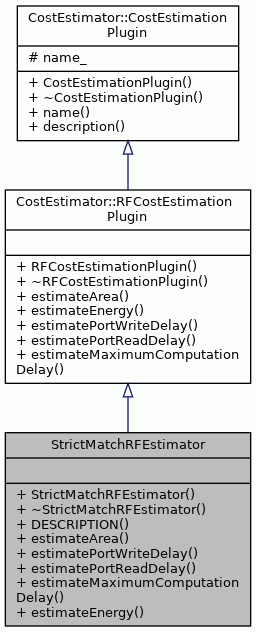

Inheritance diagram for StrictMatchRFEstimator:
Inheritance graph

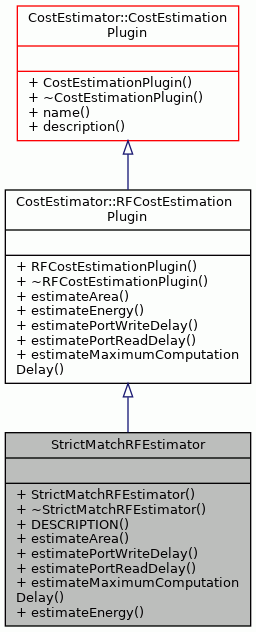

Collaboration diagram for StrictMatchRFEstimator:
Collaboration graph

Public Member Functions

 StrictMatchRFEstimator (const std::string &name)

virtual ~StrictMatchRFEstimator ()

 DESCRIPTION ("Simple RF cost estimator plugin that estimates costs of RFs " "simply by looking up direct matches from HDB. In case there's " "no cost data available for the given RF, it's unable to estimate " "it by using linearization etc.")

bool estimateArea (const TTAMachine::BaseRegisterFile &, const IDF::RFImplementationLocation &implementation, AreaInGates &area, HDB::HDBManager &hdb)

bool estimatePortWriteDelay (const TTAMachine::RFPort &, const IDF::RFImplementationLocation &implementation, DelayInNanoSeconds &delay, HDB::HDBManager &hdb)

bool estimatePortReadDelay (const TTAMachine::RFPort &, const IDF::RFImplementationLocation &implementation, DelayInNanoSeconds &delay, HDB::HDBManager &hdb)

bool estimateMaximumComputationDelay (const TTAMachine::BaseRegisterFile &, const IDF::RFImplementationLocation &implementation, DelayInNanoSeconds &delay, HDB::HDBManager &hdb)

bool estimateEnergy (const TTAMachine::BaseRegisterFile &rf, const IDF::RFImplementationLocation &implementation, const TTAProgram::Program &, const ExecutionTrace &trace, EnergyInMilliJoules &energy, HDB::HDBManager &hdb)

- Public Member Functions inherited from CostEstimator::RFCostEstimationPlugin
 RFCostEstimationPlugin (const std::string &name)

virtual ~RFCostEstimationPlugin ()

- Public Member Functions inherited from CostEstimator::CostEstimationPlugin
 CostEstimationPlugin (const std::string &name)

virtual ~CostEstimationPlugin ()

virtual std::string name () const

virtual std::string description () const


Additional Inherited Members

- Protected Attributes inherited from CostEstimator::CostEstimationPlugin
std::string name_
 the name of the plugin class in the HDB; used to identify cost data


Detailed Description

Definition at line 46 of file StrictMatchRFEstimator.cc.

Constructor & Destructor Documentation

◆ StrictMatchRFEstimator()

StrictMatchRFEstimator::StrictMatchRFEstimator ( const std::string &  name)
inline

◆ ~StrictMatchRFEstimator()

virtual StrictMatchRFEstimator::~StrictMatchRFEstimator ( )
inlinevirtual

Definition at line 52 of file StrictMatchRFEstimator.cc.

52 {
53 }

Member Function Documentation

◆ DESCRIPTION()

StrictMatchRFEstimator::DESCRIPTION ( "Simple RF cost estimator plugin that estimates costs of RFs " "simply by looking up direct matches from HDB. In case there's " "no cost data available for the given  RF,
it 's unable to estimate " "it by using linearization etc."
)

◆ estimateArea()

bool StrictMatchRFEstimator::estimateArea ( const TTAMachine::BaseRegisterFile ,
const IDF::RFImplementationLocation implementation,
AreaInGates area,
HDB::HDBManager hdb
)
inlinevirtual

Estimates the register file's area by fetching cost data named 'area' from HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 67 of file StrictMatchRFEstimator.cc.

71 {
72
73//#define DEBUG_AREA_ESTIMATION
74
75 try {
76 // simply fetch the area data of the FU, if any
77 DataObject areaFromDB = hdb.rfCostEstimationData(
78 "area", implementation.id(), name_);
79 area = areaFromDB.doubleValue();
80#ifdef DEBUG_AREA_ESTIMATION
82 << rf.name() << " area " << area << std::endl;
83#endif
84 return true;
85 } catch (const KeyNotFound&) {
86 // if no area data found, don't even try to estimate the area
87 // somehow
88 Application::logStream() << "No area data found in HDB.";
89
90 return false;
91 } catch (const Exception& e) {
92 // for example, if doubleValue() conversion failed, then it's
93 // a problem with HDB contents
95 return false;
96 }
97 return false;
98 }
#define debugLog(text)
IDF::MachineImplementation * implementation
the implementation definition of the estimated processor
static std::ostream & logStream()
std::string name_
the name of the plugin class in the HDB; used to identify cost data
virtual double doubleValue() const
std::string errorMessage() const
Definition Exception.cc:123
DataObject rfCostEstimationData(const std::string &valueName, RowID implementationId, const std::string &pluginName) const

References debugLog, DataObject::doubleValue(), Exception::errorMessage(), implementation, Application::logStream(), CostEstimator::CostEstimationPlugin::name_, and HDB::HDBManager::rfCostEstimationData().

Here is the call graph for this function:

◆ estimateEnergy()

bool StrictMatchRFEstimator::estimateEnergy ( const TTAMachine::BaseRegisterFile rf,
const IDF::RFImplementationLocation implementation,
const TTAProgram::Program ,
const ExecutionTrace trace,
EnergyInMilliJoules energy,
HDB::HDBManager hdb
)
inlinevirtual

Estimates the energy consumed by given RF.

Estimate is done by computing the sum of all register file access type energies and RF idle energy. Register file access energies are stored with entries named 'rf_access_energy Nr Nw'. Nr is the number of read accesses, Nw the number of write accesses. For example, 'rf_access_energy 1 3' is the name of entry which tells how much energy is consumed by the RF in case RF is accessed simultaneously once for reading and trice for writing. Idle energy is stored in entry 'rf_idle_energy'.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 230 of file StrictMatchRFEstimator.cc.

236 {
237
238//#define DEBUG_ENERGY_ESTIMATION
239
240 energy = 0.0;
241 ClockCycleCount cyclesWithRFAccess = 0;
242#ifdef DEBUG_ENERGY_ESTIMATION
244 << "## register file " << rf.name() << ": " << std::endl;
245#endif
246 try {
250 const_iterator i = accessList->begin();
251 i != accessList->end(); ++i) {
252 const ExecutionTrace::ConcurrentRFAccessCount& accessCount =
253 *i;
254
255 const std::size_t reads = accessCount.get<0>();
256 const std::size_t writes = accessCount.get<1>();
257 const ClockCycleCount count = accessCount.get<2>();
258 const std::string dataName =
259 std::string("rf_access_energy ") +
260 Conversion::toString(reads) + " " +
261 Conversion::toString(writes);
262
263 try {
264 DataObject energyFromDB = hdb.rfCostEstimationData(
265 dataName, implementation.id(), name_);
266 EnergyInMilliJoules energyOfAccess =
267 energyFromDB.doubleValue()*count;
268#ifdef DEBUG_ENERGY_ESTIMATION
270 << "## reads " << accessCount.get<0>() << " "
271 << "writes " << accessCount.get<1>() << " = "
272 << energyFromDB.doubleValue() << " times "
273 << count << " = " << energyOfAccess << std::endl;
274#endif
275 energy += energyOfAccess;
276 cyclesWithRFAccess += count;
277 } catch (const KeyNotFound&) {
278 // if no data found, don't even try to estimate the area
279 delete accessList;
280 accessList = NULL;
282 << "Cost estimation data '" << dataName
283 << "' not found in HDB." << std::endl;
284 return false;
285 } catch (const Exception& e) {
286 delete accessList;
287 accessList = NULL;
289 return false;
290 }
291 }
292 delete accessList;
293 accessList = NULL;
294 } catch (const Exception& e) {
296 return false;
297 }
298
299 // add the cost of RF idling
300 const ClockCycleCount idleCycles =
301 trace.simulatedCycleCount() - cyclesWithRFAccess;
302 const std::string dataName = std::string("rf_idle_energy");
303
304 try {
305 DataObject energyFromDB = hdb.rfCostEstimationData(
306 dataName, implementation.id(), name_);
307 EnergyInMilliJoules idleEnergy =
308 energyFromDB.doubleValue()*idleCycles;
309#ifdef DEBUG_ENERGY_ESTIMATION
311 << "## idle energy " << energyFromDB.doubleValue() << " times "
312 << idleCycles << " = " << idleEnergy << std::endl;
313
314#endif
315 energy += idleEnergy;
316
317 } catch (const KeyNotFound&) {
318 // if no data found, don't even try to estimate the area
320 << "Cost estimation data '" << dataName
321 << "' not found in HDB." << std::endl;
322 return false;
323 } catch (const Exception& e) {
325 return false;
326 }
327
328 return true;
329 }
ExecutionTrace * trace
the execution trace database
CycleCount ClockCycleCount
Alias for ClockCycleCount.
static std::string toString(const T &source)
std::list< ConcurrentRFAccessCount > ConcurrentRFAccessCountList
type to be used for a list of concurrent RF accesses
boost::tuple< RegisterAccessCount, RegisterAccessCount, ClockCycleCount > ConcurrentRFAccessCount
type to be used as a key for storing concurrent RF access info
ClockCycleCount simulatedCycleCount() const
ConcurrentRFAccessCountList * registerFileAccessCounts(RegisterFileID registerFile) const
virtual TCEString name() const
double EnergyInMilliJoules
type for consumed energy in milli joules

References debugLog, DataObject::doubleValue(), Exception::errorMessage(), implementation, Application::logStream(), TTAMachine::Component::name(), CostEstimator::CostEstimationPlugin::name_, ExecutionTrace::registerFileAccessCounts(), HDB::HDBManager::rfCostEstimationData(), ExecutionTrace::simulatedCycleCount(), Conversion::toString(), and trace.

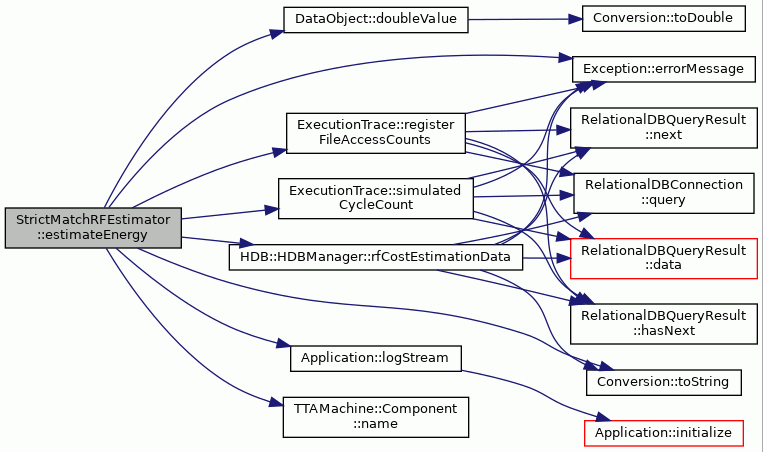

Here is the call graph for this function:

◆ estimateMaximumComputationDelay()

bool StrictMatchRFEstimator::estimateMaximumComputationDelay ( const TTAMachine::BaseRegisterFile ,
const IDF::RFImplementationLocation implementation,
DelayInNanoSeconds delay,
HDB::HDBManager hdb
)
inlinevirtual

Estimates the register file maximum computation delay by fetching cost data named 'computation_delay' from HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 186 of file StrictMatchRFEstimator.cc.

190 {
191
192 try {
193 // simply fetch the delay data of the RF, if any
194 DataObject delayFromDB = hdb.rfCostEstimationData(
195 "computation_delay", implementation.id(), name_);
196 delay = delayFromDB.doubleValue();
197#ifdef DEBUG_DELAY_ESTIMATION
199 << rf.name() << " computation delay " << delay << std::endl;
200#endif
201 return true;
202 } catch (const KeyNotFound&) {
203 // if no data found, don't even try to estimate the area
205 << "No computation_delay cost data found for RF "
206 << implementation.id() << ", plugin " << name_ << std::endl;
207 return false;
208 } catch (const Exception& e) {
209 // for example, if doubleValue() conversion failed, then it's
210 // a problem with HDB contents
212 return false;
213 }
214
215 return false;
216 }

References debugLog, DataObject::doubleValue(), Exception::errorMessage(), implementation, Application::logStream(), CostEstimator::CostEstimationPlugin::name_, and HDB::HDBManager::rfCostEstimationData().

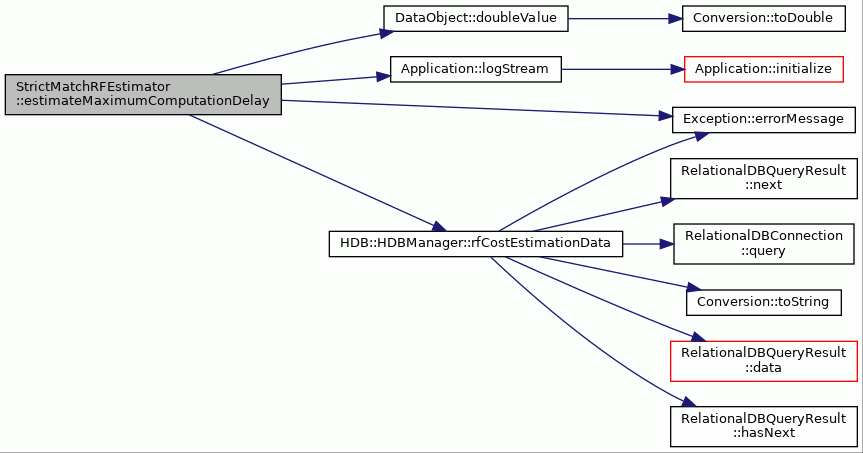

Here is the call graph for this function:

◆ estimatePortReadDelay()

bool StrictMatchRFEstimator::estimatePortReadDelay ( const TTAMachine::RFPort ,
const IDF::RFImplementationLocation implementation,
DelayInNanoSeconds delay,
HDB::HDBManager hdb
)
inlinevirtual

Estimates the register file port read delay by fetching cost data named 'output_delay' from HDB.

Assumes that all ports have the same output delay, that is, there is only one 'output_delay' entry for a RF in HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 149 of file StrictMatchRFEstimator.cc.

153 {
154
155 try {
156 // simply fetch the delay data of the RF port, if any
157 DataObject delayFromDB = hdb.rfCostEstimationData(
158 "output_delay", implementation.id(), name_);
159 delay = delayFromDB.doubleValue();
160#ifdef DEBUG_DELAY_ESTIMATION
162 << port.name() << " read delay " << delay << std::endl;
163#endif
164 return true;
165 } catch (const KeyNotFound&) {
166 // if no data found, don't even try to estimate the area
168 << "No output_delay cost data found for RF "
169 << implementation.id() << ", plugin " << name_ << std::endl;
170 return false;
171 } catch (const Exception& e) {
172 // for example, if doubleValue() conversion failed, then it's
173 // a problem with HDB contents
175 return false;
176 }
177
178 return false;
179 }

References debugLog, DataObject::doubleValue(), Exception::errorMessage(), implementation, Application::logStream(), CostEstimator::CostEstimationPlugin::name_, and HDB::HDBManager::rfCostEstimationData().

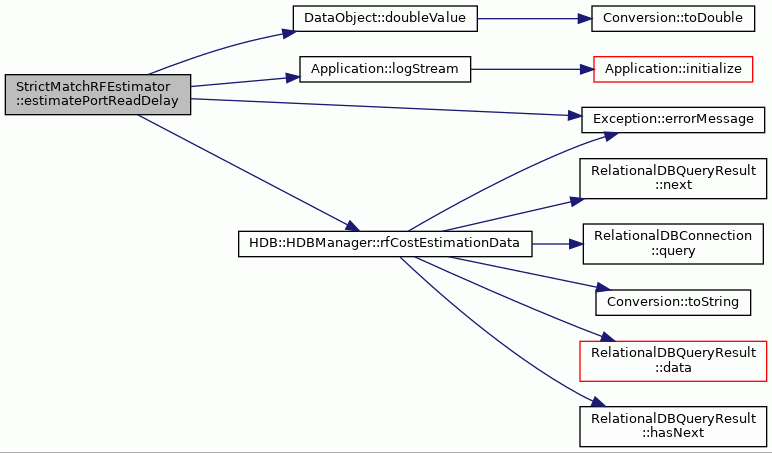

Here is the call graph for this function:

◆ estimatePortWriteDelay()

bool StrictMatchRFEstimator::estimatePortWriteDelay ( const TTAMachine::RFPort ,
const IDF::RFImplementationLocation implementation,
DelayInNanoSeconds delay,
HDB::HDBManager hdb
)
inlinevirtual

Estimates the register file port write delay by fetching cost data named 'input_delay' from HDB.

Assumes that all ports have the same input delay, that is, there is only one 'input_delay' entry for a RF in HDB.

Reimplemented from CostEstimator::RFCostEstimationPlugin.

Definition at line 108 of file StrictMatchRFEstimator.cc.

112 {
113
114//#define DEBUG_DELAY_ESTIMATION
115 try {
116 // simply fetch the delay data of the RF port, if any
117 DataObject delayFromDB = hdb.rfCostEstimationData(
118 "input_delay", implementation.id(), name_);
119 delay = delayFromDB.doubleValue();
120#ifdef DEBUG_DELAY_ESTIMATION
122 << port.name() << " write delay " << delay << std::endl;
123#endif
124 return true;
125 } catch (const KeyNotFound&) {
126 // if no data found, don't even try to estimate the area
128 << "No input_delay cost data found for RF "
129 << implementation.id() << ", plugin " << name_ << std::endl;
130 return false;
131 } catch (const Exception& e) {
132 // for example, if doubleValue() conversion failed, then it's
133 // a problem with HDB contents
135 return false;
136 }
137
138 return false;
139 }

References debugLog, DataObject::doubleValue(), Exception::errorMessage(), implementation, Application::logStream(), CostEstimator::CostEstimationPlugin::name_, and HDB::HDBManager::rfCostEstimationData().

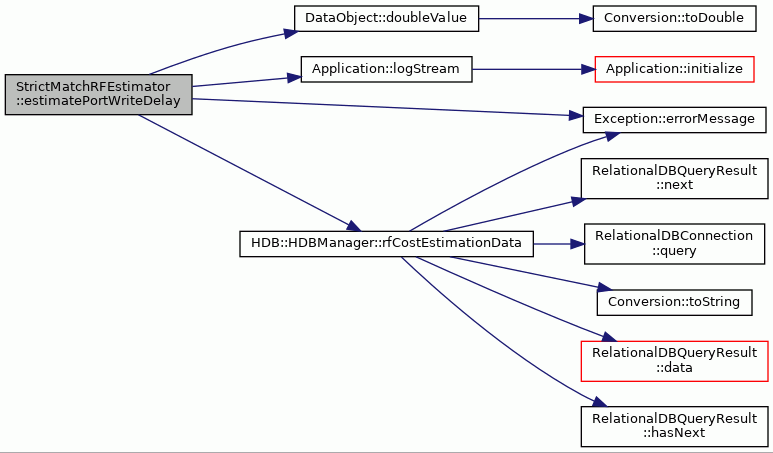

Here is the call graph for this function:

The documentation for this class was generated from the following file:
