#include <AOutSymbolSectionReader.hh>

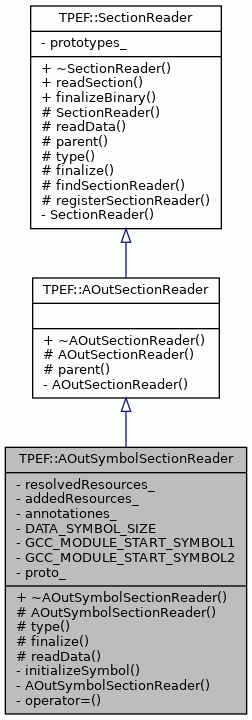

Inheritance diagram for TPEF::AOutSymbolSectionReader:

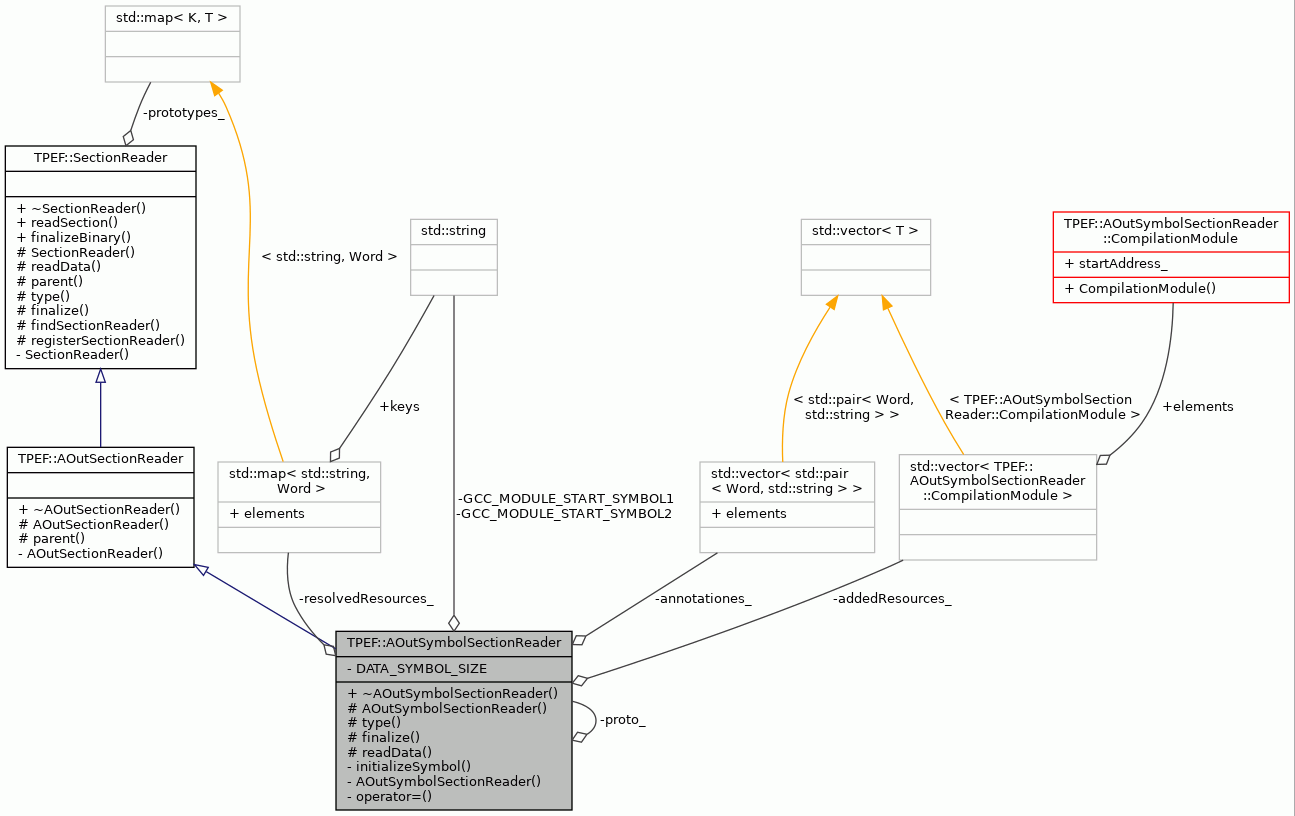

Collaboration diagram for TPEF::AOutSymbolSectionReader:

Classes
struct	CompilationModule

struct	StabData

Public Member Functions
virtual	~AOutSymbolSectionReader ()

Public Member Functions inherited from TPEF::AOutSectionReader
virtual	~AOutSectionReader ()

Public Member Functions inherited from TPEF::SectionReader
virtual	~SectionReader ()

Protected Member Functions
	AOutSymbolSectionReader ()

virtual Section::SectionType	type () const

virtual void	finalize (Section *section) const

virtual void	readData (BinaryStream &stream, Section *section) const

Protected Member Functions inherited from TPEF::AOutSectionReader
	AOutSectionReader ()

virtual BinaryReader *	parent () const

Protected Member Functions inherited from TPEF::SectionReader
	SectionReader ()

Private Member Functions
SymbolElement *	initializeSymbol (BinaryStream &stream, SectionOffset sectionOffset, AOutReader *reader) const

	AOutSymbolSectionReader (const AOutSymbolSectionReader &)
	Copying not allowed.

AOutSymbolSectionReader &	operator= (const AOutSymbolSectionReader &)
	Assignment not allowed.

Private Attributes
std::map< std::string, Word >	resolvedResources_
	Resource id:s for strings.

std::vector< CompilationModule >	addedResources_
	List of compilation modules of a.out.

std::vector< std::pair< Word, std::string > >	annotationes_

Static Private Attributes
static const Word	DATA_SYMBOL_SIZE = 4
	Data symbol size in bytes.

static const std::string	GCC_MODULE_START_SYMBOL1 = "gcc2_compiled."
	One of the symbols that are used to indicate start of new compilation module in a.out symbol table.

static const std::string	GCC_MODULE_START_SYMBOL2 = "___gnu_compiled_c"
	One of the symbols that are used to indicate start of new compilation module in a.out symbol table.

static AOutSymbolSectionReader	proto_
	Class-wide (unique) prototype instance of AOutSymbolSectionReader registered into SectionReader.

Additional Inherited Members
Public Types inherited from TPEF::SectionReader
typedef BinaryReader::Length	Length

Static Public Member Functions inherited from TPEF::SectionReader
static void	readSection (BinaryStream &stream, Section section, BinaryReader reader)

static void	finalizeBinary (Binary binaryToFinalize, BinaryReader reader)

Static Protected Member Functions inherited from TPEF::SectionReader
static const SectionReader *	findSectionReader (const Section::SectionType type, const BinaryReader *bReader)

static void	registerSectionReader (const SectionReader *sReader)

Detailed Description

Reads symbol table section from a.out binary file.

Definition at line 54 of file AOutSymbolSectionReader.hh.

Constructor & Destructor Documentation

◆ ~AOutSymbolSectionReader()

TPEF::AOutSymbolSectionReader::~AOutSymbolSectionReader ( )

virtual

Destructor.

Definition at line 86 of file AOutSymbolSectionReader.cc.

86 {

87}

◆ AOutSymbolSectionReader() [1/2]

TPEF::AOutSymbolSectionReader::AOutSymbolSectionReader ( )

protected

Constructor.

Registers itself to SectionReader.

Definition at line 79 of file AOutSymbolSectionReader.cc.

                                                 : AOutSectionReader() {
    SectionReader::registerSectionReader(this);
}

References TPEF::SectionReader::registerSectionReader().

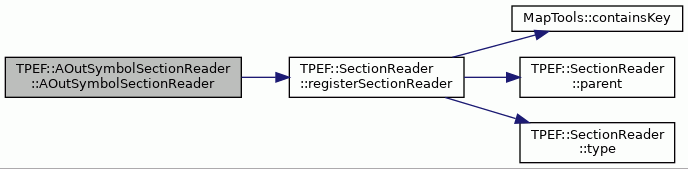

Here is the call graph for this function:

◆ AOutSymbolSectionReader() [2/2]

TPEF::AOutSymbolSectionReader::AOutSymbolSectionReader ( const AOutSymbolSectionReader & )

private

Copying not allowed.

Member Function Documentation

◆ finalize()

void TPEF::AOutSymbolSectionReader::finalize ( Section * section ) const

protectedvirtual

Finalizer method for AOut symbol sections.

Removes reserved gcc code symbols and converts compilation unit code label to file symbol.

Fixes resource references of special operations to use same id in all compilation units.

Adds annotationes to needed moves.

Parameters

section Section to finalize.

Reimplemented from TPEF::SectionReader.

Definition at line 433 of file AOutSymbolSectionReader.cc.

                                                        {

    StringSection *strTab = dynamic_cast<StringSection*>(section->link());

    NullSection* nullSection =
        dynamic_cast<AOutReader*>(parent())->nullSection();

    assert(nullSection);

    // make file symbols to tpef
    for (Word i = 0; i < section->elementCount(); i++) {

        SymbolElement *sym =
            dynamic_cast<SymbolElement*>(section->element(i));

        if (sym->type() == SymbolElement::STT_CODE) {

            std::string symName = strTab->chunk2String(sym->name());

            // if read a.out is linked and compilation unit's start
            // symbol is found (i == 1 and GCC_MODULE_START_SYMBOL1 is
            // found it means that first read symbol from a.out was
            // GCC_MODULE_START_SYMBOL1. In linked a.out there is always
            // symbol for each compilation module before
            // GCC_MODULE_START_SYMBOL1)


            if (i > 1 && symName == GCC_MODULE_START_SYMBOL1) {

                SymbolElement *prevSymbol =
                    dynamic_cast<SymbolElement*>(section->element(i - 1));

                // previous symbol can be either code symbol or no type,
                // if there is no instructions in compilation modulex
                assert(prevSymbol->type() == SymbolElement::STT_CODE ||
                       prevSymbol->type() == SymbolElement::STT_NOTYPE);

                FileSymElement *newFileSym = new FileSymElement();
                newFileSym->setName(prevSymbol->name());

                newFileSym->setSection(nullSection);

                CodeSymElement *codeSym =
                    dynamic_cast<CodeSymElement*>(prevSymbol);

                if (codeSym != NULL) {
                    // TODO: set value and section to be same that in code
                    //    section newFileSym->setSection(codeSym->section());
                    //    newFileSym->setValue();
                }

                section->setElement(i - 1, newFileSym);

                // replace all references to prevSymbol with
                // newFileSym reference.
                SafePointer::replaceAllReferences(newFileSym, prevSymbol);
                delete prevSymbol;
                prevSymbol = NULL;
            }

            if (symName == GCC_MODULE_START_SYMBOL1 ||
                symName == GCC_MODULE_START_SYMBOL2) {

                NoTypeSymElement *replacingSymbol = new NoTypeSymElement();
                replacingSymbol->setName(sym->name());
                replacingSymbol->setSection(nullSection);

                section->setElement(i, replacingSymbol);

                // replace all references to sym with replacing symbol
                // reference
                SafePointer::replaceAllReferences(replacingSymbol, sym);
                delete sym;
                sym = NULL;

            } else {
                // create corresponding STT_PROCEDURE symbol for each code
                // symbol
                ProcedSymElement *newSym = new ProcedSymElement();
                CodeSymElement *codeSym = dynamic_cast<CodeSymElement*>(sym);
                assert(codeSym != NULL);

                newSym->setAbsolute(codeSym->absolute());
                newSym->setBinding(SymbolElement::STB_LOCAL);
                newSym->setName(codeSym->name());
                newSym->setSection(codeSym->section());
                newSym->setReference(codeSym->reference());
                newSym->setSize(codeSym->size());

                section->addElement(newSym);
            }
        }
    }

    // fix operand references from code section with information gathered from
    // symbol table.

    CodeSection* textSection =
        dynamic_cast<AOutReader*>(parent())->textSection();

    for (unsigned int i = 0; i < addedResources_.size();  i++) {
        CompilationModule& module = addedResources_[i];

        // resolve address slice to convert...
        Word lastAddress = textSection->instructionCount();

        if (i < addedResources_.size() - 1) {
            lastAddress = addedResources_[i+1].startAddress_;
        }

        // fix the stuff...
        for (unsigned int j = module.startAddress_; j < lastAddress; j++) {

            // get move to check
            InstructionElement* instr = &textSection->instruction(j);

            MoveElement* move = NULL;

            // check only move's
            if (instr->isImmediate()) {
                Word sectionIndex = textSection->instructionToSectionIndex(j);
                instr = dynamic_cast<InstructionElement*>(
                    textSection->element(sectionIndex + 1));
            }

            move = dynamic_cast<MoveElement*>(instr);

            // if source is universal FU port, replace if updating is needed
            if (move->sourceType() == MoveElement::MF_UNIT &&
                move->sourceUnit() == ResourceElement::UNIVERSAL_FU &&
                MapTools::containsKey(
                    module.resources_, move->sourceIndex())) {

                move->setSourceIndex(module.resources_[move->sourceIndex()]);
            }

            // if destination is universal FU port,
            // replace if updating is needed
            if (move->destinationType() == MoveElement::MF_UNIT &&
                move->destinationUnit() == ResourceElement::UNIVERSAL_FU &&
                MapTools::containsKey(
                    module.resources_, move->destinationIndex())) {

                move->setDestinationIndex(
                    module.resources_[move->destinationIndex()]);
            }
        }

    }

    // Add annotations to instruction elements
    for (Word i = 0; i < annotationes_.size(); i++) {

        InstructionElement* instr = dynamic_cast<InstructionElement*>(
            textSection->element(annotationes_[i].first));

        std::string annString = annotationes_[i].second;

        // first 10 letters are annotation ID
        if (annString.at(10) != ':') {
            throw IllegalProgram(
                __FILE__, __LINE__, __func__,
                "11 first characters of annotation stab must contain "
                "annotation ID ending with ':' e.g. '0x00011000:'");
        }

        Word annId = Conversion::toInt(annString.substr(0,10));

        std::string payString = annString.substr(11,annString.length() - 10);
        std::vector<Byte> payload;

        for (unsigned int j = 0; j < payString.length(); j++) {
            payload.push_back(payString.at(j));
        }

        instr->addAnnotation(new InstructionAnnotation(annId, payload));
    }
}

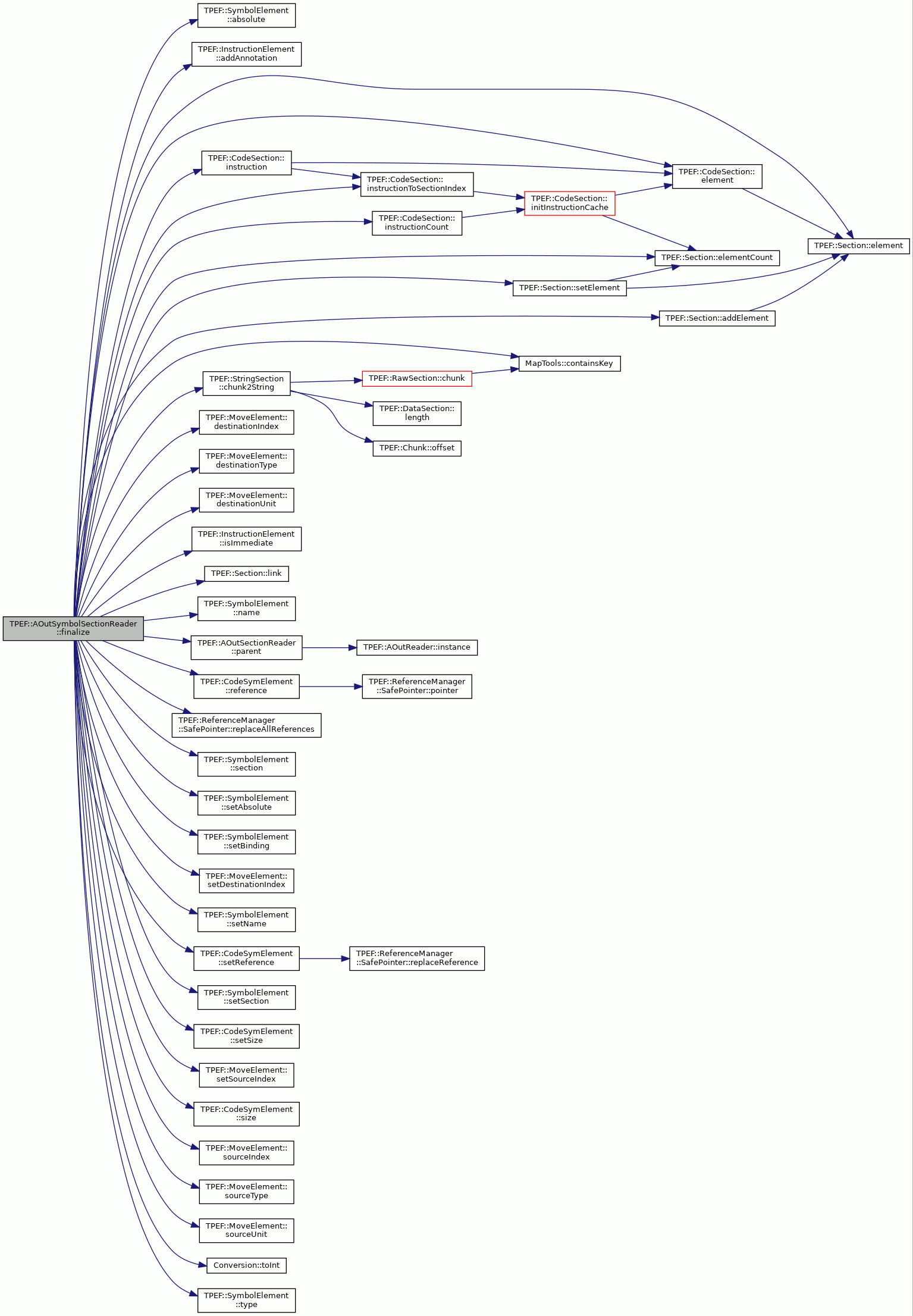

Here is the call graph for this function:

◆ initializeSymbol()

SymbolElement * TPEF::AOutSymbolSectionReader::initializeSymbol	(	BinaryStream &	stream,
		SectionOffset	sectionOffset,
		AOutReader *	reader
	)		const

private

Creates and initilizes one symbol element.

Now only non-stabb symbols are read.

Parameters

stream	The stream to be read from.
sectionOffset	The offset of the element in section.
reader	The base reader for a.out.

Returns: Newly created symbol.

Exceptions

KeyAlreadyExists	If key used to register object is in use.
UnreachableStream	If there occurs problems with stream.
OutOfRange	If offset read is out of the section.

Definition at line 261 of file AOutSymbolSectionReader.cc.

                              {
    StringSection* stringSection =
        dynamic_cast<AOutReader*>(parent())->stringSection();

    SymbolElement *element = NULL;

    // first there is an offset to string in string table
    Word strtabOff = stream.readWord();

    // type of symbol
    Byte type = stream.readByte();

    // not used
    Byte other = stream.readByte();

    // description of the symbol, reserved for debugger use
    // not needed in tpef (there is debug section for that)
    HalfWord desc = stream.readHalfWord();

    // offset of the value of the symbol
    Word value = stream.readWord();

    // key to string of symbol
    SectionOffsetKey strOffKey =
            SectionOffsetKey(AOutReader::ST_STRING, strtabOff);


    // create element of right type
    switch (type&(~AOutReader::N_EXT)) {

    case AOutReader::N_UNDF: {
        element = new NoTypeSymElement();
        element->setSection(reader->nullSection());
        break;
    }

    case AOutReader::N_TEXT: {
        // create code symbols only if there really is code section
        if (reader->header().sectionSizeText() != 0) {

            // if new compilation module start symbol, start new module for
            // resource id resolving...
            std::string symbolName =
                stringSection->chunk2String(stringSection->chunk(strtabOff));

            if (GCC_MODULE_START_SYMBOL1 == symbolName) {
                Word tpefAddress = value/8;
                addedResources_.push_back(CompilationModule(tpefAddress));
            }

            element = new CodeSymElement();

            // convert a.out address to suitable for section offset key..
            value = reader->sectionOffsetOfAddress(value);

            SectionOffsetKey valueKey(AOutReader::ST_TEXT, value);
            CodeSymElement *elem = dynamic_cast<CodeSymElement*>(element);
            elem->setReference(CREATE_SAFEPOINTER(valueKey));

            SectionKey sKey(AOutReader::ST_TEXT);
            element->setSection(CREATE_SAFEPOINTER(sKey));

        } else { // otherwise create no type symbol
            element = new NoTypeSymElement();
            element->setSection(reader->nullSection());
        }

        break;
    }

    case AOutReader::N_DATA:
    case AOutReader::N_BSS: {
        element = new DataSymElement();

        value = reader->sectionOffsetOfAddress(value);

        SectionOffsetKey valueKey(type&(~AOutReader::N_EXT), value);
        DataSymElement *elem = dynamic_cast<DataSymElement*>(element);
        elem->setReference(CREATE_SAFEPOINTER(valueKey));


        elem->setSize(DATA_SYMBOL_SIZE);

        SectionKey sKey(type&(~AOutReader::N_EXT));
        element->setSection(CREATE_SAFEPOINTER(sKey));
        break;
    }

    case AOutReader::N_FN: {
        element = new FileSymElement();
        element->setSection(reader->nullSection());
        break;
    }

    case AOutReader::N_PRTAB: {
        std::string symbolName =
            stringSection->chunk2String(stringSection->chunk(strtabOff));

        if (!MapTools::containsKey(resolvedResources_, symbolName)) {
            resolvedResources_[symbolName] = value;
        } else {
            // if symbol with same name has different value
            // add replacement entry
            Word resolvedValue = resolvedResources_[symbolName];
            if (value != resolvedValue) {
                addedResources_[addedResources_.size()-1].resources_[value] =
                    resolvedValue;
            }
        }

        return NULL;
    }

    case AOutReader::N_ANN: {

        std::string symbolName =
            stringSection->chunk2String(stringSection->chunk(strtabOff));

        // value - address of instruction, symbolName - all the data
        Word numberOfInstruction = value / 8;
        annotationes_.push_back(std::pair<Word, std::string>(numberOfInstruction, symbolName));
        return NULL;
    }

    // rest of symbols are stored as stabs
    default: {
        DebugStabElem* stab =
            new DebugStabElem(type, other, desc, value);

        stab->setDebugString(CREATE_SAFEPOINTER(strOffKey));

        reader->debugSection()->addElement(stab);

        return NULL;
    } break;

    }

    // inform ReferenceManager about new symbol
    SectionOffsetKey offKey =
        SectionOffsetKey(AOutReader::ST_SYMBOL, sectionOffset);
    SafePointer::addObjectReference(offKey, element);

    // figure out symbol linkage scope (local/global)
    if (static_cast<Byte>(type) & static_cast<Byte>(AOutReader::N_EXT)) {
        element->setBinding(SymbolElement::STB_GLOBAL);
    } else {
        element->setBinding(SymbolElement::STB_LOCAL);
    }

    // symbol name string
    element->setName(CREATE_SAFEPOINTER(strOffKey));

    return element;
}

Referenced by readData().

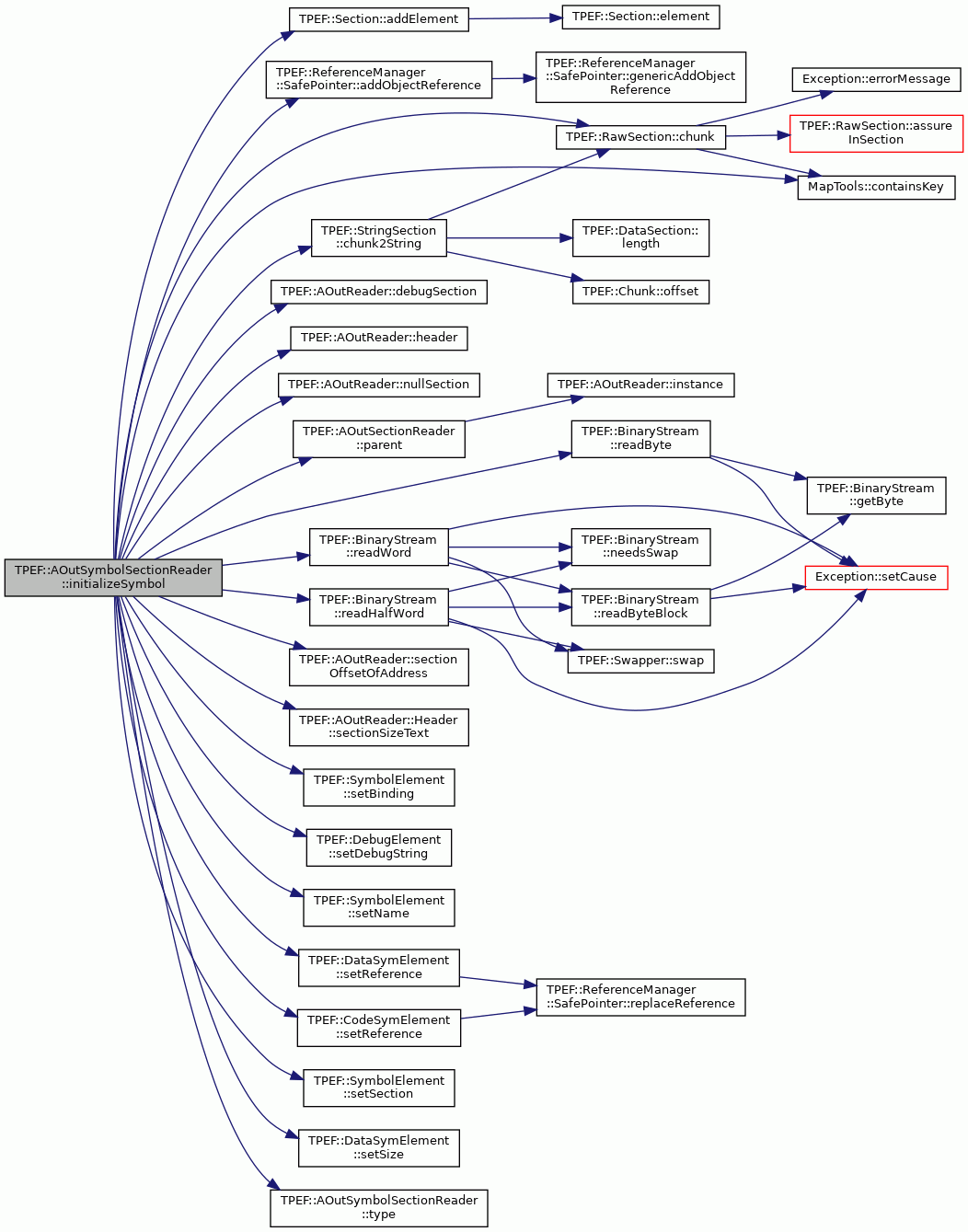

Here is the call graph for this function:

◆ operator=()

AOutSymbolSectionReader & TPEF::AOutSymbolSectionReader::operator= ( const AOutSymbolSectionReader & )

private

Assignment not allowed.

◆ readData()

void TPEF::AOutSymbolSectionReader::readData	(	BinaryStream &	stream,
		Section *	section
	)		const

protectedvirtual

Reads a.out symbol section out of stream and stores it in section.

Parameters

stream	The stream to be read from.
section	The section in which data is stored.

Exceptions

UnreachableStream	If reading of section fails.
KeyAlreadyExists	Key was in use when trying to register object.
EndOfFile	If end of file were reached while it shouldn't.
OutOfRange	Some of read values were out of range.
WrongSubclass	Some class couldn't do what it was asked for.
UnexpectedValue	If there was unexpected value when reading.

Implements TPEF::SectionReader.

Definition at line 112 of file AOutSymbolSectionReader.cc.

                                                  {
    StringSection* stringSection =
        dynamic_cast<AOutReader*>(parent())->stringSection();

    FileOffset offset = stream.readPosition();
    AOutReader* reader = dynamic_cast<AOutReader*>(parent());
    assert(reader != NULL);

    // create undef symbol to start of section (needed by TPEF)
    SymbolElement *undefSymbol =  new NoTypeSymElement();

    SectionOffsetKey nullStringKey =
        SectionOffsetKey(AOutReader::ST_STRING, 0);

    undefSymbol->setName(CREATE_SAFEPOINTER(nullStringKey));
    undefSymbol->setSection(reader->nullSection());

    SectionIndexKey undefSymbolKey =
        SectionIndexKey(AOutReader::ST_SYMBOL, 0);
    SafePointer::addObjectReference(undefSymbolKey, undefSymbol);

    section->addElement(undefSymbol);

    // in this point there is no recources added yet
    resolvedResources_.clear();
    addedResources_.clear();

    // symbols start in a.out with index 0
    int symIndex = 0;
    while (stream.readPosition() <
           offset + reader->header().sectionSizeSymbol()) {

        SectionOffset sectionOffset = stream.readPosition() - offset;

        SymbolElement* elem =
            initializeSymbol(stream, sectionOffset, reader);

        if (elem != NULL) {
            SectionIndexKey symIndexKey =
                SectionIndexKey(AOutReader::ST_SYMBOL, symIndex + 1);
            SafePointer::addObjectReference(symIndexKey, elem);

            section->addElement(elem);

        }

        // always remember to increment index counter, even if symbol is not
        // created
        symIndex++;
    }


    // ----------------------------------------------------------------------
    // write resource table out of N_PRTAB stabs collected from symbol table
    // ----------------------------------------------------------------------

    ResourceSection* resourceTable =
        dynamic_cast<AOutReader*>(parent())->resourceTable();

    ResourceElement *resource = NULL;

    while (!resolvedResources_.empty()) {
        Word value = (*(resolvedResources_.begin())).second;
        Chunk* name =
            stringSection->string2Chunk(
                (*(resolvedResources_.begin())).first);

        // if operation register, make entry to resource table
        if (value > AOutReader::FIRST_FU_REGISTER) {

            resource = new ResourceElement();
            resource->setId(value);
            resource->setType(ResourceElement::MRT_OP);

            resource->setName(
                CREATE_SAFEPOINTER(
                    SectionOffsetKey(AOutReader::ST_STRING, name->offset())));

            resourceTable->addElement(resource);

            // the very first of FU registers in a.out is
            // "return-address" special register
        } else if (value == AOutReader::FIRST_FU_REGISTER) {

            resource = new ResourceElement();
            resource->setId(value);
            resource->setType(ResourceElement::MRT_SR);

            resource->setName(
                CREATE_SAFEPOINTER(
                    SectionOffsetKey(AOutReader::ST_STRING, name->offset())));

            resourceTable->addElement(resource);
        }

        resolvedResources_.erase(resolvedResources_.begin());
    }

    // add int register file
    resource = new ResourceElement();
    resource->setId(ResourceElement::INT_RF);
    resource->setType(ResourceElement::MRT_RF);
    resource->setName(CREATE_SAFEPOINTER(nullStringKey));
    resourceTable->addElement(resource);

    // add fp registerfile
    resource = new ResourceElement();
    resource->setId(ResourceElement::FP_RF);
    resource->setType(ResourceElement::MRT_RF);
    resource->setName(CREATE_SAFEPOINTER(nullStringKey));
    resourceTable->addElement(resource);

    // add bool register file
    resource = new ResourceElement();
    resource->setType(ResourceElement::MRT_RF);
    resource->setId(ResourceElement::BOOL_RF);
    resource->setName(CREATE_SAFEPOINTER(nullStringKey));
    resourceTable->addElement(resource);

    // add unit
    resource = new ResourceElement();
    resource->setType(ResourceElement::MRT_UNIT);
    resource->setId(ResourceElement::UNIVERSAL_FU);
    resource->setName(CREATE_SAFEPOINTER(nullStringKey));
    resourceTable->addElement(resource);

    // add bus
    resource = new ResourceElement();
    resource->setType(ResourceElement::MRT_BUS);
    resource->setId(ResourceElement::UNIVERSAL_BUS);
    resource->setName(CREATE_SAFEPOINTER(nullStringKey));
    resourceTable->addElement(resource);
}

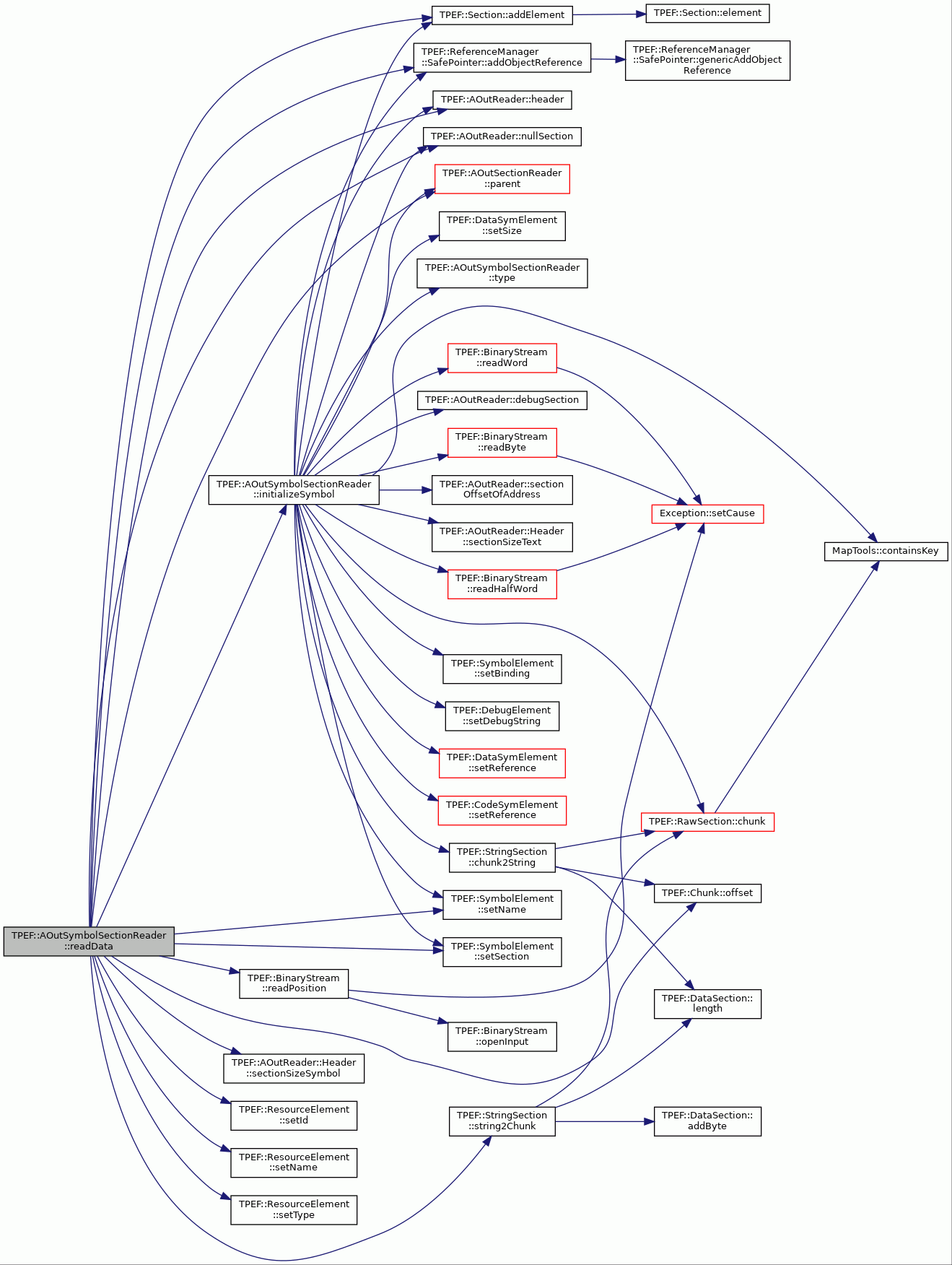

Here is the call graph for this function:

◆ type()

Section::SectionType TPEF::AOutSymbolSectionReader::type ( ) const

protectedvirtual

Returns the type of section that this reader reads.

Returns: The type of section this reader can read.

Implements TPEF::SectionReader.

Definition at line 95 of file AOutSymbolSectionReader.cc.

                                    {
    return Section::ST_SYMTAB;
}

References TPEF::Section::ST_SYMTAB.

Referenced by initializeSymbol().

Member Data Documentation

◆ addedResources_

std::vector<CompilationModule> TPEF::AOutSymbolSectionReader::addedResources_

mutableprivate

List of compilation modules of a.out.

Definition at line 143 of file AOutSymbolSectionReader.hh.

Referenced by finalize(), initializeSymbol(), and readData().

◆ annotationes_

std::vector< std::pair<Word, std::string> > TPEF::AOutSymbolSectionReader::annotationes_

mutableprivate

Definition at line 145 of file AOutSymbolSectionReader.hh.

Referenced by finalize(), and initializeSymbol().

◆ DATA_SYMBOL_SIZE

const Word TPEF::AOutSymbolSectionReader::DATA_SYMBOL_SIZE = 4

staticprivate

Data symbol size in bytes.

Definition at line 103 of file AOutSymbolSectionReader.hh.

Referenced by initializeSymbol().

◆ GCC_MODULE_START_SYMBOL1

const std::string TPEF::AOutSymbolSectionReader::GCC_MODULE_START_SYMBOL1 = "gcc2_compiled."

staticprivate

One of the symbols that are used to indicate start of new compilation module in a.out symbol table.

Definition at line 107 of file AOutSymbolSectionReader.hh.

Referenced by finalize(), and initializeSymbol().

◆ GCC_MODULE_START_SYMBOL2

const std::string TPEF::AOutSymbolSectionReader::GCC_MODULE_START_SYMBOL2 = "___gnu_compiled_c"

staticprivate

One of the symbols that are used to indicate start of new compilation module in a.out symbol table.

Definition at line 111 of file AOutSymbolSectionReader.hh.

Referenced by finalize().

◆ proto_

AOutSymbolSectionReader TPEF::AOutSymbolSectionReader::proto_

staticprivate

Class-wide (unique) prototype instance of AOutSymbolSectionReader registered into SectionReader.

Definition at line 115 of file AOutSymbolSectionReader.hh.

◆ resolvedResources_

std::map<std::string, Word> TPEF::AOutSymbolSectionReader::resolvedResources_

mutableprivate

Resource id:s for strings.

Definition at line 140 of file AOutSymbolSectionReader.hh.

Referenced by initializeSymbol(), and readData().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~AOutSymbolSectionReader()

◆ AOutSymbolSectionReader() [1/2]

◆ AOutSymbolSectionReader() [2/2]

Member Function Documentation

◆ finalize()

◆ initializeSymbol()

◆ operator=()

◆ readData()

◆ type()

Member Data Documentation

◆ addedResources_

◆ annotationes_

◆ DATA_SYMBOL_SIZE

◆ GCC_MODULE_START_SYMBOL1

◆ GCC_MODULE_START_SYMBOL2

◆ proto_

◆ resolvedResources_
