TPEF::TPEFSectionReader Class Reference

#include <TPEFSectionReader.hh>

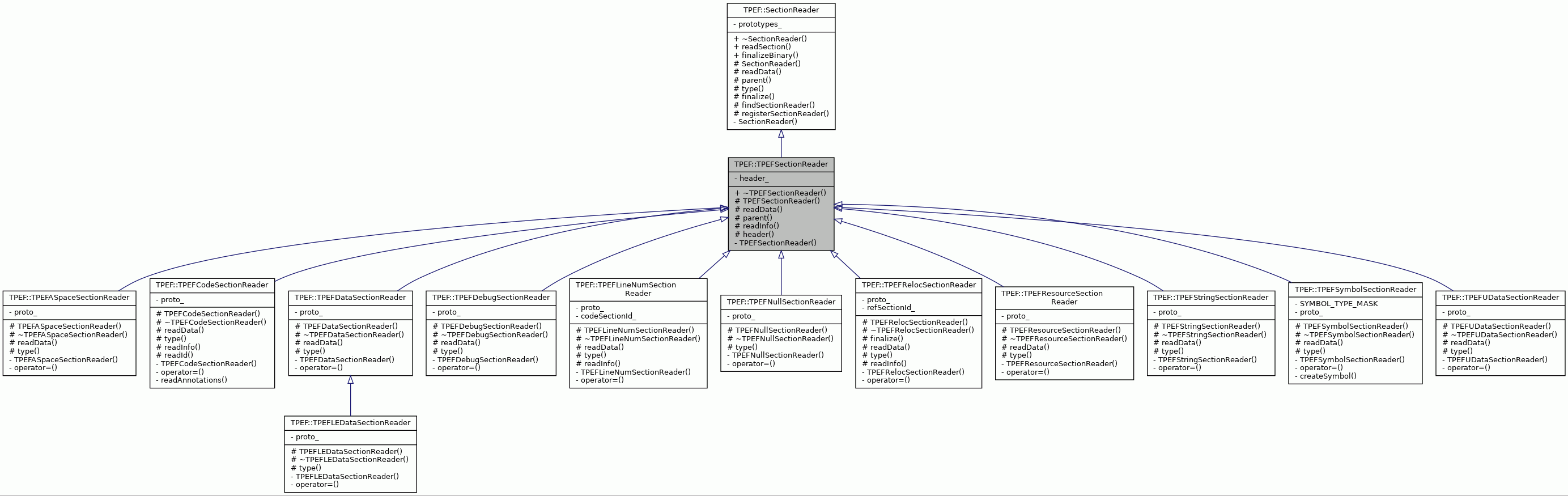

Inheritance diagram for TPEF::TPEFSectionReader:

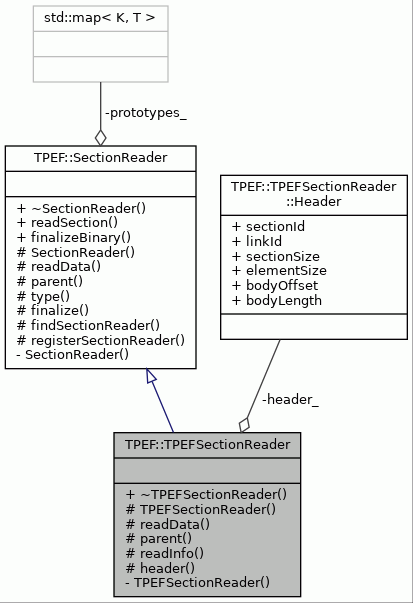

Collaboration diagram for TPEF::TPEFSectionReader:

Classes
struct	Header

Public Member Functions
virtual	~TPEFSectionReader ()
Public Member Functions inherited from TPEF::SectionReader
virtual	~SectionReader ()

Protected Member Functions
	TPEFSectionReader ()
virtual void	readData (BinaryStream &stream, Section *section) const
virtual BinaryReader *	parent () const
virtual void	readInfo (BinaryStream &stream, Section *sect) const
Protected Member Functions inherited from TPEF::SectionReader
	SectionReader ()
virtual Section::SectionType	type () const =0
	Returns type (TPEF) section which actual section reader reads.
virtual void	finalize (Section *section) const

Static Protected Member Functions
static const Header &	header ()
Static Protected Member Functions inherited from TPEF::SectionReader
static const SectionReader *	findSectionReader (const Section::SectionType type, const BinaryReader *bReader)
static void	registerSectionReader (const SectionReader *sReader)

Private Member Functions
	TPEFSectionReader (const TPEFSectionReader &)

Static Private Attributes
static Header	header_
	Stores values that are needed in actual SectionReader classes.

Additional Inherited Members
Public Types inherited from TPEF::SectionReader
typedef BinaryReader::Length	Length
Static Public Member Functions inherited from TPEF::SectionReader
static void	readSection (BinaryStream &stream, Section *section, BinaryReader *reader)
static void	finalizeBinary (Binary *binaryToFinalize, BinaryReader *reader)

Detailed Description

Abstract base class for all TPEFSectionReaders.

Class implements default definitions of virtual methods declared in SectionReader class and reading headers of TPEF sections.

Definition at line 48 of file TPEFSectionReader.hh.

Constructor & Destructor Documentation

~TPEFSectionReader()

TPEF::TPEFSectionReader::~TPEFSectionReader ( )

virtual

Destructor

Definition at line 56 of file TPEFSectionReader.cc.

                                      {
}

TPEFSectionReader() [1/2]

TPEF::TPEFSectionReader::TPEFSectionReader ( )

protected

Constructor

Definition at line 50 of file TPEFSectionReader.cc.

                                     : SectionReader() {
}

TPEFSectionReader() [2/2]

TPEF::TPEFSectionReader::TPEFSectionReader ( const TPEFSectionReader &  )

private

Member Function Documentation

header()

const TPEFSectionReader::Header & TPEF::TPEFSectionReader::header ( )

staticprotected

Returns headers of section that we are currently reading.

Returns

Headers of section that we are currently reading.

Definition at line 174 of file TPEFSectionReader.cc.

                          {
    return header_;
}

References header_.

Referenced by TPEF::TPEFASpaceSectionReader::readData(), TPEF::TPEFCodeSectionReader::readData(), TPEF::TPEFDataSectionReader::readData(), TPEF::TPEFDebugSectionReader::readData(), TPEF::TPEFLineNumSectionReader::readData(), TPEF::TPEFRelocSectionReader::readData(), TPEF::TPEFResourceSectionReader::readData(), TPEF::TPEFStringSectionReader::readData(), TPEF::TPEFSymbolSectionReader::readData(), and TPEF::TPEFUDataSectionReader::readData().

parent()

BinaryReader * TPEF::TPEFSectionReader::parent ( ) const

protectedvirtual

Returns binary reader instance which uses TPEFSectionReader classes.

Returns

Binary reader which uses TPEFSectionReader classes.

Implements TPEF::SectionReader.

Definition at line 65 of file TPEFSectionReader.cc.

                                {
    return TPEFReader::instance();
}

References TPEF::TPEFReader::instance().

Referenced by TPEF::TPEFRelocSectionReader::finalize(), TPEF::TPEFASpaceSectionReader::readData(), TPEF::TPEFCodeSectionReader::readData(), TPEF::TPEFDataSectionReader::readData(), TPEF::TPEFRelocSectionReader::readData(), readData(), and TPEF::TPEFUDataSectionReader::readData().

Here is the call graph for this function:

readData()

void TPEF::TPEFSectionReader::readData ( BinaryStream &  stream, Section *  section  ) const

protectedvirtual

Reads section data from TPEF binary file.

Base implementation for all TPEF section readers. Reads and keeps section header data for later use by concrete section readers. Header data is accessed by readData methods of subclasses.

Parameters

stream	Stream to be read from.
section	Section where the information is to be stored.

Exceptions

UnreachableStream	If reading of section fails.
KeyAlreadyExists	Key was in use when trying to register object.
EndOfFile	If end of file were reached while it shouldn't.
OutOfRange	Some of read values were out of range.
WrongSubclass	Some class couldn't do what it was asked for.
UnexpectedValue	If there was unexpected value when reading.

Implements TPEF::SectionReader.

Reimplemented in TPEF::TPEFASpaceSectionReader, TPEF::TPEFCodeSectionReader, TPEF::TPEFDataSectionReader, TPEF::TPEFDebugSectionReader, TPEF::TPEFLineNumSectionReader, TPEF::TPEFRelocSectionReader, TPEF::TPEFResourceSectionReader, TPEF::TPEFStringSectionReader, TPEF::TPEFSymbolSectionReader, and TPEF::TPEFUDataSectionReader.

Definition at line 86 of file TPEFSectionReader.cc.

                                                                        {
    TPEFReader* tpefReader = dynamic_cast<TPEFReader*>(parent());

    FileOffset startOffset = stream.readPosition();
    stream.setReadPosition(startOffset + TPEFHeaders::SH_FLAGS);
    Byte sectionFlags = stream.readByte();

    // if section vLen flag is not equal to the read value
    if(section->vLen() != ((sectionFlags & Section::SF_VLEN) != 0)) {
        throw UnexpectedValue(
            __FILE__, __LINE__, __func__,
            "read SF_VLEN flag doesn't match for section");
    }

    section->setFlags(sectionFlags);

    stream.setReadPosition(startOffset + TPEFHeaders::SH_ADDR);
    section->setStartingAddress(stream.readWord());

    stream.setReadPosition(startOffset + TPEFHeaders::SH_LINK);
    header_.linkId = stream.readHalfWord();

    SectionKey linkKey(header_.linkId);
    section->setLink(CREATE_SAFEPOINTER(linkKey));

    // set address space reference
    stream.setReadPosition(startOffset + TPEFHeaders::SH_ASPACE);
    Byte aSpaceIndex = stream.readByte();
    SectionIndexKey aSpaceKey(tpefReader->aSpaceId(), aSpaceIndex);
    section->setASpace(CREATE_SAFEPOINTER(aSpaceKey));

    // set name
    stream.setReadPosition(startOffset + TPEFHeaders::SH_NAME);
    Word sectionOffsetOfName = stream.readWord();

    if (tpefReader->strTableId() != 0) {
        SectionOffsetKey nameKey(tpefReader->strTableId(),
                                 sectionOffsetOfName);

        section->setName(CREATE_SAFEPOINTER(nameKey));
    } else {
        section->setName(&SafePointer::null);
    }

    // add section key for new section
    stream.setReadPosition(startOffset + TPEFHeaders::SH_ID);
    header_.sectionId = stream.readHalfWord();

    SectionKey sectionKey(header_.sectionId);
    SafePointer::addObjectReference(sectionKey, section);

    stream.setReadPosition(startOffset + TPEFHeaders::SH_INFO);
    readInfo(stream, section);

    stream.setReadPosition(startOffset + TPEFHeaders::SH_ENTSIZE);
    header_.elementSize = stream.readWord();

    // read offset of section body
    stream.setReadPosition(startOffset + TPEFHeaders::SH_OFFSET);
    header_.bodyOffset = stream.readWord();

    stream.setReadPosition(startOffset + TPEFHeaders::SH_SIZE);
    header_.bodyLength = stream.readWord();

    // actual class does reading of section body
    stream.setReadPosition(header_.bodyOffset);
}

References __func__, TPEF::ReferenceManager::SafePointer::addObjectReference(), TPEF::TPEFReader::aSpaceId(), TPEF::TPEFSectionReader::Header::bodyLength, TPEF::TPEFSectionReader::Header::bodyOffset, TPEF::TPEFSectionReader::Header::elementSize, header_, TPEF::TPEFSectionReader::Header::linkId, TPEF::ReferenceManager::SafePointer::null, parent(), TPEF::BinaryStream::readByte(), TPEF::BinaryStream::readHalfWord(), readInfo(), TPEF::BinaryStream::readPosition(), TPEF::BinaryStream::readWord(), TPEF::TPEFSectionReader::Header::sectionId, TPEF::Section::setASpace(), TPEF::Section::setFlags(), TPEF::Section::setLink(), TPEF::Section::setName(), TPEF::BinaryStream::setReadPosition(), TPEF::Section::setStartingAddress(), TPEF::Section::SF_VLEN, TPEF::TPEFHeaders::SH_ADDR, TPEF::TPEFHeaders::SH_ASPACE, TPEF::TPEFHeaders::SH_ENTSIZE, TPEF::TPEFHeaders::SH_FLAGS, TPEF::TPEFHeaders::SH_ID, TPEF::TPEFHeaders::SH_INFO, TPEF::TPEFHeaders::SH_LINK, TPEF::TPEFHeaders::SH_NAME, TPEF::TPEFHeaders::SH_OFFSET, TPEF::TPEFHeaders::SH_SIZE, TPEF::TPEFReader::strTableId(), and TPEF::Section::vLen().

Referenced by TPEF::TPEFASpaceSectionReader::readData(), TPEF::TPEFCodeSectionReader::readData(), TPEF::TPEFDataSectionReader::readData(), TPEF::TPEFDebugSectionReader::readData(), TPEF::TPEFLineNumSectionReader::readData(), TPEF::TPEFRelocSectionReader::readData(), TPEF::TPEFResourceSectionReader::readData(), TPEF::TPEFStringSectionReader::readData(), TPEF::TPEFSymbolSectionReader::readData(), and TPEF::TPEFUDataSectionReader::readData().

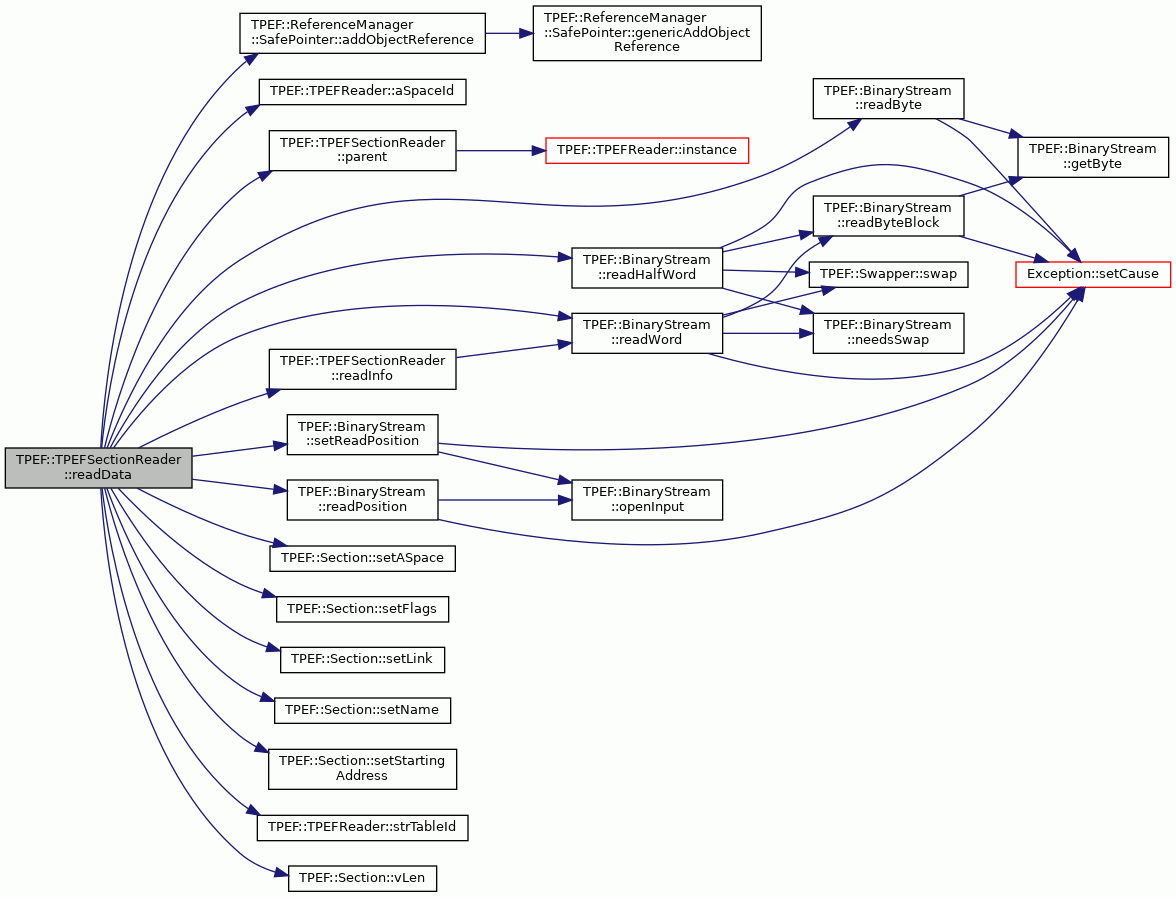

Here is the call graph for this function:

readInfo()

void TPEF::TPEFSectionReader::readInfo ( BinaryStream &  stream, Section *  sect  ) const

protectedvirtual

Reads info field of section header.

Read position of stream will be moved 4 bytes forward.

Parameters

stream

Stream where from info word is read.

Reimplemented in TPEF::TPEFCodeSectionReader, TPEF::TPEFLineNumSectionReader, and TPEF::TPEFRelocSectionReader.

Definition at line 162 of file TPEFSectionReader.cc.

                                              {
    // move four bytes forward by default
    stream.readWord();
}

References TPEF::BinaryStream::readWord().

Referenced by readData().

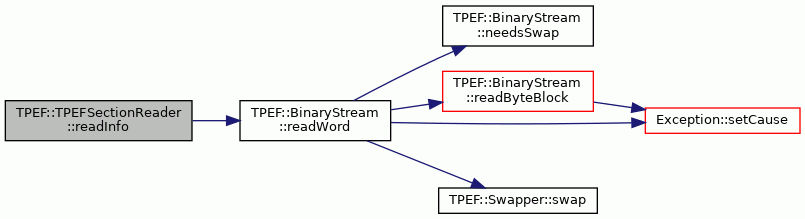

Here is the call graph for this function:

Member Data Documentation

header_

TPEFSectionReader::Header TPEF::TPEFSectionReader::header_

staticprivate

Stores values that are needed in actual SectionReader classes.

Definition at line 79 of file TPEFSectionReader.hh.

Referenced by header(), and readData().

---

The documentation for this class was generated from the following files:

• TPEFSectionReader.hh
• TPEFSectionReader.cc
