TTAProgram::Immediate Class Reference

#include <Immediate.hh>

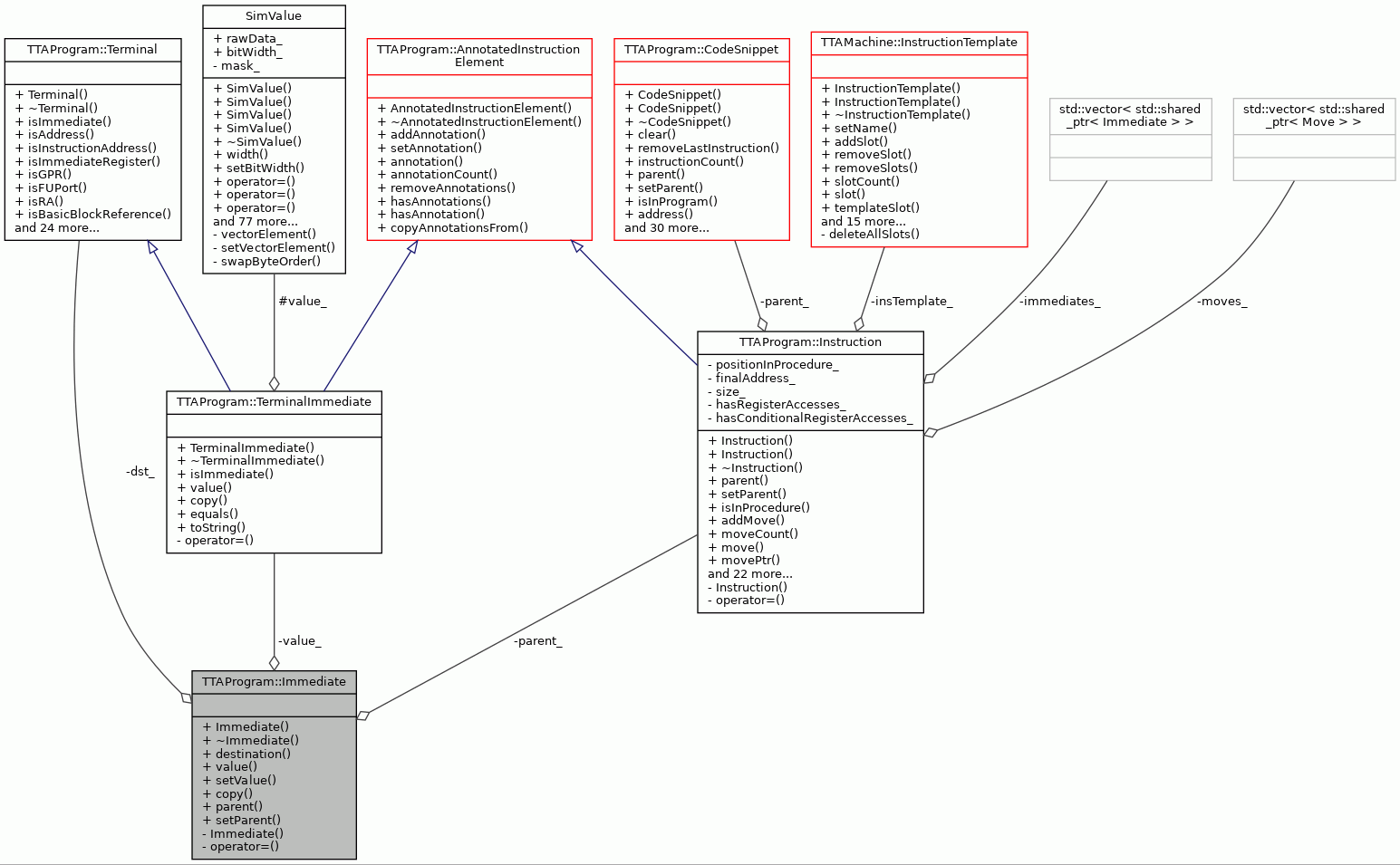

Collaboration diagram for TTAProgram::Immediate:

Public Member Functions
	Immediate (TerminalImmediate *value, Terminal *dst)
virtual	~Immediate ()
const Terminal &	destination () const
TerminalImmediate &	value () const
void	setValue (TerminalImmediate *value)
std::shared_ptr< Immediate >	copy () const
Instruction *	parent () const
void	setParent (Instruction *ins)

Private Member Functions
	Immediate (const Immediate &)
	Copying not allowed.
Immediate &	operator= (const Immediate &)
	Assignment not allowed.

Private Attributes
TerminalImmediate *	value_
	Value of the immediate.
Terminal *	dst_
	The destination register.
Instruction *	parent_
	Instruction which contains this immediate.

Detailed Description

Represents the long immediate value and its transport into a dedicated register

Definition at line 54 of file Immediate.hh.

Constructor & Destructor Documentation

Immediate() [1/2]

TTAProgram::Immediate::Immediate	(	TerminalImmediate *	value,
		Terminal *	dst
	)

The constructor.

Creates a long immediate with the given value. The value specifies, implicitly, also the width of the instruction field(s) where the immediate bits are encoded). The destination register and the set of instruction slots where the immediate bits are encoded are also given as parameters.

The ownership of the destination terminal object will be passed to the immediate.

Parameters

value	Value of the immediate.
dst	Destination register.

Definition at line 68 of file Immediate.cc.

    : value_(value), dst_(dst), parent_(nullptr) {}

~Immediate()

TTAProgram::Immediate::~Immediate ( )

virtual

The destructor.

Definition at line 74 of file Immediate.cc.

                      {
    if (dst_ != NULL) {
        delete dst_;
        dst_ = NULL;
    }

    if (value_ != NULL) {
        delete value_;
        value_ = NULL;
    }
}

References dst_, and value_.

Immediate() [2/2]

TTAProgram::Immediate::Immediate ( const Immediate &  )

private

Copying not allowed.

Member Function Documentation

copy()

std::shared_ptr< Immediate > TTAProgram::Immediate::copy

(

)

const

Makes a copy of the immediate.

The copy is identical, except that it is not registered to the instruction of the original immediate (and therefore, any address it refers to is not meaningful).

Returns

A copy of the immediate.

Definition at line 131 of file Immediate.cc.

                      {
    return std::make_shared<Immediate>(
        dynamic_cast<TerminalImmediate*>(value_->copy()), dst_->copy());
}

References TTAProgram::TerminalImmediate::copy(), TTAProgram::Terminal::copy(), dst_, and value_.

Referenced by LoopPrologAndEpilogBuilder::build(), and TTAProgram::Instruction::copy().

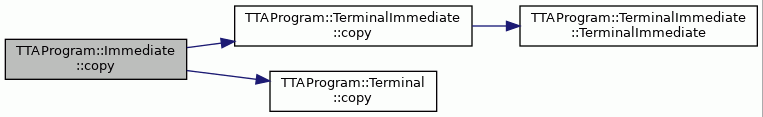

Here is the call graph for this function:

destination()

const Terminal & TTAProgram::Immediate::destination

(

)

const

Returns the destination register of this immediate.

Returns

The destination register of this immediate.

Definition at line 92 of file Immediate.cc.

                             {
    assert(dst_ != NULL);
    return *dst_;
}

References assert, and dst_.

Referenced by CodeCompressorPlugin::addBitsForDstRegisterField(), ITemplateBroker::assign(), CopyingDelaySlotFiller::checkImmediatesAfter(), POMValidator::checkLongImmediates(), CopyingDelaySlotFiller::collectMoves(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createImmediateAssignment(), ControlFlowGraph::createJumps(), CompiledSimCodeGenerator::generateInstruction(), ITemplateBroker::isImmediateInTemplate(), main(), LoopPrologAndEpilogBuilder::optimizeProlog(), SimProgramBuilder::processInstruction(), CodeCompressorPlugin::programImmediate(), CopyingDelaySlotFiller::tryToAssignNodes(), and ITemplateBroker::unassignImmediate().

operator=()

Immediate & TTAProgram::Immediate::operator= ( const Immediate &  )

private

Assignment not allowed.

parent()

Instruction * TTAProgram::Immediate::parent ( ) const

inline

Definition at line 67 of file Immediate.hh.

{ return parent_; }

References parent_.

Referenced by ITemplateBroker::assign(), ITemplateBroker::isAlreadyAssigned(), and ITemplateBroker::unassign().

setParent()

void TTAProgram::Immediate::setParent ( Instruction *  ins )

inline

Definition at line 68 of file Immediate.hh.

{ parent_ = ins; }

References parent_.

Referenced by TTAProgram::Instruction::removeImmediate().

setValue()

void TTAProgram::Immediate::setValue

(

TerminalImmediate *

value

)

Sets the value of immediate.

Parameters

Value

to set for immediate.

Definition at line 114 of file Immediate.cc.

                                            {
    if (value_ != NULL) {
        delete value_;
    }
    value_ = value;
}

References value(), and value_.

Referenced by ITemplateBroker::assign(), ControlFlowGraph::convertBBRefsToInstRefs(), and TTAProgram::Program::convertSymbolRefsToInsRefs().

Here is the call graph for this function:

value()

TerminalImmediate & TTAProgram::Immediate::value

(

)

const

Returns the value of this immediate.

Returns

The value of this immediate.

Definition at line 103 of file Immediate.cc.

                       {
    assert(value_ != NULL);
    return *value_;
}

References assert, and value_.

Referenced by ITemplateBroker::assign(), CopyingDelaySlotFiller::checkImmediatesAfter(), POMValidator::checkLongImmediates(), CopyingDelaySlotFiller::collectMoves(), ControlFlowGraph::convertBBRefsToInstRefs(), TTAProgram::Program::convertSymbolRefsToInsRefs(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createImmediateAssignment(), ControlFlowGraph::createJumps(), CodeCompressorPlugin::encodeLongImmediate(), TTAProgram::Program::fixInstructionReferences(), CompiledSimCodeGenerator::generateInstruction(), ProgramImageGenerator::generateProgramImage(), getInstructionReferenceTerminals(), ITemplateBroker::isImmediateInTemplate(), main(), SimProgramBuilder::processInstruction(), and setValue().

Member Data Documentation

dst_

Terminal* TTAProgram::Immediate::dst_

private

The destination register.

Definition at line 79 of file Immediate.hh.

Referenced by copy(), destination(), and ~Immediate().

parent_

Instruction* TTAProgram::Immediate::parent_

private

Instruction which contains this immediate.

Definition at line 82 of file Immediate.hh.

Referenced by parent(), and setParent().

value_

TerminalImmediate* TTAProgram::Immediate::value_

private

Value of the immediate.

Definition at line 76 of file Immediate.hh.

Referenced by copy(), setValue(), value(), and ~Immediate().

---

The documentation for this class was generated from the following files:

• Immediate.hh
• Immediate.cc
