#include <TerminalImmediate.hh>

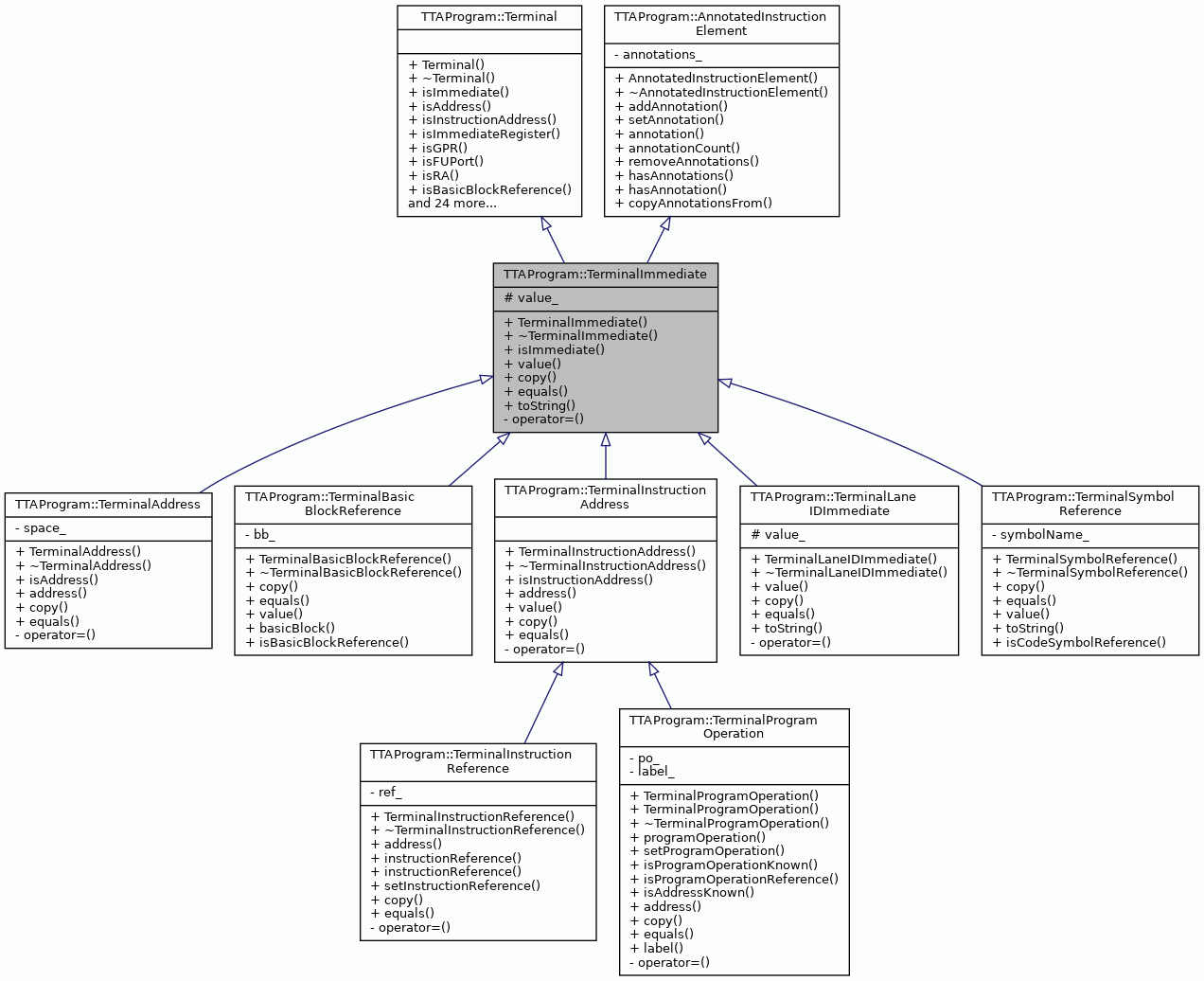

Inheritance diagram for TTAProgram::TerminalImmediate:

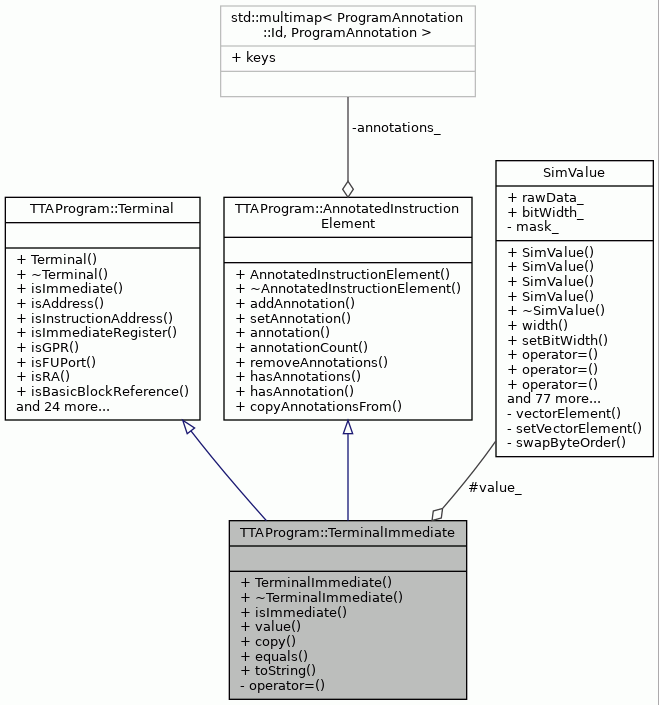

Collaboration diagram for TTAProgram::TerminalImmediate:

Public Member Functions
	TerminalImmediate (SimValue value)

virtual	~TerminalImmediate ()

virtual bool	isImmediate () const

virtual SimValue	value () const

virtual Terminal *	copy () const

virtual bool	equals (const Terminal &other) const

virtual TCEString	toString () const

Public Member Functions inherited from TTAProgram::Terminal
	Terminal ()

virtual	~Terminal ()

virtual bool	isAddress () const

virtual bool	isInstructionAddress () const

virtual bool	isImmediateRegister () const

virtual bool	isGPR () const

virtual bool	isFUPort () const

virtual bool	isRA () const

virtual bool	isBasicBlockReference () const

virtual bool	isProgramOperationReference () const

virtual bool	isCodeSymbolReference () const

virtual bool	isUniversalMachineRegister () const

virtual Address	address () const

virtual const InstructionReference &	instructionReference () const

virtual InstructionReference &	instructionReference ()

virtual const TTAMachine::RegisterFile &	registerFile () const

virtual const TTAMachine::ImmediateUnit &	immediateUnit () const

virtual const TTAMachine::FunctionUnit &	functionUnit () const

virtual const BasicBlock &	basicBlock () const

virtual int	index () const

virtual bool	isOpcodeSetting () const

virtual bool	isTriggering () const

virtual Operation &	operation () const

virtual Operation &	hintOperation () const

virtual int	operationIndex () const

virtual const TTAMachine::Port &	port () const

virtual void	setIndex (int index)

virtual void	setInstructionReference (InstructionReference ref)

bool	operator== (const Terminal &other) const

Public Member Functions inherited from TTAProgram::AnnotatedInstructionElement
	AnnotatedInstructionElement ()

	~AnnotatedInstructionElement ()

void	addAnnotation (const ProgramAnnotation &annotation)

void	setAnnotation (const ProgramAnnotation &annotation)

ProgramAnnotation	annotation (int index, ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

int	annotationCount (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

void	removeAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID)

bool	hasAnnotations (ProgramAnnotation::Id id=ProgramAnnotation::ANN_UNDEF_ID) const

bool	hasAnnotation (ProgramAnnotation::Id id, const TCEString &data) const

void	copyAnnotationsFrom (const AnnotatedInstructionElement &other)

Protected Attributes
SimValue	value_
	Value of the inline immediate.

Private Member Functions
TerminalImmediate &	operator= (const TerminalImmediate &)
	Assignment not allowed.

Detailed Description

Represents an inline immediate.

Definition at line 44 of file TerminalImmediate.hh.

Constructor & Destructor Documentation

◆ TerminalImmediate()

TTAProgram::TerminalImmediate::TerminalImmediate ( SimValue value )

The constructor.

Parameters

value The value of the inline immediate.

Definition at line 48 of file TerminalImmediate.cc.

                                                  :
    value_(value) {
}

◆ ~TerminalImmediate()

TTAProgram::TerminalImmediate::~TerminalImmediate ( )

virtual

The destructor.

Definition at line 55 of file TerminalImmediate.cc.

55 {

56}

Member Function Documentation

◆ copy()

Terminal * TTAProgram::TerminalImmediate::copy ( ) const

virtual

Creates an exact copy of the terminal and returns it.

Returns: A copy of the terminal.

Implements TTAProgram::Terminal.

Reimplemented in TTAProgram::TerminalAddress, TTAProgram::TerminalBasicBlockReference, TTAProgram::TerminalInstructionReference, TTAProgram::TerminalLaneIDImmediate, TTAProgram::TerminalProgramOperation, TTAProgram::TerminalSymbolReference, and TTAProgram::TerminalInstructionAddress.

Definition at line 85 of file TerminalImmediate.cc.

                              {
    return new TerminalImmediate(value_);
}

References value_.

Referenced by TTAProgram::Immediate::copy().

◆ equals()

bool TTAProgram::TerminalImmediate::equals ( const Terminal & other ) const

virtual

Checks if terminals are equal.

Parameters

other Terminal to compare.

Returns: true if terminals are equal.

Implements TTAProgram::Terminal.

Reimplemented in TTAProgram::TerminalAddress, TTAProgram::TerminalBasicBlockReference, TTAProgram::TerminalInstructionReference, TTAProgram::TerminalLaneIDImmediate, TTAProgram::TerminalProgramOperation, TTAProgram::TerminalSymbolReference, and TTAProgram::TerminalInstructionAddress.

Definition at line 96 of file TerminalImmediate.cc.

                                                     {

    if (other.isImmediate() != true) {
        return false;
    }
    if (typeid(*this) != typeid(other)) {
        return false;
    }
    return value() == other.value();
}

References TTAProgram::Terminal::isImmediate(), TTAProgram::Terminal::value(), and value().

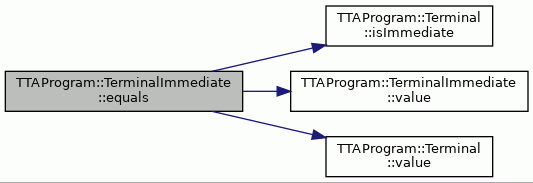

Here is the call graph for this function:

◆ isImmediate()

bool TTAProgram::TerminalImmediate::isImmediate ( ) const

virtual

Tells whether the terminal is an inline immediate value.

Returns: true always.

Reimplemented from TTAProgram::Terminal.

Definition at line 64 of file TerminalImmediate.cc.

                                     {
    return true;
}

◆ operator=()

TerminalImmediate & TTAProgram::TerminalImmediate::operator= ( const TerminalImmediate & )

private

Assignment not allowed.

◆ toString()

TCEString TTAProgram::TerminalImmediate::toString ( ) const

virtual

Implements TTAProgram::Terminal.

Reimplemented in TTAProgram::TerminalLaneIDImmediate, and TTAProgram::TerminalSymbolReference.

Definition at line 108 of file TerminalImmediate.cc.

                                  {
    DisassemblyImmediate* disasm =
        POMDisassembler::createInlineImmediate(*this, false);
    TCEString dis = disasm->toString();
    delete disasm;
    return dis;
}

References POMDisassembler::createInlineImmediate(), and DisassemblyImmediate::toString().

Referenced by MachineConnectivityCheck::requiredImmediateWidth().

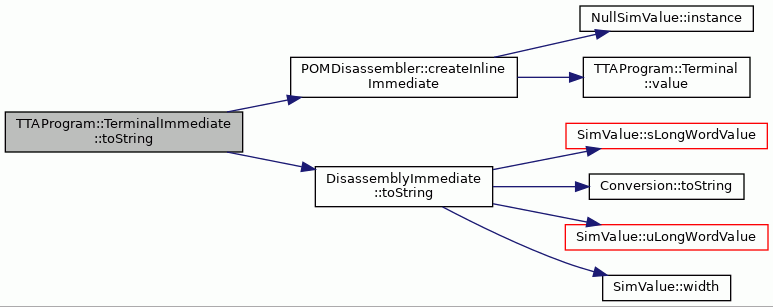

Here is the call graph for this function:

◆ value()

SimValue TTAProgram::TerminalImmediate::value ( ) const

virtual

Returns the value of the inline immediate.

Returns: The value of the inline immediate.

Exceptions

WrongSubclass never.

Reimplemented from TTAProgram::Terminal.

Reimplemented in TTAProgram::TerminalBasicBlockReference, TTAProgram::TerminalInstructionAddress, TTAProgram::TerminalLaneIDImmediate, and TTAProgram::TerminalSymbolReference.

Definition at line 75 of file TerminalImmediate.cc.

                               {
    return value_;
}

References value_.

Referenced by ITemplateBroker::assign(), TTAProgram::TPEFProgramFactory::build(), POMValidator::checkLongImmediates(), TTAProgram::TerminalAddress::copy(), TTAProgram::ProgramWriter::createCodeSection(), POMDisassembler::createImmediateAssignment(), CodeCompressorPlugin::encodeLongImmediate(), equals(), CompiledSimCodeGenerator::generateInstruction(), ProgramImageGenerator::generateProgramImage(), BUBasicBlockScheduler::handleLoopDDG(), ITemplateBroker::isImmediateInTemplate(), main(), SimProgramBuilder::processInstruction(), MachineConnectivityCheck::requiredImmediateWidth(), and BasicBlockScheduler::scheduleMove().

Member Data Documentation

◆ value_

SimValue TTAProgram::TerminalImmediate::value_

protected

Value of the inline immediate.

Definition at line 62 of file TerminalImmediate.hh.

Referenced by TTAProgram::TerminalAddress::address(), copy(), and value().

The documentation for this class was generated from the following files:
