#include <TestbenchGenerator.hh>

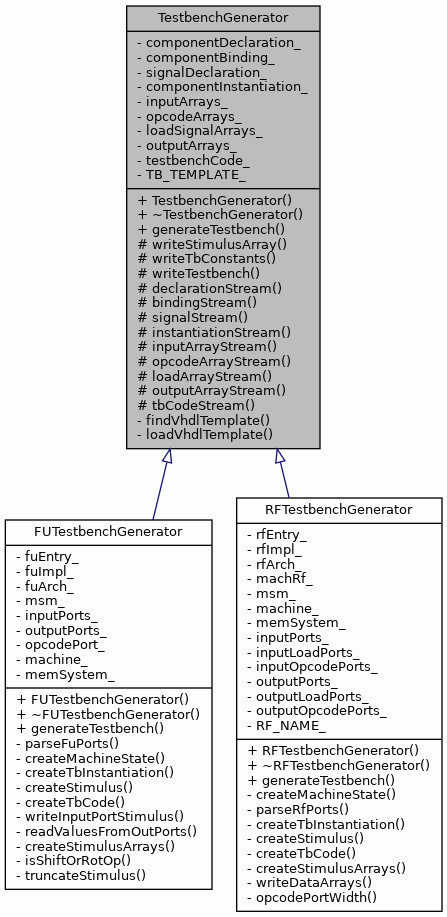

Inheritance diagram for TestbenchGenerator:

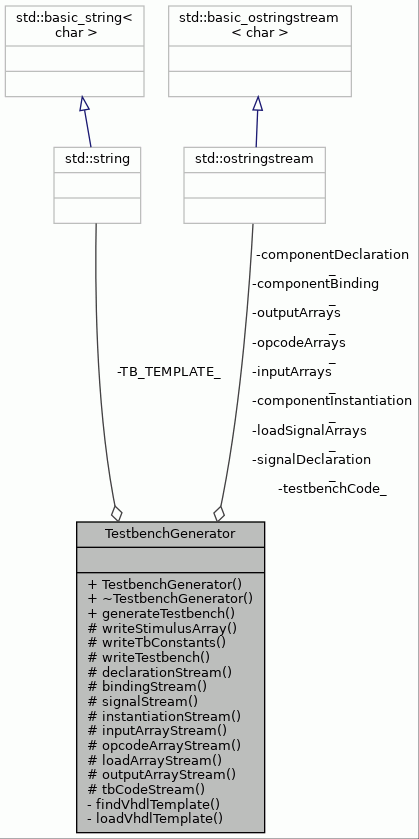

Collaboration diagram for TestbenchGenerator:

Public Member Functions
	TestbenchGenerator ()

virtual	~TestbenchGenerator ()

virtual void	generateTestbench (std::ofstream &file)=0

Protected Types
typedef std::map< std::string, std::vector< uint32_t > >	PortDataArray

Protected Member Functions
virtual void	writeStimulusArray (std::ostringstream &stream, std::vector< uint32_t > &dataArray, std::string portName, int portWidth)

void	writeTbConstants (int totalCycles, int outputIgnoreCycles)

void	writeTestbench (std::ofstream &file, HDB::HWBlockImplementation *impl)

std::ostringstream &	declarationStream ()

std::ostringstream &	bindingStream ()

std::ostringstream &	signalStream ()

std::ostringstream &	instantiationStream ()

std::ostringstream &	inputArrayStream ()

std::ostringstream &	opcodeArrayStream ()

std::ostringstream &	loadArrayStream ()

std::ostringstream &	outputArrayStream ()

std::ostringstream &	tbCodeStream ()

Private Member Functions
std::string	findVhdlTemplate () const

void	loadVhdlTemplate (const std::string &fileName, std::string &vhdlTemplate) const

Private Attributes
std::ostringstream	componentDeclaration_

std::ostringstream	componentBinding_

std::ostringstream	signalDeclaration_

std::ostringstream	componentInstantiation_

std::ostringstream	inputArrays_

std::ostringstream	opcodeArrays_

std::ostringstream	loadSignalArrays_

std::ostringstream	outputArrays_

std::ostringstream	testbenchCode_

Static Private Attributes
static const std::string	TB_TEMPLATE_

Detailed Description

Definition at line 47 of file TestbenchGenerator.hh.

Member Typedef Documentation

◆ PortDataArray

typedef std::map<std::string, std::vector<uint32_t> > TestbenchGenerator::PortDataArray

protected

Definition at line 56 of file TestbenchGenerator.hh.

Constructor & Destructor Documentation

◆ TestbenchGenerator()

TestbenchGenerator::TestbenchGenerator ( )

Definition at line 57 of file TestbenchGenerator.cc.

                                      :
    componentDeclaration_(), componentBinding_(), signalDeclaration_(),
    componentInstantiation_(), inputArrays_(), opcodeArrays_(),
    loadSignalArrays_(), outputArrays_(), testbenchCode_() {
}

◆ ~TestbenchGenerator()

TestbenchGenerator::~TestbenchGenerator ( )

virtual

Definition at line 63 of file TestbenchGenerator.cc.

63 {

64}

Member Function Documentation

◆ bindingStream()

std::ostringstream & TestbenchGenerator::bindingStream ( )

protected

Definition at line 188 of file TestbenchGenerator.cc.

                                  {
    return componentBinding_;
}

References componentBinding_.

Referenced by FUTestbenchGenerator::createTbInstantiation(), and RFTestbenchGenerator::createTbInstantiation().

◆ declarationStream()

std::ostringstream & TestbenchGenerator::declarationStream ( )

protected

Definition at line 183 of file TestbenchGenerator.cc.

                                      {
    return componentDeclaration_;
}

References componentDeclaration_.

Referenced by FUTestbenchGenerator::createTbInstantiation(), and RFTestbenchGenerator::createTbInstantiation().

◆ findVhdlTemplate()

std::string TestbenchGenerator::findVhdlTemplate ( ) const

private

Definition at line 142 of file TestbenchGenerator.cc.

                                           {

    vector<string> paths = Environment::implementationTesterTemplatePaths();
    for (unsigned int i = 0; i < paths.size(); i++) {
        string file = paths.at(i) + FileSystem::DIRECTORY_SEPARATOR
            + TB_TEMPLATE_;
        if (FileSystem::fileExists(file)) {
            return file;
        }
    }

    InvalidData exception(__FILE__, __LINE__, "",
                          "The VHDL template file " + TB_TEMPLATE_ +
                          "not found");
    throw exception;

    string notFound = "";
    return notFound;
}

References FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), Environment::implementationTesterTemplatePaths(), and TB_TEMPLATE_.

Referenced by writeTestbench().

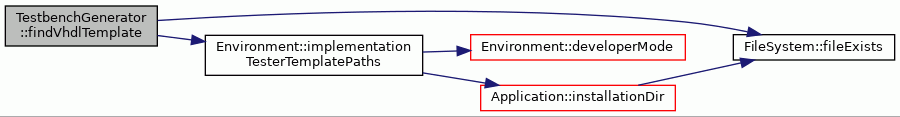

Here is the call graph for this function:

◆ generateTestbench()

virtual void TestbenchGenerator::generateTestbench ( std::ofstream & file )

pure virtual

Implemented in FUTestbenchGenerator, and RFTestbenchGenerator.

Referenced by ImplementationTester::createTestbench().

◆ inputArrayStream()

std::ostringstream & TestbenchGenerator::inputArrayStream ( )

protected

Definition at line 203 of file TestbenchGenerator.cc.

                                     {
    return inputArrays_;
}

References inputArrays_.

Referenced by RFTestbenchGenerator::createStimulusArrays(), and FUTestbenchGenerator::createStimulusArrays().

◆ instantiationStream()

std::ostringstream & TestbenchGenerator::instantiationStream ( )

protected

Definition at line 198 of file TestbenchGenerator.cc.

                                        {
    return componentInstantiation_;
}

References componentInstantiation_.

Referenced by FUTestbenchGenerator::createTbInstantiation(), and RFTestbenchGenerator::createTbInstantiation().

◆ loadArrayStream()

std::ostringstream & TestbenchGenerator::loadArrayStream ( )

protected

Definition at line 213 of file TestbenchGenerator.cc.

                                    {
    return loadSignalArrays_;
}

References loadSignalArrays_.

Referenced by RFTestbenchGenerator::createStimulusArrays(), and FUTestbenchGenerator::createStimulusArrays().

◆ loadVhdlTemplate()

void TestbenchGenerator::loadVhdlTemplate	(	const std::string &	fileName,
		std::string &	vhdlTemplate
	)		const

private

Definition at line 163 of file TestbenchGenerator.cc.

                                                              {

    ifstream input(fileName.c_str());
    if (!input.is_open()) {
        InvalidData exception(__FILE__, __LINE__, "",
                              "The VHDL template file " + fileName +
                              "unreadable.");
        throw exception;
    }

    string line = "";
    while (getline(input, line)) {
        vhdlTemplate += line;
        vhdlTemplate += "\n";
    }
    input.close();
}

Referenced by writeTestbench().

◆ opcodeArrayStream()

std::ostringstream & TestbenchGenerator::opcodeArrayStream ( )

protected

Definition at line 208 of file TestbenchGenerator.cc.

                                      {
    return opcodeArrays_;
}

References opcodeArrays_.

Referenced by RFTestbenchGenerator::createStimulusArrays(), and FUTestbenchGenerator::createStimulusArrays().

◆ outputArrayStream()

std::ostringstream & TestbenchGenerator::outputArrayStream ( )

protected

Definition at line 218 of file TestbenchGenerator.cc.

                                      {
    return outputArrays_;
}

References outputArrays_.

Referenced by RFTestbenchGenerator::createStimulusArrays(), and FUTestbenchGenerator::createStimulusArrays().

◆ signalStream()

std::ostringstream & TestbenchGenerator::signalStream ( )

protected

Definition at line 193 of file TestbenchGenerator.cc.

                                 {
    return signalDeclaration_;
}

References signalDeclaration_.

Referenced by FUTestbenchGenerator::createTbInstantiation(), and RFTestbenchGenerator::createTbInstantiation().

◆ tbCodeStream()

std::ostringstream & TestbenchGenerator::tbCodeStream ( )

protected

Definition at line 223 of file TestbenchGenerator.cc.

                                 {
    return testbenchCode_;
}

References testbenchCode_.

Referenced by FUTestbenchGenerator::createTbCode(), and RFTestbenchGenerator::createTbCode().

◆ writeStimulusArray()

void TestbenchGenerator::writeStimulusArray	(	std::ostringstream &	stream,
		std::vector< uint32_t > &	dataArray,
		std::string	portName,
		int	portWidth
	)

protectedvirtual

Definition at line 68 of file TestbenchGenerator.cc.

                                                                       {

    stream
        << INDENT INDENT  << "type " << portName
        << "_data_array is array (natural range <>) of" << std::endl
        << INDENT INDENT INDENT
        << "std_logic_vector(" << portWidth - 1 << " downto 0);"
        << std::endl << std::endl << INDENT INDENT
        << "constant " << portName << "_data : "
        << portName << "_data_array :=" << std::endl;

    for (std::size_t i = 0; i < dataArray.size(); ++i) {
        uint32_t input = dataArray.at(i);
        std::string inputAsBinaryLiteral =
            Conversion::toBinary(input, portWidth);
        stream << INDENT INDENT;

        if (i == 0) {
            stream << "(";
        } else {
            stream << " ";
        }
        stream << "\"" << inputAsBinaryLiteral << "\"";
        if (i == dataArray.size() - 1) {
            stream << ");";
        } else {
            stream << ",";
        }
        stream << "\t -- @" << i << " = " << input << std::endl;
    }
    stream << std::endl;
}

References INDENT, and Conversion::toBinary().

Referenced by FUTestbenchGenerator::createStimulusArrays(), and RFTestbenchGenerator::writeDataArrays().

Here is the call graph for this function:

◆ writeTbConstants()

void TestbenchGenerator::writeTbConstants	(	int	totalCycles,
		int	outputIgnoreCycles
	)

protected

Definition at line 104 of file TestbenchGenerator.cc.

                                             {

    outputArrays_
        << INDENT INDENT << "constant IGNORE_OUTPUT_COUNT : integer := "
        << outputIgnoreCycles << ";" << std::endl;
    outputArrays_
        << INDENT INDENT << "constant TOTAL_CYCLE_COUNT : integer := "
        << totalCycles << ";" << std::endl;
}

References INDENT, and outputArrays_.

Referenced by FUTestbenchGenerator::createStimulus(), and RFTestbenchGenerator::createStimulus().

◆ writeTestbench()

void TestbenchGenerator::writeTestbench	(	std::ofstream &	file,
		HDB::HWBlockImplementation *	impl
	)

protected

Definition at line 116 of file TestbenchGenerator.cc.

                                                       {

    string templateFile = findVhdlTemplate();
    string vhdlTemplate = "";
    loadVhdlTemplate(templateFile, vhdlTemplate);

    string testBench =
        (boost::format(vhdlTemplate)
         % componentDeclaration_.str()
         % componentBinding_.str()
         % signalDeclaration_.str()
         % componentInstantiation_.str()
         % inputArrays_.str()
         % opcodeArrays_.str()
         % loadSignalArrays_.str()
         % outputArrays_.str()
         % impl->clkPort()
         % impl->rstPort()
         % impl->glockPort()
         % testbenchCode_.str()).str();

    file << testBench;
}

References HDB::HWBlockImplementation::clkPort(), componentBinding_, componentDeclaration_, componentInstantiation_, findVhdlTemplate(), HDB::HWBlockImplementation::glockPort(), inputArrays_, loadSignalArrays_, loadVhdlTemplate(), opcodeArrays_, outputArrays_, HDB::HWBlockImplementation::rstPort(), signalDeclaration_, and testbenchCode_.

Referenced by FUTestbenchGenerator::generateTestbench(), and RFTestbenchGenerator::generateTestbench().

Here is the call graph for this function:

Member Data Documentation

◆ componentBinding_

std::ostringstream TestbenchGenerator::componentBinding_

private

Definition at line 86 of file TestbenchGenerator.hh.

Referenced by bindingStream(), and writeTestbench().

◆ componentDeclaration_

std::ostringstream TestbenchGenerator::componentDeclaration_

private

Definition at line 85 of file TestbenchGenerator.hh.

Referenced by declarationStream(), and writeTestbench().

◆ componentInstantiation_

std::ostringstream TestbenchGenerator::componentInstantiation_

private

Definition at line 88 of file TestbenchGenerator.hh.

Referenced by instantiationStream(), and writeTestbench().

◆ inputArrays_

std::ostringstream TestbenchGenerator::inputArrays_

private

Definition at line 89 of file TestbenchGenerator.hh.

Referenced by inputArrayStream(), and writeTestbench().

◆ loadSignalArrays_

std::ostringstream TestbenchGenerator::loadSignalArrays_

private

Definition at line 91 of file TestbenchGenerator.hh.

Referenced by loadArrayStream(), and writeTestbench().

◆ opcodeArrays_

std::ostringstream TestbenchGenerator::opcodeArrays_

private

Definition at line 90 of file TestbenchGenerator.hh.

Referenced by opcodeArrayStream(), and writeTestbench().

◆ outputArrays_

std::ostringstream TestbenchGenerator::outputArrays_

private

Definition at line 92 of file TestbenchGenerator.hh.

Referenced by outputArrayStream(), writeTbConstants(), and writeTestbench().

◆ signalDeclaration_

std::ostringstream TestbenchGenerator::signalDeclaration_

private

Definition at line 87 of file TestbenchGenerator.hh.

Referenced by signalStream(), and writeTestbench().

◆ TB_TEMPLATE_

const std::string TestbenchGenerator::TB_TEMPLATE_

staticprivate

Initial value:

=

"testbench.vhdl.template"

Definition at line 95 of file TestbenchGenerator.hh.

Referenced by findVhdlTemplate().

◆ testbenchCode_

std::ostringstream TestbenchGenerator::testbenchCode_

private

Definition at line 93 of file TestbenchGenerator.hh.

Referenced by tbCodeStream(), and writeTestbench().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Types

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ PortDataArray

Constructor & Destructor Documentation

◆ TestbenchGenerator()

◆ ~TestbenchGenerator()

Member Function Documentation

◆ bindingStream()

◆ declarationStream()

◆ findVhdlTemplate()

◆ generateTestbench()

◆ inputArrayStream()

◆ instantiationStream()

◆ loadArrayStream()

◆ loadVhdlTemplate()

◆ opcodeArrayStream()

◆ outputArrayStream()

◆ signalStream()

◆ tbCodeStream()

◆ writeStimulusArray()

◆ writeTbConstants()

◆ writeTestbench()

Member Data Documentation

◆ componentBinding_

◆ componentDeclaration_

◆ componentInstantiation_

◆ inputArrays_

◆ loadSignalArrays_

◆ opcodeArrays_

◆ outputArrays_

◆ signalDeclaration_

◆ TB_TEMPLATE_

◆ testbenchCode_
