ToolbarButton Class Reference

#include <ToolbarButton.hh>

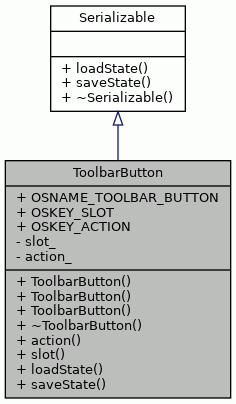

Inheritance diagram for ToolbarButton:

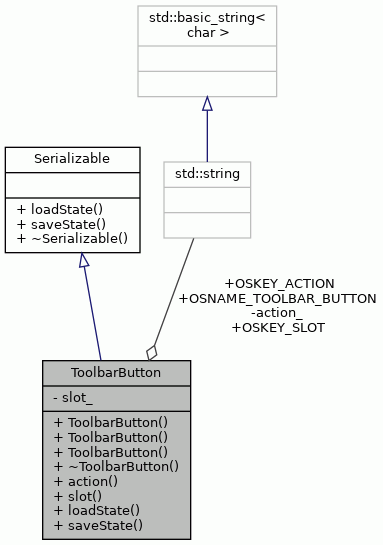

Collaboration diagram for ToolbarButton:

Public Member Functions
	ToolbarButton (int slot, const std::string &action)
	ToolbarButton (const ObjectState *state)
	ToolbarButton (const ToolbarButton &old)
virtual	~ToolbarButton ()
std::string	action () const
int	slot () const
void	loadState (const ObjectState *state)
ObjectState *	saveState () const
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_TOOLBAR_BUTTON = "tbbutton"
	ObjectState name for ToolbarButton.
static const std::string	OSKEY_SLOT = "slot"
	ObjectState attribute key for slot position.
static const std::string	OSKEY_ACTION = "action"
	ObjectState attribute key for action name.

Private Attributes
int	slot_
	Number of the slot in which this toolbar button is.
std::string	action_
	Name of the action performed by this toolbar button.

Detailed Description

This class repsesents a toolbar button. It contains information which action is performed by the button and where the button is placed in the toolbar. This class implements the Serializable interface because toolbar button configurations are serialized in the configuration file.

Definition at line 48 of file ToolbarButton.hh.

Constructor & Destructor Documentation

ToolbarButton() [1/3]

ToolbarButton::ToolbarButton	(	int	slot,
		const std::string &	action
	)

Constructor.

Parameters

slot	Number of the slot in which the button is placed.
action	Name of the action performed by the button.

Definition at line 50 of file ToolbarButton.cc.

                             :
    slot_(slot), action_(action) {
}

ToolbarButton() [2/3]

ToolbarButton::ToolbarButton

(

const ObjectState *

state

)

Constructor.

Loads the state from the given ObjectsState object.

Definition at line 62 of file ToolbarButton.cc.

                                                     {
    loadState(state);
}

References loadState().

Here is the call graph for this function:

ToolbarButton() [3/3]

ToolbarButton::ToolbarButton

(

const ToolbarButton &

old

)

Copy constructor.

Definition at line 70 of file ToolbarButton.cc.

                                                    :
    Serializable() {
    slot_ = old.slot_;
    action_ = old.action_;
}

References action_, and slot_.

~ToolbarButton()

ToolbarButton::~ToolbarButton ( )

virtual

Destructor.

Definition at line 80 of file ToolbarButton.cc.

                              {
}

Member Function Documentation

action()

std::string ToolbarButton::action

(

)

const

Returns the name of the action performed by the button.

Returns

Name of the action performed by the button.

Definition at line 90 of file ToolbarButton.cc.

                            {
    return action_;
}

References action_.

Referenced by GUIOptions::createToolbar(), OptionsDialog::readOptions(), and MainFrame::updateUI().

loadState()

void ToolbarButton::loadState ( const ObjectState *  state )

virtual

Loads the state of the object from the given ObjectState object.

Parameters

state

ObjectState from which the state is loaded.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Implements Serializable.

Definition at line 114 of file ToolbarButton.cc.

                                                 {
    string procName = "ToolbarButton::loadState";

    if (state->name() != OSNAME_TOOLBAR_BUTTON) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    try {
        slot_ = state->intAttribute(OSKEY_SLOT);
        action_ = state->stringAttribute(OSKEY_ACTION);
    } catch (...) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }
}

References action_, ObjectState::intAttribute(), ObjectState::name(), OSKEY_ACTION, OSKEY_SLOT, OSNAME_TOOLBAR_BUTTON, slot_, and ObjectState::stringAttribute().

Referenced by ToolbarButton().

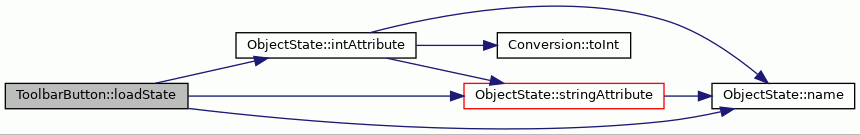

Here is the call graph for this function:

saveState()

ObjectState * ToolbarButton::saveState ( ) const

virtual

Creates an ObjectState object and saves the state of the object into it.

Returns

The created ObjectState object.

Implements Serializable.

Definition at line 135 of file ToolbarButton.cc.

                               {
    ObjectState* state = new ObjectState(OSNAME_TOOLBAR_BUTTON);
    state->setAttribute(OSKEY_SLOT, slot_);
    state->setAttribute(OSKEY_ACTION, action_);
    return state;
}

References action_, OSKEY_ACTION, OSKEY_SLOT, OSNAME_TOOLBAR_BUTTON, ObjectState::setAttribute(), and slot_.

Referenced by GUIOptions::saveState().

Here is the call graph for this function:

slot()

int ToolbarButton::slot

(

)

const

Returns the position of the slot which contains the button.

Returns

Position of the slot which contains the button.

Definition at line 101 of file ToolbarButton.cc.

                          {
    return slot_;
}

References slot_.

Referenced by GUIOptions::createToolbar(), OptionsDialog::readOptions(), and GUIOptions::validate().

Member Data Documentation

action_

std::string ToolbarButton::action_

private

Name of the action performed by this toolbar button.

Definition at line 72 of file ToolbarButton.hh.

Referenced by action(), loadState(), saveState(), and ToolbarButton().

OSKEY_ACTION

const string ToolbarButton::OSKEY_ACTION = "action"

static

ObjectState attribute key for action name.

Definition at line 55 of file ToolbarButton.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

OSKEY_SLOT

const string ToolbarButton::OSKEY_SLOT = "slot"

static

ObjectState attribute key for slot position.

Definition at line 53 of file ToolbarButton.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

OSNAME_TOOLBAR_BUTTON

const string ToolbarButton::OSNAME_TOOLBAR_BUTTON = "tbbutton"

static

ObjectState name for ToolbarButton.

Definition at line 51 of file ToolbarButton.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptions::loadState(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

slot_

int ToolbarButton::slot_

private

Number of the slot in which this toolbar button is.

Definition at line 70 of file ToolbarButton.hh.

Referenced by loadState(), saveState(), slot(), and ToolbarButton().

---

The documentation for this class was generated from the following files:

• ToolbarButton.hh
• ToolbarButton.cc
