AddFUImplementationCmd Class Reference

#include <AddFUImplementationCmd.hh>

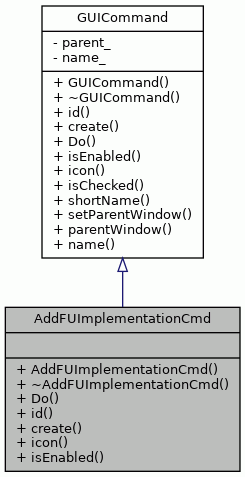

Inheritance diagram for AddFUImplementationCmd:

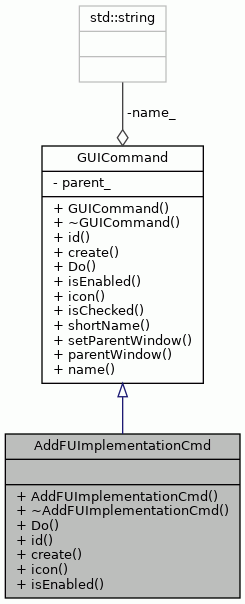

Collaboration diagram for AddFUImplementationCmd:

Public Member Functions
	AddFUImplementationCmd ()
virtual	~AddFUImplementationCmd ()
virtual bool	Do ()
virtual int	id () const
virtual AddFUImplementationCmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

Command for adding implementation of a FU architecture to HDB.

Definition at line 41 of file AddFUImplementationCmd.hh.

Constructor & Destructor Documentation

AddFUImplementationCmd()

AddFUImplementationCmd::AddFUImplementationCmd

(

)

The Constructor.

Definition at line 53 of file AddFUImplementationCmd.cc.

                                               :
    GUICommand(HDBEditorConstants::COMMAND_NAME_ADD_FU_IMPLEMENTATION, NULL) {
}

Referenced by create().

~AddFUImplementationCmd()

AddFUImplementationCmd::~AddFUImplementationCmd ( )

virtual

The Destructor.

Definition at line 61 of file AddFUImplementationCmd.cc.

                                                {
}

Member Function Documentation

create()

AddFUImplementationCmd * AddFUImplementationCmd::create ( ) const

virtual

Creates a new instance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 155 of file AddFUImplementationCmd.cc.

                                     {
    return new AddFUImplementationCmd();
}

References AddFUImplementationCmd().

Here is the call graph for this function:

Do()

bool AddFUImplementationCmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 68 of file AddFUImplementationCmd.cc.

                           {

    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();
    if (manager == NULL) {
        return false;
    }

    HDBBrowserWindow* browser = wxGetApp().mainFrame().browser();

    HDB::FUImplementation* implementation =
        new HDB::FUImplementation("", "", "","", "", "");

    HDB::FUEntry* entry = NULL;

    if (browser->isFUEntrySelected()) {
        entry = manager->fuByEntryID(browser->selectedFUEntry());
    } else if (browser->isFUArchitectureSelected()) {
        int id = manager->addFUEntry();
        manager->setArchitectureForFU(id, browser->selectedFUArchitecture());
        entry = manager->fuByEntryID(id);
    } else {
        return false;
    }

    const TTAMachine::FunctionUnit& arch =
        entry->architecture().architecture();

    for (int i = 0; i < arch.portCount(); i++) {
        new HDB::FUPortImplementation(
            "", arch.port(i)->name(), "", "", "", *implementation);
    }

    FUImplementationDialog dialog(parentWindow(), -1, *implementation, arch);

    if (dialog.ShowModal() == wxID_OK) {
        try {
            entry->setImplementation(implementation);
            int id = manager->addFUImplementation(*entry);
            wxGetApp().mainFrame().update();
            wxGetApp().mainFrame().browser()->selectFUImplementation(id);
        } catch (Exception& e) {
            wxString message = _T("Error:\n");
            message.Append(WxConversion::toWxString(e.errorMessage()));
            message.Append(_T("\n"));
            message.Append(WxConversion::toWxString(e.lineNum()));
             message.Append(_T(": "));
            message.Append(WxConversion::toWxString(e.fileName()));
            ErrorDialog dialog(parentWindow(), message);
            dialog.ShowModal();
            delete entry;
            delete implementation;
            return false;
        }
    } else {
        delete implementation;
    }
    delete entry;
    return true;
}

References HDB::HDBManager::addFUEntry(), HDB::HDBManager::addFUImplementation(), HDB::FUEntry::architecture(), HDB::FUArchitecture::architecture(), Exception::errorMessage(), Exception::fileName(), HDB::HDBManager::fuByEntryID(), implementation, HDBBrowserWindow::isFUArchitectureSelected(), HDBBrowserWindow::isFUEntrySelected(), Exception::lineNum(), TTAMachine::Port::name(), GUICommand::parentWindow(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), HDBBrowserWindow::selectedFUArchitecture(), HDBBrowserWindow::selectedFUEntry(), HDB::HDBManager::setArchitectureForFU(), HDB::FUEntry::setImplementation(), and WxConversion::toWxString().

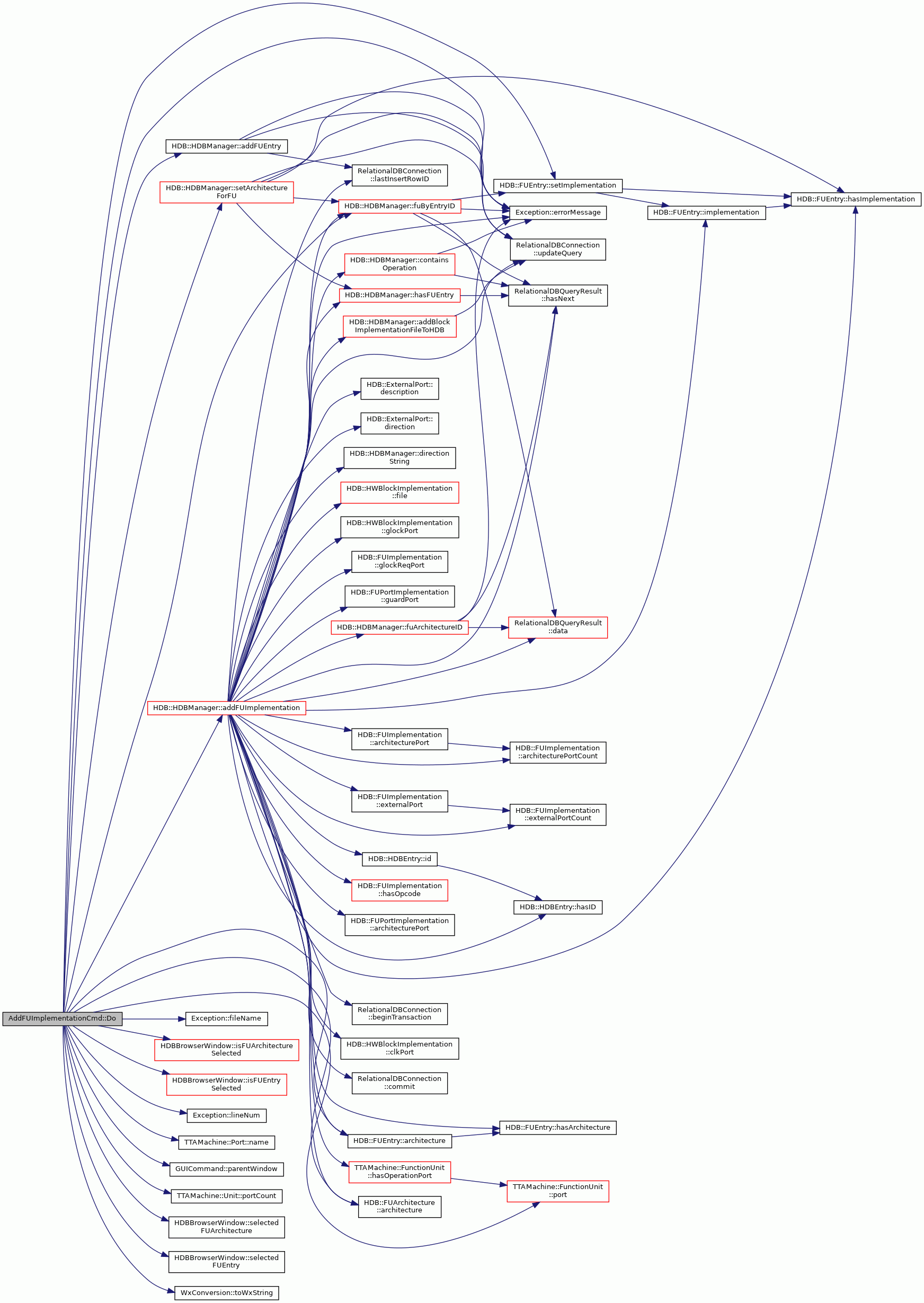

Here is the call graph for this function:

icon()

std::string AddFUImplementationCmd::icon ( ) const

virtual

Returns name of the command icon file.

Returns

Command icon file name.

Implements GUICommand.

Definition at line 134 of file AddFUImplementationCmd.cc.

                                   {
    return "";
}

id()

int AddFUImplementationCmd::id ( ) const

virtual

Returns the command id.

Returns

Command identifier.

Implements GUICommand.

Definition at line 144 of file AddFUImplementationCmd.cc.

                                 {
    return HDBEditorConstants::COMMAND_ADD_FU_IMPLEMENTATION;
}

References HDBEditorConstants::COMMAND_ADD_FU_IMPLEMENTATION.

isEnabled()

bool AddFUImplementationCmd::isEnabled ( )

virtual

Returns true if the command should be enabled in the tool/menubar.

Returns

True if the command is enabled, false if not.

Implements GUICommand.

Definition at line 166 of file AddFUImplementationCmd.cc.

                                  {
    HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

    if (manager == NULL) {
        return false;
    }

    HDBBrowserWindow* browser = wxGetApp().mainFrame().browser();

    if (browser->isFUArchitectureSelected()) {
        return true;
    } else if (browser->isFUEntrySelected()) {
        HDB::FUEntry* entry = manager->fuByEntryID(browser->selectedFUEntry());
        if (entry->hasArchitecture() && !entry->hasImplementation()) {
            delete entry;
            return true;
        }
        delete entry;
    }
    return false;
}

References HDB::HDBManager::fuByEntryID(), HDB::FUEntry::hasArchitecture(), HDB::FUEntry::hasImplementation(), HDBBrowserWindow::isFUArchitectureSelected(), HDBBrowserWindow::isFUEntrySelected(), and HDBBrowserWindow::selectedFUEntry().

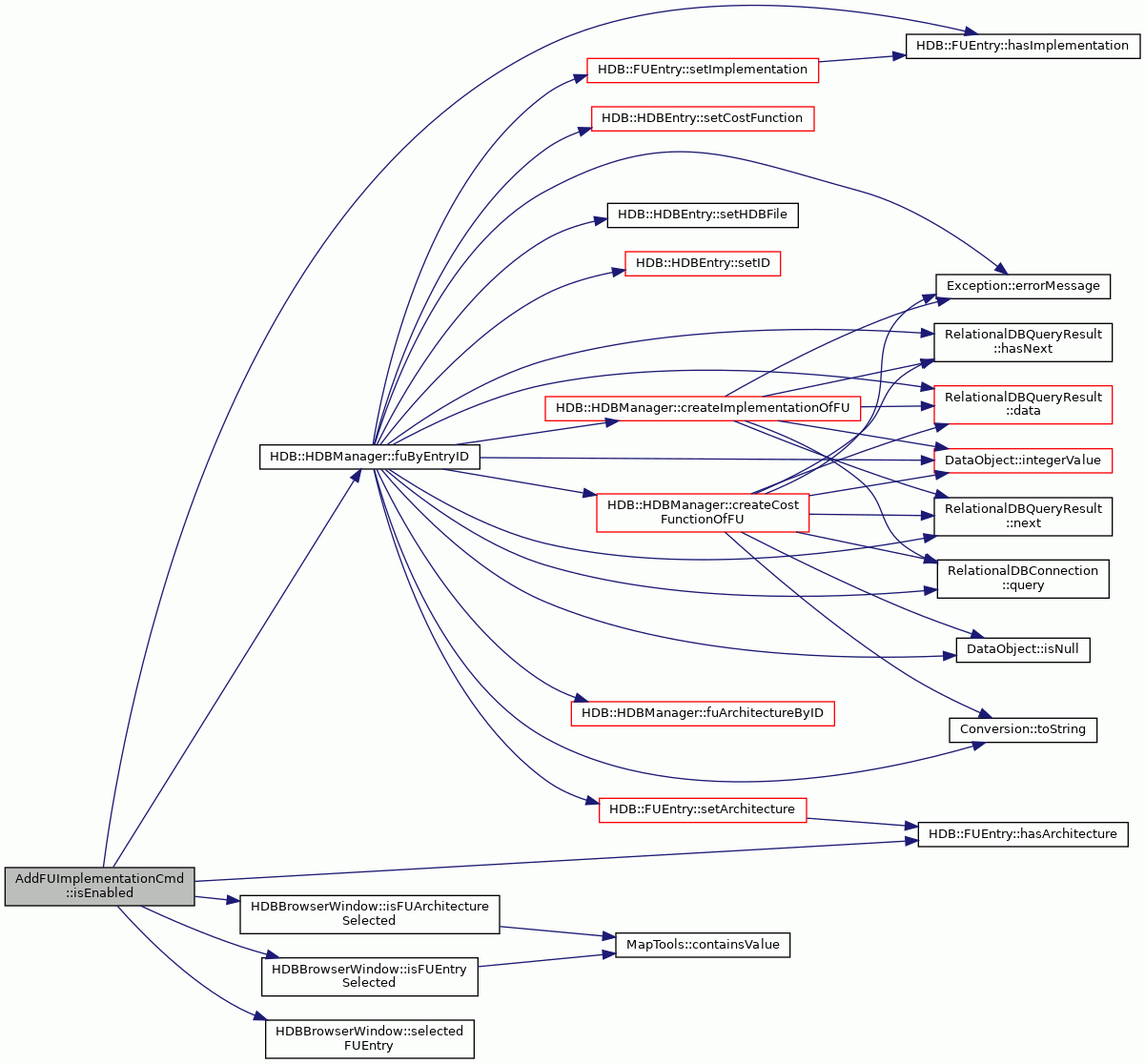

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• AddFUImplementationCmd.hh
• AddFUImplementationCmd.cc
