#include <BFScheduleMove.hh>

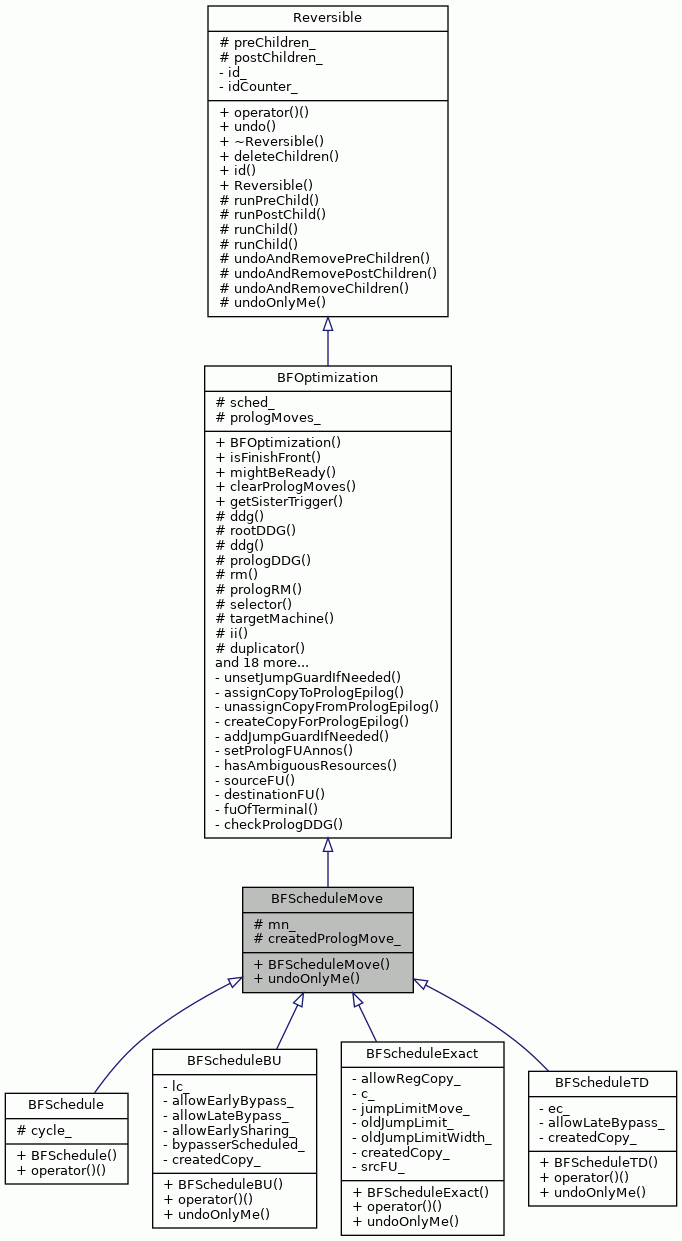

Inheritance diagram for BFScheduleMove:

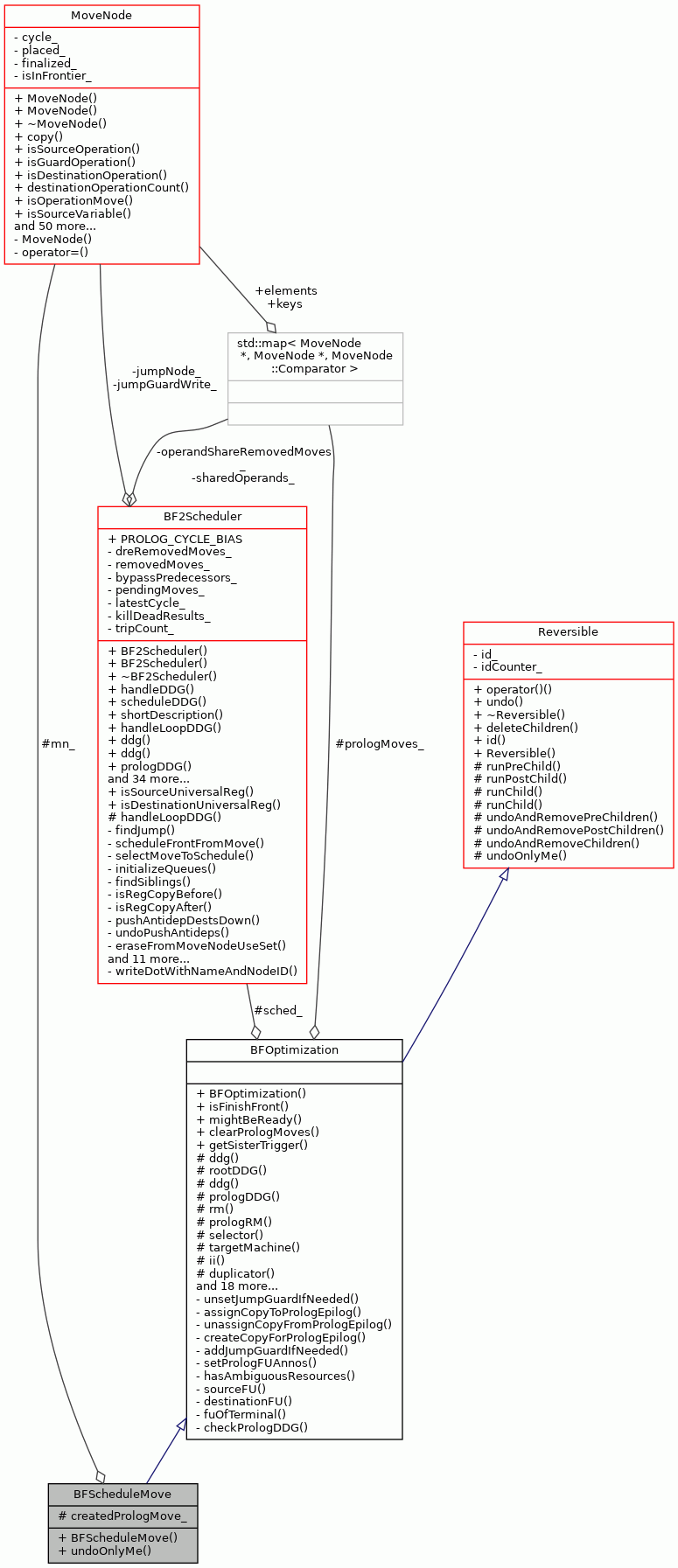

Collaboration diagram for BFScheduleMove:

Public Member Functions
	BFScheduleMove (BF2Scheduler &sched, MoveNode &mn)

virtual void	undoOnlyMe ()

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual bool	operator() ()=0

virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Protected Attributes
MoveNode &	mn_

bool	createdPrologMove_

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 43 of file BFScheduleMove.hh.

Constructor & Destructor Documentation

◆ BFScheduleMove()

BFScheduleMove::BFScheduleMove	(	BF2Scheduler &	sched,
		MoveNode &	mn
	)

inline

Definition at line 45 of file BFScheduleMove.hh.

46 : BFOptimization(sched),

47 mn_(mn), createdPrologMove_(false) {}

Member Function Documentation

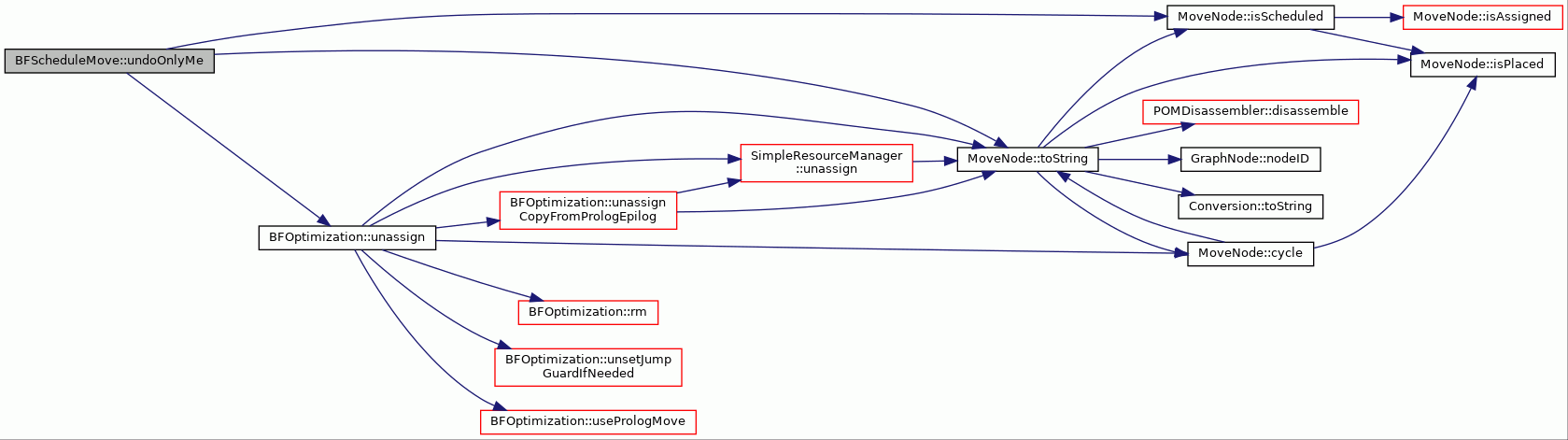

◆ undoOnlyMe()

void BFScheduleMove::undoOnlyMe ( )

virtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from Reversible.

Reimplemented in BFScheduleBU, BFScheduleExact, and BFScheduleTD.

Definition at line 41 of file BFScheduleMove.cc.

                            {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "\t\t\t\tunassign on undo schedulemove: " << mn_.toString() << std::endl;
 #endif
     if (mn_.isScheduled()) {
         unassign(mn_, createdPrologMove_);
     }
 }
