#include <BFScheduleTD.hh>

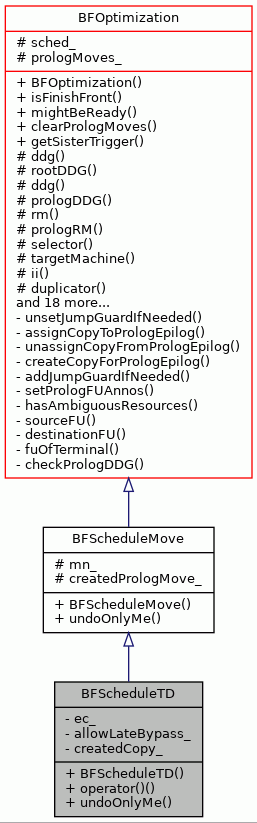

Inheritance diagram for BFScheduleTD:

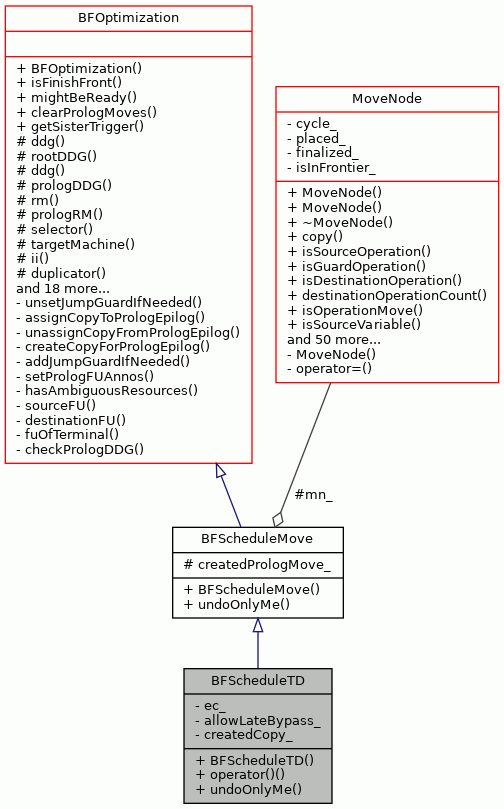

Collaboration diagram for BFScheduleTD:

Public Member Functions
	BFScheduleTD (BF2Scheduler &sched, MoveNode &mn, int ec, bool allowLateBypass)

virtual bool	operator() ()

virtual void	undoOnlyMe ()

Public Member Functions inherited from BFScheduleMove
	BFScheduleMove (BF2Scheduler &sched, MoveNode &mn)

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Private Attributes
int	ec_

bool	allowLateBypass_

bool	createdCopy_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

Protected Attributes inherited from BFScheduleMove
MoveNode &	mn_

bool	createdPrologMove_

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 43 of file BFScheduleTD.hh.

Constructor & Destructor Documentation

◆ BFScheduleTD()

BFScheduleTD::BFScheduleTD	(	BF2Scheduler &	sched,
		MoveNode &	mn,
		int	ec,
		bool	allowLateBypass
	)

inline

Definition at line 46 of file BFScheduleTD.hh.

                           :
     BFScheduleMove(sched, mn), ec_(ec),
     allowLateBypass_(allowLateBypass),
     createdCopy_(false) {}

Member Function Documentation

◆ operator()()

bool BFScheduleTD::operator() ( )

virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 56 of file BFScheduleTD.cc.

                          {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "\tPerforming BFSchduleTD for: " << mn_.toString() <<
       " ec limit: " << ec_ << std::endl;
 #endif
     assert(!mn_.isScheduled());
     if (&mn_.move().bus() != &UniversalMachine::instance().universalBus()) {
         mn_.move().setBus(UniversalMachine::instance().universalBus());
     }

     if (mn_.isDestinationVariable() && allowLateBypass_) {
         BFLateBypasses* lbp = new BFLateBypasses(sched_, mn_, ec_);
         if (runPreChild(lbp)) {
             if (lbp->removedSource()) {
                 return true;
             }
         }
     }


     BFRegCopy* regCopyBefore = NULL;
     BFRegCopy* regCopyAfter = NULL;
     if (!canBeScheduled(mn_)) {
         if (/*isRegCopyAfter_ || */ mn_.isSourceOperation()) {
             regCopyAfter = new BFRegCopyAfter(sched_,mn_, INT_MAX);
         } else {
             regCopyBefore = new BFRegCopyBefore(sched_,mn_, INT_MAX);
             if (!runPreChild(regCopyBefore)) {
                 return false;
             }
         }
     }

     int ddglc = std::min(sched_.maximumAllowedCycle(),
                          ddg().latestCycle(mn_, ii(), false, false));
     int ddgec = std::max(ec_,
              ddg().earliestCycle(mn_, ii(), false, false));
     int rmec = rmEC(ddgec, mn_);
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "\t\tDDG lc: " << ddglc << std::endl;
     std::cerr << "\t\tDDG ec: " << ddgec << std::endl;
     std::cerr << "\t\tRM ec: " << rmec << std::endl;
 #endif
     if (rmec != -1 && ddglc >= rmec) {
         createdCopy_ = assign(rmec, mn_);
         if (regCopyAfter != NULL) {
             if (!runPostChild(regCopyAfter)) {
                 undoAndRemovePreChildren();
                 return false;
             }
         }
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
         std::cerr << "\t\tTD Assigned ok:" << mn_.toString()
                   << " bus: " << mn_.move().bus().name() << std::endl;
 #endif
         return true;
     } else {
         undoAndRemovePreChildren();
         return false;
     }
 }

References allowLateBypass_, assert, BFOptimization::assign(), TTAProgram::Move::bus(), BFOptimization::canBeScheduled(), createdCopy_, BFOptimization::ddg(), ec_, BFOptimization::ii(), UniversalMachine::instance(), MoveNode::isDestinationVariable(), MoveNode::isScheduled(), MoveNode::isSourceOperation(), BF2Scheduler::maximumAllowedCycle(), BFScheduleMove::mn_, MoveNode::move(), TTAMachine::Component::name(), BFLateBypasses::removedSource(), BFOptimization::rmEC(), Reversible::runPostChild(), Reversible::runPreChild(), BFOptimization::sched_, TTAProgram::Move::setBus(), MoveNode::toString(), Reversible::undoAndRemovePreChildren(), and UniversalMachine::universalBus().

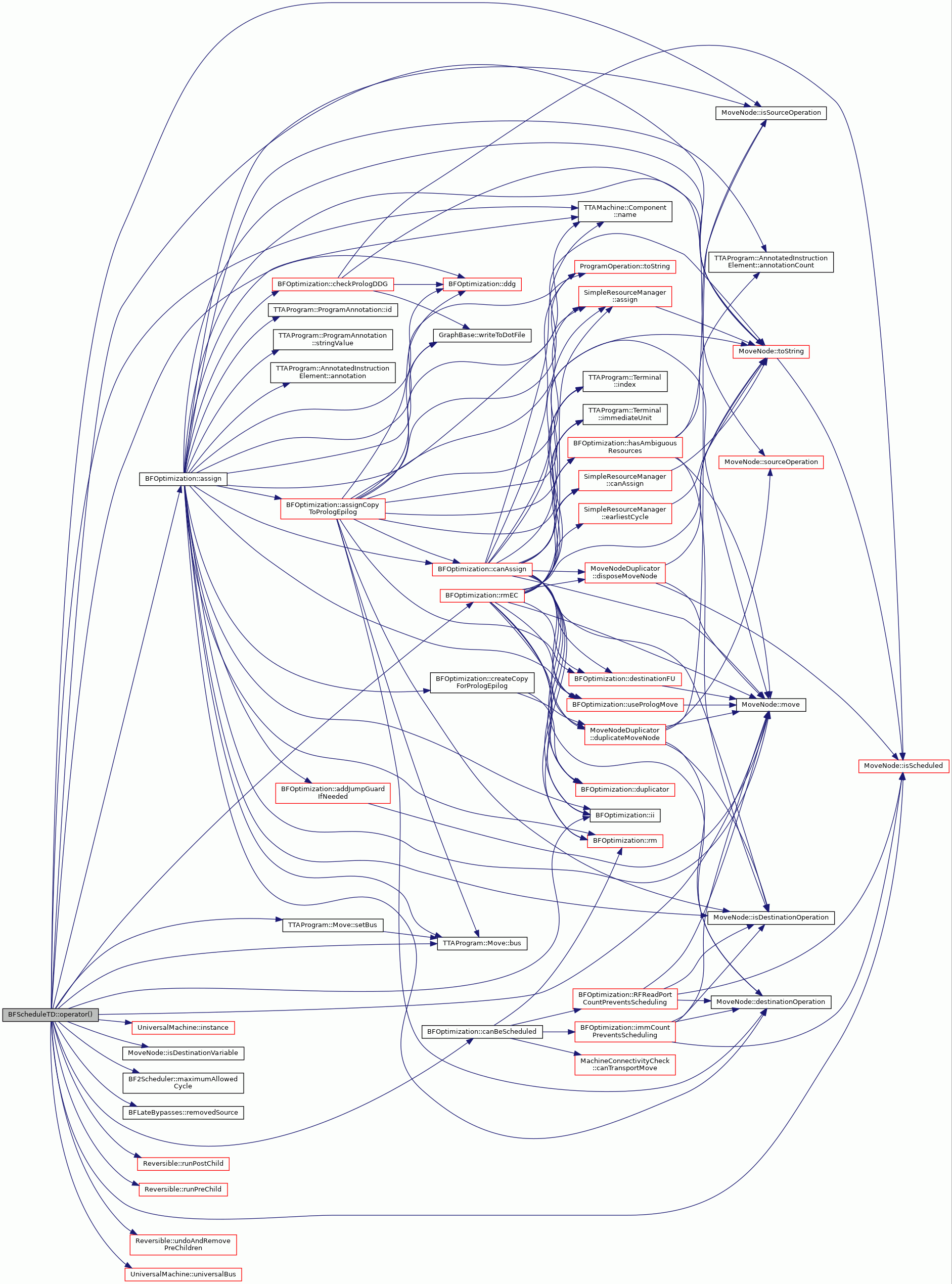

Here is the call graph for this function:

◆ undoOnlyMe()

void BFScheduleTD::undoOnlyMe ( )

virtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from BFScheduleMove.

Definition at line 119 of file BFScheduleTD.cc.

                          {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     std::cerr << "unassign td: " << mn_.toString() << std::endl;
 #endif
     if (mn_.isScheduled()) {
         unassign(mn_, createdCopy_);
     }
     if (&mn_.move().bus() != &UniversalMachine::instance().universalBus()) {
         mn_.move().setBus(UniversalMachine::instance().universalBus());
     }
 }

References TTAProgram::Move::bus(), createdCopy_, UniversalMachine::instance(), MoveNode::isScheduled(), BFScheduleMove::mn_, MoveNode::move(), TTAProgram::Move::setBus(), MoveNode::toString(), BFOptimization::unassign(), and UniversalMachine::universalBus().

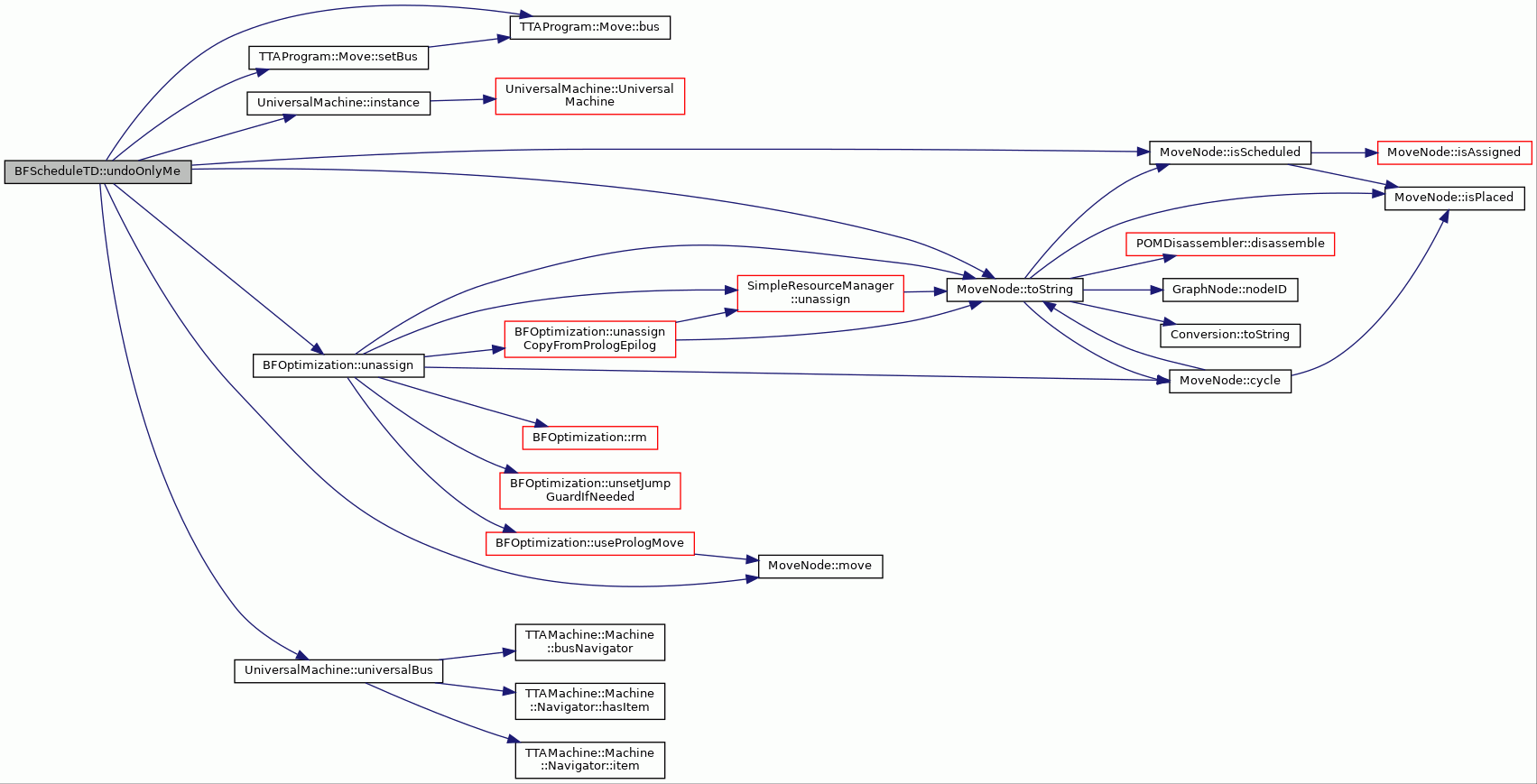

Here is the call graph for this function:

Member Data Documentation

◆ allowLateBypass_

bool BFScheduleTD::allowLateBypass_

private

Definition at line 57 of file BFScheduleTD.hh.

Referenced by operator()().

◆ createdCopy_

bool BFScheduleTD::createdCopy_

private

Definition at line 58 of file BFScheduleTD.hh.

Referenced by operator()(), and undoOnlyMe().

◆ ec_

int BFScheduleTD::ec_

private

Definition at line 56 of file BFScheduleTD.hh.

Referenced by operator()().

The documentation for this class was generated from the following files:
