ComponentAdder Class Reference

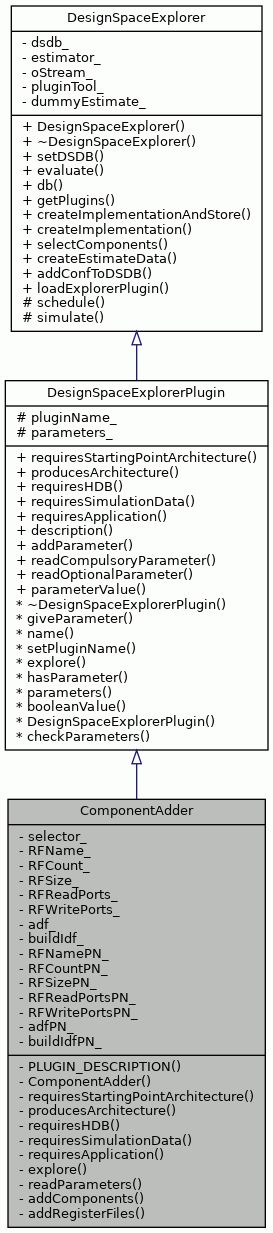

Inheritance diagram for ComponentAdder:

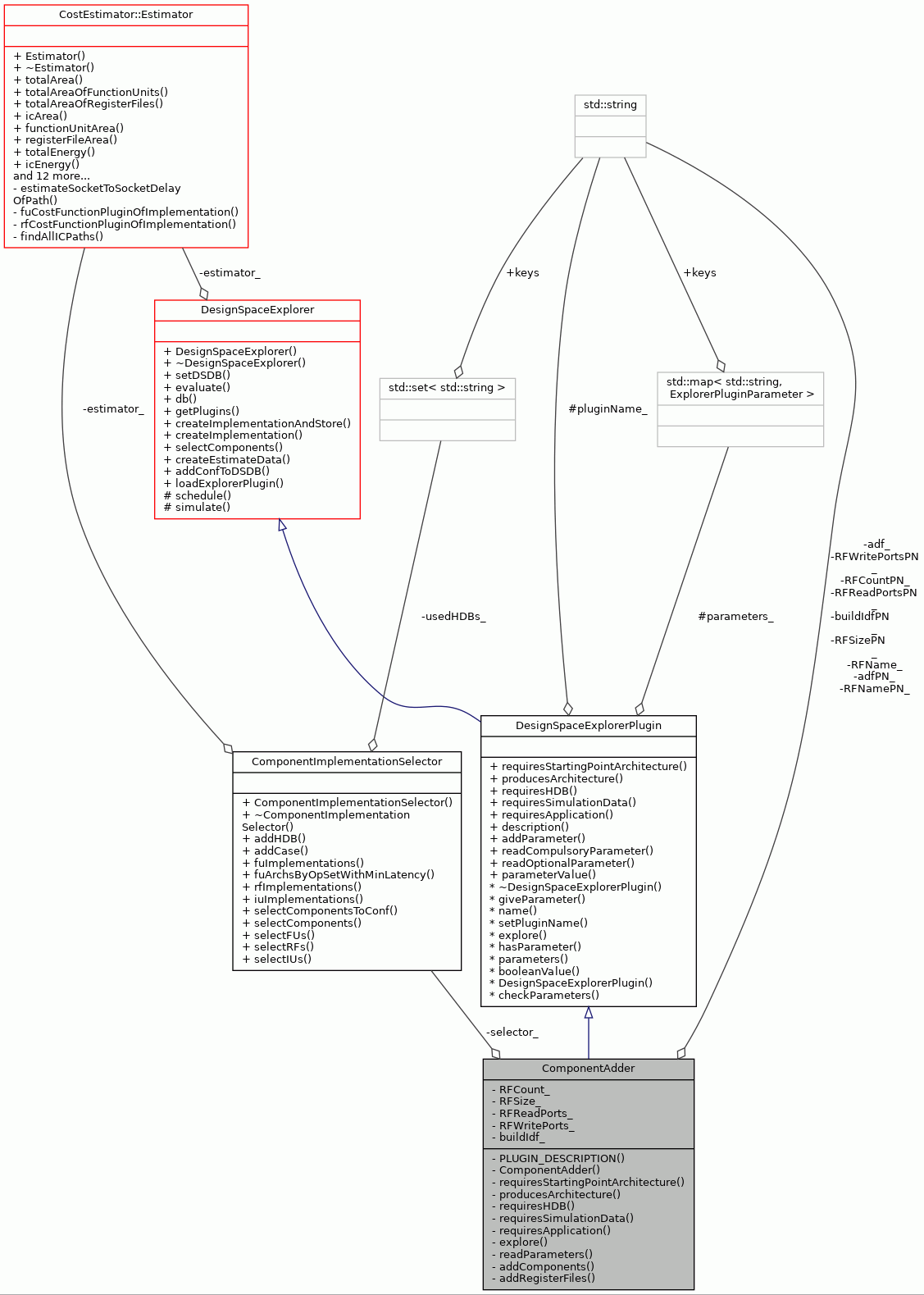

Collaboration diagram for ComponentAdder:

Private Member Functions
	PLUGIN_DESCRIPTION ("Explorer plugin that adds machine components to a " "given machine.")
	ComponentAdder ()
virtual bool	requiresStartingPointArchitecture () const
virtual bool	producesArchitecture () const
virtual bool	requiresHDB () const
virtual bool	requiresSimulationData () const
virtual bool	requiresApplication () const
virtual std::vector< RowID >	explore (const RowID &configurationID, const unsigned int &)
void	readParameters ()
void	addComponents (TTAMachine::Machine *mach)
void	addRegisterFiles (TTAMachine::Machine *mach)

Private Attributes
ComponentImplementationSelector	selector_
	Selector used by the plugin. More...
std::string	RFName_
int	RFCount_
int	RFSize_
int	RFReadPorts_
int	RFWritePorts_
std::string	adf_
	name of the adf file if wanted to use idf generation More...
bool	buildIdf_
	do we build idf More...

Static Private Attributes
static const std::string	RFNamePN_
static const std::string	RFCountPN_
static const std::string	RFSizePN_
static const std::string	RFReadPortsPN_
static const std::string	RFWritePortsPN_
static const std::string	adfPN_
static const std::string	buildIdfPN_

Additional Inherited Members
Public Types inherited from DesignSpaceExplorerPlugin
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter
typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap
typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt
typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt
Public Member Functions inherited from DesignSpaceExplorerPlugin
virtual std::string	description () const
void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")
template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const
template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const
template<typename RT >
RT	parameterValue (const std::string &paramName) const
virtual	~DesignSpaceExplorerPlugin ()
virtual void	giveParameter (const std::string &name, const std::string &value)
virtual std::string	name () const
virtual void	setPluginName (const std::string &pluginName)
virtual bool	hasParameter (const std::string &paramName) const
ParameterMap	parameters () const
virtual bool	booleanValue (const std::string &parameter) const
Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()
virtual	~DesignSpaceExplorer ()
virtual void	setDSDB (DSDBManager &dsdb)
virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)
virtual DSDBManager &	db ()
std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()
RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")
bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")
IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const
void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)
RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)
Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)
Protected Member Functions inherited from DesignSpaceExplorerPlugin
	DesignSpaceExplorerPlugin ()
void	checkParameters () const
Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")
const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)
Protected Attributes inherited from DesignSpaceExplorerPlugin
std::string	pluginName_
	the name of the explorer plugin More...
ParameterMap	parameters_
	Parameters for the plugin. More...

Detailed Description

Explorer plugin that adds machine components to a given machine.

Supported parameters:

• rf_size, number of registers in one register file, default is 4
• max_rfs, maximum number of register files in the machine, default is 16
• rf_reads, number of register read ports in register files, default is 1
• rf_writes, number of register write ports in register file, default is 1
• build_idf, if parameter is set the idf file is built, not set as default
• adf, if idf is wanted to generated to some arhitecture, no default value. If adf parameter is given the idf is built.

Definition at line 63 of file ComponentAdder.cc.

Constructor & Destructor Documentation

ComponentAdder()

ComponentAdder::ComponentAdder ( )

inlineprivate

Definition at line 67 of file ComponentAdder.cc.

                    : DesignSpaceExplorerPlugin(),
        RFName_("rf"),
        RFCount_(1),
        RFSize_(4),
        RFReadPorts_(1),
        RFWritePorts_(1),
        adf_(""),
        buildIdf_(false) {

        // compulsory parameters
        // no compulsory parameters

        // parameters that have a default value
        addParameter(RFNamePN_, STRING, false, RFName_);
        addParameter(RFCountPN_, UINT, false, Conversion::toString(RFCount_));
        addParameter(RFSizePN_, UINT, false, Conversion::toString(RFSize_));
        addParameter(RFReadPortsPN_, UINT, false, Conversion::toString(RFReadPorts_));
        addParameter(RFWritePortsPN_, UINT, false, Conversion::toString(RFWritePorts_));
        addParameter(adfPN_, STRING, false, adf_);
        addParameter(buildIdfPN_, BOOL, false, Conversion::toString(buildIdf_));
    }

References BOOL, STRING, Conversion::toString(), and UINT.

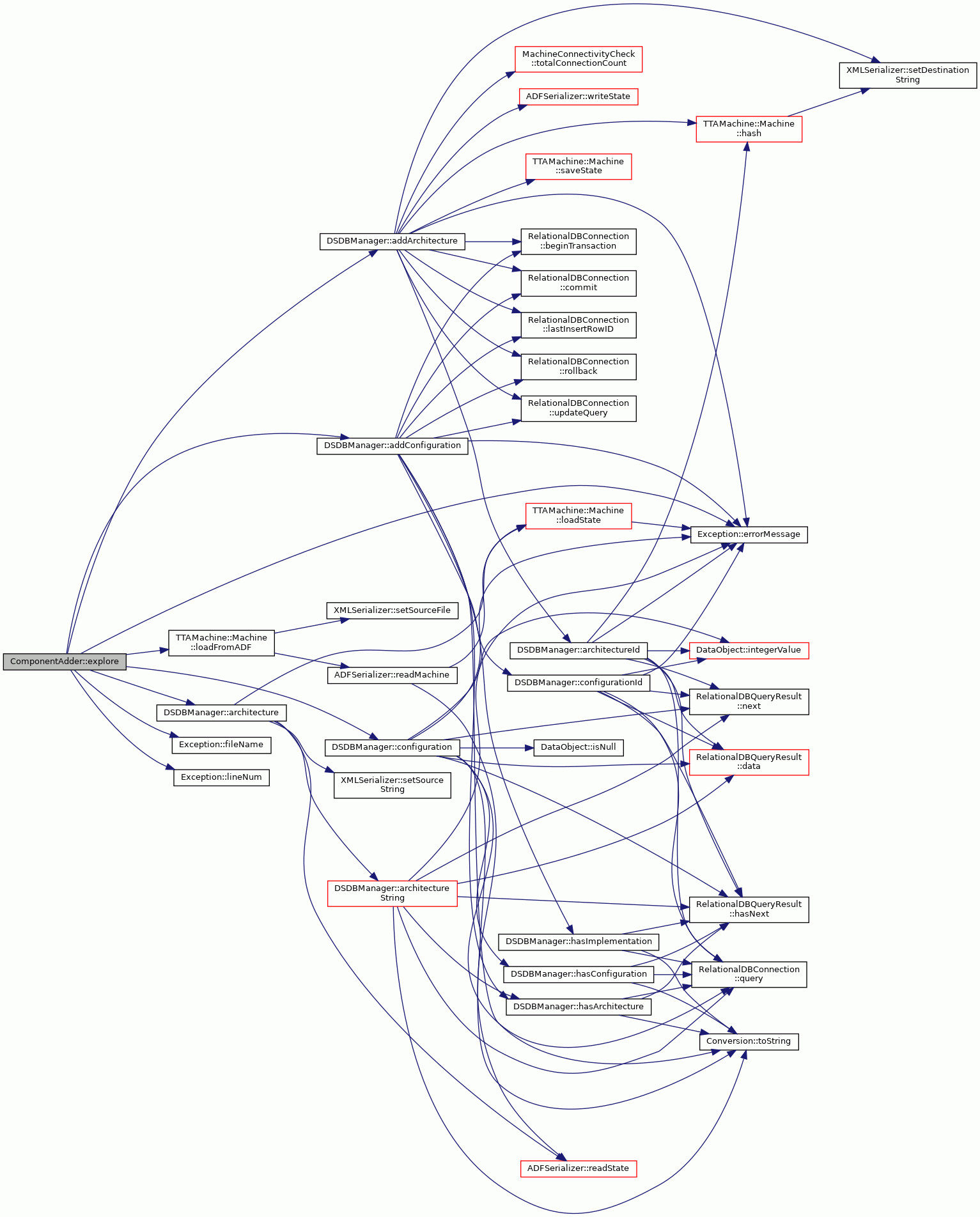

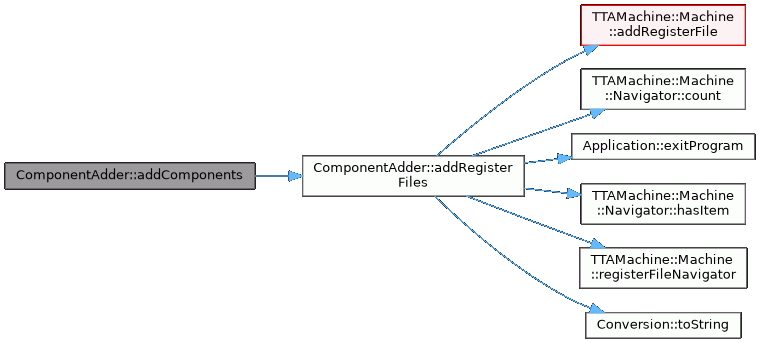

Here is the call graph for this function:

Member Function Documentation

addComponents()

void ComponentAdder::addComponents ( TTAMachine::Machine *  mach )

inlineprivate

Builds the machine in basis of the analyzed data from the applications.

Returns

The initial machine of NULL if an error occurred.

Definition at line 204 of file ComponentAdder.cc.

                                                {
        // add register files
        addRegisterFiles(mach);
    }

addRegisterFiles()

void ComponentAdder::addRegisterFiles ( TTAMachine::Machine *  mach )

inlineprivate

Adds register file(s) to the machine

TODO: add type and guard latency setting

Returns

void

Definition at line 217 of file ComponentAdder.cc.

                                                   {
        for (int i = 0; i < RFCount_; i++) {
            std::string RFName = RFName_ + Conversion::toString(i);

            const TTAMachine::Machine::RegisterFileNavigator& RFNav =
                mach->registerFileNavigator();
            if (RFNav.hasItem(RFName)) {
                RFName = RFName_ + Conversion::toString(i+RFNav.count());
            }

            TTAMachine::RegisterFile* rf = new TTAMachine::RegisterFile(
                    RFName, RFSize_, 32, RFReadPorts_, RFWritePorts_, 0,
                    TTAMachine::RegisterFile::NORMAL);
            for (int n = 0; n < RFReadPorts_; n++) {
                new TTAMachine::RFPort("read" +
                        Conversion::toString( + 1), *rf);
            }
            for (int n = 0; n < RFWritePorts_; n++) {
                new TTAMachine::RFPort("write" +
                        Conversion::toString(n + 1), *rf);
            }
            try {
                mach->addRegisterFile(*rf);
            } catch (const ComponentAlreadyExists& e) {
                verboseLog("ComponentAdder: Tried to add RF with a already"
                    "existing name (" + RFName)
                Application::exitProgram(1);
            }
        }
    }

References TTAMachine::Machine::addRegisterFile(), TTAMachine::Machine::Navigator< ComponentType >::count(), Application::exitProgram(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::RegisterFile::NORMAL, TTAMachine::Machine::registerFileNavigator(), Conversion::toString(), and verboseLog.

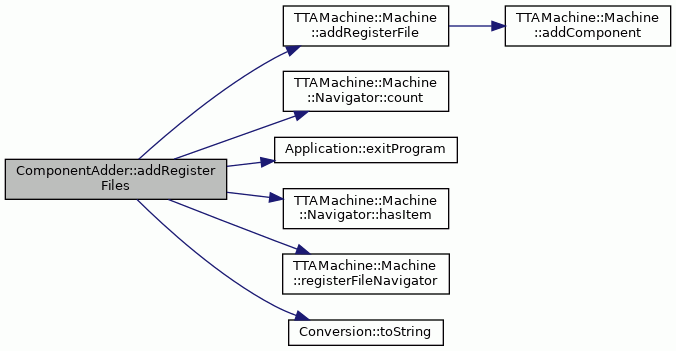

Here is the call graph for this function:

explore()

virtual std::vector<RowID> ComponentAdder::explore ( const RowID &  configurationID, const unsigned int &    )

inlineprivatevirtual

Explorer plugin that adds machine components to a given machine with adf parameter or with configuration id in dsdb.

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 100 of file ComponentAdder.cc.

                                                               {
        readParameters();
        std::vector<RowID> result;

        // check if adf given
        if (configurationID == 0 && adf_ == "") {
            std::ostringstream msg(std::ostringstream::out);
            msg << "No configuration nor adf defined. Use -s <confID> to "
                << "define the configuration to be optimized or give adf "
                << "as plugin parameter." << endl;
            verboseLog(msg.str());
            return result;
        }

        DSDBManager& dsdb = db();
        DSDBManager::MachineConfiguration conf;
        conf.hasImplementation = false;
        TTAMachine::Machine* mach = NULL;

        // load the adf from file or from dsdb
        try {
            if (adf_ != "") {
                mach = TTAMachine::Machine::loadFromADF(adf_);
            } else {
                conf = dsdb.configuration(configurationID);
                mach = dsdb.architecture(conf.architectureID);
            }
        } catch (const Exception& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error loading the adf." << std::endl;
            verboseLog(msg.str());
            return result;
        }
        assert(mach != NULL);

        // add components
        addComponents(mach);

        if (buildIdf_) {
            try {
                // add idf to configuration
                selector_.selectComponentsToConf(conf, dsdb, mach);
            } catch (const Exception& e) {
                std::ostringstream msg(std::ostringstream::out);
                msg << e.errorMessage()
                    << " " << e.fileName()
                    << " " << e.lineNum() << std::endl;
                verboseLog(msg.str());
            }
        } else {
            conf.hasImplementation = false;
        }

        // add machine to configuration
        conf.architectureID = dsdb.addArchitecture(*mach);

        // add new configuration to dsdb
        RowID confID = dsdb.addConfiguration(conf);
        result.push_back(confID);
        return result;
    }

References DSDBManager::addArchitecture(), DSDBManager::addConfiguration(), DSDBManager::architecture(), DSDBManager::MachineConfiguration::architectureID, assert, DSDBManager::configuration(), Exception::errorMessage(), Exception::fileName(), DSDBManager::MachineConfiguration::hasImplementation, Exception::lineNum(), TTAMachine::Machine::loadFromADF(), and verboseLog.

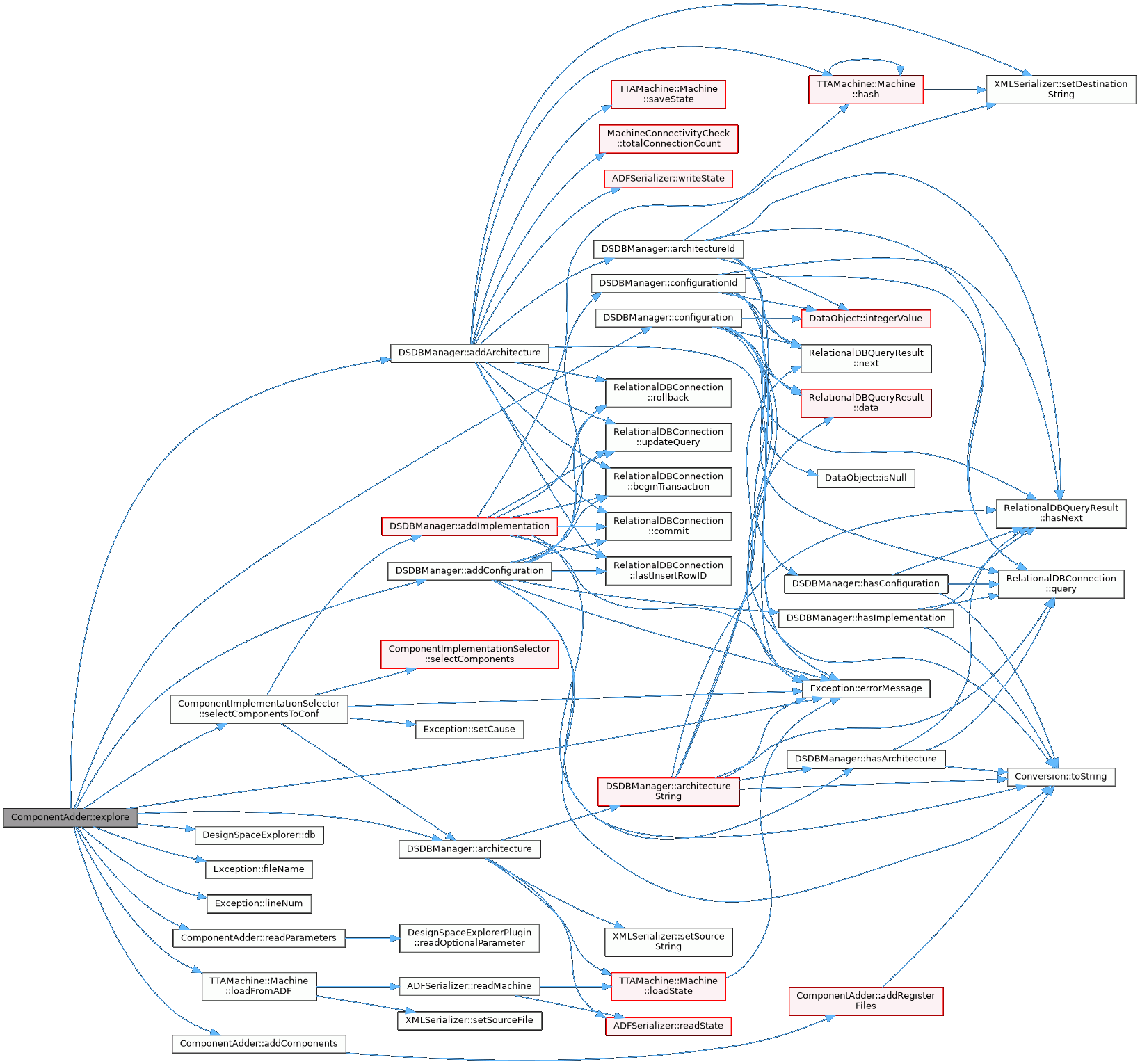

Here is the call graph for this function:

PLUGIN_DESCRIPTION()

ComponentAdder::PLUGIN_DESCRIPTION ( "Explorer plugin that adds machine components to a " "given machine."  )

private

producesArchitecture()

virtual bool ComponentAdder::producesArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 90 of file ComponentAdder.cc.

{ return true; }

readParameters()

void ComponentAdder::readParameters ( )

inlineprivate

Reads the parameters given to the plugin.

Definition at line 188 of file ComponentAdder.cc.

                          {
        readOptionalParameter(RFNamePN_, RFName_);
        readOptionalParameter(RFCountPN_, RFCount_);
        readOptionalParameter(RFSizePN_, RFSize_);
        readOptionalParameter(RFReadPortsPN_, RFReadPorts_);
        readOptionalParameter(RFWritePortsPN_, RFWritePorts_);
        readOptionalParameter(adfPN_, adf_);
        readOptionalParameter(buildIdfPN_, buildIdf_);
    }

requiresApplication()

virtual bool ComponentAdder::requiresApplication ( ) const

inlineprivatevirtual

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 93 of file ComponentAdder.cc.

{ return false; }

requiresHDB()

virtual bool ComponentAdder::requiresHDB ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 91 of file ComponentAdder.cc.

{ return false; }

requiresSimulationData()

virtual bool ComponentAdder::requiresSimulationData ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 92 of file ComponentAdder.cc.

{ return true; }

requiresStartingPointArchitecture()

virtual bool ComponentAdder::requiresStartingPointArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 89 of file ComponentAdder.cc.

{ return false; }

Member Data Documentation

adf_

std::string ComponentAdder::adf_

private

name of the adf file if wanted to use idf generation

Definition at line 181 of file ComponentAdder.cc.

adfPN_

const std::string ComponentAdder::adfPN_

staticprivate

Definition at line 171 of file ComponentAdder.cc.

buildIdf_

bool ComponentAdder::buildIdf_

private

do we build idf

Definition at line 183 of file ComponentAdder.cc.

buildIdfPN_

const std::string ComponentAdder::buildIdfPN_

staticprivate

Definition at line 172 of file ComponentAdder.cc.

RFCount_

int ComponentAdder::RFCount_

private

Definition at line 176 of file ComponentAdder.cc.

RFCountPN_

const std::string ComponentAdder::RFCountPN_

staticprivate

Definition at line 167 of file ComponentAdder.cc.

RFName_

std::string ComponentAdder::RFName_

private

Definition at line 175 of file ComponentAdder.cc.

RFNamePN_

const std::string ComponentAdder::RFNamePN_

staticprivate

Definition at line 166 of file ComponentAdder.cc.

RFReadPorts_

int ComponentAdder::RFReadPorts_

private

Definition at line 178 of file ComponentAdder.cc.

RFReadPortsPN_

const std::string ComponentAdder::RFReadPortsPN_

staticprivate

Definition at line 169 of file ComponentAdder.cc.

RFSize_

int ComponentAdder::RFSize_

private

Definition at line 177 of file ComponentAdder.cc.

RFSizePN_

const std::string ComponentAdder::RFSizePN_

staticprivate

Definition at line 168 of file ComponentAdder.cc.

RFWritePorts_

int ComponentAdder::RFWritePorts_

private

Definition at line 179 of file ComponentAdder.cc.

RFWritePortsPN_

const std::string ComponentAdder::RFWritePortsPN_

staticprivate

Definition at line 170 of file ComponentAdder.cc.

selector_

ComponentImplementationSelector ComponentAdder::selector_

private

Selector used by the plugin.

Definition at line 164 of file ComponentAdder.cc.

---

The documentation for this class was generated from the following file:

• ComponentAdder.cc
