#include <DesignSpaceExplorerPlugin.hh>

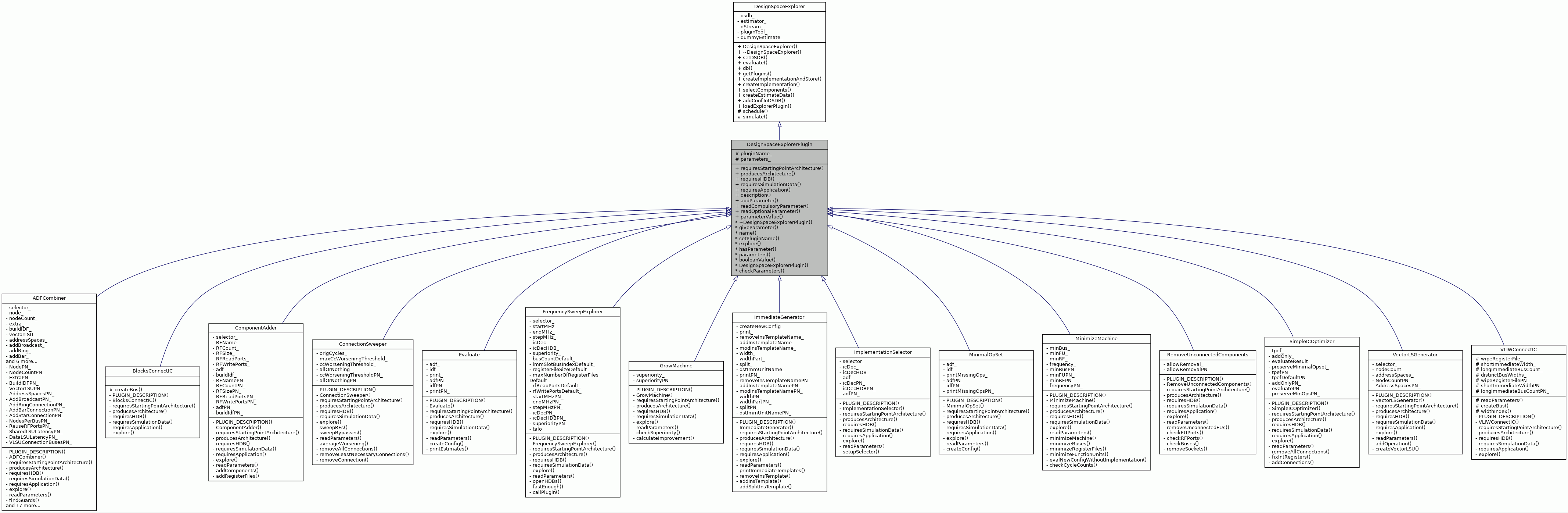

Inheritance diagram for DesignSpaceExplorerPlugin:

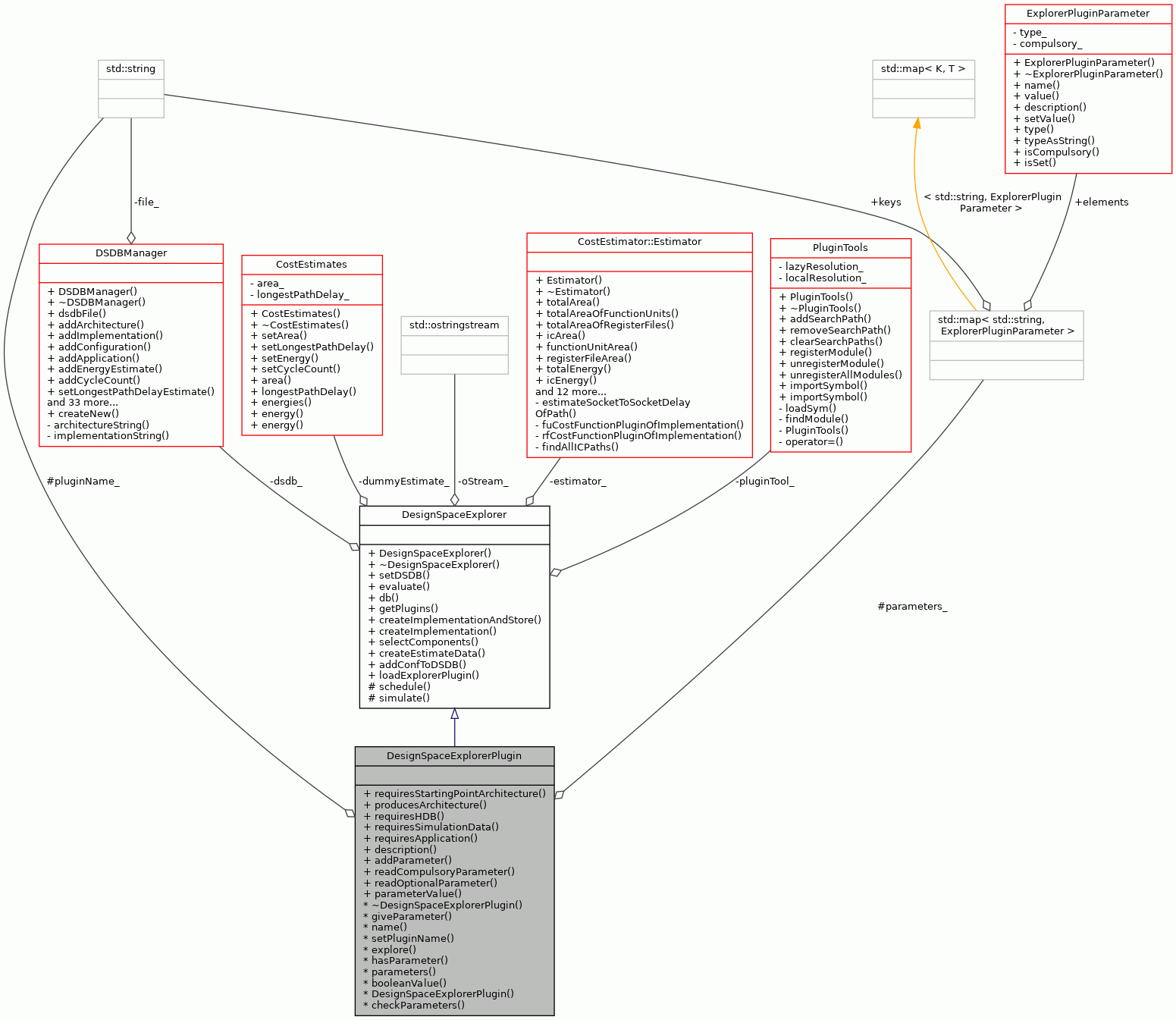

Collaboration diagram for DesignSpaceExplorerPlugin:

Public Types
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter

typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap

typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt

typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt

Public Member Functions
virtual bool	requiresStartingPointArchitecture () const =0

virtual bool	producesArchitecture () const =0

virtual bool	requiresHDB () const =0

virtual bool	requiresSimulationData () const =0

virtual bool	requiresApplication () const

virtual std::string	description () const

void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")

template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const

template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const

template<typename RT >
RT	parameterValue (const std::string &paramName) const

Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()

virtual	~DesignSpaceExplorer ()

virtual void	setDSDB (DSDBManager &dsdb)

virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)

virtual DSDBManager &	db ()

std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()

RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const

void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)

RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)

Protected Attributes
std::string	pluginName_
	the name of the explorer plugin More...

ParameterMap	parameters_
	Parameters for the plugin. More...

pluginName Name of the plugin.

The constructor of the DesignExplorerPlugin class.

Parameters

dsdb	Design space data base to be used with the plugin.

virtual ~DesignSpaceExplorerPlugin ()

virtual void giveParameter (const std::string &name, const std::string &value)

virtual std::string name () const

virtual void setPluginName (const std::string &pluginName)

virtual std::vector< RowID > explore (const RowID &startPointConfigurationID, const unsigned int &maxIter=0)

virtual bool hasParameter (const std::string &paramName) const

ParameterMap parameters () const

virtual bool booleanValue (const std::string &parameter) const

DesignSpaceExplorerPlugin ()

void checkParameters () const

Additional Inherited Members
Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)

Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")

const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)

Detailed Description

A base interface for all classes that implement pluggable design space explorer algorithms.

Plugins are allowed to store state data to itself, thus, the plugin instances are not allowed to be "recycled" for multiple uses, but a new instance should be created always.

Definition at line 55 of file DesignSpaceExplorerPlugin.hh.

Member Typedef Documentation

◆ Parameter

typedef std::pair<std::string, ExplorerPluginParameter> DesignSpaceExplorerPlugin::Parameter

Definition at line 67 of file DesignSpaceExplorerPlugin.hh.

◆ ParameterMap

typedef std::map<std::string, ExplorerPluginParameter> DesignSpaceExplorerPlugin::ParameterMap

Definition at line 69 of file DesignSpaceExplorerPlugin.hh.

◆ PMCIt

typedef std::map<std::string, ExplorerPluginParameter>::const_iterator DesignSpaceExplorerPlugin::PMCIt

Definition at line 73 of file DesignSpaceExplorerPlugin.hh.

◆ PMIt

typedef std::map<std::string, ExplorerPluginParameter>::iterator DesignSpaceExplorerPlugin::PMIt

Definition at line 71 of file DesignSpaceExplorerPlugin.hh.

Constructor & Destructor Documentation

◆ ~DesignSpaceExplorerPlugin()

DesignSpaceExplorerPlugin::~DesignSpaceExplorerPlugin ( )

virtual

The destructor.

Definition at line 56 of file DesignSpaceExplorerPlugin.cc.

56 {

57 }

◆ DesignSpaceExplorerPlugin()

DesignSpaceExplorerPlugin::DesignSpaceExplorerPlugin ( )

protected

Definition at line 48 of file DesignSpaceExplorerPlugin.cc.

                                                     :
     DesignSpaceExplorer() {
 }

Member Function Documentation

◆ addParameter()

void DesignSpaceExplorerPlugin::addParameter	(	TCEString	name,
		ExplorerPluginParameterType	type,
		bool	compulsory = `true`,
		TCEString	defaultValue = `""`,
		TCEString	description = `""`
	)

inline

◆ booleanValue()

bool DesignSpaceExplorerPlugin::booleanValue ( const std::string & parameter ) const

virtual

Returns the boolean value of the given parameter if parameter can be considered as a boolean.

Parameters

parameter The string to be converted to a boolean value

Returns: Boolean value of the parameter

Exceptions

IllegalParameters Given parameter could not be considerer as boolean value

Definition at line 132 of file DesignSpaceExplorerPlugin.cc.

                                                                         {
     std::string lowCase = StringTools::stringToLower(parameter);
     if (lowCase == "true" || lowCase == "1") {
         return true;
     } else if (lowCase == "false" || lowCase == "0") {
         return false;
     } else {
         throw IllegalParameters(__FILE__, __LINE__, __func__);
     }
 }

References __func__, and StringTools::stringToLower().

Here is the call graph for this function:

◆ checkParameters()

void DesignSpaceExplorerPlugin::checkParameters ( ) const

protected

Checks that all compulsory parameters are set for the plugin.

Definition at line 147 of file DesignSpaceExplorerPlugin.cc.

                                                  {
     for (PMCIt it = parameters_.begin(); it != parameters_.end(); it++) {
         if (it->second.isCompulsory() && !it->second.isSet()) {
             std::string msg = it->second.name() + " parameter is needed.";
             throw IllegalParameters(__FILE__, __LINE__, __func__, msg);
         }
     }
 }

References __func__, and parameters_.

◆ description()

virtual std::string DesignSpaceExplorerPlugin::description ( ) const

inlinevirtual

Referenced by printPlugins().

◆ explore()

std::vector< RowID > DesignSpaceExplorerPlugin::explore	(	const RowID &	startPointConfigurationID,
		const unsigned int &	maxIter = `0`
	)

virtual

Explores the design space from the starting point machine and returns best exploring results as configuration IDs.

Exploring creates new machine configurations (architecture, implementation) that are ordered so that the best results are first in the result vector.

Parameters

startPoint	Starting point machine configuration for the plugin.
maxIter	Maximum number of design space points the plugin is allowed to explore. Default value for maxIter is zero when the iteration number is not taken into account. In that case the exploration runs indefinetly or stops at a point defined by the algorithm.

Returns: Ordered vector of IDs of the best machine configurations where the target programs can be successfully run. The IDs of the best machine configurations are first in the result vector. Returns an empty vector if does not find any possible machine configurations.

Reimplemented in FrequencySweepExplorer, SimpleICOptimizer, ImmediateGenerator, ConnectionSweeper, ImplementationSelector, ComponentAdder, MinimizeMachine, GrowMachine, VectorLSGenerator, RemoveUnconnectedComponents, BlocksConnectIC, MinimalOpSet, VLIWConnectIC, Evaluate, and ADFCombiner.

Definition at line 174 of file DesignSpaceExplorerPlugin.cc.

                                        {

     std::vector<RowID> result;
     return result;
 }

Referenced by FrequencySweepExplorer::callPlugin(), BlocksConnectICCmd::Do(), VLIWConnectICCmd::Do(), SimpleICOptimizer::explore(), ADFCombiner::explore(), FrequencySweepExplorer::explore(), and main().

◆ giveParameter()

void DesignSpaceExplorerPlugin::giveParameter	(	const std::string &	name,
		const std::string &	value
	)

virtual

Gives a plugin parameter value.

Parameters

name	The parameter name.
value	The value to be set for the parameter.

Definition at line 89 of file DesignSpaceExplorerPlugin.cc.

                                                    {
     PMIt it = parameters_.find(name);
     if (it == parameters_.end()) {
         std::string msg = "Plugin has no parameter named: " + name;
         throw InstanceNotFound(__FILE__, __LINE__, __func__, msg);
     }
     it->second.setValue(value);
 }

References __func__, name(), and parameters_.

Referenced by SimpleICOptimizer::explore(), ADFCombiner::explore(), FrequencySweepExplorer::explore(), and loadPluginParameters().

Here is the call graph for this function:

◆ hasParameter()

bool DesignSpaceExplorerPlugin::hasParameter ( const std::string & paramName ) const

virtual

Tells whether the plugin has the given parameter defined.

Parameters

paramName Name of the parameter.

Returns: True if the given parameter is defined, otherwise false.

Definition at line 106 of file DesignSpaceExplorerPlugin.cc.

                                                                         {
     return parameters_.find(paramName)->second.isSet();
 }

References parameters_.

◆ name()

std::string DesignSpaceExplorerPlugin::name ( ) const

virtual

Returns the plugin name.

Returns: The plugin name as a string.

Definition at line 77 of file DesignSpaceExplorerPlugin.cc.

                                       {
     return pluginName_;
 }

References pluginName_.

Referenced by CallExplorerPluginWindow::CallExplorerPluginWindow(), FrequencySweepExplorer::callPlugin(), and giveParameter().

◆ parameters()

DesignSpaceExplorerPlugin::ParameterMap DesignSpaceExplorerPlugin::parameters ( ) const

Makes a copy of the parameters of the plugin and returns it.

Returns: ParameterMap map of the explorer plugin parameters.

Definition at line 117 of file DesignSpaceExplorerPlugin.cc.

                                             {
     return parameters_;
 }

References parameters_.

Referenced by printPluginParamInfo().

◆ parameterValue()

template<typename RT >

RT DesignSpaceExplorerPlugin::parameterValue ( const std::string & paramName ) const

◆ producesArchitecture()

virtual bool DesignSpaceExplorerPlugin::producesArchitecture ( ) const

pure virtual

Implemented in FrequencySweepExplorer, ADFCombiner, ConnectionSweeper, SimpleICOptimizer, ImmediateGenerator, ImplementationSelector, ComponentAdder, MinimizeMachine, VectorLSGenerator, Evaluate, MinimalOpSet, GrowMachine, RemoveUnconnectedComponents, VLIWConnectIC, and BlocksConnectIC.

Referenced by CallExplorerPluginWindow::CallExplorerPluginWindow().

◆ readCompulsoryParameter()

template<typename T >

void DesignSpaceExplorerPlugin::readCompulsoryParameter	(	const std::string	paramName,
		T &	param
	)		const

◆ readOptionalParameter()

template<typename T >

void DesignSpaceExplorerPlugin::readOptionalParameter	(	const std::string	paramName,
		T &	param
	)		const

◆ requiresApplication()

virtual bool DesignSpaceExplorerPlugin::requiresApplication ( ) const

inlinevirtual

Reimplemented in ADFCombiner, SimpleICOptimizer, ImmediateGenerator, ImplementationSelector, ComponentAdder, VectorLSGenerator, MinimalOpSet, RemoveUnconnectedComponents, BlocksConnectIC, and VLIWConnectIC.

Definition at line 64 of file DesignSpaceExplorerPlugin.hh.

64 { return true; }

Referenced by main().

◆ requiresHDB()

virtual bool DesignSpaceExplorerPlugin::requiresHDB ( ) const

pure virtual

Implemented in FrequencySweepExplorer, ADFCombiner, ConnectionSweeper, SimpleICOptimizer, ImmediateGenerator, ImplementationSelector, ComponentAdder, MinimizeMachine, VectorLSGenerator, Evaluate, MinimalOpSet, GrowMachine, RemoveUnconnectedComponents, VLIWConnectIC, and BlocksConnectIC.

Referenced by CallExplorerPluginWindow::CallExplorerPluginWindow().

◆ requiresSimulationData()

virtual bool DesignSpaceExplorerPlugin::requiresSimulationData ( ) const

pure virtual

Implemented in FrequencySweepExplorer, ADFCombiner, ConnectionSweeper, SimpleICOptimizer, ImmediateGenerator, ImplementationSelector, ComponentAdder, MinimizeMachine, VectorLSGenerator, Evaluate, MinimalOpSet, GrowMachine, RemoveUnconnectedComponents, VLIWConnectIC, and BlocksConnectIC.

Referenced by CallExplorerPluginWindow::CallExplorerPluginWindow().

◆ requiresStartingPointArchitecture()

virtual bool DesignSpaceExplorerPlugin::requiresStartingPointArchitecture ( ) const

pure virtual

Implemented in FrequencySweepExplorer, ADFCombiner, ConnectionSweeper, SimpleICOptimizer, ImmediateGenerator, ImplementationSelector, ComponentAdder, MinimizeMachine, VectorLSGenerator, Evaluate, MinimalOpSet, GrowMachine, RemoveUnconnectedComponents, VLIWConnectIC, and BlocksConnectIC.

Referenced by main().

◆ setPluginName()

void DesignSpaceExplorerPlugin::setPluginName ( const std::string & pluginName )

virtual

Sets the plugin name.

Parameters

pluginName Name of the plugin.

Definition at line 66 of file DesignSpaceExplorerPlugin.cc.

                                                                     {
     pluginName_ = pluginName;
 }

References pluginName_.

Member Data Documentation

◆ parameters_

ParameterMap DesignSpaceExplorerPlugin::parameters_

protected

Parameters for the plugin.

Definition at line 116 of file DesignSpaceExplorerPlugin.hh.

Referenced by checkParameters(), giveParameter(), hasParameter(), and parameters().

◆ pluginName_

std::string DesignSpaceExplorerPlugin::pluginName_

protected

the name of the explorer plugin

Definition at line 114 of file DesignSpaceExplorerPlugin.hh.

Referenced by name(), and setPluginName().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Attributes

pluginName Name of the plugin.

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Parameter

◆ ParameterMap

◆ PMCIt

◆ PMIt

Constructor & Destructor Documentation

◆ ~DesignSpaceExplorerPlugin()

◆ DesignSpaceExplorerPlugin()

Member Function Documentation

◆ addParameter()

◆ booleanValue()

◆ checkParameters()

◆ description()

◆ explore()

◆ giveParameter()

◆ hasParameter()

◆ name()

◆ parameters()

◆ parameterValue()

◆ producesArchitecture()

◆ readCompulsoryParameter()

◆ readOptionalParameter()

◆ requiresApplication()

◆ requiresHDB()

◆ requiresSimulationData()

◆ requiresStartingPointArchitecture()

◆ setPluginName()

Member Data Documentation

◆ parameters_

◆ pluginName_
