DummyMemGenerator Class Reference

#include <DummyMemGenerator.hh>

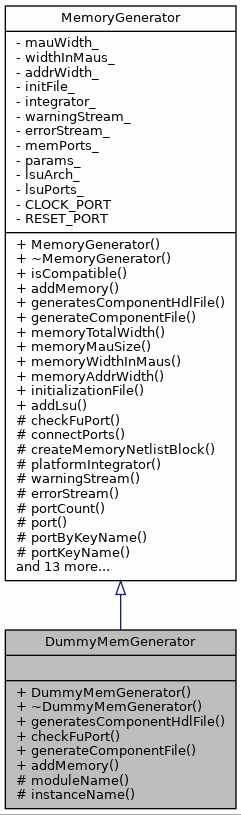

Inheritance diagram for DummyMemGenerator:

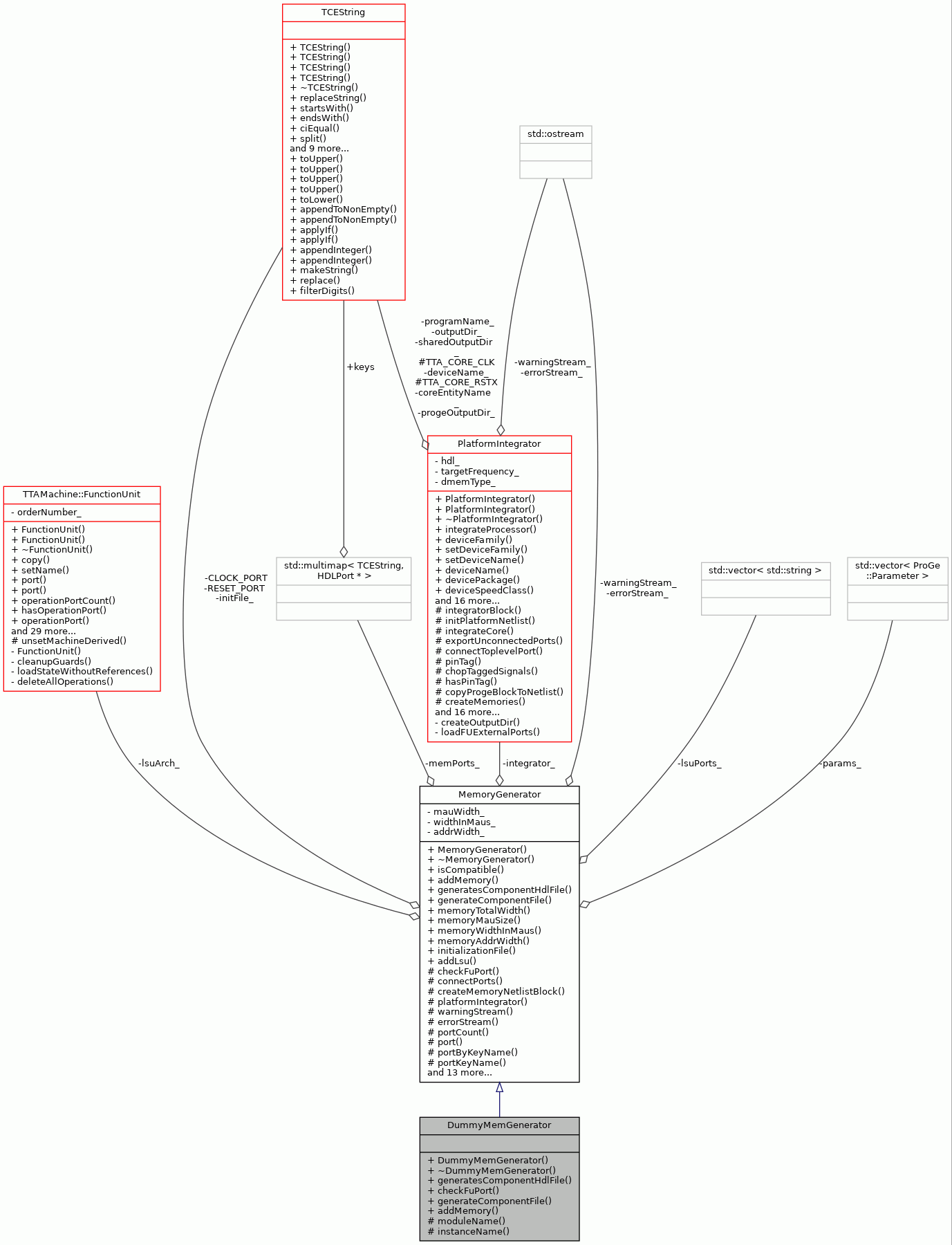

Collaboration diagram for DummyMemGenerator:

Public Member Functions
	DummyMemGenerator (int memMauWidth, int widthInMaus, int addrWidth, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)
virtual	~DummyMemGenerator ()
virtual bool	generatesComponentHdlFile () const
virtual bool	checkFuPort (const std::string, std::vector< TCEString > &) const
virtual std::vector< TCEString >	generateComponentFile (TCEString)
void	addMemory (const ProGe::NetlistBlock &, ProGe::NetlistBlock &, int, int)
Public Member Functions inherited from MemoryGenerator
	MemoryGenerator (int memMauWidth, int widthInMaus, int addrWidth, TCEString initFile, const PlatformIntegrator *integrator, std::ostream &warningStream, std::ostream &errorStream)
virtual	~MemoryGenerator ()
virtual bool	isCompatible (const ProGe::NetlistBlock &ttaCore, int coreId, std::vector< TCEString > &reasons) const
int	memoryTotalWidth () const
int	memoryMauSize () const
int	memoryWidthInMaus () const
int	memoryAddrWidth () const
TCEString	initializationFile () const
void	addLsu (TTAMachine::FunctionUnit &lsuArch, std::vector< std::string > lsuPorts)

Protected Member Functions
virtual TCEString	moduleName () const
virtual TCEString	instanceName (int, int) const
Protected Member Functions inherited from MemoryGenerator
virtual void	connectPorts (ProGe::NetlistBlock &netlistBlock, const ProGe::NetlistPort &memPort, const ProGe::NetlistPort &corePort, bool inverted, int coreId)
virtual MemoryGenerator::BlockPair	createMemoryNetlistBlock (ProGe::NetlistBlock &integratorBlock, int memIndex, int coreId)
const PlatformIntegrator *	platformIntegrator () const
std::ostream &	warningStream ()
std::ostream &	errorStream ()
int	portCount () const
const HDLPort *	port (int index) const
const HDLPort *	portByKeyName (TCEString name) const
TCEString	portKeyName (const HDLPort *port) const
void	addPort (const TCEString &name, HDLPort *port)
int	parameterCount () const
const ProGe::Parameter &	parameter (int index) const
void	addParameter (const ProGe::Parameter &add)
TCEString	ttaCoreName () const
TCEString	memoryIndexString (int coreId, int memIndex) const
TCEString	templatePath () const
void	instantiateTemplate (const TCEString &inFile, const TCEString &outFile, const TCEString &entity) const
bool	hasLSUArchitecture () const
const TTAMachine::FunctionUnit &	lsuArchitecture () const
TCEString	corePortName (const TCEString &portBaseName, int coreId) const

Additional Inherited Members
Protected Types inherited from MemoryGenerator
typedef std::multimap< TCEString, HDLPort * >	PortMap
typedef std::pair< ProGe::NetlistBlock *, ProGe::VirtualNetlistBlock * >	BlockPair

Detailed Description

Definition at line 43 of file DummyMemGenerator.hh.

Constructor & Destructor Documentation

DummyMemGenerator()

DummyMemGenerator::DummyMemGenerator	(	int	memMauWidth,
		int	widthInMaus,
		int	addrWidth,
		const PlatformIntegrator *	integrator,
		std::ostream &	warningStream,
		std::ostream &	errorStream
	)

Definition at line 35 of file DummyMemGenerator.cc.

                            :
    MemoryGenerator(memMauWidth, widthInMaus, addrWidth, "",
                    integrator, warningStream, errorStream) {
}

~DummyMemGenerator()

DummyMemGenerator::~DummyMemGenerator ( )

virtual

Definition at line 46 of file DummyMemGenerator.cc.

                                      {
}

Member Function Documentation

addMemory()

void DummyMemGenerator::addMemory ( const ProGe::NetlistBlock &  , ProGe::NetlistBlock &  , int  , int    )

inlinevirtual

Reimplemented from MemoryGenerator.

Definition at line 63 of file DummyMemGenerator.hh.

                             {}

checkFuPort()

virtual bool DummyMemGenerator::checkFuPort ( const std::string  , std::vector< TCEString > &    ) const

inlinevirtual

Reimplemented from MemoryGenerator.

Definition at line 57 of file DummyMemGenerator.hh.

                                     {return true;};

generateComponentFile()

std::vector< TCEString > DummyMemGenerator::generateComponentFile ( TCEString  )

virtual

Implements MemoryGenerator.

Definition at line 50 of file DummyMemGenerator.cc.

                                                  {
    std::vector<TCEString> empty;
    return empty;
}

generatesComponentHdlFile()

virtual bool DummyMemGenerator::generatesComponentHdlFile ( ) const

inlinevirtual

Implements MemoryGenerator.

Definition at line 56 of file DummyMemGenerator.hh.

{return false;};

instanceName()

virtual TCEString DummyMemGenerator::instanceName ( int  , int    ) const

inlineprotectedvirtual

Implements MemoryGenerator.

Definition at line 69 of file DummyMemGenerator.hh.

{return "";};

moduleName()

virtual TCEString DummyMemGenerator::moduleName ( ) const

inlineprotectedvirtual

Implements MemoryGenerator.

Definition at line 67 of file DummyMemGenerator.hh.

{return "";};

---

The documentation for this class was generated from the following files:

• DummyMemGenerator.hh
• DummyMemGenerator.cc
