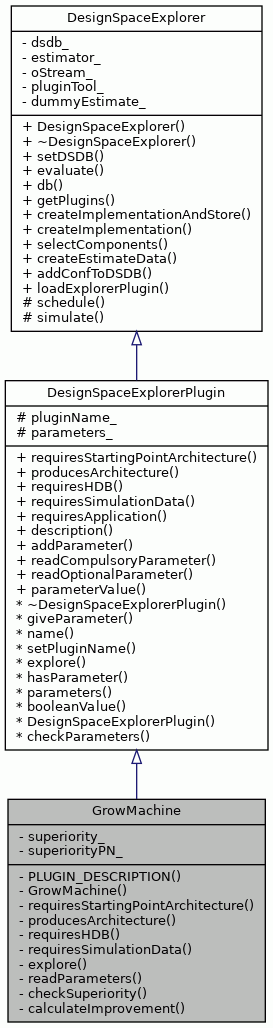

Inheritance diagram for GrowMachine:

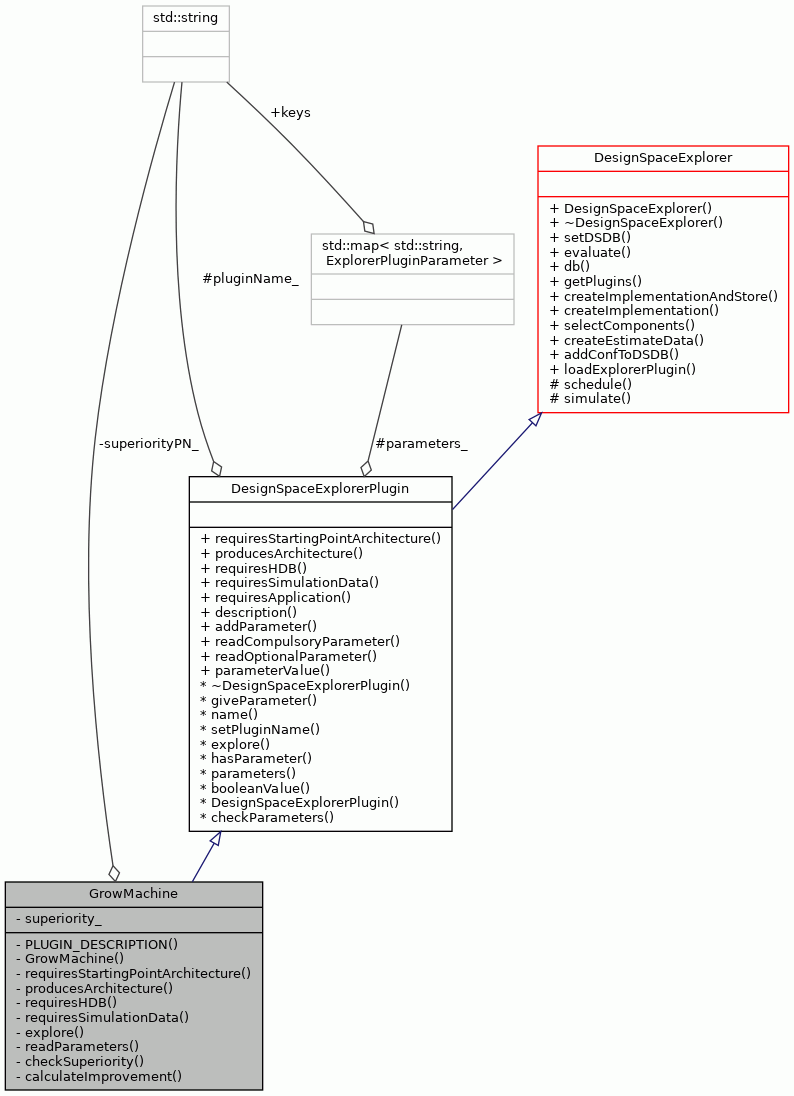

Collaboration diagram for GrowMachine:

Private Member Functions
	PLUGIN_DESCRIPTION ("Adds resources until cycle count doesn't go down anymore.")

	GrowMachine ()

virtual bool	requiresStartingPointArchitecture () const

virtual bool	producesArchitecture () const

virtual bool	requiresHDB () const

virtual bool	requiresSimulationData () const

virtual std::vector< RowID >	explore (const RowID &configurationID, const unsigned int &)

void	readParameters ()

bool	checkSuperiority (const ClockCycleCount &newCC, const ClockCycleCount &oldCC) const

double	calculateImprovement (const ClockCycleCount &newCC, const ClockCycleCount &oldCC) const

Private Attributes
unsigned int	superiority_
	Percentage value of how much faster schedules are wanted until cycle count optimization is stopped. More...

Static Private Attributes
static const std::string	superiorityPN_

Additional Inherited Members
Public Types inherited from DesignSpaceExplorerPlugin
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter

typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap

typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt

typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt

Public Member Functions inherited from DesignSpaceExplorerPlugin
virtual bool	requiresApplication () const

virtual std::string	description () const

void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")

template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const

template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const

template<typename RT >
RT	parameterValue (const std::string &paramName) const

virtual	~DesignSpaceExplorerPlugin ()

virtual void	giveParameter (const std::string &name, const std::string &value)

virtual std::string	name () const

virtual void	setPluginName (const std::string &pluginName)

virtual bool	hasParameter (const std::string &paramName) const

ParameterMap	parameters () const

virtual bool	booleanValue (const std::string &parameter) const

Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()

virtual	~DesignSpaceExplorer ()

virtual void	setDSDB (DSDBManager &dsdb)

virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)

virtual DSDBManager &	db ()

std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()

RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const

void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)

RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)

Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)

Protected Member Functions inherited from DesignSpaceExplorerPlugin
	DesignSpaceExplorerPlugin ()

void	checkParameters () const

Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")

const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)

Protected Attributes inherited from DesignSpaceExplorerPlugin
std::string	pluginName_
	the name of the explorer plugin More...

ParameterMap	parameters_
	Parameters for the plugin. More...

Detailed Description

Explorer plugin that adds resources until cycle count doesn't go down anymore.

Supported parameters:

Definition at line 61 of file GrowMachine.cc.

Constructor & Destructor Documentation

◆ GrowMachine()

GrowMachine::GrowMachine ( )

inlineprivate

Definition at line 64 of file GrowMachine.cc.

                  : DesignSpaceExplorerPlugin(),
         superiority_(10) {

         // compulsory parameters
         // no compulsory parameters

         // parameters that have a default value
         addParameter(superiorityPN_, UINT, false,
                 Conversion::toString(superiority_));
     }

References Conversion::toString(), and UINT.

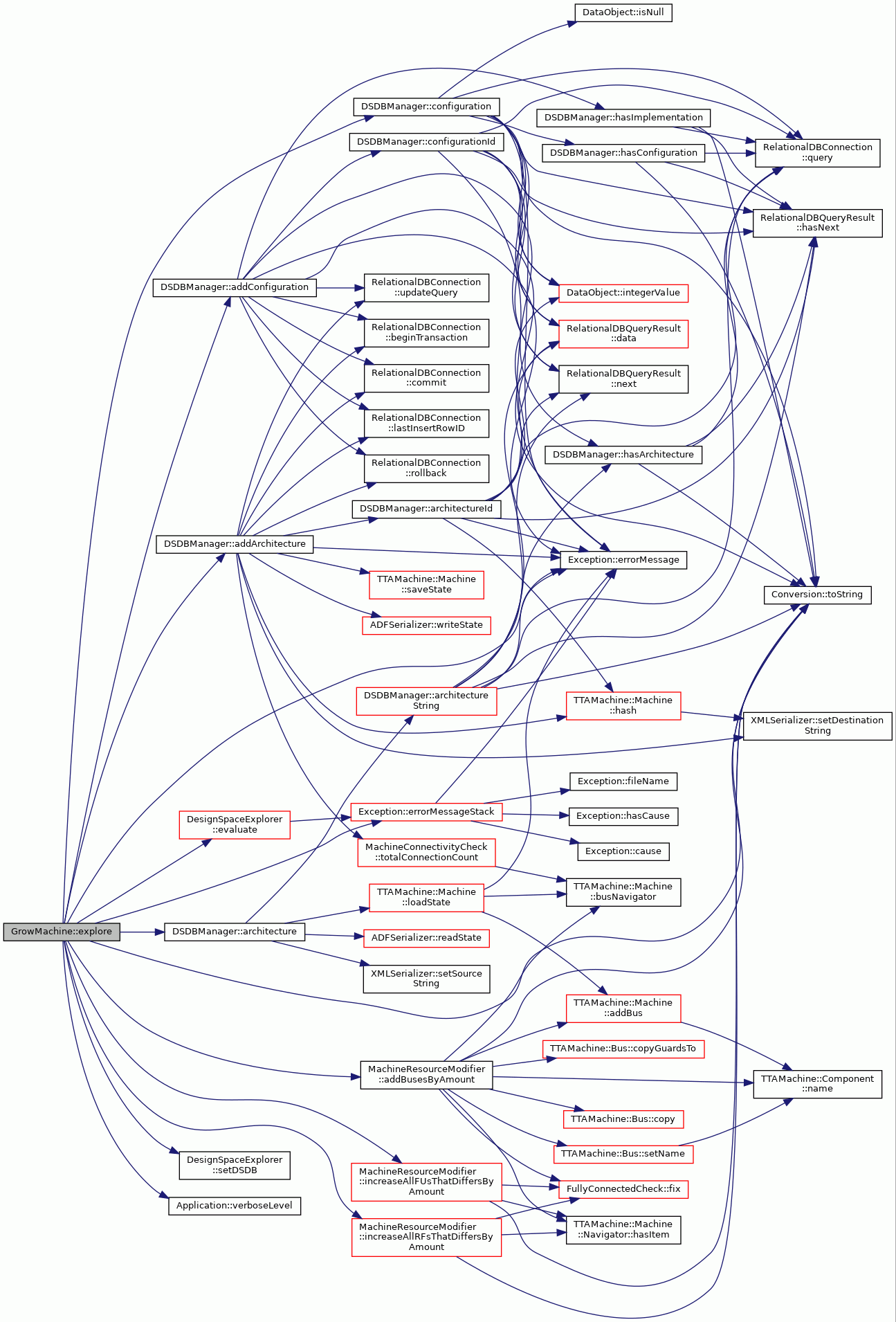

Here is the call graph for this function:

Member Function Documentation

◆ calculateImprovement()

double GrowMachine::calculateImprovement	(	const ClockCycleCount &	newCC,
		const ClockCycleCount &	oldCC
	)		const

inlineprivate

Calculates the percentage of improvement in cycle count

Parameters

newCC	The new minimum cycle count.
oldCC	The old minimum cycle count.

Definition at line 300 of file GrowMachine.cc.

                                             {

         return (1.0 -(static_cast<double>(newCC)/oldCC))*100.0;
     }

◆ checkSuperiority()

bool GrowMachine::checkSuperiority	(	const ClockCycleCount &	newCC,
		const ClockCycleCount &	oldCC
	)		const

inlineprivate

Checks whether cycle counts have been lowered enough.

Parameters

newCC	The new minimum cycle count.
oldCC	The old minimum cycle count.

Definition at line 282 of file GrowMachine.cc.

                                             {

         if ((newCC < oldCC) &&
                 (((static_cast<double>(superiority_) / 100) * oldCC) <
                  (oldCC - newCC))) {
             return true;
         }
         return false;
     }

◆ explore()

virtual std::vector<RowID> GrowMachine::explore	(	const RowID &	configurationID,
		const unsigned int &
	)

inlineprivatevirtual

Optimizes the architecture in regards of the cycle count.

Optimizes the architecture by growing it until cycle count doesn't go down anymore.

@TODO: average cycle count lowering, or lowest/largest lowering percentage among apps now it's largest lowering among apps. @TODO: parametrize machine growing, example how many buses to add each step.

Returns: Configurations (including only adf) generated by CycleOptimizer. Best result is at the top of the list.

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 95 of file GrowMachine.cc.

                                                                {
         std::vector<RowID> result;

         readParameters();

         TTAMachine::Machine* adf = NULL;
         DSDBManager::MachineConfiguration configuration;
         DSDBManager& dsdb = db();

         // get the architecture from the database
         try {
             configuration = dsdb.configuration(configurationID);
             adf = dsdb.architecture(configuration.architectureID);
         } catch (const KeyNotFound& e) {
             debugLog(std::string("Fetching architecture from DSDB failed in "
                      "GrowMachine. ")
                      + e.errorMessage() + std::string(" ")
                      + e.errorMessageStack());
             result.push_back(configurationID);
             delete adf;
             return result;
         }

         // evaluate to get current cycle counts
         DesignSpaceExplorer explorer;
         explorer.setDSDB(dsdb);
         CostEstimates estimates;
         DSDBManager::MachineConfiguration startConf;
         startConf.architectureID = dsdb.addArchitecture(*adf);
         startConf.hasImplementation = false;
         try {
             bool estimate = false;
             if (!explorer.evaluate(startConf, estimates, estimate)) {
                 debugLog(std::string("Evaluate failed in GrowMachine."));
                 result.push_back(configurationID);
                 delete adf;
                 adf = NULL;
                 return result;
             }
         } catch (const Exception& e) {
             debugLog(std::string("Error in GrowMachine: ")
                     + e.errorMessage() + std::string(" ")
                     + e.errorMessageStack());
             result.push_back(configurationID);
             delete adf;
             adf = NULL;
             return result;
         }

         std::vector<ClockCycleCount> cycleCounts =
             db().cycleCounts(startConf);


         if (cycleCounts.size() < 1) {
             std::ostringstream msg(std::ostringstream::out);
             msg << "GrowMachine error: Couldn't evaluate cycle "
                 << "counts for applications, correct_simulation_output"
                 << " probably missing." << std::endl;
             verboseLog(msg.str());
             result.push_back(configurationID);
             delete adf;
             adf = NULL;
             return result;
         }

         // all applications minimum cycle count
         ClockCycleCount currentMinCycles = cycleCounts.at(0);
         for (int i = 1; i < (int)cycleCounts.size(); i++) {
             if (cycleCounts.at(i) < currentMinCycles) {
                 currentMinCycles = cycleCounts.at(i);
             }
         }

         ClockCycleCount prevMinCycles = 0;
         MachineResourceModifier modifier;
         std::map<ClockCycleCount, RowID> resultMap;
         do {
             prevMinCycles = currentMinCycles;
             try {
                 // These parameters passed to the modifier can be changed.
                 // They tell how many units of same type are added each time.
                 modifier.addBusesByAmount(8, *adf);
                 modifier.increaseAllRFsThatDiffersByAmount(1, *adf);
                 modifier.increaseAllFUsThatDiffersByAmount(1, *adf);
                 // @TODO immediate unit addition

                 DSDBManager::MachineConfiguration newConfiguration;
                 try {
                     newConfiguration.architectureID = dsdb.addArchitecture(*adf);
                 } catch (const RelationalDBException& e) {
                     // Error occurred while adding adf to the dsdb, adf
                     // probably too big
                     break;
                 }
                 newConfiguration.hasImplementation = false;
                 RowID confID = dsdb.addConfiguration(newConfiguration);
                 CostEstimates newEstimates;

                 // evaluate to get new cycle counts
                 if (explorer.evaluate(newConfiguration, newEstimates, false)) {
                     // resets the currentMinCycles
                     std::vector<ClockCycleCount> newCycleCounts =
                         db().cycleCounts(newConfiguration);

                     currentMinCycles = newCycleCounts.at(0);
                     for (int i = 1; i < (int)newCycleCounts.size(); i++) {
                         if (newCycleCounts.at(i) < currentMinCycles) {
                             currentMinCycles = newCycleCounts.at(i);
                         }
                     }

                     if (Application::verboseLevel() > 0) {
                         std::ostringstream msg(std::ostringstream::out);
                         msg << "GrowMachine produced config: "
                             << confID << ", with cycle count: "
                             << currentMinCycles << " ("
                             << calculateImprovement(currentMinCycles,
                                     prevMinCycles)
                             << "% better)";
                         verboseLog(msg.str())
                     }

                     if (checkSuperiority(currentMinCycles, prevMinCycles)) {
                         // only add config if it meets the superiority
                         // requirements regarding clock cycles
                         resultMap[currentMinCycles] = confID;
                     } else {
                         break;
                     }
                 } else {
                     // evaluating failed
                     debugLog("GrowMachine: Evaluating config with id: "
                             + Conversion::toString(confID)
                             + " failed. This is probably a bug.");
                     break;
                 }

             } catch (const Exception& e) {
                 debugLog(std::string("Error in GrowMachine: ")
                         + e.errorMessage() + std::string(" ")
                         + e.errorMessageStack());
                 result.push_back(configurationID);
                 delete adf;
                 adf = NULL;
                 return result;
             }
         } while (true);

         std::map<ClockCycleCount, RowID>::const_iterator mapIter =
             resultMap.begin();
         for (; mapIter != resultMap.end(); mapIter++) {
             result.push_back((*mapIter).second);
         }
         if (result.empty()) {
             // if now new configuration created return the old
             verboseLogC("GrowMachine could not generate new configs.", 2)
             result.push_back(configurationID);
         }
         delete adf;
         adf = NULL;
         return result;
     }

References DSDBManager::addArchitecture(), MachineResourceModifier::addBusesByAmount(), DSDBManager::addConfiguration(), DSDBManager::architecture(), DSDBManager::MachineConfiguration::architectureID, DSDBManager::configuration(), debugLog, Exception::errorMessage(), Exception::errorMessageStack(), DesignSpaceExplorer::evaluate(), DSDBManager::MachineConfiguration::hasImplementation, MachineResourceModifier::increaseAllFUsThatDiffersByAmount(), MachineResourceModifier::increaseAllRFsThatDiffersByAmount(), DesignSpaceExplorer::setDSDB(), Conversion::toString(), Application::verboseLevel(), verboseLog, and verboseLogC.

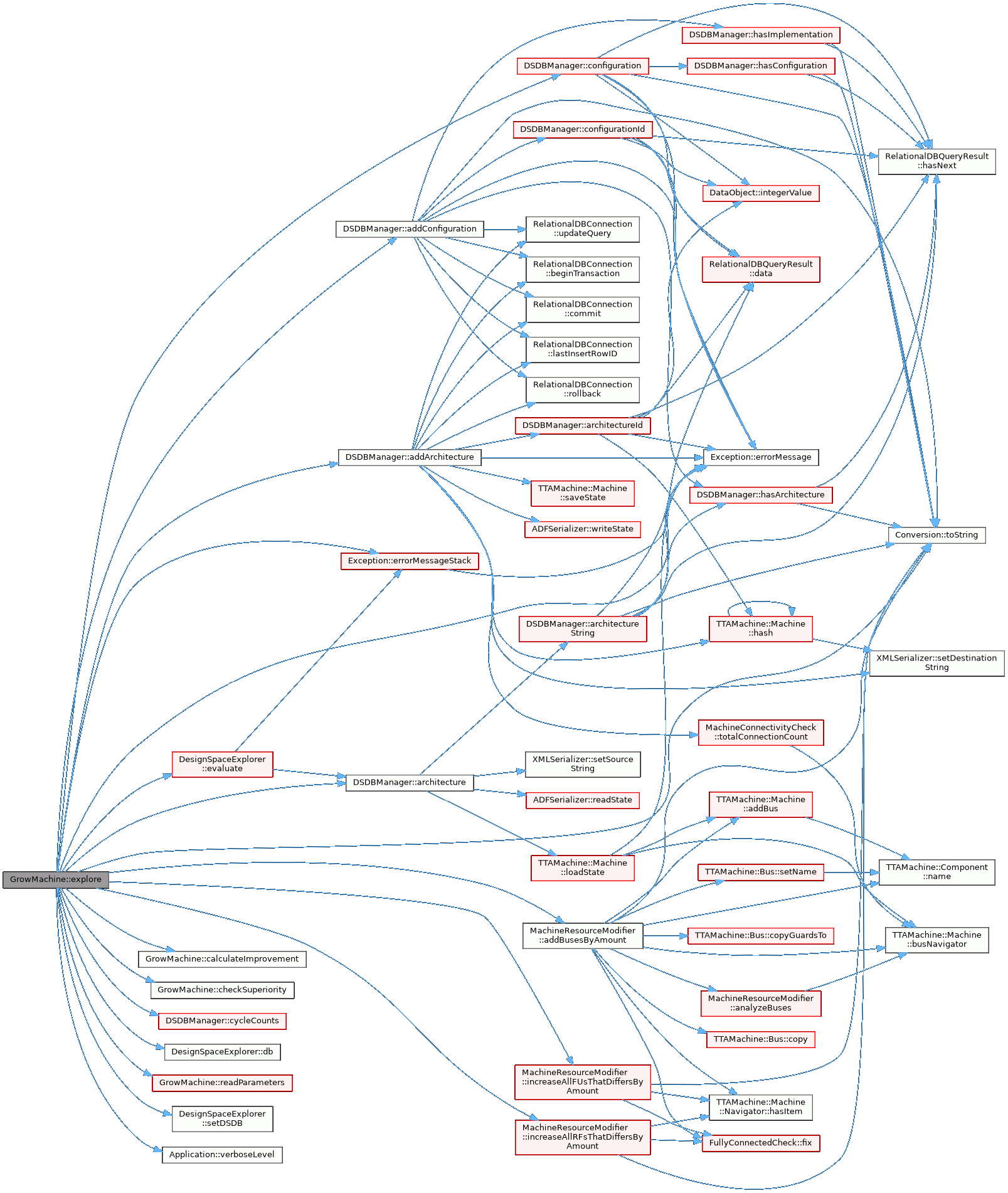

Here is the call graph for this function:

◆ PLUGIN_DESCRIPTION()

GrowMachine::PLUGIN_DESCRIPTION ( "Adds resources until cycle count doesn't go down anymore." )

private

◆ producesArchitecture()

virtual bool GrowMachine::producesArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 76 of file GrowMachine.cc.

76 { return true; }

◆ readParameters()

void GrowMachine::readParameters ( )

inlineprivate

Reads the parameters given to the plugin.

Definition at line 270 of file GrowMachine.cc.

                           {
         // optional parameters
         readOptionalParameter(superiorityPN_, superiority_);
     }

◆ requiresHDB()

virtual bool GrowMachine::requiresHDB ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 77 of file GrowMachine.cc.

77 { return true; }

◆ requiresSimulationData()

virtual bool GrowMachine::requiresSimulationData ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 78 of file GrowMachine.cc.

78 { return false; }

◆ requiresStartingPointArchitecture()

virtual bool GrowMachine::requiresStartingPointArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 75 of file GrowMachine.cc.

75 { return true; }

Member Data Documentation

◆ superiority_

unsigned int GrowMachine::superiority_

private

Percentage value of how much faster schedules are wanted until cycle count optimization is stopped.

Definition at line 265 of file GrowMachine.cc.

◆ superiorityPN_

const std::string GrowMachine::superiorityPN_

staticprivate

Definition at line 260 of file GrowMachine.cc.

The documentation for this class was generated from the following file:

GrowMachine.cc

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GrowMachine()

Member Function Documentation

◆ calculateImprovement()

◆ checkSuperiority()

◆ explore()

◆ PLUGIN_DESCRIPTION()

◆ producesArchitecture()

◆ readParameters()

◆ requiresHDB()

◆ requiresSimulationData()

◆ requiresStartingPointArchitecture()

Member Data Documentation

◆ superiority_

◆ superiorityPN_
