#include <HDLGenerator.hh>

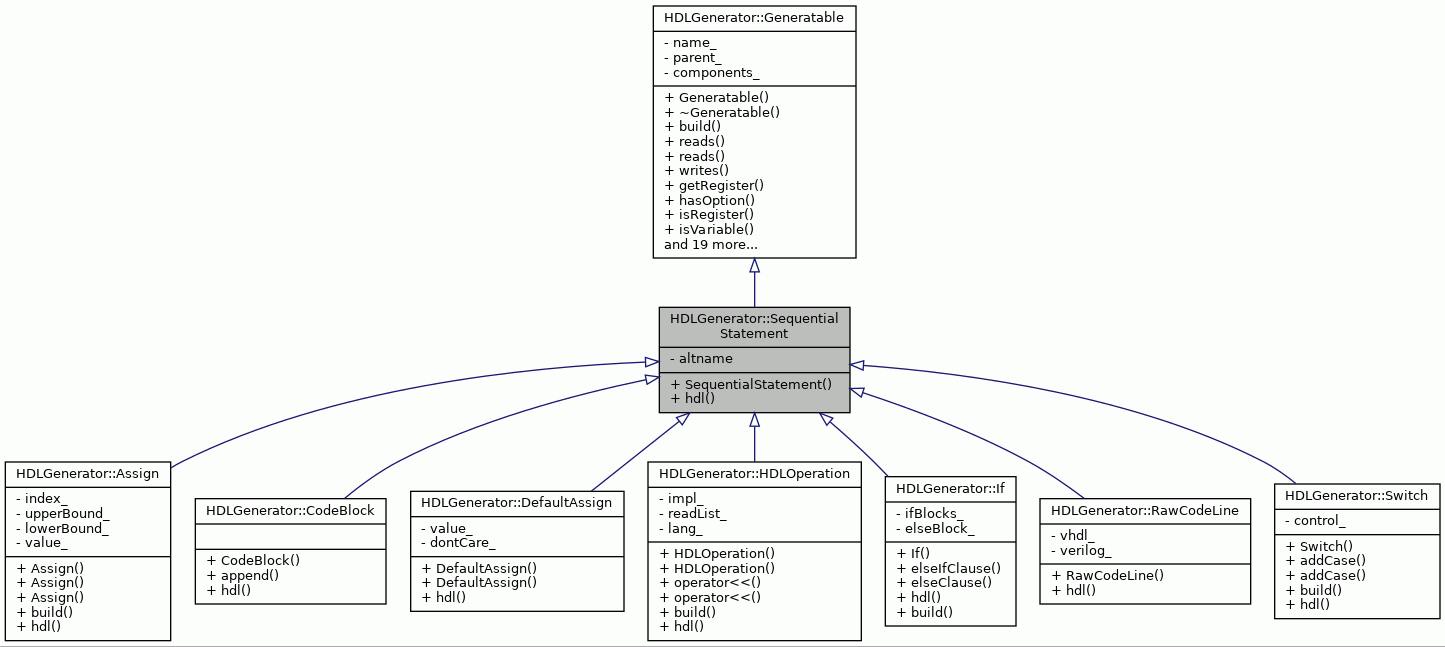

Inheritance diagram for HDLGenerator::SequentialStatement:

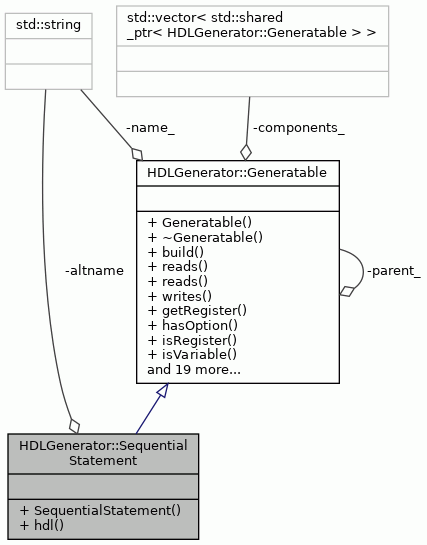

Collaboration diagram for HDLGenerator::SequentialStatement:

Public Member Functions
	SequentialStatement (std::string name)

virtual void	hdl (std::ostream &stream, Language lang, int level)

Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)

virtual	~Generatable ()=default

virtual void	build ()

virtual void	reads (const std::string &var)

virtual void	reads (const LHSValue &var)

virtual void	writes (const std::string &var)

virtual Register &	getRegister (const std::string &var)

virtual bool	hasOption (const std::string &var)

virtual bool	isRegister (const std::string &name)

virtual bool	isVariable (const std::string &name)

virtual bool	isConstant (const std::string &name)

virtual Width	width (const std::string &name)

int	integerWidth (const std::string &name)

virtual WireType	wireType (const std::string &name)

virtual Width	width ()

virtual WireType	wireType () const

virtual void	hdl (std::ostream &stream, Language lang)

virtual void	implementAll (std::ostream &stream, Language lang)

virtual void	implementAll (std::ostream &stream, Language lang, int indent)

template<typename Func >
void	forAll (Func func)

template<typename Type , typename Func >
void	forAll (Func func)

template<class Type >
bool	parentIs ()

template<class Type >
Type *	parentType ()

void	pushComponent (std::shared_ptr< Generatable > c)

template<class Component >
void	addComponent (Component c)

const std::string &	name () const noexcept

void	setParent (Generatable *parent) noexcept

Generatable *	parent () const noexcept

Private Attributes
std::string	altname

Detailed Description

Base class for concurrent statements and code blocks

Definition at line 121 of file HDLGenerator.hh.

Constructor & Destructor Documentation

◆ SequentialStatement()

HDLGenerator::SequentialStatement::SequentialStatement ( std::string name )

inline

Definition at line 123 of file HDLGenerator.hh.

123 : Generatable(name), altname(name) {}

Member Function Documentation

◆ hdl()

virtual void HDLGenerator::SequentialStatement::hdl	(	std::ostream &	stream,
		Language	lang,
		int	level
	)

inlinevirtual

Reimplemented from HDLGenerator::Generatable.

Reimplemented in HDLGenerator::CodeBlock, HDLGenerator::If, HDLGenerator::Switch, HDLGenerator::Assign, HDLGenerator::DefaultAssign, HDLGenerator::HDLOperation, and HDLGenerator::RawCodeLine.

Definition at line 125 of file HDLGenerator.hh.

                                                                        {
             (void)stream;
             (void)lang;
             (void)level;
             std::string err =
                 std::string("Attempted to generate virtual class");
             throw std::runtime_error(err);
         }

Member Data Documentation

◆ altname

std::string HDLGenerator::SequentialStatement::altname

private

Definition at line 134 of file HDLGenerator.hh.

The documentation for this class was generated from the following file:

HDLGenerator.hh
