HDLGenerator::UnsignedVariable Class Reference

#include <HDLGenerator.hh>

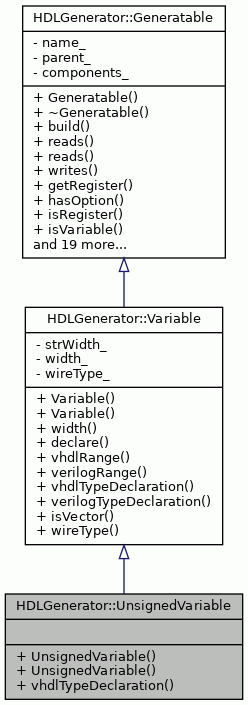

Inheritance diagram for HDLGenerator::UnsignedVariable:
Inheritance graph

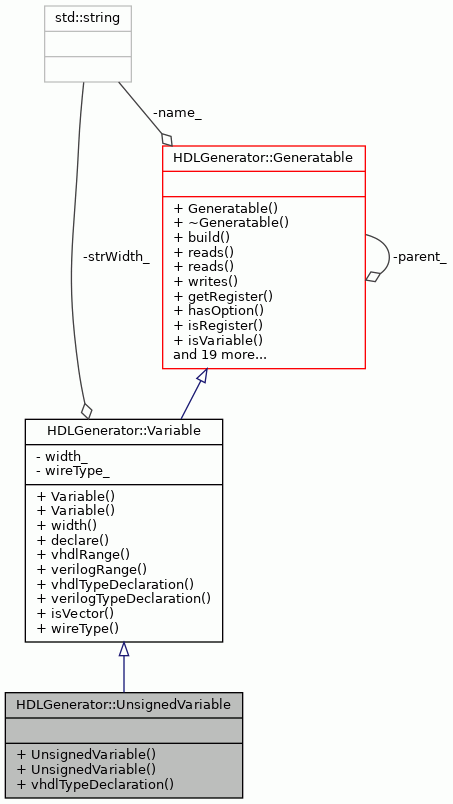

Collaboration diagram for HDLGenerator::UnsignedVariable:
Collaboration graph

Public Member Functions

 UnsignedVariable (std::string name, int width=1)

 UnsignedVariable (std::string name, std::string width)

std::string vhdlTypeDeclaration ()

- Public Member Functions inherited from HDLGenerator::Variable
 Variable (std::string name, int width=1)

 Variable (std::string name, std::string width)

Width width () final

void declare (std::ostream &stream, Language lang, int level)

std::string vhdlRange ()

std::string verilogRange ()

std::string verilogTypeDeclaration ()

bool isVector ()

WireType wireType ()

- Public Member Functions inherited from HDLGenerator::Generatable
 Generatable (std::string name)

virtual ~Generatable ()=default

virtual void build ()

virtual void reads (const std::string &var)

virtual void reads (const LHSValue &var)

virtual void writes (const std::string &var)

virtual RegistergetRegister (const std::string &var)

virtual bool hasOption (const std::string &var)

virtual bool isRegister (const std::string &name)

virtual bool isVariable (const std::string &name)

virtual bool isConstant (const std::string &name)

virtual Width width (const std::string &name)

int integerWidth (const std::string &name)

virtual WireType wireType (const std::string &name)

virtual WireType wireType () const

virtual void hdl (std::ostream &stream, Language lang, int indent)

virtual void hdl (std::ostream &stream, Language lang)

virtual void implementAll (std::ostream &stream, Language lang)

virtual void implementAll (std::ostream &stream, Language lang, int indent)

template<typename Func >
void forAll (Func func)

template<typename Type , typename Func >
void forAll (Func func)

template<class Type >
bool parentIs ()

template<class Type >
Type * parentType ()

void pushComponent (std::shared_ptr< Generatable > c)

template<class Component >
void addComponent (Component c)

const std::string & name () const noexcept

void setParent (Generatable *parent) noexcept

Generatableparent () const noexcept


Detailed Description

Unsigned variable/async reg.

Definition at line 501 of file HDLGenerator.hh.

Constructor & Destructor Documentation

◆ UnsignedVariable() [1/2]

HDLGenerator::UnsignedVariable::UnsignedVariable ( std::string  name,
int  width = 1
)
inline

Definition at line 503 of file HDLGenerator.hh.

504  : Variable(name, width) {}

◆ UnsignedVariable() [2/2]

HDLGenerator::UnsignedVariable::UnsignedVariable ( std::string  name,
std::string  width
)
inline

Definition at line 505 of file HDLGenerator.hh.

506  : Variable(name, width) {}

Member Function Documentation

◆ vhdlTypeDeclaration()

std::string HDLGenerator::UnsignedVariable::vhdlTypeDeclaration ( )
inlinevirtual

Reimplemented from HDLGenerator::Variable.

Definition at line 508 of file HDLGenerator.hh.

508  {
509  return "unsigned" + vhdlRange();
510  }

References HDLGenerator::Variable::vhdlRange().

Here is the call graph for this function:

The documentation for this class was generated from the following file:
HDLGenerator::Variable::vhdlRange
std::string vhdlRange()
Definition: HDLGenerator.hh:437
HDLGenerator::Variable::Variable
Variable(std::string name, int width=1)
Definition: HDLGenerator.hh:415
HDLGenerator::Variable::width
Width width() final
Definition: HDLGenerator.hh:422
HDLGenerator::Generatable::name
const std::string & name() const noexcept
Definition: Generatable.hh:239
