HDLGenerator::Variable Class Reference

#include <HDLGenerator.hh>

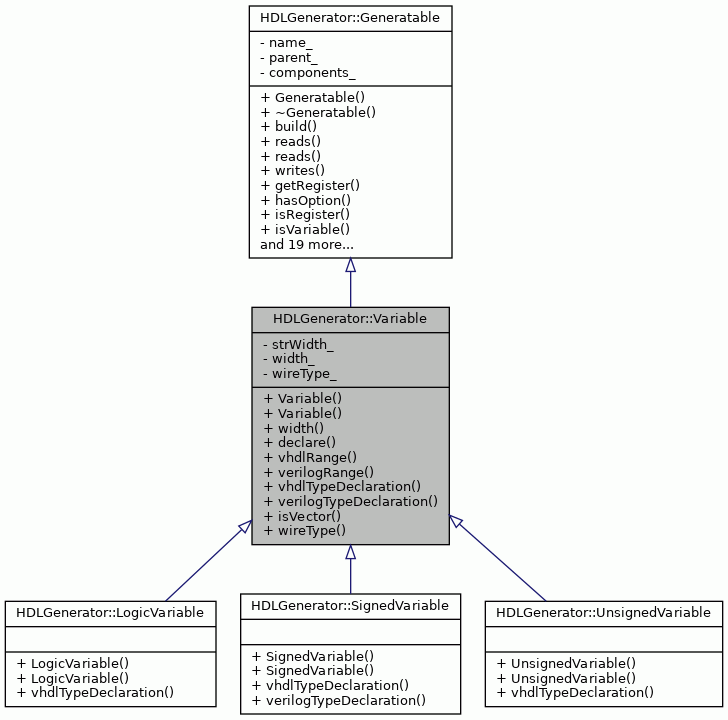

Inheritance diagram for HDLGenerator::Variable:

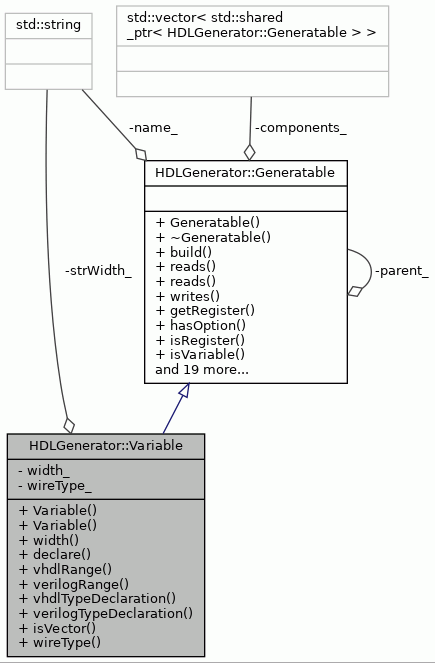

Collaboration diagram for HDLGenerator::Variable:

Public Member Functions
	Variable (std::string name, int width=1)
	Variable (std::string name, std::string width)
Width	width () final
void	declare (std::ostream &stream, Language lang, int level)
std::string	vhdlRange ()
std::string	verilogRange ()
virtual std::string	vhdlTypeDeclaration ()
std::string	verilogTypeDeclaration ()
bool	isVector ()
WireType	wireType ()
Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)
virtual	~Generatable ()=default
virtual void	build ()
virtual void	reads (const std::string &var)
virtual void	reads (const LHSValue &var)
virtual void	writes (const std::string &var)
virtual Register &	getRegister (const std::string &var)
virtual bool	hasOption (const std::string &var)
virtual bool	isRegister (const std::string &name)
virtual bool	isVariable (const std::string &name)
virtual bool	isConstant (const std::string &name)
virtual Width	width (const std::string &name)
int	integerWidth (const std::string &name)
virtual WireType	wireType (const std::string &name)
virtual WireType	wireType () const
virtual void	hdl (std::ostream &stream, Language lang, int indent)
virtual void	hdl (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang, int indent)
template<typename Func >
void	forAll (Func func)
template<typename Type , typename Func >
void	forAll (Func func)
template<class Type >
bool	parentIs ()
template<class Type >
Type *	parentType ()
void	pushComponent (std::shared_ptr< Generatable > c)
template<class Component >
void	addComponent (Component c)
const std::string &	name () const noexcept
void	setParent (Generatable *parent) noexcept
Generatable *	parent () const noexcept

Private Attributes
std::string	strWidth_
int	width_
WireType	wireType_

Detailed Description

Definition at line 413 of file HDLGenerator.hh.

Constructor & Destructor Documentation

Variable() [1/2]

HDLGenerator::Variable::Variable ( std::string  name, int  width = 1  )

inline

Definition at line 415 of file HDLGenerator.hh.

            : Generatable(name), strWidth_(std::to_string(width)),
              width_(width), wireType_(WireType::Auto) {}

References HDLGenerator::Auto.

Variable() [2/2]

HDLGenerator::Variable::Variable ( std::string  name, std::string  width  )

inline

Definition at line 418 of file HDLGenerator.hh.

            : Generatable(name), strWidth_(width), width_(-1),
              wireType_(WireType::Vector) {}

References HDLGenerator::Vector.

Member Function Documentation

declare()

void HDLGenerator::Variable::declare ( std::ostream &  stream, Language  lang, int  level  )

inline

Definition at line 424 of file HDLGenerator.hh.

                                                                   {
            if (lang == Language::VHDL) {
                stream << StringTools::indent(level) << "variable " << name()
                       << " : " << vhdlTypeDeclaration() << ";\n";
            } else if (lang == Language::Verilog) {
                stream << StringTools::indent(level)
                       << verilogTypeDeclaration()
                       << " " << name() << ";\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References StringTools::indent(), HDLGenerator::Generatable::name(), HDLGenerator::Verilog, verilogTypeDeclaration(), HDLGenerator::VHDL, and vhdlTypeDeclaration().

Here is the call graph for this function:

isVector()

bool HDLGenerator::Variable::isVector ( )

inline

Definition at line 465 of file HDLGenerator.hh.

                        {
            return wireType_ == WireType::Vector || width_ > 1;
        }

References HDLGenerator::Vector, width_, and wireType_.

Referenced by verilogTypeDeclaration(), HDLGenerator::SignedVariable::verilogTypeDeclaration(), and HDLGenerator::LogicVariable::vhdlTypeDeclaration().

verilogRange()

std::string HDLGenerator::Variable::verilogRange ( )

inline

Definition at line 445 of file HDLGenerator.hh.

                                 {
            std::string width = strWidth_;
            if (width.empty()) {
                width = std::to_string(width_);
            }
            return "[" + width + "-1:0] ";
        }

References strWidth_, width(), and width_.

Referenced by verilogTypeDeclaration(), and HDLGenerator::SignedVariable::verilogTypeDeclaration().

Here is the call graph for this function:

verilogTypeDeclaration()

std::string HDLGenerator::Variable::verilogTypeDeclaration ( )

inline

Definition at line 457 of file HDLGenerator.hh.

                                           {
            std::string decl = "reg";
            if (isVector()) {
                decl += " " + verilogRange();
            }
            return decl;
        }

References isVector(), and verilogRange().

Referenced by declare().

Here is the call graph for this function:

vhdlRange()

std::string HDLGenerator::Variable::vhdlRange ( )

inline

Definition at line 437 of file HDLGenerator.hh.

                              {
            std::string width = strWidth_;
            if (width.empty()) {
                width = std::to_string(width_);
            }
            return "(" + width + "-1 downto 0)";
        }

References strWidth_, width(), and width_.

Referenced by HDLGenerator::LogicVariable::vhdlTypeDeclaration(), HDLGenerator::UnsignedVariable::vhdlTypeDeclaration(), and HDLGenerator::SignedVariable::vhdlTypeDeclaration().

Here is the call graph for this function:

vhdlTypeDeclaration()

virtual std::string HDLGenerator::Variable::vhdlTypeDeclaration ( )

inlinevirtual

Reimplemented in HDLGenerator::SignedVariable, HDLGenerator::UnsignedVariable, and HDLGenerator::LogicVariable.

Definition at line 453 of file HDLGenerator.hh.

                                                {
            throw std::runtime_error(__PRETTY_FUNCTION__);
        }

Referenced by declare().

width()

Width HDLGenerator::Variable::width ( )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 422 of file HDLGenerator.hh.

{ return {strWidth_, width_}; }

References strWidth_, and width_.

Referenced by verilogRange(), and vhdlRange().

wireType()

WireType HDLGenerator::Variable::wireType ( )

inline

Definition at line 469 of file HDLGenerator.hh.

                            {
            return wireType_;
        }

References wireType_.

Member Data Documentation

strWidth_

std::string HDLGenerator::Variable::strWidth_

private

Definition at line 474 of file HDLGenerator.hh.

Referenced by verilogRange(), vhdlRange(), and width().

width_

int HDLGenerator::Variable::width_

private

Definition at line 475 of file HDLGenerator.hh.

Referenced by isVector(), verilogRange(), vhdlRange(), and width().

wireType_

WireType HDLGenerator::Variable::wireType_

private

Definition at line 476 of file HDLGenerator.hh.

Referenced by isVector(), and wireType().

---

The documentation for this class was generated from the following file:

• HDLGenerator.hh
