#include <IPXactClkInterface.hh>

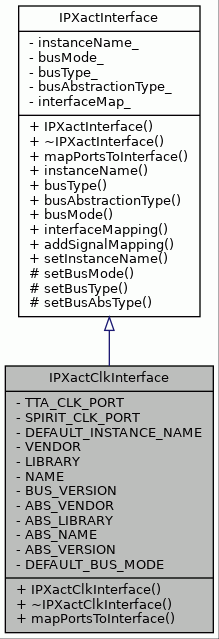

Inheritance diagram for IPXactClkInterface:

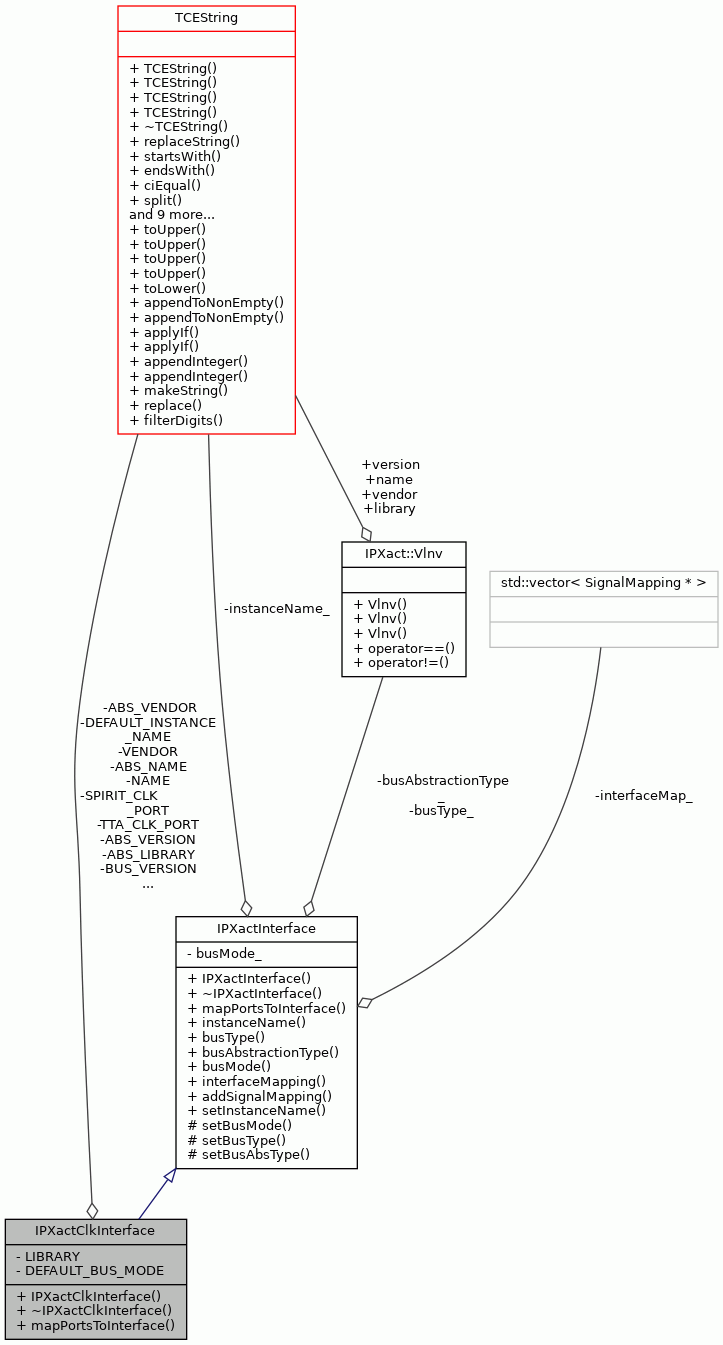

Collaboration diagram for IPXactClkInterface:

Public Member Functions
	IPXactClkInterface ()

virtual	~IPXactClkInterface ()

virtual bool	mapPortsToInterface (const ProGe::NetlistBlock &toplevel)

Public Member Functions inherited from IPXactInterface
	IPXactInterface ()

virtual	~IPXactInterface ()

virtual TCEString	instanceName () const

virtual IPXact::Vlnv	busType () const

virtual IPXact::Vlnv	busAbstractionType () const

virtual IPXactModel::BusMode	busMode () const

virtual const PlatInt::SignalMappingList &	interfaceMapping () const

virtual void	addSignalMapping (const TCEString &actualSignal, const TCEString &busSignal)

void	setInstanceName (const TCEString &name)

Static Private Attributes
static const TCEString	TTA_CLK_PORT = "clk"

static const TCEString	SPIRIT_CLK_PORT = "CLK"

static const TCEString	DEFAULT_INSTANCE_NAME = "clk_in"

static const TCEString	VENDOR = "TUT"

static const TCEString	LIBRARY ="ip.hwp.interface"

static const TCEString	NAME ="clock.busdef"

static const TCEString	BUS_VERSION = "1.0"

static const TCEString	ABS_VENDOR

static const TCEString	ABS_LIBRARY

static const TCEString	ABS_NAME = "clock.absDef"

static const TCEString	ABS_VERSION

static const IPXactModel::BusMode	DEFAULT_BUS_MODE

Additional Inherited Members
Protected Member Functions inherited from IPXactInterface
void	setBusMode (IPXactModel::BusMode mode)

void	setBusType (const TCEString &vendor, const TCEString &library, const TCEString &name, const TCEString &version)

void	setBusAbsType (const TCEString &vendor, const TCEString &library, const TCEString &name, const TCEString &version)

Detailed Description

Definition at line 37 of file IPXactClkInterface.hh.

Constructor & Destructor Documentation

◆ IPXactClkInterface()

IPXactClkInterface::IPXactClkInterface ( )

Definition at line 54 of file IPXactClkInterface.cc.

                                      : IPXactInterface() {

    setInstanceName(DEFAULT_INSTANCE_NAME);
    setBusType(VENDOR, LIBRARY, NAME, BUS_VERSION);
    setBusAbsType(ABS_VENDOR, ABS_LIBRARY, ABS_NAME, ABS_VERSION);
    setBusMode(DEFAULT_BUS_MODE);
}

References ABS_LIBRARY, ABS_NAME, ABS_VENDOR, ABS_VERSION, BUS_VERSION, DEFAULT_BUS_MODE, DEFAULT_INSTANCE_NAME, LIBRARY, NAME, IPXactInterface::setBusAbsType(), IPXactInterface::setBusMode(), IPXactInterface::setBusType(), IPXactInterface::setInstanceName(), and VENDOR.

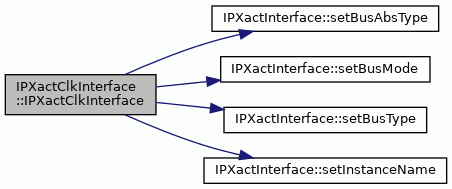

Here is the call graph for this function:

◆ ~IPXactClkInterface()

IPXactClkInterface::~IPXactClkInterface ( )

virtual

Definition at line 62 of file IPXactClkInterface.cc.

62 {

63}

Member Function Documentation

◆ mapPortsToInterface()

bool IPXactClkInterface::mapPortsToInterface ( const ProGe::NetlistBlock & toplevel )

virtual

Implements IPXactInterface.

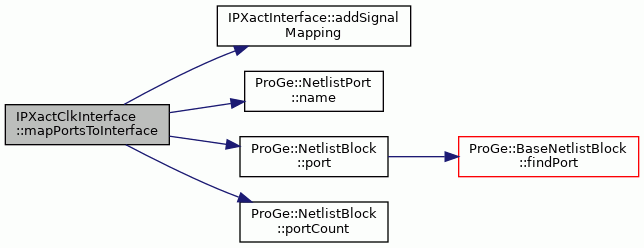

Definition at line 66 of file IPXactClkInterface.cc.

                                                                         {
    for (size_t i = 0; i < toplevel.portCount(); i++) {
        if (toplevel.port(i).name() == TTA_CLK_PORT) {
            addSignalMapping(TTA_CLK_PORT, SPIRIT_CLK_PORT);
            return true;
        }
    }
    TCEString msg = "Clock port " + TTA_CLK_PORT + " not found!";
    InvalidData exc(__FILE__, __LINE__, "IPXactClkInterface", msg);
    throw exc;
    return false;
}
