ProjectFileGenerator Class Reference

#include <ProjectFileGenerator.hh>

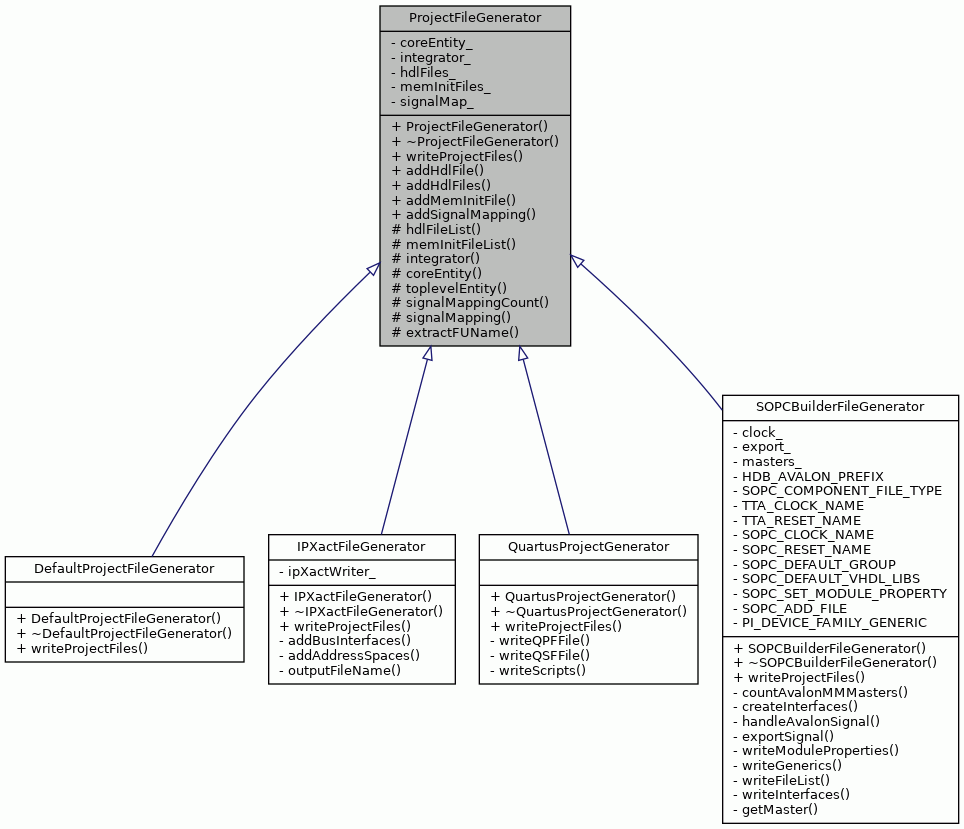

Inheritance diagram for ProjectFileGenerator:

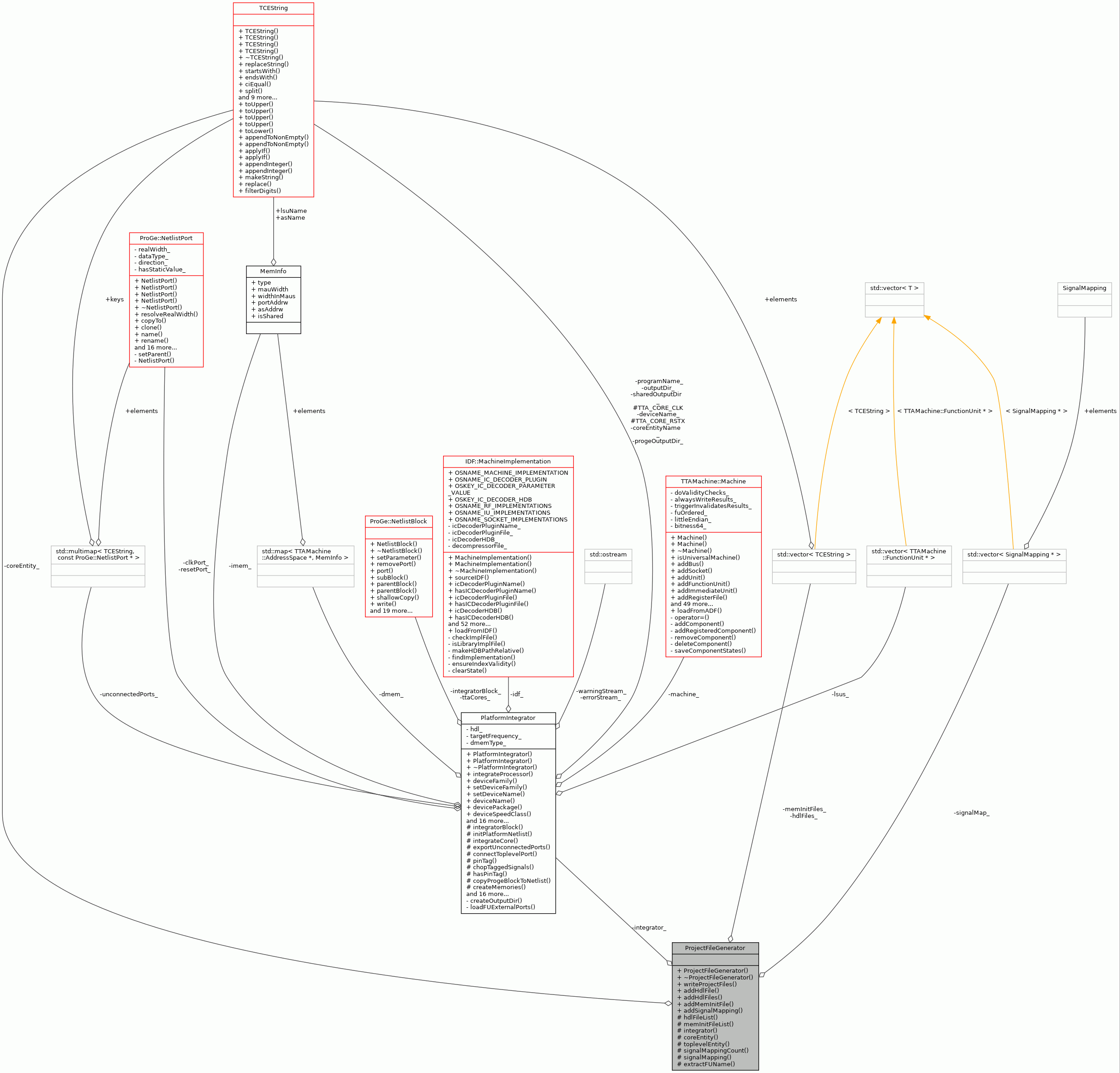

Collaboration diagram for ProjectFileGenerator:

Public Member Functions
	ProjectFileGenerator (TCEString coreEntity, const PlatformIntegrator *integrator)
virtual	~ProjectFileGenerator ()
virtual void	writeProjectFiles ()=0
void	addHdlFile (const TCEString &file)
void	addHdlFiles (const std::vector< TCEString > &files)
void	addMemInitFile (const TCEString &memInit)
void	addSignalMapping (const PlatInt::SignalMapping &mapping)

Protected Member Functions
const std::vector< TCEString > &	hdlFileList () const
const std::vector< TCEString > &	memInitFileList () const
const PlatformIntegrator *	integrator () const
TCEString	coreEntity () const
TCEString	toplevelEntity () const
int	signalMappingCount () const
const PlatInt::SignalMapping *	signalMapping (int index) const
TCEString	extractFUName (const TCEString &port, const TCEString &delimiter) const

Private Attributes
TCEString	coreEntity_
	the HDL entity of the non-integrated TTA core More...
const PlatformIntegrator *	integrator_
std::vector< TCEString >	hdlFiles_
std::vector< TCEString >	memInitFiles_
PlatInt::SignalMappingList	signalMap_

Detailed Description

Definition at line 41 of file ProjectFileGenerator.hh.

Constructor & Destructor Documentation

ProjectFileGenerator()

ProjectFileGenerator::ProjectFileGenerator	(	TCEString	coreEntity,
		const PlatformIntegrator *	integrator
	)

Definition at line 40 of file ProjectFileGenerator.cc.

                                         :
    coreEntity_(coreEntity), integrator_(integrator) {
}

~ProjectFileGenerator()

ProjectFileGenerator::~ProjectFileGenerator ( )

virtual

Definition at line 47 of file ProjectFileGenerator.cc.

                                            {

    for (unsigned int i = 0; i < signalMap_.size(); i++) {
        delete signalMap_.at(i);
    }
}

References signalMap_.

Member Function Documentation

addHdlFile()

void ProjectFileGenerator::addHdlFile

(

const TCEString &

file

)

Definition at line 56 of file ProjectFileGenerator.cc.

                                                      {

    hdlFiles_.push_back(file);
}

References hdlFiles_.

Referenced by AlmaIFIntegrator::addAlmaifFiles(), PlatformIntegrator::addProGeFiles(), and PlatformIntegrator::writeNewToplevel().

addHdlFiles()

void ProjectFileGenerator::addHdlFiles

(

const std::vector< TCEString > &

files

)

Definition at line 63 of file ProjectFileGenerator.cc.

                                                                   {

    for (unsigned int i = 0; i < files.size(); i++) {
        hdlFiles_.push_back(files.at(i));
    }
}

References hdlFiles_.

Referenced by PlatformIntegrator::createMemories().

addMemInitFile()

void ProjectFileGenerator::addMemInitFile

(

const TCEString &

memInit

)

Definition at line 72 of file ProjectFileGenerator.cc.

                                                             {

    memInitFiles_.push_back(memInit);
}

References memInitFiles_.

Referenced by AlteraIntegrator::dmemInstance(), KoskiIntegrator::dmemInstance(), and AlteraIntegrator::imemInstance().

addSignalMapping()

void ProjectFileGenerator::addSignalMapping

(

const PlatInt::SignalMapping &

mapping

)

Definition at line 79 of file ProjectFileGenerator.cc.

                                                                   {

    SignalMapping* signalMap = new SignalMapping(mapping);
    signalMap_.push_back(signalMap);
}

References signalMap_.

Referenced by Stratix3DevKitIntegrator::addSignalMapping(), and Stratix2DSPBoardIntegrator::addSignalMapping().

coreEntity()

TCEString ProjectFileGenerator::coreEntity ( ) const

inlineprotected

Definition at line 65 of file ProjectFileGenerator.hh.

{ return coreEntity_; }

References coreEntity_.

extractFUName()

TCEString ProjectFileGenerator::extractFUName ( const TCEString &  port, const TCEString &  delimiter  ) const

protected

Definition at line 120 of file ProjectFileGenerator.cc.

                                      {

    TCEString::size_type pos = port.find(delimiter);
    if (pos == TCEString::npos || pos == 0) {
        return port;
    }

    TCEString fuName = port.substr(0, pos);
    return StringTools::trim(fuName);
}

References StringTools::trim().

Referenced by SOPCBuilderFileGenerator::handleAvalonSignal().

Here is the call graph for this function:

hdlFileList()

const std::vector< TCEString > & ProjectFileGenerator::hdlFileList ( ) const

protected

Definition at line 87 of file ProjectFileGenerator.cc.

                                        {

    return hdlFiles_;
}

References hdlFiles_.

Referenced by SOPCBuilderFileGenerator::writeFileList(), IPXactFileGenerator::writeProjectFiles(), and QuartusProjectGenerator::writeQSFFile().

integrator()

const PlatformIntegrator * ProjectFileGenerator::integrator ( ) const

protected

Definition at line 101 of file ProjectFileGenerator.cc.

                                       {
    return integrator_;
}

References integrator_.

Referenced by IPXactFileGenerator::addAddressSpaces(), IPXactFileGenerator::addBusInterfaces(), SOPCBuilderFileGenerator::countAvalonMMMasters(), SOPCBuilderFileGenerator::createInterfaces(), SOPCBuilderFileGenerator::writeGenerics(), SOPCBuilderFileGenerator::writeModuleProperties(), IPXactFileGenerator::writeProjectFiles(), and QuartusProjectGenerator::writeQSFFile().

memInitFileList()

const std::vector< TCEString > & ProjectFileGenerator::memInitFileList ( ) const

protected

Definition at line 94 of file ProjectFileGenerator.cc.

                                            {

    return memInitFiles_;
}

References memInitFiles_.

Referenced by SOPCBuilderFileGenerator::writeFileList(), IPXactFileGenerator::writeProjectFiles(), and QuartusProjectGenerator::writeQSFFile().

signalMapping()

const SignalMapping * ProjectFileGenerator::signalMapping ( int  index ) const

protected

Definition at line 113 of file ProjectFileGenerator.cc.

                                                   {

    return signalMap_.at(index);
}

References signalMap_.

Referenced by QuartusProjectGenerator::writeQSFFile().

signalMappingCount()

int ProjectFileGenerator::signalMappingCount ( ) const

protected

Definition at line 106 of file ProjectFileGenerator.cc.

                                               {

    return signalMap_.size();
}

References signalMap_.

Referenced by QuartusProjectGenerator::writeQSFFile().

toplevelEntity()

TCEString ProjectFileGenerator::toplevelEntity ( ) const

inlineprotected

Definition at line 66 of file ProjectFileGenerator.hh.

                                     {
        return coreEntity_ + "_toplevel";
    }

References coreEntity_.

Referenced by IPXactFileGenerator::outputFileName(), SOPCBuilderFileGenerator::writeModuleProperties(), IPXactFileGenerator::writeProjectFiles(), SOPCBuilderFileGenerator::writeProjectFiles(), QuartusProjectGenerator::writeQPFFile(), QuartusProjectGenerator::writeQSFFile(), and QuartusProjectGenerator::writeScripts().

writeProjectFiles()

virtual void ProjectFileGenerator::writeProjectFiles ( )

pure virtual

Implemented in SOPCBuilderFileGenerator, IPXactFileGenerator, DefaultProjectFileGenerator, and QuartusProjectGenerator.

Referenced by AlteraIntegrator::integrateProcessor(), AlmaIFIntegrator::integrateProcessor(), Stratix3DevKitIntegrator::integrateProcessor(), and Stratix2DSPBoardIntegrator::integrateProcessor().

Member Data Documentation

coreEntity_

TCEString ProjectFileGenerator::coreEntity_

private

the HDL entity of the non-integrated TTA core

Definition at line 80 of file ProjectFileGenerator.hh.

Referenced by coreEntity(), and toplevelEntity().

hdlFiles_

std::vector<TCEString> ProjectFileGenerator::hdlFiles_

private

Definition at line 83 of file ProjectFileGenerator.hh.

Referenced by addHdlFile(), addHdlFiles(), and hdlFileList().

integrator_

const PlatformIntegrator* ProjectFileGenerator::integrator_

private

Definition at line 81 of file ProjectFileGenerator.hh.

Referenced by integrator().

memInitFiles_

std::vector<TCEString> ProjectFileGenerator::memInitFiles_

private

Definition at line 84 of file ProjectFileGenerator.hh.

Referenced by addMemInitFile(), and memInitFileList().

signalMap_

PlatInt::SignalMappingList ProjectFileGenerator::signalMap_

private

Definition at line 85 of file ProjectFileGenerator.hh.

Referenced by addSignalMapping(), signalMapping(), signalMappingCount(), and ~ProjectFileGenerator().

---

The documentation for this class was generated from the following files:

• ProjectFileGenerator.hh
• ProjectFileGenerator.cc
