#include <TerminalFUPort.hh>

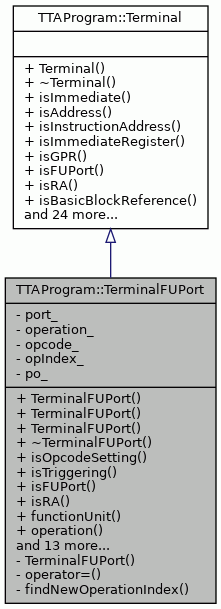

Inheritance diagram for TTAProgram::TerminalFUPort:

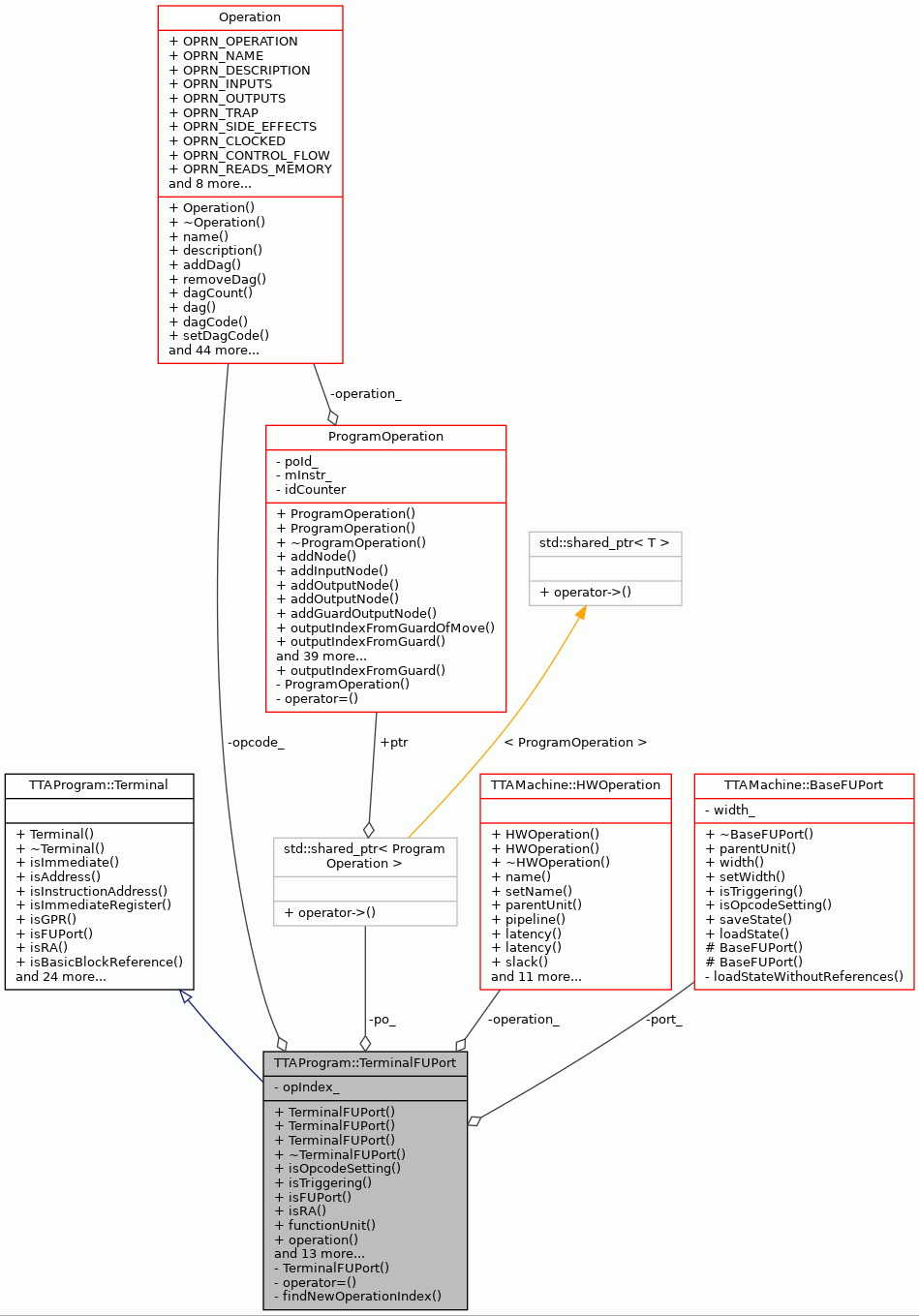

Collaboration diagram for TTAProgram::TerminalFUPort:

Public Member Functions
	TerminalFUPort (const TTAMachine::FUPort &opcodeSettingPort, const TTAMachine::HWOperation &opcode)

	TerminalFUPort (const TTAMachine::BaseFUPort &port)

	TerminalFUPort (const TTAMachine::HWOperation &operation, int opIndex)

virtual	~TerminalFUPort ()

virtual bool	isOpcodeSetting () const

virtual bool	isTriggering () const

virtual bool	isFUPort () const

virtual bool	isRA () const

virtual const TTAMachine::FunctionUnit &	functionUnit () const

virtual Operation &	operation () const

virtual Operation &	hintOperation () const

virtual void	setOperation (const TTAMachine::HWOperation &hwOp)

void	setHintOperation (const char *name)

virtual int	operationIndex () const

virtual void	setOperationIndex (int index)

virtual const TTAMachine::Port &	port () const

virtual Terminal *	copy () const

virtual bool	equals (const Terminal &other) const

virtual const TTAMachine::HWOperation *	hwOperation () const

bool	hasProgramOperation () const
	these methods are used to group terminals belonging to a single program operation invocation More...

void	setProgramOperation (ProgramOperationPtr po)

ProgramOperationPtr	programOperation () const

virtual TCEString	toString () const

Public Member Functions inherited from TTAProgram::Terminal
	Terminal ()

virtual	~Terminal ()

virtual bool	isImmediate () const

virtual bool	isAddress () const

virtual bool	isInstructionAddress () const

virtual bool	isImmediateRegister () const

virtual bool	isGPR () const

virtual bool	isBasicBlockReference () const

virtual bool	isProgramOperationReference () const

virtual bool	isCodeSymbolReference () const

virtual bool	isUniversalMachineRegister () const

virtual SimValue	value () const

virtual Address	address () const

virtual const InstructionReference &	instructionReference () const

virtual InstructionReference &	instructionReference ()

virtual const TTAMachine::RegisterFile &	registerFile () const

virtual const TTAMachine::ImmediateUnit &	immediateUnit () const

virtual const BasicBlock &	basicBlock () const

virtual int	index () const

virtual void	setIndex (int index)

virtual void	setInstructionReference (InstructionReference ref)

bool	operator== (const Terminal &other) const

Private Member Functions
	TerminalFUPort (const TerminalFUPort &tfup)

TerminalFUPort &	operator= (const TerminalFUPort &)
	Assignment not allowed. More...

int	findNewOperationIndex () const

Private Attributes
const TTAMachine::BaseFUPort &	port_
	Port of the unit. More...

const TTAMachine::HWOperation *	operation_
	Operation code transported to the port. More...

Operation *	opcode_
	The OSAL operation. More...

int	opIndex_
	Operation index. More...

ProgramOperationPtr	po_
	The ProgramOperation this terminal belongs to, if applicable. The instance is shared by all the TerminalFUs belonging to the operation. More...

Detailed Description

Represents an input or output port of a function unit and (when applicable) the operation code written into it.

Notice that, in principle, operation codes can be written into FU output ports.

Definition at line 56 of file TerminalFUPort.hh.

Constructor & Destructor Documentation

◆ TerminalFUPort() [1/4]

TTAProgram::TerminalFUPort::TerminalFUPort	(	const TTAMachine::FUPort &	opcodeSettingPort,
		const TTAMachine::HWOperation &	opcode
	)

Creates a destination that writes to an opcode setting FU port.

Parameters

opcodeSettingPort	The port of the terminal.
opcode	The operation to trigger.

Definition at line 72 of file TerminalFUPort.cc.

                                          :
     port_(opcodeSettingPort), operation_(&opcode), opcode_(NULL) {

     assert(opcodeSettingPort.isOpcodeSetting());

     opIndex_ = opcode.io(opcodeSettingPort);

     static OperationPool pool;
     // opcode is NullOperation instance if operation for that name was not
     // found
     try {
         opcode_ = &pool.operation(operation_->name().c_str());
     } catch (const Exception& e) {
         IllegalParameters ip(
             __FILE__, __LINE__, __func__,
             (boost::format(
                 "Error loading the operation '%s' definition: '%s'.")
              % operation_->name() % e.errorMessage()).str());
         ip.setCause(e);
         throw ip;
     }
 }

References __func__, assert, Exception::errorMessage(), TTAMachine::HWOperation::io(), TTAMachine::FUPort::isOpcodeSetting(), TTAMachine::HWOperation::name(), opcode_, OperationPool::operation(), operation_, opIndex_, and Exception::setCause().

Referenced by copy().

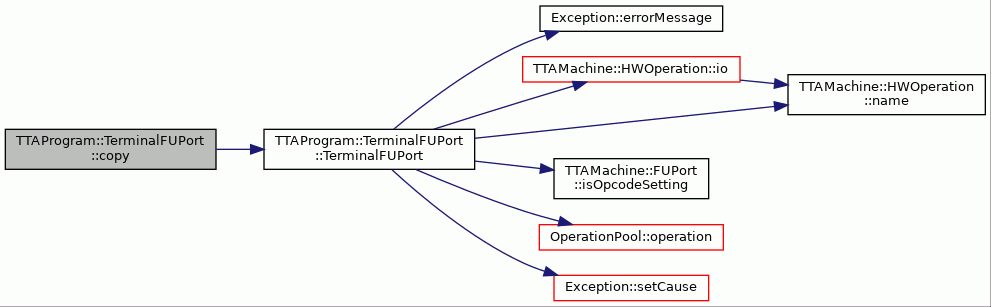

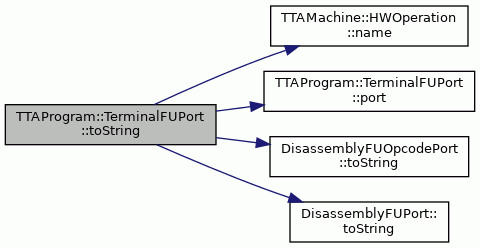

Here is the call graph for this function:

◆ TerminalFUPort() [2/4]

TTAProgram::TerminalFUPort::TerminalFUPort ( const TTAMachine::BaseFUPort & port )

Constructor.

Parameters

port	The port of the terminal.

Definition at line 57 of file TerminalFUPort.cc.

     : port_(port), operation_(NULL), opcode_(NULL) {
     if (port_.isOpcodeSetting()) {
         std::string msg =
             "Opcode setting port terminals must have opcode set!";
         throw IllegalParameters(__FILE__, __LINE__, __func__, msg);
     }
 }

References __func__, TTAMachine::BaseFUPort::isOpcodeSetting(), and port_.

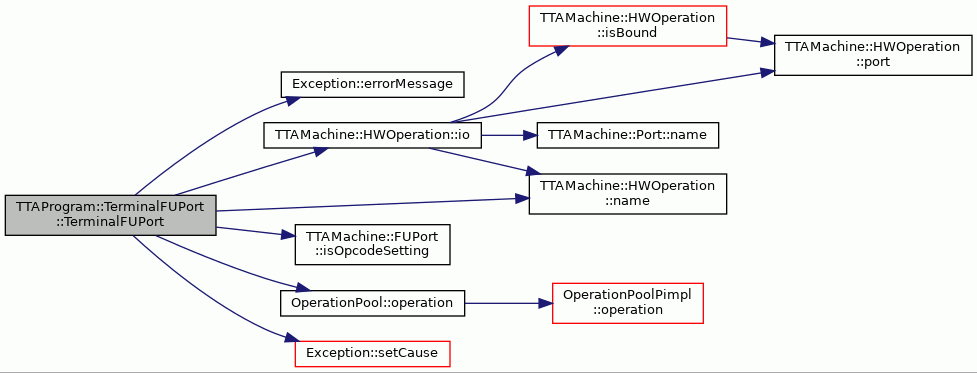

Here is the call graph for this function:

◆ TerminalFUPort() [3/4]

TTAProgram::TerminalFUPort::TerminalFUPort	(	const TTAMachine::HWOperation &	operation,
		int	opIndex
	)

Constructor.

Parameters

operation	Operation of terminal.
opIndex	Operation index.

Definition at line 104 of file TerminalFUPort.cc.

     : port_(*operation.port(opIndex)),
       operation_(&operation),
       opIndex_(opIndex) {
     /* In case the operand cannot be resolved to a legal port, it's an
        error in the loaded input program. Thus, we cannot abort the program but
        we'll throw an exception instead. */
     if (dynamic_cast<const FUPort*>(&port_) == NULL) {
         throw IllegalParameters(
             __FILE__, __LINE__, __func__,
             (boost::format(
                 "Port binding of operand %d of operation '%s' "
                 "cannot be resolved.") % opIndex % operation.name()).
             str());
     }
     static OperationPool pool;
     // opcode is NullOperation instance if operation for that name was not
     // found
     try {
         opcode_ = &pool.operation(operation_->name().c_str());
     } catch (const Exception& e) {
         IllegalParameters ip(
             __FILE__, __LINE__, __func__,
             (boost::format(
                 "Error loading the operation '%s' definition: '%s'.")
              % operation_->name() % e.errorMessage()).str());
         ip.setCause(e);
         throw ip;
     }
 }

References __func__, Exception::errorMessage(), TTAMachine::HWOperation::name(), Operation::name(), opcode_, OperationPool::operation(), operation(), operation_, port_, and Exception::setCause().

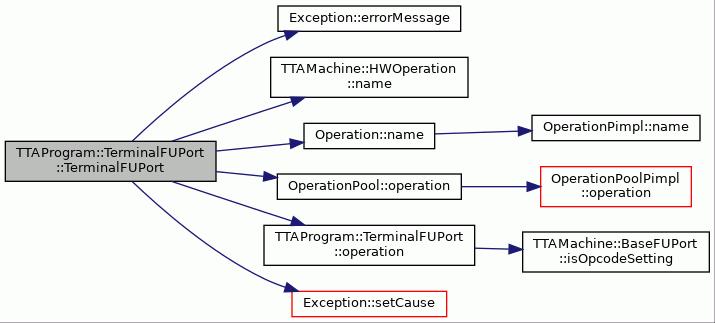

Here is the call graph for this function:

◆ ~TerminalFUPort()

TTAProgram::TerminalFUPort::~TerminalFUPort ( )

virtual

The destructor.

Definition at line 148 of file TerminalFUPort.cc.

148 {

149 }

◆ TerminalFUPort() [4/4]

TTAProgram::TerminalFUPort::TerminalFUPort ( const TerminalFUPort & tfup )

private

Copy Constructor. private, only called internally by copy().

Parameters

tfup	object to copy from.

Definition at line 140 of file TerminalFUPort.cc.

                                                          :
     Terminal(), port_(tfup.port_), operation_(tfup.operation_),
     opcode_(tfup.opcode_), opIndex_(tfup.opIndex_), po_(tfup.po_) {
 }

Member Function Documentation

◆ copy()

Terminal * TTAProgram::TerminalFUPort::copy ( ) const

virtual

Creates an exact copy of the terminal and returns it.

Note: The returned copy is a deep cope but the copied ProgramOperation, if contained, will not be updated to refer to the new moves. This should be done in the caller.

Returns: A copy of the terminal.

Implements TTAProgram::Terminal.

Definition at line 305 of file TerminalFUPort.cc.

                            {
     return new TerminalFUPort(*this);
 }

References TerminalFUPort().

Here is the call graph for this function:

◆ equals()

bool TTAProgram::TerminalFUPort::equals ( const Terminal & other ) const

virtual

Checks if terminals are equal.

Parameters

other Terminal to compare.

Returns: true if terminals are equal.

Implements TTAProgram::Terminal.

Definition at line 316 of file TerminalFUPort.cc.

                                                   {

     if (!other.isFUPort()) {
         return false;
     }

     const TerminalFUPort& subclass =
         dynamic_cast<const TerminalFUPort&>(other);

     // if ports are same
     if (&port_ == &subclass.port_) {

         // we care about opcodes only if they are necessary data
         if (port_.isOpcodeSetting()) {

             // if opcodes are the same
             if (operation_ == subclass.operation_) {
                 // same port same operation
                 return true;
             } else {
                 // if opcodes are not defined -> error
                 if (operation_ == NULL ||
                     subclass.operation_ == NULL) {

                     abortWithError(
                         "Opcode _must_ be set for terminals that "
                         "refers opcode setting port!");
                 }

                 // same port different operations
                 return false;
             }
         } else {
             // same ports not opcode setting
             return true;
         }
     }

     // different ports
     return false;
 }

References abortWithError, TTAProgram::Terminal::isFUPort(), TTAMachine::BaseFUPort::isOpcodeSetting(), operation_, and port_.

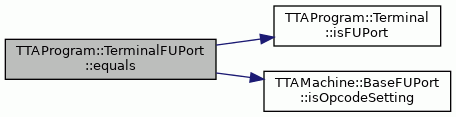

Here is the call graph for this function:

◆ findNewOperationIndex()

int TTAProgram::TerminalFUPort::findNewOperationIndex ( ) const

private

Return operation index bound to the terminal port for a given operation.

Used if operation in terminal is changed.

Returns: Operation index bound to the terminal port for a given operation.

Definition at line 366 of file TerminalFUPort.cc.

                                             {
     const FunctionUnit* fu = port_.parentUnit();
     const HWOperation* hwop = fu->operation(operation_->name());
     return hwop->io(dynamic_cast<const FUPort&>(port_));
 }

References TTAMachine::HWOperation::io(), TTAMachine::HWOperation::name(), TTAMachine::FunctionUnit::operation(), operation_, TTAMachine::BaseFUPort::parentUnit(), and port_.

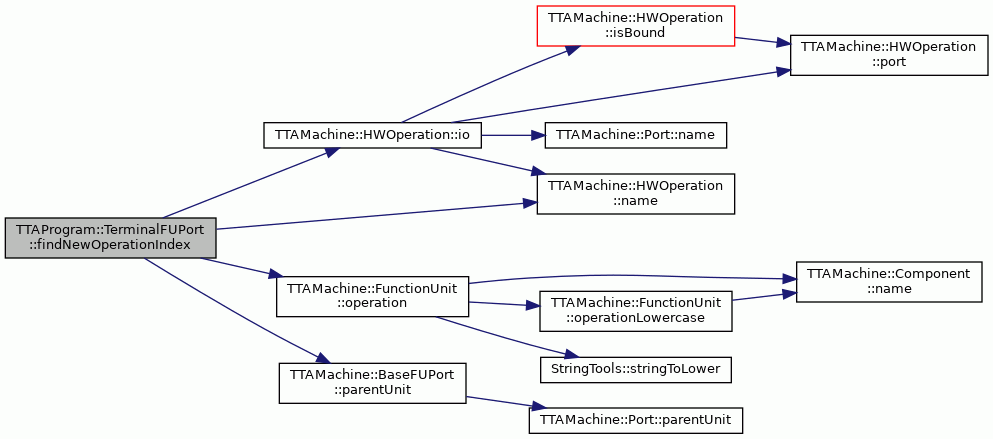

Here is the call graph for this function:

◆ functionUnit()

const FunctionUnit & TTAProgram::TerminalFUPort::functionUnit ( ) const

virtual

Returns the function unit of the port.

Returns: The function unit of the port.

Exceptions

WrongSubclass never.

Reimplemented from TTAProgram::Terminal.

Definition at line 202 of file TerminalFUPort.cc.

                                    {
     return *port_.parentUnit();
 }

References TTAMachine::BaseFUPort::parentUnit(), and port_.

Referenced by ProcedurePass::copyCfgToProcedure(), OutputFUBroker::unassign(), and InputFUBroker::unassign().

Here is the call graph for this function:

◆ hasProgramOperation()

bool TTAProgram::TerminalFUPort::hasProgramOperation ( ) const

inline

these methods are used to group terminals belonging to a single program operation invocation

Definition at line 91 of file TerminalFUPort.hh.

                                      {
         return po_ != NULL && po_.get() != NULL;
     }

References po_.

Referenced by DataDependenceGraphBuilder::processOperand(), and DataDependenceGraphBuilder::processTriggerPO().

◆ hintOperation()

Operation & TTAProgram::TerminalFUPort::hintOperation ( ) const

virtual

Return the operation to which this terminal was originally bound.

NOTE! : Method must not be used for checkin if terminal contains opcode. See. operation().

Method is mainly used for preserving information to which operation port reference is bound, during TPEF -> POM -> TPEF write cycles.

Returns: The operation code to which terminal was originally bound. Null operation if terminal does not contain operation code.

Reimplemented from TTAProgram::Terminal.

Definition at line 262 of file TerminalFUPort.cc.

                                     {
     if (opcode_ != NULL) {
         return *opcode_;
     } else {
         return NullOperation::instance();
     }
 }

References NullOperation::instance(), and opcode_.

Referenced by OutputFUBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), OutputFUBroker::assign(), InputFUBroker::assign(), POMDisassembler::createFUPort(), SimpleIfConverter::fixTerminalPO(), TTAProgram::Move::isCall(), TTAProgram::Move::isControlFlowMove(), TTAProgram::Move::isJump(), DataDependenceGraphBuilder::processDestination(), TTAProgram::ProgramWriter::terminalResource(), and DataDependenceGraphBuilder::updateBB().

Here is the call graph for this function:

◆ hwOperation()

const HWOperation * TTAProgram::TerminalFUPort::hwOperation ( ) const

virtual

Returns a pointer to the HW operation

Returns: a pointer to the HW operation

Definition at line 379 of file TerminalFUPort.cc.

                                   {
      return operation_;
 }

References operation_.

Referenced by ControlFlowGraph::buildMBBFromBB(), POMDisassembler::createFUPort(), CodeCompressorPlugin::encodeFUTerminal(), CompiledSimCodeGenerator::generateInstruction(), DataDependenceEdge::latencySt(), and DataDependenceEdge::saveState().

◆ isFUPort()

bool TTAProgram::TerminalFUPort::isFUPort ( ) const

virtual

Tells whether the terminal is a function unit port (possibly, including an operation code).

Returns: True always.

Reimplemented from TTAProgram::Terminal.

Definition at line 158 of file TerminalFUPort.cc.

                                {
     return true;
 }

◆ isOpcodeSetting()

bool TTAProgram::TerminalFUPort::isOpcodeSetting ( ) const

virtual

Tells whether terminal transports an opcode to a function unit port.

Returns: True if the terminal transports an opcode to a function unit port.

Exceptions

WrongSubclass never.

Reimplemented from TTAProgram::Terminal.

Definition at line 180 of file TerminalFUPort.cc.

                                       {
     return port_.isOpcodeSetting();
 }

References TTAMachine::BaseFUPort::isOpcodeSetting(), and port_.

Referenced by POMDisassembler::createFUPort(), TTAProgram::Move::isCall(), TTAProgram::Move::isControlFlowMove(), TTAProgram::Move::isJump(), DataDependenceGraphBuilder::processDestination(), and TTAProgram::ProgramWriter::terminalResource().

Here is the call graph for this function:

◆ isRA()

bool TTAProgram::TerminalFUPort::isRA ( ) const

virtual

Tells whether the terminal is the return address port of gcu.

Returns: returns true if this is the RA.

Reimplemented from TTAProgram::Terminal.

Definition at line 168 of file TerminalFUPort.cc.

                            {
     return dynamic_cast<const TTAMachine::SpecialRegisterPort*>
         (&port()) != NULL;
 }

References port().

Here is the call graph for this function:

◆ isTriggering()

bool TTAProgram::TerminalFUPort::isTriggering ( ) const

virtual

Tells whether terminal is a triggering port.

Returns: True if the terminal transports an opcode to a function unit port.

Exceptions

WrongSubclass never.

Reimplemented from TTAProgram::Terminal.

Definition at line 191 of file TerminalFUPort.cc.

                                    {
     return port_.isTriggering();
 }

References TTAMachine::BaseFUPort::isTriggering(), and port_.

Referenced by TTAProgram::Move::isTriggering().

Here is the call graph for this function:

◆ operation()

Operation & TTAProgram::TerminalFUPort::operation ( ) const

virtual

Return the operation code transported into the function unit port.

Returns: The operation code transported into the function unit port.

Exceptions

InvalidData If terminal does not set opcode for FU.

Reimplemented from TTAProgram::Terminal.

Definition at line 213 of file TerminalFUPort.cc.

                                 {
     if (port_.isOpcodeSetting() && opcode_ != NULL) {
         return *opcode_;
     } else {
         std::cerr
             << "operation == NULL || !port_.isopcodesetting()" << std::endl;
     }

     throw InvalidData(__FILE__, __LINE__, __func__,
                         "Terminal does not set opcode for FU.");
 }

References __func__, TTAMachine::BaseFUPort::isOpcodeSetting(), opcode_, and port_.

Referenced by POMDisassembler::createFUPort(), TTAProgram::Move::isCall(), TTAProgram::Move::isControlFlowMove(), TTAProgram::Move::isJump(), TerminalFUPort(), and TTAProgram::ProgramWriter::terminalResource().

Here is the call graph for this function:

◆ operationIndex()

int TTAProgram::TerminalFUPort::operationIndex ( ) const

virtual

Return the index that identifies the operation input or output that is represented by this terminal.

Returns: The index that identifies the operation input or output that is represented by this terminal.

Exceptions

WrongSubclass	Never.
InvalidData	If the terminal is of the the right class type, but the FU port of the terminal is not opcode-setting and bears no auxiliary "hint operation" information.

Todo:: Rename to operandIndex()?

Reimplemented from TTAProgram::Terminal.

Definition at line 238 of file TerminalFUPort.cc.

                                      {
     if (operation_ != NULL || opcode_ != nullptr) {
         return opIndex_;
     } else {
         const string msg =
             "FU port of the terminal is not opcode-setting "
             "and bears no auxiliary 'hint operation' information.";
         throw InvalidData(__FILE__, __LINE__, __func__, msg);
     }
 }

References __func__, opcode_, operation_, and opIndex_.

Referenced by OutputFUBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), OutputFUBroker::assign(), InputFUBroker::assign(), and MachineConnectivityCheck::busConnectedToAnyFU().

◆ operator=()

TerminalFUPort& TTAProgram::TerminalFUPort::operator= ( const TerminalFUPort & )

private

Assignment not allowed.

◆ port()

const Port & TTAProgram::TerminalFUPort::port ( ) const

virtual

Return the port.

Returns: The port.

Exceptions

WrongSubclass never.

Reimplemented from TTAProgram::Terminal.

Definition at line 291 of file TerminalFUPort.cc.

                            {
     return port_;
 }

References port_.

Referenced by OutputFUBroker::allAvailableResources(), InputFUBroker::allAvailableResources(), OutputFUBroker::assign(), InputFUBroker::assign(), POMDisassembler::createFUPort(), isRA(), and toString().

◆ programOperation()

ProgramOperationPtr TTAProgram::TerminalFUPort::programOperation ( ) const

inline

Definition at line 97 of file TerminalFUPort.hh.

                                                  {
         return po_;
     }

References po_.

Referenced by InputFUBroker::assign(), ControlFlowGraph::buildMBBFromBB(), llvm::LLVMTCEIRBuilder::buildTCECFG(), SimpleIfConverter::fixTerminalPO(), DataDependenceGraphBuilder::processOperand(), and DataDependenceGraphBuilder::processTriggerPO().

◆ setHintOperation()

void TTAProgram::TerminalFUPort::setHintOperation ( const char * name )

Definition at line 270 of file TerminalFUPort.cc.

                                                       {
     OperationPool opPool;
     assert(&opPool.operation(name) != &NullOperation::instance());
     opcode_ = &opPool.operation(name);
     operation_ = nullptr;
 }

References assert, NullOperation::instance(), opcode_, OperationPool::operation(), and operation_.

Referenced by ProgramOperation::setOperation().

Here is the call graph for this function:

◆ setOperation()

void TTAProgram::TerminalFUPort::setOperation ( const TTAMachine::HWOperation & hwOp )

virtual

Definition at line 278 of file TerminalFUPort.cc.

                                                               {
     OperationPool opPool;
     opcode_ = &opPool.operation(hwOp.name().c_str());
     operation_ = &hwOp;
 }

References TTAMachine::HWOperation::name(), opcode_, OperationPool::operation(), and operation_.

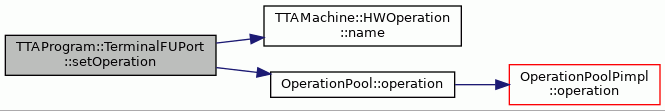

Here is the call graph for this function:

◆ setOperationIndex()

virtual void TTAProgram::TerminalFUPort::setOperationIndex ( int index )

inlinevirtual

Definition at line 82 of file TerminalFUPort.hh.

82 { opIndex_ = index; }

References TTAProgram::Terminal::index(), and opIndex_.

Here is the call graph for this function:

◆ setProgramOperation()

void TTAProgram::TerminalFUPort::setProgramOperation ( ProgramOperationPtr po )

inline

Definition at line 94 of file TerminalFUPort.hh.

                                                      {
         po_ = po;
     }

References po_.

Referenced by InputFUBroker::assign(), llvm::LLVMTCEIRBuilder::createMoveNode(), and SimpleIfConverter::fixTerminalPO().

◆ toString()

TCEString TTAProgram::TerminalFUPort::toString ( ) const

virtual

Implements TTAProgram::Terminal.

Definition at line 384 of file TerminalFUPort.cc.

                                {
     if (operation_ != NULL) {
         DisassemblyFUOpcodePort disasm(
             port().parentUnit()->name(), port().name(), operation_->name());
         return disasm.toString();
     } else {
         DisassemblyFUPort disasm(port().parentUnit()->name(), port().name());
         return disasm.toString();
     }
 }

References TTAMachine::HWOperation::name(), operation_, port(), DisassemblyFUOpcodePort::toString(), and DisassemblyFUPort::toString().

Here is the call graph for this function:

Member Data Documentation

◆ opcode_

Operation* TTAProgram::TerminalFUPort::opcode_

private

The OSAL operation.

Definition at line 117 of file TerminalFUPort.hh.

Referenced by hintOperation(), operation(), operationIndex(), setHintOperation(), setOperation(), and TerminalFUPort().

◆ operation_

const TTAMachine::HWOperation* TTAProgram::TerminalFUPort::operation_

private

Operation code transported to the port.

Definition at line 115 of file TerminalFUPort.hh.

Referenced by equals(), findNewOperationIndex(), hwOperation(), operationIndex(), setHintOperation(), setOperation(), TerminalFUPort(), and toString().

◆ opIndex_

int TTAProgram::TerminalFUPort::opIndex_

private

Operation index.

Definition at line 119 of file TerminalFUPort.hh.

Referenced by operationIndex(), setOperationIndex(), and TerminalFUPort().

◆ po_

ProgramOperationPtr TTAProgram::TerminalFUPort::po_

private

The ProgramOperation this terminal belongs to, if applicable. The instance is shared by all the TerminalFUs belonging to the operation.

Definition at line 123 of file TerminalFUPort.hh.

Referenced by hasProgramOperation(), programOperation(), and setProgramOperation().

◆ port_

const TTAMachine::BaseFUPort& TTAProgram::TerminalFUPort::port_

private

Port of the unit.

Definition at line 113 of file TerminalFUPort.hh.

Referenced by equals(), findNewOperationIndex(), functionUnit(), isOpcodeSetting(), isTriggering(), operation(), port(), and TerminalFUPort().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TerminalFUPort() [1/4]

◆ TerminalFUPort() [2/4]

◆ TerminalFUPort() [3/4]

◆ ~TerminalFUPort()

◆ TerminalFUPort() [4/4]

Member Function Documentation

◆ copy()

◆ equals()

◆ findNewOperationIndex()

◆ functionUnit()

◆ hasProgramOperation()

◆ hintOperation()

◆ hwOperation()

◆ isFUPort()

◆ isOpcodeSetting()

◆ isRA()

◆ isTriggering()

◆ operation()

◆ operationIndex()

◆ operator=()

◆ port()

◆ programOperation()

◆ setHintOperation()

◆ setOperation()

◆ setOperationIndex()

◆ setProgramOperation()

◆ toString()

Member Data Documentation

◆ opcode_

◆ operation_

◆ opIndex_

◆ po_

◆ port_
