llvm::LLVMTCEPOMBuilder Class Reference

#include <LLVMTCEPOMBuilder.hh>

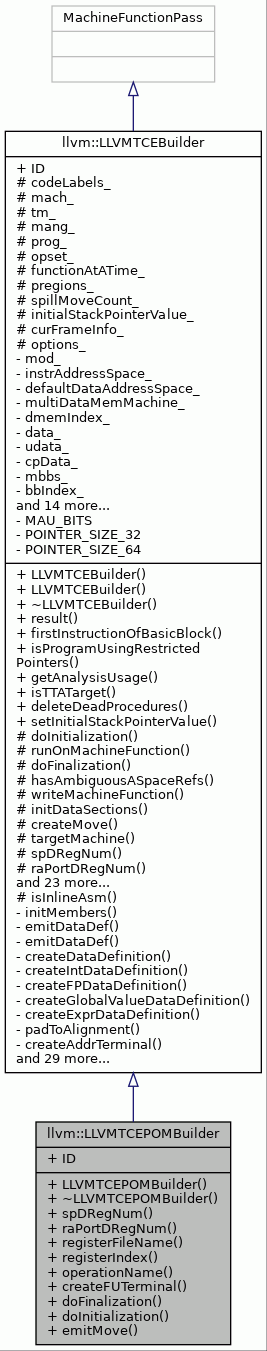

Inheritance diagram for llvm::LLVMTCEPOMBuilder:

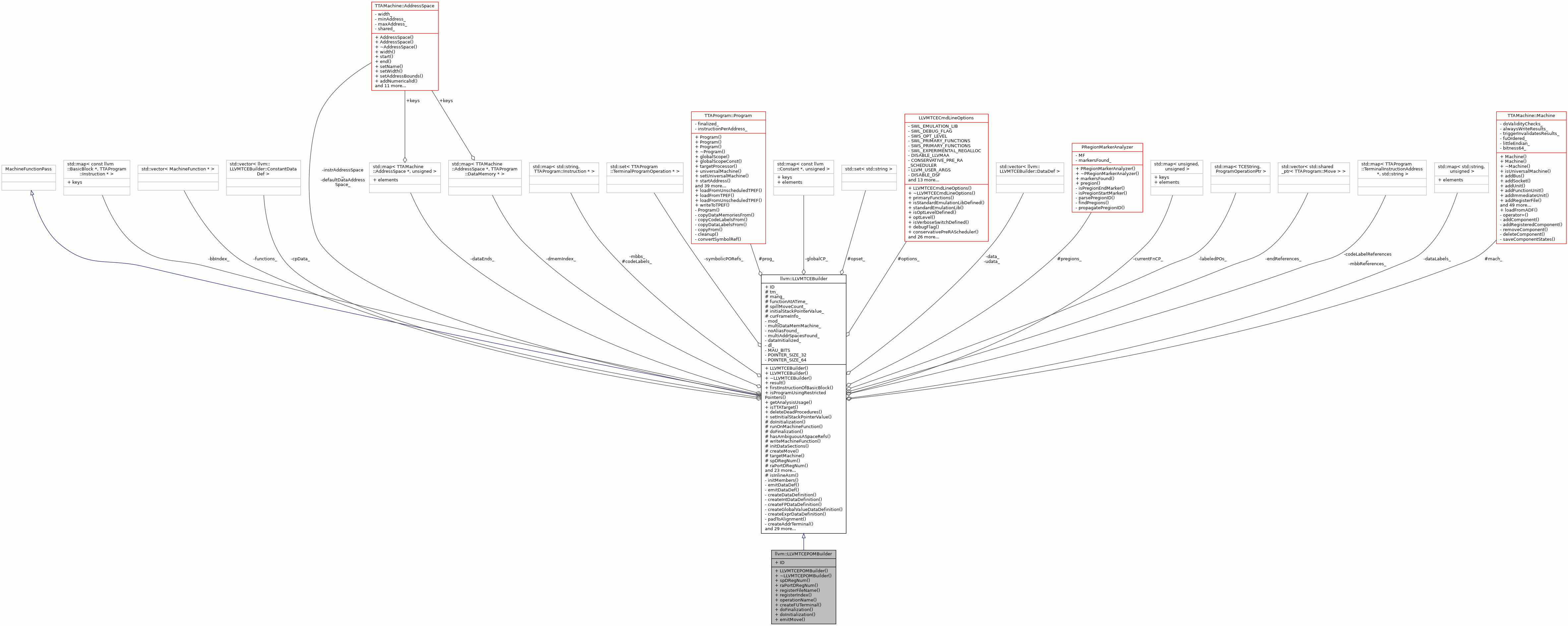

Collaboration diagram for llvm::LLVMTCEPOMBuilder:

Public Member Functions
	LLVMTCEPOMBuilder ()
virtual	~LLVMTCEPOMBuilder ()
virtual unsigned	spDRegNum () const
virtual unsigned	raPortDRegNum () const
virtual TCEString	registerFileName (unsigned llvmRegNum) const
virtual int	registerIndex (unsigned llvmRegNum) const
virtual TCEString	operationName (const MachineInstr &mi) const
virtual TTAProgram::Terminal *	createFUTerminal (const MachineOperand &) const
bool	doFinalization (Module &m)
bool	doInitialization (Module &M)
TTAProgram::Instruction *	emitMove (const MachineInstr *mi, TTAProgram::CodeSnippet *proc, bool conditional=false, bool trueGuard=true)
Public Member Functions inherited from llvm::LLVMTCEBuilder
	LLVMTCEBuilder (char &ID)
	LLVMTCEBuilder (const TargetMachine &tm, TTAMachine::Machine *mach, char &ID, bool functionAtATime=false)
virtual	~LLVMTCEBuilder ()
TTAProgram::Program *	result ()
TTAProgram::Instruction *	firstInstructionOfBasicBlock (const llvm::BasicBlock *bb)
bool	isProgramUsingRestrictedPointers () const
virtual void	getAnalysisUsage (AnalysisUsage &AU) const
virtual bool	isTTATarget () const
void	deleteDeadProcedures ()
void	setInitialStackPointerValue (unsigned value)

Static Public Attributes
static char	ID = 0
Static Public Attributes inherited from llvm::LLVMTCEBuilder
static char	ID = 0

Additional Inherited Members
Protected Member Functions inherited from llvm::LLVMTCEBuilder
bool	doInitialization (Module &M)
bool	runOnMachineFunction (MachineFunction &MF)
bool	doFinalization (Module &M)
bool	hasAmbiguousASpaceRefs (const TTAProgram::Instruction &instr) const
virtual bool	writeMachineFunction (MachineFunction &MF)
void	initDataSections ()
std::shared_ptr< TTAProgram::Move >	createMove (const MachineOperand &src, const MachineOperand &dst, TTAProgram::MoveGuard *guard)
const TargetMachine &	targetMachine () const
TCEString	registerName (unsigned llvmRegNum) const
std::string	mbbName (const MachineBasicBlock &mbb)
const TTAMachine::HWOperation &	getHWOperation (std::string opName)
TTAProgram::TerminalRegister *	createTerminalRegister (const std::string &rfName, int index)
TTAProgram::Terminal *	createTerminal (const MachineOperand &mo, int bitLimit=0)
std::shared_ptr< TTAProgram::Move >	createMove (TTAProgram::Terminal *src, TTAProgram::Terminal *dst, const TTAMachine::Bus &bus, TTAProgram::MoveGuard *guard=NULL)
void	emitConstantPool (const llvm::MachineConstantPool &cp)
virtual TTAProgram::Terminal *	createMBBReference (const MachineOperand &mo)
virtual TTAProgram::Terminal *	createSymbolReference (const MachineOperand &mo)
virtual TTAProgram::Terminal *	createProgramOperationReference (const MachineOperand &mo)
virtual TTAProgram::Terminal *	createSymbolReference (const TCEString &symbolName)
TTAProgram::Instruction *	emitInstruction (const MachineInstr *mi, TTAProgram::CodeSnippet *proc)
TTAProgram::Instruction *	emitInlineAsm (const MachineFunction &mf, const MachineInstr *mi, TTAProgram::BasicBlock *bb, TTAProgram::InstructionReferenceManager &irm)
void	fixProgramOperationReferences ()
void	addLabelForProgramOperation (TCEString label, ProgramOperationPtr po)
virtual void	emitSPInitialization ()
void	emitSPInitialization (TTAProgram::CodeSnippet &target)
void	clearFunctionBookkeeping ()
Static Protected Member Functions inherited from llvm::LLVMTCEBuilder
static bool	isInlineAsm (const MachineInstr &instr)
Protected Attributes inherited from llvm::LLVMTCEBuilder
std::map< std::string, TTAProgram::Instruction * >	codeLabels_
	Code labels.
TTAMachine::Machine *	mach_
	Machine for building the program.
const llvm::TargetMachine *	tm_
	Target machine description.
llvm::Mangler *	mang_
	Mangler for mangling label strings.
TTAProgram::Program *	prog_
	Current program being built.
std::set< std::string >	opset_
	The operations supported by the current target machine.
bool	functionAtATime_
PRegionMarkerAnalyzer *	pregions_
int	spillMoveCount_
unsigned	initialStackPointerValue_
MachineFrameInfo *	curFrameInfo_
LLVMTCECmdLineOptions *	options_ = nullptr
	The compiler options.

Detailed Description

Implements building TCE POM from TTA-style (MOVE) sequential input from LLVM codegen.

Note

Experimental and still lots to do before can be considered for real use.

Definition at line 81 of file LLVMTCEPOMBuilder.hh.

Constructor & Destructor Documentation

LLVMTCEPOMBuilder()

llvm::LLVMTCEPOMBuilder::LLVMTCEPOMBuilder

(

)

Definition at line 67 of file LLVMTCEPOMBuilder.cc.

                                     :
    LLVMTCEBuilder(ID) {
}

~LLVMTCEPOMBuilder()

virtual llvm::LLVMTCEPOMBuilder::~LLVMTCEPOMBuilder ( )

inlinevirtual

Definition at line 85 of file LLVMTCEPOMBuilder.hh.

{}

Member Function Documentation

createFUTerminal()

TTAProgram::Terminal * llvm::LLVMTCEPOMBuilder::createFUTerminal ( const MachineOperand &  mo ) const

virtual

Reimplemented from llvm::LLVMTCEBuilder.

Definition at line 131 of file LLVMTCEPOMBuilder.cc.

                                                                  {
    TCEString regName(
        targetMachine().getSubtargetImpl(
            mo.getParent()->getParent()->getParent()->getFunction())->
        getRegisterInfo()->getName(mo.getReg()));

    // test for _number which indicates a RF access
    std::vector<TCEString> pieces = regName.split("_");
    if (pieces.size() == 2) {
        TCEString indexStr = pieces.at(1);
        try {
            Conversion::toInt(indexStr);
            return NULL;
        } catch (Exception&) {
        }
    }

    assert(pieces.size() > 0);

    TCEString fuName = pieces.at(0);
    TCEString portName = pieces.at(1);
    TCEString operationName = "";
    if (pieces.size() == 3) {
        // FU_triggerport_OP
        operationName = pieces.at(2);
    }

    // always assume it's the ALU of minimal.adf for now
    // should be parsed from the regName
    TTAMachine::FunctionUnit* fu =
        mach_->functionUnitNavigator().item(fuName);

    assert(fu != NULL);

    TTAMachine::FUPort* fuPort =
        dynamic_cast<TTAMachine::FUPort*>(fu->port(portName));
    assert(fuPort != NULL);
    if (operationName != "") {
        assert(fuPort->isTriggering());
        TTAMachine::HWOperation& hwOp = *fu->operation(operationName);
        return new TTAProgram::TerminalFUPort(hwOp, hwOp.io(*fuPort));
    } else {
        TTAProgram::TerminalFUPort* term =
            new TTAProgram::TerminalFUPort(*fuPort);
        return term;
    }
}

References assert, TTAMachine::Machine::functionUnitNavigator(), TTAMachine::HWOperation::io(), TTAMachine::FUPort::isTriggering(), TTAMachine::Machine::Navigator< ComponentType >::item(), llvm::LLVMTCEBuilder::mach_, TTAMachine::FunctionUnit::operation(), operationName(), TTAMachine::FunctionUnit::port(), TCEString::split(), llvm::LLVMTCEBuilder::targetMachine(), and Conversion::toInt().

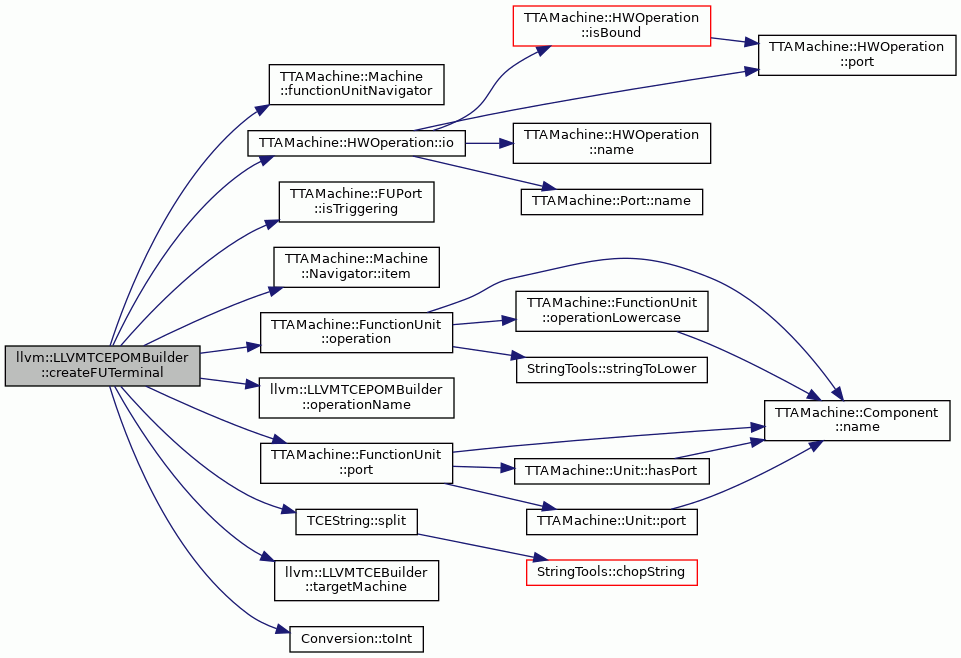

Here is the call graph for this function:

doFinalization()

bool llvm::LLVMTCEPOMBuilder::doFinalization

(

Module &

m

)

Definition at line 190 of file LLVMTCEPOMBuilder.cc.

                                           {

    LLVMTCEBuilder::doFinalization(m);
    prog_->convertSymbolRefsToInsRefs();

    return true;
}

References TTAProgram::Program::convertSymbolRefsToInsRefs(), llvm::LLVMTCEBuilder::doFinalization(), and llvm::LLVMTCEBuilder::prog_.

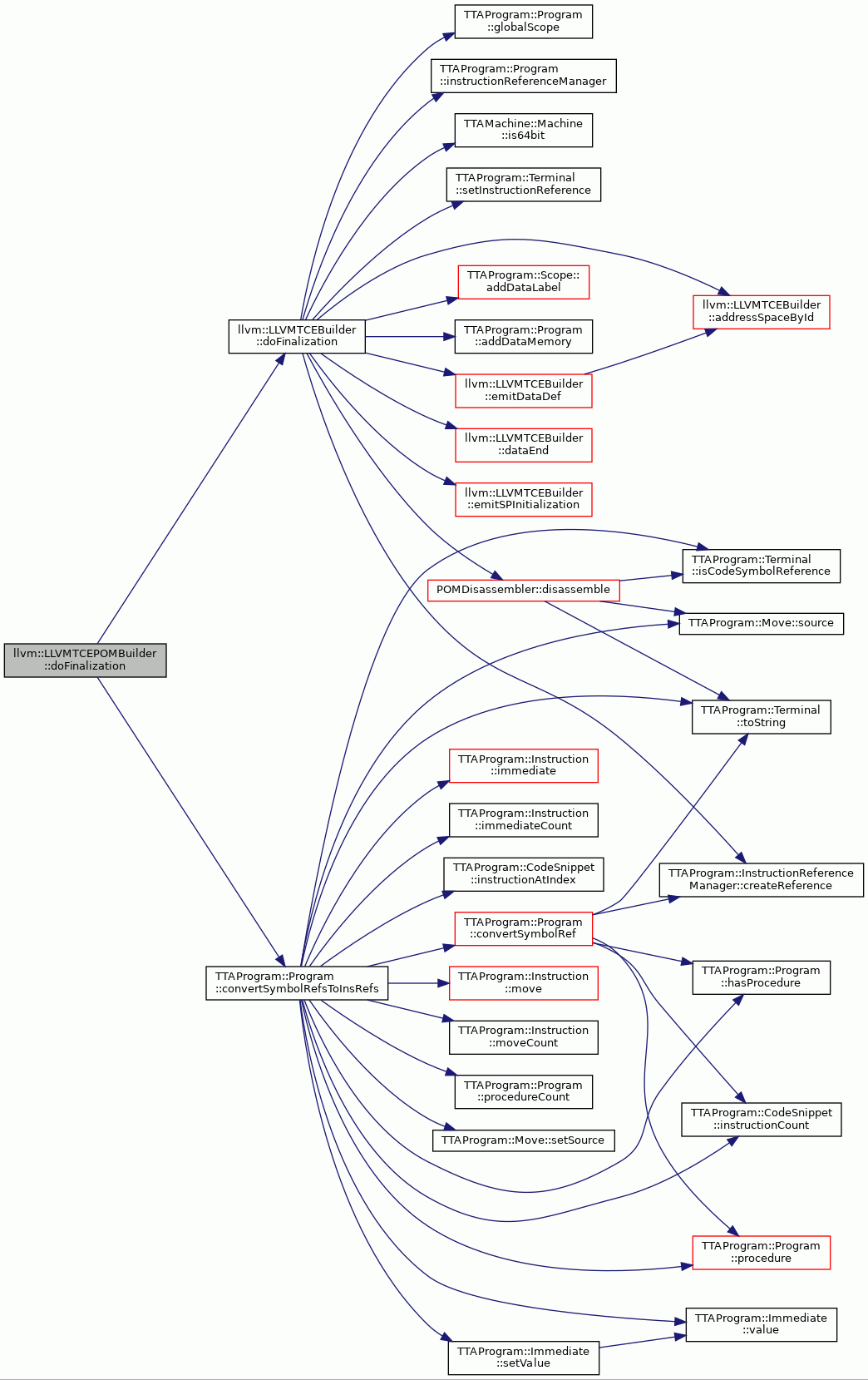

Here is the call graph for this function:

doInitialization()

bool llvm::LLVMTCEPOMBuilder::doInitialization

(

Module &

M

)

Definition at line 184 of file LLVMTCEPOMBuilder.cc.

                                             {
    mach_ = TTAMachine::Machine::loadFromADF("tta/4bus_minimal.adf");
    return LLVMTCEBuilder::doInitialization(M);
}

References llvm::LLVMTCEBuilder::doInitialization(), TTAMachine::Machine::loadFromADF(), and llvm::LLVMTCEBuilder::mach_.

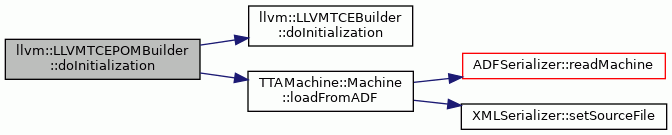

Here is the call graph for this function:

emitMove()

TTAProgram::Instruction * llvm::LLVMTCEPOMBuilder::emitMove ( const MachineInstr *  mi, TTAProgram::CodeSnippet *  proc, bool  conditional = false, bool  trueGuard = true  )

virtual

Creates POM instruction for a move.

Parameters

mi	Move machine instruction.
proc	POM procedure to add the move to.

Returns

Emitted POM instruction.

Reimplemented from llvm::LLVMTCEBuilder.

Definition at line 98 of file LLVMTCEPOMBuilder.cc.

                {
    TCEString opName(targetMachine().getSubtargetImpl(
                         mi->getParent()->getParent()->getFunction())->
                     getInstrInfo()->getName(mi->getOpcode()).str());
    /* Non-trigger move. */
    if (opName == "MOVE")
        return LLVMTCEBuilder::emitMove(mi, proc);

    /* A trigger move. The source is the 2nd last argument. */
    TTAProgram::Terminal* src =
        createTerminal(mi->getOperand(mi->getNumOperands() - 2));
    TTAProgram::Terminal* dst = /* defined as implicit def */
        createTerminal(mi->getOperand(mi->getNumOperands() - 1));

    TTAMachine::Bus& bus = result()->universalMachine().universalBus();
    auto move = createMove(src, dst, bus);

    TTAProgram::Instruction* instr = new TTAProgram::Instruction();

    instr->addMove(move);
    proc->add(instr);
    return instr;
}

References TTAProgram::CodeSnippet::add(), TTAProgram::Instruction::addMove(), llvm::LLVMTCEBuilder::createMove(), llvm::LLVMTCEBuilder::createTerminal(), llvm::LLVMTCEBuilder::emitMove(), llvm::LLVMTCEBuilder::result(), llvm::LLVMTCEBuilder::targetMachine(), UniversalMachine::universalBus(), and TTAProgram::Program::universalMachine().

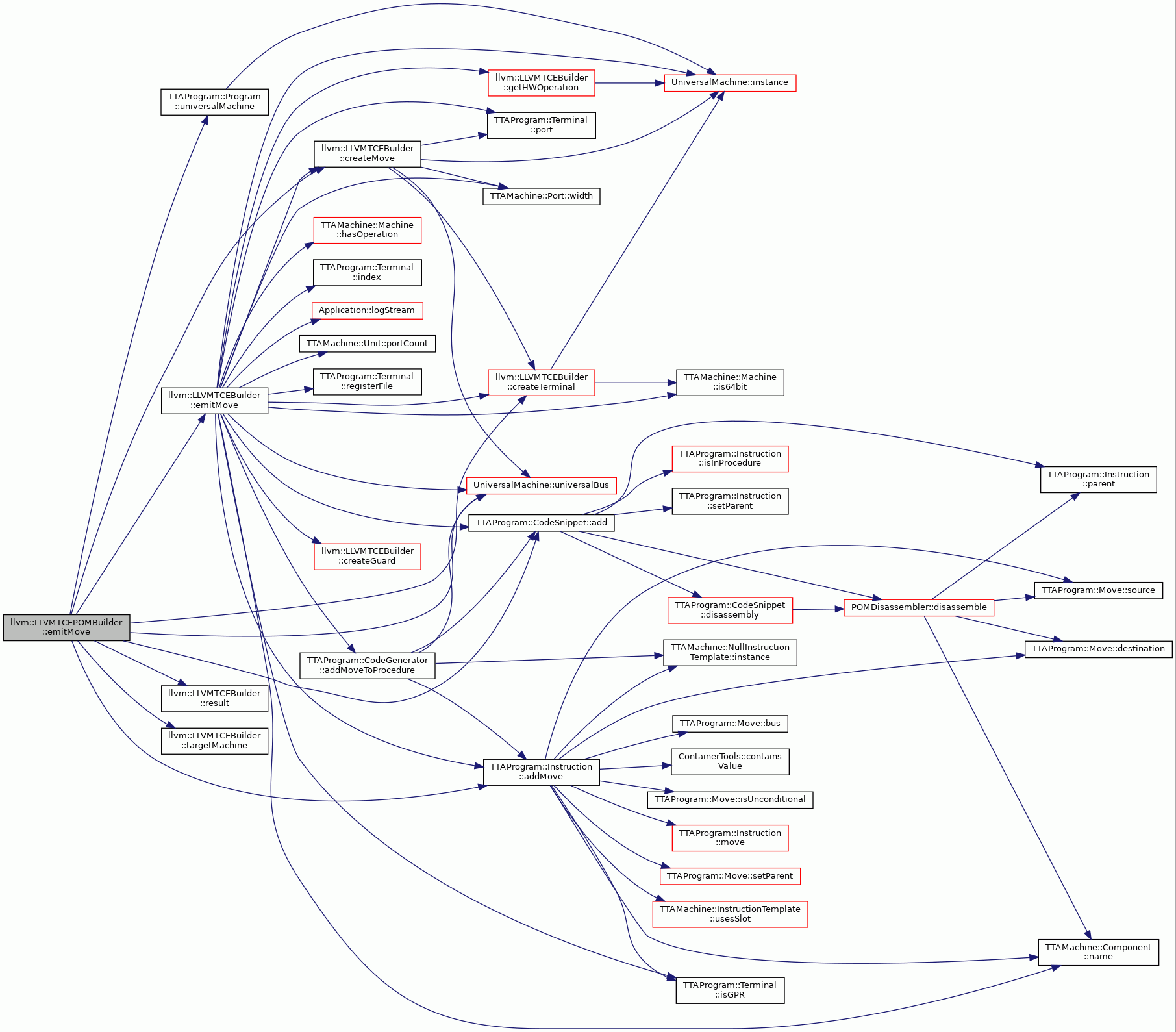

Here is the call graph for this function:

operationName()

TCEString llvm::LLVMTCEPOMBuilder::operationName ( const MachineInstr &  mi ) const

virtual

Implements llvm::LLVMTCEBuilder.

Definition at line 126 of file LLVMTCEPOMBuilder.cc.

                                                          {
    return "MOVE";
}

Referenced by createFUTerminal().

raPortDRegNum()

unsigned llvm::LLVMTCEPOMBuilder::raPortDRegNum ( ) const

virtual

Implements llvm::LLVMTCEBuilder.

Definition at line 77 of file LLVMTCEPOMBuilder.cc.

                                       {
    return 1000001; // ;D
}

registerFileName()

TCEString llvm::LLVMTCEPOMBuilder::registerFileName ( unsigned  llvmRegNum ) const

virtual

Implements llvm::LLVMTCEBuilder.

Definition at line 82 of file LLVMTCEPOMBuilder.cc.

                                                             {

    if (llvmRegNum == 1000000)
        return "RF"; /* temp hack, always assume SP is the RF.4 */
    abortWithError("Unimplemented.");
}

References abortWithError.

registerIndex()

int llvm::LLVMTCEPOMBuilder::registerIndex ( unsigned  llvmRegNum ) const

virtual

Implements llvm::LLVMTCEBuilder.

Definition at line 90 of file LLVMTCEPOMBuilder.cc.

                                                          {

    if (llvmRegNum == 1000000)
        return 4; /* temp hack, always assume SP is the RF.4 */
    abortWithError("Unimplemented.");
}

References abortWithError.

spDRegNum()

unsigned llvm::LLVMTCEPOMBuilder::spDRegNum ( ) const

virtual

Implements llvm::LLVMTCEBuilder.

Definition at line 72 of file LLVMTCEPOMBuilder.cc.

                                   {
    return 1000000; // ;)
}

Member Data Documentation

ID

char llvm::LLVMTCEPOMBuilder::ID = 0

static

Definition at line 83 of file LLVMTCEPOMBuilder.hh.

---

The documentation for this class was generated from the following files:

• LLVMTCEPOMBuilder.hh
• LLVMTCEPOMBuilder.cc
