CreateBEM.cc File Reference

#include <iostream>
#include <string>
#include "BEMGeneratorCmdLineOptions.hh"
#include "BEMSerializer.hh"
#include "BEMGenerator.hh"
#include "BinaryEncoding.hh"
#include "Machine.hh"
#include "ADFSerializer.hh"
#include "FileSystem.hh"

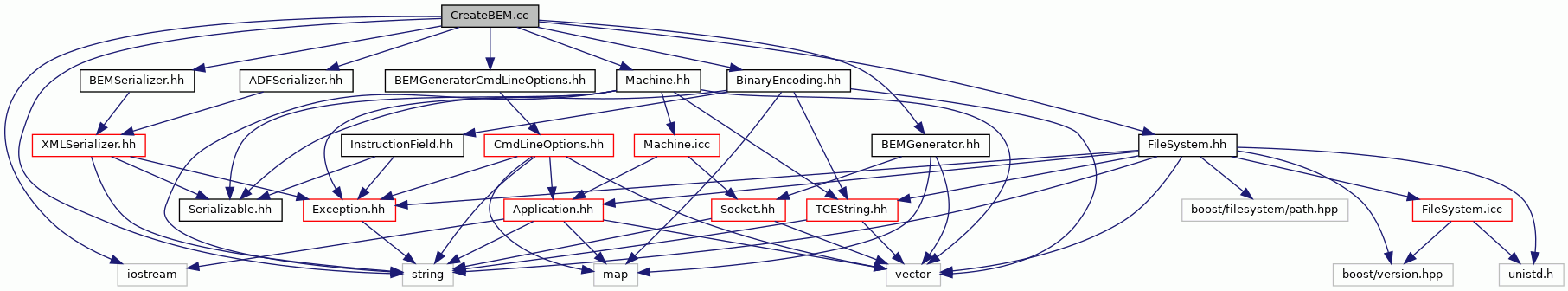

Include dependency graph for CreateBEM.cc:

Go to the source code of this file.

Functions
static Machine *	loadMachine (const std::string &adfFile)
static std::string	outputFileName (const std::string &adfFile)
int	main (int argc, char *argv[])

Detailed Description

Implements the main function of createbem application which creates a binary encoding map.

Author

Lasse Laasonen 2005 (lasse.laasonen-no.spam-tut.fi)

Note

rating: red

Definition in file CreateBEM.cc.

Function Documentation

loadMachine()

static Machine * loadMachine ( const std::string &  adfFile )

static

Loads the given ADF file and creates a Machine instance from it.

Parameters

adfFile

The ADF file.

Returns

The newly created Machine instance.

Exceptions

SerializerException	If an error occurs while reading the file.
ObjectStateLoadingException	If an error occurs while loading the state of Machine instance.

Definition at line 62 of file CreateBEM.cc.

                                      {
    ADFSerializer serializer;
    serializer.setSourceFile(adfFile);
    return serializer.readMachine();
}

References ADFSerializer::readMachine(), and XMLSerializer::setSourceFile().

Referenced by main().

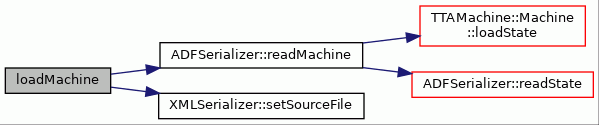

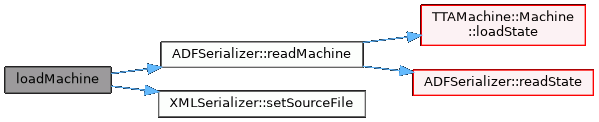

Here is the call graph for this function:

main()

int main	(	int	argc,
		char *	argv[]
	)

The main function.

Definition at line 86 of file CreateBEM.cc.

                                 {
    BEMGeneratorCmdLineOptions options;
    try {
        options.parse(argv, argc);
    } catch (ParserStopRequest const&) {
        return EXIT_SUCCESS;
    } catch (const IllegalCommandLine& exception) {
        cerr << exception.errorMessage() << endl;
        return EXIT_FAILURE;
    }

    string adfFile = options.adfFile();
    string outputFile = options.outputFile();
    if (adfFile == "") {
        options.printHelp();
        return EXIT_FAILURE;
    }

    Machine* mach = NULL;
    try {
        mach = loadMachine(adfFile);
    } catch (const Exception& e) {
        cerr << "Error while loading machine from adf:" << endl
             << e.fileName() << ", line: " << e.lineNum() << endl
             << e.errorMessage() << endl;
        return EXIT_FAILURE;
    }

    BEMGenerator generator(*mach);
    BinaryEncoding* bem = generator.generate();

    BEMSerializer serializer;

    if (outputFile == "") {
        outputFile = outputFileName(adfFile);
    }

    serializer.setDestinationFile(outputFile);
    serializer.writeBinaryEncoding(*bem);

    delete mach;
    delete bem;

    return EXIT_SUCCESS;
}

References Exception::errorMessage(), Exception::fileName(), BEMGenerator::generate(), Exception::lineNum(), loadMachine(), options, outputFileName(), CmdLineOptions::parse(), MachInfoCmdLineOptions::printHelp(), XMLSerializer::setDestinationFile(), and BEMSerializer::writeBinaryEncoding().

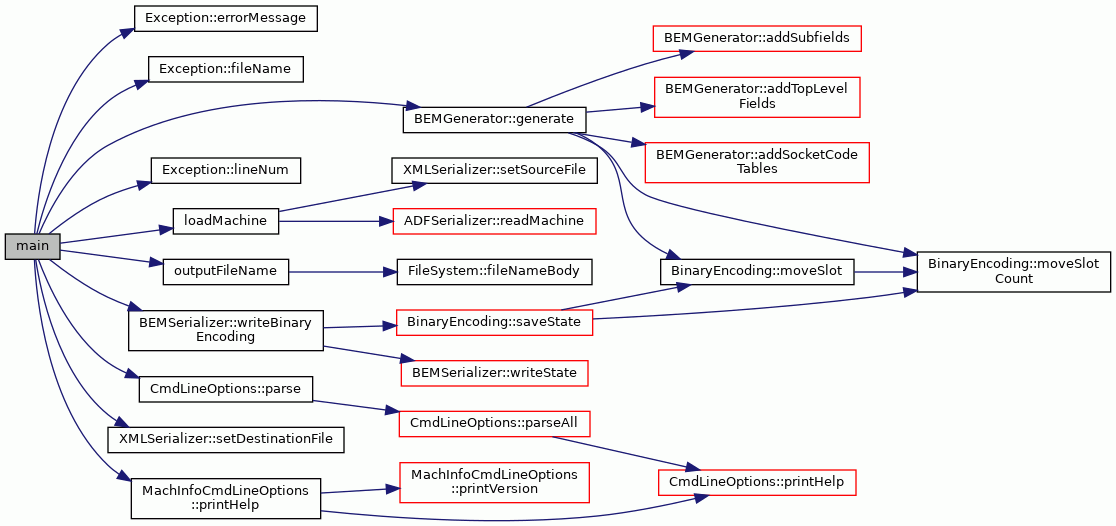

Here is the call graph for this function:

outputFileName()

static std::string outputFileName ( const std::string &  adfFile )

static

Generates the name of the output file from the given ADF file name.

The generated name has same body but .bem suffix.

Parameters

adfFile

The name of the ADF file.

Returns

The name of the output file.

Definition at line 77 of file CreateBEM.cc.

                                         {
    string file = FileSystem::fileNameBody(adfFile);
    return file + ".bem";
}

References FileSystem::fileNameBody().

Referenced by main(), and SOPCBuilderFileGenerator::writeProjectFiles().

Here is the call graph for this function:
