AddIUFromHDBDialog Class Reference

#include <AddIUFromHDBDialog.hh>

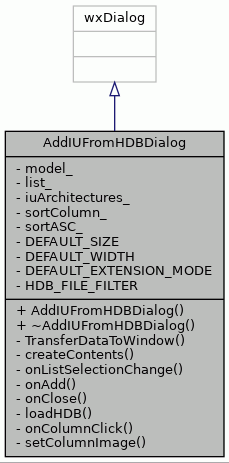

Inheritance diagram for AddIUFromHDBDialog:

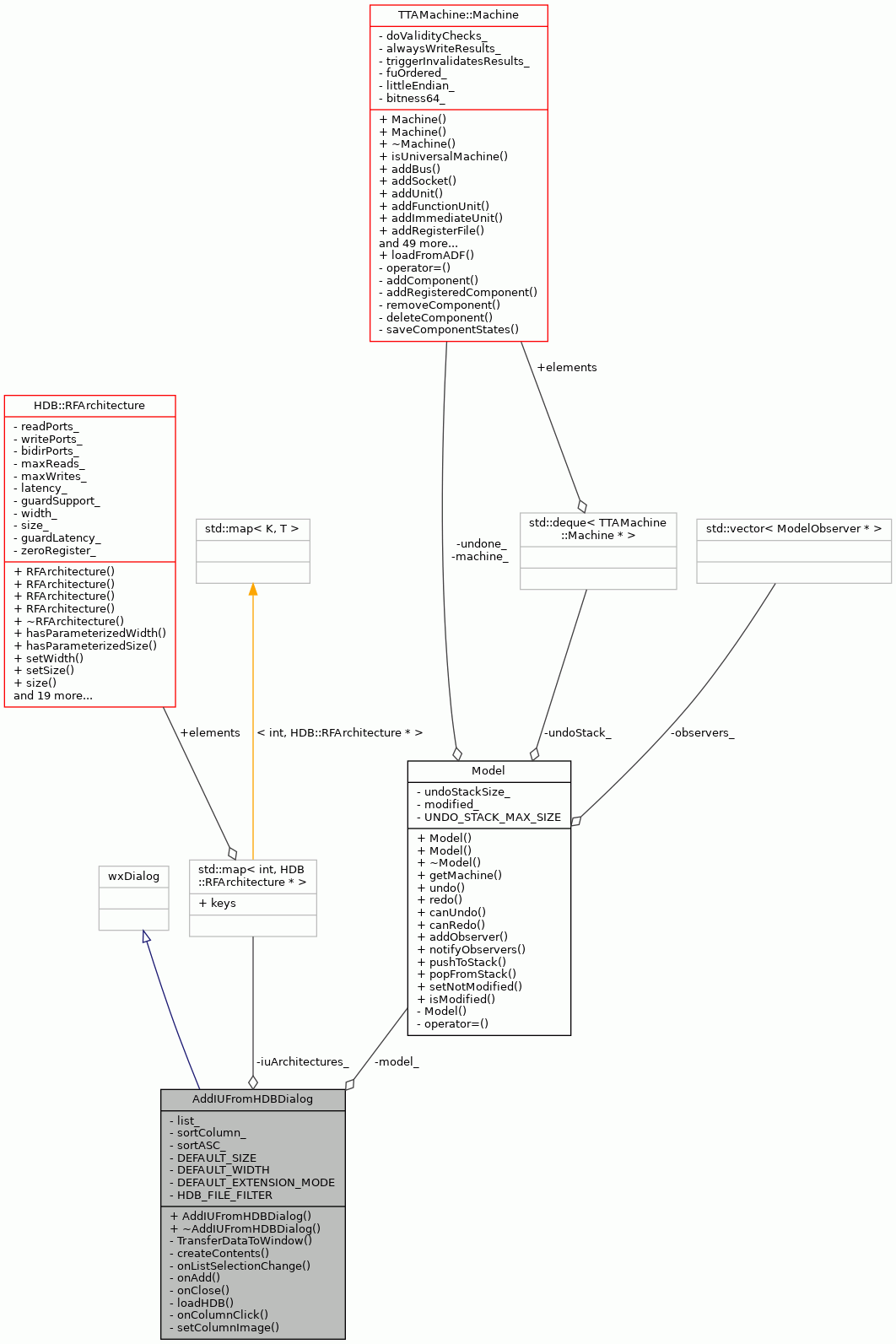

Collaboration diagram for AddIUFromHDBDialog:

Public Member Functions
	AddIUFromHDBDialog (wxWindow *parent, Model *model)
virtual	~AddIUFromHDBDialog ()

Private Types
enum	{ ID_LIST = 10000 , ID_ADD , ID_CLOSE , ID_LINE }

Private Member Functions
virtual bool	TransferDataToWindow ()
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
void	onListSelectionChange (wxListEvent &event)
void	onAdd (wxCommandEvent &event)
void	onClose (wxCommandEvent &event)
bool	loadHDB (const std::string &path)
void	onColumnClick (wxListEvent &event)
void	setColumnImage (int col, int image)

Private Attributes
Model *	model_
	Model of the current adf file.
wxListCtrl *	list_
	Immediate slot list widget.
std::map< int, HDB::RFArchitecture * >	iuArchitectures_
	Map of iu architectures displayed in the dialog list.
int	sortColumn_
bool	sortASC_

Static Private Attributes
static const int	DEFAULT_SIZE = 1
	Default size for the IU, if the size is parameterized in the HDB.
static const int	DEFAULT_WIDTH = 32
	Default width for the IU, if the size is parameterized in the HDB.
static const TTAMachine::Machine::Extension	DEFAULT_EXTENSION_MODE
	Default extension mode for the immediate unit.
static const wxString	HDB_FILE_FILTER = _T("*.hdb")
	File filter for HDB files.

Detailed Description

Dialog for adding immediate unit architectures directly from HDB to the current machine.

Definition at line 61 of file AddIUFromHDBDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_LIST
ID_ADD
ID_CLOSE
ID_LINE

Definition at line 86 of file AddIUFromHDBDialog.hh.

         {
        ID_LIST = 10000,
        ID_ADD,
        ID_CLOSE,
        ID_LINE
    };

Constructor & Destructor Documentation

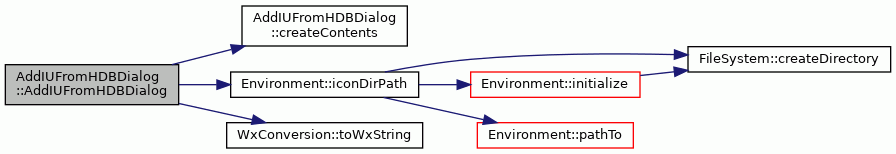

AddIUFromHDBDialog()

AddIUFromHDBDialog::AddIUFromHDBDialog	(	wxWindow *	parent,
		Model *	model
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
machine	Parent Machine of the immediate slots.

Definition at line 133 of file AddIUFromHDBDialog.cc.

                  :
    wxDialog(
        parent, -1, _T("HDB Immediate Units"),
        wxDefaultPosition, wxDefaultSize,
        wxDEFAULT_DIALOG_STYLE | wxRESIZE_BORDER),
    model_(model), sortColumn_(0), sortASC_(true) {

    createContents(this, true, true);
    SetSize(400, 300);

    list_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_LIST));

    list_->InsertColumn(0, _T("Width"), wxLIST_FORMAT_LEFT, wxLIST_AUTOSIZE);
    list_->InsertColumn(1, _T("Size"), wxLIST_FORMAT_LEFT, wxLIST_AUTOSIZE);
    list_->InsertColumn(2, _T("Read ports"), wxLIST_FORMAT_LEFT, 100);
    //list_->InsertColumn(5, _T("Max Reads"));
    //list_->InsertColumn(6, _T("Max RW"));
    list_->InsertColumn(3, _T("Latency"), wxLIST_FORMAT_LEFT, wxLIST_AUTOSIZE);
    list_->InsertColumn(4, _T("ID"), wxLIST_FORMAT_LEFT, wxLIST_AUTOSIZE);
    list_->InsertColumn(5, _T("HDB"), wxLIST_FORMAT_LEFT, wxLIST_AUTOSIZE);

    string iconPath =
        Environment::iconDirPath() + FileSystem::DIRECTORY_SEPARATOR;

    wxImageList* imageList = new wxImageList(13, 17);
    imageList->Add(wxIcon(
        WxConversion::toWxString(iconPath + ProDeConstants::ICON_SORT_DESC)));
    imageList->Add(wxIcon(
        WxConversion::toWxString(iconPath + ProDeConstants::ICON_SORT_ASC)));
    list_->SetImageList(imageList, wxIMAGE_LIST_SMALL);

    // Disable conditional buttons.
    FindWindow(ID_ADD)->Disable();
}

References createContents(), FileSystem::DIRECTORY_SEPARATOR, ProDeConstants::ICON_SORT_ASC, ProDeConstants::ICON_SORT_DESC, Environment::iconDirPath(), ID_ADD, ID_LIST, list_, and WxConversion::toWxString().

Here is the call graph for this function:

~AddIUFromHDBDialog()

AddIUFromHDBDialog::~AddIUFromHDBDialog ( )

virtual

The Destructor.

Definition at line 174 of file AddIUFromHDBDialog.cc.

                                        {
    MapTools::deleteAllValues(iuArchitectures_);
}

References MapTools::deleteAllValues(), and iuArchitectures_.

Here is the call graph for this function:

Member Function Documentation

createContents()

wxSizer * AddIUFromHDBDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog contents.

Parameters

parent	Parent dialog of the contents.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Returns

Top level sizer of the dialog contents.

Definition at line 402 of file AddIUFromHDBDialog.cc.

                                                     {

    wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
    item0->AddGrowableCol( 0 );
    item0->AddGrowableRow( 0 );

    wxListCtrl *item1 = new wxListCtrl( parent, ID_LIST, wxDefaultPosition, wxSize(160,120), wxLC_REPORT|wxSUNKEN_BORDER );
    item0->Add( item1, 0, wxGROW|wxALL, 5 );

    wxButton *item2 = new wxButton( parent, ID_ADD, wxT("&Add"), wxDefaultPosition, wxDefaultSize, 0 );
    item0->Add( item2, 0, wxALIGN_RIGHT|wxALIGN_CENTER_VERTICAL|wxALL, 5 );

    wxStaticLine *item3 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item3, 0, wxGROW|wxALL, 5 );

    wxButton *item4 = new wxButton( parent, ID_CLOSE, wxT("&Close"), wxDefaultPosition, wxDefaultSize, 0 );
    item0->Add( item4, 0, wxALIGN_RIGHT|wxALIGN_CENTER_VERTICAL|wxALL, 5 );

    if (set_sizer) {
        parent->SetSizer( item0 );
        if (call_fit) {
            item0->SetSizeHints( parent );
        }
    }

    return item0;
}

References ID_ADD, ID_CLOSE, ID_LINE, and ID_LIST.

Referenced by AddIUFromHDBDialog().

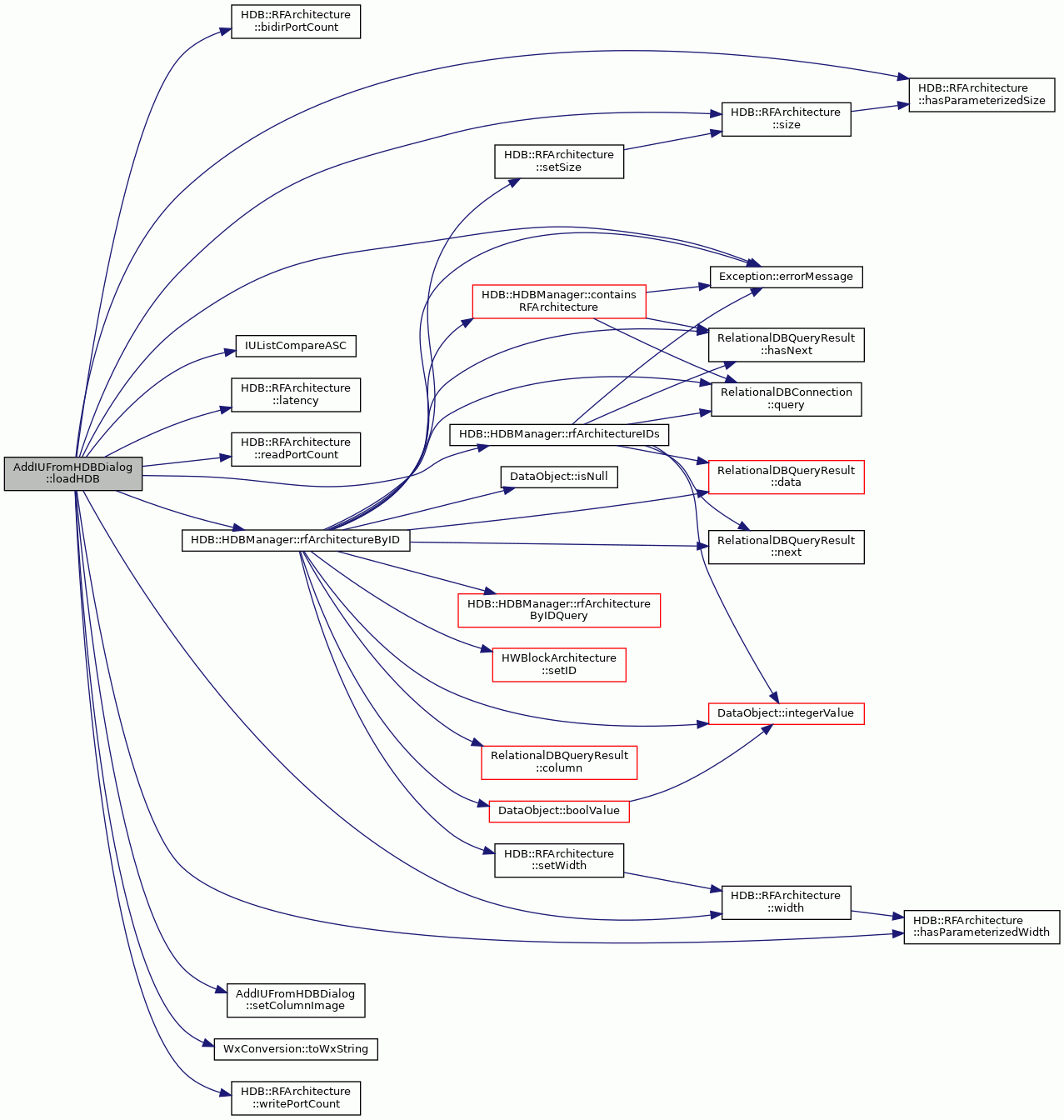

loadHDB()

bool AddIUFromHDBDialog::loadHDB ( const std::string &  path )

private

Loads immediate units from a HDB to the dialog list.

Parameters

path	Full path to the HDB file to load.

Returns

True, if the HDB was succesfully loaded.

Definition at line 241 of file AddIUFromHDBDialog.cc.

                                                 {

    HDBManager* manager = NULL;

    try {
        manager = &HDBRegistry::instance().hdb(path);
    } catch (Exception& e) {
        wxString message = _T("Unable to open HDB '");
        message.Append(WxConversion::toWxString(path));
        message.Append(_T("':'"));
        message.Append(WxConversion::toWxString(e.errorMessage()));
        WarningDialog dialog(this, message);
        dialog.ShowModal();
        return false;
    }

    const std::set<RowID> rfArchIDs = manager->rfArchitectureIDs();
    std::set<RowID>::iterator iter = rfArchIDs.begin();

    // Read properties of all immediate units in the HDB and append
    // data in the list widget.
    for (; iter != rfArchIDs.end(); iter++) {

        RFArchitecture* arch = manager->rfArchitectureByID(*iter);

        if (arch->writePortCount() != 1 ||
            arch->bidirPortCount() != 0) {

            // Register file architecture must contain one read port and
            // no bidirectional ports or it's not listed as an immediate
            // unit architecture.
            continue;
        }

        iuArchitectures_.insert(
            std::pair<int, RFArchitecture*>(list_->GetItemCount(), arch));

        ListItemData* lid = new ListItemData;

        if (arch->hasParameterizedWidth()) {
            list_->InsertItem(0, _T("param"));
            lid->width = 0;
        } else {
            list_->InsertItem(0, WxConversion::toWxString(arch->width()));
            lid->width = arch->width();
        }
        if (arch->hasParameterizedSize()) {
            list_->SetItem(0, 1, _T("param"));
            lid->size = 0;
        } else {
            list_->SetItem(0, 1, WxConversion::toWxString(arch->size()));
            lid->size = arch->size();
        }
        list_->SetItem(0, 2, WxConversion::toWxString(arch->readPortCount()));
        lid->readPorts = arch->readPortCount();
        list_->SetItem(0, 3, WxConversion::toWxString(arch->latency()));
        lid->latency = arch->latency();
        list_->SetItem(0, 4, WxConversion::toWxString(*iter));
        lid->hdbId = *iter;
        list_->SetItem(0, 5, WxConversion::toWxString(path));
        lid->path = WxConversion::toWxString(path);
        lid->id = list_->GetItemCount() - 1;
        list_->SetItemData(0, (long)lid);

    }
    // default sorting column is "Width"
    list_->SortItems(IUListCompareASC, 0);
    setColumnImage(0, sortASC_);

    return true;
}

References HDB::RFArchitecture::bidirPortCount(), Exception::errorMessage(), HDB::RFArchitecture::hasParameterizedSize(), HDB::RFArchitecture::hasParameterizedWidth(), HDB::HDBRegistry::hdb(), ListItemData::hdbId, ListItemData::id, HDB::HDBRegistry::instance(), iuArchitectures_, IUListCompareASC(), HDB::RFArchitecture::latency(), ListItemData::latency, list_, ListItemData::path, HDB::RFArchitecture::readPortCount(), ListItemData::readPorts, HDB::HDBManager::rfArchitectureByID(), HDB::HDBManager::rfArchitectureIDs(), setColumnImage(), HDB::RFArchitecture::size(), ListItemData::size, sortASC_, WxConversion::toWxString(), HDB::RFArchitecture::width(), ListItemData::width, and HDB::RFArchitecture::writePortCount().

Referenced by TransferDataToWindow().

Here is the call graph for this function:

onAdd()

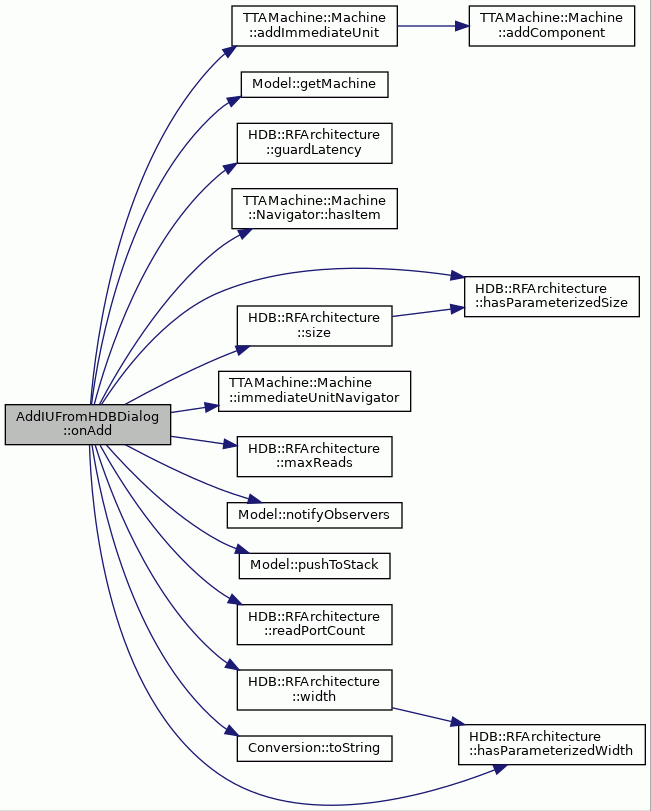

void AddIUFromHDBDialog::onAdd ( wxCommandEvent &  event )

private

Adds a new register file to the machine when "Add" button is pressed.

Definition at line 330 of file AddIUFromHDBDialog.cc.

                                         {

    long item = -1;
    item = list_->GetNextItem(item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
    if ( item == -1 ) return;

    ListItemData* lid = (ListItemData*)list_->GetItemData(item);
    int id = lid->id;
    const RFArchitecture* arch =
        MapTools::valueForKey<RFArchitecture*>(iuArchitectures_, id);

    Machine* machine = model_->getMachine();

    // Set size and width.
    int size = DEFAULT_SIZE;
    int width = DEFAULT_WIDTH;

    if (!arch->hasParameterizedWidth()) {
        size = arch->width();
    }

    if (!arch->hasParameterizedSize()) {
        size = arch->size();
    }

    // Generate name for the new immediate unit.
    string name =
        "IU_" + Conversion::toString(size) + "x" + Conversion::toString(width);

    string iuName = name;
    int idx = 1;
    while (machine->immediateUnitNavigator().hasItem(iuName)) {
        iuName = name + "_" + Conversion::toString(idx);
        idx++;
    }

    int maxReads = arch->maxReads();
    int guardLatency = arch->guardLatency();

    // Create an immediate unit object and attach it to the machine.
    ImmediateUnit* iu = new ImmediateUnit(
        iuName, size, width, maxReads, guardLatency, DEFAULT_EXTENSION_MODE);

    for (int i = 0; i < arch->readPortCount(); i++) {
        string name = "r" + Conversion::toString(i);
        new RFPort(name, *iu);
    }

    model_->pushToStack();
    machine->addImmediateUnit(*iu);
    model_->notifyObservers();

}

References TTAMachine::Machine::addImmediateUnit(), DEFAULT_EXTENSION_MODE, DEFAULT_SIZE, DEFAULT_WIDTH, Model::getMachine(), HDB::RFArchitecture::guardLatency(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), HDB::RFArchitecture::hasParameterizedSize(), HDB::RFArchitecture::hasParameterizedWidth(), ListItemData::id, TTAMachine::Machine::immediateUnitNavigator(), iuArchitectures_, MapTools::keyForValue(), list_, machine, HDB::RFArchitecture::maxReads(), model_, Model::notifyObservers(), Model::pushToStack(), HDB::RFArchitecture::readPortCount(), HDB::RFArchitecture::size(), Conversion::toString(), and HDB::RFArchitecture::width().

Here is the call graph for this function:

onClose()

void AddIUFromHDBDialog::onClose ( wxCommandEvent &  event )

private

Closes the dialog when the close button is pressed.

Definition at line 388 of file AddIUFromHDBDialog.cc.

                                           {
    Close();
}

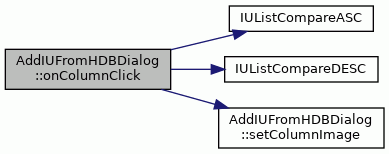

onColumnClick()

void AddIUFromHDBDialog::onColumnClick ( wxListEvent &  event )

private

Sorts HDB IU list according to clicked column.

Definition at line 436 of file AddIUFromHDBDialog.cc.

                                                    {

    int clickedColumn = event.GetColumn();

    if (clickedColumn == sortColumn_) {
        sortASC_ = !sortASC_;
    } else {
        sortASC_ = true;
        setColumnImage(sortColumn_, -1);    // removes arrow from old column
        sortColumn_ = clickedColumn;
    }

    setColumnImage(clickedColumn, sortASC_);

    if (sortASC_) {
        list_->SortItems(IUListCompareASC, clickedColumn);
    } else {
        list_->SortItems(IUListCompareDESC, clickedColumn);
    }
}

References IUListCompareASC(), IUListCompareDESC(), list_, setColumnImage(), sortASC_, and sortColumn_.

Here is the call graph for this function:

onListSelectionChange()

void AddIUFromHDBDialog::onListSelectionChange ( wxListEvent &  event )

private

Enables and disables the delete button according to slot list selection.

Definition at line 317 of file AddIUFromHDBDialog.cc.

                                                      {
    if (list_->GetSelectedItemCount() == 1) {
        FindWindow(ID_ADD)->Enable();
    } else {
        FindWindow(ID_ADD)->Disable();
    }
}

References ID_ADD, and list_.

setColumnImage()

void AddIUFromHDBDialog::setColumnImage ( int  col, int  image  )

private

Sets sorting arrow image on selected column

Parameters

col	Column index to set the image
image	Image index in wxImageList

Definition at line 465 of file AddIUFromHDBDialog.cc.

                                                     {
    wxListItem item;
    item.SetMask(wxLIST_MASK_IMAGE);
    item.SetImage(image);
    list_->SetColumn(col, item);
}

References list_.

Referenced by loadHDB(), and onColumnClick().

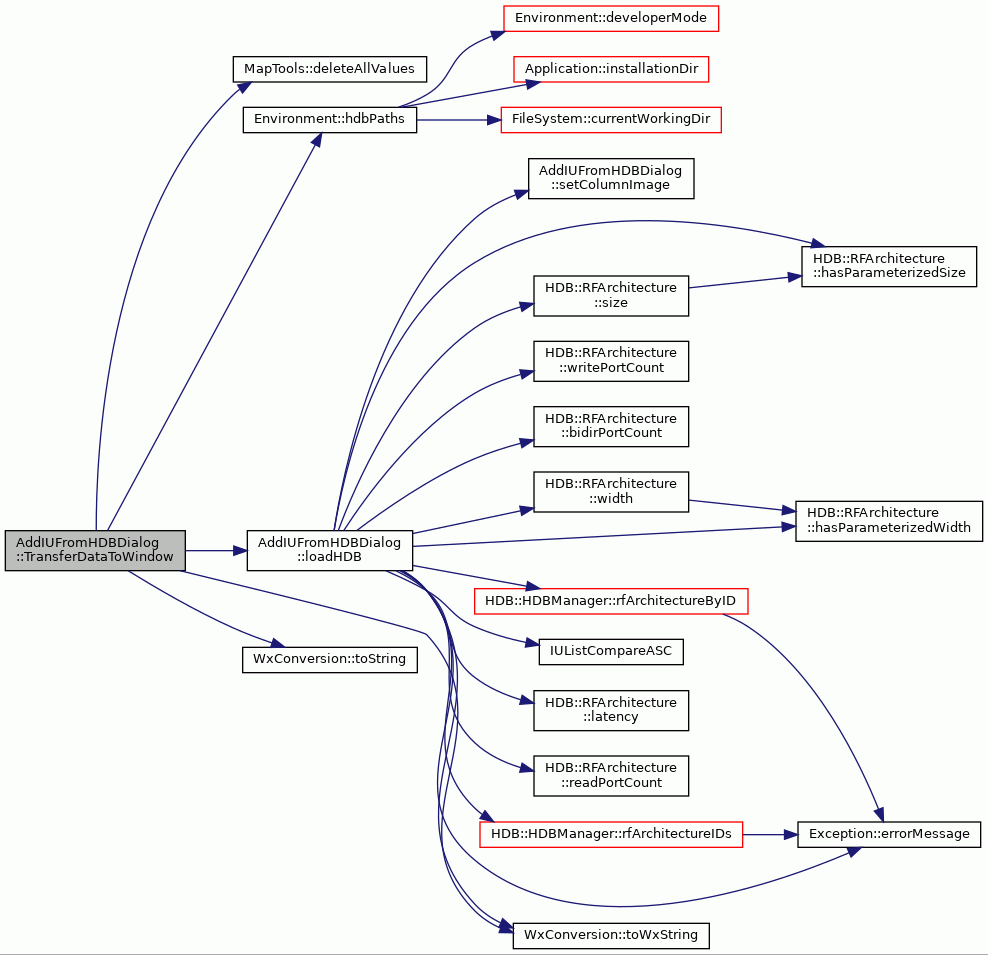

TransferDataToWindow()

bool AddIUFromHDBDialog::TransferDataToWindow ( )

privatevirtual

Transfers data from the HDBs to the dialog list.

Returns

True, if the the data transfer was succesful.

Definition at line 185 of file AddIUFromHDBDialog.cc.

                                         {

    MapTools::deleteAllValues(iuArchitectures_);
    list_->DeleteAllItems();


    const std::vector<string> hdbPaths = Environment::hdbPaths();
    std::vector<string>::const_iterator hdbIter = hdbPaths.begin();

    wxString paths;
    bool hdbsFound = false;

    // Read all hdb files found in the search directories.
    for(; hdbIter != hdbPaths.end(); hdbIter++) {

        wxString file;
        wxString hdbPath = WxConversion::toWxString(*hdbIter);
        paths.Append(hdbPath);
        paths.Append(_T("\n"));
        wxDir dir;

        if (dir.Exists(hdbPath) &&
            dir.Open(hdbPath) &&
            dir.GetFirst(&file, HDB_FILE_FILTER)) {

            do {
                string path = *hdbIter + FileSystem::DIRECTORY_SEPARATOR +
                    WxConversion::toString(file);

                if (loadHDB(path)) {
                    hdbsFound = true;
                }
            } while (dir.GetNext(&file));

        }

    }

    if (!hdbsFound) {
        wxString message = _T("No HDBs found in HDB search paths:\n");
        message.Append(paths);
        WarningDialog dialog(this, message);
        dialog.ShowModal();
    }

    list_->SetColumnWidth(5, wxLIST_AUTOSIZE);
    return wxDialog::TransferDataToWindow();
}

References MapTools::deleteAllValues(), FileSystem::DIRECTORY_SEPARATOR, HDB_FILE_FILTER, Environment::hdbPaths(), iuArchitectures_, list_, loadHDB(), WxConversion::toString(), and WxConversion::toWxString().

Here is the call graph for this function:

Member Data Documentation

DEFAULT_EXTENSION_MODE

const Machine::Extension AddIUFromHDBDialog::DEFAULT_EXTENSION_MODE

staticprivate

Initial value:

=
    Machine::ZERO

Default extension mode for the immediate unit.

Definition at line 98 of file AddIUFromHDBDialog.hh.

Referenced by onAdd().

DEFAULT_SIZE

const int AddIUFromHDBDialog::DEFAULT_SIZE = 1

staticprivate

Default size for the IU, if the size is parameterized in the HDB.

Definition at line 94 of file AddIUFromHDBDialog.hh.

Referenced by onAdd().

DEFAULT_WIDTH

const int AddIUFromHDBDialog::DEFAULT_WIDTH = 32

staticprivate

Default width for the IU, if the size is parameterized in the HDB.

Definition at line 96 of file AddIUFromHDBDialog.hh.

Referenced by onAdd().

HDB_FILE_FILTER

const wxString AddIUFromHDBDialog::HDB_FILE_FILTER = _T("*.hdb")

staticprivate

File filter for HDB files.

Definition at line 100 of file AddIUFromHDBDialog.hh.

Referenced by TransferDataToWindow().

iuArchitectures_

std::map<int, HDB::RFArchitecture*> AddIUFromHDBDialog::iuArchitectures_

private

Map of iu architectures displayed in the dialog list.

Definition at line 81 of file AddIUFromHDBDialog.hh.

Referenced by loadHDB(), onAdd(), TransferDataToWindow(), and ~AddIUFromHDBDialog().

list_

wxListCtrl* AddIUFromHDBDialog::list_

private

Immediate slot list widget.

Definition at line 79 of file AddIUFromHDBDialog.hh.

Referenced by AddIUFromHDBDialog(), loadHDB(), onAdd(), onColumnClick(), onListSelectionChange(), setColumnImage(), and TransferDataToWindow().

model_

Model* AddIUFromHDBDialog::model_

private

Model of the current adf file.

Definition at line 77 of file AddIUFromHDBDialog.hh.

Referenced by onAdd().

sortASC_

bool AddIUFromHDBDialog::sortASC_

private

Definition at line 84 of file AddIUFromHDBDialog.hh.

Referenced by loadHDB(), and onColumnClick().

sortColumn_

int AddIUFromHDBDialog::sortColumn_

private

Definition at line 83 of file AddIUFromHDBDialog.hh.

Referenced by onColumnClick().

---

The documentation for this class was generated from the following files:

• AddIUFromHDBDialog.hh
• AddIUFromHDBDialog.cc
