#include <CentralizedControlICGenerator.hh>

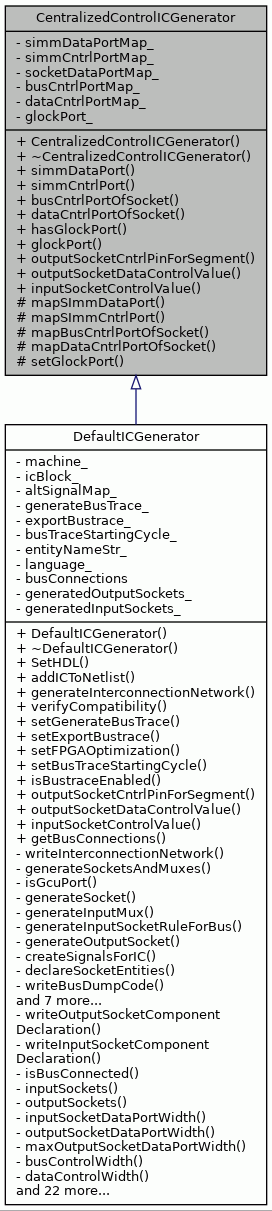

Inheritance diagram for CentralizedControlICGenerator:

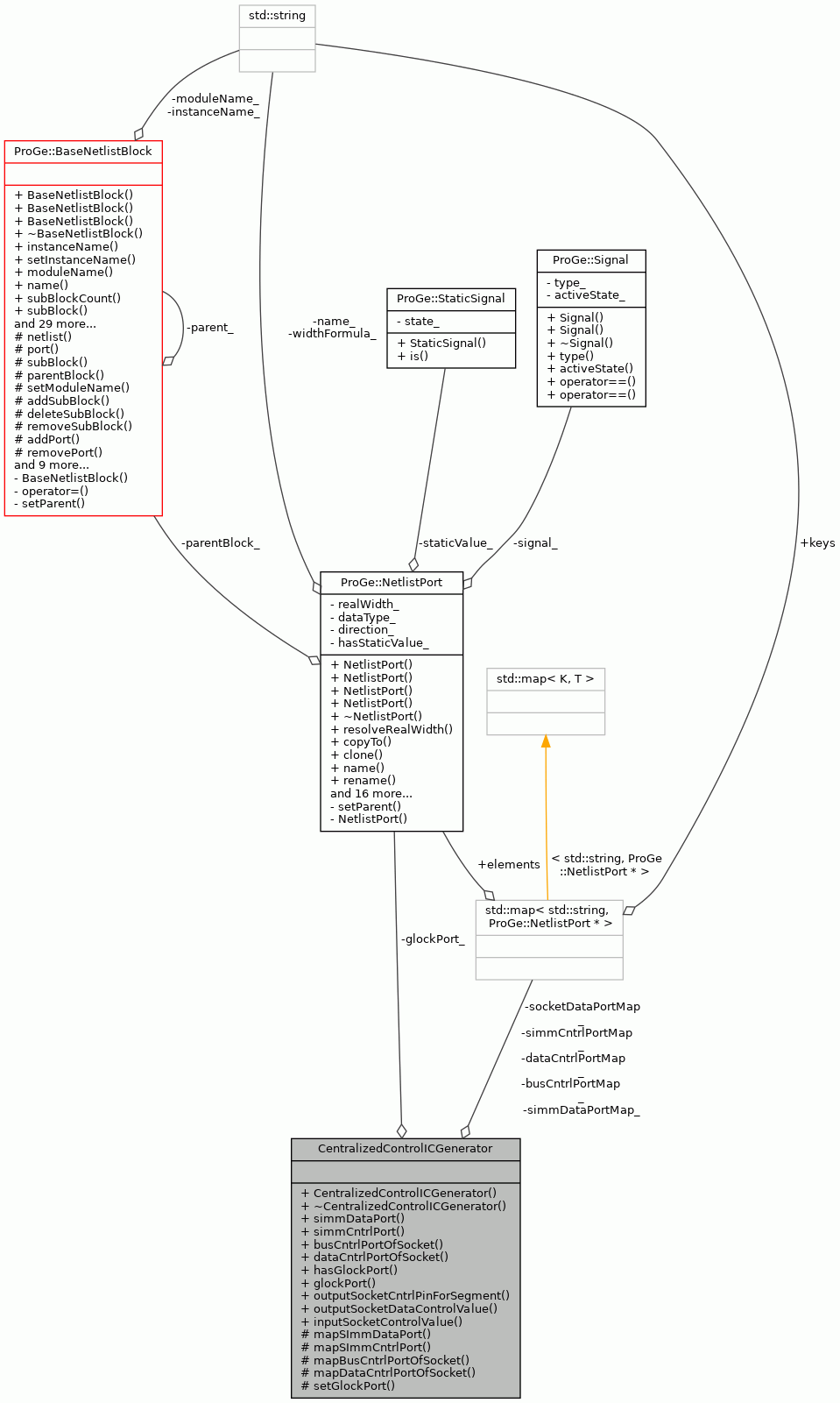

Collaboration diagram for CentralizedControlICGenerator:

Public Member Functions
	CentralizedControlICGenerator ()

virtual	~CentralizedControlICGenerator ()

ProGe::NetlistPort &	simmDataPort (const std::string &busName) const

ProGe::NetlistPort &	simmCntrlPort (const std::string &busName) const

ProGe::NetlistPort &	busCntrlPortOfSocket (const std::string &socketName) const

ProGe::NetlistPort &	dataCntrlPortOfSocket (const std::string &socketName) const

bool	hasGlockPort () const

ProGe::NetlistPort &	glockPort () const

virtual int	outputSocketCntrlPinForSegment (const TTAMachine::Socket &socket, const TTAMachine::Segment &segment) const =0

virtual int	outputSocketDataControlValue (const TTAMachine::Socket &socket, const TTAMachine::Port &port) const =0

virtual int	inputSocketControlValue (const TTAMachine::Socket &socket, const TTAMachine::Segment &segment) const =0

Protected Member Functions
void	mapSImmDataPort (const std::string &busName, ProGe::NetlistPort &port)

void	mapSImmCntrlPort (const std::string &busName, ProGe::NetlistPort &port)

void	mapBusCntrlPortOfSocket (const std::string &socketName, ProGe::NetlistPort &port)

void	mapDataCntrlPortOfSocket (const std::string &socketName, ProGe::NetlistPort &port)

void	setGlockPort (ProGe::NetlistPort &glockPort)

Private Types
typedef std::map< std::string, ProGe::NetlistPort * >	NetlistPortMap

Private Attributes
NetlistPortMap	simmDataPortMap_
	Maps the short immediate data ports for buses.

NetlistPortMap	simmCntrlPortMap_
	Maps the short immediate control ports for buses.

NetlistPortMap	socketDataPortMap_
	Maps the data ports of sockets.

NetlistPortMap	busCntrlPortMap_
	Maps the bus control ports of sockets.

NetlistPortMap	dataCntrlPortMap_
	Maps the data control ports of sockets.

ProGe::NetlistPort *	glockPort_
	(optional) Glock port

Detailed Description

Definition at line 52 of file CentralizedControlICGenerator.hh.

Member Typedef Documentation

◆ NetlistPortMap

typedef std::map<std::string, ProGe::NetlistPort*> CentralizedControlICGenerator::NetlistPortMap

private

Definition at line 90 of file CentralizedControlICGenerator.hh.

Constructor & Destructor Documentation

◆ CentralizedControlICGenerator()

CentralizedControlICGenerator::CentralizedControlICGenerator ( )

The constructor.

Definition at line 44 of file CentralizedControlICGenerator.cc.

                                                             :
    glockPort_(0) {
}

◆ ~CentralizedControlICGenerator()

CentralizedControlICGenerator::~CentralizedControlICGenerator ( )

virtual

The destructor.

Definition at line 52 of file CentralizedControlICGenerator.cc.

52 {

53}

Member Function Documentation

◆ busCntrlPortOfSocket()

ProGe::NetlistPort & CentralizedControlICGenerator::busCntrlPortOfSocket ( const std::string & socketName ) const

Returns the bus control port of the given socket in the IC block.

Parameters

socketName Name of the socket.

Returns: The netlist port that was added by the IC generator.

Exceptions

InstanceNotFound If the port was not created.

Definition at line 98 of file CentralizedControlICGenerator.cc.

                                       {
    try {
        return *MapTools::valueForKey<NetlistPort*>(busCntrlPortMap_, socketName);
    } catch (const Exception&) {
        throw InstanceNotFound(__FILE__, __LINE__, __func__);
    }
}

References __func__, busCntrlPortMap_, and MapTools::keyForValue().

Referenced by DefaultDecoderGenerator::completeDecoderBlock().

Here is the call graph for this function:

◆ dataCntrlPortOfSocket()

ProGe::NetlistPort & CentralizedControlICGenerator::dataCntrlPortOfSocket ( const std::string & socketName ) const

Returns the data control port of the given socket in the IC block.

Parameters

socketName Name of the socket.

Returns: The netlist port that was added by the IC generator.

Exceptions

InstanceNotFound If the port was not created.

Definition at line 115 of file CentralizedControlICGenerator.cc.

                                       {
    try {
        return *MapTools::valueForKey<NetlistPort*>(dataCntrlPortMap_, socketName);
    } catch (const Exception&) {
        throw InstanceNotFound(__FILE__, __LINE__, __func__);
    }
}

References __func__, dataCntrlPortMap_, and MapTools::keyForValue().

Referenced by DefaultDecoderGenerator::completeDecoderBlock().

Here is the call graph for this function:

◆ glockPort()

ProGe::NetlistPort & CentralizedControlICGenerator::glockPort ( ) const

Returns reference to NetlistPort of glock.

Exceptions

InstanceNotFound If IC does not have glock port.

Definition at line 139 of file CentralizedControlICGenerator.cc.

                                               {
    if (!hasGlockPort()) {
        throw InstanceNotFound(__FILE__, __LINE__, __func__,
            "IC does not have glock port.");
    } else {
        return *glockPort_;
    }
}

References __func__, glockPort_, and hasGlockPort().

Referenced by DefaultDecoderGenerator::addGlockPortToDecoder(), and setGlockPort().

Here is the call graph for this function:

◆ hasGlockPort()

bool CentralizedControlICGenerator::hasGlockPort ( ) const

Returns true if IC has glock port.

Definition at line 128 of file CentralizedControlICGenerator.cc.

                                                  {
    return (glockPort_ != 0);
}

References glockPort_.

Referenced by DefaultDecoderGenerator::addGlockPortToDecoder(), glockPort(), and DefaultDecoderGenerator::glockPortWidth().

◆ inputSocketControlValue()

virtual int CentralizedControlICGenerator::inputSocketControlValue	(	const TTAMachine::Socket &	socket,
		const TTAMachine::Segment &	segment
	)		const

pure virtual

Implemented in DefaultICGenerator.

Referenced by DefaultDecoderGenerator::writeControlRulesOfFUInputPort(), and DefaultDecoderGenerator::writeControlRulesOfRFWritePort().

◆ mapBusCntrlPortOfSocket()

void CentralizedControlICGenerator::mapBusCntrlPortOfSocket	(	const std::string &	socketName,
		ProGe::NetlistPort &	port
	)

protected

Maps the given bus control port for the given socket.

Parameters

socketName	Name of the socket.
port	The netlist port.

Definition at line 191 of file CentralizedControlICGenerator.cc.

                            {

    assert(!MapTools::containsKey(busCntrlPortMap_, socketName));
    busCntrlPortMap_.insert(
        std::pair<std::string, NetlistPort*>(socketName, &port));
}

References assert, busCntrlPortMap_, and MapTools::containsKey().

Referenced by DefaultICGenerator::addICToNetlist().

Here is the call graph for this function:

◆ mapDataCntrlPortOfSocket()

void CentralizedControlICGenerator::mapDataCntrlPortOfSocket	(	const std::string &	socketName,
		ProGe::NetlistPort &	port
	)

protected

Maps the given data control port for the given socket.

Parameters

socketName	Name of the socket.
port	The netlist port.

Definition at line 208 of file CentralizedControlICGenerator.cc.

                            {

    assert(!MapTools::containsKey(dataCntrlPortMap_, socketName));
    dataCntrlPortMap_.insert(
        std::pair<std::string, NetlistPort*>(socketName, &port));
}

References assert, MapTools::containsKey(), and dataCntrlPortMap_.

Referenced by DefaultICGenerator::addICToNetlist().

Here is the call graph for this function:

◆ mapSImmCntrlPort()

void CentralizedControlICGenerator::mapSImmCntrlPort	(	const std::string &	busName,
		ProGe::NetlistPort &	port
	)

protected

Maps the given netlist port as the short immediate control port of the given bus.

Parameters

busName	The bus.
port	The netlist port.

Definition at line 174 of file CentralizedControlICGenerator.cc.

                            {

    assert(!MapTools::containsKey(simmCntrlPortMap_, busName));
    simmCntrlPortMap_.insert(
        std::pair<std::string, NetlistPort*>(busName, &port));
}

References assert, MapTools::containsKey(), and simmCntrlPortMap_.

Referenced by DefaultICGenerator::addICToNetlist().

Here is the call graph for this function:

◆ mapSImmDataPort()

void CentralizedControlICGenerator::mapSImmDataPort	(	const std::string &	busName,
		ProGe::NetlistPort &	port
	)

protected

Maps the given netlist port as the short immediate data port of the given bus.

Parameters

busName	The bus.
port	The netlist port.

Definition at line 156 of file CentralizedControlICGenerator.cc.

                            {

    assert(!MapTools::containsKey(simmDataPortMap_, busName));
    simmDataPortMap_.insert(
        std::pair<std::string, NetlistPort*>(busName, &port));
}

References assert, MapTools::containsKey(), and simmDataPortMap_.

Referenced by DefaultICGenerator::addICToNetlist().

Here is the call graph for this function:

◆ outputSocketCntrlPinForSegment()

virtual int CentralizedControlICGenerator::outputSocketCntrlPinForSegment	(	const TTAMachine::Socket &	socket,
		const TTAMachine::Segment &	segment
	)		const

pure virtual

Implemented in DefaultICGenerator.

Referenced by DefaultDecoderGenerator::busCntrlSignalPinOfSocket().

◆ outputSocketDataControlValue()

virtual int CentralizedControlICGenerator::outputSocketDataControlValue	(	const TTAMachine::Socket &	socket,
		const TTAMachine::Port &	port
	)		const

pure virtual

Implemented in DefaultICGenerator.

Referenced by DefaultDecoderGenerator::writeControlRulesOfFUOutputPort(), and DefaultDecoderGenerator::writeControlRulesOfRFReadPort().

◆ setGlockPort()

void CentralizedControlICGenerator::setGlockPort ( ProGe::NetlistPort & glockPort )

protected

Sets optional glock port of IC.

Parameters

glockPort The glock port.

Definition at line 224 of file CentralizedControlICGenerator.cc.

                                                                       {
    assert(glockPort_ == 0);
    glockPort_ = &glockPort;
}

References assert, glockPort(), and glockPort_.

Referenced by DefaultICGenerator::addICToNetlist().

Here is the call graph for this function:

◆ simmCntrlPort()

ProGe::NetlistPort & CentralizedControlICGenerator::simmCntrlPort ( const std::string & busName ) const

Returns the short immediate control port for the given bus.

Parameters

busName Name of the bus.

Returns: The netlist port that was added by the IC generator.

Exceptions

InstanceNotFound If the port was not created.

Definition at line 81 of file CentralizedControlICGenerator.cc.

                                                                           {
    try {
        return *MapTools::valueForKey<NetlistPort*>(
            simmCntrlPortMap_, busName);
    } catch (const Exception&) {
        throw InstanceNotFound(__FILE__, __LINE__, __func__);
    }
}

References __func__, MapTools::keyForValue(), and simmCntrlPortMap_.

Here is the call graph for this function:

◆ simmDataPort()

ProGe::NetlistPort & CentralizedControlICGenerator::simmDataPort ( const std::string & busName ) const

Returns the short immediate data port for the given bus.

Parameters

busName Name of the bus.

Returns: The netlist port that was added by the IC generator.

Exceptions

InstanceNotFound If the port was not created.

Definition at line 64 of file CentralizedControlICGenerator.cc.

                                                                          {
    try {
        return *MapTools::valueForKey<NetlistPort*>(
            simmDataPortMap_, busName);
    } catch (const Exception&) {
        throw InstanceNotFound(__FILE__, __LINE__, __func__);
    }
}
