DefaultICGenerator Class Reference

#include <DefaultICGenerator.hh>

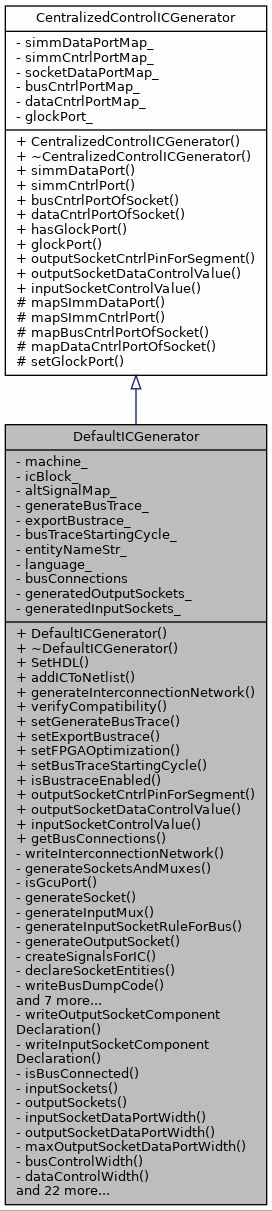

Inheritance diagram for DefaultICGenerator:

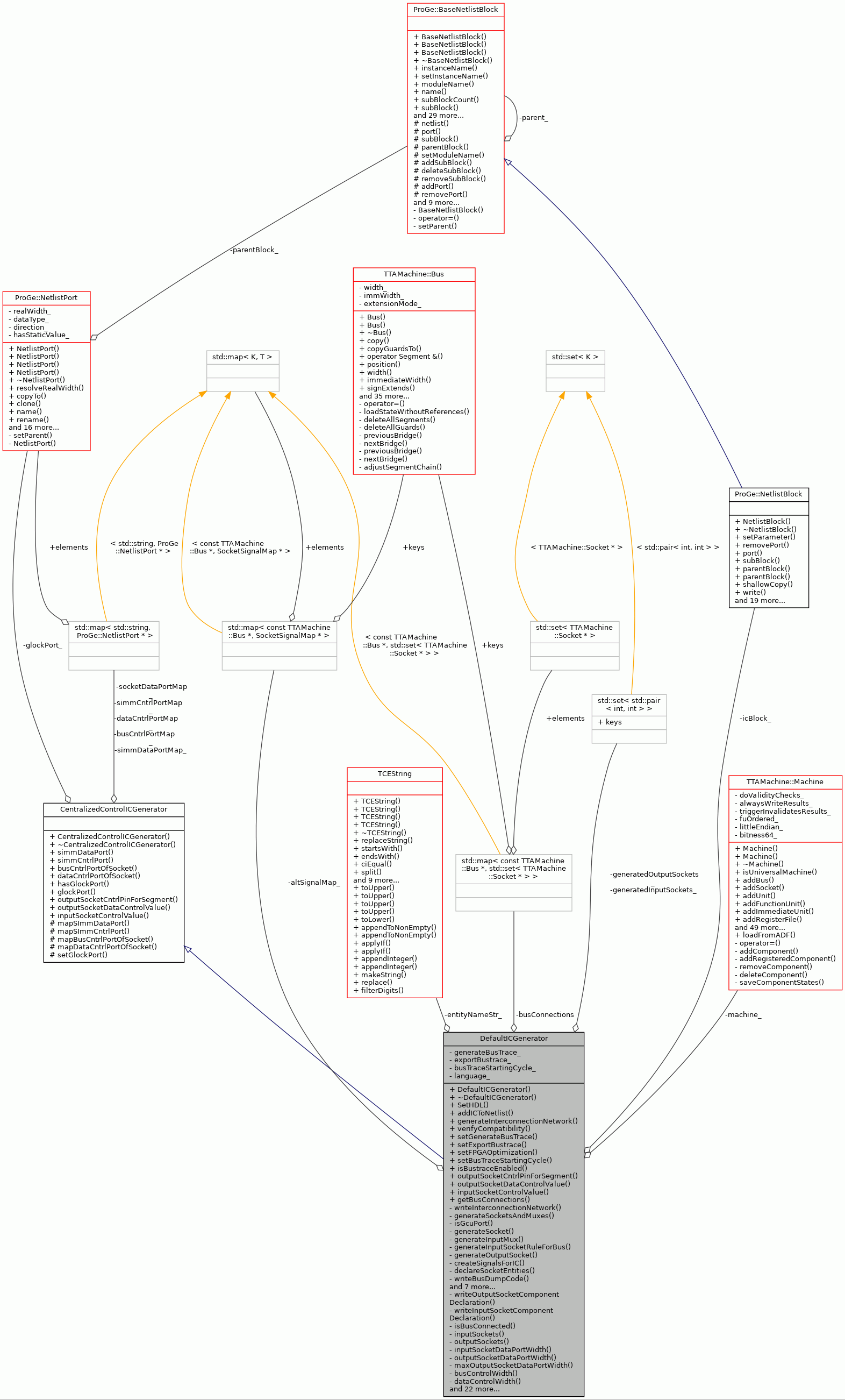

Collaboration diagram for DefaultICGenerator:

Public Types
typedef std::map< const TTAMachine::Bus *, std::set< TTAMachine::Socket * > >	BusSocketMap

Public Member Functions
	DefaultICGenerator (const TTAMachine::Machine &machine)
virtual	~DefaultICGenerator ()
void	SetHDL (ProGe::HDL language)
void	addICToNetlist (const ProGe::NetlistGenerator &generator, ProGe::NetlistBlock &netlistBlock)
void	generateInterconnectionNetwork (const std::string &dstDirectory)

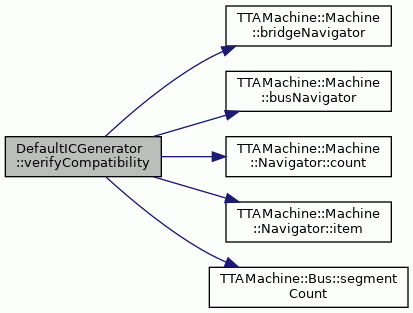

void	verifyCompatibility () const
void	setGenerateBusTrace (bool generate)
void	setExportBustrace (bool export_bt)
void	setFPGAOptimization (bool optimized)
void	setBusTraceStartingCycle (unsigned int cycle)
bool	isBustraceEnabled ()

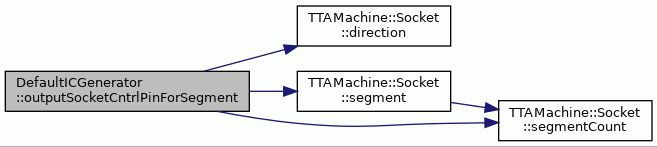

virtual int	outputSocketCntrlPinForSegment (const TTAMachine::Socket &socket, const TTAMachine::Segment &segment) const

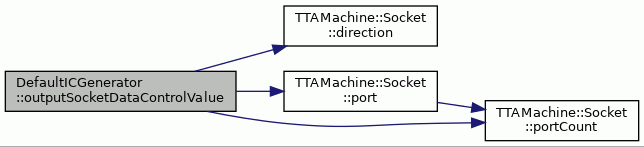

virtual int	outputSocketDataControlValue (const TTAMachine::Socket &socket, const TTAMachine::Port &port) const

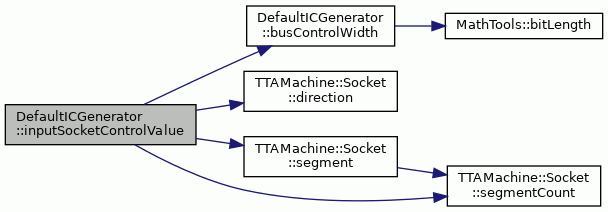

virtual int	inputSocketControlValue (const TTAMachine::Socket &socket, const TTAMachine::Segment &segment) const
virtual const BusSocketMap	getBusConnections () const
Public Member Functions inherited from CentralizedControlICGenerator
	CentralizedControlICGenerator ()
virtual	~CentralizedControlICGenerator ()
ProGe::NetlistPort &	simmDataPort (const std::string &busName) const
ProGe::NetlistPort &	simmCntrlPort (const std::string &busName) const
ProGe::NetlistPort &	busCntrlPortOfSocket (const std::string &socketName) const
ProGe::NetlistPort &	dataCntrlPortOfSocket (const std::string &socketName) const
bool	hasGlockPort () const
ProGe::NetlistPort &	glockPort () const

Private Types
typedef std::map< const TTAMachine::Socket *, int >	SocketSignalMap
typedef std::map< const TTAMachine::Bus *, SocketSignalMap * >	BusAltSignalMap

Private Member Functions

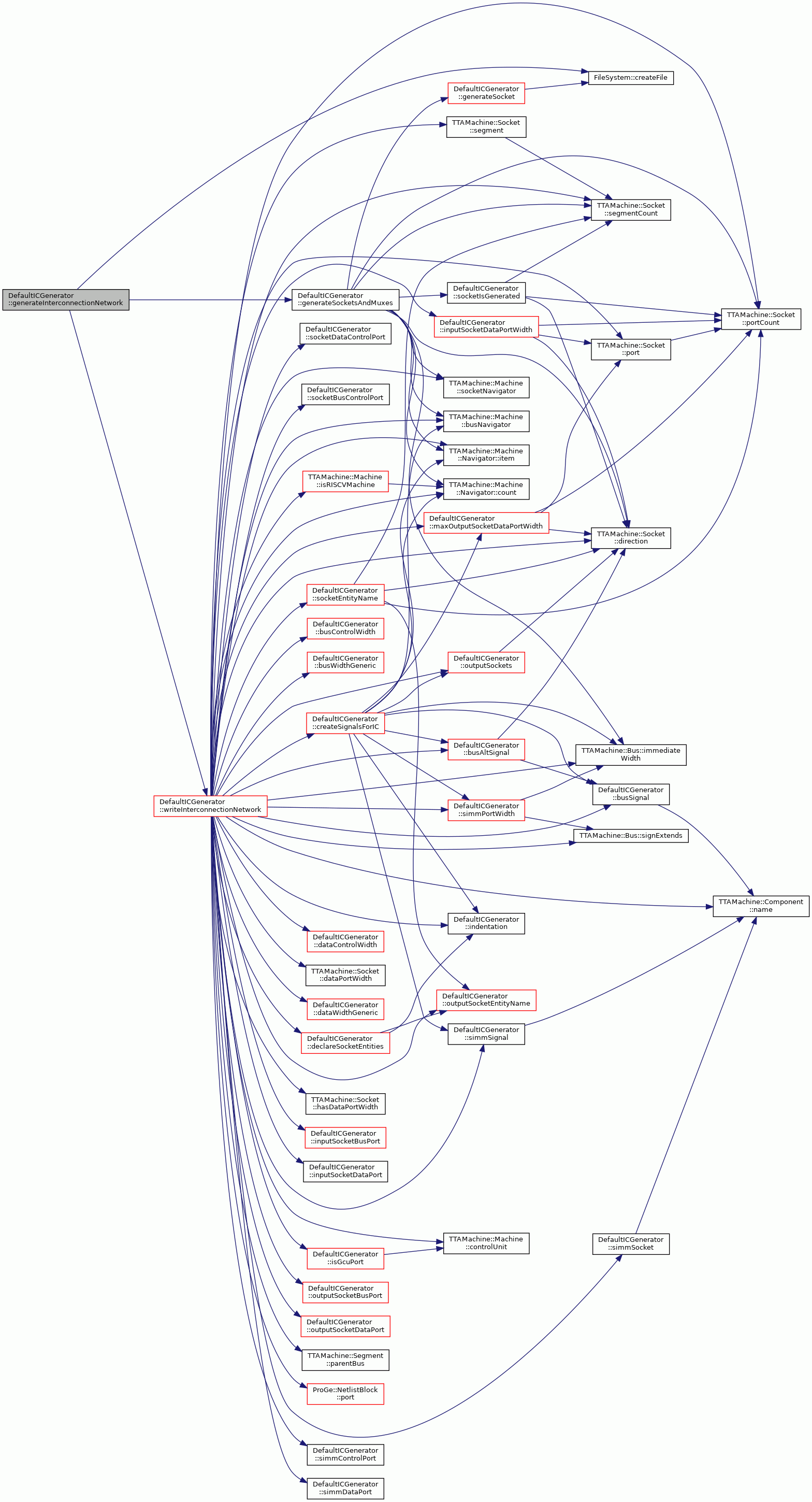

void	writeInterconnectionNetwork (std::ostream &stream)

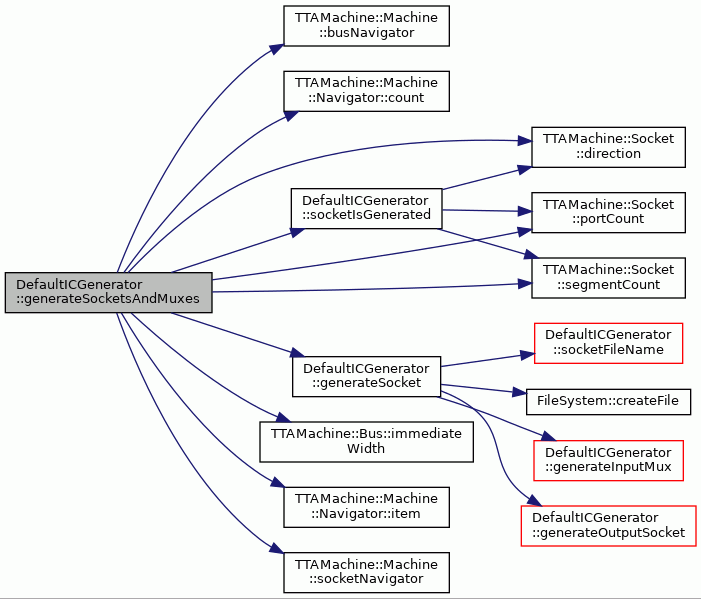

void	generateSocketsAndMuxes (const std::string &dstDirectory)

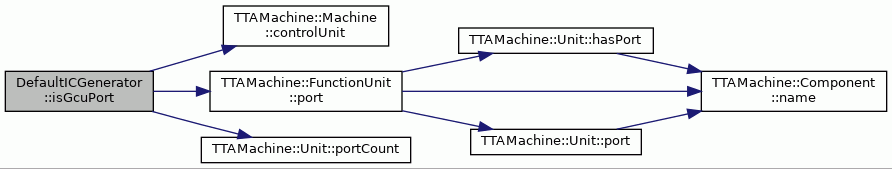

bool	isGcuPort (const TTAMachine::Port *port) const

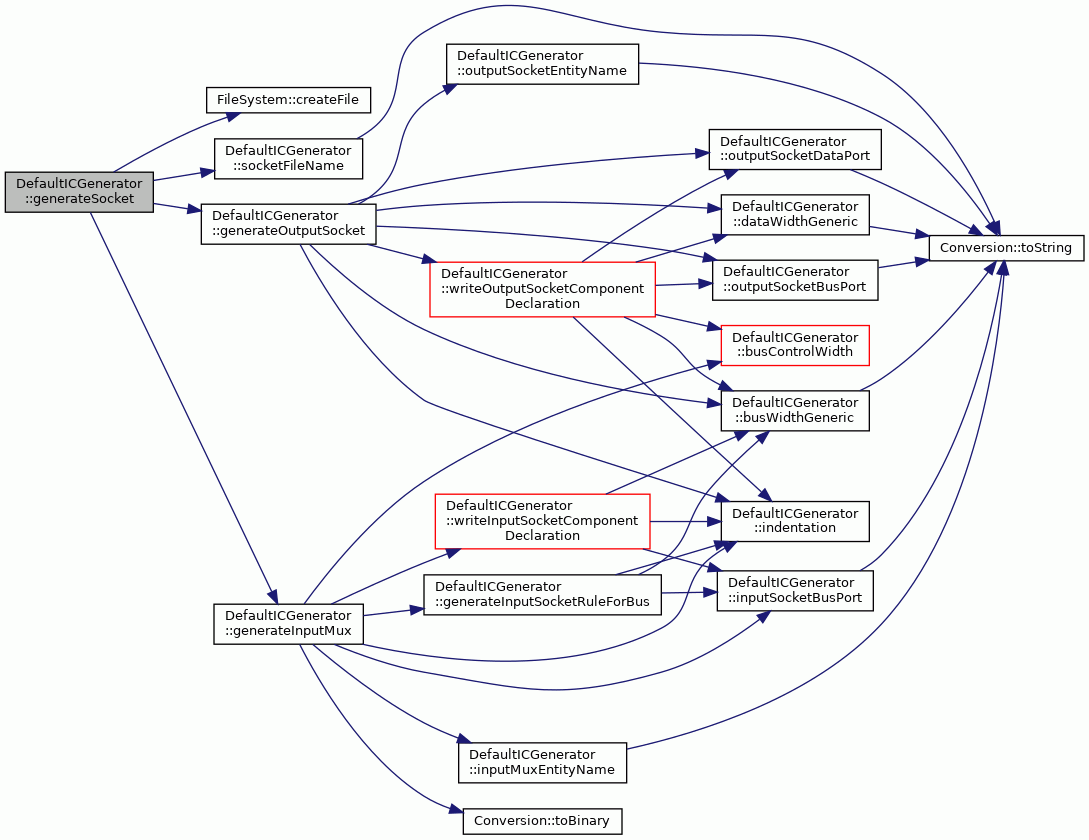

void	generateSocket (TTAMachine::Socket::Direction direction, int portConns, int segmentConns, const std::string &dstDirectory) const

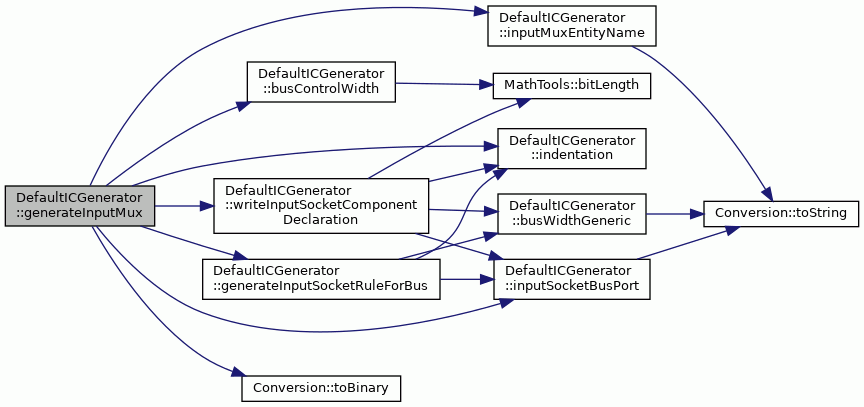

void	generateInputMux (int segmentConns, std::ofstream &stream) const

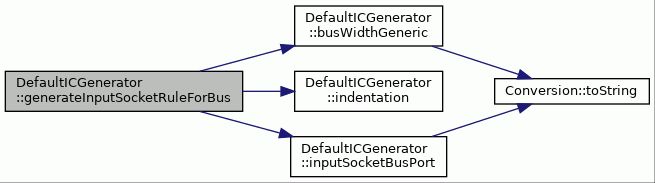

void	generateInputSocketRuleForBus (int bus, int ind, std::ofstream &stream) const

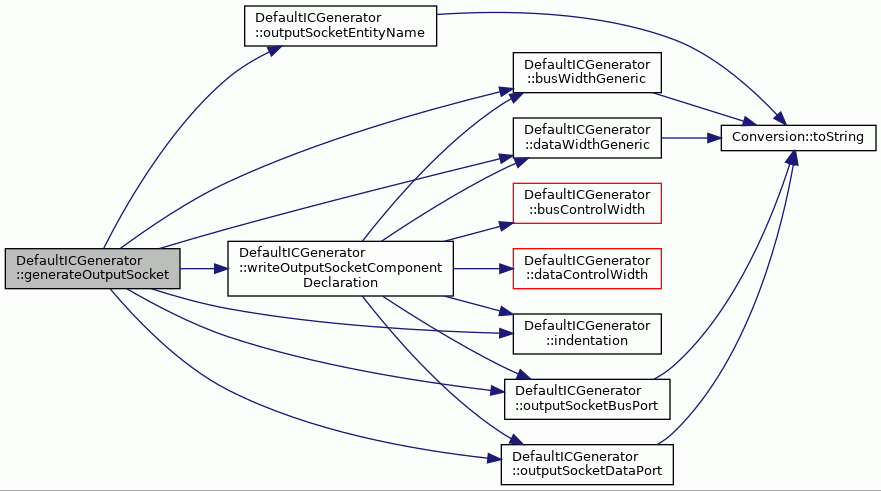

void	generateOutputSocket (int portConns, int segmentConns, std::ofstream &stream) const

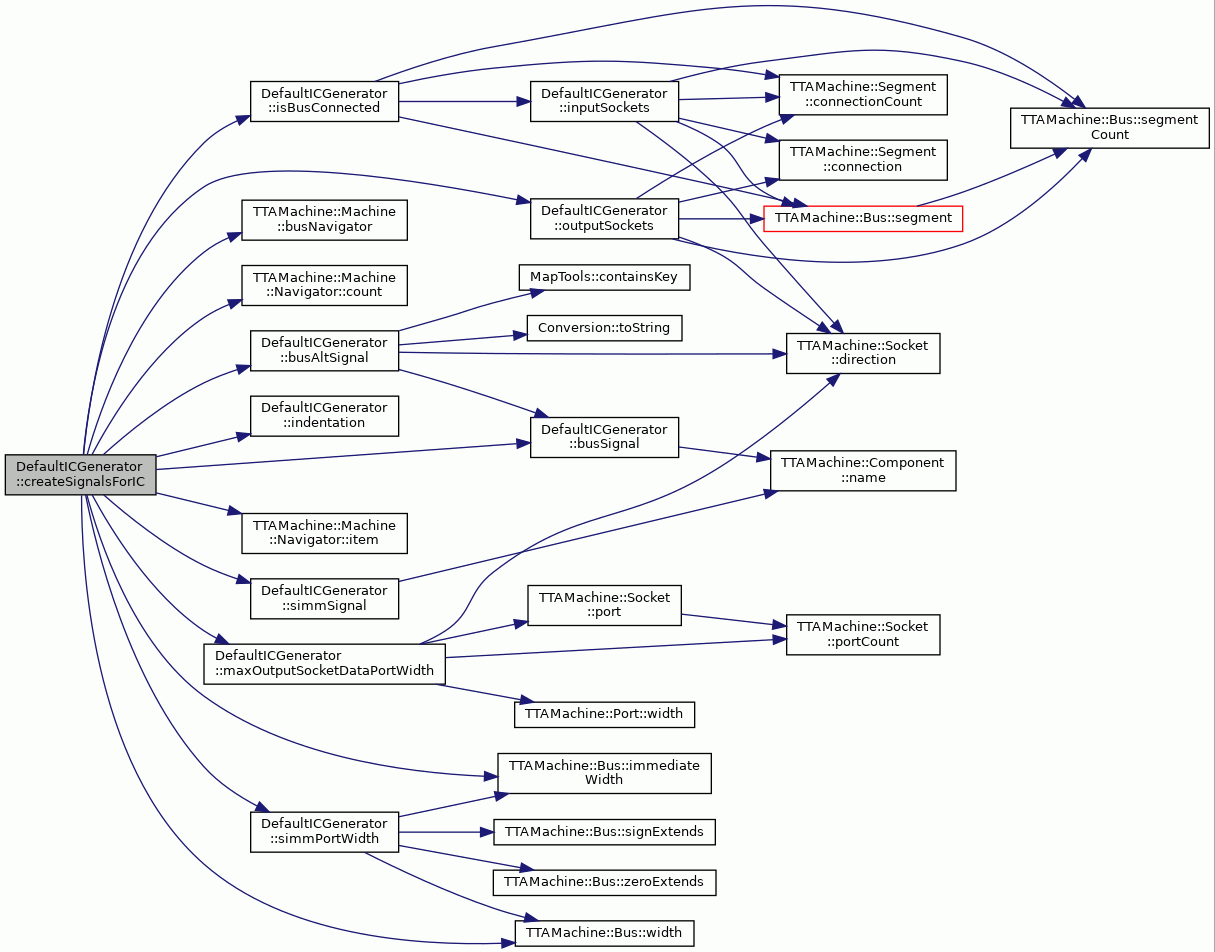

void	createSignalsForIC (std::ostream &stream)

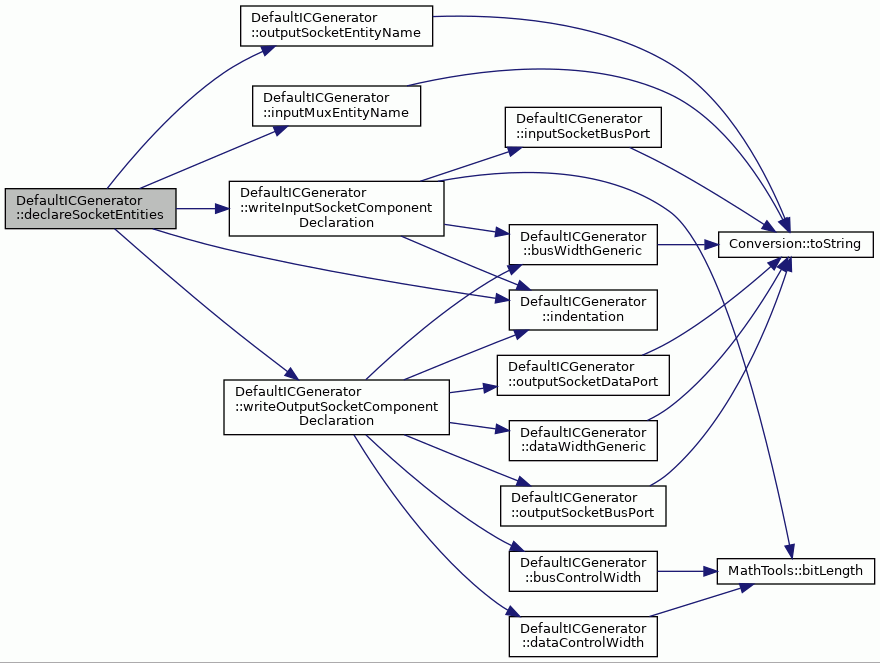

void	declareSocketEntities (std::ostream &stream) const

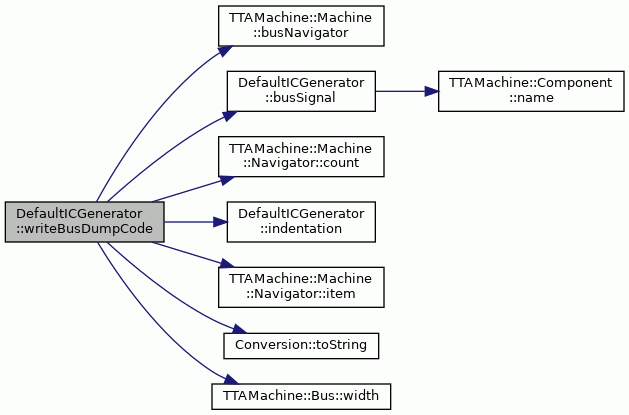

void	writeBusDumpCode (std::ostream &stream) const

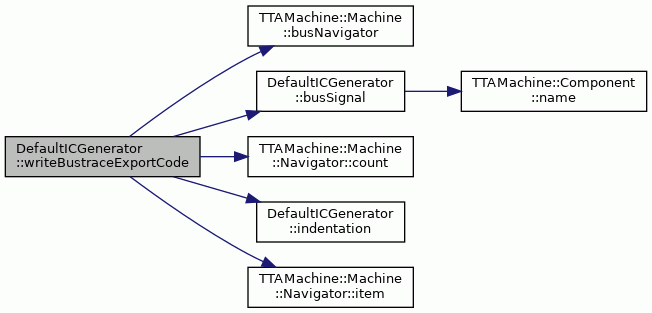

void	writeBustraceExportCode (std::ostream &stream) const

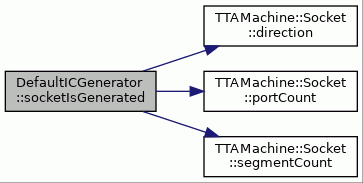

bool	socketIsGenerated (const TTAMachine::Socket &socket)
bool	socketIsGenerated (int segmentConns, int portConns, TTAMachine::Socket::Direction direction)

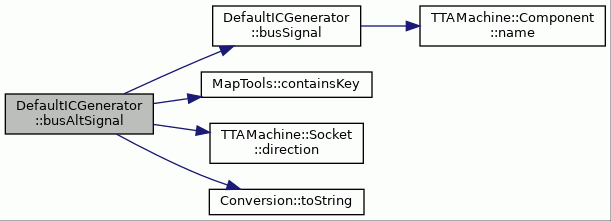

std::string	busAltSignal (const TTAMachine::Bus &bus, const TTAMachine::Socket &socket)

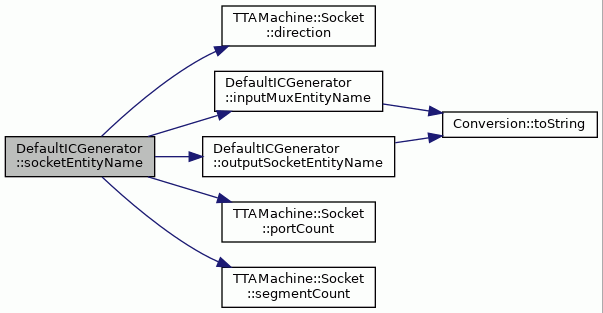

std::string	socketEntityName (TTAMachine::Socket &socket) const
std::string	inputMuxEntityName (int conns) const
std::string	outputSocketEntityName (int busConns, int portConns) const

Static Private Member Functions

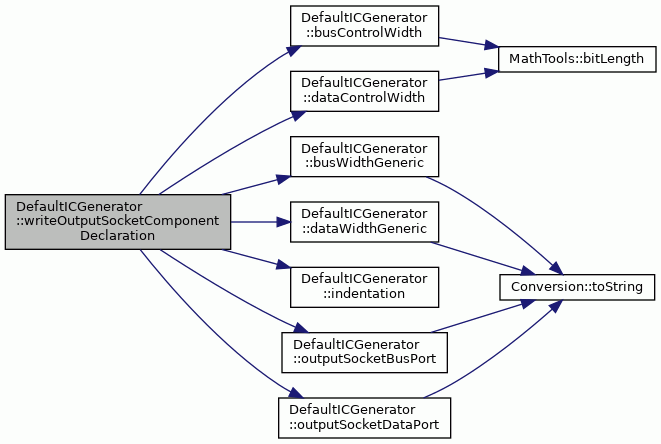

static void	writeOutputSocketComponentDeclaration (const ProGe::HDL language, int portConns, int segmentConns, int ind, std::ostream &stream)

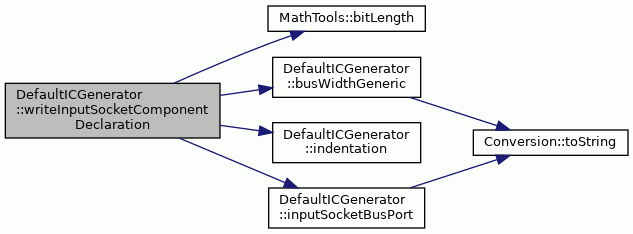

static void	writeInputSocketComponentDeclaration (const ProGe::HDL language, int segmentConns, int ind, std::ostream &stream)

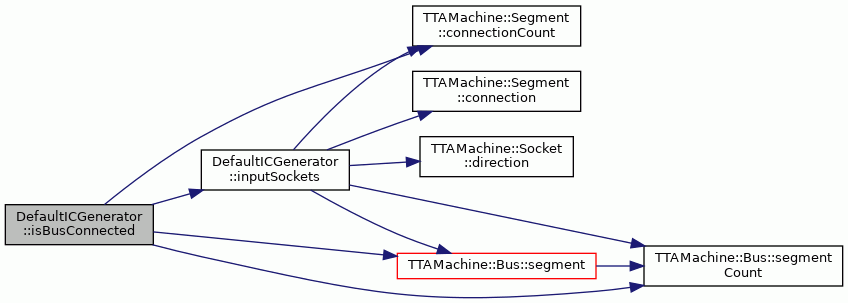

static bool	isBusConnected (const TTAMachine::Bus &bus)

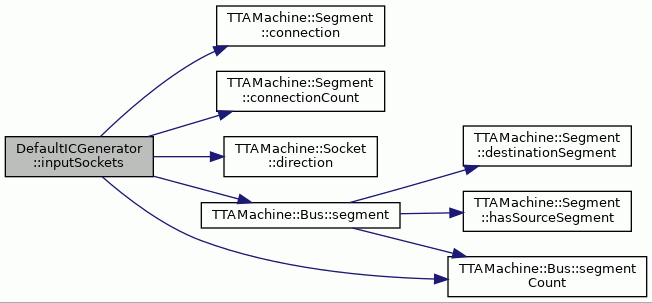

static std::set< TTAMachine::Socket * >	inputSockets (const TTAMachine::Bus &bus)

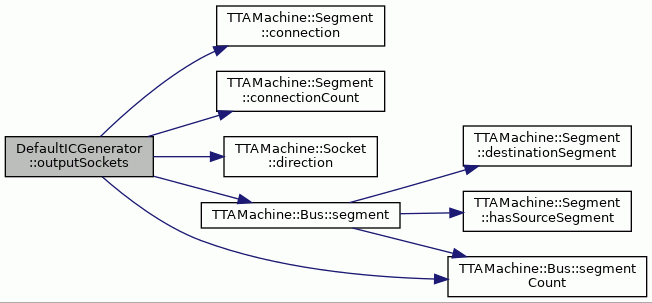

static std::set< TTAMachine::Socket * >	outputSockets (const TTAMachine::Bus &bus)

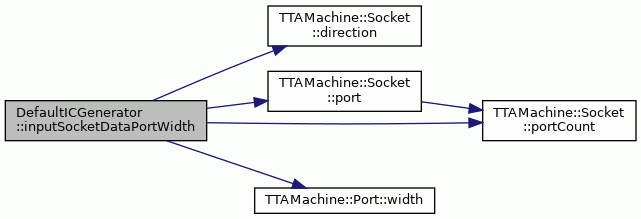

static int	inputSocketDataPortWidth (const TTAMachine::Socket &socket)

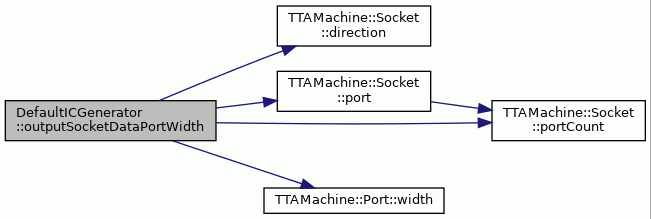

static int	outputSocketDataPortWidth (const TTAMachine::Socket &socket, int port)

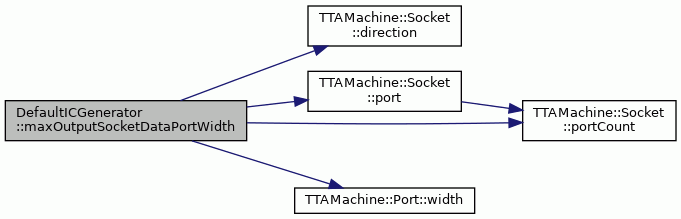

static int	maxOutputSocketDataPortWidth (const TTAMachine::Socket &socket)
static int	busControlWidth (TTAMachine::Socket::Direction direction, int busConns)
static int	dataControlWidth (TTAMachine::Socket::Direction direction, int portConns)

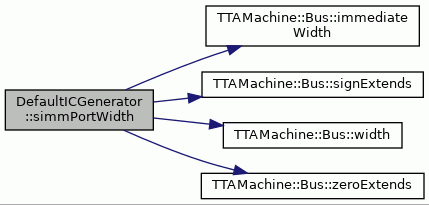

static int	simmPortWidth (const TTAMachine::Bus &bus)
static std::string	inputSocketDataPort (const std::string &socket)
static std::string	outputSocketDataPort (const std::string &socket, int port)
static std::string	socketBusControlPort (const std::string &name)
static std::string	socketDataControlPort (const std::string &name)
static std::string	simmDataPort (const std::string &busName)
static std::string	simmControlPort (const std::string &busName)
static std::string	inputSocketBusPort (int bus)
static std::string	outputSocketBusPort (int bus)
static std::string	outputSocketDataPort (int port)

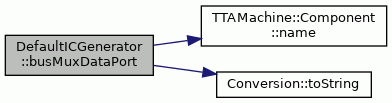

static std::string	busMuxDataPort (const TTAMachine::Bus &bus, int index)
static std::string	busMuxControlPort (const TTAMachine::Bus &bus)
static std::string	busMuxEnablePort (const TTAMachine::Bus &bus)
static std::string	busWidthGeneric (int bus)
static std::string	dataWidthGeneric (int port)
static std::string	simmSocket (const TTAMachine::Bus &bus)
static std::string	simmSignal (const TTAMachine::Bus &bus)
static std::string	busSignal (const TTAMachine::Bus &bus)
static ProGe::Direction	convertDirection (TTAMachine::Socket::Direction direction)
static std::string	socketFileName (const ProGe::HDL language, TTAMachine::Socket::Direction direction, int portConns, int segmentConns)
static std::string	busMuxEntityName (TTAMachine::Bus &bus)
static std::string	indentation (unsigned int level)

Private Attributes
const TTAMachine::Machine &	machine_
	The machine.
ProGe::NetlistBlock *	icBlock_
	The netlist block of IC.
BusAltSignalMap	altSignalMap_
	Signal numbers for controlling sockets.
bool	generateBusTrace_
	Tells whether to generate bus tracing code.
bool	exportBustrace_
	Tells whether to export bustraces to debugger.
unsigned int	busTraceStartingCycle_
	The starting cycle for bus tracing.
TCEString	entityNameStr_
ProGe::HDL	language_
BusSocketMap	busConnections
std::set< std::pair< int, int > >	generatedOutputSockets_
std::set< std::pair< int, int > >	generatedInputSockets_

Additional Inherited Members
Protected Member Functions inherited from CentralizedControlICGenerator
void	mapSImmDataPort (const std::string &busName, ProGe::NetlistPort &port)
void	mapSImmCntrlPort (const std::string &busName, ProGe::NetlistPort &port)
void	mapBusCntrlPortOfSocket (const std::string &socketName, ProGe::NetlistPort &port)
void	mapDataCntrlPortOfSocket (const std::string &socketName, ProGe::NetlistPort &port)
void	setGlockPort (ProGe::NetlistPort &glockPort)

Detailed Description

This class generates interconnection network in VHDL/Verilog. The network uses and-or buses.

Definition at line 62 of file DefaultICGenerator.hh.

Member Typedef Documentation

BusAltSignalMap

typedef std::map<const TTAMachine::Bus*, SocketSignalMap*> DefaultICGenerator::BusAltSignalMap

private

Definition at line 100 of file DefaultICGenerator.hh.

BusSocketMap

typedef std::map<const TTAMachine::Bus*, std::set<TTAMachine::Socket*> > DefaultICGenerator::BusSocketMap

Definition at line 65 of file DefaultICGenerator.hh.

SocketSignalMap

typedef std::map<const TTAMachine::Socket*, int> DefaultICGenerator::SocketSignalMap

private

Definition at line 98 of file DefaultICGenerator.hh.

Constructor & Destructor Documentation

DefaultICGenerator()

DefaultICGenerator::DefaultICGenerator

(

const TTAMachine::Machine &

machine

)

The constructor.

Generates the inteconnection network of the given machine.

Parameters

machine

The machine.

Definition at line 81 of file DefaultICGenerator.cc.

    : machine_(machine),
      icBlock_(NULL),
      generateBusTrace_(false),
      exportBustrace_(false),
      busTraceStartingCycle_(0) {}

~DefaultICGenerator()

DefaultICGenerator::~DefaultICGenerator ( )

virtual

The destructor.

Definition at line 91 of file DefaultICGenerator.cc.

                                        {
    for (BusAltSignalMap::iterator iter = altSignalMap_.begin();
         iter != altSignalMap_.end(); iter++) {
        delete (*iter).second;
    }
}

References altSignalMap_.

Member Function Documentation

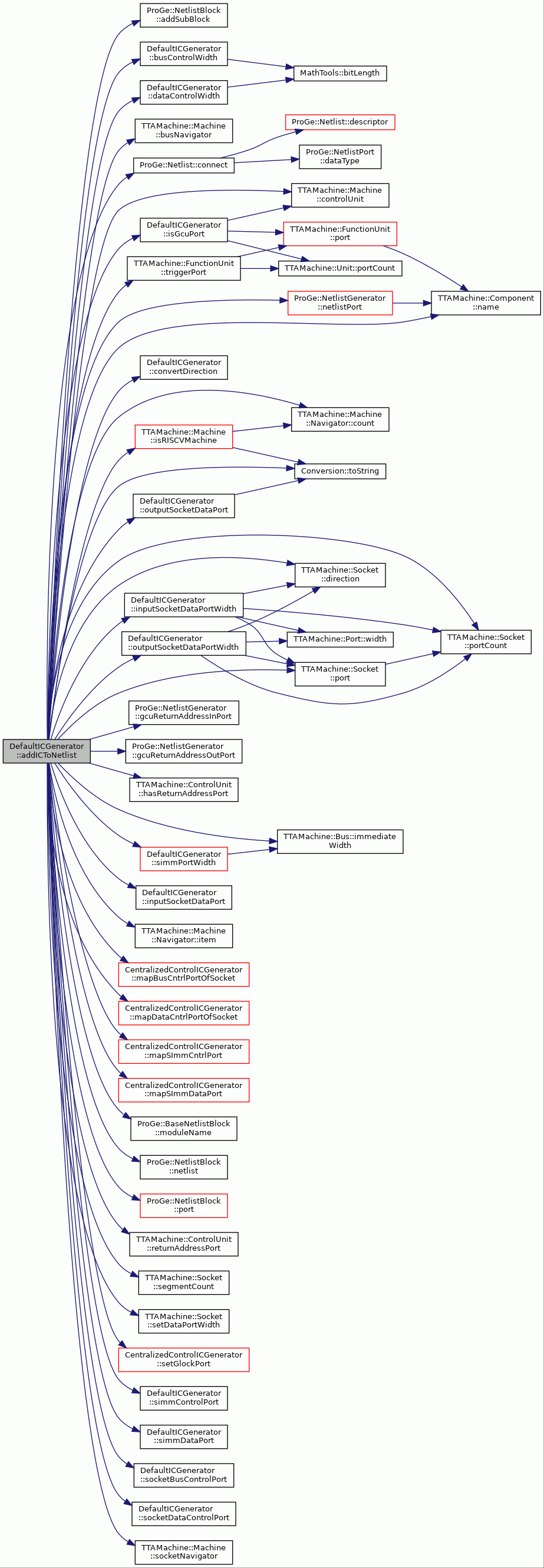

addICToNetlist()

void DefaultICGenerator::addICToNetlist	(	const ProGe::NetlistGenerator &	generator,
		ProGe::NetlistBlock &	coreBlock
	)

Adds the interconnection network block under the given netlist block representing the TTA core and connects it to the FUs, RFs and IUs.

Parameters

generator	The netlist generator which generated the netlist block.
coreBlock	The netlist block.

Definition at line 114 of file DefaultICGenerator.cc.

                                  {
    entityNameStr_ = coreBlock.moduleName();
    NetlistBlock* icBlock =
        new NetlistBlock(entityNameStr_ + "_" + "interconn", "ic");
    icBlock_ = icBlock;
    coreBlock.addSubBlock(icBlock);
    ControlUnit* gcu = machine_.controlUnit();

    // Add clock, reset port and glock port
    NetlistPort* tlClkPort =
        coreBlock.port(NetlistGenerator::DECODER_CLOCK_PORT);
    NetlistPort* icClkPort = new NetlistPort(
        NetlistGenerator::DECODER_CLOCK_PORT, "1", BIT, ProGe::IN, *icBlock);
    coreBlock.netlist().connect(*icClkPort, *tlClkPort);

    NetlistPort* tlResetPort =
        coreBlock.port(NetlistGenerator::DECODER_RESET_PORT);
    NetlistPort* icResetPort = new NetlistPort(
        NetlistGenerator::DECODER_RESET_PORT, "1", BIT, ProGe::IN, *icBlock);
    coreBlock.netlist().connect(*icResetPort, *tlResetPort);

    NetlistPort* icGlockPort =
        new NetlistPort("glock", "1", BIT, ProGe::IN, *icBlock);
    setGlockPort(*icGlockPort);

    // add data ports and control ports for sockets
    Machine::SocketNavigator socketNav = machine_.socketNavigator();
    for (int i = 0; i < socketNav.count(); i++) {
        Socket* socket = socketNav.item(i);
        if (socket->segmentCount() == 0 || socket->portCount() == 0) {
            continue;
        }

        ProGe::Direction socketDirection =
            convertDirection(socket->direction());

        // add the data port(s)
        if (socket->direction() == Socket::INPUT) {
            int width = inputSocketDataPortWidth(*socket);
            if (width == 0) {
                abortWithError(
                    (boost::format(
                         "data port of the input socket %s is zero!\n") %
                     socket->name())
                        .str());
            }
            NetlistPort* socketDataPort = NULL;

            // connect the data port to the units
            for (int i = 0; i < socket->portCount(); i++) {
                Port* port = socket->port(i);
                NetlistPort* unitPort;
                // RISCV must have 32b pc port due to APC operation
                if (machine_.isRISCVMachine() && port == gcu->triggerPort()) {
                    socketDataPort = new NetlistPort(
                        this->inputSocketDataPort(socket->name()),
                        Conversion::toString(32), ProGe::BIT_VECTOR,
                        socketDirection, *icBlock);
                }
                // gcu ports pc and ra must use IMEMADDRWIDTH as width
                else if (
                    isGcuPort(port) && (port == gcu->triggerPort() ||
                                        port == gcu->returnAddressPort())) {
                    socket->setDataPortWidth("IMEMADDRWIDTH");
                    socketDataPort = new NetlistPort(
                        this->inputSocketDataPort(socket->name()),
                        "IMEMADDRWIDTH", ProGe::BIT_VECTOR,
                        socketDirection, *icBlock);
                } else {
                    socketDataPort = new NetlistPort(
                        this->inputSocketDataPort(socket->name()),
                        Conversion::toString(width), width, ProGe::BIT_VECTOR,
                        socketDirection, *icBlock);
                }

                // RA port of GCU is special case
                if (gcu->hasReturnAddressPort() &&
                    port == gcu->returnAddressPort()) {
                    unitPort = &generator.gcuReturnAddressInPort();
                } else {
                    unitPort = &generator.netlistPort(*port, ProGe::IN);
                }
                coreBlock.netlist().connect(*socketDataPort, *unitPort);
            }
        } else {
            for (int i = 0; i < socket->portCount(); i++) {
                int width = outputSocketDataPortWidth(*socket, i);
                assert(width > 0);
                NetlistPort* socketDataPort = NULL;

                // connect the data port to the unit
                Port* port = socket->port(i);
                NetlistPort* unitPort;
                // gcu ports are treated differently
                if (isGcuPort(port) && port == gcu->returnAddressPort()) {
                    socket->setDataPortWidth("IMEMADDRWIDTH");
                    socketDataPort = new NetlistPort(
                        outputSocketDataPort(socket->name(), i),
                        "IMEMADDRWIDTH", ProGe::BIT_VECTOR,
                        socketDirection, *icBlock);
                } else {
                    socketDataPort = new NetlistPort(
                    outputSocketDataPort(socket->name(), i),
                    Conversion::toString(width), width, ProGe::BIT_VECTOR,
                    socketDirection, *icBlock);
                }

                // RA port of GCU is special case
                if (gcu->hasReturnAddressPort() &&
                    port == gcu->returnAddressPort()) {
                    unitPort = &generator.gcuReturnAddressOutPort();
                } else {
                    unitPort = &generator.netlistPort(*port, ProGe::OUT);
                }
                coreBlock.netlist().connect(*socketDataPort, *unitPort);
            }
        }

        // add control ports
        if (busControlWidth(
                socket->direction(), socket->segmentCount()) > 0) {
            int cntrlWidth = busControlWidth(
                socket->direction(), socket->segmentCount());
            assert(cntrlWidth > 0);
            NetlistPort* icSocketCntrlPort = new NetlistPort(
                socketBusControlPort(socket->name()),
                Conversion::toString(cntrlWidth), cntrlWidth,
                ProGe::BIT_VECTOR, ProGe::IN, *icBlock);
            mapBusCntrlPortOfSocket(socket->name(), *icSocketCntrlPort);
        }
        if (dataControlWidth(socket->direction(), socket->portCount()) > 0) {
            int cntrlWidth = dataControlWidth(
                socket->direction(), socket->portCount());
            assert(cntrlWidth > 0);
            NetlistPort* icSocketCntrlPort = new NetlistPort(
                socketDataControlPort(socket->name()),
                Conversion::toString(cntrlWidth), cntrlWidth,
                ProGe::BIT_VECTOR, ProGe::IN, *icBlock);
            mapDataCntrlPortOfSocket(socket->name(), *icSocketCntrlPort);
        }
    }

    // add ports for short immediates to IC
    Machine::BusNavigator busNav = machine_.busNavigator();
    for (int i = 0; i < busNav.count(); i++) {
        Bus* bus = busNav.item(i);
        if (bus->immediateWidth() > 0) {
            NetlistPort* icSimmPort = new NetlistPort(
                simmDataPort(bus->name()),
                Conversion::toString(simmPortWidth(*bus)),
                simmPortWidth(*bus), ProGe::BIT_VECTOR, ProGe::IN, *icBlock);
            mapSImmDataPort(bus->name(), *icSimmPort);
            NetlistPort* icSimmCntrlPort = new NetlistPort(
                simmControlPort(bus->name()), "1", 1, ProGe::BIT_VECTOR,
                ProGe::IN, *icBlock);
            mapSImmCntrlPort(bus->name(), *icSimmCntrlPort);
        }
    }
}

References abortWithError, ProGe::NetlistBlock::addSubBlock(), assert, ProGe::BIT, ProGe::BIT_VECTOR, busControlWidth(), TTAMachine::Machine::busNavigator(), ProGe::Netlist::connect(), TTAMachine::Machine::controlUnit(), convertDirection(), TTAMachine::Machine::Navigator< ComponentType >::count(), dataControlWidth(), ProGe::NetlistGenerator::DECODER_CLOCK_PORT, ProGe::NetlistGenerator::DECODER_RESET_PORT, TTAMachine::Socket::direction(), entityNameStr_, ProGe::NetlistGenerator::gcuReturnAddressInPort(), ProGe::NetlistGenerator::gcuReturnAddressOutPort(), TTAMachine::ControlUnit::hasReturnAddressPort(), icBlock_, TTAMachine::Bus::immediateWidth(), ProGe::IN, TTAMachine::Socket::INPUT, inputSocketDataPort(), inputSocketDataPortWidth(), isGcuPort(), TTAMachine::Machine::isRISCVMachine(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, CentralizedControlICGenerator::mapBusCntrlPortOfSocket(), CentralizedControlICGenerator::mapDataCntrlPortOfSocket(), CentralizedControlICGenerator::mapSImmCntrlPort(), CentralizedControlICGenerator::mapSImmDataPort(), ProGe::BaseNetlistBlock::moduleName(), TTAMachine::Component::name(), ProGe::NetlistBlock::netlist(), ProGe::NetlistGenerator::netlistPort(), ProGe::OUT, outputSocketDataPort(), outputSocketDataPortWidth(), ProGe::NetlistBlock::port(), TTAMachine::Socket::port(), TTAMachine::Socket::portCount(), TTAMachine::ControlUnit::returnAddressPort(), TTAMachine::Socket::segmentCount(), TTAMachine::Socket::setDataPortWidth(), CentralizedControlICGenerator::setGlockPort(), simmControlPort(), simmDataPort(), simmPortWidth(), socketBusControlPort(), socketDataControlPort(), TTAMachine::Machine::socketNavigator(), Conversion::toString(), and TTAMachine::FunctionUnit::triggerPort().

Referenced by DefaultICDecoderGenerator::completeNetlist().

Here is the call graph for this function:

busAltSignal()

std::string DefaultICGenerator::busAltSignal ( const TTAMachine::Bus &  bus, const TTAMachine::Socket &  socket  )

private

Returns the signal name of the given bus for the given output socket.

Parameters

bus	The bus.
socket	The socket.

Returns

The signal name.

Definition at line 2332 of file DefaultICGenerator.cc.

                                    {
    assert(socket.direction() == Socket::OUTPUT);
    if (!MapTools::containsKey(altSignalMap_, &bus)) {
        SocketSignalMap* newMap = new SocketSignalMap;
        altSignalMap_.emplace(&bus, newMap);
    }

    SocketSignalMap* signalMap = altSignalMap_[&bus];
    if (!MapTools::containsKey(*signalMap, &socket)) {
        int maxValue = -1;
        for (auto iter = signalMap->begin(); iter != signalMap->end();
             iter++) {
            if ((*iter).second > maxValue) {
                maxValue = (*iter).second;
            }
        }
        maxValue++;
        signalMap->emplace(&socket, maxValue);
    }

    int value = signalMap->at(&socket);
    return busSignal(bus) + "_alt" + Conversion::toString(value);
}

References altSignalMap_, assert, busSignal(), MapTools::containsKey(), TTAMachine::Socket::direction(), TTAMachine::Socket::OUTPUT, and Conversion::toString().

Referenced by createSignalsForIC(), and writeInterconnectionNetwork().

Here is the call graph for this function:

busControlWidth()

int DefaultICGenerator::busControlWidth ( TTAMachine::Socket::Direction  direction, int  busConns  )

staticprivate

Returns the number of bits required to control the bus connections of the given socket.

Parameters

direction	Direction of the socket.
busConns	The number of bus connections.

Returns

The control width.

Definition at line 2129 of file DefaultICGenerator.cc.

                  {

    assert(busConns >= 1);

    if (direction == Socket::INPUT) {
        return MathTools::bitLength(busConns - 1);
    } else {
        return busConns;
    }
}

References assert, MathTools::bitLength(), and TTAMachine::Socket::INPUT.

Referenced by addICToNetlist(), generateInputMux(), inputSocketControlValue(), writeInterconnectionNetwork(), and writeOutputSocketComponentDeclaration().

Here is the call graph for this function:

busMuxControlPort()

std::string DefaultICGenerator::busMuxControlPort ( const TTAMachine::Bus &  bus )

staticprivate

Definition at line 2303 of file DefaultICGenerator.cc.

                                                              {
    return bus.name() + "_mux_ctrl_in";
}

References TTAMachine::Component::name().

Here is the call graph for this function:

busMuxDataPort()

std::string DefaultICGenerator::busMuxDataPort ( const TTAMachine::Bus &  bus, int  index  )

staticprivate

Definition at line 2298 of file DefaultICGenerator.cc.

                                                                      {
    return bus.name() + "_data_" + Conversion::toString(index) + "_in";
}

References TTAMachine::Component::name(), and Conversion::toString().

Here is the call graph for this function:

busMuxEnablePort()

std::string DefaultICGenerator::busMuxEnablePort ( const TTAMachine::Bus &  bus )

staticprivate

Definition at line 2308 of file DefaultICGenerator.cc.

                                                             {
    return bus.name() + "_mux_enable_in";
}

References TTAMachine::Component::name().

Here is the call graph for this function:

busMuxEntityName()

std::string DefaultICGenerator::busMuxEntityName ( TTAMachine::Bus &  bus )

staticprivate

Definition at line 2503 of file DefaultICGenerator.cc.

                                                       {
    return bus.name() + "_bus_mux_inst";
}

References TTAMachine::Component::name().

Here is the call graph for this function:

busSignal()

std::string DefaultICGenerator::busSignal ( const TTAMachine::Bus &  bus )

staticprivate

Returns the name of the signal of the given bus.

Parameters

bus

The bus.

Returns

The name of the signal.

Definition at line 2319 of file DefaultICGenerator.cc.

                                                      {
    return "databus_" + bus.name();
}

References TTAMachine::Component::name().

Referenced by busAltSignal(), createSignalsForIC(), writeBusDumpCode(), writeBustraceExportCode(), and writeInterconnectionNetwork().

Here is the call graph for this function:

busWidthGeneric()

std::string DefaultICGenerator::busWidthGeneric ( int  bus )

staticprivate

Returns the generic name for width of the given bus.

Parameters

bus	The bus number.

Returns

The generic name.

Definition at line 2366 of file DefaultICGenerator.cc.

                                           {
    return "BUSW_" + Conversion::toString(bus);
}

References Conversion::toString().

Referenced by generateInputSocketRuleForBus(), generateOutputSocket(), writeInputSocketComponentDeclaration(), writeInterconnectionNetwork(), and writeOutputSocketComponentDeclaration().

Here is the call graph for this function:

convertDirection()

ProGe::Direction DefaultICGenerator::convertDirection ( TTAMachine::Socket::Direction  direction )

staticprivate

Converts the given socket direction to direction of the corresponding data port in the IC block.

Parameters

direction

The socket direction.

Returns

The direction of the corresponding socket data port in IC block.

Definition at line 2416 of file DefaultICGenerator.cc.

                                         {
    switch (direction) {
        case Socket::INPUT:
            return ProGe::OUT;
        case Socket::OUTPUT:
            return ProGe::IN;
        case Socket::UNKNOWN:
            assert(false);
    }

    assert(false);
}

References assert, ProGe::IN, TTAMachine::Socket::INPUT, ProGe::OUT, TTAMachine::Socket::OUTPUT, and TTAMachine::Socket::UNKNOWN.

Referenced by addICToNetlist().

createSignalsForIC()

void DefaultICGenerator::createSignalsForIC ( std::ostream &  stream )

private

Writes the signal declarations of interconnection network to the given stream.

Parameters

stream

The stream.

Definition at line 1364 of file DefaultICGenerator.cc.

                                                         {
    Machine::BusNavigator busNav = machine_.busNavigator();
    if (language_ == VHDL){
        for (int i = 0; i < busNav.count(); i++) {
            Bus* bus = busNav.item(i);

            if (isBusConnected(*bus)) {
                // create signal for the bus
                stream << indentation(1) << "signal " << busSignal(*bus)
                       << " : std_logic_vector(" << bus->width() - 1
                       << " downto 0);" << endl;
            }

            // create a signal for all the output sockets connected to the
            // bus
            // Sort alphabetically to get deterministic HDL output.
            std::set<Socket*> outputSockets = this->outputSockets(*bus);
            std::set<Socket*, Component::ComponentNameComparator>
                socketsToWrite;
            for (std::set<Socket*>::iterator iter = outputSockets.begin();
                    iter != outputSockets.end(); iter++) {
                socketsToWrite.insert(*iter);
            }

            for (std::set<Socket*, Component::ComponentNameComparator>::
                     iterator iter = socketsToWrite.begin();
                 iter != socketsToWrite.end(); iter++) {
                stream << indentation(1) << "signal "
                       << busAltSignal(*bus, **iter) << " : std_logic_vector("
                       << maxOutputSocketDataPortWidth(**iter) - 1
                       << " downto 0);" << endl;
            }

            // create additional signal for short immediate
            if (bus->immediateWidth() > 0) {
                stream << indentation(1) << "signal " << simmSignal(*bus)
                       << " : std_logic_vector(" << simmPortWidth(*bus) - 1
                       << " downto 0);" << endl;
            }
        }
    } else { // language_ == Verilog
        for (int i = 0; i < busNav.count(); i++) {
            Bus* bus = busNav.item(i);
            // create wire for the bus
            stream << indentation(1) << "wire[" << bus->width() - 1 << ":0] "
                   << busSignal(*bus) << ";"<< endl;

            // create a wires for all the output sockets connected to the bus
            // Sort alphabetically to get deterministic HDL output.
            std::set<Socket*> outputSockets = this->outputSockets(*bus);
            std::set<Socket*, Component::ComponentNameComparator> socketsToWrite;
            for (std::set<Socket*>::iterator iter = outputSockets.begin();
                    iter != outputSockets.end(); iter++) {
                socketsToWrite.insert(*iter);
            }

            for (std::set<Socket*, Component::ComponentNameComparator>::iterator
                    iter = socketsToWrite.begin(); iter != socketsToWrite.end();
                    iter++) {
                stream << indentation(1) << "wire[" << bus->width() - 1 <<":0] "
                       << busAltSignal(*bus, **iter)<<";"<< endl;
            }

            // create additional wire for short immediate
            if (bus->immediateWidth() > 0) {
                stream << indentation(1) << "wire[" << bus->width() - 1 << ":0] "
                       << simmSignal(*bus) << ";" << endl;
            }
        }
    }
}

References busAltSignal(), TTAMachine::Machine::busNavigator(), busSignal(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Bus::immediateWidth(), indentation(), isBusConnected(), TTAMachine::Machine::Navigator< ComponentType >::item(), language_, machine_, maxOutputSocketDataPortWidth(), outputSockets(), simmPortWidth(), simmSignal(), ProGe::VHDL, and TTAMachine::Bus::width().

Referenced by writeInterconnectionNetwork().

Here is the call graph for this function:

dataControlWidth()

int DefaultICGenerator::dataControlWidth ( TTAMachine::Socket::Direction  direction, int  portConns  )

staticprivate

Returns the number of bits required to control from which port the data is written to the bus.

Parameters

socket	Direction of the socket,
portConns	The number of port connections.

Returns

The control width.

Definition at line 2152 of file DefaultICGenerator.cc.

                   {
    if (direction == Socket::OUTPUT) {
        return MathTools::bitLength(portConns - 1);
    } else {
        return 0;
    }
}

References MathTools::bitLength(), and TTAMachine::Socket::OUTPUT.

Referenced by addICToNetlist(), writeInterconnectionNetwork(), and writeOutputSocketComponentDeclaration().

Here is the call graph for this function:

dataWidthGeneric()

std::string DefaultICGenerator::dataWidthGeneric ( int  port )

staticprivate

Returns the generic name for width of the given port.

Parameters

port	The port number.

Returns

The generic name.

Definition at line 2378 of file DefaultICGenerator.cc.

                                             {
    return "DATAW_" + Conversion::toString(port);
}

References Conversion::toString().

Referenced by generateOutputSocket(), writeInterconnectionNetwork(), and writeOutputSocketComponentDeclaration().

Here is the call graph for this function:

declareSocketEntities()

void DefaultICGenerator::declareSocketEntities ( std::ostream &  stream ) const

private

Declares the socket entities used in the IC.

Parameters

stream

The stream to write.

Definition at line 1443 of file DefaultICGenerator.cc.

                                                                  {
    for (auto iter = generatedInputSockets_.begin();
         iter != generatedInputSockets_.end(); iter++) {
        int segmentCount = iter->second;
        string entityName = inputMuxEntityName(segmentCount);
        stream << indentation(1) << "component " << entityName << " is"
               << endl;
        writeInputSocketComponentDeclaration(VHDL, segmentCount, 2, stream);
        stream << indentation(1) << "end component;" << endl << endl;
    }

    for (auto iter = generatedOutputSockets_.begin();
         iter != generatedOutputSockets_.end(); iter++) {
        int portCount = iter->first;
        int segmentCount = iter->second;
        string entityName = outputSocketEntityName(segmentCount, portCount);
        stream << indentation(1) << "component " << entityName << " is"
               << endl;
        writeOutputSocketComponentDeclaration(
            VHDL, portCount, segmentCount, 2, stream);
        stream << indentation(1) << "end component;" << endl << endl;
    }
}

References generatedInputSockets_, generatedOutputSockets_, indentation(), inputMuxEntityName(), outputSocketEntityName(), ProGe::VHDL, writeInputSocketComponentDeclaration(), and writeOutputSocketComponentDeclaration().

Referenced by writeInterconnectionNetwork().

Here is the call graph for this function:

generateInputMux()

void DefaultICGenerator::generateInputMux ( int  segmentConns, std::ofstream &  stream  ) const

private

Generates the given input socket to the given stream.

Parameters

segmentConns	The number of segment connections.
stream	The stream.

Definition at line 493 of file DefaultICGenerator.cc.

                                                 {
    assert(segmentConns > 0);
    if (language_ == VHDL) {
        string entityName = inputMuxEntityName(segmentConns);
        stream << "entity " << entityName << " is" << endl << endl;
        writeInputSocketComponentDeclaration(VHDL,segmentConns, 1, stream);
        stream << endl << "end " << entityName << ";" << endl << endl;

        stream << "architecture rtl of " << entityName << " is" << endl
               << "begin" << endl
               << endl;
        stream << indentation(2)
               << "-- If width of input bus is greater than width of output,"
               << endl;
        stream << indentation(2) << "-- using the LSB bits." << endl;
        stream << indentation(2)
               << "-- If width of input bus is smaller than width of output,"
               << endl;
        stream << indentation(2)
               << "-- using zero extension to generate extra bits." << endl;
        stream << endl;

        if (segmentConns > 1) {
            stream << indentation(1) << "sel : process ("
                   << SOCKET_BUS_CONTROL_PORT << ", ";

            for (int i = 0; i < segmentConns; i++) {
                stream << inputSocketBusPort(i);
                if (i + 1 < segmentConns) {
                    stream << ", ";
                } else {
                    stream << ")" << endl;
                }
            }

            stream << indentation(1) << "begin" << endl;
            stream << indentation(2) << INPUT_SOCKET_DATA_PORT
                   << " <= (others => '0');" << endl;
            stream << indentation(2) << "case " << SOCKET_BUS_CONTROL_PORT
                   << " is" << endl;

            for (int i = 0; i < segmentConns; i++) {
                if (i+1 < segmentConns) {
                    stream << indentation(3) << "when \""
                           << Conversion::toBinary(
                               i, busControlWidth(Socket::INPUT, segmentConns))
                           << "\" =>" << endl;
                } else {
                    stream << indentation(3) << "when others =>" << endl;
                }
                generateInputSocketRuleForBus(i, 4, stream);
            }

            stream << indentation(2) << "end case;" << endl;
            stream << indentation(1) << "end process sel;" << endl;

        } else {
            stream << indentation(1) << "process (" << inputSocketBusPort(0)
                   << ")" << endl;
            stream << indentation(1) << "begin" << endl;
            stream << indentation(2) << INPUT_SOCKET_DATA_PORT
                   << " <= (others => '0');" << endl;
            generateInputSocketRuleForBus(0, 2, stream);
            stream << indentation(1) << "end process;" << endl;
        }

        stream << "end rtl;" << endl;
    } else {
        string entityName = inputMuxEntityName(segmentConns);
        stream << "`timescale 10ns/1ns" << endl
               << "module " << entityName << "" << endl << endl;
        writeInputSocketComponentDeclaration(Verilog,segmentConns, 1, stream);
        stream << indentation(2)
               << "// If width of input bus is greater than width of output,"
               << endl
               << indentation(2) << "// using the LSB bits." << endl
               << indentation(2)
               << "// If width of input bus is smaller than width of output,"
               << endl
               << indentation(2)
               << "// using zero extension to generate extra bits." << endl
               << endl;
        if (segmentConns > 1) {
            stream << indentation(1) << "always@("
                   << SOCKET_BUS_CONTROL_PORT << ", ";

            for (int i = 0; i < segmentConns; i++) {
                stream << inputSocketBusPort(i);
                if (i + 1 < segmentConns) {
                    stream << ", ";
                } else {
                    stream << ")" << endl;
                }
            }
            stream << indentation(1) << "begin" << endl
                   << indentation(2) << "case(" << SOCKET_BUS_CONTROL_PORT
                   << ")" << endl;
            for (int i = 0; i < segmentConns; i++) {
                if (i+1 < segmentConns) {
                    stream << indentation(3)
                           << i << " :" << endl;
                } else {
                    stream << indentation(3) << "default:" << endl;
                }
                generateInputSocketRuleForBus(i, 4, stream);
            }
            stream << indentation(2) << "endcase" << endl
                   << indentation(1) << "end" << endl;
        } else {
            stream << indentation(1) << "always@(" << inputSocketBusPort(0)
                   << ")" << endl
                   << indentation(1) << "begin" << endl;
            generateInputSocketRuleForBus(0, 2, stream);
            stream << indentation(1) << "end" << endl;
        }
        stream << "endmodule" << endl;
    }
}

References assert, busControlWidth(), generateInputSocketRuleForBus(), indentation(), TTAMachine::Socket::INPUT, INPUT_SOCKET_DATA_PORT, inputMuxEntityName(), inputSocketBusPort(), language_, SOCKET_BUS_CONTROL_PORT, Conversion::toBinary(), ProGe::Verilog, ProGe::VHDL, and writeInputSocketComponentDeclaration().

Referenced by generateSocket().

Here is the call graph for this function:

generateInputSocketRuleForBus()

void DefaultICGenerator::generateInputSocketRuleForBus ( int  bus, int  ind, std::ofstream &  stream  ) const

private

Generates rule in VHDL for an input socket for the given bus number.

Parameters

bus	The bus.
ind	Indentation level.
stream	The stream to write.

Definition at line 621 of file DefaultICGenerator.cc.

                                                 {
    if (language_ == VHDL) {
        stream << indentation(ind) << INPUT_SOCKET_DATA_PORT << " <= tce_ext("
               << inputSocketBusPort(bus) << ", " << INPUT_SOCKET_DATA_PORT
               << "'length);" << endl;
    } else {
        stream << indentation(ind) << "if (" << busWidthGeneric(bus) << " < "
               << INPUT_SOCKET_DATAW_GENERIC << ")" << endl
               << indentation(ind+1) << INPUT_SOCKET_DATA_PORT << " <= $unsigned("
               << inputSocketBusPort(bus) << ");"<< endl
               << indentation(ind) << "else if (" << busWidthGeneric(bus)
               << " > " << INPUT_SOCKET_DATAW_GENERIC << ")" << endl
               << indentation(ind+1) << INPUT_SOCKET_DATA_PORT << " <= "
               << inputSocketBusPort(bus) << "[" << INPUT_SOCKET_DATAW_GENERIC
               << "-1 : 0];" << endl
               << indentation(ind) << "else" << endl
               << indentation(ind+1) << INPUT_SOCKET_DATA_PORT << " <= "
               << inputSocketBusPort(bus) << "[" << busWidthGeneric(bus)
               << "-1 : 0];" << endl;
    }
}

References busWidthGeneric(), indentation(), INPUT_SOCKET_DATA_PORT, INPUT_SOCKET_DATAW_GENERIC, inputSocketBusPort(), language_, and ProGe::VHDL.

Referenced by generateInputMux().

Here is the call graph for this function:

generateInterconnectionNetwork()

void DefaultICGenerator::generateInterconnectionNetwork

(

const std::string &

dstDirectory

)

Generates the interconnection network to the given destination directory.

Parameters

dstDirectory

The destination directory.

Exceptions

IOException

If an IO error occurs.

Definition at line 283 of file DefaultICGenerator.cc.

                                   {
    generateSocketsAndMuxes(dstDirectory);

    // generate interconnection network
    string icFile = dstDirectory + FileSystem::DIRECTORY_SEPARATOR +
        ((language_==Verilog)?"ic.v":"ic.vhdl");
    bool icCreated = FileSystem::createFile(icFile);
    if (!icCreated) {
        string errorMsg = "Unable to create file " + icFile;
        throw IOException(__FILE__, __LINE__, __func__, errorMsg);
    }
    std::ofstream icStream(icFile.c_str(), std::ofstream::out);
    writeInterconnectionNetwork(icStream);
    icStream.close();
}

References __func__, FileSystem::createFile(), FileSystem::DIRECTORY_SEPARATOR, generateSocketsAndMuxes(), language_, ProGe::Verilog, and writeInterconnectionNetwork().

Referenced by DefaultICDecoderGenerator::generate().

Here is the call graph for this function:

generateOutputSocket()

void DefaultICGenerator::generateOutputSocket ( int  portConns, int  segmentConns, std::ofstream &  stream  ) const

private

Generates the output socket to the given stream.

Parameters

socket	The socket.
stream	The stream.

Definition at line 652 of file DefaultICGenerator.cc.

                               {
    string entityName = outputSocketEntityName(segmentConns, portConns);
    if (language_ == VHDL) {
        stream << "entity " << entityName << " is" << endl;
        writeOutputSocketComponentDeclaration(VHDL,
            portConns, segmentConns, 1, stream);
        stream << "end " << entityName << ";" << endl << endl << endl;

        stream << "architecture output_socket_andor of " << entityName
               << " is" << endl
               << endl;

        if (portConns > 1) {
            stream << indentation(1) << "constant data_widths : integer_array("
                   << portConns - 1 << " downto 0) := (";
            for (int i = 0; i < portConns; i++) {
                stream << dataWidthGeneric(i);
                if (i+1 < portConns) {
                    stream << ", ";
                }
            }
            stream << ");" << endl;

            for (int i = 0; i < segmentConns; i++) {
                stream << indentation(1) << "signal databus_" << i
                       << "_temp : std_logic_vector(return_highest(data_widths, "
                       << portConns << ")-1 downto 0);" << endl;
            }

            stream << indentation(1)
                   << "signal data : std_logic_vector(return_highest(data_widths, "
                   << portConns << ")-1 downto 0);" << endl;
        } else {
            for (int i = 0; i < segmentConns; i++) {
                stream << indentation(1) << "signal databus_" << i
                       << "_temp : std_logic_vector(" << dataWidthGeneric(0)
                       << "-1 downto 0);" << endl;
            }
            stream << indentation(1) << "signal data : std_logic_vector("
                   << dataWidthGeneric(0) << "-1 downto 0);" << endl;
        }

        stream << endl;
        stream << "begin -- output_socket_andor" << endl << endl;

        if (portConns > 1) {
            stream << indentation(1) << "data_sel : process(";
            for (int i = 0; i < portConns; i++) {
                stream << outputSocketDataPort(i) << ", ";
            }
            stream << SOCKET_DATA_CONTROL_PORT << ")" << endl;
            stream << indentation(1) << "begin  -- process data_sel" << endl;
            for (int i = 0; i < portConns; i++) {
                stream << indentation(2);
                if (i == 0) {
                    stream << "if conv_integer(unsigned("
                           << SOCKET_DATA_CONTROL_PORT << ")) = 0 then"
                           << endl;
                } else if (i < portConns-1) {
                    stream << "elsif conv_integer(unsignd("
                           << SOCKET_DATA_CONTROL_PORT << ")) = " << i
                           << endl;
                } else {
                    stream << "else" << endl;
                }
                stream << indentation(3) << "data <= tce_sxt("
                       << outputSocketDataPort(i) << ", data'length);"
                       << endl;
            }
            stream << indentation(2) << "end if;" << endl;
            stream << indentation(1) << "end process data_sel;" << endl
                   << endl;
        } else {
            stream << indentation(1) << "data <= " << outputSocketDataPort(0)
                   << ";" << endl << endl;
        }

        stream << indentation(1) << "internal_signal : process(data, "
               << SOCKET_BUS_CONTROL_PORT << ")" << endl;
        stream << indentation(1) << "begin -- process internal_signal"
               << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(2) << "databus_" << i
                   << "_temp <= data and tce_sxt(" << SOCKET_BUS_CONTROL_PORT
                   << "(" << i << " downto " << i << "), data'length);"
                   << endl;
        }

        stream << indentation(1) << "end process internal_signal;" << endl
               << endl;

        stream << indentation(1) << "output : process (";

        for (int i = 0; i < segmentConns; i++) {
            stream << "databus_" << i << "_temp";
            if (i+1 < segmentConns) {
                stream << ",";
            } else {
                stream << ")" << endl;
            }
        }

        stream << indentation(1) << "begin -- process output" << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(2) << outputSocketBusPort(i)
                   << " <= tce_ext(databus_" << i << "_temp, "
                   << outputSocketBusPort(i) << "'length);" << endl;
        }
        stream << indentation(1) << "end process output;" << endl << endl;
        stream << "end output_socket_andor;" << endl;
    } else { // language_ == Verilog
        stream << "`timescale 10ns/1ns" << endl
               << "module " << entityName << endl;
        writeOutputSocketComponentDeclaration(Verilog,
            portConns, segmentConns, 1, stream);

        //for avoiding absence of length attribute in verilog 2001
        std::string data_length = dataWidthGeneric(0);

        stream << "//architecture output_socket_andor of " << entityName
               << endl << endl;
        if (portConns > 1) {
#if 1
            assert(false &&
                   "Case portConns > 1 not supported by Verilog backend!");
#else
//!!!!!!!!!!!!!!!!!!!!!!!!!not finished here!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
            // stream << indentation(1) << "constant data_widths : integer_array("
                   // << portConns - 1 << " : 0] := (";
            // for (int i = 0; i < portConns; i++) {
                // stream << dataWidthGeneric(i);
                // if (i+1 < portConns) {
                    // stream << ", ";
                // }
            // }
            // stream << ");" << endl;

            // for (int i = 0; i < segmentConns; i++) {
                // stream << indentation(1) << "signal databus_" << i
                       // << "_temp : std_logic_vector(return_highest(data_widths, "
                       // << portConns << ")-1 downto 0);" << endl;
            // }

            // stream << indentation(1)
                   // << "signal data : std_logic_vector(return_highest(data_widths, "
                   // << portConns << ")-1 downto 0);" << endl;
#endif
        } else {
            for (int i = 0; i < segmentConns; i++) {
                stream << indentation(1)
                       << "reg["<< dataWidthGeneric(0)
                       << "-1 : 0] "
                       <<" databus_" << i << "_temp;" << endl;
            }
            stream << indentation(1)
                   << "reg["<< dataWidthGeneric(0)
                   << "-1 : 0] "
                   << "data;" << endl;
        }

        stream << endl;

        if (portConns > 1) {
            stream << indentation(1) << "always@(";
            // for (int i = 0; i < portConns; i++) {
                // stream << outputSocketDataPort(i) << ", ";
            // }
            // stream << SOCKET_DATA_CONTROL_PORT << ")" << endl;
            stream << "*" << ")" << endl;
            stream << indentation(1) << "begin  // process data_sel" << endl;
            for (int i = 0; i < portConns; i++) {
                stream << indentation(2);
                if (i == 0) {
                    stream << "if("
                           << SOCKET_DATA_CONTROL_PORT << "== 0)"
                           << endl;
                } else if (i < portConns-1) {
                    stream << "else if("
                           << SOCKET_DATA_CONTROL_PORT << "== " << i
                           << ")"
                           << endl;
                } else {
                    stream << "else" << endl;
                }
                stream << indentation(3) << "data = $signed("
                       << outputSocketDataPort(i) << ");"
                       << endl;
            }
            stream << indentation(1) << "end //process data_sel;" << endl
                   << endl;
        } else {
            stream << indentation(1)
                   << "always@(*)" << "data = " << outputSocketDataPort(0)
                   << ";" << endl << endl;
        }

        // stream << indentation(1) << "always@(data, "
               // << SOCKET_BUS_CONTROL_PORT << ")" << endl;
        stream << indentation(1) << "always@(*)" << endl;
        stream << indentation(1) << "begin //process internal_signal"
               << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(2)
                   << "databus_"   << i << "_temp"
                   << "= data & {" << dataWidthGeneric(0) << "{"
                   << SOCKET_BUS_CONTROL_PORT
                   << "[" << i << " : " << i << "]}};"
                   << endl;
        }

        stream << indentation(1) << "end //process internal_signal;" << endl
               << endl;

        stream << indentation(1) << "always@(*)" << endl;
        // stream << indentation(1) << "always@(";
        // for (int i = 0; i < segmentConns; i++) {
            // stream << "databus_" << i << "_temp";
            // if (i+1 < segmentConns) {
                // stream << ",";
            // } else {
                // stream << ")" << endl;
            // }
        // }

        stream << indentation(1) << "begin // process output" << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(2) << "if(" << busWidthGeneric(i)
                   << " < " << data_length << ")" << endl;
            stream << indentation(3) << outputSocketBusPort(i)
                   << " = databus_" << i << "_temp;" << endl;
            //"[" << busWidthGeneric(i) << "-1 : 0];" << endl;
            stream << indentation(2) << "else" << endl;
            stream << indentation(3) << outputSocketBusPort(i)
                   << " = $unsigned(databus_" << i << "_temp);"
                   << endl;
        }
        stream << indentation(1) << "end //process output;" << endl << endl;
        stream << "endmodule //output_socket_andor;" << endl;
    }
}

References assert, busWidthGeneric(), dataWidthGeneric(), indentation(), language_, outputSocketBusPort(), outputSocketDataPort(), outputSocketEntityName(), SOCKET_BUS_CONTROL_PORT, SOCKET_DATA_CONTROL_PORT, ProGe::Verilog, ProGe::VHDL, and writeOutputSocketComponentDeclaration().

Referenced by generateSocket().

Here is the call graph for this function:

generateSocket()

void DefaultICGenerator::generateSocket ( TTAMachine::Socket::Direction  direction, int  portConns, int  segmentConns, const std::string &  dstDirectory  ) const

private

Generates the given socket to a VHDL file in the given directory.

Parameters

direction	Direction of the socket.
portConns	The number of port connections.
segmentConns	The number of segment connections.
dstDirectory	The destination directory.

Exceptions

IOException

If the file cannot be created.

Definition at line 453 of file DefaultICGenerator.cc.

                                         {
    string fileName = socketFileName(language_,
            direction, portConns, segmentConns);
    string pathToFile = dstDirectory + FileSystem::DIRECTORY_SEPARATOR +
        fileName;
    bool created = FileSystem::createFile(pathToFile);
    if (!created) {
        string errorMsg = "Unable to create file " + pathToFile;
        throw IOException(__FILE__, __LINE__, __func__, errorMsg);
    }

    std::ofstream stream(pathToFile.c_str(), std::ofstream::out);
    if (language_ == VHDL) {
        stream << "library IEEE;" << endl;
        stream << "use IEEE.std_logic_1164.all;" << endl;
        stream << "use IEEE.std_logic_arith.all;" << endl;
        stream << "use work.tce_util.all;" << endl;
    } else {
        //nothing for verilog
    }
    stream << endl;
    if (direction == Socket::INPUT) {
        generateInputMux(segmentConns, stream);
    } else if (direction == Socket::OUTPUT) {
        generateOutputSocket(portConns, segmentConns, stream);
    } else {
        assert(false);
    }
    stream.close();
}

References __func__, assert, FileSystem::createFile(), FileSystem::DIRECTORY_SEPARATOR, generateInputMux(), generateOutputSocket(), TTAMachine::Socket::INPUT, language_, TTAMachine::Socket::OUTPUT, socketFileName(), and ProGe::VHDL.

Referenced by generateSocketsAndMuxes().

Here is the call graph for this function:

generateSocketsAndMuxes()

void DefaultICGenerator::generateSocketsAndMuxes ( const std::string &  dstDirectory )

private

Generates sockets needed in the machine to the given directory.

Parameters

dstDirectory

The destination directory.

Exceptions

IOException

If an IO error occurs.

Definition at line 388 of file DefaultICGenerator.cc.

                                                                         {
    bool needSimmSocket = true;
    Machine::SocketNavigator socketNav = machine_.socketNavigator();
    for (int i = 0; i < socketNav.count(); i++) {
        Socket* socket = socketNav.item(i);
        if (socket->portCount() > 0 && socket->segmentCount() > 0 &&
            !socketIsGenerated(*socket)) {
            generateSocket(
                socket->direction(), socket->portCount(),
                socket->segmentCount(), dstDirectory);

            if (socket->portCount() == 1 && socket->segmentCount() == 1 &&
                socket->direction() == TTAMachine::Socket::OUTPUT) {
                needSimmSocket = false;
            }
            if (socket->direction() == TTAMachine::Socket::OUTPUT) {
                generatedOutputSockets_.emplace(
                    socket->portCount(), socket->segmentCount());
            } else {
                generatedInputSockets_.emplace(
                    socket->portCount(), socket->segmentCount());
            }
        }
    }

    // generate short immediate sockets if needed
    if (needSimmSocket) {
        Machine::BusNavigator busNav = machine_.busNavigator();
        for (int i = 0; i < busNav.count(); i++) {
            Bus* bus = busNav.item(i);
            if (bus->immediateWidth() > 0) {
                generateSocket(Socket::OUTPUT, 1, 1, dstDirectory);
                generatedOutputSockets_.emplace(1, 1);
            }
        }
    }
}

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Socket::direction(), generatedInputSockets_, generatedOutputSockets_, generateSocket(), TTAMachine::Bus::immediateWidth(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, TTAMachine::Socket::OUTPUT, TTAMachine::Socket::portCount(), TTAMachine::Socket::segmentCount(), socketIsGenerated(), and TTAMachine::Machine::socketNavigator().

Referenced by generateInterconnectionNetwork().

Here is the call graph for this function:

getBusConnections()

const DefaultICGenerator::BusSocketMap DefaultICGenerator::getBusConnections ( ) const

virtual

Definition at line 2060 of file DefaultICGenerator.cc.

                                            {
    return busConnections;
}

References busConnections.

indentation()

std::string DefaultICGenerator::indentation ( unsigned int  level )

staticprivate

Generates an indentation of the given level.

Parameters

level

The level.

Definition at line 2513 of file DefaultICGenerator.cc.

                                                  {
    string indentation("");
    for (unsigned int i = 0; i < level; i++) {
        indentation += "  ";
    }
    return indentation;
}

References indentation().

Referenced by createSignalsForIC(), declareSocketEntities(), generateInputMux(), generateInputSocketRuleForBus(), generateOutputSocket(), indentation(), writeBusDumpCode(), writeBustraceExportCode(), writeInputSocketComponentDeclaration(), writeInterconnectionNetwork(), and writeOutputSocketComponentDeclaration().

Here is the call graph for this function:

inputMuxEntityName()

std::string DefaultICGenerator::inputMuxEntityName ( int  conns ) const

private

Returns the entity name of the input socket which has the given number of connections.

Parameters

conns

The number of connections.

Returns

The name of the entity.

Definition at line 2483 of file DefaultICGenerator.cc.

                                                      {
    return entityNameStr_ + "_input_mux_" + Conversion::toString(conns);
}

References entityNameStr_, and Conversion::toString().

Referenced by declareSocketEntities(), generateInputMux(), and socketEntityName().

Here is the call graph for this function:

inputSocketBusPort()

std::string DefaultICGenerator::inputSocketBusPort ( int  bus )

staticprivate

Returns the name of the data bus port in input socket.

Parameters

bus	The bus number.

Returns

The name of the port.

Definition at line 2269 of file DefaultICGenerator.cc.

                                              {
    return "databus" + Conversion::toString(bus);
}

References Conversion::toString().

Referenced by generateInputMux(), generateInputSocketRuleForBus(), writeInputSocketComponentDeclaration(), and writeInterconnectionNetwork().

Here is the call graph for this function:

inputSocketControlValue()

int DefaultICGenerator::inputSocketControlValue ( const TTAMachine::Socket &  socket, const TTAMachine::Segment &  segment  ) const

virtual

Returns the control value that selects the given segment if the given input socket is connected to several segments.

Parameters

socket	The socket.
segment	The segment.

Returns

The control value.

Exceptions

NotAvailable

If the socket does not need control or if it is not connected to the given segment.

Implements CentralizedControlICGenerator.

Definition at line 2042 of file DefaultICGenerator.cc.

                                            {
    if (busControlWidth(socket.direction(), socket.segmentCount()) < 1) {
        throw NotAvailable(__FILE__, __LINE__, __func__);
    }

    for (int i = 0; i < socket.segmentCount(); i++) {
        Segment* seg = socket.segment(i);
        if (seg == &segment) {
            return i;
        }
    }

    throw NotAvailable(__FILE__, __LINE__, __func__);
}

References __func__, busControlWidth(), TTAMachine::Socket::direction(), TTAMachine::Socket::segment(), and TTAMachine::Socket::segmentCount().

Here is the call graph for this function:

inputSocketDataPort()

std::string DefaultICGenerator::inputSocketDataPort ( const std::string &  socket )

staticprivate

Returns the name of the data port of the given input socket in the interconnection network.

Parameters

socket

The socket.

Returns

The name of the data port.

Definition at line 2190 of file DefaultICGenerator.cc.

                                                               {
    return "socket_" + socket + "_data";
}

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

inputSocketDataPortWidth()

int DefaultICGenerator::inputSocketDataPortWidth ( const TTAMachine::Socket &  socket )

staticprivate

Calculates the width of the data port of the given input socket.

Parameters

socket

The socket.

Returns

The width of the data port.

Definition at line 2070 of file DefaultICGenerator.cc.

                                                                           {
    assert(socket.direction() == Socket::INPUT);
    int width = 0;
    for (int i = 0; i < socket.portCount(); i++) {
        Port* port = socket.port(i);
        if (width < port->width()) {
            width = port->width();
        }
    }
    return width;
}

References assert, TTAMachine::Socket::direction(), TTAMachine::Socket::INPUT, TTAMachine::Socket::port(), TTAMachine::Socket::portCount(), and TTAMachine::Port::width().

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

Here is the call graph for this function:

inputSockets()

std::set< Socket * > DefaultICGenerator::inputSockets ( const TTAMachine::Bus &  bus )

staticprivate

Returns a set of all the input sockets that are connected to the given bus.

Parameters

bus

The bus.

Returns

The socket set.

Definition at line 1932 of file DefaultICGenerator.cc.

                                                         {
    std::set<Socket*> inputSockets;
    for (int i = 0; i < bus.segmentCount(); i++) {
        Segment* segment = bus.segment(i);
        for (int i = 0; i < segment->connectionCount(); i++) {
            Socket* socket = segment->connection(i);
            if (socket->direction() == Socket::INPUT) {
                inputSockets.insert(socket);
            }
        }
    }
    return inputSockets;
}

References TTAMachine::Segment::connection(), TTAMachine::Segment::connectionCount(), TTAMachine::Socket::direction(), TTAMachine::Socket::INPUT, inputSockets(), TTAMachine::Bus::segment(), and TTAMachine::Bus::segmentCount().

Referenced by inputSockets(), and isBusConnected().

Here is the call graph for this function:

isBusConnected()

bool DefaultICGenerator::isBusConnected ( const TTAMachine::Bus &  bus )

staticprivate

Checks if given bus is connected to at least one socket.

Parameters

bus

The bus.

Returns

True if bus is connected to some socket, false if bus is unconnected.

Definition at line 1913 of file DefaultICGenerator.cc.

                                                           {
    std::set<Socket*> inputSockets;
    for (int i = 0; i < bus.segmentCount(); i++) {
        Segment* segment = bus.segment(i);
        if (segment->connectionCount() > 0) {
            return true;
        }
    }
    return false;
}

References TTAMachine::Segment::connectionCount(), inputSockets(), TTAMachine::Bus::segment(), and TTAMachine::Bus::segmentCount().

Referenced by createSignalsForIC().

Here is the call graph for this function:

isBustraceEnabled()

bool DefaultICGenerator::isBustraceEnabled

(

)

isGcuPort()

bool DefaultICGenerator::isGcuPort ( const TTAMachine::Port *  port ) const

private

Tests if the given port belongs to GCU

Parameters

port	The port to be tested

Definition at line 432 of file DefaultICGenerator.cc.

                                                    {
    ControlUnit* gcu = machine_.controlUnit();
    for (int i = 0; i < gcu->portCount(); i++) {
        TTAMachine::Port* gcuPort = gcu->port(i);
        if (gcuPort == port) {
            return true;
        }
    }
    return false;
}

References TTAMachine::Machine::controlUnit(), machine_, TTAMachine::FunctionUnit::port(), and TTAMachine::Unit::portCount().

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

Here is the call graph for this function:

maxOutputSocketDataPortWidth()

int DefaultICGenerator::maxOutputSocketDataPortWidth ( const TTAMachine::Socket &  socket )

staticprivate

Returns the maximum width of the data ports of the given output socket.

Parameters

socket

The socket.

Definition at line 2106 of file DefaultICGenerator.cc.

                                    {
    int maxPortWidth = 0;
    assert(socket.direction() == Socket::OUTPUT);
    for (int i = 0; i < socket.portCount(); i++) {
        Port* port = socket.port(i);
        if (maxPortWidth < port->width()) {
            maxPortWidth = port->width();
        }
    }
    return maxPortWidth;
}

References assert, TTAMachine::Socket::direction(), TTAMachine::Socket::OUTPUT, TTAMachine::Socket::port(), TTAMachine::Socket::portCount(), and TTAMachine::Port::width().

Referenced by createSignalsForIC(), and writeInterconnectionNetwork().

Here is the call graph for this function:

outputSocketBusPort()

std::string DefaultICGenerator::outputSocketBusPort ( int  bus )

staticprivate

Returns the name of the data bus port in output socket.

Parameters

bus	The bus number.

Returns

The name of the port.

Definition at line 2281 of file DefaultICGenerator.cc.

                                               {
    return "databus" + Conversion::toString(bus) + "_alt";
}

References Conversion::toString().

Referenced by generateOutputSocket(), writeInterconnectionNetwork(), and writeOutputSocketComponentDeclaration().

Here is the call graph for this function:

outputSocketCntrlPinForSegment()

int DefaultICGenerator::outputSocketCntrlPinForSegment ( const TTAMachine::Socket &  socket, const TTAMachine::Segment &  segment  ) const

virtual

Returns the pin of the socket control port that control the given segment connection.

Parameters

socket	The socket.
segment	The segment.

Returns

The pin of the control port.

Exceptions

NotAvailable

If the socket is not output socket or if it is not connected to the given segment.

Implements CentralizedControlICGenerator.

Definition at line 364 of file DefaultICGenerator.cc.

                                            {
    if (socket.direction() != Socket::OUTPUT) {
        throw NotAvailable(__FILE__, __LINE__, __func__);
    }

    for (int i = 0; i < socket.segmentCount(); i++) {
        Segment* seg = socket.segment(i);
        if (seg == &segment) {
            return i;
        }
    }

    throw NotAvailable(__FILE__, __LINE__, __func__);
}

References __func__, TTAMachine::Socket::direction(), TTAMachine::Socket::OUTPUT, TTAMachine::Socket::segment(), and TTAMachine::Socket::segmentCount().

Here is the call graph for this function:

outputSocketDataControlValue()

int DefaultICGenerator::outputSocketDataControlValue ( const TTAMachine::Socket &  socket, const TTAMachine::Port &  port  ) const

virtual

Returns the control value that selects the given port if the socket is connected to several ports.

Parameters

socket	The socket.
port	The port.

Returns

The control value.

Exceptions

NotAvailable

If the given socket does not need data control or if the given port is not attached to the socket.

Implements CentralizedControlICGenerator.

Definition at line 2016 of file DefaultICGenerator.cc.

                                                                      {
    if (socket.direction() != Socket::OUTPUT) {
        throw NotAvailable(__FILE__, __LINE__, __func__);
    }

    for (int i = 0; i < socket.portCount(); i++) {
        if (socket.port(i) == &port) {
            return i;
        }
    }

    throw NotAvailable(__FILE__, __LINE__, __func__);
}

References __func__, TTAMachine::Socket::direction(), TTAMachine::Socket::OUTPUT, TTAMachine::Socket::port(), and TTAMachine::Socket::portCount().

Here is the call graph for this function:

outputSocketDataPort() [1/2]

std::string DefaultICGenerator::outputSocketDataPort ( const std::string &  socket, int  port  )

staticprivate

Returns the name of the data port of the given output socket in the interconnection network.

Parameters

socket	The socket name.
port	The data port number.

Returns

The name of the data port.

Definition at line 2204 of file DefaultICGenerator.cc.

              {

    return "socket_" + socket + "_data" + Conversion::toString(port);
}

References Conversion::toString().

Referenced by addICToNetlist(), generateOutputSocket(), writeInterconnectionNetwork(), and writeOutputSocketComponentDeclaration().

Here is the call graph for this function:

outputSocketDataPort() [2/2]

std::string DefaultICGenerator::outputSocketDataPort ( int  port )

staticprivate

Returns the name of the data port in output socket.

Parameters

port	The port number.

Returns

The name of the port.

Definition at line 2293 of file DefaultICGenerator.cc.

                                                 {
    return "data" + Conversion::toString(port);
}

References Conversion::toString().

Here is the call graph for this function:

outputSocketDataPortWidth()

int DefaultICGenerator::outputSocketDataPortWidth ( const TTAMachine::Socket &  socket, int  port  )

staticprivate

Returns the width of the data port of the given output socket.

Parameters

socket	The socket.
port	The port.

Definition at line 2090 of file DefaultICGenerator.cc.

              {

    assert(socket.direction() == Socket::OUTPUT);
    assert(port < socket.portCount());
    return socket.port(port)->width();
}

References assert, TTAMachine::Socket::direction(), TTAMachine::Socket::OUTPUT, TTAMachine::Socket::port(), TTAMachine::Socket::portCount(), and TTAMachine::Port::width().

Referenced by addICToNetlist().

Here is the call graph for this function:

outputSocketEntityName()

std::string DefaultICGenerator::outputSocketEntityName ( int  busConns, int  portConns  ) const

private

Returns the entity name of the output socket which has the given number of connections.

Parameters

busConns	The number of bus connections.
portConns	The number of port connections.

Returns

The name of the entity.

Definition at line 2496 of file DefaultICGenerator.cc.

                                                                            {
    return entityNameStr_ + "_output_socket_cons_" +
           Conversion::toString(busConns) + "_" +
           Conversion::toString(portConns);
}

References entityNameStr_, and Conversion::toString().

Referenced by declareSocketEntities(), generateOutputSocket(), socketEntityName(), and writeInterconnectionNetwork().

Here is the call graph for this function:

outputSockets()

std::set< Socket * > DefaultICGenerator::outputSockets ( const TTAMachine::Bus &  bus )

staticprivate

Returns a set of all the output sockets that are connected to the given bus.

Parameters

bus

The bus.

Returns

The socket set.

Definition at line 1954 of file DefaultICGenerator.cc.

                                                          {
    std::set<Socket*> outputSockets;
    for (int i = 0; i < bus.segmentCount(); i++) {
        Segment* segment = bus.segment(i);
        for (int i = 0; i < segment->connectionCount(); i++) {
            Socket* socket = segment->connection(i);
            if (socket->direction() == Socket::OUTPUT) {
                outputSockets.insert(socket);
            }
        }
    }
    return outputSockets;
}

References TTAMachine::Segment::connection(), TTAMachine::Segment::connectionCount(), TTAMachine::Socket::direction(), TTAMachine::Socket::OUTPUT, outputSockets(), TTAMachine::Bus::segment(), and TTAMachine::Bus::segmentCount().

Referenced by createSignalsForIC(), outputSockets(), and writeInterconnectionNetwork().

Here is the call graph for this function:

setBusTraceStartingCycle()

void DefaultICGenerator::setBusTraceStartingCycle

(

unsigned int

cycle

)

Sets the starting cycle to be generated to the bus trace.

Parameters

cycle

The cycle.

Definition at line 348 of file DefaultICGenerator.cc.

                                                               {
    busTraceStartingCycle_ = cycle;
}

References busTraceStartingCycle_.

Referenced by DefaultICDecoderGenerator::generate(), and DefaultICDecoderGenerator::readParameters().

setExportBustrace()

void DefaultICGenerator::setExportBustrace

(

bool

export_bt

)

Definition at line 327 of file DefaultICGenerator.cc.

                                                    {
    exportBustrace_ = export_bt;
}

References exportBustrace_.

Referenced by DefaultICDecoderGenerator::readParameters().

setFPGAOptimization()

void DefaultICGenerator::setFPGAOptimization

(

bool

optimized

)

setGenerateBusTrace()

void DefaultICGenerator::setGenerateBusTrace

(

bool

generate

)

Enables or disables generating bus trace code.

Parameters

generate

Tells whether to generate the bus tracing code.

Definition at line 337 of file DefaultICGenerator.cc.

                                                     {
    generateBusTrace_ = generate;
}

References generateBusTrace_.

Referenced by DefaultICDecoderGenerator::generate(), and DefaultICDecoderGenerator::readParameters().

SetHDL()

void DefaultICGenerator::SetHDL

(

ProGe::HDL

language

)

Set HDL

Parameters

language

Definition at line 103 of file DefaultICGenerator.cc.

                                           {
    language_= language;
}

References language_.

Referenced by DefaultICDecoderGenerator::generate().

simmControlPort()

std::string DefaultICGenerator::simmControlPort ( const std::string &  busName )

staticprivate

Returns the name of the control port for short immediate of the given bus.

Parameters

busName

Name of the bus.

Returns

The name of the port.

Definition at line 2257 of file DefaultICGenerator.cc.

                                                            {
    return "simm_cntrl_" + busName;
}

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

simmDataPort()

std::string DefaultICGenerator::simmDataPort ( const std::string &  busName )

staticprivate

Returns the name of the data port for short immediate of the given bus.

Parameters

busName

Name of the bus.

Returns

The name of the port.

Definition at line 2244 of file DefaultICGenerator.cc.

                                                         {
    return "simm_" + busName;
}

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

simmPortWidth()

int DefaultICGenerator::simmPortWidth ( const TTAMachine::Bus &  bus )

staticprivate

Returns the required width of the short immediate port of the given bus.

Parameters

bus

The bus.

Returns

The width of the port.

Definition at line 2170 of file DefaultICGenerator.cc.

                                                          {
    if (bus.signExtends()) {
        return bus.width();
    } else if (bus.zeroExtends()) {
        return bus.immediateWidth();
    } else {
        assert(false && "Unknown extension policy.");
        return -1;
    }
}

References assert, TTAMachine::Bus::immediateWidth(), TTAMachine::Bus::signExtends(), TTAMachine::Bus::width(), and TTAMachine::Bus::zeroExtends().

Referenced by addICToNetlist(), createSignalsForIC(), and writeInterconnectionNetwork().

Here is the call graph for this function:

simmSignal()

std::string DefaultICGenerator::simmSignal ( const TTAMachine::Bus &  bus )

staticprivate

Returns the name of the signal of short immediate of the given bus.

Parameters

bus

The bus.

Returns

The name of the signal.

Definition at line 2402 of file DefaultICGenerator.cc.

                                                       {
    return "databus_" + bus.name() + "_simm";
}

References TTAMachine::Component::name().

Referenced by createSignalsForIC(), and writeInterconnectionNetwork().

Here is the call graph for this function:

simmSocket()

std::string DefaultICGenerator::simmSocket ( const TTAMachine::Bus &  bus )

staticprivate

Returns the name of the socket for short immediate of the given bus.

Parameters

bus

The bus.

Returns

The name of the socket.

Definition at line 2390 of file DefaultICGenerator.cc.

                                                       {
    return "simm_socket_" + bus.name();
}

References TTAMachine::Component::name().

Referenced by writeInterconnectionNetwork().

Here is the call graph for this function:

socketBusControlPort()

std::string DefaultICGenerator::socketBusControlPort ( const std::string &  name )

staticprivate

Returns the name of the bus connection control port of the given socket.

Parameters

name	Name of the socket.

Returns

The name of the control port.

Definition at line 2220 of file DefaultICGenerator.cc.

                                                              {
    return "socket_" + name + "_bus_cntrl";
}

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

socketDataControlPort()

std::string DefaultICGenerator::socketDataControlPort ( const std::string &  name )

staticprivate

Returns the name of the data control port of the given socket.

Parameters

name	Name of the socket.

Returns

The name of the control port.

Definition at line 2232 of file DefaultICGenerator.cc.

                                                               {
    return "socket_" + name + "_data_cntrl";
}

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

socketEntityName()

std::string DefaultICGenerator::socketEntityName ( TTAMachine::Socket &  socket ) const

private

Generates VHDL entity name for the given socket.

Parameters

direction

Direction of the socket.

Returns

The entity name.

Definition at line 2464 of file DefaultICGenerator.cc.

                                                                   {
    if (socket.direction() == Socket::INPUT) {
        return inputMuxEntityName(socket.segmentCount());
    } else if (socket.direction() == Socket::OUTPUT) {
        return outputSocketEntityName(
            socket.segmentCount(), socket.portCount());
    } else {
        assert(false);
    }
}

References assert, TTAMachine::Socket::direction(), TTAMachine::Socket::INPUT, inputMuxEntityName(), TTAMachine::Socket::OUTPUT, outputSocketEntityName(), TTAMachine::Socket::portCount(), and TTAMachine::Socket::segmentCount().

Referenced by writeInterconnectionNetwork().

Here is the call graph for this function:

socketFileName()

std::string DefaultICGenerator::socketFileName ( const ProGe::HDL  language, TTAMachine::Socket::Direction  direction, int  portConns, int  segmentConns  )

staticprivate

Generates file where to write VHDL definition of the given socket.

Parameters

direction	Direction of the socket.
portConns	Number of port connections.
segmentConns	Number of segment connections.

Returns

The file name.

Definition at line 2439 of file DefaultICGenerator.cc.

                      {

    if (direction == Socket::INPUT) {
        return "input_mux_" + Conversion::toString(segmentConns) +
               ((language == VHDL) ? ".vhdl" : ".v");
    } else if (direction == Socket::OUTPUT) {
        return "output_socket_" +
            Conversion::toString(segmentConns) + "_" +
            Conversion::toString(portConns) + ((language==VHDL)?".vhdl":".v");
    } else {
        assert(false);
    }
}

References assert, TTAMachine::Socket::INPUT, TTAMachine::Socket::OUTPUT, Conversion::toString(), and ProGe::VHDL.

Referenced by generateSocket().

Here is the call graph for this function:

socketIsGenerated() [1/2]

bool DefaultICGenerator::socketIsGenerated ( const TTAMachine::Socket &  socket )

private

Tells whether the given socket set contains similar socket to the given one.

Parameters

set	The socket set.
socket	The socket.

Returns

True if the set contains similar socket, otherwise false.

Definition at line 1978 of file DefaultICGenerator.cc.

                                                                    {
    return socketIsGenerated(
        socket.segmentCount(), socket.portCount(), socket.direction());
}

References TTAMachine::Socket::direction(), TTAMachine::Socket::portCount(), TTAMachine::Socket::segmentCount(), and socketIsGenerated().

Referenced by generateSocketsAndMuxes(), and socketIsGenerated().

Here is the call graph for this function:

socketIsGenerated() [2/2]

bool DefaultICGenerator::socketIsGenerated ( int  segmentConns, int  portConns, TTAMachine::Socket::Direction  direction  )

private

Tells whether the given socket set contains similar socket to the given one.

Parameters

set	The socket set.
socket	The socket.

Returns

True if the set contains similar socket, otherwise false.

Definition at line 1992 of file DefaultICGenerator.cc.

                                                                {
    auto test_pair = std::make_pair(portConns, segmentConns);

    if (direction == Socket::INPUT) {
        return generatedInputSockets_.count(test_pair) == 1;
    } else if (direction == Socket::OUTPUT) {
        return generatedOutputSockets_.count(test_pair) == 1;
    } else {
        assert(false);
    }
}

References assert, generatedInputSockets_, generatedOutputSockets_, TTAMachine::Socket::INPUT, and TTAMachine::Socket::OUTPUT.

verifyCompatibility()

void DefaultICGenerator::verifyCompatibility

(

)

const

Verifies that the IC generator is compatible with the machine.

Exceptions

InvalidData

If the generator is incompatible.

Definition at line 306 of file DefaultICGenerator.cc.

                                              {
    // check that the machine does not use segments or bridges
    Machine::BusNavigator busNav = machine_.busNavigator();
    for (int i = 0; i < busNav.count(); i++) {
        Bus* bus = busNav.item(i);
        if (bus->segmentCount() > 1) {
            throw InvalidData(
                __FILE__, __LINE__, __func__,
                "IC generator does not support segmented buses.");
        }
    }

    Machine::BridgeNavigator bridgeNav = machine_.bridgeNavigator();
    if (bridgeNav.count() > 0) {
        throw InvalidData(
            __FILE__, __LINE__, __func__,
            "IC generator does not support bridges.");
    }
}

References __func__, TTAMachine::Machine::bridgeNavigator(), TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, and TTAMachine::Bus::segmentCount().

Referenced by DefaultICDecoderGenerator::verifyCompatibility().

Here is the call graph for this function:

writeBusDumpCode()

void DefaultICGenerator::writeBusDumpCode ( std::ostream &  stream ) const

private

Writes the code that dumps the bus contents to an output file.

Parameters

stream

The stream to write.

Definition at line 1671 of file DefaultICGenerator.cc.

                                                             {
    if (language_ == VHDL) {

        const std::string vhdlFunctionCeil4 =
            "    -- Rounds integer up to next multiple of four.\n"
            "    function ceil4 (\n"
            "      constant val : natural)\n"
            "      return natural is\n"
            "    begin  -- function ceil4\n"
            "      return natural(ceil(real(val)/real(4)))*4;\n"
            "    end function ceil4;\n";

        const std::string vhdlFunctionExt4 =
            "   -- Extends std_logic_vector to multiple of four.\n"
            "   function ext_to_multiple_of_4 (\n"
            "     constant slv : std_logic_vector)\n"
            "     return std_logic_vector is\n"
            "    begin\n"
            "      return std_logic_vector(resize(\n"
            "        unsigned(slv), ceil4(slv'length)));\n"
            "    end function ext_to_multiple_of_4;\n";

        const std::string vhdlFunctionToHex =
            "    function to_unsigned_hex (\n"
            "      constant slv : std_logic_vector) return string is\n"
            "      variable resized_slv : std_logic_vector(ceil4(slv'length)"
                "-1 downto 0);\n"
            "      variable result      : string(1 to ceil4(slv'length)/4)\n"
            "        := (others => ' ');\n"
            "      subtype digit_t is std_logic_vector(3 downto 0);\n"
            "      variable digit : digit_t := \"0000\";\n"
            "    begin\n"
            "      resized_slv := ext_to_multiple_of_4(slv);\n"
            "      for i in result'range loop\n"
            "        digit := resized_slv(\n"
            "          resized_slv'length-((i-1)*4)-1 downto "
                "resized_slv'length-(i*4));\n"
            "        case digit is\n"
            "          when \"0000\" => result(i) := '0';\n"
            "          when \"0001\" => result(i) := '1';\n"
            "          when \"0010\" => result(i) := '2';\n"
            "          when \"0011\" => result(i) := '3';\n"
            "          when \"0100\" => result(i) := '4';\n"
            "          when \"0101\" => result(i) := '5';\n"
            "          when \"0110\" => result(i) := '6';\n"
            "          when \"0111\" => result(i) := '7';\n"
            "          when \"1000\" => result(i) := '8';\n"
            "          when \"1001\" => result(i) := '9';\n"
            "          when \"1010\" => result(i) := 'a';\n"
            "          when \"1011\" => result(i) := 'b';\n"
            "          when \"1100\" => result(i) := 'c';\n"
            "          when \"1101\" => result(i) := 'd';\n"
            "          when \"1110\" => result(i) := 'e';\n"
            "          when \"1111\" => result(i) := 'f';\n"
            "\n"
            "          -- For TTAsim bustrace compatibility\n"
            "          when others => \n"
            "            result := (others => '0');\n"
            "            return result;\n"
            "        end case;\n"
            "      end loop;  -- i in result'range\n"
            "      return result;\n"
            "    end function to_unsigned_hex;\n";

        stream << indentation(1)
               << "-- Dump the value on the buses into a file once in clock cycle"
               << endl;
        stream << indentation(1)
               << "-- setting DUMP false will disable dumping" << endl << endl;
        stream << indentation(1) << "-- Do not synthesize this process!" << endl;
        stream << indentation(1) << "-- pragma synthesis_off" << endl;
        stream << indentation(1) << "-- pragma translate_off" << endl;

        stream << indentation(1) << "file_output : process" << endl << endl;
        stream << indentation(2)
               << "file regularfileout : text;" << endl;
        stream << indentation(2)
               << "file executionfileout : text;" << endl << endl;
        stream << indentation(2) << "variable lineout : line;" << endl;
        stream << indentation(2) << "variable start : boolean := true;" << endl;
        stream << indentation(2) << "variable cyclecount : integer := 0;"
               << endl;
        stream << indentation(2) << "variable executioncount : integer := 0;"
               << endl << endl;
        stream << indentation(2) << "constant DUMP : boolean := true;" << endl;
        stream << indentation(2)
               << "constant REGULARDUMPFILE : string := \"bus.dump\";"
               << endl;
        stream << indentation(2)
               << "constant EXECUTIONDUMPFILE : string := \"execbus.dump\";"
               << endl << endl;
        stream << vhdlFunctionCeil4 << endl;
        stream << vhdlFunctionExt4 << endl;
        stream << vhdlFunctionToHex << endl;
        stream << indentation(1) << "begin" << endl;
        stream << indentation(2) << "if DUMP = true then" << endl;
        stream << indentation(3) << "if start = true then" << endl;
        stream << indentation(4)
               << "file_open(regularfileout, REGULARDUMPFILE, write_mode);"
               << endl;
        stream << indentation(4)
               << "file_open(executionfileout, EXECUTIONDUMPFILE, write_mode);"
               << endl;
        stream << indentation(4) << "start := false;" << endl;
        stream << indentation(3) << "end if;" << endl << endl;

        stream << indentation(3) << "-- wait until rising edge of clock"
               << endl;
        stream << indentation(3)
               << "wait on clk until clk = '1' and clk'last_value = '0';"
               << endl;
        int ind = 3;
        if (busTraceStartingCycle_ > 0) {
            stream << indentation(3) << "if (cyclecount > "
                   << busTraceStartingCycle_ - 1
                   << ") then" << endl;
            ind++;
        }
        stream << indentation(ind) << "write(lineout, cyclecount-"
               << busTraceStartingCycle_ << ");"
               << endl;

        Machine::BusNavigator busNav = machine_.busNavigator();
        for (int i = 0; i < busNav.count(); i++) {
            stream << indentation(ind) << "write(lineout, string'(\",\"));"
                    << endl;
            stream << indentation(ind)
                   << "write(lineout, to_unsigned_hex("
                   << busSignal(*busNav.item(i)) << "));" << endl;
        }

        stream << endl << indentation(ind)
               << "writeline(regularfileout, lineout);" << endl;

        stream << indentation(ind) << "if glock = '0' then" << endl;
        stream << indentation(ind+1) << "write(lineout, executioncount" << ");"
               << endl;

        for (int i = 0; i < busNav.count(); i++) {
            stream << indentation(ind+1) << "write(lineout, string'(\",\"));"
                   << endl;
            stream << indentation(ind+1)
                   << "write(lineout, to_unsigned_hex("
                   << busSignal(*busNav.item(i)) << "));" << endl;
        }
        stream << endl << indentation(ind+1)
               << "writeline(executionfileout, lineout);" << endl;
        stream << indentation(ind+1) << "executioncount := executioncount + 1;"
               << endl;
        stream << indentation(ind) << "end if;" << endl;

        if (busTraceStartingCycle_ > 0) {
            stream << indentation(3) << "end if;" << endl;
        }
        stream << indentation(3) << "cyclecount := cyclecount + 1;" << endl;
        stream << indentation(2) << "end if;" << endl;
        stream << indentation(1) << "end process file_output;" << endl;
        stream << indentation(1) << "-- pragma translate_on" << endl;
        stream << indentation(1) << "-- pragma synthesis_on" << endl;

    } else { // language_ == Verilog
        stream << indentation(1)
               << "// Dump the value on the buses into a file once in clock cycle"
               << endl
               << indentation(1)
               << "// setting DUMP false will disable dumping" << endl << endl
               << indentation(1) << "// Do not synthesize!" << endl
               << indentation(1) << "//synthesis translate_off" << endl
               << indentation(1) << "integer regularfileout;" << endl << endl
               << indentation(1) << "integer executionfileout;" << endl << endl
               << indentation(1) << "integer count=0;" << endl
               << indentation(1) << "integer executioncount=0;" << endl << endl
               << indentation(1) << "`define REGULARDUMPFILE \"bus.dump\""
               << indentation(1)
               << "`define EXECUTIONDUMPFILE \"execbus.dump\""
               << endl << endl

               << indentation(1) << "initial" << endl
               << indentation(1) << "begin" << endl
               << indentation(2)
               << "regularfileout = $fopen(`REGULARDUMPFILE,\"w\");" << endl
               << indentation(2) << "$fclose(regularfileout);" << endl
               << indentation(2)
               << "executionfileout = $fopen(`EXECUTIONDUMPFILE,\"w\");"
               << endl
               << indentation(2) << "$fclose(executionfileout);" << endl
               << indentation(2) << "forever" << endl
               << indentation(2) << "begin" << endl
               << indentation(3) << "#PERIOD;" << endl;
        if (busTraceStartingCycle_ > 0) {
            stream << indentation(3) << "if(count > "
                   << busTraceStartingCycle_ - 1
                   << ")" << endl;
        }
        std::string format_string = "%0d";
        std::string count_string = "count - " +
            Conversion::toString(busTraceStartingCycle_);
        std::string variable_list = "";

        Machine::BusNavigator busNav = machine_.busNavigator();
        for (int i = 0; i < busNav.count(); i++) {
            const Bus& bus = *busNav.item(i);
            format_string += ",%0"
                + Conversion::toString((bus.width()+3)/4) + "h";
            variable_list += ", $unsigned(" +
                Conversion::toString(busSignal(bus))+")";
        }

        stream << indentation(3) << "begin" << endl
               << indentation(4) << "regularfileout = "
                   "$fopen(`REGULARDUMPFILE,\"a\");" << endl
               << indentation(4) << "$fwrite(regularfileout,"
               << "\"" << format_string << "\\n\"" << ", "
               << count_string << variable_list << ");" << endl
               << indentation(4) << "$fclose(regularfileout);" << endl
               << indentation(4) << "if(glock == 0)" << endl
               << indentation(4) << "begin" << endl
               << indentation(5) << "executionfileout = "
               "$fopen(`EXECUTIONDUMPFILE,\"a\");" << endl
               << indentation(5) << "$fwrite(executionfileout,"
               << "\"" << format_string << "\\n\"" << ", executioncount"
               << variable_list << ");" << endl
               << indentation(5) << "$fclose(executionfileout);" << endl
               << indentation(5) << "executioncount = executioncount + 1;"
               << endl
               << indentation(4) << "end" << endl
               << indentation(3) << "end" << endl
               << indentation(3) << "count = count + 1;" << endl
               << indentation(2) << "end" << endl
               << indentation(1) << "end" << endl
               << indentation(1) << "//synthesis translate_on" << endl;
    }
}

References TTAMachine::Machine::busNavigator(), busSignal(), busTraceStartingCycle_, TTAMachine::Machine::Navigator< ComponentType >::count(), indentation(), TTAMachine::Machine::Navigator< ComponentType >::item(), language_, machine_, Conversion::toString(), ProGe::VHDL, and TTAMachine::Bus::width().

Referenced by writeInterconnectionNetwork().

Here is the call graph for this function:

writeBustraceExportCode()

void DefaultICGenerator::writeBustraceExportCode ( std::ostream &  stream ) const

private

Writes the bus dump lines required by the HW debugger.

Parameters

stream

The stream.

Definition at line 906 of file DefaultICGenerator.cc.

                                                                    {
    stream << indentation(1) << "db_bustraces <= " << endl;

    Machine::BusNavigator busNav = machine_.busNavigator();

    for (int i = 0; i < busNav.count(); i++) {
        if (i % 4 == 0) {
            stream << indentation(2);
        }

        // Reverse order
        int idx = busNav.count() - 1 - i;
        int busWidth = busNav.item(idx)->width();

        if (busWidth % 32 !=
            0) {  // Pad busses to multiple of 32b with zeroes
            stream << "\"" << string(32 - busWidth, '0') << "\"&";
        }

        stream << busSignal(*busNav.item(idx));

        if (i != busNav.count() - 1) {
            stream << " & ";

            if (i % 4 == 3) {
                stream << endl;
            }
        } else {
            stream << ";";
        }

    }
    stream << endl;
}

References TTAMachine::Machine::busNavigator(), busSignal(), TTAMachine::Machine::Navigator< ComponentType >::count(), indentation(), TTAMachine::Machine::Navigator< ComponentType >::item(), and machine_.

Referenced by writeInterconnectionNetwork().

Here is the call graph for this function:

writeInputSocketComponentDeclaration()

void DefaultICGenerator::writeInputSocketComponentDeclaration ( const ProGe::HDL  language, int  segmentConns, int  ind, std::ostream &  stream  )

staticprivate

Writes the component interface declaration of the given input socket to the given stream.

Parameters

segmentConns	The number of segment connections.
ind	The indentation level.
stream	The stream to write.

Definition at line 1593 of file DefaultICGenerator.cc.

                        {

    if (language == VHDL) {
        stream << indentation(ind) << "generic (" << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1) << busWidthGeneric(i) <<
                " : integer := 32;" << endl;
        }

        stream << indentation(ind+1) << INPUT_SOCKET_DATAW_GENERIC
               << " : integer := 32);" << endl;
        stream << indentation(ind) << "port (" << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1) << inputSocketBusPort(i)
                   << " : in std_logic_vector(" << busWidthGeneric(i)
                   << "-1 downto 0);" << endl;
        }

        stream << indentation(ind+1) << INPUT_SOCKET_DATA_PORT
               << " : out std_logic_vector(" << INPUT_SOCKET_DATAW_GENERIC
               << "-1 downto 0)";
        int controlWidth = MathTools::bitLength(segmentConns - 1);
        if (segmentConns > 1) {
            stream << ";" << endl;
            stream << indentation(ind+1) << SOCKET_BUS_CONTROL_PORT
                   << " : in std_logic_vector(" << controlWidth - 1
                   << " downto 0));" << endl;
        } else {
            stream << ");" << endl;
        }
    } else {
        stream << indentation(ind) << "#( parameter " << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1) << busWidthGeneric(i) <<
                " = 32," << endl;
        }

        stream << indentation(ind+1) << INPUT_SOCKET_DATAW_GENERIC
               << " = 32)" << endl;
        stream << indentation(ind) << "(" << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1)
                   << "input[" << busWidthGeneric(i)
                   << "-1 : 0] " << inputSocketBusPort(i) << ","
                   << endl;
        }

        stream << indentation(ind+1)
               << "output reg[" << INPUT_SOCKET_DATAW_GENERIC
               << "-1 : 0] "
               << INPUT_SOCKET_DATA_PORT;
        int controlWidth = MathTools::bitLength(segmentConns - 1);
        if (segmentConns > 1) {
            stream << "," << endl;
            stream << indentation(ind+1)
                   << "input[" << controlWidth - 1
                   << " : 0] "
                   << SOCKET_BUS_CONTROL_PORT;
        }
        stream << ");" << endl;
    }
}

References MathTools::bitLength(), busWidthGeneric(), indentation(), INPUT_SOCKET_DATA_PORT, INPUT_SOCKET_DATAW_GENERIC, inputSocketBusPort(), SOCKET_BUS_CONTROL_PORT, and ProGe::VHDL.

Referenced by declareSocketEntities(), and generateInputMux().

Here is the call graph for this function:

writeInterconnectionNetwork()

void DefaultICGenerator::writeInterconnectionNetwork ( std::ostream &  stream )

private

Writes the interconnection network to the given stream.

Parameters

stream

The stream.

Definition at line 947 of file DefaultICGenerator.cc.

                                                                  {
    if (language_ == VHDL) {
        stream << "library IEEE;" << endl;
        stream << "use IEEE.std_logic_1164.all;" << endl;
        stream << "use IEEE.std_logic_arith.ext;" << endl;
        stream << "use IEEE.std_logic_arith.sxt;" << endl;
        if (generateBusTrace_) {
            stream << "use IEEE.numeric_std.all;" << endl;
            stream << "use IEEE.math_real.all;" << endl;
            stream << "use STD.textio.all;" << endl;
            stream << "use IEEE.std_logic_textio.all;" << endl;
        }
        stream << "use work." << entityNameStr_ << "_globals.all;" << endl
               << "use work.tce_util.all;" << endl
               << endl;

        string entityName = entityNameStr_ + "_interconn";
        stream << "entity " << entityName << " is" << endl << endl;

        if (exportBustrace_ && (icBlock_->port("db_bustraces") == NULL)) {
            new NetlistPort(
                "db_bustraces", "BUSTRACE_WIDTH", ProGe::BIT_VECTOR,
                ProGe::OUT, *icBlock_);
        }

        VHDLNetlistWriter::writeGenericDeclaration(
            *icBlock_, 1, indentation(1), stream);
        VHDLNetlistWriter::writePortDeclaration(
            *icBlock_, 1, indentation(1), stream);

        stream << endl << "end " << entityName << ";" << endl << endl;

        // create architecture
        stream << "architecture comb_andor of " << entityName << " is" << endl
               << endl;
        createSignalsForIC(stream);
        stream << endl;
        declareSocketEntities(stream);
        stream << endl;
        stream << "begin -- comb_andor" << endl << endl;

        if (generateBusTrace_) {
            writeBusDumpCode(stream);
            stream << endl;
        }

        if (exportBustrace_) {
            writeBustraceExportCode(stream);
            stream << endl;
        }

        // Sort sockets by name to get deterministic order in HDL.
        Machine::SocketNavigator socketNav = machine_.socketNavigator();
        std::set<Socket*, Component::ComponentNameComparator> socketsToWrite;
        for (int i = 0; i < socketNav.count(); i++) {
            socketsToWrite.insert(socketNav.item(i));
        }
        for (std::set<Socket*,
                Component::ComponentNameComparator>::const_iterator iter =
                socketsToWrite.begin();
                iter != socketsToWrite.end(); iter++) {
            Socket* socket = *iter;
            int segmentCount = socket->segmentCount();
            if (segmentCount == 0 || socket->portCount() == 0) {
                continue;
            }
            stream << indentation(1) << socket->name() << " : "
                   << socketEntityName(*socket) << endl;
            stream << indentation(2) << "generic map (" << endl;
            for (int i = 0; i < segmentCount; i++) {
                int actualGenericWidth = 0;
                if (socket->direction() == Socket::OUTPUT) {
                    actualGenericWidth = maxOutputSocketDataPortWidth(*socket);
                } else if (socket->direction() == Socket::INPUT) {
                    actualGenericWidth =
                        socket->segment(i)->parentBus()->width();
                }
                stream << indentation(3) << busWidthGeneric(i) << " => "
                       << actualGenericWidth << "," << endl;
            }
            if (socket->direction() == Socket::OUTPUT) {
                for (int i = 0; i < socket->portCount(); i++) {
                    string socketWidth = "";
                    if (socket->hasDataPortWidth()) {
                        socketWidth = socket->dataPortWidth();
                    } else {
                        socketWidth =
                            Conversion::toString(socket->port(i)->width());
                    }
                    if (socket->portCount() > 0
                    && machine_.isRISCVMachine()) {
                        ControlUnit* gcu = machine_.controlUnit();
                        if (isGcuPort(socket->port(0)) &&
                            socket->port(0) == gcu->triggerPort()) {
                            socketWidth = Conversion::toString(32);
                        }
                    }
                    stream << indentation(3) << dataWidthGeneric(i)
                           << " => " << socketWidth;
                    if (i+1 == socket->portCount()) {
                        stream << ")" << endl;
                    } else {
                        stream << "," << endl;
                    }
                }
            } else { // socket->direction() == Socket::INPUT
                string socketWidth;
                if (socket->hasDataPortWidth()) {
                    socketWidth = socket->dataPortWidth();
                } else {
                    socketWidth = Conversion::toString(
                        inputSocketDataPortWidth(*socket));
                }
                stream << indentation(3) << INPUT_SOCKET_DATAW_GENERIC
                       << " => " << socketWidth << ")"
                       << endl;
            }
            stream << indentation(2) << "port map (" << endl;
            for (int i = 0; i < segmentCount; i++) {
                Bus* bus = socket->segment(i)->parentBus();
                stream << indentation(3);
                if (socket->direction() == Socket::INPUT) {
                    stream << inputSocketBusPort(i) << " => "
                           << busSignal(*bus) << "," << endl;
                } else {
                    stream << outputSocketBusPort(i) << " => "
                           << busAltSignal(*bus, *socket) << "," << endl;
                }
            }

            if (socket->direction() == Socket::OUTPUT) {
                for (int i = 0; i < socket->portCount(); i++) {
                    stream << indentation(3) << outputSocketDataPort(i)
                           << " => "
                           << outputSocketDataPort(socket->name(), i);
                    if (i+1 < socket->portCount()) {
                        stream << "," << endl;
                    }
                }
            } else {
                stream << indentation(3) << INPUT_SOCKET_DATA_PORT << " => "
                       << inputSocketDataPort(socket->name());
            }
            if (busControlWidth(
                    socket->direction(), socket->segmentCount()) > 0) {
                stream << "," << endl;
                stream << indentation(3) << SOCKET_BUS_CONTROL_PORT << " => "
                       << socketBusControlPort(socket->name());
            }
            if (dataControlWidth(socket->direction(), socket->portCount()) > 0) {
                stream << "," << endl;
                stream << indentation(3) << SOCKET_DATA_CONTROL_PORT << " => "
                       << socketDataControlPort(socket->name());
            }
            stream << ");" << endl << endl;
        }

        // add the sockets for short immediates
        Machine::BusNavigator busNav = machine_.busNavigator();
        for (int i = 0; i < busNav.count(); i++) {
            Bus* bus = busNav.item(i);
            if (bus->immediateWidth() > 0) {
                stream << indentation(1) << simmSocket(*bus) << " : "
                       << outputSocketEntityName(1, 1) << endl;
                stream << indentation(2) << "generic map (" << endl;
                stream << indentation(3) << busWidthGeneric(0) << " => "
                       << simmPortWidth(*bus) << "," << endl;
                stream << indentation(3) << dataWidthGeneric(0) << " => "
                       << simmPortWidth(*bus) << ")" << endl;
                stream << indentation(2) << "port map (" << endl;
                stream << indentation(3) << outputSocketBusPort(0) << " => "
                       << simmSignal(*bus) << "," << endl;
                stream << indentation(3) << outputSocketDataPort(0) << " => "
                       << simmDataPort(bus->name()) << "," << endl;
                stream << indentation(3) << SOCKET_BUS_CONTROL_PORT << " => "
                       << simmControlPort(bus->name()) << ");" << endl
                       << endl;
            }
        }

        // add assignments to data buses
        for (int i = 0; i < busNav.count(); i++) {
            Bus* bus = busNav.item(i);
            std::set<Socket*> outputSockets = this->outputSockets(*bus);
            if (outputSockets.size() == 0 && bus->immediateWidth() == 0) {
                stream << indentation(1) << busSignal(*bus)
                       << " <= (others=>'0');" << endl;
                continue;
            }
            // Sort sockets by name to get deterministic HDL output.
            std::set<Socket*, Component::ComponentNameComparator> socketsToWrite;
            for (std::set<Socket*>::iterator iter = outputSockets.begin();
                    iter != outputSockets.end(); iter++) {
                socketsToWrite.insert(*iter);
            }

            stream << indentation(1) << busSignal(*bus) << " <= ";
            for (auto iter = socketsToWrite.begin();
                 iter != socketsToWrite.end();) {
                Socket* socket = *iter;
                stream << "tce_ext(" << busAltSignal(*bus, *socket) << ", "
                       << busSignal(*bus) << "'length)";
                iter++;
                if (iter != socketsToWrite.end()) {
                    stream << " or ";
                }
            }
            if (bus->immediateWidth() > 0) {
                if (socketsToWrite.begin() != socketsToWrite.end()) {
                    stream << " or ";
                }
                if (bus->signExtends()) {
                    stream << "tce_sxt(";
                } else if (bus->zeroExtends()) {
                    stream << "tce_ext(";
                } else {
                    assert(false && "Unknown extension policy.");
                }
                stream << simmSignal(*bus)
                       << ", " << busSignal(*bus) << "'length)";
            }
            stream << ";" << endl;
        }

        stream << endl;
        stream << "end comb_andor;" << endl;

    } else { // language_ == Verilog
        const std::string DS = FileSystem::DIRECTORY_SEPARATOR;
        string entityName = entityNameStr_ + "_interconn";
        stream << "`timescale 1ns/1ns" << endl
               << "module " << entityName << endl
        //include parameters here
               << "#(" << endl
               << "`include \""
               << entityNameStr_ << "_globals_pkg.vh\"" << endl
               << ")" << endl;

        VerilogNetlistWriter::writePortDeclaration(
            *icBlock_, 1, indentation(1), stream);
        VerilogNetlistWriter::writeGenericDeclaration(
            *icBlock_, 1, indentation(1), stream);

        // create architecture
        createSignalsForIC(stream);
        stream << endl;

        if (generateBusTrace_) {
            writeBusDumpCode(stream);
            stream << endl;
        }

        // Sort sockets by name to get deterministic HDL output.
        Machine::SocketNavigator socketNav = machine_.socketNavigator();
        std::set<Socket*, Component::ComponentNameComparator> socketsToWrite;
        for (int i = 0; i < socketNav.count(); i++) {
            socketsToWrite.insert(socketNav.item(i));
        }
        for (std::set<Socket*,
                Component::ComponentNameComparator>::const_iterator iter =
                socketsToWrite.begin(); iter != socketsToWrite.end(); iter++) {
            Socket* socket = *iter;
            int segmentCount = socket->segmentCount();
            if (segmentCount == 0 || socket->portCount() == 0) {
                continue;
            }
            stream << indentation(1) << socketEntityName(*socket) << endl;

            //parameters(generics)
            stream << indentation(2) << "#(" << endl;
            for (int i = 0; i < segmentCount; i++) {
                stream << indentation(3) << "." << busWidthGeneric(i) << "("
                       << socket->segment(i)->parentBus()->width() << "),"
                       << endl;
            }

            if (socket->direction() == Socket::OUTPUT) {
                for (int i = 0; i < socket->portCount(); i++) {
                    string socketWidth = "";
                    if (socket->hasDataPortWidth()) {
                        socketWidth = socket->dataPortWidth();
                    } else {
                        socketWidth =
                            Conversion::toString(socket->port(i)->width());
                    }
                    stream << indentation(3) << "." << dataWidthGeneric(i)
                           << "(" << socketWidth;
                    if (i+1 == socket->portCount()) {
                        stream << ")" << endl;
                    } else {
                        stream << ")," << endl;
                    }
                }
            } else {
                string socketWidth;
                if (socket->hasDataPortWidth()) {
                    socketWidth = socket->dataPortWidth();
                } else {
                    socketWidth =
                        Conversion::toString(inputSocketDataPortWidth(*socket));
                }
                stream << indentation(3) << "." << INPUT_SOCKET_DATAW_GENERIC
                       << "(" << socketWidth << ")"
                       << endl;
            }
            stream << indentation(2) << ")" << endl
                   << indentation(2) << socket->name() << endl
                   << indentation(2) << "(" << endl;
            for (int i = 0; i < segmentCount; i++) {
                Bus* bus = socket->segment(i)->parentBus();
                stream << indentation(3);
                if (socket->direction() == Socket::INPUT) {
                    stream << "." << inputSocketBusPort(i) << "("
                           << busSignal(*bus) << ")," << endl;
                } else {
                    stream << "." << outputSocketBusPort(i) << "("
                           << busAltSignal(*bus, *socket) << ")," << endl;
                }
            }

            if (socket->direction() == Socket::OUTPUT) {
                for (int i = 0; i < socket->portCount(); i++) {
                    stream << indentation(3) << "." << outputSocketDataPort(i)
                           << "("
                           << outputSocketDataPort(socket->name(), i);
                    if (i+1 < socket->portCount()) {
                        stream << ")," << endl;
                    }
                }
            } else {
                stream << indentation(3) << "." << INPUT_SOCKET_DATA_PORT << "("
                       << inputSocketDataPort(socket->name());
            }
            if (busControlWidth(
                    socket->direction(), socket->segmentCount()) > 0) {
                stream << ")," << endl;
                stream << indentation(3) << "." << SOCKET_BUS_CONTROL_PORT << "("
                       << socketBusControlPort(socket->name());
            }
            if (dataControlWidth(socket->direction(), socket->portCount()) > 0) {
                stream << ")," << endl;
                stream << indentation(3) << "." << SOCKET_DATA_CONTROL_PORT << "("
                       << socketDataControlPort(socket->name());
            }
            stream << "));" << endl << endl;
        }

        // add the sockets for short immediates
        Machine::BusNavigator busNav = machine_.busNavigator();
        for (int i = 0; i < busNav.count(); i++) {
            Bus* bus = busNav.item(i);
            if (bus->immediateWidth() > 0) {
                stream << indentation(1)
                       << outputSocketEntityName(1, 1)
                       << " "
                       << endl

                       << indentation(2) << "#(" << endl
                       << indentation(3) << "." << busWidthGeneric(0) << "("
                       << bus->width() << ")," << endl
                       << indentation(3) << "." << dataWidthGeneric(0) << "("
                       << simmPortWidth(*bus) << ")" << endl
                       << indentation(2) << ")" << endl
                       << indentation(2) << simmSocket(*bus) << endl
                       << indentation(2) << "(" << endl
                       << indentation(3) << "." << outputSocketBusPort(0) << "("
                       << simmSignal(*bus) << ")," << endl
                       << indentation(3) << "." << outputSocketDataPort(0) << "("
                       << simmDataPort(bus->name()) << ")," << endl
                       << indentation(3) << "." << SOCKET_BUS_CONTROL_PORT << "("
                       << simmControlPort(bus->name()) << "));" << endl << endl;
            }
        }

        // add assignments to data buses
        for (int i = 0; i < busNav.count(); i++) {
            Bus* bus = busNav.item(i);
            std::set<Socket*> outputSockets = this->outputSockets(*bus);
            stream << indentation(1) << "assign " << busSignal(*bus) << " = ";
            // Sort sockets by name to get deterministic HDL output.
            std::set<Socket*, Component::ComponentNameComparator> socketsToWrite;
            for (std::set<Socket*>::iterator iter = outputSockets.begin();
                    iter != outputSockets.end(); iter++) {
                socketsToWrite.insert(*iter);
            }

            for (std::set<Socket*,
                    Component::ComponentNameComparator>::const_iterator iter =
                     socketsToWrite.begin(); iter != socketsToWrite.end();) {
                Socket* socket = *iter;
                stream << busAltSignal(*bus, *socket);
                iter++;
                if (iter != socketsToWrite.end()) {
                    stream << " | ";
                }
            }
            if (bus->immediateWidth() > 0) {
                if (socketsToWrite.begin() != socketsToWrite.end()) {
                    stream << " | ";
                }
                stream << simmSignal(*bus);
            }
            stream << ";" << endl;
        }
        stream << endl;
        stream << "endmodule"<< endl;
    }
}

References assert, ProGe::BIT_VECTOR, busAltSignal(), busControlWidth(), TTAMachine::Machine::busNavigator(), busSignal(), busWidthGeneric(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), createSignalsForIC(), dataControlWidth(), TTAMachine::Socket::dataPortWidth(), dataWidthGeneric(), declareSocketEntities(), TTAMachine::Socket::direction(), FileSystem::DIRECTORY_SEPARATOR, DS, entityNameStr_, exportBustrace_, generateBusTrace_, TTAMachine::Socket::hasDataPortWidth(), icBlock_, TTAMachine::Bus::immediateWidth(), indentation(), TTAMachine::Socket::INPUT, INPUT_SOCKET_DATA_PORT, INPUT_SOCKET_DATAW_GENERIC, inputSocketBusPort(), inputSocketDataPort(), inputSocketDataPortWidth(), isGcuPort(), TTAMachine::Machine::isRISCVMachine(), TTAMachine::Machine::Navigator< ComponentType >::item(), language_, machine_, maxOutputSocketDataPortWidth(), TTAMachine::Component::name(), ProGe::OUT, TTAMachine::Socket::OUTPUT, outputSocketBusPort(), outputSocketDataPort(), outputSocketEntityName(), outputSockets(), TTAMachine::Segment::parentBus(), ProGe::NetlistBlock::port(), TTAMachine::Socket::port(), TTAMachine::Socket::portCount(), TTAMachine::Socket::segment(), TTAMachine::Socket::segmentCount(), TTAMachine::Bus::signExtends(), simmControlPort(), simmDataPort(), simmPortWidth(), simmSignal(), simmSocket(), SOCKET_BUS_CONTROL_PORT, SOCKET_DATA_CONTROL_PORT, socketBusControlPort(), socketDataControlPort(), socketEntityName(), TTAMachine::Machine::socketNavigator(), Conversion::toString(), TTAMachine::FunctionUnit::triggerPort(), ProGe::VHDL, TTAMachine::Bus::width(), TTAMachine::Port::width(), writeBusDumpCode(), writeBustraceExportCode(), ProGe::VerilogNetlistWriter::writeGenericDeclaration(), ProGe::VHDLNetlistWriter::writeGenericDeclaration(), ProGe::VerilogNetlistWriter::writePortDeclaration(), ProGe::VHDLNetlistWriter::writePortDeclaration(), and TTAMachine::Bus::zeroExtends().

Referenced by generateInterconnectionNetwork().

writeOutputSocketComponentDeclaration()

void DefaultICGenerator::writeOutputSocketComponentDeclaration ( const ProGe::HDL  language, int  portConns, int  segmentConns, int  ind, std::ostream &  stream  )

staticprivate

Writes the component interface declaration of the given output socket to the given stream.

Parameters

portConns	The number of port connections.
segmentConns	The number of segment connections.
ind	The indentation level.
stream	The stream to write.

Definition at line 1478 of file DefaultICGenerator.cc.

                        {

    if (language == VHDL) {
        stream << indentation(ind) << "generic (" << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1) << busWidthGeneric(i)
                   << " : integer := 32;" << endl;
        }

        for (int i = 0; i < portConns; i++) {
            stream << indentation(ind+1) << dataWidthGeneric(i)
                   << " : integer := 32";
            if (i+1 == portConns) {
                stream << ");" << endl;
            } else {
                stream << ";" << endl;
            }
        }

        stream << indentation(ind) << "port (" << endl;
        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1) << outputSocketBusPort(i)
                   << " : out std_logic_vector(" << busWidthGeneric(i)
                   << "-1 downto 0);" << endl;
        }
        for (int i = 0; i < portConns; i++) {
            stream << indentation(ind+1) << outputSocketDataPort(i)
                   << " : in std_logic_vector(" << dataWidthGeneric(i)
                   << "-1 downto 0);" << endl;
        }

        const int busControlWidth = segmentConns;
        stream << indentation(ind+1) << SOCKET_BUS_CONTROL_PORT
               << " : in std_logic_vector(" << busControlWidth - 1
               << " downto 0)";

        if (portConns > 1) {
            stream << ";" << endl;
            const int dataControlWidth = DefaultICGenerator::dataControlWidth(
                Socket::OUTPUT, portConns);
            stream << indentation(ind+1) << SOCKET_DATA_CONTROL_PORT
                   << " : in std_logic_vector(" << dataControlWidth - 1
                   << " downto 0));" << endl;
        } else {
            stream << ");" << endl;
        }
    } else {
        stream << indentation(ind) << "#( parameter " << endl;

        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1) << busWidthGeneric(i)
                   << " = 32," << endl;
        }

        for (int i = 0; i < portConns; i++) {
            stream << indentation(ind+1) << dataWidthGeneric(i)
                   << " = 32";
            if (i+1 == portConns) {
                stream << ")" << endl;
            } else {
                stream << "," << endl;
            }
        }

        stream << indentation(ind) << "(" << endl;
        for (int i = 0; i < segmentConns; i++) {
            stream << indentation(ind+1)
                   << "output reg[" << busWidthGeneric(i)
                   << "-1 : 0] "
                   << outputSocketBusPort(i)
                   << "," << endl;
        }
        for (int i = 0; i < portConns; i++) {
            stream << indentation(ind+1)
                   << "input[" << dataWidthGeneric(i)
                   << "-1 : 0] "
                   << outputSocketDataPort(i)
                   << "," << endl;
        }

        const int busControlWidth = segmentConns;
        stream << indentation(ind+1)
               << "input [" << busControlWidth - 1
               << " : 0]"
               << SOCKET_BUS_CONTROL_PORT;

        if (portConns > 1) {
            stream << "," << endl;
            const int dataControlWidth = DefaultICGenerator::dataControlWidth(
                Socket::OUTPUT, portConns);
            stream << indentation(ind+1) << SOCKET_DATA_CONTROL_PORT
                   << "input [" << dataControlWidth - 1
                   << " : 0]);" << endl;
        } else {
            stream << ");" << endl;
        }
    }
}

References busControlWidth(), busWidthGeneric(), dataControlWidth(), dataWidthGeneric(), indentation(), TTAMachine::Socket::OUTPUT, outputSocketBusPort(), outputSocketDataPort(), SOCKET_BUS_CONTROL_PORT, SOCKET_DATA_CONTROL_PORT, and ProGe::VHDL.

Referenced by declareSocketEntities(), and generateOutputSocket().

Here is the call graph for this function:

Member Data Documentation

altSignalMap_

BusAltSignalMap DefaultICGenerator::altSignalMap_

private

Signal numbers for controlling sockets.

Definition at line 208 of file DefaultICGenerator.hh.

Referenced by busAltSignal(), and ~DefaultICGenerator().

busConnections

BusSocketMap DefaultICGenerator::busConnections

private

Definition at line 217 of file DefaultICGenerator.hh.

Referenced by getBusConnections().

busTraceStartingCycle_

unsigned int DefaultICGenerator::busTraceStartingCycle_

private

The starting cycle for bus tracing.

Definition at line 214 of file DefaultICGenerator.hh.

Referenced by setBusTraceStartingCycle(), and writeBusDumpCode().

entityNameStr_

TCEString DefaultICGenerator::entityNameStr_

private

Definition at line 215 of file DefaultICGenerator.hh.

Referenced by addICToNetlist(), inputMuxEntityName(), outputSocketEntityName(), and writeInterconnectionNetwork().

exportBustrace_

bool DefaultICGenerator::exportBustrace_

private

Tells whether to export bustraces to debugger.

Definition at line 212 of file DefaultICGenerator.hh.

Referenced by setExportBustrace(), and writeInterconnectionNetwork().

generateBusTrace_

bool DefaultICGenerator::generateBusTrace_

private

Tells whether to generate bus tracing code.

Definition at line 210 of file DefaultICGenerator.hh.

Referenced by setGenerateBusTrace(), and writeInterconnectionNetwork().

generatedInputSockets_

std::set<std::pair<int, int> > DefaultICGenerator::generatedInputSockets_

private

Definition at line 221 of file DefaultICGenerator.hh.

Referenced by declareSocketEntities(), generateSocketsAndMuxes(), and socketIsGenerated().

generatedOutputSockets_

std::set<std::pair<int, int> > DefaultICGenerator::generatedOutputSockets_

private

Definition at line 220 of file DefaultICGenerator.hh.

Referenced by declareSocketEntities(), generateSocketsAndMuxes(), and socketIsGenerated().

icBlock_

ProGe::NetlistBlock* DefaultICGenerator::icBlock_

private

The netlist block of IC.

Definition at line 206 of file DefaultICGenerator.hh.

Referenced by addICToNetlist(), and writeInterconnectionNetwork().

language_

ProGe::HDL DefaultICGenerator::language_

private

Definition at line 216 of file DefaultICGenerator.hh.

Referenced by createSignalsForIC(), generateInputMux(), generateInputSocketRuleForBus(), generateInterconnectionNetwork(), generateOutputSocket(), generateSocket(), SetHDL(), writeBusDumpCode(), and writeInterconnectionNetwork().

machine_

const TTAMachine::Machine& DefaultICGenerator::machine_

private

The machine.

Definition at line 204 of file DefaultICGenerator.hh.

Referenced by addICToNetlist(), createSignalsForIC(), generateSocketsAndMuxes(), isGcuPort(), verifyCompatibility(), writeBusDumpCode(), writeBustraceExportCode(), and writeInterconnectionNetwork().

---

The documentation for this class was generated from the following files:

• DefaultICGenerator.hh
• DefaultICGenerator.cc
