TTAMachine::Segment Class Reference

#include <Segment.hh>

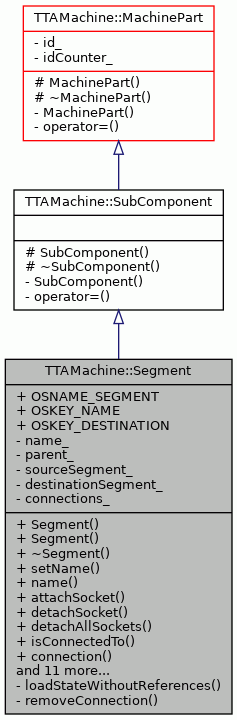

Inheritance diagram for TTAMachine::Segment:

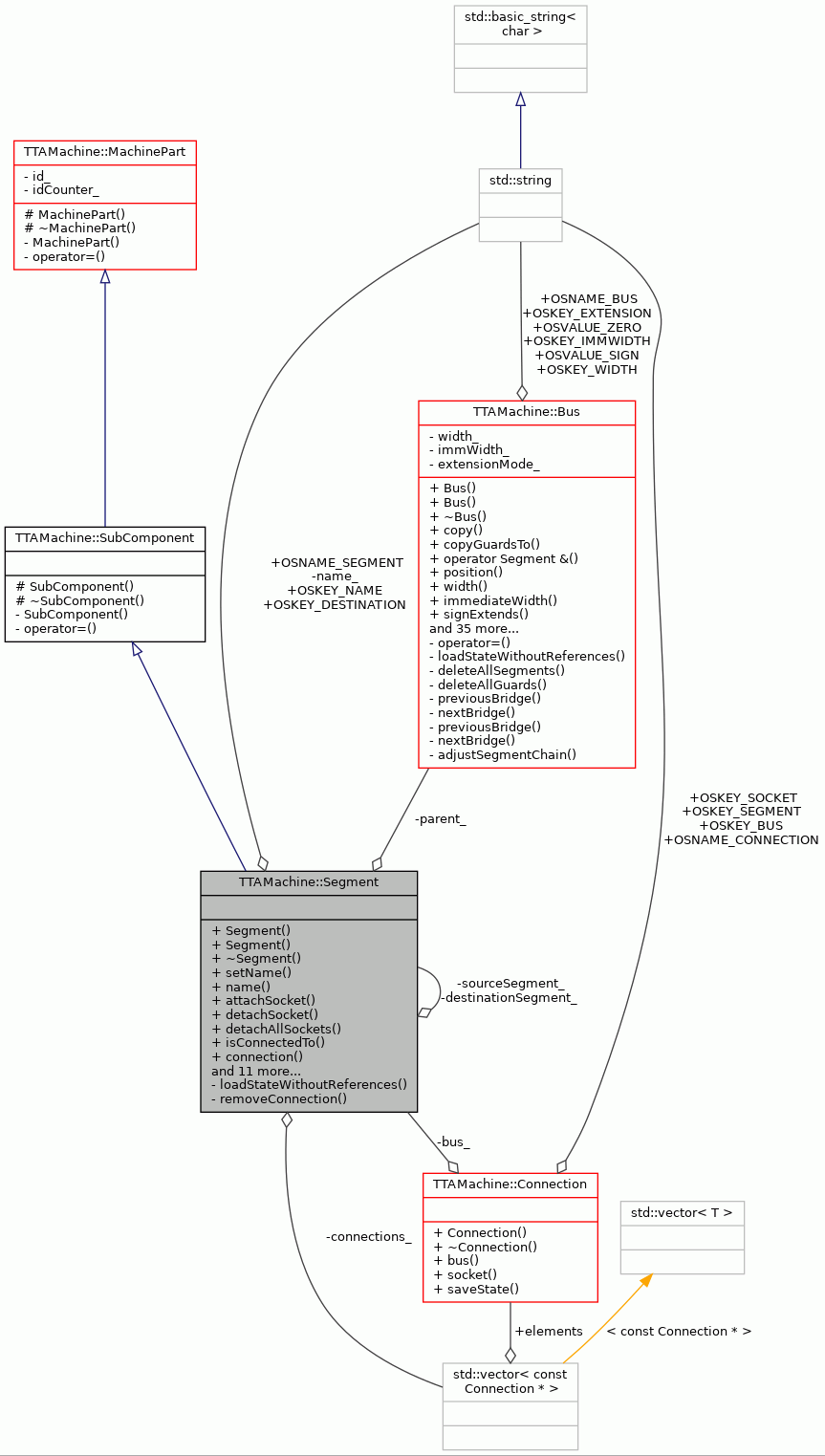

Collaboration diagram for TTAMachine::Segment:

Public Member Functions
	Segment (const std::string &name, Bus &parent)
	Segment (const ObjectState *state, Bus &parent)
	~Segment ()
void	setName (const std::string &name)
std::string	name () const
void	attachSocket (Socket &socket)
void	detachSocket (Socket &socket)
void	detachAllSockets ()
bool	isConnectedTo (const Socket &socket) const
const Connection &	connection (const Socket &socket) const
Socket *	connection (int index) const
int	connectionCount () const
Bus *	parentBus () const
void	moveBefore (Segment &segment)
void	moveAfter (Segment &segment)
bool	hasSourceSegment () const
bool	hasDestinationSegment () const
Segment *	sourceSegment () const
Segment *	destinationSegment () const
virtual ObjectState *	saveState () const
virtual void	loadState (const ObjectState *state)
Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_SEGMENT = "segment"
	ObjectState name for Segment.
static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for segment name.
static const std::string	OSKEY_DESTINATION = "destination"
	ObjectState attribute key for destination segment name.

Private Types
typedef std::vector< const Connection * >	ConnectionTable
	Vector of Connection pointers.

Private Member Functions
void	loadStateWithoutReferences (const ObjectState *state)
void	removeConnection (const Connection *connection)

Private Attributes
std::string	name_
	Name of the segment.
Bus *	parent_
	The parent bus.
Segment *	sourceSegment_
	Source segment.
Segment *	destinationSegment_
	Destination segment.
ConnectionTable	connections_
	Contains all the connections to sockets.

Additional Inherited Members
Protected Member Functions inherited from TTAMachine::SubComponent
	SubComponent ()
virtual	~SubComponent ()
Protected Member Functions inherited from TTAMachine::MachinePart
	MachinePart ()
virtual	~MachinePart ()

Detailed Description

Represents a segment of a bus.

Definition at line 54 of file Segment.hh.

Member Typedef Documentation

ConnectionTable

typedef std::vector<const Connection*> TTAMachine::Segment::ConnectionTable

private

Vector of Connection pointers.

Definition at line 95 of file Segment.hh.

Constructor & Destructor Documentation

Segment() [1/2]

TTAMachine::Segment::Segment	(	const std::string &	name,
		Bus &	parent
	)

Constructor.

The segment is appended at the end of the segment chain of its parent bus.

Parameters

name	Name of the segment.
parent	The bus this segment belongs to (parent bus).

Exceptions

ComponentAlreadyExists	If a segment with the same name already exists in the same segment chain.
InvalidName	If the given name is not a valid component name.

Definition at line 70 of file Segment.cc.

    : name_(name),
      parent_(NULL),
      sourceSegment_(NULL),
      destinationSegment_(NULL) {
    if (!MachineTester::isValidComponentName(name)) {
        const string procName = "Segment::Segment";
        throw InvalidName(__FILE__, __LINE__, procName);
    }

    parent.addSegment(*this);
    parent_ = &parent;

    for (int i = 0; i < parent.segmentCount(); i++) {
        Segment* segment = parent.segment(i);
        if (segment->destinationSegment_ == NULL && segment != this) {
            segment->destinationSegment_ = this;
            sourceSegment_ = segment;
            break;
        }
    }
}

References TTAMachine::Bus::addSegment(), destinationSegment_, MachineTester::isValidComponentName(), name(), parent_, TTAMachine::Bus::segment(), TTAMachine::Bus::segmentCount(), and sourceSegment_.

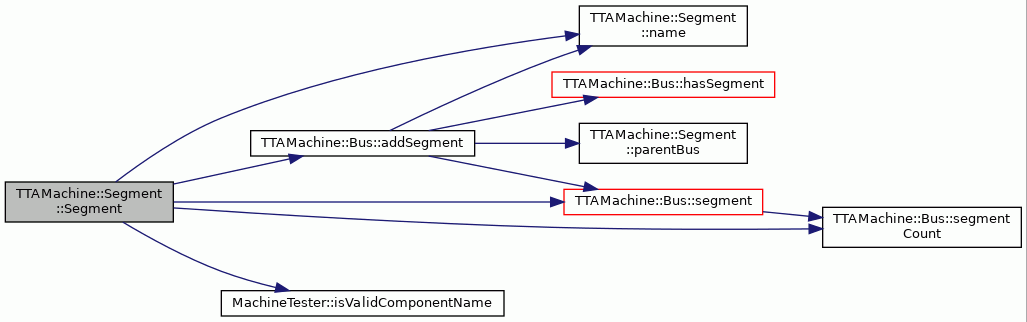

Here is the call graph for this function:

Segment() [2/2]

TTAMachine::Segment::Segment	(	const ObjectState *	state,
		Bus &	parent
	)

Constructor.

Creates a skeleton segment with name only. This method should be called by Bus::loadStateWithoutReferences only. Do not use this constructor.

Parameters

state	The ObjectState instance from which the name is loaded.
parent	The bus this segment belongs to (parent bus).

Exceptions

ComponentAlreadyExists	If a segment with the same name already exists in the given parent bus.
ObjectStateLoadingException	If an error occurs while loading the state.

Definition at line 106 of file Segment.cc.

    : name_(""),
      parent_(NULL),
      sourceSegment_(NULL),
      destinationSegment_(NULL) {
    loadStateWithoutReferences(state);
    parent.addSegment(*this);
    parent_ = &parent;
}

References TTAMachine::Bus::addSegment(), loadStateWithoutReferences(), and parent_.

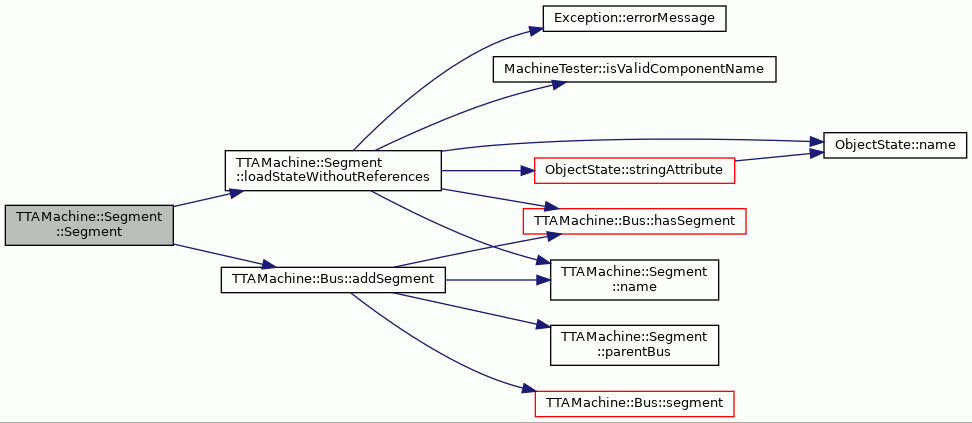

Here is the call graph for this function:

~Segment()

TTAMachine::Segment::~Segment

(

)

Destructor.

Detaches all the sockets before destruction.

Definition at line 121 of file Segment.cc.

                  {

    Bus* parentBus = parent_;
    parent_ = NULL;
    parentBus->removeSegment(*this);

    detachAllSockets();

    if (sourceSegment_ != NULL) {
        sourceSegment_->destinationSegment_ = destinationSegment_;
    }
    if (destinationSegment_ != NULL) {
        destinationSegment_->sourceSegment_ = sourceSegment_;
    }
}

References destinationSegment_, detachAllSockets(), parent_, parentBus(), TTAMachine::Bus::removeSegment(), and sourceSegment_.

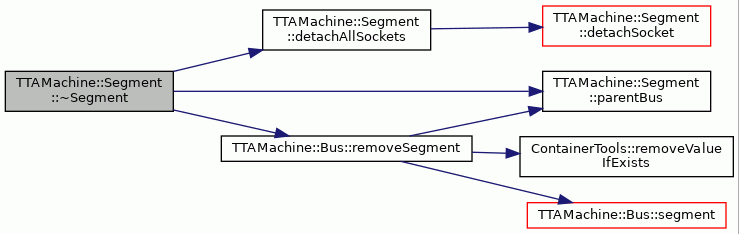

Here is the call graph for this function:

Member Function Documentation

attachSocket()

void TTAMachine::Segment::attachSocket

(

Socket &

socket

)

Connects a socket to the segment.

Parameters

socket

Socket to be connected.

Exceptions

IllegalRegistration	If socket and segment do not belong to the same machine.
IllegalConnectivity	If the connection would violate a connectivity constraint.

Definition at line 180 of file Segment.cc.

                                    {
    parentBus()->ensureRegistration(socket);

    if (socket.isConnectedTo(*this)) {
        if (!isConnectedTo(socket)) {
            const Connection* conn = &(socket.connection(*this));
            connections_.push_back(conn);
        } else {
            MachineTester& tester = parentBus()->machine()->machineTester();
            assert(!tester.canConnect(socket, *this));
            MachineTestReporter reporter;
            string errorMsg =
                reporter.socketSegmentConnectionError(socket, *this, tester);
            string procName = "Segment::attachSocket";
            throw IllegalConnectivity(
                __FILE__, __LINE__, procName, errorMsg);
        }
    } else {
        socket.attachBus(*this);
    }
}

References assert, TTAMachine::Socket::attachBus(), MachineTester::canConnect(), TTAMachine::Socket::connection(), connections_, TTAMachine::Component::ensureRegistration(), TTAMachine::Socket::isConnectedTo(), isConnectedTo(), TTAMachine::Component::machine(), TTAMachine::Machine::machineTester(), parentBus(), and MachineTestReporter::socketSegmentConnectionError().

Referenced by TTAMachine::Socket::attachBus(), BlocksConnectIC::explore(), and VLIWConnectIC::explore().

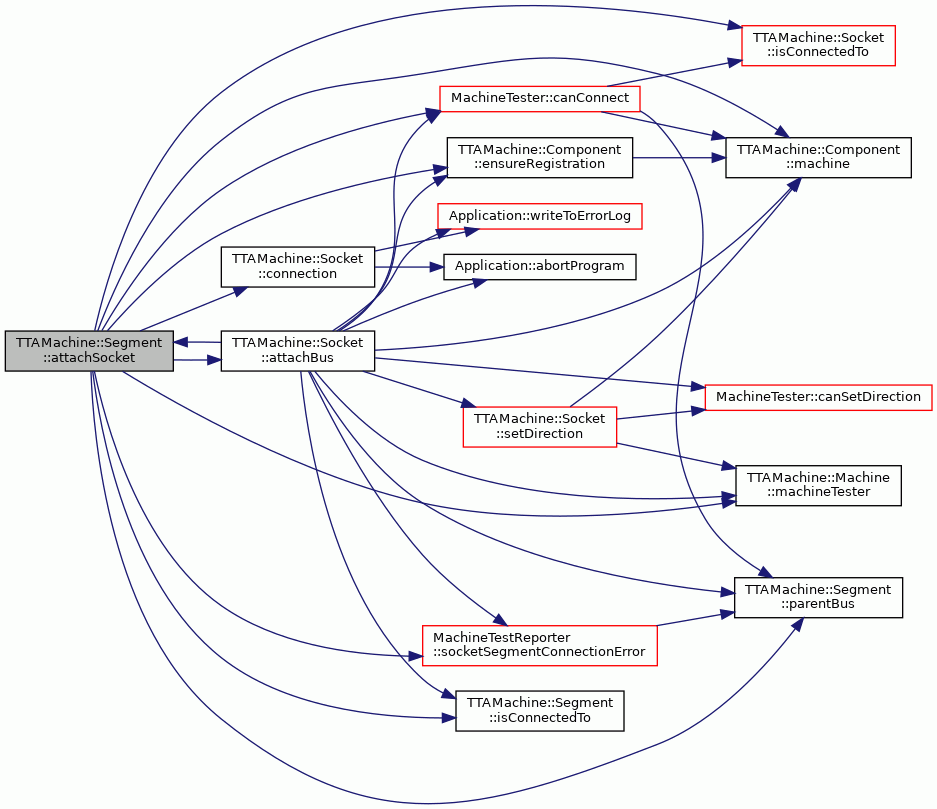

Here is the call graph for this function:

connection() [1/2]

const Connection & TTAMachine::Segment::connection

(

const Socket &

socket

)

const

Returns the Connection object which joins this segment and the given socket.

The connection must exist before calling this method. This method is not intended for clients. Do not use this method.

Parameters

socket

Socket which is attached to this segment.

Returns

Connection object which joins the socket and the segment.

Definition at line 250 of file Segment.cc.

                                              {

    ConnectionTable::const_iterator iter = connections_.begin();
    while (iter != connections_.end()) {
        if ((*iter)->socket() == &socket) {
            return **iter;
        } else {
            iter++;
        }
    }
    assert(false);

    // this return statement is only to avoid warning in Solaris environment
    return **iter;
}

References assert, and connections_.

Referenced by BEMValidator::checkDestinationField(), BEMValidator::checkSourceField(), SegmentFactory::createEditPart(), detachSocket(), CostEstimator::Estimator::findAllICPaths(), DefaultICGenerator::inputSockets(), BEMValidator::needsSourceField(), DefaultICGenerator::outputSockets(), removeConnection(), BusBroker::setupResourceLinks(), BEMGenerator::socket(), BEMGenerator::socketCount(), ConnectionSweeper::sweepBypasses(), and ConnectionSweeper::sweepRFs().

connection() [2/2]

Socket * TTAMachine::Segment::connection

(

int

index

)

const

Returns the connected socket by the given index.

The index must be greater or equal to 0 and less than the number of socket connections.

Parameters

index

Index.

Returns

The connected socket by the given index.

Exceptions

OutOfRange

If the given index is out of range.

Definition at line 300 of file Segment.cc.

                                   {
    if (index < 0 || index >= connectionCount()) {
        string procName = "Segment::connection";
        throw OutOfRange(__FILE__, __LINE__, procName);
    }
    return connections_[index]->socket();
}

References connectionCount(), and connections_.

Here is the call graph for this function:

connectionCount()

int TTAMachine::Segment::connectionCount

(

)

const

Referenced by BusBroker::buildResources(), BEMValidator::checkDestinationField(), BEMValidator::checkSourceField(), connection(), SegmentFactory::createEditPart(), CostEstimator::Estimator::findAllICPaths(), DefaultICGenerator::inputSockets(), DefaultICGenerator::isBusConnected(), CostEstimator::Estimator::longestPath(), BEMValidator::needsSourceField(), DefaultICGenerator::outputSockets(), BusBroker::setupResourceLinks(), BEMGenerator::socket(), BEMGenerator::socketCount(), ConnectionSweeper::sweepBypasses(), ConnectionSweeper::sweepRFs(), and MachineConnectivityCheck::totalConnectionCount().

destinationSegment()

Segment * TTAMachine::Segment::destinationSegment

(

)

const

Referenced by BusDialog::onSegmentDown(), and TTAMachine::Bus::segment().

detachAllSockets()

void TTAMachine::Segment::detachAllSockets

(

)

Detaches all the sockets attached to the segment.

Definition at line 229 of file Segment.cc.

                          {
    ConnectionTable::iterator iter = connections_.begin();
    while (iter != connections_.end()) {
        Socket* socket = (*iter)->socket();
        detachSocket(*socket); // removes the socket from connections_
        iter = connections_.begin();
    }
}

References connections_, and detachSocket().

Referenced by loadState(), and ~Segment().

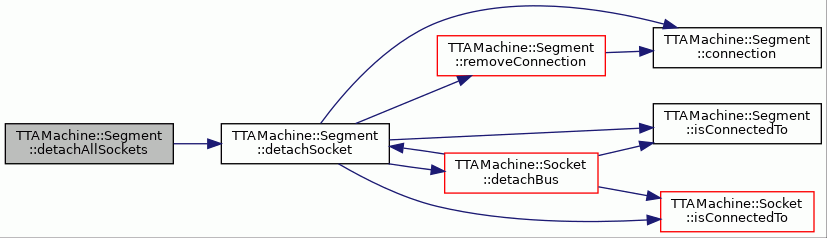

Here is the call graph for this function:

detachSocket()

void TTAMachine::Segment::detachSocket

(

Socket &

socket

)

Detaches socket from the segment.

Parameters

socket

Socket which is detached.

Exceptions

InstanceNotFound

If the segment is not attached to the given socket.

Definition at line 210 of file Segment.cc.

                                    {
    if (!isConnectedTo(socket)) {
        string procName = "Segment::detachSocket";
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }

    const Connection& conn = connection(socket);
    removeConnection(&conn);

    if (socket.isConnectedTo(*this)) {
        socket.detachBus(*this);
        delete &conn;
    }
}

References connection(), TTAMachine::Socket::detachBus(), TTAMachine::Socket::isConnectedTo(), isConnectedTo(), and removeConnection().

Referenced by detachAllSockets(), TTAMachine::Socket::detachBus(), and ConnectionSweeper::removeConnection().

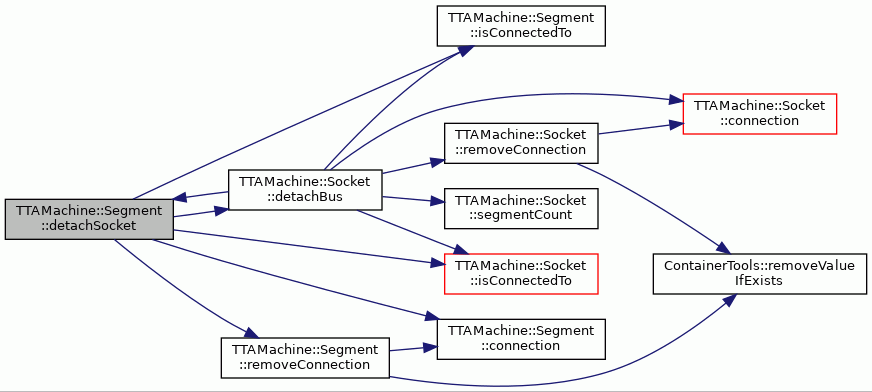

Here is the call graph for this function:

hasDestinationSegment()

bool TTAMachine::Segment::hasDestinationSegment

(

)

const

Returns true if the segment has a destination segment, otherwise false.

Returns

True if the segment has a destination segment, otherwise false.

Definition at line 399 of file Segment.cc.

                                     {
    return (destinationSegment_ != NULL);
}

References destinationSegment_.

Referenced by BusDialog::onSegmentDown().

hasSourceSegment()

bool TTAMachine::Segment::hasSourceSegment

(

)

const

Returns true if the segment has a source segment, otherwise false.

Returns

True if the segment has a source segment, otherwise false.

Definition at line 388 of file Segment.cc.

                                {
    return (sourceSegment_ != NULL);
}

References sourceSegment_.

Referenced by BusDialog::onSegmentUp(), and TTAMachine::Bus::segment().

isConnectedTo()

bool TTAMachine::Segment::isConnectedTo

(

const Socket &

socket

)

const

Checks whether the segment is connected to the given socket.

Parameters

socket

Socket.

Returns

True if connected, otherwise false.

Definition at line 274 of file Segment.cc.

                                                 {

    ConnectionTable::const_iterator iter = connections_.begin();
    while (iter != connections_.end()) {
        if ((*iter)->socket() == &socket) {
            return true;
        } else {
            iter++;
        }
    }

    return false;
}

References connections_.

Referenced by TTAMachine::Socket::attachBus(), attachSocket(), TTAMachine::Socket::detachBus(), detachSocket(), BlocksConnectIC::explore(), and TTAMachine::Connection::~Connection().

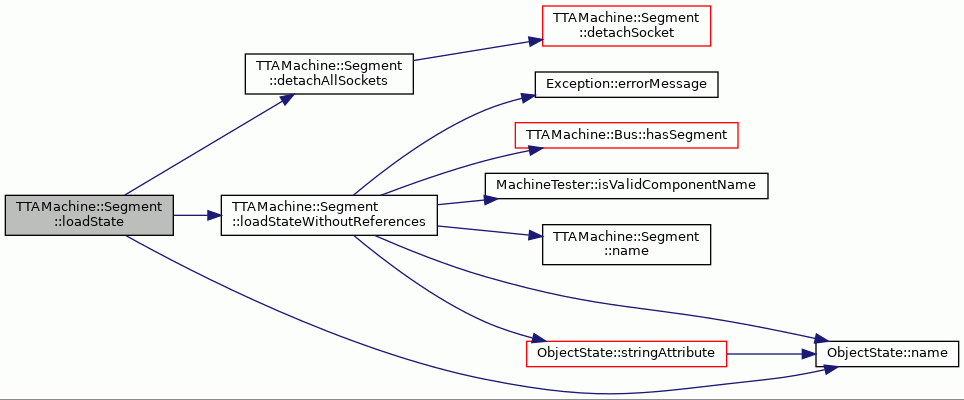

loadState()

void TTAMachine::Segment::loadState ( const ObjectState *  state )

virtual

Loads the state of the segment from the given ObjectState instance.

Loads only name of the segment. Does not load connections to sockets. The destination of the segment and the order the segments in the chain is set later, in Bus::loadState.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the parent bus has a segment with the same name that is assigned to this segment or if the ObjectState tree is invalid.

Implements Serializable.

Definition at line 448 of file Segment.cc.

                                           {
    string procName = "Segment::loadState";
    MOMTextGenerator textGenerator;

    if (state->name() != OSNAME_SEGMENT) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    detachAllSockets();
    loadStateWithoutReferences(state);
}

References detachAllSockets(), loadStateWithoutReferences(), ObjectState::name(), and OSNAME_SEGMENT.

Referenced by TTAMachine::Bus::loadState().

Here is the call graph for this function:

loadStateWithoutReferences()

void TTAMachine::Segment::loadStateWithoutReferences ( const ObjectState *  state )

private

Loads the state of the object from the given ObjectState instance without references to other machine parts.

Parameters

state

The ObjectState instance.

Exceptions

ObjectStateLoadingException

If the given ObjectState instance is invalid.

Definition at line 469 of file Segment.cc.

                                                            {
    const string procName = "Segment::loadStateWithoutReferences";

    if (state->name() != OSNAME_SEGMENT) {
        throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
    }

    try {
        string name = state->stringAttribute(OSKEY_NAME);
        if (!MachineTester::isValidComponentName(name)) {
            throw InvalidName(__FILE__, __LINE__, procName);
        }
        if (parent_ != NULL && parent_->hasSegment(name) &&
            this->name() != name) {
            throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
        }
        name_ = name;
    } catch (const Exception& exception) {
        throw ObjectStateLoadingException(
            __FILE__, __LINE__, procName, exception.errorMessage());
    }
}

References Exception::errorMessage(), TTAMachine::Bus::hasSegment(), MachineTester::isValidComponentName(), name(), ObjectState::name(), name_, OSKEY_NAME, OSNAME_SEGMENT, parent_, and ObjectState::stringAttribute().

Referenced by loadState(), and Segment().

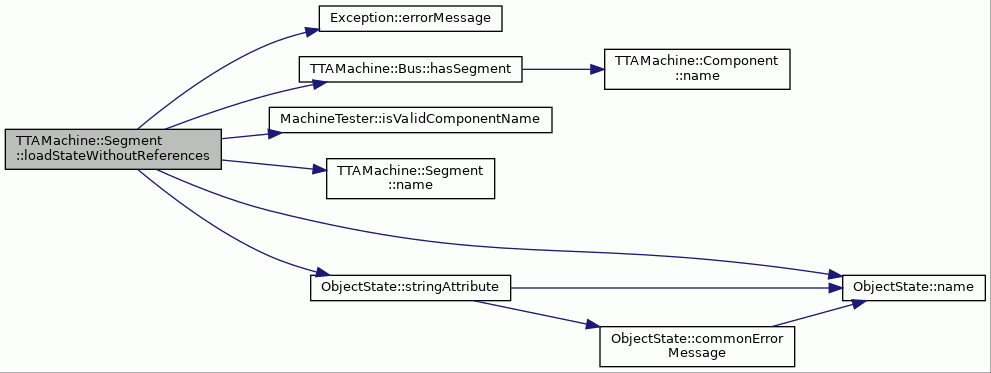

Here is the call graph for this function:

moveAfter()

void TTAMachine::Segment::moveAfter

(

Segment &

segment

)

Moves the segment behind the given segment in the segment chain.

The successor of this segment will become the successor of the current predecessor of this segment. The current successor of the given segment will become the successor the this segment.

Parameters

segment

The segment behind of which the segment is moved.

Exceptions

IllegalRegistration

If the given segment is in different bus than this segment.

Definition at line 357 of file Segment.cc.

                                   {
    if (parentBus() != segment.parentBus()) {
        string procName = "Segment::moveAfter";
        throw IllegalRegistration(__FILE__, __LINE__, procName);
    }

    // detach from chain
    if (destinationSegment_ != NULL) {
        destinationSegment_->sourceSegment_ = sourceSegment_;
    }
    if (sourceSegment_ != NULL) {
        sourceSegment_->destinationSegment_ = destinationSegment_;
    }

    // attach to new position
    if (segment.destinationSegment_ != NULL) {
        segment.destinationSegment_->sourceSegment_ = this;
    }

    sourceSegment_ = &segment;
    destinationSegment_ = segment.destinationSegment_;

    segment.destinationSegment_ = this;
}

References destinationSegment_, parentBus(), and sourceSegment_.

Referenced by BusDialog::onSegmentDown().

Here is the call graph for this function:

moveBefore()

void TTAMachine::Segment::moveBefore

(

Segment &

segment

)

Moves the segment to the front of the given segment in the segment chain.

The successor of this segment will become the successor of the current predecessor of this segment. The current predecessor of the given segment will become the predecessor of this segment.

Parameters

segment

The segment in front of which the segment is moved.

Exceptions

IllegalRegistration

If the given segment is in different bus than this segment.

Definition at line 320 of file Segment.cc.

                                    {
    if (parentBus() != segment.parentBus()) {
        string procName = "Segment::moveBefore";
        throw IllegalRegistration(__FILE__, __LINE__, procName);
    }

    // detach from chain
    if (destinationSegment_ != NULL) {
        destinationSegment_->sourceSegment_ = sourceSegment_;
    }
    if (sourceSegment_ != NULL) {
        sourceSegment_->destinationSegment_ = destinationSegment_;
    }

    // attach to new position
    if (segment.sourceSegment_ != NULL) {
        segment.sourceSegment_->destinationSegment_ = this;
    }

    sourceSegment_ = segment.sourceSegment_;
    destinationSegment_ = &segment;

    segment.sourceSegment_ = this;
}

References destinationSegment_, parentBus(), and sourceSegment_.

Referenced by TTAMachine::Bus::adjustSegmentChain(), and BusDialog::onSegmentUp().

Here is the call graph for this function:

name()

std::string TTAMachine::Segment::name

(

)

const

Referenced by TTAMachine::Bus::addSegment(), TTAMachine::Bus::adjustSegmentChain(), ADFCombiner::createBus(), InfoBussesCommand::execute(), ProDeSegmentEditPolicy::getCommand(), loadStateWithoutReferences(), BusDialog::onSegmentDown(), BusDialog::onSegmentUp(), ProgrammabilityValidator::printConnection(), saveState(), Segment(), setName(), MachineTestReporter::socketSegmentConnectionError(), SocketDialog::updateConnected(), and BusDialog::updateSegmentList().

parentBus()

Bus * TTAMachine::Segment::parentBus

(

)

const

Referenced by ProgrammabilityValidator::addConnectionToProgram(), TTAMachine::Bus::addSegment(), MachineConnectivityCheck::appendConnectedDestinationBuses(), MachineConnectivityCheck::appendConnectedSourceBuses(), TTAMachine::Socket::attachBus(), attachSocket(), MachineConnectivityCheck::busConnectedToPort(), MachineTester::canConnect(), ProDeSocketEditPolicy::canHandle(), MachineConnectivityCheck::canWriteAllImmediates(), DefaultDecoderGenerator::connectedBuses(), BlocksTranslator::CreateConnection(), SegmentFactory::createEditPart(), BlocksConnectIC::explore(), VLIWConnectIC::explore(), ProgrammabilityValidator::findRegisterGuard(), ProximBusEditPolicy::getCommand(), moveAfter(), moveBefore(), ProgrammabilityValidator::printConnection(), ConnectionSweeper::removeConnection(), TTAMachine::Bus::removeSegment(), setName(), InputPSocketBroker::setupResourceLinks(), OutputPSocketBroker::setupResourceLinks(), DefaultICDecoderEstimator::socketParameters(), MachineTestReporter::socketSegmentConnectionError(), SocketDialog::updateConnected(), DefaultICGenerator::writeInterconnectionNetwork(), and ~Segment().

removeConnection()

void TTAMachine::Segment::removeConnection ( const Connection *  connection )

private

Removes connection from the connection table.

Parameters

connection

Connection to be removed.

Definition at line 410 of file Segment.cc.

                                                      {
    ContainerTools::removeValueIfExists(connections_, connection);
}

References connection(), connections_, and ContainerTools::removeValueIfExists().

Referenced by detachSocket().

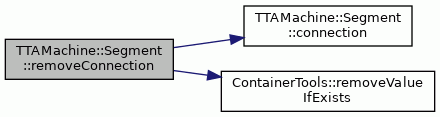

Here is the call graph for this function:

saveState()

ObjectState * TTAMachine::Segment::saveState ( ) const

virtual

Saves the contents of the segment to an ObjectState object.

Returns

The created ObjectState object.

Implements Serializable.

Definition at line 421 of file Segment.cc.

                         {

    ObjectState* segmentState = new ObjectState(OSNAME_SEGMENT);
    segmentState->setAttribute(OSKEY_NAME, name());
    if (destinationSegment_ != NULL) {
        segmentState->setAttribute(
            OSKEY_DESTINATION, destinationSegment_->name());
    }

    return segmentState;
}

References destinationSegment_, name(), OSKEY_DESTINATION, OSKEY_NAME, OSNAME_SEGMENT, and ObjectState::setAttribute().

Referenced by TTAMachine::Bus::saveState().

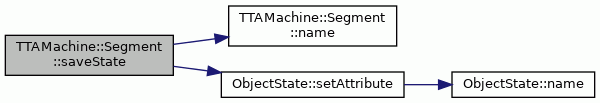

Here is the call graph for this function:

setName()

void TTAMachine::Segment::setName

(

const std::string &

name

)

Sets the name of the segment.

Parameters

name	Name of the segment.

Exceptions

ComponentAlreadyExists	If a segment with the given name already exists in the segment chain of the parent bus.
InvalidName	If the given name is not a valid component name.

Definition at line 148 of file Segment.cc.

                                   {
    if (name == this->name()) {
        return;
    }

    const string procName = "Segment::setName";

    if (!MachineTester::isValidComponentName(name)) {
        throw InvalidName(__FILE__, __LINE__, procName);
    }

    Bus* parent = parentBus();
    for (int i = 0; i < parent->segmentCount(); i++) {
        Segment* segment = parent->segment(i);
        if (segment->name() == name) {
            throw ComponentAlreadyExists(__FILE__, __LINE__, procName);
        }
    }

    name_ = name;
}

References MachineTester::isValidComponentName(), name(), name_, parentBus(), TTAMachine::Bus::segment(), and TTAMachine::Bus::segmentCount().

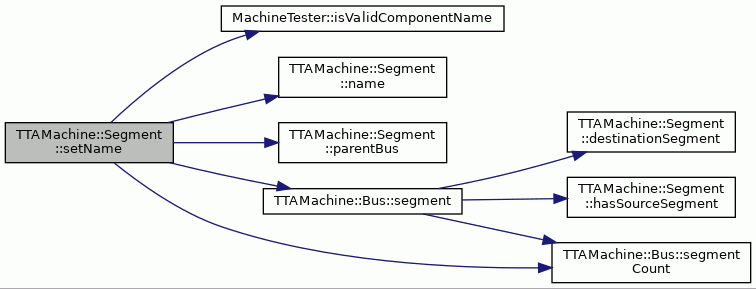

Here is the call graph for this function:

sourceSegment()

Segment * TTAMachine::Segment::sourceSegment

(

)

const

Referenced by BusDialog::onSegmentUp().

Member Data Documentation

connections_

ConnectionTable TTAMachine::Segment::connections_

private

Contains all the connections to sockets.

Definition at line 109 of file Segment.hh.

Referenced by attachSocket(), connection(), connection(), detachAllSockets(), isConnectedTo(), and removeConnection().

destinationSegment_

Segment* TTAMachine::Segment::destinationSegment_

private

Destination segment.

Definition at line 107 of file Segment.hh.

Referenced by hasDestinationSegment(), moveAfter(), moveBefore(), saveState(), Segment(), and ~Segment().

name_

std::string TTAMachine::Segment::name_

private

Name of the segment.

Definition at line 101 of file Segment.hh.

Referenced by loadStateWithoutReferences(), and setName().

OSKEY_DESTINATION

const string TTAMachine::Segment::OSKEY_DESTINATION = "destination"

static

ObjectState attribute key for destination segment name.

Definition at line 91 of file Segment.hh.

Referenced by TTAMachine::Bus::adjustSegmentChain(), ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), and saveState().

OSKEY_NAME

const string TTAMachine::Segment::OSKEY_NAME = "name"

static

ObjectState attribute key for segment name.

Definition at line 89 of file Segment.hh.

Referenced by TTAMachine::Bus::adjustSegmentChain(), ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), TTAMachine::Bus::loadState(), TTAMachine::Bus::loadStateWithoutReferences(), loadStateWithoutReferences(), and saveState().

OSNAME_SEGMENT

const string TTAMachine::Segment::OSNAME_SEGMENT = "segment"

static

ObjectState name for Segment.

Definition at line 87 of file Segment.hh.

Referenced by TTAMachine::Bus::adjustSegmentChain(), ADFSerializer::busToMachine(), ADFSerializer::busToMDF(), TTAMachine::Bus::loadState(), loadState(), TTAMachine::Bus::loadStateWithoutReferences(), loadStateWithoutReferences(), and saveState().

parent_

Bus* TTAMachine::Segment::parent_

private

The parent bus.

Definition at line 103 of file Segment.hh.

Referenced by loadStateWithoutReferences(), Segment(), Segment(), and ~Segment().

sourceSegment_

Segment* TTAMachine::Segment::sourceSegment_

private

Source segment.

Definition at line 105 of file Segment.hh.

Referenced by hasSourceSegment(), moveAfter(), moveBefore(), Segment(), and ~Segment().

---

The documentation for this class was generated from the following files:

• Segment.hh
• Segment.cc
