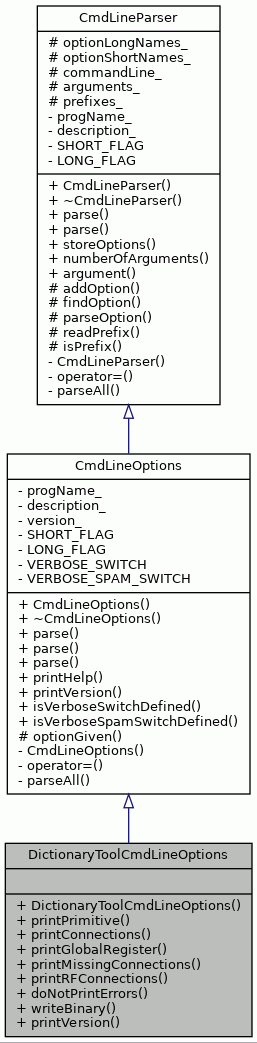

Inheritance diagram for DictionaryToolCmdLineOptions:

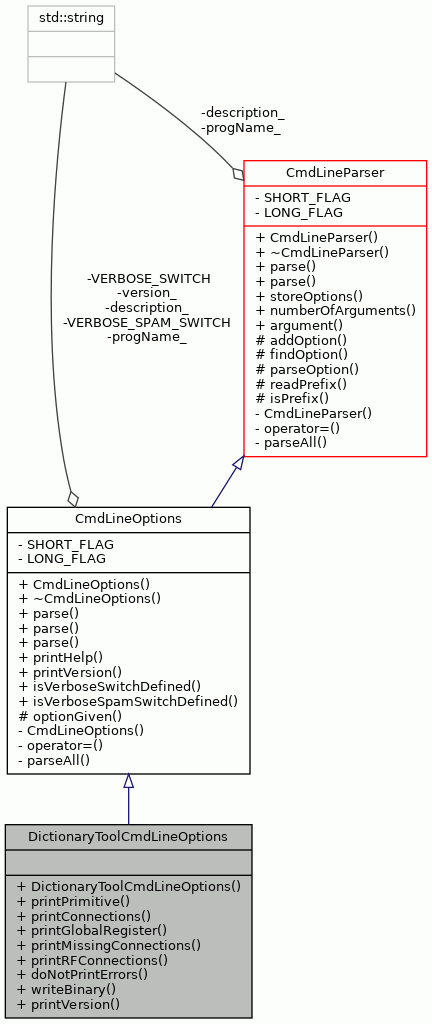

Collaboration diagram for DictionaryToolCmdLineOptions:

Public Member Functions
	DictionaryToolCmdLineOptions ()

bool	printPrimitive ()

bool	printConnections ()

bool	printGlobalRegister ()

bool	printMissingConnections ()

bool	printRFConnections ()

bool	doNotPrintErrors ()

bool	writeBinary ()

void	printVersion () const

Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")

virtual	~CmdLineOptions ()

void	parse (char *argv[], int argc)

void	parse (std::string argv[], int argc)

void	parse (std::vector< std::string > argv)

virtual void	printHelp () const

virtual bool	isVerboseSwitchDefined () const

virtual bool	isVerboseSpamSwitchDefined () const

Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)

virtual	~CmdLineParser ()

virtual void	storeOptions (Options &options)

virtual int	numberOfArguments () const

virtual std::string	argument (int index) const

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const

Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)

CmdLineOptionParser *	findOption (std::string name) const

bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const

bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const

bool	isPrefix (std::string name) const

Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key.

std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key.

std::vector< std::string >	commandLine_
	Command line is stored here.

std::vector< std::string >	arguments_
	Command line arguments are stored here.

std::vector< std::string >	prefixes_
	Legal prefixes are stored here.

Detailed Description

DictionaryTool commandline options.

Definition at line 67 of file DictionaryTool.cc.

Constructor & Destructor Documentation

◆ DictionaryToolCmdLineOptions()

DictionaryToolCmdLineOptions::DictionaryToolCmdLineOptions ( )

inline

Definition at line 69 of file DictionaryTool.cc.

                                   :
        CmdLineOptions("Usage: dictionary_tool [options] adffile") {

        BoolCmdLineOptionParser* printPrimitive =
            new BoolCmdLineOptionParser(
                "primitive",
                "Print missing operations from primitive operation set",
                "p");

        addOption(printPrimitive);

        BoolCmdLineOptionParser* printConnections =
            new BoolCmdLineOptionParser("connections",
                                        "Print all connections in adf.",
                                        "c");

        addOption(printConnections);

        BoolCmdLineOptionParser* printGlobalRegister =
            new BoolCmdLineOptionParser(
                "global_register",
                "Print the name of global connection register", "g");

        addOption(printGlobalRegister);

        BoolCmdLineOptionParser* printMissingConnections =
            new BoolCmdLineOptionParser(
                "missing",
                "Print missing connections to connection register",
                "m");

        addOption(printMissingConnections);

        BoolCmdLineOptionParser* printRFConnections =
            new BoolCmdLineOptionParser(
                "reg_connections",
                "Print all connections to the connection register.", "r");

        addOption(printRFConnections);

        BoolCmdLineOptionParser* doNotPrintErrors =
            new BoolCmdLineOptionParser(
                "no_errors",
                "Don't print any error messages.", "e");

        addOption(doNotPrintErrors);

        BoolCmdLineOptionParser* writeBinary =
            new BoolCmdLineOptionParser(
                "binary",
                "Write binary program as output.", "w");

        addOption(writeBinary);
    }

References CmdLineParser::addOption(), doNotPrintErrors(), printConnections(), printGlobalRegister(), printMissingConnections(), printPrimitive(), printRFConnections(), and writeBinary().

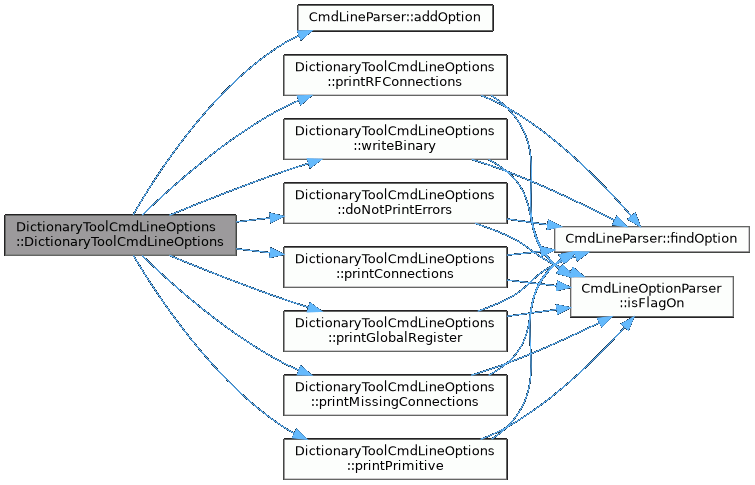

Here is the call graph for this function:

Member Function Documentation

◆ doNotPrintErrors()

bool DictionaryToolCmdLineOptions::doNotPrintErrors ( )

inline

Definition at line 144 of file DictionaryTool.cc.

                            {
        return findOption("no_errors")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DictionaryToolCmdLineOptions().

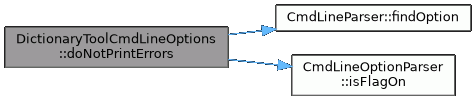

Here is the call graph for this function:

◆ printConnections()

bool DictionaryToolCmdLineOptions::printConnections ( )

inline

Definition at line 128 of file DictionaryTool.cc.

                            {
        return findOption("connections")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DictionaryToolCmdLineOptions().

Here is the call graph for this function:

◆ printGlobalRegister()

bool DictionaryToolCmdLineOptions::printGlobalRegister ( )

inline

Definition at line 132 of file DictionaryTool.cc.

                               {
        return findOption("global_register")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DictionaryToolCmdLineOptions().

Here is the call graph for this function:

◆ printMissingConnections()

bool DictionaryToolCmdLineOptions::printMissingConnections ( )

inline

Definition at line 136 of file DictionaryTool.cc.

                                   {
        return findOption("missing")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DictionaryToolCmdLineOptions().

Here is the call graph for this function:

◆ printPrimitive()

bool DictionaryToolCmdLineOptions::printPrimitive ( )

inline

Definition at line 124 of file DictionaryTool.cc.

                          {
        return findOption("primitive")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DictionaryToolCmdLineOptions().

Here is the call graph for this function:

◆ printRFConnections()

bool DictionaryToolCmdLineOptions::printRFConnections ( )

inline

Definition at line 140 of file DictionaryTool.cc.

                              {
        return findOption("reg_connections")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DictionaryToolCmdLineOptions().

Here is the call graph for this function:

◆ printVersion()

void DictionaryToolCmdLineOptions::printVersion ( ) const

inlinevirtual

Implements CmdLineOptions.

Definition at line 152 of file DictionaryTool.cc.

                              {
        cout << "dictionary_tool - Dictionary Tool "
             << Application::TCEVersionString() << endl;
    }

References Application::TCEVersionString().

Here is the call graph for this function:

◆ writeBinary()

bool DictionaryToolCmdLineOptions::writeBinary ( )

inline

Definition at line 148 of file DictionaryTool.cc.

                       {
        return findOption("binary")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DictionaryToolCmdLineOptions().

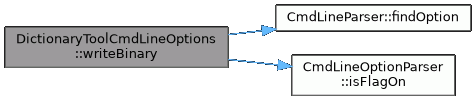

Here is the call graph for this function:

The documentation for this class was generated from the following file:

DictionaryTool.cc
