DisassemblyRegister Class Reference

#include <DisassemblyRegister.hh>

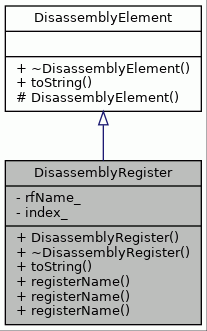

Inheritance diagram for DisassemblyRegister:

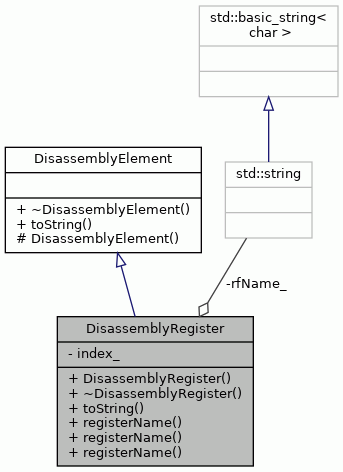

Collaboration diagram for DisassemblyRegister:

Public Member Functions
	DisassemblyRegister (std::string rfName, Word index)
virtual	~DisassemblyRegister ()
std::string	toString () const
Public Member Functions inherited from DisassemblyElement
virtual	~DisassemblyElement ()

Static Public Member Functions
static TCEString	registerName (const TTAMachine::RegisterFile &rf, int index, char delim='.')
static TCEString	registerName (const TTAProgram::Terminal &term)
static TCEString	registerName (const TCEString &registerFileName, int index, char delim='.')

Private Attributes
std::string	rfName_
	Name of the register file.
Word	index_
	Index of the register in the register file.

Additional Inherited Members
Protected Member Functions inherited from DisassemblyElement
	DisassemblyElement ()

Detailed Description

Represents a register in the disassembler.

Definition at line 51 of file DisassemblyRegister.hh.

Constructor & Destructor Documentation

DisassemblyRegister()

DisassemblyRegister::DisassemblyRegister	(	std::string	rfName,
		Word	index
	)

The constructor.

Parameters

rfName	Name of the register file.
index	Index of the register in the register file.

Definition at line 45 of file DisassemblyRegister.cc.

                                                                     :
    DisassemblyElement(),
    rfName_(rfName),
    index_(index) {
}

~DisassemblyRegister()

DisassemblyRegister::~DisassemblyRegister ( )

virtual

The destructor.

Definition at line 55 of file DisassemblyRegister.cc.

                                          {
}

Member Function Documentation

registerName() [1/3]

TCEString DisassemblyRegister::registerName ( const TCEString &  rfName, int  index, char  delim = '.'  )

static

Returns a name of the register.

Does the int -> string conversion itself, because Conversion::toString() uses stringstream which is slow.

Definition at line 77 of file DisassemblyRegister.cc.

                                                    {
    char buf[12];
    char *ptr = buf + sizeof(buf);
    *--ptr = 0; // last to terminating zero.
    // conversion from 2 to 10 base
    do {
        *--ptr = (index%10) + 48; // 48 is conversion to ascii.
        index /= 10;
    } while (index);
    *--ptr = delim;
    return rfName + ptr;
}

registerName() [2/3]

TCEString DisassemblyRegister::registerName ( const TTAMachine::RegisterFile &  rf, int  index, char  delim = '.'  )

static

Returns name of a register.

Definition at line 95 of file DisassemblyRegister.cc.

                                                             {
    return registerName(rf.name(), index, delim);
}

References TTAMachine::Component::name(), and registerName().

Referenced by BF2Scheduler::countLoopInvariantValueUsages(), RegisterCopyAdder::createAntidepsForReg(), DataDependenceGraph::createRegisterAntiDependenciesBetweenNodes(), DataDependenceGraph::destRenamed(), RegisterRenamer::findGuardRegisters(), DataDependenceGraphBuilder::findStaticRegisters(), DataDependenceGraphBuilder::findStaticRegisters(), DataDependenceGraph::firstRegisterCycle(), RegisterCopyAdder::fixDDGEdgesInTempRegChain(), DataDependenceGraph::fixInterBBAntiEdges(), CompiledSimCodeGenerator::guardPipelineTopSymbol(), DataDependenceGraph::guardRestored(), CompiledSimSymbolGenerator::immediateRegisterSymbol(), RegisterRenamer::initialize(), RegisterRenamer::initializeFreeRegisters(), DataDependenceGraph::lastRegisterCycle(), DataDependenceGraphBuilder::processDestination(), DataDependenceGraphBuilder::processSource(), registerName(), registerName(), RegisterRenamer::registersOfRFs(), CompiledSimSymbolGenerator::registerSymbol(), BF2Scheduler::revertBBLiveRangeBookkeepingForDestination(), BF2Scheduler::revertBBLiveRangeBookkeepingForSource(), DataDependenceGraph::sourceRenamed(), toString(), PreOptimizer::tryToOptimizeAddressReg(), and DataDependenceGraph::unMergeUser().

Here is the call graph for this function:

registerName() [3/3]

TCEString DisassemblyRegister::registerName ( const TTAProgram::Terminal &  term )

static

Returns name of a register which is in a terminalregister.

Definition at line 104 of file DisassemblyRegister.cc.

                                    {
    return registerName(term.registerFile(), term.index());
}

References TTAProgram::Terminal::index(), TTAProgram::Terminal::registerFile(), and registerName().

Here is the call graph for this function:

toString()

std::string DisassemblyRegister::toString ( ) const

virtual

Returns disassembly of the register file.

Returns

Disassembly of the register as a string.

Implements DisassemblyElement.

Definition at line 66 of file DisassemblyRegister.cc.

                                    {
    return registerName(rfName_, index_);
}

References index_, registerName(), and rfName_.

Referenced by ProximRegisterWindow::loadImmediateUnit(), ProximRegisterWindow::loadRegisterFile(), and TTAProgram::TerminalRegister::toString().

Here is the call graph for this function:

Member Data Documentation

index_

Word DisassemblyRegister::index_

private

Index of the register in the register file.

Definition at line 74 of file DisassemblyRegister.hh.

Referenced by toString().

rfName_

std::string DisassemblyRegister::rfName_

private

Name of the register file.

Definition at line 72 of file DisassemblyRegister.hh.

Referenced by toString().

---

The documentation for this class was generated from the following files:

• DisassemblyRegister.hh
• DisassemblyRegister.cc
