EstimatorCmdLineOptions Class Reference

#include <EstimatorCmdLineOptions.hh>

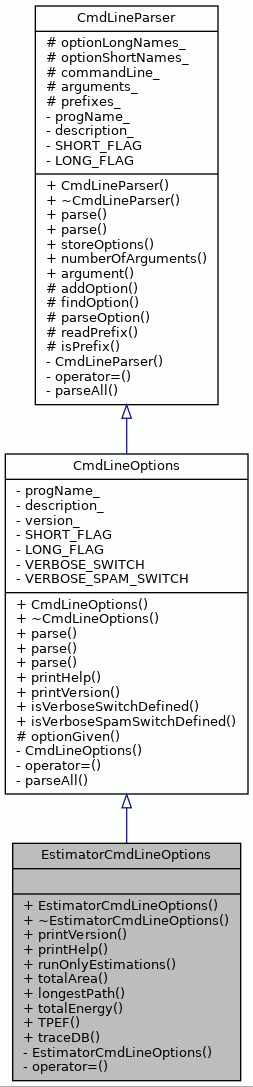

Inheritance diagram for EstimatorCmdLineOptions:

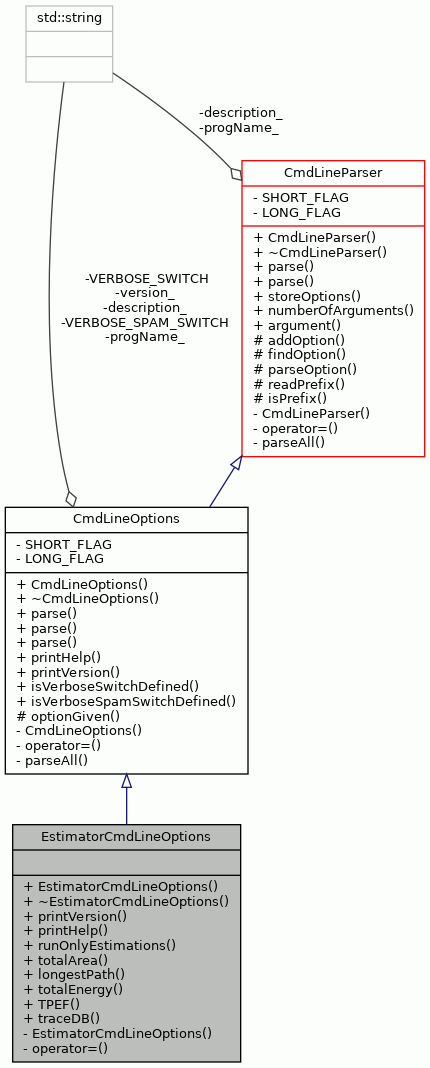

Collaboration diagram for EstimatorCmdLineOptions:

Public Member Functions
	EstimatorCmdLineOptions ()
virtual	~EstimatorCmdLineOptions ()
virtual void	printVersion () const
virtual void	printHelp () const
bool	runOnlyEstimations () const
bool	totalArea () const
bool	longestPath () const
bool	totalEnergy () const
std::string	TPEF ()
std::string	traceDB ()
Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")
virtual	~CmdLineOptions ()
void	parse (char *argv[], int argc)
void	parse (std::string argv[], int argc)
void	parse (std::vector< std::string > argv)
virtual bool	isVerboseSwitchDefined () const
virtual bool	isVerboseSpamSwitchDefined () const
Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)
virtual	~CmdLineParser ()
virtual void	storeOptions (Options &options)
virtual int	numberOfArguments () const
virtual std::string	argument (int index) const

Private Member Functions
	EstimatorCmdLineOptions (const EstimatorCmdLineOptions &)
	Copying not allowed.
EstimatorCmdLineOptions &	operator= (const EstimatorCmdLineOptions &)
	Assignment not allowed.

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const
Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)
CmdLineOptionParser *	findOption (std::string name) const
bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const
bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const
bool	isPrefix (std::string name) const
Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key.
std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key.
std::vector< std::string >	commandLine_
	Command line is stored here.
std::vector< std::string >	arguments_
	Command line arguments are stored here.
std::vector< std::string >	prefixes_
	Legal prefixes are stored here.

Detailed Description

Command line option class for Simulator.

Definition at line 43 of file EstimatorCmdLineOptions.hh.

Constructor & Destructor Documentation

EstimatorCmdLineOptions() [1/2]

EstimatorCmdLineOptions::EstimatorCmdLineOptions

(

)

Constructor.

Definition at line 65 of file EstimatorCmdLineOptions.cc.

                                                 : CmdLineOptions("") {
    addOption(
        new StringCmdLineOptionParser(
            SWL_TPEF,
            "sets the TTA program exchange format file (TPEF) from which to "
            "load the estimated program (required for energy estimation only)",
            SWS_TPEF));
    addOption(
        new StringCmdLineOptionParser(
            SWL_TRACE,
            "sets the simulation trace database (TraceDB) from which to "
            "load the simulation data of the estimated program (required for "
            "energy estimation only)",
            SWS_TRACE));
    addOption(
        new BoolCmdLineOptionParser(
            SWL_TOTALAREA,
            "run total area estimation",
            SWS_TOTALAREA));
    addOption(
        new BoolCmdLineOptionParser(
            SWL_LONGESTPATH,
            "run longest path estimation",
            SWS_LONGESTPATH));
    addOption(
        new BoolCmdLineOptionParser(
            SWL_TOTALENERGY,
            "run total energy consumption estimation",
            SWS_TOTALENERGY));
}

References CmdLineParser::addOption(), SWL_LONGESTPATH, SWL_TOTALAREA, SWL_TOTALENERGY, SWL_TPEF, SWL_TRACE, SWS_LONGESTPATH, SWS_TOTALAREA, SWS_TOTALENERGY, SWS_TPEF, and SWS_TRACE.

Here is the call graph for this function:

~EstimatorCmdLineOptions()

EstimatorCmdLineOptions::~EstimatorCmdLineOptions ( )

virtual

Destructor.

Definition at line 99 of file EstimatorCmdLineOptions.cc.

                                                  {
}

EstimatorCmdLineOptions() [2/2]

EstimatorCmdLineOptions::EstimatorCmdLineOptions ( const EstimatorCmdLineOptions &  )

private

Copying not allowed.

Member Function Documentation

longestPath()

bool EstimatorCmdLineOptions::longestPath

(

)

const

Checks if run longest path estimation option was given.

Returns

True if option was given and was not "no" prefixed

Definition at line 187 of file EstimatorCmdLineOptions.cc.

                                           {
    if (findOption(SWL_LONGESTPATH)->isDefined()) {
        return findOption(SWL_LONGESTPATH)->isFlagOn();
    }
    return false;
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SWL_LONGESTPATH.

Here is the call graph for this function:

operator=()

EstimatorCmdLineOptions & EstimatorCmdLineOptions::operator= ( const EstimatorCmdLineOptions &  )

private

Assignment not allowed.

printHelp()

void EstimatorCmdLineOptions::printHelp ( ) const

virtual

Prints the help menu of the program.

Reimplemented from CmdLineOptions.

Definition at line 115 of file EstimatorCmdLineOptions.cc.

                                         {
    printVersion();
    std::cout << std::endl
              << "usage: estimate [options] ADF IDF "
              << std::endl
              << std::endl
              << "ADF and IDF are required always, TPEF and TraceDB only for "
              << "energy estimation, which is not performed in case they are "
              << "not given."
              << std::endl;
    CmdLineOptions::printHelp();
}

References CmdLineOptions::printHelp(), and printVersion().

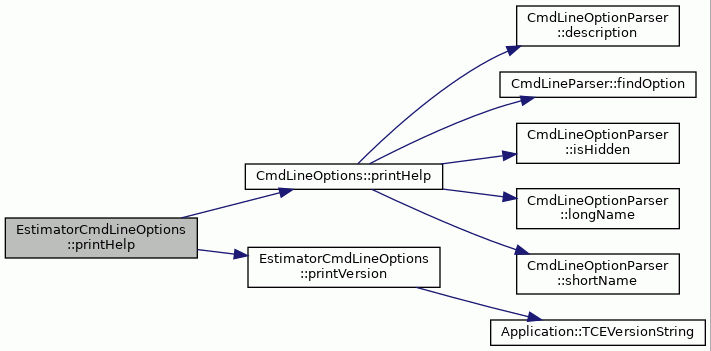

Here is the call graph for this function:

printVersion()

void EstimatorCmdLineOptions::printVersion ( ) const

virtual

Prints the version of the program.

Implements CmdLineOptions.

Definition at line 106 of file EstimatorCmdLineOptions.cc.

                                            {
    std::cout << "estimate - TTA Processor Cost Estimator "
              <<  Application::TCEVersionString() << std::endl;
}

References Application::TCEVersionString().

Referenced by printHelp().

Here is the call graph for this function:

runOnlyEstimations()

bool EstimatorCmdLineOptions::runOnlyEstimations

(

)

const

Test if estimation selection flags are given, returns true is so.

Returns

True if estimation selection flags are given.

Definition at line 158 of file EstimatorCmdLineOptions.cc.

                                                  {
   if (findOption(SWL_TOTALAREA)->isDefined() ||
       findOption(SWL_LONGESTPATH)->isDefined() ||
       findOption(SWL_LONGESTPATH)->isDefined()) {

       return true;
   }
   return false;
}

References CmdLineParser::findOption(), SWL_LONGESTPATH, and SWL_TOTALAREA.

Here is the call graph for this function:

totalArea()

bool EstimatorCmdLineOptions::totalArea

(

)

const

Checks if run total area estimation option was given.

Returns

True if option was given and was not "no" prefixed

Definition at line 174 of file EstimatorCmdLineOptions.cc.

                                         {
    if (findOption(SWL_TOTALAREA)->isDefined()) {
        return findOption(SWL_TOTALAREA)->isFlagOn();
    }
    return false;
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SWL_TOTALAREA.

Here is the call graph for this function:

totalEnergy()

bool EstimatorCmdLineOptions::totalEnergy

(

)

const

Checks if run total energy consumption estimation option was given.

Returns

True if option was given and was not "no" prefixed

Definition at line 200 of file EstimatorCmdLineOptions.cc.

                                           {
    if (findOption(SWL_TOTALENERGY)->isDefined()) {
        return findOption(SWL_TOTALENERGY)->isFlagOn();
    }
    return false;
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SWL_TOTALENERGY.

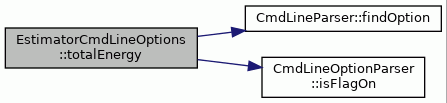

Here is the call graph for this function:

TPEF()

std::string EstimatorCmdLineOptions::TPEF

(

)

Returns the TPEF file name given by the user.

If no value is given in the parsed command line, returns an empty string.

Returns

The TPEF file name.

Definition at line 136 of file EstimatorCmdLineOptions.cc.

                              {
    return findOption(SWL_TPEF)->String();
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_TPEF.

Here is the call graph for this function:

traceDB()

std::string EstimatorCmdLineOptions::traceDB

(

)

Returns the TraceDB file name given by the user.

If no value is given in the parsed command line, returns an empty string.

Returns

The TraceDB file name.

Definition at line 148 of file EstimatorCmdLineOptions.cc.

                                 {
    return findOption(SWL_TRACE)->String();
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_TRACE.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• EstimatorCmdLineOptions.hh
• EstimatorCmdLineOptions.cc
