#include <ExplorerCmdLineOptions.hh>

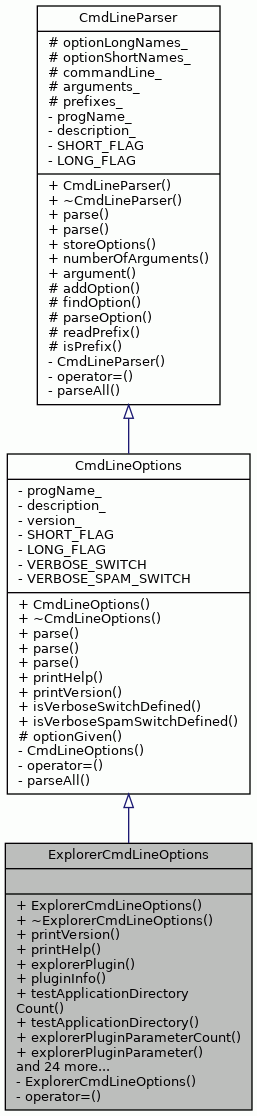

Inheritance diagram for ExplorerCmdLineOptions:

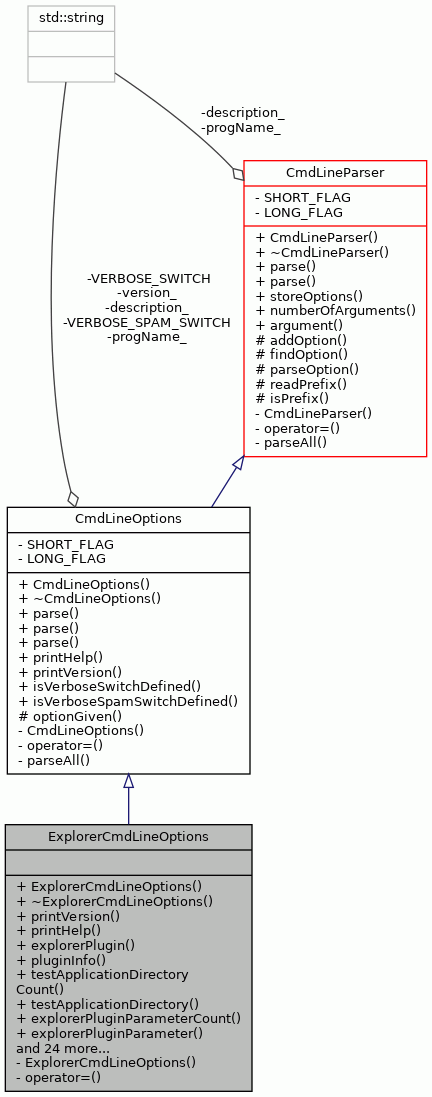

Collaboration diagram for ExplorerCmdLineOptions:

Public Member Functions
	ExplorerCmdLineOptions ()

virtual	~ExplorerCmdLineOptions ()

virtual void	printVersion () const

virtual void	printHelp () const

std::string	explorerPlugin () const

std::string	pluginInfo () const

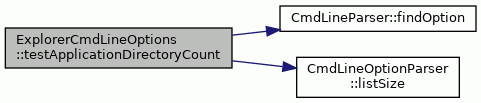

int	testApplicationDirectoryCount () const

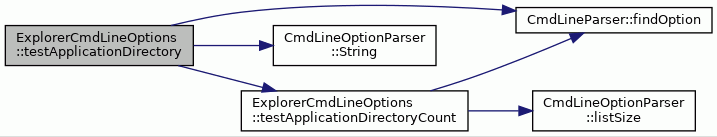

std::string	testApplicationDirectory (int index) const

int	explorerPluginParameterCount () const

std::string	explorerPluginParameter (int index) const

bool	numberOfConfigurations () const

bool	printSummary () const

std::string	summaryOrdering () const

bool	writeOutConfiguration () const

bool	writeOutBestConfiguration () const

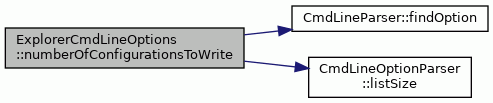

int	numberOfConfigurationsToWrite () const

RowID	configurationToWrite (int index) const

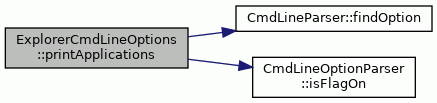

bool	printApplications () const

bool	printPlugins () const

int	applicationIDToRemoveCount () const

RowID	applicationIDToRemove (int index) const

bool	hdbFileNames () const

int	hdbFileNameCount () const

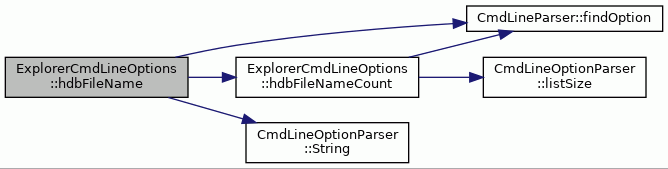

std::string	hdbFileName (int index) const

RowID	startConfiguration () const

bool	adfFile () const

bool	adfOutFile () const

bool	idfFile () const

std::string	adfFileName () const

std::string	adfOutFileName () const

std::string	idfFileName () const

std::string	paretoSetValues () const

bool	compilerOptions () const

std::string	compilerOptionsString () const

Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")

virtual	~CmdLineOptions ()

void	parse (char *argv[], int argc)

void	parse (std::string argv[], int argc)

void	parse (std::vector< std::string > argv)

virtual bool	isVerboseSwitchDefined () const

virtual bool	isVerboseSpamSwitchDefined () const

Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)

virtual	~CmdLineParser ()

virtual void	storeOptions (Options &options)

virtual int	numberOfArguments () const

virtual std::string	argument (int index) const

Private Member Functions
	ExplorerCmdLineOptions (const ExplorerCmdLineOptions &)
	Copying not allowed.

ExplorerCmdLineOptions &	operator= (const ExplorerCmdLineOptions &)
	Assignment not allowed.

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const

Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)

CmdLineOptionParser *	findOption (std::string name) const

bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const

bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const

bool	isPrefix (std::string name) const

Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key.

std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key.

std::vector< std::string >	commandLine_
	Command line is stored here.

std::vector< std::string >	arguments_
	Command line arguments are stored here.

std::vector< std::string >	prefixes_
	Legal prefixes are stored here.

Detailed Description

Command line option class for Explorer.

Definition at line 45 of file ExplorerCmdLineOptions.hh.

Constructor & Destructor Documentation

◆ ExplorerCmdLineOptions() [1/2]

ExplorerCmdLineOptions::ExplorerCmdLineOptions ( )

Constructor.

Todo:: Use textgenerator in the help texts.

Definition at line 117 of file ExplorerCmdLineOptions.cc.

                                               : CmdLineOptions("") {
    addOption(
        new StringCmdLineOptionParser(
            SWL_PLUGIN_NAME,
            "Design Space Explorer plugin to be used.",
            SWS_PLUGIN_NAME));
    addOption(
        new StringCmdLineOptionParser(
            SWL_PLUGIN_INFO,
            "Design Space Explorer plugin to print info about.",
            SWS_PLUGIN_INFO));
    addOption(
        new StringListCmdLineOptionParser(
            SWL_PLUGIN_PARAM,
            "Parameter to the explorer plugin in form 'name=value'.",
            SWS_PLUGIN_PARAM));
    addOption(
        new StringListCmdLineOptionParser(
            SWL_TEST_DIR_ADD,
            "Path(s) of the test application(s) to be added into the DSDB.",
            SWS_TEST_DIR_ADD));
    addOption(
        new IntegerListCmdLineOptionParser(
            SWL_TEST_DIR_RM,
            "ID(s) of the test program path(s) to be removed from the DSDB.",
            SWS_TEST_DIR_RM));
    addOption(
        new IntegerCmdLineOptionParser(
            SWL_START_ID,
            "Starting point configuration ID in the DSDB.",
            SWS_START_ID));
    addOption(
        new StringCmdLineOptionParser(
            SWL_CONFIGURATION_SUMMARY,
            "Print the summary of machine configurations in the DSDB"
            "ordered by:\n"
            "  Ordering may be one of the following:\n"
            "    I  ordering by configuration Id,\n"
            "    P  ordering by application path,\n"
            "    C  ordering by cycle count,\n"
            "    E  ordering by energy estimate.",
            SWS_CONFIGURATION_SUMMARY));
    addOption(
        new StringCmdLineOptionParser(
            SWL_PARETO_SET,
            "Print the pareto sets of machine configurations in the DSDB "
            "with certain value sets:\n"
            "  Value set may be one of the following:\n"
            "    C  cycle counts and number of connections.",
            SWS_PARETO_SET));
    addOption(
        new BoolCmdLineOptionParser(
            SWL_CONFIGURATION_COUNT,
            "Print the number of machine configurations in the DSDB.",
            SWS_CONFIGURATION_COUNT));
    addOption(
        new IntegerListCmdLineOptionParser(
            SWL_CONFIGURATION_WRITE,
            "Write out the ADF and IDF files from the DSDB with given "
            "configuration id.",
            SWS_CONFIGURATION_WRITE));
    addOption(
        new BoolCmdLineOptionParser(
            SWL_LIST_APPS,
            "List the applications in the DSDB.",
            SWS_LIST_APPS));
    addOption(
        new BoolCmdLineOptionParser(
            SWL_LIST_PLUGINS,
            "List loadable plugins.",
            SWS_LIST_PLUGINS));
    addOption(
        new StringListCmdLineOptionParser(
            SWL_HDB_FILE,
            "HDB to use with exploration. If not given 'asic_130nm_1.5V.hdb' "
            "will be used.",
            SWS_HDB_FILE));
    addOption(
        new StringListCmdLineOptionParser(
            SWL_ADF_FILE,
            "ADF to add into the DSDB.",
            SWS_ADF_FILE));
    addOption(
        new StringListCmdLineOptionParser(
            SWL_IDF_FILE,
            "IDF to add into the DSDB, needs also ADF.",
            SWS_IDF_FILE));
    addOption(
        new StringListCmdLineOptionParser(
            SWL_COMPILER_OPTIONS,
            "Options to pass to the compiler.",
            SWS_COMPILER_OPTIONS));
    addOption(
        new StringCmdLineOptionParser(
            SWL_ADF_OUT_FILE,
            "Set the ADF output filename (use in combination with -w "
            "or --dump_best).", ""));
    addOption(
        new BoolCmdLineOptionParser(
            SWL_DUMP_BEST,
            "Dump the best configuration produced by the executed exploration "
            "algorithm.", ""));
}

References CmdLineParser::addOption(), SWL_ADF_FILE, SWL_ADF_OUT_FILE, SWL_COMPILER_OPTIONS, SWL_CONFIGURATION_COUNT, SWL_CONFIGURATION_SUMMARY, SWL_CONFIGURATION_WRITE, SWL_DUMP_BEST, SWL_HDB_FILE, SWL_IDF_FILE, SWL_LIST_APPS, SWL_LIST_PLUGINS, SWL_PARETO_SET, SWL_PLUGIN_INFO, SWL_PLUGIN_NAME, SWL_PLUGIN_PARAM, SWL_START_ID, SWL_TEST_DIR_ADD, SWL_TEST_DIR_RM, SWS_ADF_FILE, SWS_COMPILER_OPTIONS, SWS_CONFIGURATION_COUNT, SWS_CONFIGURATION_SUMMARY, SWS_CONFIGURATION_WRITE, SWS_HDB_FILE, SWS_IDF_FILE, SWS_LIST_APPS, SWS_LIST_PLUGINS, SWS_PARETO_SET, SWS_PLUGIN_INFO, SWS_PLUGIN_NAME, SWS_PLUGIN_PARAM, SWS_START_ID, SWS_TEST_DIR_ADD, and SWS_TEST_DIR_RM.

Here is the call graph for this function:

◆ ~ExplorerCmdLineOptions()

ExplorerCmdLineOptions::~ExplorerCmdLineOptions ( )

virtual

Destructor.

Definition at line 224 of file ExplorerCmdLineOptions.cc.

224 {

225}

◆ ExplorerCmdLineOptions() [2/2]

ExplorerCmdLineOptions::ExplorerCmdLineOptions ( const ExplorerCmdLineOptions & )

private

Copying not allowed.

Member Function Documentation

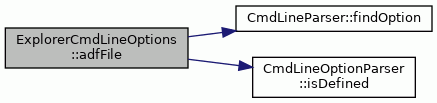

◆ adfFile()

bool ExplorerCmdLineOptions::adfFile ( ) const

Returns true if an adf file is given as an option.

Returns: True if an adf file is given as an option.

Definition at line 538 of file ExplorerCmdLineOptions.cc.

                                      {
    return findOption(SWL_ADF_FILE)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and SWL_ADF_FILE.

Referenced by adfFileName().

Here is the call graph for this function:

◆ adfFileName()

std::string ExplorerCmdLineOptions::adfFileName ( ) const

Returns the name of the adf file given as an option.

Returns an empty string if no adf file was given.

Returns: ADF file name.

Definition at line 565 of file ExplorerCmdLineOptions.cc.

                                          {
    if (adfFile()) {
        return findOption(SWL_ADF_FILE)->String(1);
    } else {
        return "";
    }
}

References adfFile(), CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_ADF_FILE.

Here is the call graph for this function:

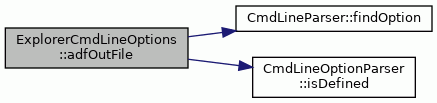

◆ adfOutFile()

bool ExplorerCmdLineOptions::adfOutFile ( ) const

Definition at line 543 of file ExplorerCmdLineOptions.cc.

                                         {
    return findOption(SWL_ADF_OUT_FILE)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and SWL_ADF_OUT_FILE.

Referenced by adfOutFileName().

Here is the call graph for this function:

◆ adfOutFileName()

std::string ExplorerCmdLineOptions::adfOutFileName ( ) const

Definition at line 574 of file ExplorerCmdLineOptions.cc.

                                             {
    if (adfOutFile()) {
        return findOption(SWL_ADF_OUT_FILE)->String();
    } else {
        return "";
    }
}

References adfOutFile(), CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_ADF_OUT_FILE.

Here is the call graph for this function:

◆ applicationIDToRemove()

RowID ExplorerCmdLineOptions::applicationIDToRemove ( int index ) const

By the given index, returns the application id given as an option to remove from DSDB.

Parameters

index The index.

Returns: Application id in the given index.

Exceptions

OutOfRange If the given index is negative or greater than the number of expendable applications.

Definition at line 469 of file ExplorerCmdLineOptions.cc.

                                                             {
    if (index < 0 || index >= applicationIDToRemoveCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return findOption(SWL_TEST_DIR_RM)->integer(index + 1);
}

References __func__, applicationIDToRemoveCount(), CmdLineParser::findOption(), CmdLineOptionParser::integer(), and SWL_TEST_DIR_RM.

Here is the call graph for this function:

◆ applicationIDToRemoveCount()

int ExplorerCmdLineOptions::applicationIDToRemoveCount ( ) const

Returns the number of test applications to be removed from the DSDB.

Returns: The number of expendable applications.

Definition at line 455 of file ExplorerCmdLineOptions.cc.

                                                         {
    return findOption(SWL_TEST_DIR_RM)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and SWL_TEST_DIR_RM.

Referenced by applicationIDToRemove().

Here is the call graph for this function:

◆ compilerOptions()

bool ExplorerCmdLineOptions::compilerOptions ( ) const

Returns true if a compiler options are given as an option.

Returns: True if a compiler options are given as an option.

Definition at line 604 of file ExplorerCmdLineOptions.cc.

                                              {
    return findOption(SWL_COMPILER_OPTIONS)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and SWL_COMPILER_OPTIONS.

Referenced by compilerOptionsString().

Here is the call graph for this function:

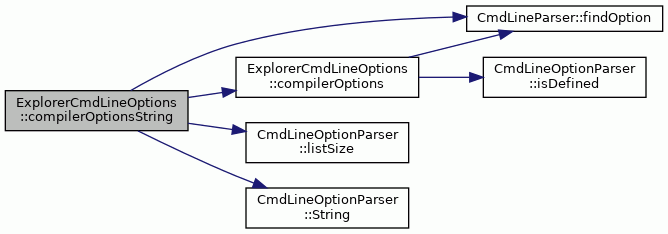

◆ compilerOptionsString()

std::string ExplorerCmdLineOptions::compilerOptionsString ( ) const

Returns the string of compiler options given as an option.

Returns an empty string if no compiler options were given.

Returns: compiler options as a string.

Definition at line 616 of file ExplorerCmdLineOptions.cc.

                                                    {

    if (!compilerOptions()) return "";

    TCEString optsString;
    for (int i = 0; i < findOption(SWL_COMPILER_OPTIONS)->listSize(); ++i) {
        optsString << findOption(SWL_COMPILER_OPTIONS)->String(i + 1) << " ";
    }
    return optsString;
}

References compilerOptions(), CmdLineParser::findOption(), CmdLineOptionParser::listSize(), CmdLineOptionParser::String(), and SWL_COMPILER_OPTIONS.

Here is the call graph for this function:

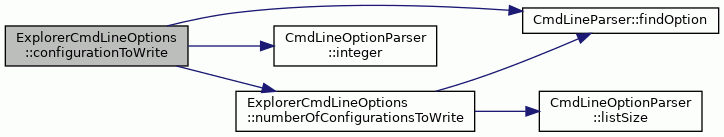

◆ configurationToWrite()

RowID ExplorerCmdLineOptions::configurationToWrite ( int index ) const

By the given index, returns the configuration id given as an option.

Parameters

index The index.

Returns: Configuration id in the given index.

Exceptions

OutOfRange If the given index is negative or greater than the number configurations.

Definition at line 421 of file ExplorerCmdLineOptions.cc.

                                                            {
    if (index < 0 || index >= numberOfConfigurationsToWrite()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return findOption(SWL_CONFIGURATION_WRITE)->integer(index + 1);
}

References __func__, CmdLineParser::findOption(), CmdLineOptionParser::integer(), numberOfConfigurationsToWrite(), and SWL_CONFIGURATION_WRITE.

Here is the call graph for this function:

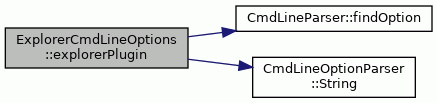

◆ explorerPlugin()

std::string ExplorerCmdLineOptions::explorerPlugin ( ) const

Returns the explorer plugin name.

Returns: The explorer plugin name.

Definition at line 274 of file ExplorerCmdLineOptions.cc.

                                             {
    return findOption(SWL_PLUGIN_NAME)->String();
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_PLUGIN_NAME.

Here is the call graph for this function:

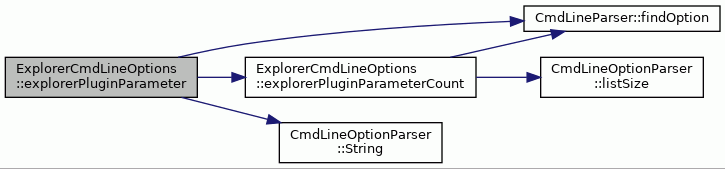

◆ explorerPluginParameter()

std::string ExplorerCmdLineOptions::explorerPluginParameter ( int index ) const

By the given index, returns a parameter given to the explorer plugin.

Parameters

index The index.

Returns: Parameter in the given index.

Exceptions

OutOfRange If the given index is negative or greater than the number of parameters given to the explorer plugin.

Definition at line 335 of file ExplorerCmdLineOptions.cc.

                                                               {
    if (index < 0 || index >= explorerPluginParameterCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return findOption(SWL_PLUGIN_PARAM)->String(index + 1);
}

References __func__, explorerPluginParameterCount(), CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_PLUGIN_PARAM.

Here is the call graph for this function:

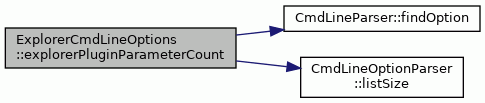

◆ explorerPluginParameterCount()

int ExplorerCmdLineOptions::explorerPluginParameterCount ( ) const

Returns the number of parameters given to the explorer plugin.

Returns: The number of parameters.

Definition at line 322 of file ExplorerCmdLineOptions.cc.

                                                           {
    return findOption(SWL_PLUGIN_PARAM)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and SWL_PLUGIN_PARAM.

Referenced by explorerPluginParameter().

Here is the call graph for this function:

◆ hdbFileName()

std::string ExplorerCmdLineOptions::hdbFileName ( int index ) const

By the given index, returns the HDB file given as an option.

Parameters

index The index.

Returns: HDB file string from the given index.

Exceptions

OutOfRange If the given index is negative or greater than the number given HDB files.

Definition at line 506 of file ExplorerCmdLineOptions.cc.

                                                   {
    if (index < 0 || index >= hdbFileNameCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return findOption(SWL_HDB_FILE)->String(index + 1);
}

References __func__, CmdLineParser::findOption(), hdbFileNameCount(), CmdLineOptionParser::String(), and SWL_HDB_FILE.

Here is the call graph for this function:

◆ hdbFileNameCount()

int ExplorerCmdLineOptions::hdbFileNameCount ( ) const

Returns the number of the HDB file options given.

Returns: Number of given HDB file options.

Definition at line 493 of file ExplorerCmdLineOptions.cc.

                                               {
    return findOption(SWL_HDB_FILE)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and SWL_HDB_FILE.

Referenced by hdbFileName().

Here is the call graph for this function:

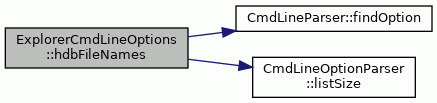

◆ hdbFileNames()

bool ExplorerCmdLineOptions::hdbFileNames ( ) const

Returns true if at least one HDB file is given as an option.

Returns: True if the option is defined.

Definition at line 483 of file ExplorerCmdLineOptions.cc.

                                           {
    return findOption(SWL_HDB_FILE)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and SWL_HDB_FILE.

Here is the call graph for this function:

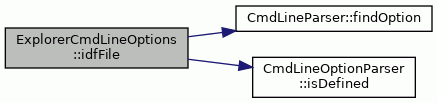

◆ idfFile()

bool ExplorerCmdLineOptions::idfFile ( ) const

Returns true if an idf file is given as an option.

Returns: True if an idf file is given as an option.

Definition at line 553 of file ExplorerCmdLineOptions.cc.

                                      {
    return findOption(SWL_IDF_FILE)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and SWL_IDF_FILE.

Referenced by idfFileName().

Here is the call graph for this function:

◆ idfFileName()

std::string ExplorerCmdLineOptions::idfFileName ( ) const

Returns the name of the idf file given as an option.

Returns an empty string if no adf file was given.

Returns: IDF file name.

Definition at line 590 of file ExplorerCmdLineOptions.cc.

                                          {
    if (idfFile()) {
        return findOption(SWL_IDF_FILE)->String(1);
    } else {
        return "";
    }
}

References CmdLineParser::findOption(), idfFile(), CmdLineOptionParser::String(), and SWL_IDF_FILE.

Here is the call graph for this function:

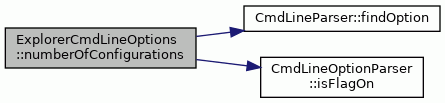

◆ numberOfConfigurations()

bool ExplorerCmdLineOptions::numberOfConfigurations ( ) const

Returns true if the number of configurations options is set.

Returns: True if the option is set.

Definition at line 349 of file ExplorerCmdLineOptions.cc.

                                                     {
    return findOption(SWL_CONFIGURATION_COUNT)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SWL_CONFIGURATION_COUNT.

Here is the call graph for this function:

◆ numberOfConfigurationsToWrite()

int ExplorerCmdLineOptions::numberOfConfigurationsToWrite ( ) const

Returns the number of the write out configuration options given.

Returns: Number of given write out options.

Definition at line 408 of file ExplorerCmdLineOptions.cc.

                                                            {
    return findOption(SWL_CONFIGURATION_WRITE)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and SWL_CONFIGURATION_WRITE.

Referenced by configurationToWrite().

Here is the call graph for this function:

◆ operator=()

ExplorerCmdLineOptions & ExplorerCmdLineOptions::operator= ( const ExplorerCmdLineOptions & )

private

Assignment not allowed.

◆ paretoSetValues()

std::string ExplorerCmdLineOptions::paretoSetValues ( ) const

Returns the valuing type of the pareto set printing.

Returns: Empty if pareto set not wanted.

Definition at line 379 of file ExplorerCmdLineOptions.cc.

                                              {
    if (!findOption(SWL_PARETO_SET)->isDefined()) {
        return "";
    }
    return findOption(SWL_PARETO_SET)->String();
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_PARETO_SET.

Here is the call graph for this function:

◆ pluginInfo()

std::string ExplorerCmdLineOptions::pluginInfo ( ) const

Returns the the plugin name which info is to be printed.

Returns: The explorer plugin name which info is to be printed.

Definition at line 284 of file ExplorerCmdLineOptions.cc.

                                         {
    return findOption(SWL_PLUGIN_INFO)->String();
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_PLUGIN_INFO.

Here is the call graph for this function:

◆ printApplications()

bool ExplorerCmdLineOptions::printApplications ( ) const

Returns true if print applications option is used.

Returns: True if the option is defined.

Definition at line 435 of file ExplorerCmdLineOptions.cc.

                                                {
    return findOption(SWL_LIST_APPS)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SWL_LIST_APPS.

Here is the call graph for this function:

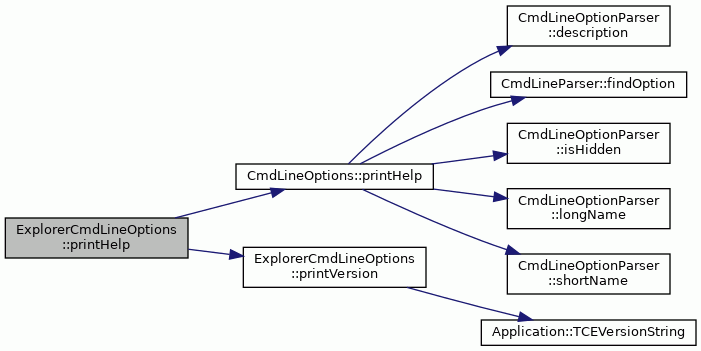

◆ printHelp()

void ExplorerCmdLineOptions::printHelp ( ) const

virtual

Prints the help menu of the program.

Todo:: Implement using ExplorerTextGenerator.

Reimplemented from CmdLineOptions.

Definition at line 242 of file ExplorerCmdLineOptions.cc.

                                        {
    printVersion();
    std::cout << std::endl
              << "Usage: explore [options] [dsdb_file]"
              << std::endl
              << "Example: -e InitialMachineExplorer "
              << "-d data/newApplication "
              << "-u bus_count=5 -u build_idf=true test.dsdb"
              << std::endl
              << std::endl
              << "DSDB file is required always and new is created if not found."
              << std::endl
              << "Plugin name, DSDB and at least one application directory "
              << std::endl
              << "in the DSDB are required to run exploration, start "
              << std::endl
              << "configuration ID is optional."
              << std::endl
              << "Any number of parameters that are passed to the used plugin "
              << "can be given."
              << std::endl
              << "Queries can be carried out to the DSDB."
              << std::endl;
    CmdLineOptions::printHelp();
}

References CmdLineOptions::printHelp(), and printVersion().

Here is the call graph for this function:

◆ printPlugins()

bool ExplorerCmdLineOptions::printPlugins ( ) const

Returns true if print applications option is used.

Returns: True if the option is defined.

Definition at line 445 of file ExplorerCmdLineOptions.cc.

                                           {
    return findOption(SWL_LIST_PLUGINS)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SWL_LIST_PLUGINS.

Here is the call graph for this function:

◆ printSummary()

bool ExplorerCmdLineOptions::printSummary ( ) const

Returns true if the number of configurations options is set.

Returns: True if the option is set.

Definition at line 359 of file ExplorerCmdLineOptions.cc.

                                           {
    return findOption(SWL_CONFIGURATION_SUMMARY)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and SWL_CONFIGURATION_SUMMARY.

Here is the call graph for this function:

◆ printVersion()

void ExplorerCmdLineOptions::printVersion ( ) const

virtual

Prints the version of the program.

Implements CmdLineOptions.

Definition at line 231 of file ExplorerCmdLineOptions.cc.

                                           {
    std::cout << DSCLI_TITLE << " version "
              << Application::TCEVersionString() << std::endl;
}

References DSCLI_TITLE, and Application::TCEVersionString().

Referenced by printHelp().

Here is the call graph for this function:

◆ startConfiguration()

RowID ExplorerCmdLineOptions::startConfiguration ( ) const

Returns the ID of the start configuration given as option.

If start configuration option was not given returns zero.

Returns: The ID of given start configuration or zero if the option was not used.

Definition at line 523 of file ExplorerCmdLineOptions.cc.

                                                 {

    if (findOption(SWL_START_ID)->isDefined()) {
        return findOption(SWL_START_ID)->integer();
    } else {
        return 0;
    }
}

References CmdLineParser::findOption(), CmdLineOptionParser::integer(), and SWL_START_ID.

Here is the call graph for this function:

◆ summaryOrdering()

std::string ExplorerCmdLineOptions::summaryOrdering ( ) const

Returns true if the number of configurations options is set.

Returns: True if the option is set.

Definition at line 369 of file ExplorerCmdLineOptions.cc.

                                              {
    return findOption(SWL_CONFIGURATION_SUMMARY)->String();
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and SWL_CONFIGURATION_SUMMARY.

Here is the call graph for this function:

◆ testApplicationDirectory()

std::string ExplorerCmdLineOptions::testApplicationDirectory ( int index ) const

By the given index, returns a test application directory name given as command line parameter.

Parameters

index The index.

Returns: Test application directory path in the given index.

Exceptions

OutOfRange If the given index is negative or greater than the number of test directories given as parameter.

Definition at line 308 of file ExplorerCmdLineOptions.cc.

                                                                {
    if (index < 0 || index >= testApplicationDirectoryCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return findOption(SWL_TEST_DIR_ADD)->String(index + 1);
}

References __func__, CmdLineParser::findOption(), CmdLineOptionParser::String(), SWL_TEST_DIR_ADD, and testApplicationDirectoryCount().

Here is the call graph for this function:

◆ testApplicationDirectoryCount()

int ExplorerCmdLineOptions::testApplicationDirectoryCount ( ) const

Returns the number of directories where test applications are located.

Returns: The number of test directories.

Definition at line 294 of file ExplorerCmdLineOptions.cc.

                                                            {
    return findOption(SWL_TEST_DIR_ADD)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and SWL_TEST_DIR_ADD.

Referenced by testApplicationDirectory().

Here is the call graph for this function:

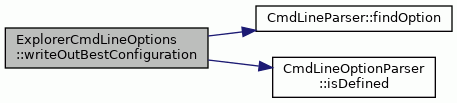

◆ writeOutBestConfiguration()

bool ExplorerCmdLineOptions::writeOutBestConfiguration ( ) const

Definition at line 398 of file ExplorerCmdLineOptions.cc.

                                                        {
    return findOption(SWL_DUMP_BEST)->isDefined();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isDefined(), and SWL_DUMP_BEST.

Here is the call graph for this function:

◆ writeOutConfiguration()

bool ExplorerCmdLineOptions::writeOutConfiguration ( ) const

Returns true if writing out configuration(s) option is used.

Returns: True if the option is defined.

Definition at line 393 of file ExplorerCmdLineOptions.cc.

                                                    {
    return findOption(SWL_CONFIGURATION_WRITE)->listSize();
}

References CmdLineParser::findOption(), CmdLineOptionParser::listSize(), and SWL_CONFIGURATION_WRITE.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ExplorerCmdLineOptions() [1/2]

◆ ~ExplorerCmdLineOptions()

◆ ExplorerCmdLineOptions() [2/2]

Member Function Documentation

◆ adfFile()

◆ adfFileName()

◆ adfOutFile()

◆ adfOutFileName()

◆ applicationIDToRemove()

◆ applicationIDToRemoveCount()

◆ compilerOptions()

◆ compilerOptionsString()

◆ configurationToWrite()

◆ explorerPlugin()

◆ explorerPluginParameter()

◆ explorerPluginParameterCount()

◆ hdbFileName()

◆ hdbFileNameCount()

◆ hdbFileNames()

◆ idfFile()

◆ idfFileName()

◆ numberOfConfigurations()

◆ numberOfConfigurationsToWrite()

◆ operator=()

◆ paretoSetValues()

◆ pluginInfo()

◆ printApplications()

◆ printHelp()

◆ printPlugins()

◆ printSummary()

◆ printVersion()

◆ startConfiguration()

◆ summaryOrdering()

◆ testApplicationDirectory()

◆ testApplicationDirectoryCount()

◆ writeOutBestConfiguration()

◆ writeOutConfiguration()
