GraphBase< GraphNode, GraphEdge > Class Template Referenceabstract

#include <Graph.hh>

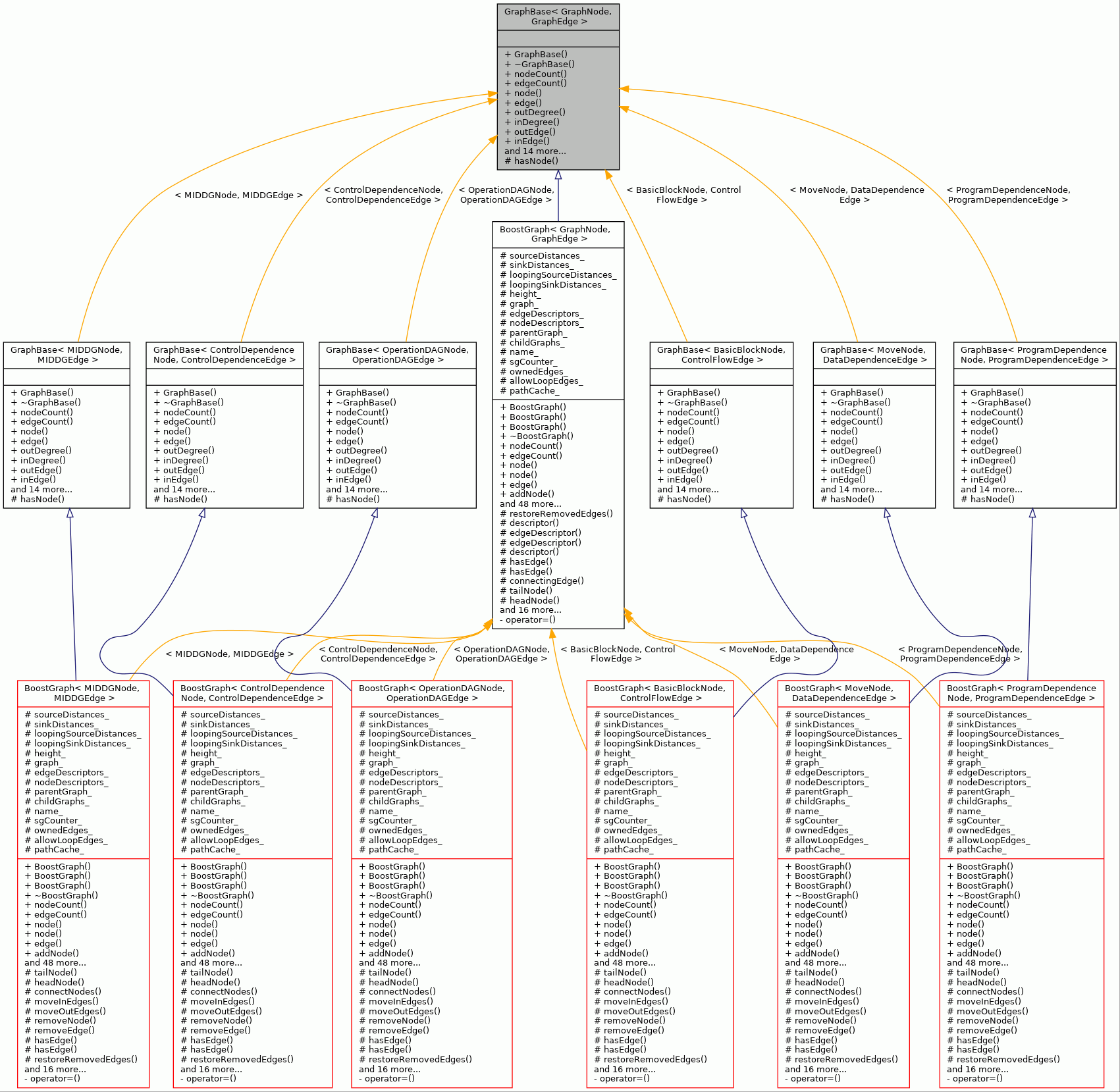

Inheritance diagram for GraphBase< GraphNode, GraphEdge >:
Inheritance graph
Collaboration diagram for GraphBase< GraphNode, GraphEdge >:
Collaboration graph

Public Types

typedef std::set< GraphNode *, typename GraphNode::Comparator > NodeSet

typedef std::set< GraphEdge *, typename GraphEdge::Comparator > EdgeSet

typedef GraphNode Node
 Node type of this graph (possibly, a base class).

typedef GraphEdge Edge
 Edge type of this graph (possibly, a base class).


Public Member Functions

 GraphBase ()

virtual ~GraphBase ()

virtual int nodeCount () const =0

virtual int edgeCount () const =0

virtual Node & node (const int index) const =0

virtual Edge & edge (const int index) const =0

virtual int outDegree (const Node &node) const =0

virtual int inDegree (const Node &node) const =0

virtual Edge & outEdge (const Node &node, const int index) const =0

virtual Edge & inEdge (const Node &node, const int index) const =0

virtual EdgeSet outEdges (const Node &node) const =0

virtual EdgeSet inEdges (const Node &node) const =0

virtual Node & tailNode (const Edge &edge) const =0

virtual Node & headNode (const Edge &edge) const =0

virtual bool hasEdge (const Node &nTail, const Node &nHead) const =0

virtual EdgeSet connectingEdges (const Node &nTail, const Node &nHead) const =0

virtual TCEString dotString () const

virtual void writeToDotFile (const TCEString &fileName) const

virtual void addNode (Node &node)=0

virtual void removeNode (Node &node)=0

virtual void removeEdge (Edge &e)=0

virtual void connectNodes (const Node &nTail, const Node &nHead, Edge &e)=0

virtual void disconnectNodes (const Node &nTail, const Node &nHead)=0

virtual const TCEString & name () const =0


Protected Member Functions

virtual bool hasNode (const Node &) const =0


Detailed Description

template<typename GraphNode, typename GraphEdge>
class GraphBase< GraphNode, GraphEdge >

Graph base interface shared by all clients within the project.

Templated interface with node and edge types as parameters. If an implementation of this interface deals with multiple types of nodes, all types must share a common base type. Ditto for edges.

Definition at line 51 of file Graph.hh.

Member Typedef Documentation

◆ Edge

template<typename GraphNode , typename GraphEdge >
typedef GraphEdge GraphBase< GraphNode, GraphEdge >::Edge

Edge type of this graph (possibly, a base class).

Definition at line 62 of file Graph.hh.

◆ EdgeSet

template<typename GraphNode , typename GraphEdge >
typedef std::set<GraphEdge*, typename GraphEdge::Comparator > GraphBase< GraphNode, GraphEdge >::EdgeSet

Definition at line 54 of file Graph.hh.

◆ Node

template<typename GraphNode , typename GraphEdge >
typedef GraphNode GraphBase< GraphNode, GraphEdge >::Node

Node type of this graph (possibly, a base class).

Definition at line 60 of file Graph.hh.

◆ NodeSet

template<typename GraphNode , typename GraphEdge >
typedef std::set<GraphNode*, typename GraphNode::Comparator > GraphBase< GraphNode, GraphEdge >::NodeSet

Definition at line 53 of file Graph.hh.

Constructor & Destructor Documentation

◆ GraphBase()

template<typename GraphNode , typename GraphEdge >
GraphBase< GraphNode, GraphEdge >::GraphBase ( )
inline

Definition at line 56 of file Graph.hh.

56{}

◆ ~GraphBase()

template<typename GraphNode , typename GraphEdge >
virtual GraphBase< GraphNode, GraphEdge >::~GraphBase ( )
inlinevirtual

Definition at line 57 of file Graph.hh.

57{}

Member Function Documentation

◆ addNode()

template<typename GraphNode , typename GraphEdge >
virtual void GraphBase< GraphNode, GraphEdge >::addNode ( Node &  node)
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ connectingEdges()

template<typename GraphNode , typename GraphEdge >
virtual EdgeSet GraphBase< GraphNode, GraphEdge >::connectingEdges ( const Node &  nTail,
const Node &  nHead
) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ connectNodes()

template<typename GraphNode , typename GraphEdge >
virtual void GraphBase< GraphNode, GraphEdge >::connectNodes ( const Node &  nTail,
const Node &  nHead,
Edge &  e
)
pure virtual

◆ disconnectNodes()

template<typename GraphNode , typename GraphEdge >
virtual void GraphBase< GraphNode, GraphEdge >::disconnectNodes ( const Node &  nTail,
const Node &  nHead
)
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ dotString()

template<typename GraphNode , typename GraphEdge >
virtual TCEString GraphBase< GraphNode, GraphEdge >::dotString ( ) const
virtual

Reimplemented in MachineInstrDDG, and DataDependenceGraph.

◆ edge()

template<typename GraphNode , typename GraphEdge >
virtual Edge & GraphBase< GraphNode, GraphEdge >::edge ( const int  index) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >, BoostGraph< BasicBlockNode, ControlFlowEdge >, BoostGraph< ControlDependenceNode, ControlDependenceEdge >, BoostGraph< MIDDGNode, MIDDGEdge >, BoostGraph< MoveNode, DataDependenceEdge >, BoostGraph< OperationDAGNode, OperationDAGEdge >, and BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >.

◆ edgeCount()

template<typename GraphNode , typename GraphEdge >
virtual int GraphBase< GraphNode, GraphEdge >::edgeCount ( ) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >, BoostGraph< BasicBlockNode, ControlFlowEdge >, BoostGraph< ControlDependenceNode, ControlDependenceEdge >, BoostGraph< MIDDGNode, MIDDGEdge >, BoostGraph< MoveNode, DataDependenceEdge >, BoostGraph< OperationDAGNode, OperationDAGEdge >, and BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >.

◆ hasEdge()

template<typename GraphNode , typename GraphEdge >
virtual bool GraphBase< GraphNode, GraphEdge >::hasEdge ( const Node &  nTail,
const Node &  nHead
) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ hasNode()

template<typename GraphNode , typename GraphEdge >
virtual bool GraphBase< GraphNode, GraphEdge >::hasNode ( const Node &  ) const
protectedpure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ headNode()

template<typename GraphNode , typename GraphEdge >
virtual Node & GraphBase< GraphNode, GraphEdge >::headNode ( const Edge &  edge) const
pure virtual

◆ inDegree()

template<typename GraphNode , typename GraphEdge >
virtual int GraphBase< GraphNode, GraphEdge >::inDegree ( const Node &  node) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ inEdge()

template<typename GraphNode , typename GraphEdge >
virtual Edge & GraphBase< GraphNode, GraphEdge >::inEdge ( const Node &  node,
const int  index
) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ inEdges()

template<typename GraphNode , typename GraphEdge >
virtual EdgeSet GraphBase< GraphNode, GraphEdge >::inEdges ( const Node &  node) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ name()

template<typename GraphNode , typename GraphEdge >
virtual const TCEString & GraphBase< GraphNode, GraphEdge >::name ( ) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >, BoostGraph< BasicBlockNode, ControlFlowEdge >, BoostGraph< ControlDependenceNode, ControlDependenceEdge >, BoostGraph< MIDDGNode, MIDDGEdge >, BoostGraph< MoveNode, DataDependenceEdge >, BoostGraph< OperationDAGNode, OperationDAGEdge >, and BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >.

◆ node()

template<typename GraphNode , typename GraphEdge >
virtual Node & GraphBase< GraphNode, GraphEdge >::node ( const int  index) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >, BoostGraph< BasicBlockNode, ControlFlowEdge >, BoostGraph< ControlDependenceNode, ControlDependenceEdge >, BoostGraph< MIDDGNode, MIDDGEdge >, BoostGraph< MoveNode, DataDependenceEdge >, BoostGraph< OperationDAGNode, OperationDAGEdge >, and BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >.

◆ nodeCount()

template<typename GraphNode , typename GraphEdge >
virtual int GraphBase< GraphNode, GraphEdge >::nodeCount ( ) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >, BoostGraph< BasicBlockNode, ControlFlowEdge >, BoostGraph< ControlDependenceNode, ControlDependenceEdge >, BoostGraph< MIDDGNode, MIDDGEdge >, BoostGraph< MoveNode, DataDependenceEdge >, BoostGraph< OperationDAGNode, OperationDAGEdge >, and BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >.

◆ outDegree()

template<typename GraphNode , typename GraphEdge >
virtual int GraphBase< GraphNode, GraphEdge >::outDegree ( const Node &  node) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ outEdge()

template<typename GraphNode , typename GraphEdge >
virtual Edge & GraphBase< GraphNode, GraphEdge >::outEdge ( const Node &  node,
const int  index
) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ outEdges()

template<typename GraphNode , typename GraphEdge >
virtual EdgeSet GraphBase< GraphNode, GraphEdge >::outEdges ( const Node &  node) const
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ removeEdge()

template<typename GraphNode , typename GraphEdge >
virtual void GraphBase< GraphNode, GraphEdge >::removeEdge ( Edge &  e)
pure virtual

◆ removeNode()

template<typename GraphNode , typename GraphEdge >
virtual void GraphBase< GraphNode, GraphEdge >::removeNode ( Node &  node)
pure virtual

Implemented in BoostGraph< GraphNode, GraphEdge >.

◆ tailNode()

template<typename GraphNode , typename GraphEdge >
virtual Node & GraphBase< GraphNode, GraphEdge >::tailNode ( const Edge &  edge) const
pure virtual

◆ writeToDotFile()

template<typename GraphNode , typename GraphEdge >
virtual void GraphBase< GraphNode, GraphEdge >::writeToDotFile ( const TCEString &  fileName) const
virtual

Referenced by ResourceConstraintAnalyzer::analyze(), LoopAnalyzer::analyze(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), BFOptimization::assign(), BFOptimization::assignCopyToPrologEpilog(), LLVMTCEDataDependenceGraphBuilder::buildFromCFG(), BUMoveNodeSelector::BUMoveNodeSelector(), BUBasicBlockScheduler::bypassNode(), BUMoveNodeSelector::candidates(), BFOptimization::checkPrologDDG(), llvm::LLVMTCEIRBuilder::compileOptimized(), ProgramDependenceGraph::computeRelations(), DataDependenceGraphBuilder::constructIndividualBB(), ControlFlowGraph::copyToLLVMMachineFunction(), ControlFlowGraph::copyToProcedure(), CriticalPathBBMoveNodeSelector::CriticalPathBBMoveNodeSelector(), CriticalPathBBMoveNodeSelector::CriticalPathBBMoveNodeSelector(), BasicBlockScheduler::ddgSnapshot(), BasicBlockPass::ddgSnapshot(), MoveNodeDuplicator::dumpDDG(), BUBasicBlockScheduler::finalizeSchedule(), BUBasicBlockScheduler::findBypassDestinations(), SimpleIfConverter::handleControlFlowGraph(), BF2Scheduler::handleDDG(), BUBasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleDDG(), BF2Scheduler::handleLoopDDG(), BF2Scheduler::handleLoopDDG(), BasicBlockScheduler::handleLoopDDG(), BUBasicBlockScheduler::handleLoopDDG(), BBSchedulerController::handleProcedure(), BUMoveNodeSelector::initializeReadylist(), DataDependenceGraph::mergeAndKeepAllowed(), CriticalPathBBMoveNodeSelector::notifyScheduled(), BFLateBypassGuard::operator()(), BFPushMoveUp::operator()(), BFScheduleBU::operator()(), BFPostpassBypass::operator()(), ResourceConstraintAnalyzer::optimalScheduleResourceUsage(), ControlFlowGraph::optimizeBBOrdering(), ProgramDependenceGraph::processRegion(), DataDependenceGraphBuilder::processTriggerPO(), DataDependenceGraph::removeRAWEdges(), BFUnscheduleFromBody::returnOriginal(), BFUnscheduleMove::returnOriginal(), ControlFlowGraph::reverseGuardOnOutEdges(), BF2Scheduler::revertBBLiveRangeBookkeepingForDestination(), BF2Scheduler::revertBBLiveRangeBookkeepingForSource(), InstructionPatternAnalyzer::runOnMachineFunction(), ControlFlowGraph::sanitize(), DataDependenceGraph::sanityCheck(), BF2Scheduler::scheduleDDG(), BF2ScheduleFront::scheduleFrontFromMove(), BUBasicBlockScheduler::scheduleInputOperandTempMoves(), BUBasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleOperandWrites(), BasicBlockScheduler::scheduleOperation(), BUBasicBlockScheduler::scheduleOperation(), BasicBlockScheduler::scheduleRRMove(), BUBasicBlockScheduler::scheduleRRMove(), BUBasicBlockScheduler::scheduleRRTempMoves(), SimpleIfConverter::successors(), BUBasicBlockScheduler::undoBypass(), BFLateBypass::undoOnlyMe(), BFUnscheduleFromBody::unscheduleOriginal(), BFUnscheduleMove::unscheduleOriginal(), OperationDAGDialog::updateDAG(), and llvm::LLVMTCEIRBuilder::writeMachineFunction().

The documentation for this class was generated from the following file:
