HDLGenerator::DefaultCase Class Reference

#include <HDLGenerator.hh>

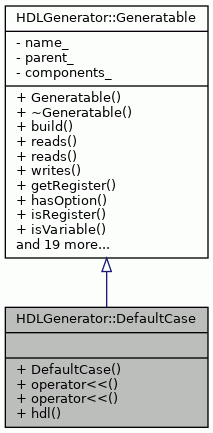

Inheritance diagram for HDLGenerator::DefaultCase:

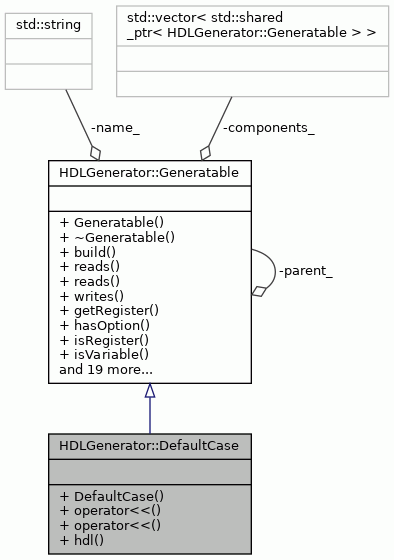

Collaboration diagram for HDLGenerator::DefaultCase:

Public Member Functions
	DefaultCase ()
DefaultCase &	operator<< (DefaultAssign &&rhs)
DefaultCase &	operator<< (DefaultAssign &rhs)
void	hdl (std::ostream &stream, Language lang, int level) override
Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)
virtual	~Generatable ()=default
virtual void	build ()
virtual void	reads (const std::string &var)
virtual void	reads (const LHSValue &var)
virtual void	writes (const std::string &var)
virtual Register &	getRegister (const std::string &var)
virtual bool	hasOption (const std::string &var)
virtual bool	isRegister (const std::string &name)
virtual bool	isVariable (const std::string &name)
virtual bool	isConstant (const std::string &name)
virtual Width	width (const std::string &name)
int	integerWidth (const std::string &name)
virtual WireType	wireType (const std::string &name)
virtual Width	width ()
virtual WireType	wireType () const
virtual void	hdl (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang)
virtual void	implementAll (std::ostream &stream, Language lang, int indent)
template<typename Func >
void	forAll (Func func)
template<typename Type , typename Func >
void	forAll (Func func)
template<class Type >
bool	parentIs ()
template<class Type >
Type *	parentType ()
void	pushComponent (std::shared_ptr< Generatable > c)
template<class Component >
void	addComponent (Component c)
const std::string &	name () const noexcept
void	setParent (Generatable *parent) noexcept
Generatable *	parent () const noexcept

Detailed Description

When others/default.

Definition at line 615 of file HDLGenerator.hh.

Constructor & Destructor Documentation

DefaultCase()

HDLGenerator::DefaultCase::DefaultCase ( )

inline

Definition at line 617 of file HDLGenerator.hh.

: Generatable("defaultCase") {}

Member Function Documentation

hdl()

void HDLGenerator::DefaultCase::hdl ( std::ostream &  stream, Language  lang, int  level  )

inlineoverridevirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 629 of file HDLGenerator.hh.

                                                                        {
            if (lang == Language::VHDL) {
                stream << StringTools::indent(level) << "when others =>\n";
                implementAll(stream, lang, level);
            } else if (lang == Language::Verilog) {
                stream << StringTools::indent(level) << "default: begin\n";
                implementAll(stream, lang, level);
                stream << StringTools::indent(level) << "end\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References HDLGenerator::Generatable::implementAll(), StringTools::indent(), HDLGenerator::Verilog, and HDLGenerator::VHDL.

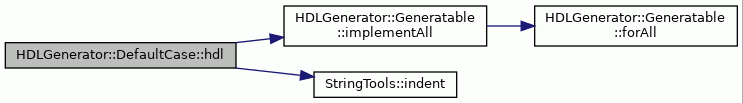

Here is the call graph for this function:

operator<<() [1/2]

DefaultCase & HDLGenerator::DefaultCase::operator<< ( DefaultAssign &&  rhs )

inline

Definition at line 619 of file HDLGenerator.hh.

                                                     {
            addComponent(rhs);
            return *this;
        }

References HDLGenerator::Generatable::addComponent().

Here is the call graph for this function:

operator<<() [2/2]

DefaultCase & HDLGenerator::DefaultCase::operator<< ( DefaultAssign &  rhs )

inline

Definition at line 624 of file HDLGenerator.hh.

                                                    {
            addComponent(rhs);
            return *this;
        }

References HDLGenerator::Generatable::addComponent().

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• HDLGenerator.hh
