#include <HDLGenerator.hh>

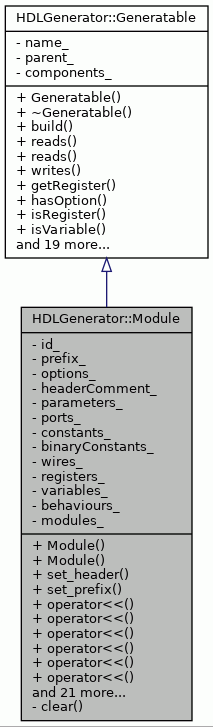

Inheritance diagram for HDLGenerator::Module:

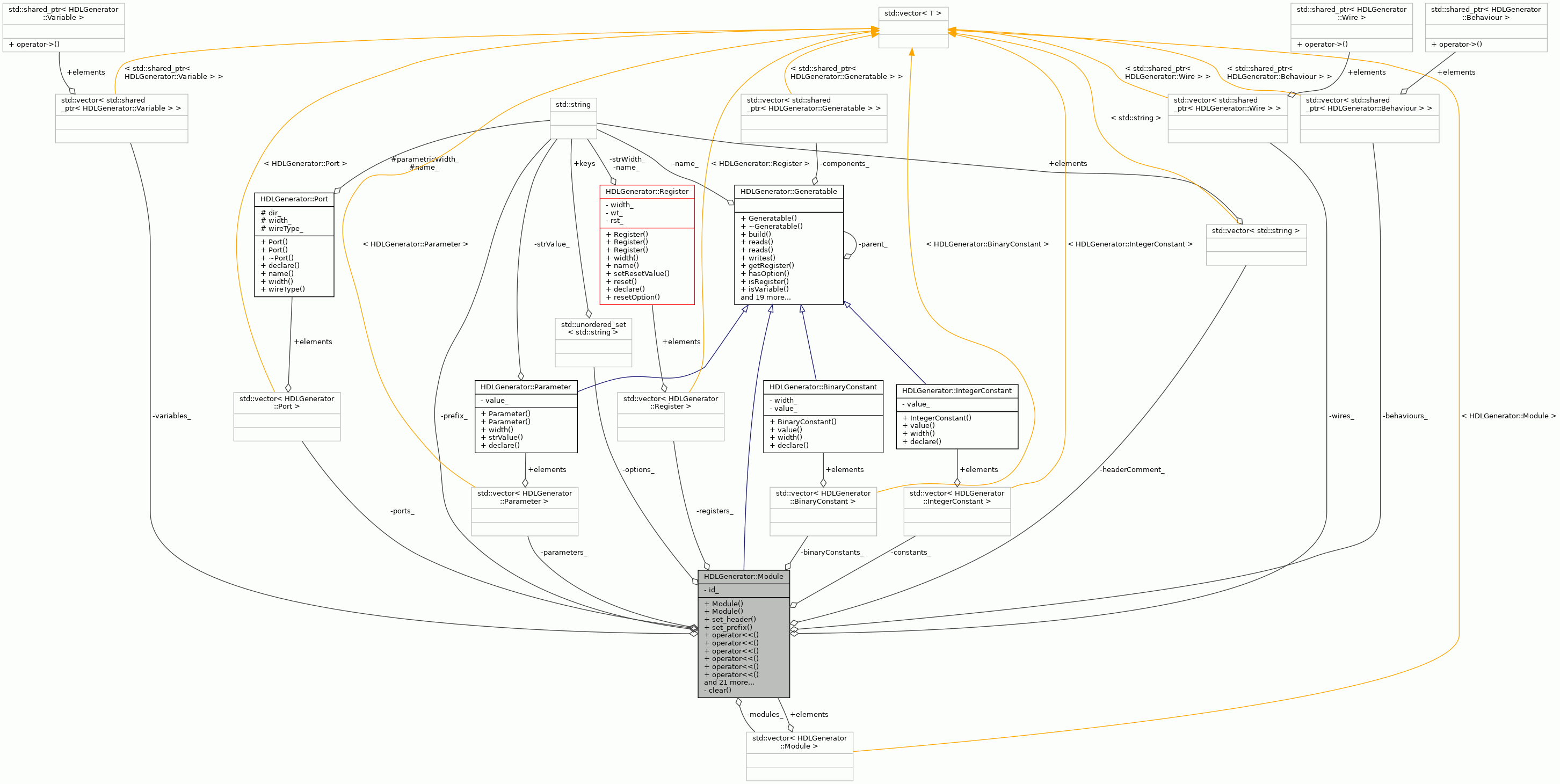

Collaboration diagram for HDLGenerator::Module:

Public Member Functions
	Module (std::string name)

	Module (ipxact::ModuleInfo info, int id)

void	set_header ()

void	set_prefix (std::string prefix)

Module &	operator<< (Behaviour &rhs)

Module &	operator<< (Behaviour &&rhs)

Module &	operator<< (Port &&port)

Module &	operator<< (Parameter &&param)

Module &	operator<< (IntegerConstant &&constant)

Module &	operator<< (BinaryConstant &&constant)

Module &	operator<< (Wire &&wire)

Module &	operator<< (Register &&reg)

Module &	operator<< (Register &reg)

Module &	operator<< (Option &&opt)

Module &	operator<< (Module &&rhs)

Module &	operator<< (Module &rhs)

void	build () final

void	appendToHeader (const std::string &line)

virtual bool	isRegister (const std::string &name) final

virtual bool	isConstant (const std::string &name) final

virtual bool	isVariable (const std::string &name) final

void	registerVariable (const std::shared_ptr< Variable > var)

Width	width (const std::string &name) final

WireType	wireType (const std::string &name) final

void	reads (const std::string &var) final

void	writes (const std::string &var) final

void	declare (std::ostream &stream, Language lang, int level)

void	instantiate (std::ostream &stream, Language lang, int level)

void	implement (std::ostream &stream, Language lang, int level=0)

bool	hasOption (const std::string &var) final

Register &	getRegister (const std::string &var) final

Public Member Functions inherited from HDLGenerator::Generatable
	Generatable (std::string name)

virtual	~Generatable ()=default

virtual void	reads (const LHSValue &var)

int	integerWidth (const std::string &name)

virtual Width	width ()

virtual WireType	wireType () const

virtual void	hdl (std::ostream &stream, Language lang, int indent)

virtual void	hdl (std::ostream &stream, Language lang)

virtual void	implementAll (std::ostream &stream, Language lang)

virtual void	implementAll (std::ostream &stream, Language lang, int indent)

template<typename Func >
void	forAll (Func func)

template<typename Type , typename Func >
void	forAll (Func func)

template<class Type >
bool	parentIs ()

template<class Type >
Type *	parentType ()

void	pushComponent (std::shared_ptr< Generatable > c)

template<class Component >
void	addComponent (Component c)

const std::string &	name () const noexcept

void	setParent (Generatable *parent) noexcept

Generatable *	parent () const noexcept

Private Member Functions
void	clear ()

Private Attributes
int	id_ = 0

std::string	prefix_

std::unordered_set< std::string >	options_

std::vector< std::string >	headerComment_

std::vector< Parameter >	parameters_

std::vector< Port >	ports_

std::vector< IntegerConstant >	constants_

std::vector< BinaryConstant >	binaryConstants_

std::vector< std::shared_ptr< Wire > >	wires_

std::vector< Register >	registers_

std::vector< std::shared_ptr< Variable > >	variables_

std::vector< std::shared_ptr< Behaviour > >	behaviours_

std::vector< Module >	modules_

Detailed Description

Entity/module.

Definition at line 1164 of file HDLGenerator.hh.

Constructor & Destructor Documentation

◆ Module() [1/2]

HDLGenerator::Module::Module ( std::string name )

inline

Definition at line 1166 of file HDLGenerator.hh.

                               : Generatable(name), prefix_(name) {
            set_header();
        }

References set_header().

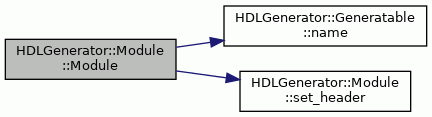

Here is the call graph for this function:

◆ Module() [2/2]

HDLGenerator::Module::Module	(	ipxact::ModuleInfo	info,
		int	id
	)

inline

Definition at line 1170 of file HDLGenerator.hh.

                                              : Generatable(info.name),
            prefix_(info.name) {
            set_header();
            id_ = id;
            for (auto&& p : info.parameters) {
                parameters_.emplace_back(Parameter{p.name, p.value});
            }
            for (auto&& p : info.ports) {
                Direction dir = p.direction == "in" ?
                                Direction::In : Direction::Out;
                if (p.vector) {
                    *this << Port(p.name, dir, p.left + "+1");
                } else {
                    *this << Port(p.name, dir);
                }
            }
        }

References id_, HDLGenerator::In, HDLGenerator::Generatable::name(), HDLGenerator::Out, ipxact::ModuleInfo::parameters, parameters_, ipxact::ModuleInfo::ports, and set_header().

Here is the call graph for this function:

Member Function Documentation

◆ appendToHeader()

void HDLGenerator::Module::appendToHeader ( const std::string & line )

inline

Definition at line 1278 of file HDLGenerator.hh.

                                                   {
            headerComment_.emplace_back(line);
        }

References headerComment_.

Referenced by FUGen::createFUHeaderComment().

◆ build()

void HDLGenerator::Module::build ( )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1271 of file HDLGenerator.hh.

                           {
            for (auto&& b : behaviours_) {
                b->setParent(this);
                b->build();
            }
        }

References behaviours_.

Referenced by implement().

◆ clear()

void HDLGenerator::Module::clear ( )

inlineprivate

Definition at line 1674 of file HDLGenerator.hh.

                     {
            // clear variables.
            variables_.clear();
            // Remove duplicate registers.
            registers_.erase(std::unique(registers_.begin(), registers_.end(),
                                 [](Register l, Register r) {
                                     return l.name() == r.name();
                                 }),
                registers_.end());
        }

References registers_, and variables_.

Referenced by implement().

◆ declare()

void HDLGenerator::Module::declare	(	std::ostream &	stream,
		Language	lang,
		int	level
	)

inline

Definition at line 1383 of file HDLGenerator.hh.

                                                                   {
            if (lang == Language::VHDL) {
                stream << StringTools::indent(level) << "component "
                       << name() << " is\n";
                // - Generics
                if (!parameters_.empty()) {
                    std::string separator = "";
                    stream << StringTools::indent(level + 1) << "generic (\n";
                    for (auto&& parameter : parameters_) {
                        stream << separator << StringTools::indent(level + 2);
                        parameter.declare(stream, lang);
                        separator = ";\n";
                    }
                    stream << ");\n";
                }
                // - Ports
                if (!ports_.empty()) {
                    std::string separator = "";
                    stream << StringTools::indent(level + 1) << "port (\n";
                    for (auto&& port : ports_) {
                        stream << separator << StringTools::indent(level + 2);
                        port.declare(stream, lang);
                        separator = ";\n";
                    }
                    stream << ");\n";
                }
                stream << StringTools::indent(level) << "end component "
                       << name() << ";\n";
            } else if (lang == Language::Verilog) {
                // no declaration for verilog.
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References StringTools::indent(), HDLGenerator::Generatable::name(), parameters_, ports_, HDLGenerator::Verilog, and HDLGenerator::VHDL.

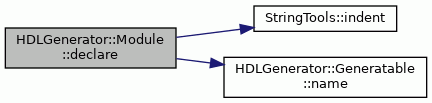

Here is the call graph for this function:

◆ getRegister()

Register & HDLGenerator::Module::getRegister ( const std::string & var )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1664 of file HDLGenerator.hh.

                                                          {
            for (auto&& r : registers_) {
                if (r.name() == var) {
                    return r;
                }
            }
            throw std::runtime_error("Couldn't find register '" + var + "'");
        }

References registers_.

◆ hasOption()

bool HDLGenerator::Module::hasOption ( const std::string & var )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1659 of file HDLGenerator.hh.

                                                   {
            return std::find(options_.begin(), options_.end(), var) !=
                   options_.end();
        }

References options_.

◆ implement()

void HDLGenerator::Module::implement	(	std::ostream &	stream,
		Language	lang,
		int	level = `0`
	)

inline

Definition at line 1481 of file HDLGenerator.hh.

                                                                         {
            clear();
            build();
            if (lang == Language::VHDL) {
                std::string ident = StringTools::indent(level);
                // Header comment
                for (auto&& line : headerComment_) {
                    stream << ident <<  "-- " << line << "\n";
                }
                // Libraries
                stream << ident << "\n"
                       << ident << "library ieee;\n"
                       << ident << "use ieee.std_logic_1164.all;\n"
                       << ident << "use ieee.numeric_std.all;\n"
                       << ident << "use ieee.std_logic_misc.all;\n"
                // Entity
                       << ident << "\n"
                       << ident << "entity " << name() << " is\n";
                // - Generics
                if (!parameters_.empty()) {
                    std::string separator = "";
                    stream << StringTools::indent(level + 1) << "generic (\n";
                    for (auto&& parameter : parameters_) {
                        stream << separator;
                        parameter.declare(stream, lang, level + 2);
                        separator = ";\n";
                    }
                    stream << ");\n";
                }
                // - Ports
                if (!ports_.empty()) {
                    std::string separator = "";
                    stream << StringTools::indent(level + 1) <<  "port (\n";
                    for (auto&& port : ports_) {
                        stream << separator;
                        port.declare(stream, lang, level + 2);
                        separator = ";\n";
                    }
                    stream << ");\n";
                }
                stream << ident << "end entity " << name() << ";\n"
                // Architecture
                       << ident << "\n"
                       << ident << "architecture rtl of "
                                        << name() << " is\n";
                // constants
                if (!constants_.empty() || !binaryConstants_.empty()) {
                    stream << "\n";
                }
                for (auto&& c : constants_) {
                    c.declare(stream, lang, level + 1);
                }
                for (auto&& c : binaryConstants_) {
                    c.declare(stream, lang, level + 1);
                }
                // wires
                if (!wires_.empty()) {
                    stream << "\n";
                }
                for (auto&& w : wires_) {
                    w->declare(stream, lang, level + 1);
                }
                // registers
                if (!registers_.empty()) {
                    stream << "\n";
                }
                for (auto&& r : registers_) {
                    r.declare(stream, lang, level + 1);
                }
                // declare components
                std::vector<std::string> declared;
                for (auto&& m : modules_) {
                    if (std::find(declared.begin(), declared.end(),
                            m.name()) != declared.end()) {
                        continue;
                    }
                    stream << "\n";
                    m.declare(stream, lang, level + 1);
                    declared.emplace_back(m.name());
                }
                stream << StringTools::indent(level) << "\nbegin\n\n";
                // instantiate components
                for (auto&& m : modules_) {
                    m.instantiate(stream, lang, level + 1);
                    stream << "\n";
                }
                // actual behavioural code
                for (auto&& b : behaviours_) {
                    b->behaviour(stream, lang, level + 1);
                }
                stream << "\n";
                stream << StringTools::indent(level)
                       << "end architecture rtl;\n\n";

            } else if (lang == Language::Verilog) {
                // Header comment
                stream << StringTools::indent(level) << "/*\n";
                for (auto&& line : headerComment_) {
                    stream << StringTools::indent(level)
                           << " * " << line << "\n";
                }
                stream << StringTools::indent(level) << " */\n";
                // Module
                stream << StringTools::indent(level) << "\n";
                stream << StringTools::indent(level) << "module " << name();
                // - Parameters
                if (!parameters_.empty()) {
                    std::string separator = "";
                    stream << " #(\n";
                    for (auto&& parameter : parameters_) {
                        stream << separator;
                        parameter.declare(stream, lang, level + 2);
                        separator = ",\n";
                    }
                    stream << ")";
                }
                // - Ports
                if (!ports_.empty()) {
                    std::string separator = "";
                    stream << " (\n";
                    for (auto&& port : ports_) {
                        stream << separator;
                        port.declare(stream, lang, level + 2);
                        separator = ",\n";
                    }
                    stream << ")";
                }
                // end module interface
                stream << ";\n";
                // constants
                if (!constants_.empty() || !binaryConstants_.empty()) {
                    stream << "\n";
                }
                for (auto&& c : constants_) {
                    c.declare(stream, lang, level + 1);
                }
                for (auto&& c : binaryConstants_) {
                    c.declare(stream, lang, level + 1);
                }
                // wires
                if (!wires_.empty()) {
                    stream << "\n";
                }
                for (auto&& w : wires_) {
                    w->declare(stream, lang, level + 1);
                }
                // variables
                if (!variables_.empty()) {
                    stream << "\n";
                    for (auto&& v : variables_) {
                        v->declare(stream, lang, level + 1);
                    }
                }
                // registers
                if (!registers_.empty()) {
                    stream << "\n";
                }
                for (auto&& r : registers_) {
                    r.declare(stream, lang, level + 1);
                }
                // instantiate stuff
                for (auto&& m : modules_) {
                    stream << "\n";
                    m.instantiate(stream, lang, level + 1);
                }
                // actual code
                stream << "\n";
                for (auto&& b : behaviours_) {
                    b->behaviour(stream, lang, level + 1);
                }
                // end module
                stream << "\n";
                stream << StringTools::indent(level) << "endmodule\n\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References behaviours_, binaryConstants_, build(), clear(), constants_, headerComment_, StringTools::indent(), modules_, HDLGenerator::Generatable::name(), parameters_, ports_, registers_, variables_, HDLGenerator::Verilog, HDLGenerator::VHDL, and wires_.

Referenced by FUGen::createImplementationFiles().

Here is the call graph for this function:

◆ instantiate()

void HDLGenerator::Module::instantiate	(	std::ostream &	stream,
		Language	lang,
		int	level
	)

inline

Definition at line 1418 of file HDLGenerator.hh.

                                                                       {
            std::string instance = prefix_ + "_" + std::to_string(id_);
            if (lang == Language::VHDL) {
                stream << StringTools::indent(level)
                       << instance << " : " << name() << "\n";
                if (parameters_.size() > 0) {
                    stream << StringTools::indent(level + 1) << "generic map (\n";

                    std::string separator = "";
                    for (auto&& p : parameters_) {
                        stream << separator
                               << StringTools::indent(level + 2)
                               << p.name() << " => " << p.strValue();
                        separator = ",\n";
                    }
                    stream << ")\n";
                }
                std::string separator = "";
                stream << StringTools::indent(level + 1) << "port map (\n";
                for (auto&& p : ports_) {
                    stream << separator << StringTools::indent(level + 2)
                           << p.name() << " => ";
                    if (p.name() == "clk" || p.name() == "rstx" ||
                        p.name() == "glock_in") {
                        stream << p.name();
                    } else {
                        stream << instance << "_" <<  p.name();
                    }
                    separator = ",\n";
                }
                stream << ");\n";
            } else if (lang == Language::Verilog) {
                stream << StringTools::indent(level) << name() << " ";
                if (parameters_.size() > 0) {
                    stream << "#(";
                    std::string separator = "";
                    for (auto&& p : parameters_) {
                        stream << separator;
                        stream << "." << p.name() << "(" << p.strValue() << ")";
                        separator = ", ";
                    }
                    stream << ") ";
                }
                std::string separator = "";
                stream << instance << " (\n";
                for (auto&& p : ports_) {
                    stream << separator;
                    stream << StringTools::indent(level + 2) << "." << p.name()
                           << "(";
                    if (p.name() == "clk" || p.name() == "rstx" ||
                        p.name() == "glock_in") {
                        stream << p.name() << ")";
                    } else {
                        stream << instance << "_" << name() << ")";
                    }
                    separator = ",\n";
                }
                stream << ");\n";
            } else {
                throw std::runtime_error(__PRETTY_FUNCTION__);
            }
        }

References id_, StringTools::indent(), HDLGenerator::Generatable::name(), parameters_, ports_, prefix_, HDLGenerator::Verilog, and HDLGenerator::VHDL.

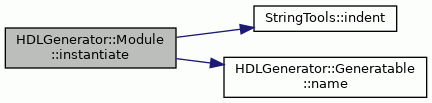

Here is the call graph for this function:

◆ isConstant()

virtual bool HDLGenerator::Module::isConstant ( const std::string & name )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1291 of file HDLGenerator.hh.

                                                             {
            for (auto&& r : constants_) {
                if (r.name() == name) {
                    return true;
                }
            }
            for (auto&& r : binaryConstants_) {
                if (r.name() == name) {
                    return true;
                }
            }
            return false;
        }

References binaryConstants_, constants_, and HDLGenerator::Generatable::name().

Here is the call graph for this function:

◆ isRegister()

virtual bool HDLGenerator::Module::isRegister ( const std::string & name )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1282 of file HDLGenerator.hh.

                                                             {
            for (auto&& r : registers_) {
                if (r.name() == name) {
                    return true;
                }
            }
            return false;
        }

References HDLGenerator::Generatable::name(), and registers_.

Here is the call graph for this function:

◆ isVariable()

virtual bool HDLGenerator::Module::isVariable ( const std::string & name )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1305 of file HDLGenerator.hh.

                                                             {
            for (auto&& v : variables_) {
                if (v->name() == name) {
                    return true;
                }
            }
            return false;
        }

References HDLGenerator::Generatable::name(), and variables_.

Here is the call graph for this function:

◆ operator<<() [1/12]

Module & HDLGenerator::Module::operator<< ( Behaviour && rhs )

inline

Definition at line 1216 of file HDLGenerator.hh.

                                            {
            behaviours_.emplace_back(new Behaviour(rhs));
            return *this;
        }

References behaviours_.

◆ operator<<() [2/12]

Module & HDLGenerator::Module::operator<< ( Behaviour & rhs )

inline

Definition at line 1211 of file HDLGenerator.hh.

                                           {
            behaviours_.emplace_back(new Behaviour(rhs));
            return *this;
        }

References behaviours_.

◆ operator<<() [3/12]

Module & HDLGenerator::Module::operator<< ( BinaryConstant && constant )

inline

Definition at line 1236 of file HDLGenerator.hh.

                                                      {
            binaryConstants_.emplace_back(constant);
            return *this;
        }

References binaryConstants_.

◆ operator<<() [4/12]

Module & HDLGenerator::Module::operator<< ( IntegerConstant && constant )

inline

Definition at line 1231 of file HDLGenerator.hh.

                                                       {
            constants_.emplace_back(constant);
            return *this;
        }

References constants_.

◆ operator<<() [5/12]

Module & HDLGenerator::Module::operator<< ( Module && rhs )

inline

Definition at line 1261 of file HDLGenerator.hh.

                                         {
            modules_.emplace_back(rhs);
            return *this;
        }

References modules_.

◆ operator<<() [6/12]

Module & HDLGenerator::Module::operator<< ( Module & rhs )

inline

Definition at line 1266 of file HDLGenerator.hh.

                                        {
            modules_.emplace_back(rhs);
            return *this;
        }

References modules_.

◆ operator<<() [7/12]

Module & HDLGenerator::Module::operator<< ( Option && opt )

inline

Definition at line 1256 of file HDLGenerator.hh.

                                         {
            options_.emplace(opt.name());
            return *this;
        }

References options_.

◆ operator<<() [8/12]

Module & HDLGenerator::Module::operator<< ( Parameter && param )

inline

Definition at line 1226 of file HDLGenerator.hh.

                                              {
            parameters_.emplace_back(param);
            return *this;
        }

References parameters_.

◆ operator<<() [9/12]

Module & HDLGenerator::Module::operator<< ( Port && port )

inline

Definition at line 1221 of file HDLGenerator.hh.

                                        {
            ports_.push_back(port);
            return *this;
        }

References ports_.

◆ operator<<() [10/12]

Module & HDLGenerator::Module::operator<< ( Register && reg )

inline

Definition at line 1246 of file HDLGenerator.hh.

                                           {
            registers_.emplace_back(reg);
            return *this;
        }

References registers_.

◆ operator<<() [11/12]

Module & HDLGenerator::Module::operator<< ( Register & reg )

inline

Definition at line 1251 of file HDLGenerator.hh.

                                          {
            registers_.emplace_back(reg);
            return *this;
        }

References registers_.

◆ operator<<() [12/12]

Module & HDLGenerator::Module::operator<< ( Wire && wire )

inline

Definition at line 1241 of file HDLGenerator.hh.

                                        {
            wires_.emplace_back(new Wire(wire));
            return *this;
        }

References wires_.

◆ reads()

void HDLGenerator::Module::reads ( const std::string & var )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1379 of file HDLGenerator.hh.

1379{ (void)var; }

◆ registerVariable()

void HDLGenerator::Module::registerVariable ( const std::shared_ptr< Variable > var )

inline

Definition at line 1314 of file HDLGenerator.hh.

                                                                 {
            for (auto&& v : variables_) {
                if (v->name() == var->name()) {
                    throw std::runtime_error("tried to register variable " +
                                             var->name() + " multiple times");
                }
            }
            variables_.push_back(var);
        }

References variables_.

◆ set_header()

void HDLGenerator::Module::set_header ( )

inline

Definition at line 1188 of file HDLGenerator.hh.

                          {
            auto now = std::chrono::system_clock::now();
            auto now_c = std::chrono::system_clock::to_time_t(now);
            char buffer[31];
            std::stringstream ss;
            TCEString licenseStr = LicenseGenerator::generateMITLicense(
                "2023", "");
            std::vector<TCEString> licenseStrs = licenseStr.split("\n");
            for (unsigned int i = 0; i < licenseStrs.size(); i++) {
                headerComment_.emplace_back(licenseStrs.at(i));
            }
            std::strftime(buffer, 30, "%c", std::localtime(&now_c));
            ss << buffer; // std::put_time(std::localtime(&now_c), "%c");
            headerComment_.emplace_back("");
            headerComment_.emplace_back(
                std::string("Generated on ") + ss.str());
            headerComment_.emplace_back("");
        }

References LicenseGenerator::generateMITLicense(), headerComment_, and TCEString::split().

Referenced by Module(), and Module().

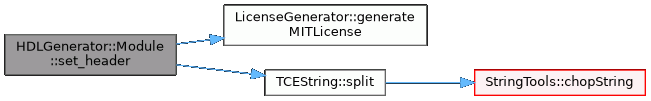

Here is the call graph for this function:

◆ set_prefix()

void HDLGenerator::Module::set_prefix ( std::string prefix )

inline

Definition at line 1207 of file HDLGenerator.hh.

                                          {
            prefix_ = prefix;
        }

References prefix_.

Referenced by FUGen::createOperationResources().

◆ width()

Width HDLGenerator::Module::width ( const std::string & name )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1324 of file HDLGenerator.hh.

                                                 {
            for (auto&& v : parameters_) {
                if (v.name() == name) {
                    return v.width();
                }
            }
            for (auto&& v : constants_) {
                if (v.name() == name) {
                    return v.width();
                }
            }
            for (auto&& v : registers_) {
                if (v.name() == name) {
                    return v.width();
                }
            }
            for (auto&& v : wires_) {
                if (v->name() == name) {
                    return v->width();
                }
            }
            for (auto&& v : variables_) {
                if (v->name() == name) {
                    return v->width();
                }
            }
            for (auto&& v : ports_) {
                if (v.name() == name) {
                    return v.width();
                }
            }
            // not finding a thing is an error.
            throw std::runtime_error("Couldn't find width for " + name);
        }

References constants_, HDLGenerator::Generatable::name(), parameters_, ports_, registers_, variables_, and wires_.

Here is the call graph for this function:

◆ wireType()

WireType HDLGenerator::Module::wireType ( const std::string & name )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1359 of file HDLGenerator.hh.

                                                       {
            for (auto&& v : ports_) {
                if (v.name() == name) {
                    return v.wireType();
                }
            }
            for (auto&& v : wires_) {
                if (v->name() == name) {
                    return v->wireType();
                }
            }
            for (auto&& v : variables_) {
                if (v->name() == name) {
                    return v->wireType();
                }
            }
            // not finding a thing is an error.
            throw std::runtime_error("Couldn't find wire type for " + name);
        }

References HDLGenerator::Generatable::name(), ports_, variables_, and wires_.

Here is the call graph for this function:

◆ writes()

void HDLGenerator::Module::writes ( const std::string & var )

inlinefinalvirtual

Reimplemented from HDLGenerator::Generatable.

Definition at line 1381 of file HDLGenerator.hh.

1381{ (void)var; }

Member Data Documentation

◆ behaviours_

std::vector<std::shared_ptr<Behaviour> > HDLGenerator::Module::behaviours_

private

Definition at line 1695 of file HDLGenerator.hh.

Referenced by build(), implement(), operator<<(), and operator<<().

◆ binaryConstants_

std::vector<BinaryConstant> HDLGenerator::Module::binaryConstants_

private

Definition at line 1691 of file HDLGenerator.hh.

Referenced by implement(), isConstant(), and operator<<().

◆ constants_

std::vector<IntegerConstant> HDLGenerator::Module::constants_

private

Definition at line 1690 of file HDLGenerator.hh.

Referenced by implement(), isConstant(), operator<<(), and width().

◆ headerComment_

std::vector<std::string> HDLGenerator::Module::headerComment_

private

Definition at line 1687 of file HDLGenerator.hh.

Referenced by appendToHeader(), implement(), and set_header().

◆ id_

int HDLGenerator::Module::id_ = 0

private

Definition at line 1684 of file HDLGenerator.hh.

Referenced by instantiate(), and Module().

◆ modules_

std::vector<Module> HDLGenerator::Module::modules_

private

Definition at line 1696 of file HDLGenerator.hh.

Referenced by implement(), operator<<(), and operator<<().

◆ options_

std::unordered_set<std::string> HDLGenerator::Module::options_

private

Definition at line 1686 of file HDLGenerator.hh.

Referenced by hasOption(), and operator<<().

◆ parameters_

std::vector<Parameter> HDLGenerator::Module::parameters_

private

Definition at line 1688 of file HDLGenerator.hh.

Referenced by declare(), implement(), instantiate(), Module(), operator<<(), and width().

◆ ports_

std::vector<Port> HDLGenerator::Module::ports_

private

Definition at line 1689 of file HDLGenerator.hh.

Referenced by declare(), implement(), instantiate(), operator<<(), width(), and wireType().

◆ prefix_

std::string HDLGenerator::Module::prefix_

private

Definition at line 1685 of file HDLGenerator.hh.

Referenced by instantiate(), and set_prefix().

◆ registers_

std::vector<Register> HDLGenerator::Module::registers_

private

Definition at line 1693 of file HDLGenerator.hh.

Referenced by clear(), getRegister(), implement(), isRegister(), operator<<(), operator<<(), and width().

◆ variables_

std::vector<std::shared_ptr<Variable> > HDLGenerator::Module::variables_

private

Definition at line 1694 of file HDLGenerator.hh.

Referenced by clear(), implement(), isVariable(), registerVariable(), width(), and wireType().

◆ wires_

std::vector<std::shared_ptr<Wire> > HDLGenerator::Module::wires_

private

Definition at line 1692 of file HDLGenerator.hh.

Referenced by implement(), operator<<(), width(), and wireType().

The documentation for this class was generated from the following file:

HDLGenerator.hh

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Module() [1/2]

◆ Module() [2/2]

Member Function Documentation

◆ appendToHeader()

◆ build()

◆ clear()

◆ declare()

◆ getRegister()

◆ hasOption()

◆ implement()

◆ instantiate()

◆ isConstant()

◆ isRegister()

◆ isVariable()

◆ operator<<() [1/12]

◆ operator<<() [2/12]

◆ operator<<() [3/12]

◆ operator<<() [4/12]

◆ operator<<() [5/12]

◆ operator<<() [6/12]

◆ operator<<() [7/12]

◆ operator<<() [8/12]

◆ operator<<() [9/12]

◆ operator<<() [10/12]

◆ operator<<() [11/12]

◆ operator<<() [12/12]

◆ reads()

◆ registerVariable()

◆ set_header()

◆ set_prefix()

◆ width()

◆ wireType()

◆ writes()

Member Data Documentation

◆ behaviours_

◆ binaryConstants_

◆ constants_

◆ headerComment_

◆ id_

◆ modules_

◆ options_

◆ parameters_

◆ ports_

◆ prefix_

◆ registers_

◆ variables_

◆ wires_
