HDLPort Class Reference

#include <HDLPort.hh>

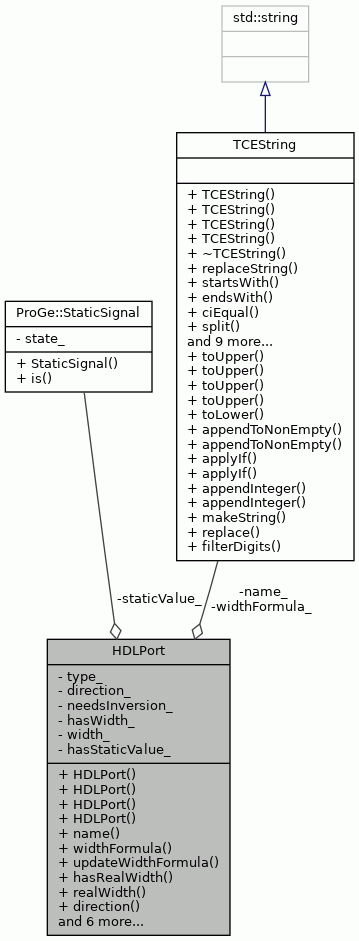

Collaboration diagram for HDLPort:

Public Member Functions
	HDLPort (const TCEString name, const TCEString &widthFormula, ProGe::DataType type, ProGe::Direction direction, bool needsInversion)
	HDLPort (const TCEString name, const TCEString &widthFormula, ProGe::DataType type, ProGe::Direction direction, bool needsInversion, int width)
	HDLPort (const HDLPort &old)
	HDLPort (const ProGe::NetlistPort &port)
TCEString	name () const
TCEString	widthFormula () const
void	updateWidthFormula (const TCEString &widthFormula)
bool	hasRealWidth () const
int	realWidth () const
ProGe::Direction	direction () const
ProGe::DataType	type () const
bool	needsInversion () const
ProGe::NetlistPort *	convertToNetlistPort (ProGe::NetlistBlock &block) const
void	setToStatic (ProGe::StaticSignal value)
bool	hasStaticValue () const
ProGe::StaticSignal	staticValue () const

Private Attributes
TCEString	name_
TCEString	widthFormula_
ProGe::DataType	type_
ProGe::Direction	direction_
bool	needsInversion_
bool	hasWidth_
int	width_
bool	hasStaticValue_
ProGe::StaticSignal	staticValue_

Detailed Description

Represents a HDL port which is on higher abstraction level than NetlistPort

Definition at line 48 of file PlatformIntegrator/HDLPort.hh.

Constructor & Destructor Documentation

HDLPort() [1/4]

HDLPort::HDLPort	(	const TCEString	name,
		const TCEString &	widthFormula,
		ProGe::DataType	type,
		ProGe::Direction	direction,
		bool	needsInversion
	)

Definition at line 38 of file HDLPort.cc.

    : name_(name),
      widthFormula_(widthFormula),
      type_(type),
      direction_(direction),
      needsInversion_(needsInversion),
      hasWidth_(false),
      width_(0),
      hasStaticValue_(false),
      staticValue_(ProGe::StaticSignal::GND) {}

HDLPort() [2/4]

HDLPort::HDLPort	(	const TCEString	name,
		const TCEString &	widthFormula,
		ProGe::DataType	type,
		ProGe::Direction	direction,
		bool	needsInversion,
		int	width
	)

Definition at line 51 of file HDLPort.cc.

    : name_(name),
      widthFormula_(widthFormula),
      type_(type),
      direction_(direction),
      needsInversion_(needsInversion),
      hasWidth_(true),
      width_(width),
      hasStaticValue_(false),
      staticValue_(ProGe::StaticSignal::GND) {}

HDLPort() [3/4]

HDLPort::HDLPort

(

const HDLPort &

old

)

Definition at line 64 of file HDLPort.cc.

                                  :
    name_(old.name_), widthFormula_(old.widthFormula_), type_(old.type_),
    direction_(old.direction_), needsInversion_(old.needsInversion_),
    hasWidth_(old.hasWidth_), width_(old.width_),
    hasStaticValue_(old.hasStaticValue_), staticValue_(old.staticValue_) {
}

HDLPort() [4/4]

HDLPort::HDLPort

(

const ProGe::NetlistPort &

port

)

Definition at line 71 of file HDLPort.cc.

    : name_(port.name()),
      widthFormula_(port.widthFormula()),
      type_(port.dataType()),
      direction_(port.direction()),
      needsInversion_(false),
      hasWidth_(port.realWidthAvailable()),
      width_(0),
      hasStaticValue_(false),
      staticValue_(ProGe::StaticSignal::GND) {
    if (port.realWidthAvailable()) {
        width_ = port.realWidth();
    }
}

References ProGe::NetlistPort::realWidth(), ProGe::NetlistPort::realWidthAvailable(), and width_.

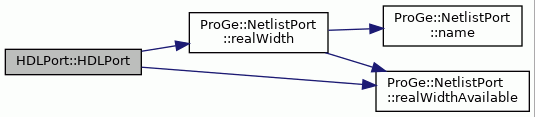

Here is the call graph for this function:

Member Function Documentation

convertToNetlistPort()

ProGe::NetlistPort * HDLPort::convertToNetlistPort

(

ProGe::NetlistBlock &

block

)

const

Definition at line 127 of file HDLPort.cc.

                                                            {

    NetlistPort* port;
    if (hasWidth_) {
        port = new NetlistPort(name_, widthFormula_, width_, type_,
                               direction_, block);
    } else {
        port = new NetlistPort(name_, widthFormula_, type_, direction_,
                               block);
    }
    if (hasStaticValue_) {
        port->setToStatic(staticValue_);
    }
    return port;
}

References direction_, hasStaticValue_, hasWidth_, name_, ProGe::NetlistPort::setToStatic(), staticValue_, type_, width_, and widthFormula_.

Referenced by Stratix2SramGenerator::addMemory(), and MemoryGenerator::createMemoryNetlistBlock().

Here is the call graph for this function:

direction()

ProGe::Direction HDLPort::direction

(

)

const

Definition at line 112 of file HDLPort.cc.

                         {
    return direction_;
}

References direction_.

Referenced by IPXactModel::addSignalObject().

hasRealWidth()

bool HDLPort::hasRealWidth

(

)

const

Definition at line 102 of file HDLPort.cc.

                            {
    return hasWidth_;
}

References hasWidth_.

Referenced by IPXactModel::addSignalObject().

hasStaticValue()

bool HDLPort::hasStaticValue

(

)

const

Definition at line 153 of file HDLPort.cc.

                              {

    return hasStaticValue_;
}

References hasStaticValue_.

Referenced by MemoryGenerator::createMemoryNetlistBlock().

name()

TCEString HDLPort::name

(

)

const

Definition at line 87 of file HDLPort.cc.

                    {
    return name_;
}

References name_.

Referenced by MemoryGenerator::addMemory(), XilinxBlockRamGenerator::addMemory(), IPXactModel::addSignalObject(), and MemoryGenerator::portKeyName().

needsInversion()

bool HDLPort::needsInversion

(

)

const

Definition at line 122 of file HDLPort.cc.

                              {
    return needsInversion_;
}

References needsInversion_.

Referenced by MemoryGenerator::addMemory(), Stratix2SramGenerator::addMemory(), and XilinxBlockRamGenerator::addMemory().

realWidth()

int HDLPort::realWidth

(

)

const

Definition at line 107 of file HDLPort.cc.

                         {
    return width_;
}

References width_.

Referenced by IPXactModel::addSignalObject().

setToStatic()

void HDLPort::setToStatic

(

ProGe::StaticSignal

value

)

Definition at line 145 of file HDLPort.cc.

                                            {

    hasStaticValue_ = true;
    staticValue_ = value;
}

References hasStaticValue_, and staticValue_.

Referenced by AlteraOnchipRomGenerator::AlteraOnchipRomGenerator(), and VhdlRomGenerator::VhdlRomGenerator().

staticValue()

ProGe::StaticSignal HDLPort::staticValue

(

)

const

Definition at line 160 of file HDLPort.cc.

                           {

    return staticValue_;
}

References staticValue_.

type()

ProGe::DataType HDLPort::type

(

)

const

Definition at line 117 of file HDLPort.cc.

                    {
    return type_;
}

References type_.

Referenced by IPXactModel::addSignalObject().

updateWidthFormula()

void HDLPort::updateWidthFormula

(

const TCEString &

widthFormula

)

Definition at line 97 of file HDLPort.cc.

                                                         {
    widthFormula_ = widthFormula;
}

References widthFormula(), and widthFormula_.

Here is the call graph for this function:

widthFormula()

TCEString HDLPort::widthFormula

(

)

const

Definition at line 92 of file HDLPort.cc.

                            {
    return widthFormula_;
}

References widthFormula_.

Referenced by updateWidthFormula().

Member Data Documentation

direction_

ProGe::Direction HDLPort::direction_

private

Definition at line 99 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), and direction().

hasStaticValue_

bool HDLPort::hasStaticValue_

private

Definition at line 103 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), hasStaticValue(), and setToStatic().

hasWidth_

bool HDLPort::hasWidth_

private

Definition at line 101 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), and hasRealWidth().

name_

TCEString HDLPort::name_

private

Definition at line 96 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), and name().

needsInversion_

bool HDLPort::needsInversion_

private

Definition at line 100 of file PlatformIntegrator/HDLPort.hh.

Referenced by needsInversion().

staticValue_

ProGe::StaticSignal HDLPort::staticValue_

private

Definition at line 104 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), setToStatic(), and staticValue().

type_

ProGe::DataType HDLPort::type_

private

Definition at line 98 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), and type().

width_

int HDLPort::width_

private

Definition at line 102 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), HDLPort(), and realWidth().

widthFormula_

TCEString HDLPort::widthFormula_

private

Definition at line 97 of file PlatformIntegrator/HDLPort.hh.

Referenced by convertToNetlistPort(), updateWidthFormula(), and widthFormula().

---

The documentation for this class was generated from the following files:

• PlatformIntegrator/HDLPort.hh
• HDLPort.cc
