ProGe::NetlistBlock Class Reference

#include <NetlistBlock.hh>

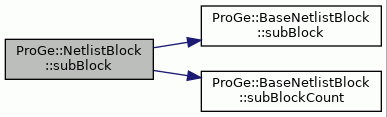

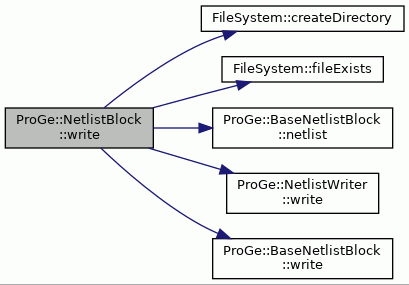

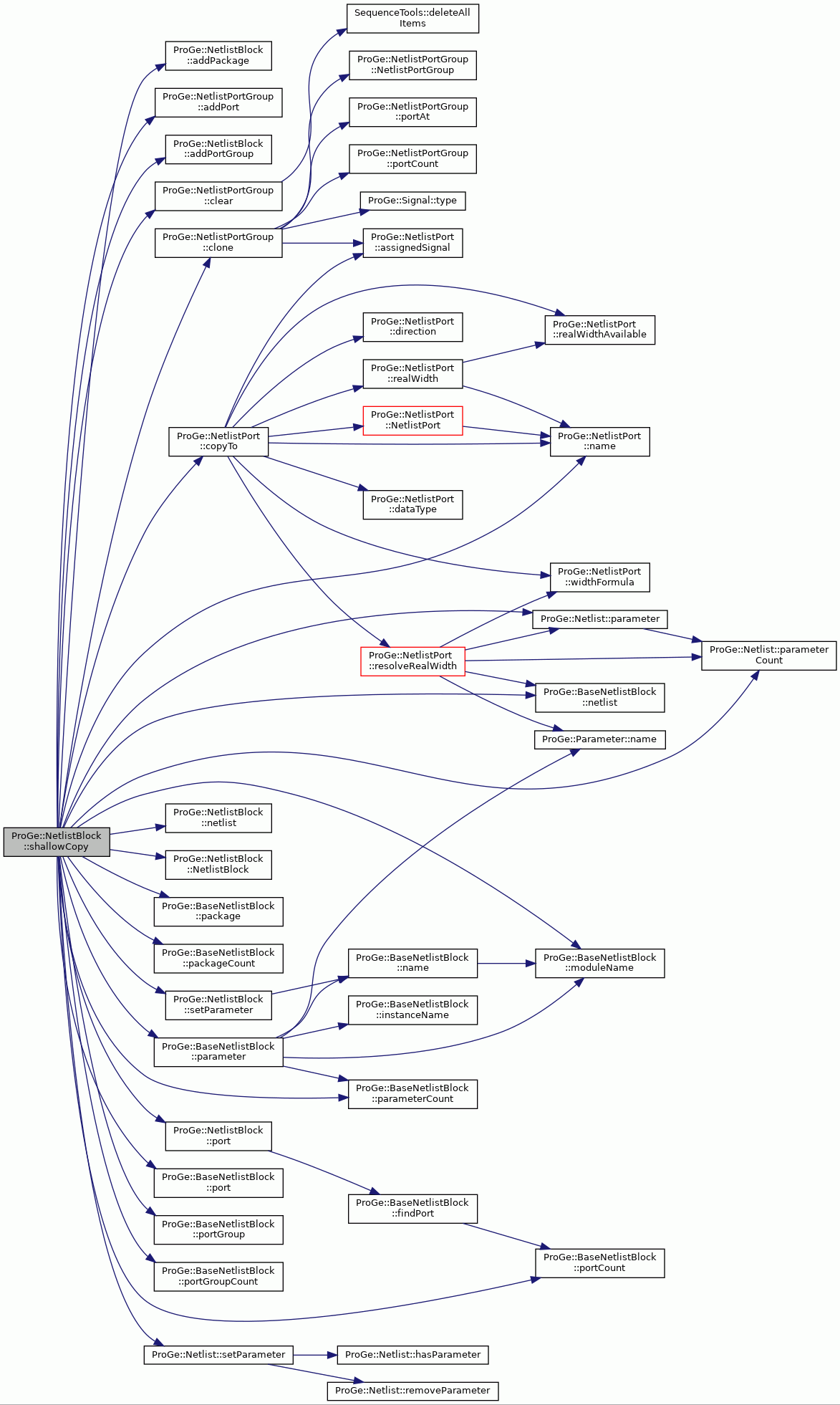

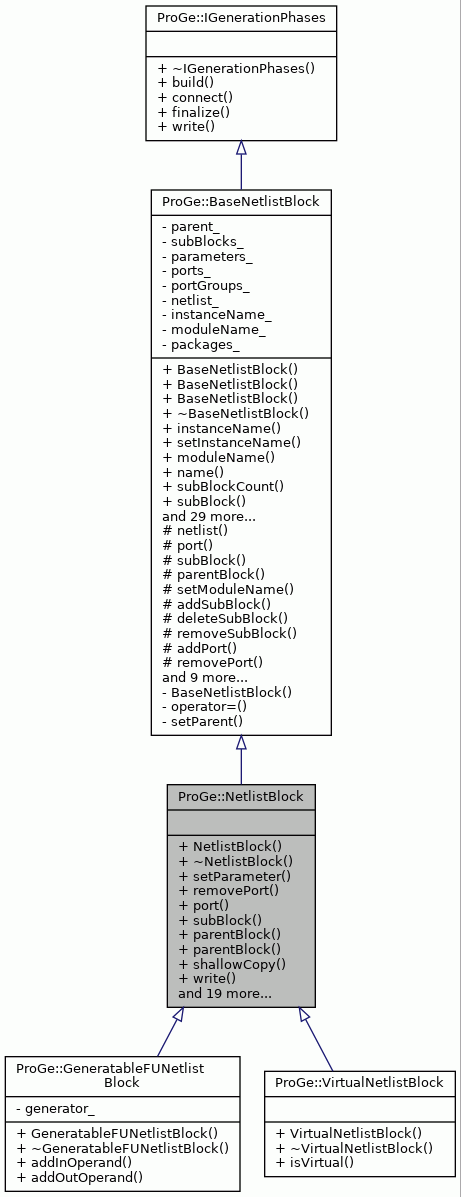

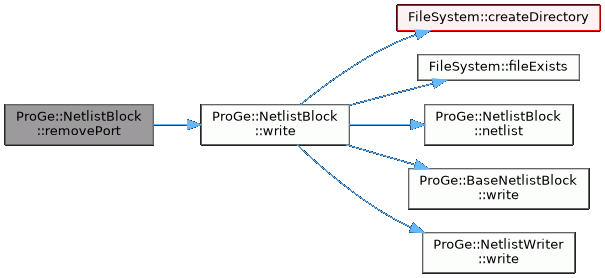

Inheritance diagram for ProGe::NetlistBlock:

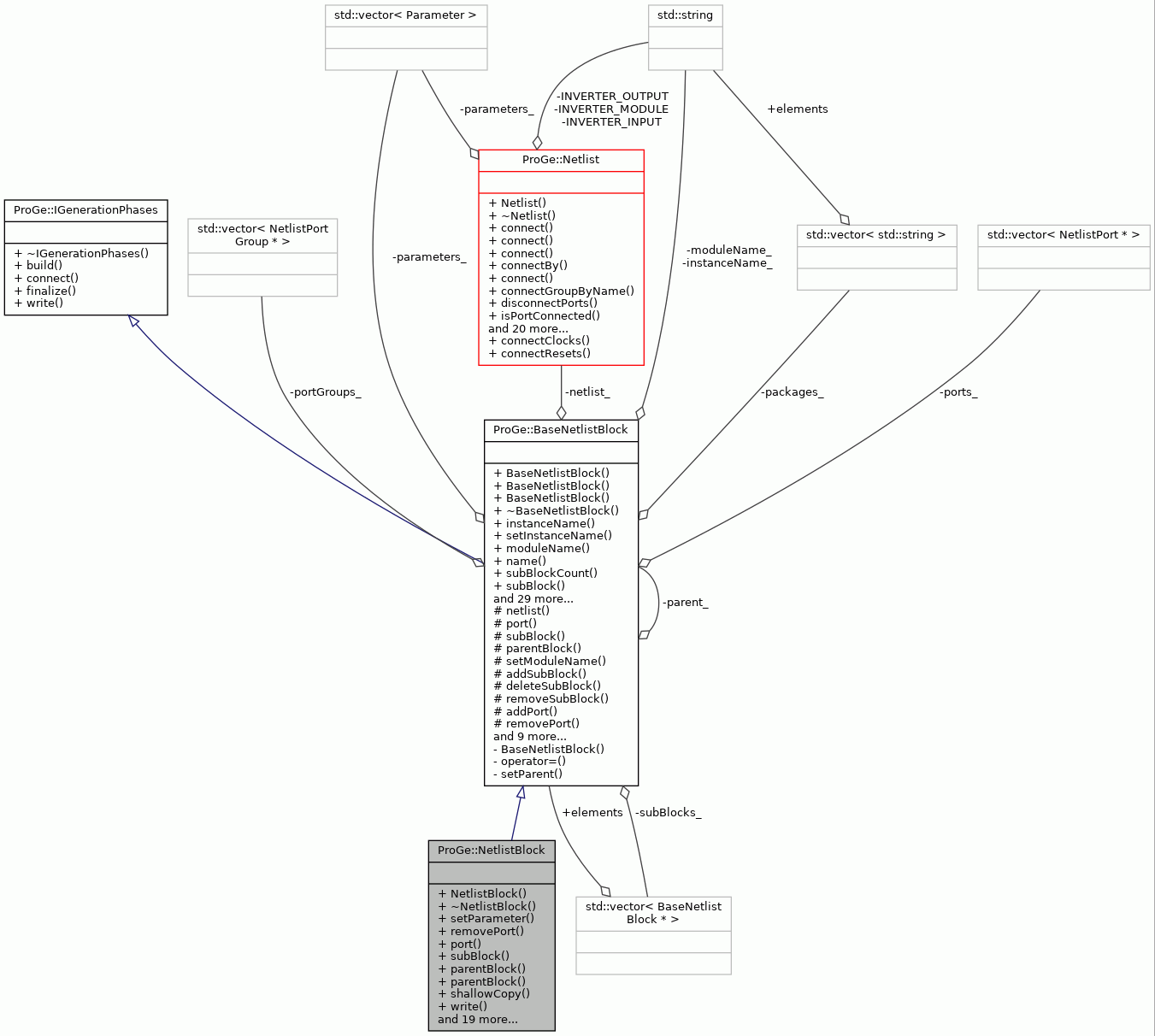

Collaboration diagram for ProGe::NetlistBlock:

Public Member Functions
	NetlistBlock (const std::string &moduleName, const std::string &instanceName, BaseNetlistBlock *parent=NULL)
virtual	~NetlistBlock ()
void	setParameter (const std::string &name, const std::string &type, const std::string &value)
void	removePort (NetlistPort &port)
virtual NetlistPort *	port (const std::string &portName, bool partialMatch=true)
NetlistBlock &	subBlock (size_t index) override
virtual const NetlistBlock &	parentBlock () const override
virtual NetlistBlock &	parentBlock () override
NetlistBlock *	shallowCopy (const std::string &instanceName) const
virtual void	write (const Path &targetBaseDir, HDL targetLang=VHDL) const override
void	addParameter (const Parameter &param)
void	setParameter (const Parameter &param)
virtual const Parameter &	parameter (const std::string &name) const
virtual const Parameter &	parameter (size_t index) const
Parameter &	parameter (const std::string &name)
NetlistPort *	addPort (NetlistPort *port)
void	removePort (NetlistPort *port)
virtual size_t	portCount () const
virtual const NetlistPort &	port (size_t index) const
virtual const NetlistPort *	port (const std::string &portName, bool partialMatch=true) const
virtual NetlistPort &	port (size_t index)
void	addPortGroup (NetlistPortGroup *portGroup)
void	addSubBlock (BaseNetlistBlock *subBlock, const std::string &instanceName="")
virtual size_t	subBlockCount () const
virtual const Netlist &	netlist () const
Netlist &	netlist ()
void	addPackage (const std::string &packageName)
virtual size_t	packageCount () const
virtual const std::string &	package (size_t idx) const
Public Member Functions inherited from ProGe::BaseNetlistBlock
	BaseNetlistBlock ()
	BaseNetlistBlock (BaseNetlistBlock *parent)
	BaseNetlistBlock (const std::string &moduleName, const std::string &instanceName, BaseNetlistBlock *parent=nullptr)
virtual	~BaseNetlistBlock ()
const std::string &	instanceName () const
void	setInstanceName (const std::string &name)
const std::string &	moduleName () const
const std::string	name () const
virtual const BaseNetlistBlock &	subBlock (size_t index) const
virtual bool	hasSubBlock (const std::string &instanceName) const
virtual bool	isSubBlock (const BaseNetlistBlock &block) const
virtual bool	hasParameter (const std::string &name) const
virtual size_t	parameterCount () const
virtual std::vector< const NetlistPort * >	portsBy (SignalType type) const
virtual const NetlistPort &	portBy (SignalType type, size_t index=0) const
virtual bool	hasPortsBy (SignalType type) const
virtual size_t	portGroupCount () const
virtual const NetlistPortGroup &	portGroup (size_t index) const
virtual std::vector< const NetlistPortGroup * >	portGroupsBy (SignalGroupType type) const
virtual bool	hasParentBlock () const
virtual bool	isVirtual () const
virtual void	build () override
virtual void	connect () override
virtual void	finalize () override
virtual void	writeSelf (const Path &targetBaseDir, HDL targetLang=VHDL) const
PortContainerType &	ports ()
virtual bool	isLeaf () const
BaseNetlistBlock *	shallowCopy (const std::string &instanceName="") const
Public Member Functions inherited from ProGe::IGenerationPhases
virtual	~IGenerationPhases ()

Additional Inherited Members
Public Types inherited from ProGe::BaseNetlistBlock
typedef std::vector< BaseNetlistBlock * >	BlockContainerType
typedef std::vector< Parameter >	ParameterContainerType
typedef std::vector< NetlistPort * >	PortContainerType
typedef std::vector< NetlistPortGroup * >	PortGroupContainerType
Protected Member Functions inherited from ProGe::BaseNetlistBlock
Netlist &	netlist ()
void	setModuleName (const std::string &name)
void	addSubBlock (BaseNetlistBlock *subBlock, const std::string &instanceName="")
void	deleteSubBlock (BaseNetlistBlock *subBlock)
void	removeSubBlock (BaseNetlistBlock *subBlock)
NetlistPort *	addPort (NetlistPort *port)
void	removePort (NetlistPort *port)
void	addPortGroup (NetlistPortGroup *portGroup)
void	removePortGroup (NetlistPortGroup *portGroup)
void	setParameter (const Parameter &param)
void	addParameter (const Parameter &param)
Parameter &	parameter (const std::string &name)
NetlistPort *	findPort (const std::string &portName, bool recursiveSearch=false, bool partialMatch=true) const
void	addPackage (const std::string &packageName)
void	connectClocks ()
void	connectResets ()

Detailed Description

Represents a hardware block in the netlist.

Definition at line 61 of file NetlistBlock.hh.

Constructor & Destructor Documentation

NetlistBlock()

ProGe::NetlistBlock::NetlistBlock	(	const std::string &	moduleName,
		const std::string &	instanceName,
		BaseNetlistBlock *	parent = NULL
	)

Constructor. Creates a netlist with no ports.

The created is empty. Only its name, the parent netlist and the name of the instance module are defined.

Parameters

moduleName	Name of the module.
instanceName	Name of the instance of the module.
netlist	The netlist which the belongs to.

Definition at line 68 of file NetlistBlock.cc.

    : BaseNetlistBlock(moduleName, instanceName, parent) {}

~NetlistBlock()

ProGe::NetlistBlock::~NetlistBlock ( )

virtual

The destructor.

Deletes all the ports.

Definition at line 78 of file NetlistBlock.cc.

                            {
}

Member Function Documentation

addPackage()

void ProGe::BaseNetlistBlock::addPackage

(

const std::string &

packageName

)

Definition at line 162 of file BaseNetlistBlock.cc.

                                                         {
    if (!ContainerTools::containsValue(packages_, packageName)) {
        packages_.push_back(packageName);
    }
}

Referenced by PlatformIntegrator::copyProgeBlockToNetlist(), ProGe::NetlistGenerator::generate(), DefaultICDecoderGenerator::generateDebuggerCode(), and shallowCopy().

addParameter()

void ProGe::BaseNetlistBlock::addParameter

(

const Parameter &

param

)

Adds new parameter to the block. Throws exception if the block has the parameter by the name already.

Definition at line 156 of file BaseNetlistBlock.cc.

                                                     {
    // Check for uniqueness //
    for (Parameter& p : parameters_) {
        if (p.name() == param.name()) {
            throw ObjectAlreadyExists(
                __FILE__, __LINE__,
                "The block \"" + name() + "\" already has parameter\"" +
                    param.name() + "\"");
        }
    }

    // Check if parameter's value refers to a constant //
    if (param.valueIsConstant()) {
        std::string packageName = param.packageNameOfConstant();
        assert(!packageName.empty());
        addPackage(packageName);
    }

    parameters_.push_back(param);
}

Referenced by ProGe::NetlistGenerator::addGCUToNetlist().

addPort()

NetlistPort * ProGe::BaseNetlistBlock::addPort

(

NetlistPort *

port

)

Adds port to this block and acquires ownership of it.

Added port will point to this block after the call.

Exceptions

ObjectAlreadyExists

Thrown if the netlist block already has a port by same name.

Definition at line 151 of file BaseNetlistBlock.cc.

                                           {
    assert(port != nullptr && "Attempted to add null port.");
    if (findPort(port->name(), false, false)) {
        THROW_EXCEPTION(
            ObjectAlreadyExists,
            "Given port by name (" + port->name() +
                ") already exists in the netlist block (" +
                this->instanceName() + " : " + this->moduleName() + ").");
    }

    if (!port->hasParentBlock() || &port->parentBlock() != this) {
        port->setParent(this);
    }
    ports_.push_back(port);
    netlist_->registerPort(*port);
    if (parent_ != nullptr) {
        parent_->netlist_->registerPort(*port);
    }
    return port;
}

addPortGroup()

void ProGe::BaseNetlistBlock::addPortGroup

(

NetlistPortGroup *

portGroup

)

Definition at line 153 of file BaseNetlistBlock.cc.

                                                          {
    portGroups_.push_back(portGroup);
    portGroup->setParent(this);
    for (size_t i = 0; i < portGroup->portCount(); i++) {
        if (!netlist().isRegistered(portGroup->portAt(i))) {
            addPort(&portGroup->portAt(i));
        }
    }
}

Referenced by ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), ProGe::NetlistGenerator::addGCUToNetlist(), FUGen::createExternalInterfaces(), AlmaIFIntegrator::initAlmaifBlock(), and shallowCopy().

addSubBlock()

void ProGe::BaseNetlistBlock::addSubBlock	(	BaseNetlistBlock *	subBlock,
		const std::string &	instanceName = ""
	)

Adds sub block to this block and acquires ownership of it.

Parameters

subBlock	The block to be added.
instanceName	The instance base name to be given for sub block. If the given or sub block's instance name is not unique within the block The name will be prefixed with a running number.

Definition at line 146 of file BaseNetlistBlock.cc.

                                                               {
    if (!instanceName.empty()) {
        subBlock->instanceName_ =
            NetlistTools::getUniqueInstanceName(*this, instanceName);
    } else {
        if (subBlock->instanceName().empty()) {
            subBlock->setInstanceName(NetlistTools::getUniqueInstanceName(
                *this, subBlock->moduleName() + "_inst0"));
        } else {
            subBlock->setInstanceName(NetlistTools::getUniqueInstanceName(
                *this, subBlock->instanceName()));
        }
    }

    assert(!subBlock->hasParentBlock() || &subBlock->parentBlock() == this);
    subBlock->setParent(this);
    subBlocks_.push_back(subBlock);

    // Register ports of the subblock so connections can be made.
    for (size_t i = 0; i < subBlock->portCount(); i++) {
        netlist_->registerPort(subBlock->port(i));
    }
}

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), ProGe::NetlistGenerator::addGCUToNetlist(), ProGe::NetlistGenerator::addGeneratableFUsToNetlist(), DefaultICGenerator::addICToNetlist(), MemoryGenerator::addMemory(), XilinxBlockRamGenerator::addMemory(), DefaultICDecoderGenerator::addRV32MicroCode(), MemoryGenerator::connectPorts(), PlatformIntegrator::copyProgeBlockToNetlist(), MemoryGenerator::createMemoryNetlistBlock(), and DefaultICDecoderGenerator::generateDebuggerCode().

netlist() [1/2]

Netlist & ProGe::BaseNetlistBlock::netlist

(

)

Definition at line 139 of file BaseNetlistBlock.cc.

                          {
    assert(netlist_ != nullptr);
    return *netlist_;
}

netlist() [2/2]

const Netlist & ProGe::BaseNetlistBlock::netlist ( ) const

virtual

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 107 of file BaseNetlistBlock.cc.

                                {
    return *netlist_;
}

References ProGe::BaseNetlistBlock::portGroups_.

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), ProGe::NetlistGenerator::addGCUToNetlist(), ProGe::NetlistGenerator::addGeneratableFUsToNetlist(), DefaultDecoderGenerator::addGlockPortToDecoder(), DefaultICGenerator::addICToNetlist(), DefaultDecoderGenerator::addLockReqPortToDecoder(), XilinxBlockRamGenerator::addMemory(), DefaultICDecoderGenerator::addRV32MicroCode(), DefaultDecoderGenerator::completeDecoderBlock(), ProGe::Netlist::connectClocks(), AlteraHibiDpRamGenerator::connectPorts(), MemoryGenerator::connectPorts(), ProGe::Netlist::connectResets(), PlatformIntegrator::connectToplevelPort(), PlatformIntegrator::copyProgeBlockToNetlist(), FUGen::createExternalInterfaces(), DefaultICDecoderGenerator::generateDebuggerCode(), AlmaIFIntegrator::initAlmaifBlock(), AlmaIFIntegrator::integrateCore(), PlatformIntegrator::integrateCore(), shallowCopy(), and write().

package()

const std::string & ProGe::BaseNetlistBlock::package ( size_t  idx ) const

virtual

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 123 of file BaseNetlistBlock.cc.

                                          {
    return packages_.at(idx);
}

References ProGe::BaseNetlistBlock::subBlocks_.

Referenced by PlatformIntegrator::copyProgeBlockToNetlist(), and shallowCopy().

packageCount()

size_t ProGe::BaseNetlistBlock::packageCount ( ) const

virtual

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 122 of file BaseNetlistBlock.cc.

                                     {
    return packages_.size();
}

Referenced by PlatformIntegrator::copyProgeBlockToNetlist(), and shallowCopy().

parameter() [1/3]

Parameter & ProGe::BaseNetlistBlock::parameter

(

const std::string &

name

)

Returns a Parameter object by name.

Exceptions

NotAvailable

Thrown if the block does not have such Parameter.

Definition at line 157 of file BaseNetlistBlock.cc.

                                                 {
    for (size_t i = 0; i < parameterCount(); i++) {
        if (parameters_.at(i).name() == name) {
            return parameters_.at(i);
        }
    }

    throw NotAvailable(
        __FILE__, __LINE__, __func__,
        std::string("The block (") + instanceName() + ":" + moduleName() +
            ") does not have parameter \"" + name + "\"");
}

parameter() [2/3]

const Parameter & ProGe::BaseNetlistBlock::parameter ( const std::string &  name ) const

virtual

Returns a Parameter object by name.

Exceptions

NotAvailable

Thrown if the block does not have such Parameter.

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 89 of file BaseNetlistBlock.cc.

                                                       {
    for (size_t i = 0; i < parameterCount(); i++) {
        if (parameter(i).name() == name) {
            return parameter(i);
        }
    }

    throw NotAvailable(
        __FILE__, __LINE__, __func__,
        std::string("The block (") + instanceName() + ":" + moduleName() +
            ") does not have parameter \"" + name + "\"");
}

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), PlatformIntegrator::copyProgeBlockToNetlist(), shallowCopy(), SOPCBuilderFileGenerator::writeGenerics(), and IPXactFileGenerator::writeProjectFiles().

parameter() [3/3]

const Parameter & ProGe::BaseNetlistBlock::parameter ( size_t  index ) const

virtual

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 91 of file BaseNetlistBlock.cc.

                                              {
    if (index >= parameterCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    return parameters_.at(index);
}

parentBlock() [1/2]

const NetlistBlock & ProGe::NetlistBlock::parentBlock ( ) const

overridevirtual

Returns the parent .

Returns

The parent .

Exceptions

InstanceNotFound

If the does not have a parent .

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 126 of file NetlistBlock.cc.

                                {
    if (!hasParentBlock()) {
        const string procName = "NetlistBlock::parentBlock";
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }

    // todo: fix parentblock may not be NetlistBlock.
    return *dynamic_cast<const NetlistBlock*>(
        &BaseNetlistBlock::parentBlock());
}

References ProGe::BaseNetlistBlock::hasParentBlock(), and ProGe::BaseNetlistBlock::parentBlock().

Referenced by DefaultDecoderGenerator::addGlockPortToDecoder(), DefaultDecoderGenerator::addLockReqPortToDecoder(), and DefaultICDecoderGenerator::generateDebuggerCode().

Here is the call graph for this function:

parentBlock() [2/2]

NetlistBlock & ProGe::NetlistBlock::parentBlock ( )

overridevirtual

Returns the parent .

Returns

The parent .

Exceptions

InstanceNotFound

If the does not have a parent .

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 144 of file NetlistBlock.cc.

                          {
    if (!hasParentBlock()) {
        const string procName = "NetlistBlock::parentBlock";
        throw InstanceNotFound(__FILE__, __LINE__, procName);
    }

    return *dynamic_cast<NetlistBlock*>(&BaseNetlistBlock::parentBlock());
}

References ProGe::BaseNetlistBlock::hasParentBlock(), and ProGe::BaseNetlistBlock::parentBlock().

Here is the call graph for this function:

port() [1/4]

NetlistPort * ProGe::NetlistBlock::port ( const std::string &  portName, bool  partialMatch = true  )

virtual

Definition at line 97 of file NetlistBlock.cc.

                                                               {
    return BaseNetlistBlock::findPort(portName, false, partialMatch);
}

References ProGe::BaseNetlistBlock::findPort().

Referenced by DefaultICGenerator::addICToNetlist(), ProGe::GeneratableFUNetlistBlock::addInOperand(), MemoryGenerator::addMemory(), Stratix2SramGenerator::addMemory(), XilinxBlockRamGenerator::addMemory(), ProGe::GeneratableFUNetlistBlock::addOutOperand(), DefaultICDecoderGenerator::addRV32MicroCode(), SOPCBuilderFileGenerator::countAvalonMMMasters(), SOPCBuilderFileGenerator::createInterfaces(), AlmaIFIntegrator::exportUnconnectedPorts(), PlatformIntegrator::exportUnconnectedPorts(), DefaultICDecoderGenerator::generateDebuggerCode(), AlmaIFIntegrator::integrateCore(), PlatformIntegrator::integrateCore(), MemoryGenerator::isCompatible(), IPXactClkInterface::mapPortsToInterface(), IPXactHibiInterface::mapPortsToInterface(), IPXactResetInterface::mapPortsToInterface(), Stratix2DSPBoardIntegrator::mapToplevelPorts(), Stratix3DevKitIntegrator::mapToplevelPorts(), DefaultDecoderGenerator::opcodeWidth(), shallowCopy(), DefaultDecoderGenerator::writeControlRegisterMappings(), DefaultICGenerator::writeInterconnectionNetwork(), and IPXactFileGenerator::writeProjectFiles().

Here is the call graph for this function:

port() [2/4]

const NetlistPort * ProGe::BaseNetlistBlock::port ( const std::string &  portName, bool  partialMatch = true  ) const

virtual

Returns a port that matches (partially) the given name.

Returns

The matching port. If not found, returns nullptr.

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 98 of file BaseNetlistBlock.cc.

                                                                         {
    return findPort(portName, false, partialMatch);
}

port() [3/4]

NetlistPort & ProGe::BaseNetlistBlock::port ( size_t  index )

virtual

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 141 of file BaseNetlistBlock.cc.

                                   {
    return *ports_.at(index);
}

port() [4/4]

const NetlistPort & ProGe::BaseNetlistBlock::port ( size_t  index ) const

virtual

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 94 of file BaseNetlistBlock.cc.

                                         {
    return *ports_.at(index);
}

portCount()

size_t ProGe::BaseNetlistBlock::portCount ( ) const

virtual

Return port count in this block including ports from netlist port groups.

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 93 of file BaseNetlistBlock.cc.

                                  {
    return ports_.size();
}

Referenced by MemoryGenerator::addMemory(), XilinxBlockRamGenerator::addMemory(), SOPCBuilderFileGenerator::countAvalonMMMasters(), SOPCBuilderFileGenerator::createInterfaces(), AlmaIFIntegrator::exportUnconnectedPorts(), PlatformIntegrator::exportUnconnectedPorts(), AlmaIFIntegrator::integrateCore(), IPXactClkInterface::mapPortsToInterface(), IPXactHibiInterface::mapPortsToInterface(), IPXactResetInterface::mapPortsToInterface(), Stratix2DSPBoardIntegrator::mapToplevelPorts(), Stratix3DevKitIntegrator::mapToplevelPorts(), shallowCopy(), and IPXactFileGenerator::writeProjectFiles().

removePort() [1/2]

void ProGe::NetlistBlock::removePort

(

NetlistPort &

port

)

References write().

Here is the call graph for this function:

removePort() [2/2]

void ProGe::BaseNetlistBlock::removePort

(

NetlistPort *

port

)

Removes the given port from the block.

After call the port is parent block reference is set to nullptr.

Definition at line 152 of file BaseNetlistBlock.cc.

                                              {
    assert(
        &port->parentBlock() == this &&
        "Attempted to remove a port the block does not have.");

    netlist().unregisterPort(*port);
    if (this->hasParentBlock()) {
        parentBlock().netlist().unregisterPort(*port);
    }
    ContainerTools::removeValueIfExists(ports_, port);
    port->setParent(nullptr);
}

setParameter() [1/2]

void ProGe::BaseNetlistBlock::setParameter

(

const Parameter &

param

)

Adds parameter to the block overwriting the existing one by name.

Definition at line 155 of file BaseNetlistBlock.cc.

                                                     {
    for (Parameter& p : parameters_) {
        if (p.name() == param.name()) {
            p = param;
            return;
        }
    }
    parameters_.push_back(param);
}

setParameter() [2/2]

void ProGe::NetlistBlock::setParameter	(	const std::string &	name,
		const std::string &	type,
		const std::string &	value
	)

Sets the given parameter for the .

Parameters

name	Name of the parameter.
type	Type of the parameter.
value	Value of the parameter.

Definition at line 89 of file NetlistBlock.cc.

                            {
    setParameter(Parameter(name, type, value));
}

References ProGe::BaseNetlistBlock::name(), ProGe::BaseNetlistBlock::Parameter, and setParameter().

Referenced by ProGe::NetlistGenerator::addBaseRFToNetlist(), ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), ProGe::NetlistGenerator::addFUToNetlist(), AlteraMemGenerator::addGenerics(), DefaultICDecoderGenerator::addInstructioRegisterBypass(), Stratix2SramGenerator::addMemory(), AlmaIFIntegrator::connectCoreMemories(), PlatformIntegrator::copyProgeBlockToNetlist(), MemoryGenerator::createMemoryNetlistBlock(), DefaultICDecoderGenerator::generate(), DefaultICDecoderGenerator::generateDebuggerCode(), AlmaIFIntegrator::initAlmaifBlock(), setParameter(), and shallowCopy().

Here is the call graph for this function:

shallowCopy()

NetlistBlock * ProGe::NetlistBlock::shallowCopy

(

const std::string &

instanceName

)

const

Copies the block without its children or internal connections - leaving only the outer portion of the block.

Parameters

instanceName

New instance name for the copy

Returns

Pointer to the netlist copy

Definition at line 161 of file NetlistBlock.cc.

                                                             {
    NetlistBlock* block =
        new NetlistBlock(this->moduleName(), instanceName, NULL);

    for (size_t i = 0; i < this->parameterCount(); i++) {
        block->setParameter(this->parameter(i));
    }
    for (size_t i = 0; i < netlist().parameterCount(); i++) {
        block->netlist().setParameter(this->netlist().parameter(i));
    }
    // Copy ports while preserving their insertion order.
    std::map<std::string, NetlistPort*> copiedPorts;
    for (size_t i = 0; i < portCount(); i++) {
        NetlistPort* copiedPort = nullptr;
        copiedPort = BaseNetlistBlock::port(i).copyTo(*block);
        copiedPorts.insert({{copiedPort->name(), copiedPort}});
    }
    for (size_t i = 0; i < portGroupCount(); i++) {
        const NetlistPortGroup* portGrp = &portGroup(i);
        // Cloning to copy original class type, but clear ports as they are
        // already created and added to the new block.
        NetlistPortGroup* newGroup = portGrp->clone();
        newGroup->clear();
        for (auto port : *portGrp) {
            newGroup->addPort(*copiedPorts.at(port->name()));
        }
        block->addPortGroup(newGroup);
    }

    for (size_t i = 0; i < packageCount(); i++) {
        block->addPackage(this->package(i));
    }

    return block;
}

References addPackage(), ProGe::NetlistPortGroup::addPort(), addPortGroup(), ProGe::NetlistPortGroup::clear(), ProGe::NetlistPortGroup::clone(), ProGe::NetlistPort::copyTo(), ProGe::BaseNetlistBlock::moduleName(), ProGe::NetlistPort::name(), netlist(), package(), packageCount(), parameter(), ProGe::Netlist::parameter(), ProGe::BaseNetlistBlock::parameterCount(), ProGe::Netlist::parameterCount(), port(), ProGe::BaseNetlistBlock::port(), portCount(), ProGe::BaseNetlistBlock::portGroup(), ProGe::BaseNetlistBlock::portGroupCount(), ProGe::Netlist::setParameter(), and setParameter().

Referenced by PlatformIntegrator::copyProgeBlockToNetlist().

Here is the call graph for this function:

subBlock()

NetlistBlock & ProGe::NetlistBlock::subBlock ( size_t  index )

overridevirtual

Returns a sub by the given index.

Parameters

index

The index.

Returns

The sub .

Exceptions

OutOfRange

If the given index is negative or not smaller than the number of sub blocks.

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 110 of file NetlistBlock.cc.

                                   {
    if (index >= subBlockCount()) {
        throw OutOfRange(__FILE__, __LINE__, __func__);
    }

    // todo check for and throw wrong subblass
    return *dynamic_cast<NetlistBlock*>(&BaseNetlistBlock::subBlock(index));
}

References __func__, ProGe::BaseNetlistBlock::subBlock(), and subBlockCount().

Referenced by FUGen::FUGen(), and DefaultICDecoderGenerator::generateDebuggerCode().

Here is the call graph for this function:

subBlockCount()

size_t ProGe::BaseNetlistBlock::subBlockCount ( ) const

virtual

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 83 of file BaseNetlistBlock.cc.

                                      {
    return subBlocks_.size();
}

Referenced by ProGe::Netlist::connectClocks(), ProGe::Netlist::connectResets(), FUGen::FUGen(), DefaultICDecoderGenerator::generateDebuggerCode(), and subBlock().

write()

void ProGe::NetlistBlock::write ( const Path &  targetBaseDir, HDL  targetLang = VHDL  ) const

overridevirtual

Writes self if non-empty and calls write() function of each sub block.

Reimplemented from ProGe::BaseNetlistBlock.

Definition at line 201 of file NetlistBlock.cc.

                                                                   {
    if (netlist().hasConnections()) {
        NetlistWriter* writer;
        std::string topLevelDir = "";
        if (targetLang == ProGe::VHDL) {
            writer = new VHDLNetlistWriter(*this);
            topLevelDir = targetBaseDir.string() +
                          FileSystem::DIRECTORY_SEPARATOR + "vhdl";
        } else if (targetLang == ProGe::Verilog) {
            writer = new VerilogNetlistWriter(*this);
            topLevelDir = targetBaseDir.string() +
                          FileSystem::DIRECTORY_SEPARATOR + "verilog";
        } else {
            assert(false && "Unsupported HDL.");
        }

        if (!FileSystem::fileExists(topLevelDir)) {
            bool directoryCreated = FileSystem::createDirectory(topLevelDir);
            if (!directoryCreated) {
                std::string errorMsg =
                    "Unable to create directory " + topLevelDir + ".";
                throw IOException(__FILE__, __LINE__, __func__, errorMsg);
            }
        }

        writer->write(topLevelDir);
        delete writer;
    }

    BaseNetlistBlock::write(targetBaseDir, targetLang);
}

References __func__, assert, FileSystem::createDirectory(), FileSystem::DIRECTORY_SEPARATOR, FileSystem::fileExists(), netlist(), ProGe::Verilog, ProGe::VHDL, ProGe::BaseNetlistBlock::write(), and ProGe::NetlistWriter::write().

Referenced by ProGe::ProcessorGenerator::generateProcessor(), and removePort().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• NetlistBlock.hh
• NetlistBlock.cc
