Public Member Functions | Static Public Member Functions | List of all members
ImmInfo Class Reference

#include <ImmInfo.hh>

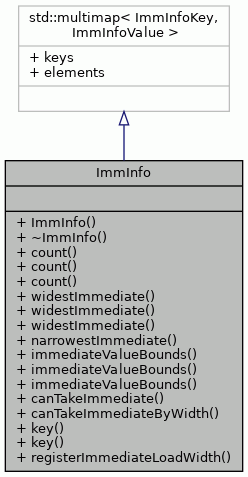

Inheritance diagram for ImmInfo:
Inheritance graph

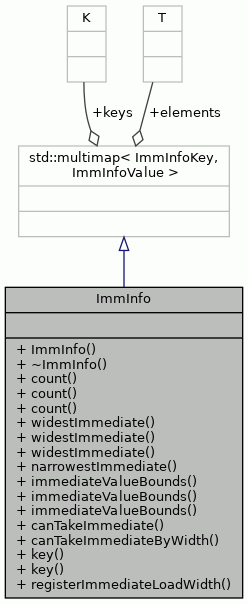

Collaboration diagram for ImmInfo:
Collaboration graph

Public Member Functions

 ImmInfo ()=default

virtual ~ImmInfo ()=default

size_t count (const ImmInfoKey &key) const

size_t count (const Operation &operation, const Operand &operand) const

size_t count (const Operation &operation, int inputOperandId) const

const ImmInfoValuewidestImmediate (const ImmInfoKey &key) const

const ImmInfoValuewidestImmediate (const Operation &operation, const Operand &operand) const

const ImmInfoValuewidestImmediate (const Operation &operation, int inputOperandId) const

const ImmInfoValuenarrowestImmediate (const ImmInfoKey &key) const

std::pair< int64_t, int64_t > immediateValueBounds (const ImmInfoKey &key, int destWidth) const

std::pair< int64_t, int64_t > immediateValueBounds (const Operation &operation, const Operand &operand, int destWidth) const

std::pair< int64_t, int64_t > immediateValueBounds (const Operation &operation, int inputOperandId, int destWidth) const

bool canTakeImmediate (const Operation &operation, int inputOperandId, int64_t value, int destWidth)

bool canTakeImmediateByWidth (const Operation &operation, int inputOperandId, int bitWidth)


Static Public Member Functions

static ImmInfoKey key (const Operation &operation, int inputOperandId)

static ImmInfoKey key (const Operation &operation, const Operand &operand)

static int registerImmediateLoadWidth (const TTAMachine::RegisterFile &targetRF, bool allowSignExtension=false)


Detailed Description

Definition at line 82 of file ImmInfo.hh.

Constructor & Destructor Documentation

◆ ImmInfo()

ImmInfo::ImmInfo ( )
default

◆ ~ImmInfo()

virtual ImmInfo::~ImmInfo ( )
virtualdefault

Member Function Documentation

◆ canTakeImmediate()

bool ImmInfo::canTakeImmediate ( const Operation operation,
int  inputOperandId,
int64_t  value,
int  destWidth
)

Definition at line 252 of file ImmInfo.cc.

256 {
257
258 auto unsignedReqBits = MathTools::requiredBits(value);
259 auto signedReqBits = MathTools::requiredBitsSigned(value);
260 auto theKey = key(operation, inputOperandId);
261 const_iterator it_begin = lower_bound(theKey);
262 const_iterator it_end = upper_bound(theKey);
263 const_iterator it;
264 for (it = it_begin; it != it_end; it++) {
265 const ImmInfoValue& imm = it->second;
266 if ((imm.signExtending() && signedReqBits <= imm.width()) ||
267 (unsignedReqBits <= imm.width())) {
268 return true;
269 }
270 }
271 return false;
272}
bool signExtending() const
Definition ImmInfo.hh:75
int width() const
Definition ImmInfo.hh:71
static ImmInfoKey key(const Operation &operation, int inputOperandId)
Definition ImmInfo.cc:57
static int requiredBits(unsigned long int number)
static int requiredBitsSigned(SLongWord number)

References key(), MathTools::requiredBits(), MathTools::requiredBitsSigned(), ImmInfoValue::signExtending(), and ImmInfoValue::width().

Referenced by TDGen::getLLVMPatternWithConstants().

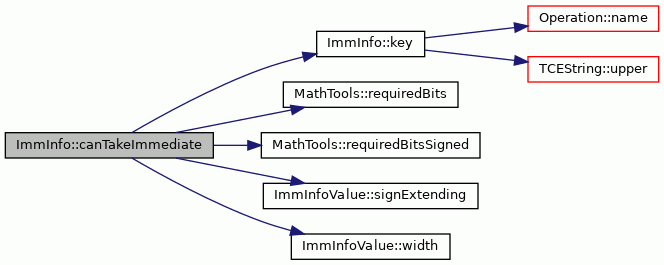

Here is the call graph for this function:

◆ canTakeImmediateByWidth()

bool ImmInfo::canTakeImmediateByWidth ( const Operation operation,
int  inputOperandId,
int  bitWidth
)

Definition at line 275 of file ImmInfo.cc.

278 {
279
280 auto theKey = key(operation, inputOperandId);
281 const_iterator it_begin = lower_bound(theKey);
282 const_iterator it_end = upper_bound(theKey);
283 const_iterator it;
284 for (it = it_begin; it != it_end; it++) {
285 const ImmInfoValue& info = it->second;
286 if (bitWidth <= info.width()) return true;
287 }
288 return false;
289}

References key(), and ImmInfoValue::width().

Referenced by TDGen::getLLVMPatternWithConstants().

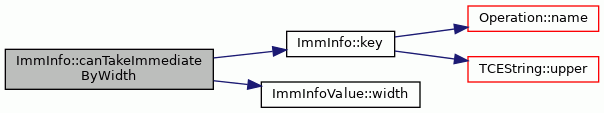

Here is the call graph for this function:

◆ count() [1/3]

size_t ImmInfo::count ( const ImmInfoKey key) const
inline

Definition at line 87 of file ImmInfo.hh.

87 {
88 return std::multimap<ImmInfoKey, ImmInfoValue>::count(key);
89 }

References key().

Referenced by TDGen::areImmediateOperandsLegal(), count(), OperationDAGSelector::findDags(), and TDGen::writeIntegerImmediateDefs().

Here is the call graph for this function:

◆ count() [2/3]

size_t ImmInfo::count ( const Operation operation,
const Operand operand
) const

Returns the entry count for operation, operand pair (key).

Definition at line 70 of file ImmInfo.cc.

70 {
71 return std::multimap<ImmInfoKey, ImmInfoValue>::count(
72 key(operation, operand));
73}

References key().

Here is the call graph for this function:

◆ count() [3/3]

size_t ImmInfo::count ( const Operation operation,
int  inputOperandId
) const

Returns the entry count for operation, operand pair (key).

Definition at line 80 of file ImmInfo.cc.

80 {
81 return count(operation, operation.operand(inputOperandId));
82}
size_t count(const ImmInfoKey &key) const
Definition ImmInfo.hh:87
virtual Operand & operand(int id) const
Definition Operation.cc:541

References count(), and Operation::operand().

Here is the call graph for this function:

◆ immediateValueBounds() [1/3]

std::pair< int64_t, int64_t > ImmInfo::immediateValueBounds ( const ImmInfoKey key,
int  destWidth
) const

Returns smallest and largest number that can be transported to operation operand.

The bounds are merged from multiple immediate sources. For example, if immediates can be transported from two different sources, where the one is 4 bits zero extending and the another is 3 bits sign extending, the resulting bound is [-4, 15].

if destination bit width is specified, then the bounds are ...TODO

Parameters
destWidthThe destination width, where the immediates are transported to. By default it is unspecified/unlimited.
Returns
std::pair, where the first is smallest value and second is largest. If no immediate can be transported, (0, 0) is returned.

Definition at line 219 of file ImmInfo.cc.

220 {
221
222 std::pair<int64_t, int64_t> result{ 0, 0 };
223
224 const_iterator it_begin = lower_bound(key);
225 const_iterator it_end = upper_bound(key);
226 const_iterator it;
227 for (it = it_begin; it != it_end; it++) {
228 if (destWidth > 0) {
229 if (it->second.width() >= destWidth) {
230 return { (-(1ll << (destWidth-1))), ((1ll << destWidth)-1) };
231 }
232 }
233
234 int64_t currLowerBound = 0;
235 int64_t currUpperBound = 0;
236 if (it->second.signExtending()) {
237 currLowerBound = -(1ll << (it->second.width()-1));
238 currUpperBound = (1ll << (it->second.width()-1))-1;
239 } else {
240 currUpperBound = (1ll << (it->second.width()))-1;
241 }
242
243 result.first = std::min(result.first, currLowerBound);
244 result.second = std::max(result.second, currUpperBound);
245 }
246
247 return result;
248}

References key().

Referenced by TDGen::createConstantMaterializationPatterns(), immediateValueBounds(), immediateValueBounds(), and TDGen::writeIntegerImmediateDefs().

Here is the call graph for this function:

◆ immediateValueBounds() [2/3]

std::pair< int64_t, int64_t > ImmInfo::immediateValueBounds ( const Operation operation,
const Operand operand,
int  destWidth
) const

Same as immediateValueBounds(const ImmInfoKey& key).

Definition at line 296 of file ImmInfo.cc.

299 {
300 return immediateValueBounds(key(operation, operand), destWidth);
301}
std::pair< int64_t, int64_t > immediateValueBounds(const ImmInfoKey &key, int destWidth) const
Definition ImmInfo.cc:219

References immediateValueBounds(), and key().

Here is the call graph for this function:

◆ immediateValueBounds() [3/3]

std::pair< int64_t, int64_t > ImmInfo::immediateValueBounds ( const Operation operation,
int  inputOperandId,
int  destWidth
) const

Same as immediateValueBounds(const ImmInfoKey& key).

Definition at line 309 of file ImmInfo.cc.

312 {
313
315 operation, operation.operand(inputOperandId), destWidth);
316}

References immediateValueBounds(), and Operation::operand().

Here is the call graph for this function:

◆ key() [1/2]

ImmInfoKey ImmInfo::key ( const Operation operation,
const Operand operand
)
static

Definition at line 61 of file ImmInfo.cc.

61 {
62 return std::make_pair(operation.name().upper(), operand.index());
63}
virtual int index() const
Definition Operand.cc:135
virtual TCEString name() const
Definition Operation.cc:93
TCEString upper() const
Definition TCEString.cc:86

References Operand::index(), Operation::name(), and TCEString::upper().

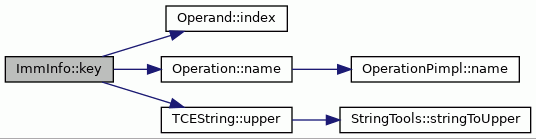

Here is the call graph for this function:

◆ key() [2/2]

ImmInfoKey ImmInfo::key ( const Operation operation,
int  inputOperandId
)
static

Returns key for ImmInfo data structure.

Definition at line 57 of file ImmInfo.cc.

57 {
58 return std::make_pair(operation.name().upper(), inputOperandId);
59}

References Operation::name(), and TCEString::upper().

Referenced by canTakeImmediate(), canTakeImmediateByWidth(), count(), count(), TDGen::dagNodeToString(), TDGen::immediateOperandNameForEmulatedOperation(), immediateValueBounds(), immediateValueBounds(), narrowestImmediate(), TDGen::patInputs(), widestImmediate(), widestImmediate(), and TDGen::writeIntegerImmediateDefs().

Here is the call graph for this function:

◆ narrowestImmediate()

const ImmInfoValue & ImmInfo::narrowestImmediate ( const ImmInfoKey key) const

returns narrowest (non-zero width) immediate bit width by the key.

Definition at line 140 of file ImmInfo.cc.

140 {
141 if (std::multimap<ImmInfoKey, ImmInfoValue>::count(key)) {
142 const_iterator it;
143 const_iterator it_largest = lower_bound(key);
144 const_iterator it_begin = it_largest;
145 it_begin++;
146 const_iterator it_end = upper_bound(key);
147 for (it = it_begin; it != it_end; it++) {
148 if (*it < *it_largest) {
149 it_largest = it;
150 }
151 }
152 assert(it_largest != it_end);
153 return it_largest->second;
154 } else {
156 "No immediate info found for the key.");
157 }
158}
#define assert(condition)
#define THROW_EXCEPTION(exceptionType, message)
Exception wrapper macro that automatically includes file name, line number and function name where th...
Definition Exception.hh:39

References assert, key(), and THROW_EXCEPTION.

Here is the call graph for this function:

◆ registerImmediateLoadWidth()

int ImmInfo::registerImmediateLoadWidth ( const TTAMachine::RegisterFile targetRF,
bool  allowSignExtension = false
)
static

Returns maximum immediate in bit width which can be transported to the RF.

Parameters
targetRFThe target register file.
allowSignExtensionIf representation of the transported immediate should not change set it to false (default).

Definition at line 326 of file ImmInfo.cc.

328 {
329
330 using namespace TTAMachine;
331 using MCC = MachineConnectivityCheck;
332
333 int result = 0;
334 assert(targetRF.machine());
335 const Machine& mach = *targetRF.machine();
336
337 for (const Bus* bus : mach.busNavigator()) {
338 if (MCC::busConnectedToRF(*bus, targetRF)) {
339 int immWidth = bus->immediateWidth();
340 if (!allowSignExtension && bus->signExtends()) {
341 immWidth -= 1;
342 }
343 result = std::max(result, immWidth);
344 }
345 }
346
347 for (auto* iu : mach.immediateUnitNavigator()) {
348 for (auto* it : mach.instructionTemplateNavigator()) {
349 int supportedWidth = it->supportedWidth(*iu);
350 if (!allowSignExtension && iu->signExtends()) {
351 supportedWidth -= 1;
352 }
353 result = std::max(result, supportedWidth);
354 }
355 }
356
357 return result;
358}
virtual Machine * machine() const

References assert, TTAMachine::Machine::busNavigator(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::instructionTemplateNavigator(), and TTAMachine::Component::machine().

Referenced by llvm::TCETargetMachine::calculateSupportedImmediates().

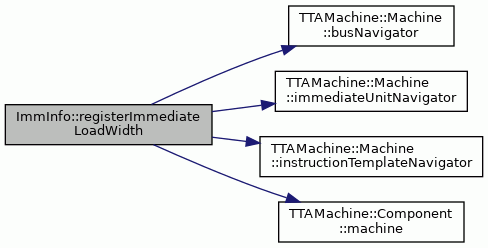

Here is the call graph for this function:

◆ widestImmediate() [1/3]

const ImmInfoValue & ImmInfo::widestImmediate ( const ImmInfoKey key) const

Returns the entry count by the key.

Definition at line 89 of file ImmInfo.cc.

89 {
90 if (std::multimap<ImmInfoKey, ImmInfoValue>::count(key)) {
91 const_iterator it;
92 const_iterator it_largest = this->lower_bound(key);
93 const_iterator it_begin = it_largest;
94 it_begin++;
95 const_iterator it_end = this->upper_bound(key);
96 for (it = it_begin; it != it_end; it++) {
97 if (*it > *it_largest) {
98 it_largest = it;
99 }
100 }
101 assert(it_largest != it_end);
102 return it_largest->second;
103 } else {
104 THROW_EXCEPTION(InstanceNotFound, "No immediate info for key found.");
105 }
106}

References assert, key(), and THROW_EXCEPTION.

Referenced by widestImmediate(), and widestImmediate().

Here is the call graph for this function:

◆ widestImmediate() [2/3]

const ImmInfoValue & ImmInfo::widestImmediate ( const Operation operation,
const Operand operand
) const

returns widest immediate bit width by the key.

Parameters
operationThe operation as the part of the key.
inputOperandIdThe input operand of the operation as the of the key.

Definition at line 116 of file ImmInfo.cc.

117 {
118
119 return widestImmediate(key(operation, operand));
120}
const ImmInfoValue & widestImmediate(const ImmInfoKey &key) const
Definition ImmInfo.cc:89

References key(), and widestImmediate().

Here is the call graph for this function:

◆ widestImmediate() [3/3]

const ImmInfoValue & ImmInfo::widestImmediate ( const Operation operation,
int  inputOperandId
) const

returns widest immediate bit width by the key.

Parameters
operationThe operation as the part of the key.
inputOperandIdThe input operand id of the operation as the of the key.

Definition at line 130 of file ImmInfo.cc.

131 {
132
133 return widestImmediate(operation, operation.operand(inputOperandId));
134}

References Operation::operand(), and widestImmediate().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
