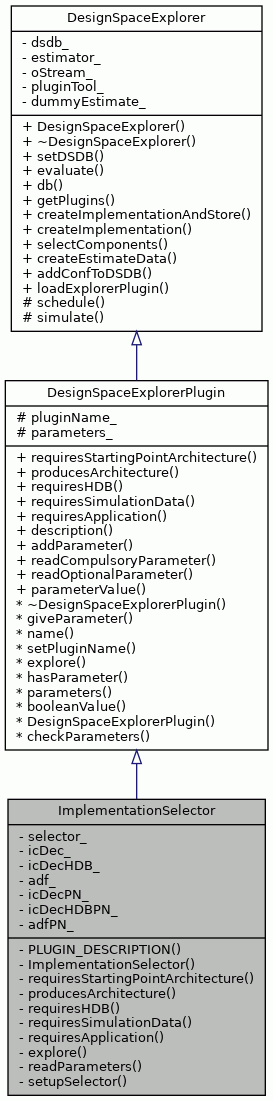

Inheritance diagram for ImplementationSelector:

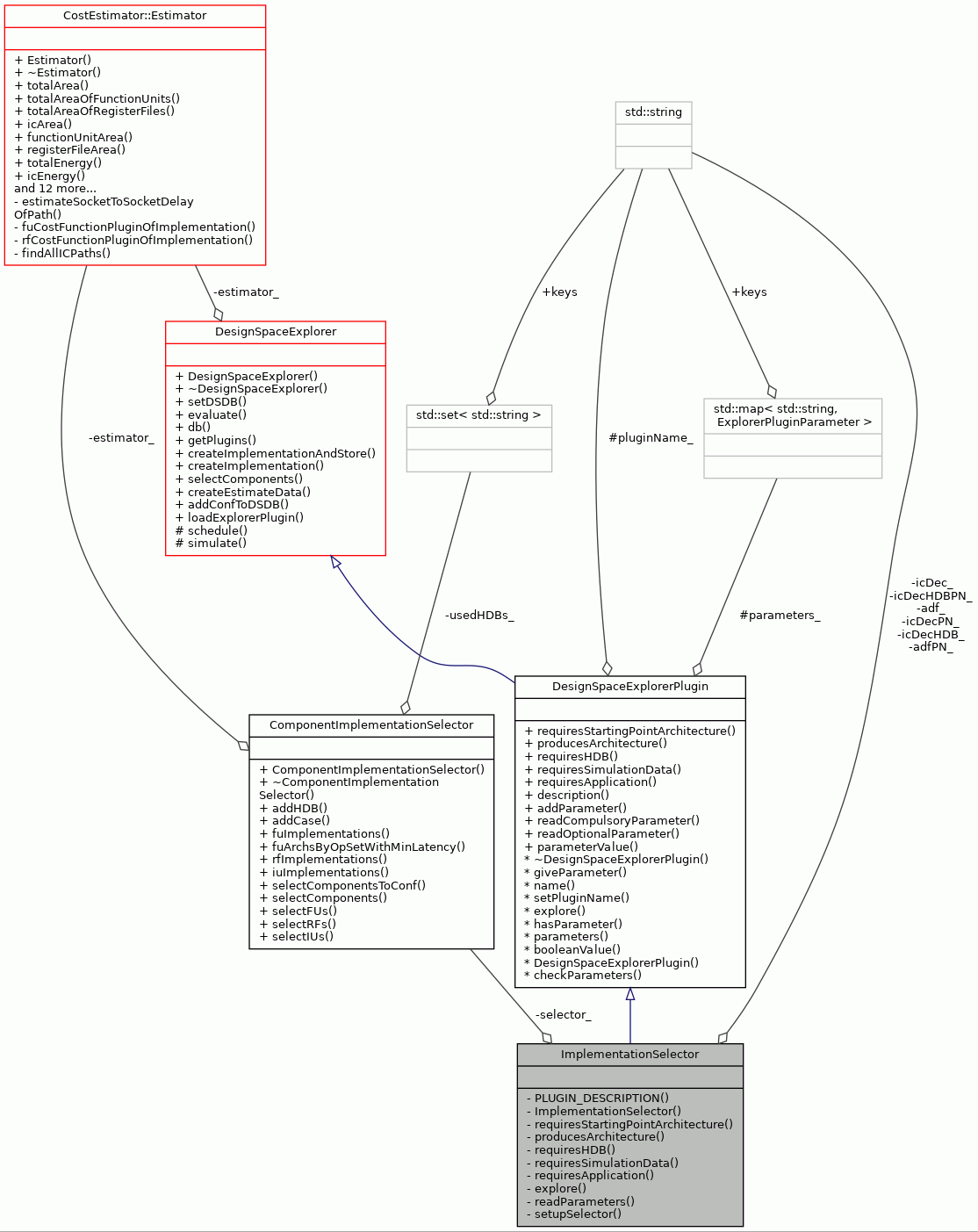

Collaboration diagram for ImplementationSelector:

Private Member Functions
	PLUGIN_DESCRIPTION ("Creates implementation for the given machine.")

	ImplementationSelector ()

virtual bool	requiresStartingPointArchitecture () const

virtual bool	producesArchitecture () const

virtual bool	requiresHDB () const

virtual bool	requiresSimulationData () const

virtual bool	requiresApplication () const

virtual std::vector< RowID >	explore (const RowID &configurationID, const unsigned int &)

void	readParameters ()

void	setupSelector ()

Private Attributes
ComponentImplementationSelector	selector_
	Selector used by the plugin.

std::string	icDec_
	name of the ic decoder plugin for idf

std::string	icDecHDB_
	name of the hdb used by ic decoder

std::string	adf_
	name of the adf file if wanted to use idf generation

Static Private Attributes
static const std::string	icDecPN_

static const std::string	icDecHDBPN_

static const std::string	adfPN_

Additional Inherited Members
Public Types inherited from DesignSpaceExplorerPlugin
typedef std::pair< std::string, ExplorerPluginParameter >	Parameter

typedef std::map< std::string, ExplorerPluginParameter >	ParameterMap

typedef std::map< std::string, ExplorerPluginParameter >::iterator	PMIt

typedef std::map< std::string, ExplorerPluginParameter >::const_iterator	PMCIt

Public Member Functions inherited from DesignSpaceExplorerPlugin
virtual std::string	description () const

void	addParameter (TCEString name, ExplorerPluginParameterType type, bool compulsory=true, TCEString defaultValue="", TCEString description="")

template<typename T >
void	readCompulsoryParameter (const std::string paramName, T &param) const

template<typename T >
void	readOptionalParameter (const std::string paramName, T &param) const

template<typename RT >
RT	parameterValue (const std::string &paramName) const

virtual	~DesignSpaceExplorerPlugin ()

virtual void	giveParameter (const std::string &name, const std::string &value)

virtual std::string	name () const

virtual void	setPluginName (const std::string &pluginName)

virtual bool	hasParameter (const std::string &paramName) const

ParameterMap	parameters () const

virtual bool	booleanValue (const std::string &parameter) const

Public Member Functions inherited from DesignSpaceExplorer
	DesignSpaceExplorer ()

virtual	~DesignSpaceExplorer ()

virtual void	setDSDB (DSDBManager &dsdb)

virtual bool	evaluate (const DSDBManager::MachineConfiguration &configuration, CostEstimates &results=dummyEstimate_, bool estimate=false)

virtual DSDBManager &	db ()

std::vector< DesignSpaceExplorerPlugin * >	getPlugins ()

RowID	createImplementationAndStore (const DSDBManager::MachineConfiguration &conf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

bool	createImplementation (const DSDBManager::MachineConfiguration &conf, DSDBManager::MachineConfiguration &newConf, const double &frequency=0.0, const double &maxArea=0.0, const bool &createEstimates=true, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb")

IDF::MachineImplementation *	selectComponents (const TTAMachine::Machine &mach, const double &frequency=0.0, const double &maxArea=0.0, const std::string &icDec="DefaultICDecoder", const std::string &icDecHDB="asic_130nm_1.5V.hdb") const

void	createEstimateData (const TTAMachine::Machine &mach, const IDF::MachineImplementation &idf, CostEstimator::AreaInGates &area, CostEstimator::DelayInNanoSeconds &longestPathDelay)

RowID	addConfToDSDB (const DSDBManager::MachineConfiguration &conf)

Static Public Member Functions inherited from DesignSpaceExplorer
static DesignSpaceExplorerPlugin *	loadExplorerPlugin (const std::string &pluginName, DSDBManager *dsdb=NULL)

Protected Member Functions inherited from DesignSpaceExplorerPlugin
	DesignSpaceExplorerPlugin ()

void	checkParameters () const

Protected Member Functions inherited from DesignSpaceExplorer
TTAProgram::Program *	schedule (const std::string applicationFile, TTAMachine::Machine &machine, TCEString paramOptions="-O3")

const ExecutionTrace *	simulate (const TTAProgram::Program &program, const TTAMachine::Machine &machine, const TestApplication &testApplication, const ClockCycleCount &maxCycles, ClockCycleCount &runnedCycles, const bool tracing, const bool useCompiledSimulation=false, std::vector< ClockCycleCount > *executionCounts=NULL)

Protected Attributes inherited from DesignSpaceExplorerPlugin
std::string	pluginName_
	the name of the explorer plugin

ParameterMap	parameters_
	Parameters for the plugin.

Detailed Description

Explorer plugin that selects implementations for units in a given adf. Creates a new config with a idf.

Supported parameters:

ic_dec, name of the ic decoder plugin, default is DefaultICDecoder
ic_hdb, name of the HDB that is used in IC estimation, default is asic_130nm_1.5V.hdb
adf, if idf is wanted to generated to some arhitecture, no default value. If adf parameter is given the idf is built.

Definition at line 78 of file ImplementationSelector.cc.

Constructor & Destructor Documentation

◆ ImplementationSelector()

ImplementationSelector::ImplementationSelector ( )

inlineprivate

Definition at line 81 of file ImplementationSelector.cc.

                            : DesignSpaceExplorerPlugin(),
        icDec_("DefaultICDecoder"),
        icDecHDB_("asic_130nm_1.5V.hdb"),
        adf_("") {

        // compulsory parameters
        // no compulsory parameters

        // parameters that have a default value
        addParameter(icDecPN_, STRING, false, icDec_);
        addParameter(icDecHDBPN_, STRING, false, icDecHDB_);
        addParameter(adfPN_, STRING, false, adf_);
    }

References DesignSpaceExplorerPlugin::addParameter(), adf_, adfPN_, icDec_, icDecHDB_, icDecHDBPN_, icDecPN_, and STRING.

Here is the call graph for this function:

Member Function Documentation

◆ explore()

virtual std::vector< RowID > ImplementationSelector::explore	(	const RowID &	startPointConfigurationID,
		const unsigned int &	maxIter
	)

inlineprivatevirtual

Explores the design space from the starting point machine and returns best exploring results as configuration IDs.

Exploring creates new machine configurations (architecture, implementation) that are ordered so that the best results are first in the result vector.

Parameters

startPoint	Starting point machine configuration for the plugin.
maxIter	Maximum number of design space points the plugin is allowed to explore. Default value for maxIter is zero when the iteration number is not taken into account. In that case the exploration runs indefinetly or stops at a point defined by the algorithm.

Returns: Ordered vector of IDs of the best machine configurations where the target programs can be successfully run. The IDs of the best machine configurations are first in the result vector. Returns an empty vector if does not find any possible machine configurations.

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 104 of file ImplementationSelector.cc.

                                                               {
        readParameters();
        setupSelector();
        std::vector<RowID> result;

        // check if adf given
        if (configurationID == 0 && adf_ == "") {
            std::ostringstream msg(std::ostringstream::out);
            msg << "No configuration nor adf defined. Use -s <confID> to "
                << "define the configuration to be optimized or give adf "
                << "as plugin parameter." << endl;
            verboseLog(msg.str());
            return result;
        }

        DSDBManager& dsdb = db();
        DSDBManager::MachineConfiguration conf;
        conf.hasImplementation = false;
        TTAMachine::Machine* mach = NULL;

        // load the adf from file or from dsdb
        try {
            if (adf_ != "") {
                mach = TTAMachine::Machine::loadFromADF(adf_);
            } else {
                conf = dsdb.configuration(configurationID);
                mach = dsdb.architecture(conf.architectureID);
            }
        } catch (const Exception& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error loading the adf." << std::endl;
            verboseLog(msg.str());
            return result;
        }

        IDF::MachineImplementation* idf = NULL;
        try {
            // building the idf
            idf = selector_.selectComponents(mach, icDec_, icDecHDB_);
        } catch (const Exception& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << e.errorMessage()
                << " " << e.fileName()
                << " " << e.lineNum() << std::endl;
            verboseLog(msg.str());
            return result;
        }

        // create a new configuration

        try {
            conf.architectureID = dsdb.addArchitecture(*mach);
        } catch (const RelationalDBException& e) {
            std::ostringstream msg(std::ostringstream::out);
            msg << "Error while adding ADF to the dsdb. "
                << "ADF probably too big." << endl;
            verboseLog(msg.str());
            return result;
        }
        conf.implementationID = dsdb.addImplementation(*idf, 0, 0);
        conf.hasImplementation = true;

        RowID confID = dsdb.addConfiguration(conf);
        result.push_back(confID);

        return result;
    }

References DSDBManager::addArchitecture(), DSDBManager::addConfiguration(), DSDBManager::addImplementation(), adf_, DSDBManager::architecture(), DSDBManager::MachineConfiguration::architectureID, DSDBManager::configuration(), DesignSpaceExplorer::db(), Exception::errorMessage(), Exception::fileName(), DSDBManager::MachineConfiguration::hasImplementation, icDec_, icDecHDB_, DSDBManager::MachineConfiguration::implementationID, Exception::lineNum(), TTAMachine::Machine::loadFromADF(), readParameters(), ComponentImplementationSelector::selectComponents(), selector_, setupSelector(), and verboseLog.

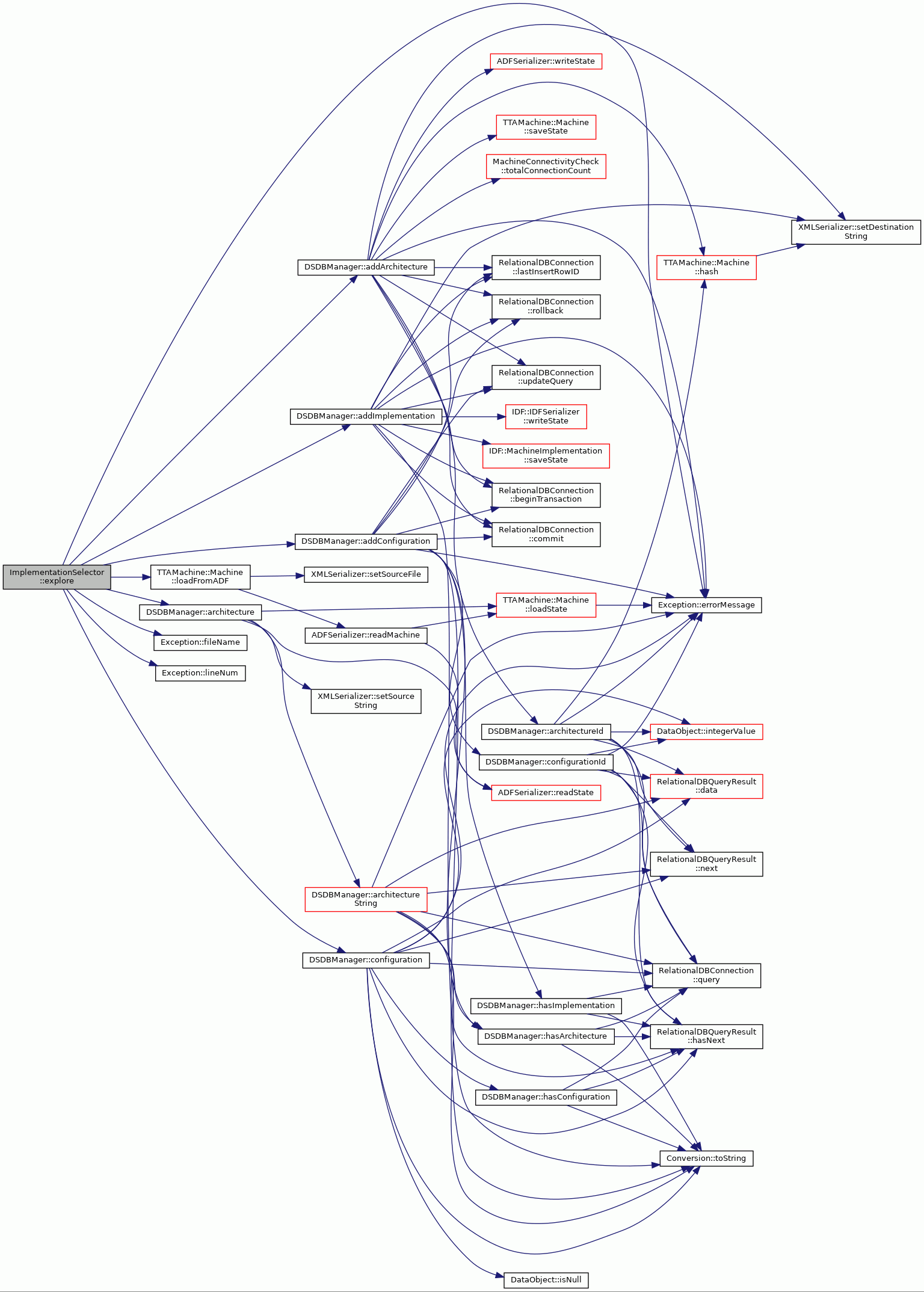

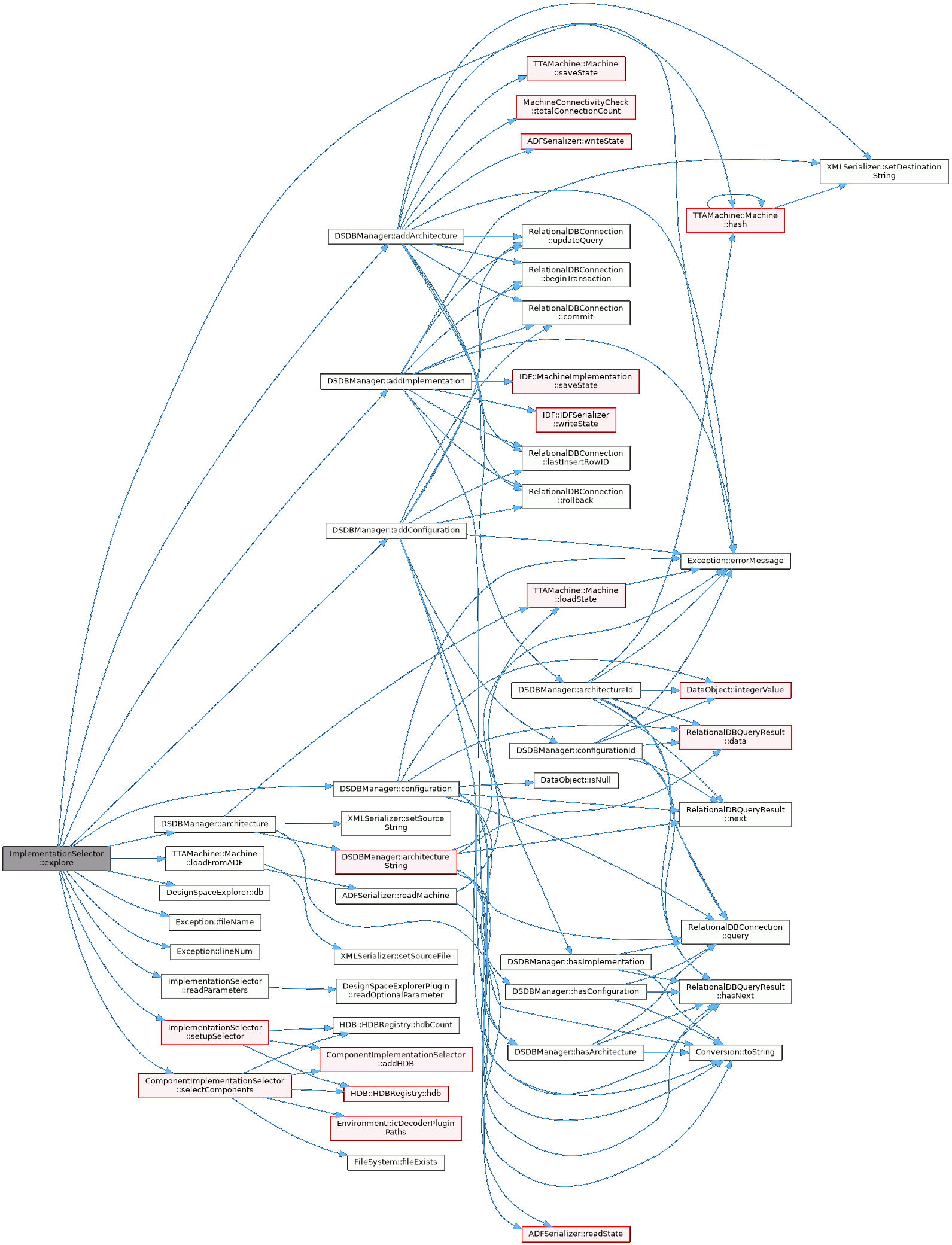

Here is the call graph for this function:

◆ PLUGIN_DESCRIPTION()

ImplementationSelector::PLUGIN_DESCRIPTION ( "Creates implementation for the given machine." )

private

◆ producesArchitecture()

virtual bool ImplementationSelector::producesArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 96 of file ImplementationSelector.cc.

96{ return false; }

◆ readParameters()

void ImplementationSelector::readParameters ( )

inlineprivate

Reads the parameters given to the plugin.

Definition at line 193 of file ImplementationSelector.cc.

                          {
        readOptionalParameter(icDecPN_, icDec_);
        readOptionalParameter(icDecHDBPN_, icDecHDB_);
        readOptionalParameter(adfPN_, adf_);
    }

References adf_, adfPN_, icDec_, icDecHDB_, icDecHDBPN_, icDecPN_, and DesignSpaceExplorerPlugin::readOptionalParameter().

Referenced by explore().

Here is the call graph for this function:

◆ requiresApplication()

virtual bool ImplementationSelector::requiresApplication ( ) const

inlineprivatevirtual

Reimplemented from DesignSpaceExplorerPlugin.

Definition at line 99 of file ImplementationSelector.cc.

99{ return false; }

◆ requiresHDB()

virtual bool ImplementationSelector::requiresHDB ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 97 of file ImplementationSelector.cc.

97{ return true; }

◆ requiresSimulationData()

virtual bool ImplementationSelector::requiresSimulationData ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 98 of file ImplementationSelector.cc.

98{ return false; }

◆ requiresStartingPointArchitecture()

virtual bool ImplementationSelector::requiresStartingPointArchitecture ( ) const

inlineprivatevirtual

Implements DesignSpaceExplorerPlugin.

Definition at line 95 of file ImplementationSelector.cc.

95{ return true; }

◆ setupSelector()

void ImplementationSelector::setupSelector ( )

inlineprivate

Sets up the component implementation selector by adding the HDBs.

Definition at line 203 of file ImplementationSelector.cc.

                         {
        HDBRegistry& hdbRegistry = HDBRegistry::instance();

        // if HDBRegistry contains no HDBManagers load from default paths
        if (hdbRegistry.hdbCount() == 0) {
            hdbRegistry.loadFromSearchPaths();
        }

        // give all HDBs from registry to the selector to select from
        for (int i = 0; i < hdbRegistry.hdbCount(); i++) {
            HDBManager* hdb = &hdbRegistry.hdb(i);
            selector_.addHDB(*hdb);
        }
    }

References ComponentImplementationSelector::addHDB(), HDB::HDBRegistry::hdb(), HDB::HDBRegistry::hdbCount(), HDB::HDBRegistry::instance(), HDB::HDBRegistry::loadFromSearchPaths(), and selector_.

Referenced by explore().

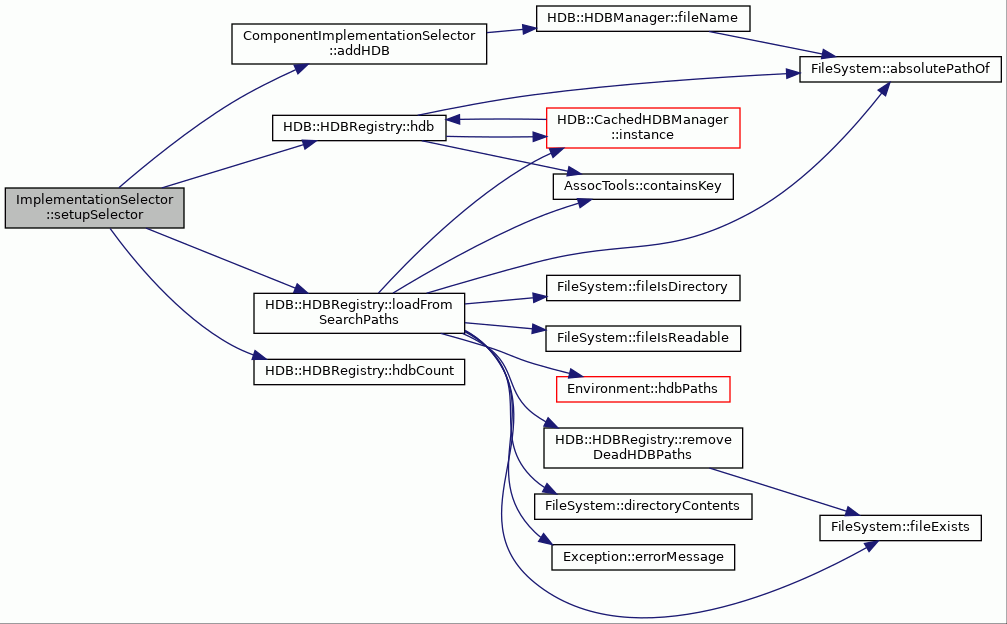

Here is the call graph for this function:

Member Data Documentation

◆ adf_

std::string ImplementationSelector::adf_

private

name of the adf file if wanted to use idf generation

Definition at line 187 of file ImplementationSelector.cc.

Referenced by explore(), ImplementationSelector(), and readParameters().

◆ adfPN_

const std::string ImplementationSelector::adfPN_

staticprivate

Definition at line 179 of file ImplementationSelector.cc.

Referenced by ImplementationSelector(), and readParameters().

◆ icDec_

std::string ImplementationSelector::icDec_

private

name of the ic decoder plugin for idf

Definition at line 183 of file ImplementationSelector.cc.

Referenced by explore(), ImplementationSelector(), and readParameters().

◆ icDecHDB_

std::string ImplementationSelector::icDecHDB_

private

name of the hdb used by ic decoder

Definition at line 185 of file ImplementationSelector.cc.

Referenced by explore(), ImplementationSelector(), and readParameters().

◆ icDecHDBPN_

const std::string ImplementationSelector::icDecHDBPN_

staticprivate

Definition at line 178 of file ImplementationSelector.cc.

Referenced by ImplementationSelector(), and readParameters().

◆ icDecPN_

const std::string ImplementationSelector::icDecPN_

staticprivate

Definition at line 177 of file ImplementationSelector.cc.

Referenced by ImplementationSelector(), and readParameters().

◆ selector_

ComponentImplementationSelector ImplementationSelector::selector_

private

Selector used by the plugin.

Definition at line 174 of file ImplementationSelector.cc.

Referenced by explore(), and setupSelector().

The documentation for this class was generated from the following file:

ImplementationSelector.cc

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ImplementationSelector()

Member Function Documentation

◆ explore()

◆ PLUGIN_DESCRIPTION()

◆ producesArchitecture()

◆ readParameters()

◆ requiresApplication()

◆ requiresHDB()

◆ requiresSimulationData()

◆ requiresStartingPointArchitecture()

◆ setupSelector()

Member Data Documentation

◆ adf_

◆ adfPN_

◆ icDec_

◆ icDecHDB_

◆ icDecHDBPN_

◆ icDecPN_

◆ selector_
