ProGeCmdLineOptions Class Reference

#include <ProGeCmdLineOptions.hh>

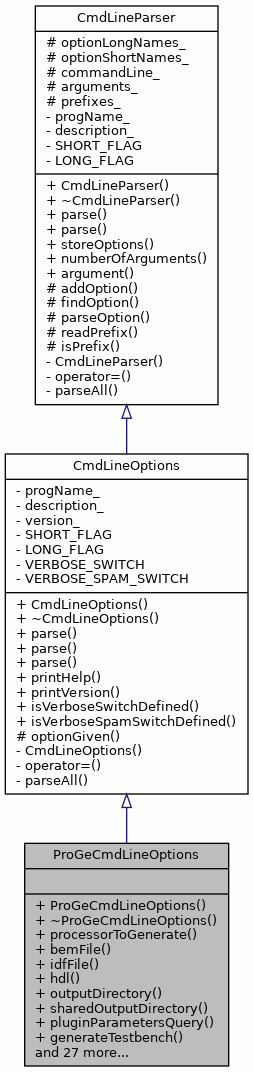

Inheritance diagram for ProGeCmdLineOptions:

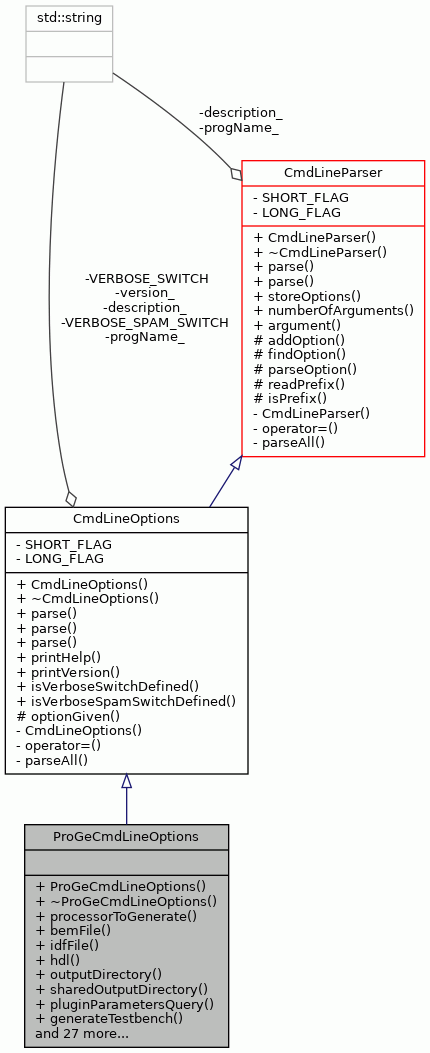

Collaboration diagram for ProGeCmdLineOptions:

Public Member Functions
	ProGeCmdLineOptions ()
virtual	~ProGeCmdLineOptions ()
std::string	processorToGenerate () const
std::string	bemFile () const
std::string	idfFile () const
std::string	hdl () const
std::string	outputDirectory () const
std::string	sharedOutputDirectory () const
std::string	pluginParametersQuery () const
bool	generateTestbench () const
std::string	mode () const
std::string	integratorName () const
std::string	imemType () const
std::string	dmemType () const
int	clockFrequency () const
std::string	tpefName () const
std::string	entityName () const
bool	useAbsolutePaths () const
bool	listAvailableIntegrators () const
std::string	deviceFamilyName () const
std::string	deviceName () const
std::string	simulationRuntime () const
bool	forceOutputDirectory () const
bool	asyncReset () const
bool	syncReset () const
std::vector< std::string >	commaSeparatedList (const std::string argumentName) const
std::vector< std::string >	hdbList () const
std::vector< std::string >	rfIcGateList () const
std::vector< std::string >	fuIcGateList () const
std::vector< std::pair< std::string, std::string > >	icdArgList () const
bool	preferHDLGeneration () const
bool	resetAllRegisters () const
std::vector< std::string >	fuBackRegistered () const
std::vector< std::string >	fuFrontRegistered () const
std::vector< std::string >	fuMiddleRegistered () const
virtual void	printVersion () const
virtual void	printHelp () const
Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")
virtual	~CmdLineOptions ()
void	parse (char *argv[], int argc)
void	parse (std::string argv[], int argc)
void	parse (std::vector< std::string > argv)
virtual bool	isVerboseSwitchDefined () const
virtual bool	isVerboseSpamSwitchDefined () const
Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)
virtual	~CmdLineParser ()
virtual void	storeOptions (Options &options)
virtual int	numberOfArguments () const
virtual std::string	argument (int index) const

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const
Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)
CmdLineOptionParser *	findOption (std::string name) const
bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const
bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const
bool	isPrefix (std::string name) const
Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key.
std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key.
std::vector< std::string >	commandLine_
	Command line is stored here.
std::vector< std::string >	arguments_
	Command line arguments are stored here.
std::vector< std::string >	prefixes_
	Legal prefixes are stored here.

Detailed Description

Command line options for the command line interface of ProGe (generateprocessor).

Definition at line 43 of file ProGeCmdLineOptions.hh.

Constructor & Destructor Documentation

ProGeCmdLineOptions()

ProGeCmdLineOptions::ProGeCmdLineOptions

(

)

The constructor.

Definition at line 77 of file ProGeCmdLineOptions.cc.

                                         :
    CmdLineOptions("") {

    StringCmdLineOptionParser* bemFile = new StringCmdLineOptionParser(
        BEM_PARAM_NAME, "The BEM file", "b");
    addOption(bemFile);

    StringCmdLineOptionParser* idfFile = new StringCmdLineOptionParser(
        IDF_PARAM_NAME, "The IDF file", "i");
    addOption(idfFile);

    StringCmdLineOptionParser* hdlParam = new StringCmdLineOptionParser(
        HDL_PARAM_NAME, "The HDL to generate. 'vhdl' = VHDL", "l");
    addOption(hdlParam);

    StringCmdLineOptionParser* outputDirectory =
        new StringCmdLineOptionParser(
            OUTPUTDIR_PARAM_NAME, "The output directory", "o");
    addOption(outputDirectory);

    StringCmdLineOptionParser* sharedOutputDirectory =
        new StringCmdLineOptionParser(
            SHARED_OUTPUTDIR_PARAM_NAME,
            "The directory for HDL files that are potentially shared between "
            "multiple generated processors.", "s");
    addOption(sharedOutputDirectory);

    StringCmdLineOptionParser* pluginParameters =
        new StringCmdLineOptionParser(
            PLUGIN_PARAMETERS_PARAM_NAME, "List plugin parameters for an "
            "IC/Decoder generator plugin file.", "u");
    addOption(pluginParameters);

    StringCmdLineOptionParser* integratorName =
        new StringCmdLineOptionParser(
            INTEGRATOR_NAME, "Select the target for platform integration.",
            "g");
    addOption(integratorName);

    StringCmdLineOptionParser* imemType = new StringCmdLineOptionParser(
        IMEM_TYPE,
        "Instruction memory type. Available types depends on "
        "the platform integrator. Types are 'vhdl_array', 'onchip', "
        "'sram', 'dram' and 'none'.",
        "f");
    addOption(imemType);

    StringCmdLineOptionParser* dmemType =
        new StringCmdLineOptionParser(
            DMEM_TYPE, "Data memory type. Available types depends on the "
            "platform integrator. Types are 'vhdl_array', 'onchip', 'sram',"
            " 'dram' and 'none'", "d");
    addOption(dmemType);

    IntegerCmdLineOptionParser* fmax =
        new IntegerCmdLineOptionParser(
            CLK_FREQUENCY, "Defines the target clock frequency.", "c");
    addOption(fmax);

    StringCmdLineOptionParser* programName =
        new StringCmdLineOptionParser(
            TPEF_NAME, "Name of tpef program.", "p");
    addOption(programName);

    StringCmdLineOptionParser* entityName = new StringCmdLineOptionParser(
        ENTITY_NAME,
        "String to use to make the generated VHDL entities unique. This "
        "is also used in the name of the top level entity platform "
        "integrator creates. Default is 'tta0' for the core, thus "
        "'tta0_toplevel' for the platform integrator top level "
        "component.",
        "e");
    addOption(entityName);

    BoolCmdLineOptionParser* useAbsolutePaths =
        new BoolCmdLineOptionParser(
            USE_ABSOLUTE_PATHS, "Use absolute paths in generated platform "
            "integrator files.", "a");
    addOption(useAbsolutePaths);

    BoolCmdLineOptionParser* generateTestbench =
        new BoolCmdLineOptionParser(
            GENERATE_TESTBENCH, "Generate testbench.", "t");
    addOption(generateTestbench);

    BoolCmdLineOptionParser* listIntegrators =
        new BoolCmdLineOptionParser(
            LIST_INTEGRATORS, "List available integrators and information "
            "about them.", "n");
    addOption(listIntegrators);

    StringCmdLineOptionParser* deviceFamilyName =
        new StringCmdLineOptionParser(
            DEVICE_FAMILY,
            "Set FPGA device family for integration. Stand-alone integrators "
            "may ignore this parameter. Example: \"Stratix II\" or "
            "Stratix\\ II", "m");
    addOption(deviceFamilyName);

    StringCmdLineOptionParser* deviceName = new StringCmdLineOptionParser(
        DEVICE_NAME,
        "Set FPGA device family for integration. Stand-alone integrators "
        "may ignore this parameter. Example: \"xc7z020clg400-1\"");
    addOption(deviceName);

    IntegerCmdLineOptionParser* simTime = new IntegerCmdLineOptionParser(
        SIMULATION_RUNTIME,
        "The runtime of the simulation in nanoseconds. Default: 52390 ns",
        "r");
    addOption(simTime);

    BoolCmdLineOptionParser* forceOutput = new BoolCmdLineOptionParser(
        FORCE_OUTPUT, "Forces output writing into existing directory.", "F");
    addOption(forceOutput);

    BoolCmdLineOptionParser* syncReset = new BoolCmdLineOptionParser(
        SYNC_RESET, "Generate Synchronous reset (default async).");
    addOption(syncReset);

    StringCmdLineOptionParser* hdbList = new StringCmdLineOptionParser(
        HDB_LIST, "Comma separated list of HDBs for automated generation.",
        "h");
    addOption(hdbList);

    StringCmdLineOptionParser* icdArgList = new StringCmdLineOptionParser(
        ICD_ARG_LIST,
        "Comma separated list of IC decoder plugin arguments "
        "for automated generation.");
    addOption(icdArgList);

    BoolCmdLineOptionParser* preferGen = new BoolCmdLineOptionParser(
        PREFER_GEN,
        "Prefer HDL generation over existing HDB implementations.");
    addOption(preferGen);

    BoolCmdLineOptionParser* resetAll = new BoolCmdLineOptionParser(
        DONT_RESET_ALL,
        "Doesn't reset unnecessary registers (default false).");
    addOption(resetAll);

    StringCmdLineOptionParser* rfIcGateList = new StringCmdLineOptionParser(
        RF_ICGATE_LIST, "Comma separated list of RFs to IC-Gate.");
    addOption(rfIcGateList);

    StringCmdLineOptionParser* fuIcGateList = new StringCmdLineOptionParser(
        FU_ICGATE_LIST, "Comma separated list of FUs to IC-Gate.");
    addOption(fuIcGateList);

    StringCmdLineOptionParser* fuBackRegList = new StringCmdLineOptionParser(
        FU_BACKREGISTER_LIST,
        "Comma separated list of FUs to back-register.");
    addOption(fuBackRegList);

    StringCmdLineOptionParser* fuFrontRegList = new StringCmdLineOptionParser(
        FU_FRONTREGISTER_LIST,
        "Comma separated list of FUs to front-register.");
    addOption(fuFrontRegList);

    StringCmdLineOptionParser* fuMiddleRegList =
        new StringCmdLineOptionParser(
            FU_MIDDLEREGISTER_LIST,
            "Comma separated list of FUs to middle-register.");
    addOption(fuMiddleRegList);
}

References CmdLineParser::addOption(), BEM_PARAM_NAME, bemFile(), CLK_FREQUENCY, DEVICE_FAMILY, DEVICE_NAME, deviceFamilyName(), deviceName(), DMEM_TYPE, dmemType(), DONT_RESET_ALL, ENTITY_NAME, entityName(), FORCE_OUTPUT, FU_BACKREGISTER_LIST, FU_FRONTREGISTER_LIST, FU_ICGATE_LIST, FU_MIDDLEREGISTER_LIST, fuIcGateList(), GENERATE_TESTBENCH, generateTestbench(), HDB_LIST, hdbList(), HDL_PARAM_NAME, ICD_ARG_LIST, icdArgList(), IDF_PARAM_NAME, idfFile(), IMEM_TYPE, imemType(), INTEGRATOR_NAME, integratorName(), LIST_INTEGRATORS, OUTPUTDIR_PARAM_NAME, outputDirectory(), PLUGIN_PARAMETERS_PARAM_NAME, PREFER_GEN, RF_ICGATE_LIST, rfIcGateList(), SHARED_OUTPUTDIR_PARAM_NAME, sharedOutputDirectory(), SIMULATION_RUNTIME, SYNC_RESET, syncReset(), TPEF_NAME, USE_ABSOLUTE_PATHS, and useAbsolutePaths().

Here is the call graph for this function:

~ProGeCmdLineOptions()

ProGeCmdLineOptions::~ProGeCmdLineOptions ( )

virtual

The destructor.

Definition at line 246 of file ProGeCmdLineOptions.cc.

                                          {
}

Member Function Documentation

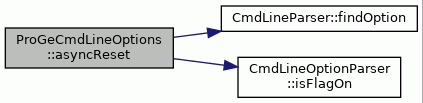

asyncReset()

bool ProGeCmdLineOptions::asyncReset

(

)

const

Returns true if asynchronous reset.

Definition at line 436 of file ProGeCmdLineOptions.cc.

                                      {
    return !findOption(SYNC_RESET)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SYNC_RESET.

Here is the call graph for this function:

bemFile()

std::string ProGeCmdLineOptions::bemFile

(

)

const

Returns the given BEM file.

Returns

The name of the file.

Definition at line 267 of file ProGeCmdLineOptions.cc.

                                   {
    return findOption(BEM_PARAM_NAME)->String();
}

References BEM_PARAM_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

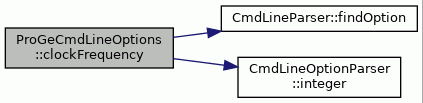

clockFrequency()

int ProGeCmdLineOptions::clockFrequency

(

)

const

Definition at line 345 of file ProGeCmdLineOptions.cc.

                                          {

    int freq = 0;
    if (findOption(CLK_FREQUENCY)->isDefined()) {
        freq = findOption(CLK_FREQUENCY)->integer();
    }
    return freq;
}

References CLK_FREQUENCY, CmdLineParser::findOption(), and CmdLineOptionParser::integer().

Here is the call graph for this function:

commaSeparatedList()

std::vector< std::string > ProGeCmdLineOptions::commaSeparatedList

(

const std::string

argumentName

)

const

Helper for arguments with comma-separated arguments

Definition at line 444 of file ProGeCmdLineOptions.cc.

                                        {
    std::vector<std::string> list;
    std::string str;
    if (findOption(argumentName)->isDefined()) {
        str = findOption(argumentName)->String();
    }
    std::stringstream ss(str);
    while (ss.good()) {
        std::string sub;
        std::getline(ss, sub, ',');
        if (sub.size() > 1) {
            list.emplace_back(sub);
        }
    }
    return list;
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and sub.

Referenced by fuBackRegistered(), fuFrontRegistered(), fuIcGateList(), fuMiddleRegistered(), hdbList(), icdArgList(), and rfIcGateList().

Here is the call graph for this function:

deviceFamilyName()

std::string ProGeCmdLineOptions::deviceFamilyName

(

)

const

Definition at line 382 of file ProGeCmdLineOptions.cc.

                                            {
    string deviceFamily = "";
    if (findOption(DEVICE_FAMILY)->isDefined()) {
        deviceFamily = findOption(DEVICE_FAMILY)->String();
    }
    return deviceFamily;
}

References DEVICE_FAMILY, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

deviceName()

std::string ProGeCmdLineOptions::deviceName

(

)

const

Definition at line 391 of file ProGeCmdLineOptions.cc.

                                      {
    string devicePart = "";
    if (findOption(DEVICE_NAME)->isDefined()) {
        devicePart = findOption(DEVICE_NAME)->String();
    }
    return devicePart;
}

References DEVICE_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

dmemType()

std::string ProGeCmdLineOptions::dmemType

(

)

const

Definition at line 339 of file ProGeCmdLineOptions.cc.

                                    {
    return findOption(DMEM_TYPE)->String();
}

References DMEM_TYPE, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

entityName()

std::string ProGeCmdLineOptions::entityName

(

)

const

Definition at line 362 of file ProGeCmdLineOptions.cc.

                                      {
    return findOption(ENTITY_NAME)->String();
}

References ENTITY_NAME, CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

forceOutputDirectory()

bool ProGeCmdLineOptions::forceOutputDirectory

(

)

const

Returns true if ProGe is allowed to write the processor files to an existing directory.

Definition at line 420 of file ProGeCmdLineOptions.cc.

                                                {
    return findOption(FORCE_OUTPUT)->isFlagOn();
}

References CmdLineParser::findOption(), FORCE_OUTPUT, and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

fuBackRegistered()

std::vector< std::string > ProGeCmdLineOptions::fuBackRegistered

(

)

const

Definition at line 508 of file ProGeCmdLineOptions.cc.

                                            {
    return commaSeparatedList(FU_BACKREGISTER_LIST);
}

References commaSeparatedList(), and FU_BACKREGISTER_LIST.

Here is the call graph for this function:

fuFrontRegistered()

std::vector< std::string > ProGeCmdLineOptions::fuFrontRegistered

(

)

const

Definition at line 513 of file ProGeCmdLineOptions.cc.

                                             {
    return commaSeparatedList(FU_FRONTREGISTER_LIST);
}

References commaSeparatedList(), and FU_FRONTREGISTER_LIST.

Here is the call graph for this function:

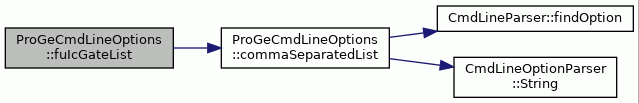

fuIcGateList()

std::vector< std::string > ProGeCmdLineOptions::fuIcGateList

(

)

const

Return list of FUs to IC-Gate.

Definition at line 503 of file ProGeCmdLineOptions.cc.

                                        {
    return commaSeparatedList(FU_ICGATE_LIST);
}

References commaSeparatedList(), and FU_ICGATE_LIST.

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

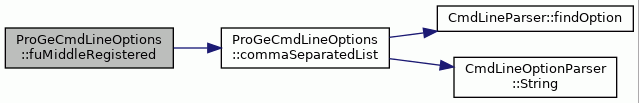

fuMiddleRegistered()

std::vector< std::string > ProGeCmdLineOptions::fuMiddleRegistered

(

)

const

Definition at line 518 of file ProGeCmdLineOptions.cc.

                                              {
    return commaSeparatedList(FU_MIDDLEREGISTER_LIST);
}

References commaSeparatedList(), and FU_MIDDLEREGISTER_LIST.

Here is the call graph for this function:

generateTestbench()

bool ProGeCmdLineOptions::generateTestbench

(

)

const

Definition at line 372 of file ProGeCmdLineOptions.cc.

                                             {
    return findOption(GENERATE_TESTBENCH)->isFlagOn();
}

References CmdLineParser::findOption(), GENERATE_TESTBENCH, and CmdLineOptionParser::isFlagOn().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

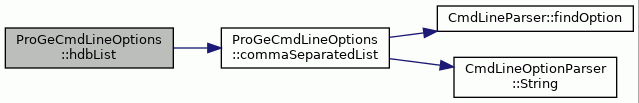

hdbList()

std::vector< std::string > ProGeCmdLineOptions::hdbList

(

)

const

Return list of HDBs.

Definition at line 466 of file ProGeCmdLineOptions.cc.

                                   {
    return commaSeparatedList(HDB_LIST);
}

References commaSeparatedList(), and HDB_LIST.

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

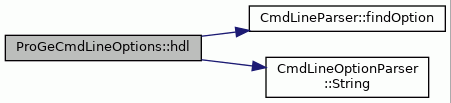

hdl()

std::string ProGeCmdLineOptions::hdl

(

)

const

Returns the given HDL parameter.

Returns

The HDL parameter.

Definition at line 289 of file ProGeCmdLineOptions.cc.

                               {
    return findOption(HDL_PARAM_NAME)->String();
}

References CmdLineParser::findOption(), HDL_PARAM_NAME, and CmdLineOptionParser::String().

Here is the call graph for this function:

icdArgList()

std::vector< std::pair< std::string, std::string > > ProGeCmdLineOptions::icdArgList

(

)

const

Return list of option/argument pairs for ICDecoder plugin

Definition at line 482 of file ProGeCmdLineOptions.cc.

                                      {
    auto raw_pairs = commaSeparatedList(ICD_ARG_LIST);
    std::vector<std::pair<std::string, std::string>> parsed_pairs;

    for (std::string key_val_pair : raw_pairs) {
        if (key_val_pair.size() > 1) {
            std::stringstream kvp(key_val_pair);
            std::string key;
            std::string value;
            std::getline(kvp, key, ':');
            std::getline(kvp, value, ':');
            parsed_pairs.emplace_back(key, value);
        }
    }
    return parsed_pairs;
}

References commaSeparatedList(), and ICD_ARG_LIST.

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

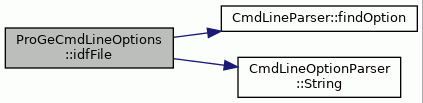

idfFile()

std::string ProGeCmdLineOptions::idfFile

(

)

const

Returns the given IDF file.

Returns

The name of the file.

Definition at line 278 of file ProGeCmdLineOptions.cc.

                                   {
    return findOption(IDF_PARAM_NAME)->String();
}

References CmdLineParser::findOption(), IDF_PARAM_NAME, and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

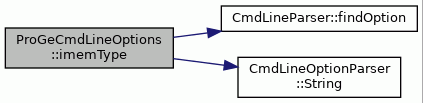

imemType()

std::string ProGeCmdLineOptions::imemType

(

)

const

Definition at line 333 of file ProGeCmdLineOptions.cc.

                                    {
    return findOption(IMEM_TYPE)->String();
}

References CmdLineParser::findOption(), IMEM_TYPE, and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

integratorName()

std::string ProGeCmdLineOptions::integratorName

(

)

const

Definition at line 327 of file ProGeCmdLineOptions.cc.

                                          {
    return findOption(INTEGRATOR_NAME)->String();
}

References CmdLineParser::findOption(), INTEGRATOR_NAME, and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

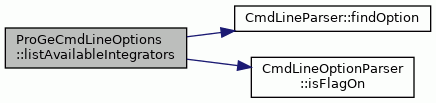

listAvailableIntegrators()

bool ProGeCmdLineOptions::listAvailableIntegrators

(

)

const

Definition at line 377 of file ProGeCmdLineOptions.cc.

                                                    {
    return findOption(LIST_INTEGRATORS)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and LIST_INTEGRATORS.

Here is the call graph for this function:

mode()

std::string ProGeCmdLineOptions::mode

(

)

const

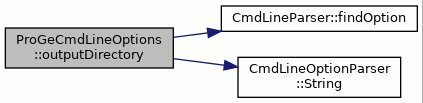

outputDirectory()

std::string ProGeCmdLineOptions::outputDirectory

(

)

const

Returns the given output directory.

Returns

The given output directory.

Definition at line 300 of file ProGeCmdLineOptions.cc.

                                           {
    return findOption(OUTPUTDIR_PARAM_NAME)->String();
}

References CmdLineParser::findOption(), OUTPUTDIR_PARAM_NAME, and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

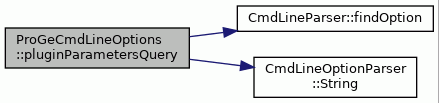

pluginParametersQuery()

std::string ProGeCmdLineOptions::pluginParametersQuery

(

)

const

Returns the IC/decoder generator plugin parameter list query.

Returns

The plugin parameter query.

Definition at line 321 of file ProGeCmdLineOptions.cc.

                                                 {
    return findOption(PLUGIN_PARAMETERS_PARAM_NAME)->String();
}

References CmdLineParser::findOption(), PLUGIN_PARAMETERS_PARAM_NAME, and CmdLineOptionParser::String().

Here is the call graph for this function:

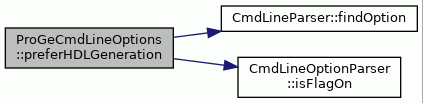

preferHDLGeneration()

bool ProGeCmdLineOptions::preferHDLGeneration

(

)

const

Returns true if preferring HDL Generation.

Definition at line 526 of file ProGeCmdLineOptions.cc.

                                               {
    return findOption(PREFER_GEN)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and PREFER_GEN.

Here is the call graph for this function:

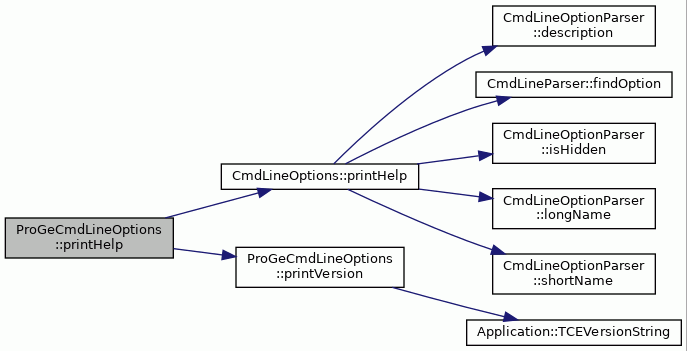

printHelp()

void ProGeCmdLineOptions::printHelp ( ) const

virtual

Prints help of the application.

Reimplemented from CmdLineOptions.

Definition at line 552 of file ProGeCmdLineOptions.cc.

                                     {
    printVersion();
    cout << "Usage: generateprocessor [options] <processor>" << endl
         << "where <processor> means either an ADF or PCF file." << endl;
    CmdLineOptions::printHelp();
}

References CmdLineOptions::printHelp(), and printVersion().

Here is the call graph for this function:

printVersion()

void ProGeCmdLineOptions::printVersion ( ) const

virtual

Prints the version of the application.

Implements CmdLineOptions.

Definition at line 542 of file ProGeCmdLineOptions.cc.

                                        {
    std::cout << "generateprocessor - OpenASIP Processor Generator "
              << Application::TCEVersionString() << std::endl;
}

References Application::TCEVersionString().

Referenced by printHelp().

Here is the call graph for this function:

processorToGenerate()

std::string ProGeCmdLineOptions::processorToGenerate

(

)

const

Returns the ADF or PCF file given as last argument.

Returns

The name of the file.

Definition at line 256 of file ProGeCmdLineOptions.cc.

                                               {
    return argument(numberOfArguments());
}

References CmdLineParser::argument(), and CmdLineParser::numberOfArguments().

Here is the call graph for this function:

resetAllRegisters()

bool ProGeCmdLineOptions::resetAllRegisters

(

)

const

Returns true if all registers should be reseted.

Definition at line 534 of file ProGeCmdLineOptions.cc.

                                             {
    return !findOption(DONT_RESET_ALL)->isFlagOn();
}

References DONT_RESET_ALL, CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

rfIcGateList()

std::vector< std::string > ProGeCmdLineOptions::rfIcGateList

(

)

const

Return list of RFs to IC-Gate.

Definition at line 474 of file ProGeCmdLineOptions.cc.

                                        {
    return commaSeparatedList(RF_ICGATE_LIST);
}

References commaSeparatedList(), and RF_ICGATE_LIST.

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

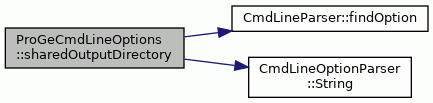

sharedOutputDirectory()

std::string ProGeCmdLineOptions::sharedOutputDirectory

(

)

const

Returns the given output directory.

Returns

The given output directory.

Definition at line 310 of file ProGeCmdLineOptions.cc.

                                                 {
    return findOption(SHARED_OUTPUTDIR_PARAM_NAME)->String();
}

References CmdLineParser::findOption(), SHARED_OUTPUTDIR_PARAM_NAME, and CmdLineOptionParser::String().

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

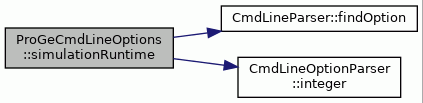

simulationRuntime()

std::string ProGeCmdLineOptions::simulationRuntime

(

)

const

Gets the HDL simulation time from Cmd line options. If none given, the legacy MAGICAL RUNTIME CONSTANT value 52390ns will be used.

Definition at line 404 of file ProGeCmdLineOptions.cc.

                                             {
    int simTime = 52390;
    if (findOption(SIMULATION_RUNTIME)->isDefined()) {
        simTime = findOption(SIMULATION_RUNTIME)->integer();
    }
    std::ostringstream s;
    s << simTime;

    return s.str();
}

References CmdLineParser::findOption(), CmdLineOptionParser::integer(), and SIMULATION_RUNTIME.

Here is the call graph for this function:

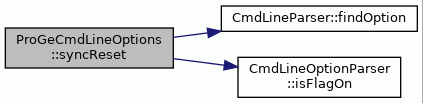

syncReset()

bool ProGeCmdLineOptions::syncReset

(

)

const

Returns true if synchronous reset.

Definition at line 428 of file ProGeCmdLineOptions.cc.

                                     {
    return findOption(SYNC_RESET)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and SYNC_RESET.

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

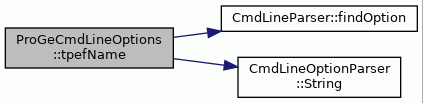

tpefName()

std::string ProGeCmdLineOptions::tpefName

(

)

const

Definition at line 356 of file ProGeCmdLineOptions.cc.

                                    {
    return findOption(TPEF_NAME)->String();
}

References CmdLineParser::findOption(), CmdLineOptionParser::String(), and TPEF_NAME.

Here is the call graph for this function:

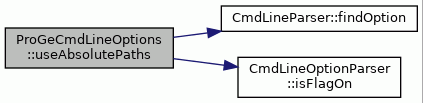

useAbsolutePaths()

bool ProGeCmdLineOptions::useAbsolutePaths

(

)

const

Definition at line 367 of file ProGeCmdLineOptions.cc.

                                            {
    return findOption(USE_ABSOLUTE_PATHS)->isFlagOn();
}

References CmdLineParser::findOption(), CmdLineOptionParser::isFlagOn(), and USE_ABSOLUTE_PATHS.

Referenced by ProGeCmdLineOptions().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ProGeCmdLineOptions.hh
• ProGeCmdLineOptions.cc
