ProximBusEditPolicy Class Reference

#include <ProximBusEditPolicy.hh>

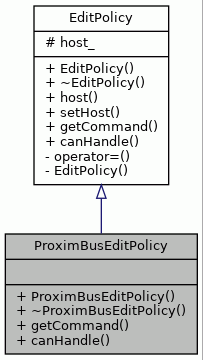

Inheritance diagram for ProximBusEditPolicy:

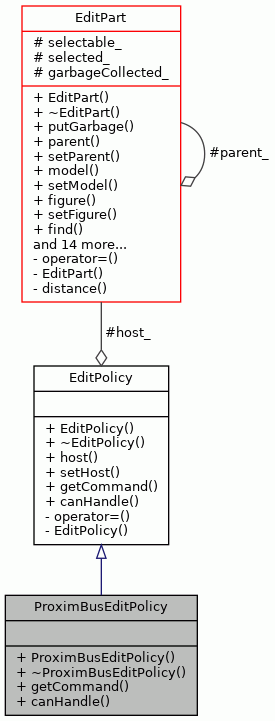

Collaboration diagram for ProximBusEditPolicy:

Public Member Functions
	ProximBusEditPolicy ()
virtual	~ProximBusEditPolicy ()
virtual ComponentCommand *	getCommand (Request *request)
virtual bool	canHandle (Request *request) const
Public Member Functions inherited from EditPolicy
	EditPolicy ()
virtual	~EditPolicy ()
EditPart *	host () const
void	setHost (EditPart *host)

Additional Inherited Members
Protected Attributes inherited from EditPolicy
EditPart *	host_
	Host EditPart of this EditPolicy.

Detailed Description

Edit policy for Proxim machine state window buses.

Definition at line 41 of file ProximBusEditPolicy.hh.

Constructor & Destructor Documentation

ProximBusEditPolicy()

ProximBusEditPolicy::ProximBusEditPolicy

(

)

The Constructor.

Definition at line 47 of file ProximBusEditPolicy.cc.

                                         :
    EditPolicy() {
}

~ProximBusEditPolicy()

ProximBusEditPolicy::~ProximBusEditPolicy ( )

virtual

The Destructor.

Definition at line 55 of file ProximBusEditPolicy.cc.

                                          {
}

Member Function Documentation

canHandle()

bool ProximBusEditPolicy::canHandle ( Request *  request ) const

virtual

Tells whether this EditPolicy can handle request of the given type.

Parameters

Request

to be handled.

Returns

True, if the editpolicy can handle give request type.

Implements EditPolicy.

Definition at line 65 of file ProximBusEditPolicy.cc.

                                                     {

    Request::RequestType type = request->type();
    if (type == Request::STATUS_REQUEST ||
        type == Request::DETAILS_REQUEST) {
        return true;
    }

    return false;
}

References Request::DETAILS_REQUEST, Request::STATUS_REQUEST, and Request::type().

Here is the call graph for this function:

getCommand()

ComponentCommand * ProximBusEditPolicy::getCommand ( Request *  request )

virtual

Returns command correspoding to the request type.

Parameters

request

Request to handle.

Returns

NULL, if the request can't be handled.

Implements EditPolicy.

Definition at line 84 of file ProximBusEditPolicy.cc.

                                                {

    Request::RequestType type = request->type();

    const Bus* bus = dynamic_cast<const Bus*>(host_->model());
    if (bus == NULL) {
        const Segment* segment = dynamic_cast<const Segment*>(host_->model());
        assert(segment != NULL);
        bus = segment->parentBus();
    }

    assert(bus != NULL);

    if (type == Request::STATUS_REQUEST) {
        std::string status = ProximConstants::MACH_WIN_BUS_LABEL + bus->name();
        return new ProximComponentStatusCmd(status);
    } else if (type == Request::DETAILS_REQUEST) {
        return new ProximBusDetailsCmd(*bus);
    }
    return NULL;
}

References assert, Request::DETAILS_REQUEST, EditPolicy::host_, ProximConstants::MACH_WIN_BUS_LABEL, EditPart::model(), TTAMachine::Component::name(), TTAMachine::Segment::parentBus(), Request::STATUS_REQUEST, and Request::type().

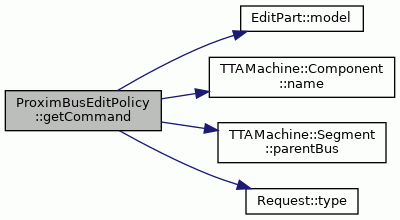

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ProximBusEditPolicy.hh
• ProximBusEditPolicy.cc
