ProximPortWindow Class Reference

#include <ProximPortWindow.hh>

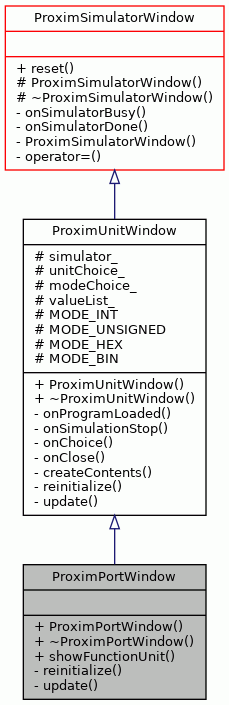

Inheritance diagram for ProximPortWindow:

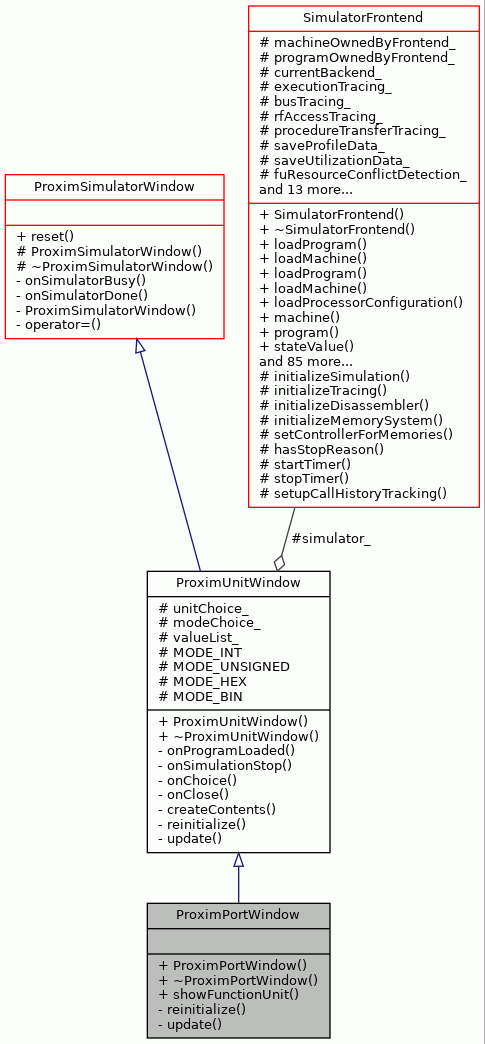

Collaboration diagram for ProximPortWindow:

Public Member Functions
	ProximPortWindow (ProximMainFrame *parent, int id)
virtual	~ProximPortWindow ()
void	showFunctionUnit (const std::string &name)
Public Member Functions inherited from ProximUnitWindow
	ProximUnitWindow (ProximMainFrame *parent, int id)
virtual	~ProximUnitWindow ()
Public Member Functions inherited from ProximSimulatorWindow
virtual void	reset ()

Private Member Functions
virtual void	reinitialize ()
virtual void	update ()

Additional Inherited Members
Protected Member Functions inherited from ProximSimulatorWindow
	ProximSimulatorWindow (ProximMainFrame *mainFrame, wxWindowID id=-1, wxPoint pos=wxDefaultPosition, wxSize size=wxDefaultSize, long style=wxTAB_TRAVERSAL)
virtual	~ProximSimulatorWindow ()
Protected Attributes inherited from ProximUnitWindow
SimulatorFrontend *	simulator_
	Simulator instance .
wxChoice *	unitChoice_
	Unit choicer widget.
wxChoice *	modeChoice_
	Value display mode choicer widget.
wxListCtrl *	valueList_
	List widget for the values.
Static Protected Attributes inherited from ProximUnitWindow
static const wxString	MODE_INT = _T("Int")
	String for the mode choicer integer mode.
static const wxString	MODE_UNSIGNED = _T("Unsigned")
	String for the mode choicer unsigned integer mode.
static const wxString	MODE_HEX = _T("Hex")
	String for the mode choicer hexadecimal mode.
static const wxString	MODE_BIN = _T("Binary")
	String for the mode choicer binary mode.

Detailed Description

Proxim subwindow which displays function unit port values.

This window listens to SimulatorEvents and updates the window contents automatically.

Definition at line 47 of file ProximPortWindow.hh.

Constructor & Destructor Documentation

ProximPortWindow()

ProximPortWindow::ProximPortWindow	(	ProximMainFrame *	parent,
		int	id
	)

Constructor.

Parameters

parent	Parent window of the window.
id	Window identifier.

Definition at line 64 of file ProximPortWindow.cc.

                                    :
    ProximUnitWindow(parent, id) {

    valueList_->InsertColumn(0, _T("Port"), wxLIST_FORMAT_LEFT, 100);
    valueList_->InsertColumn(1, _T("Value"), wxLIST_FORMAT_RIGHT, 120);

    if (simulator_->isSimulationInitialized() ||
    simulator_->isSimulationStopped() ||
    simulator_->hasSimulationEnded()) {

    reinitialize();
    }
}

References SimulatorFrontend::hasSimulationEnded(), SimulatorFrontend::isSimulationInitialized(), SimulatorFrontend::isSimulationStopped(), reinitialize(), ProximUnitWindow::simulator_, and ProximUnitWindow::valueList_.

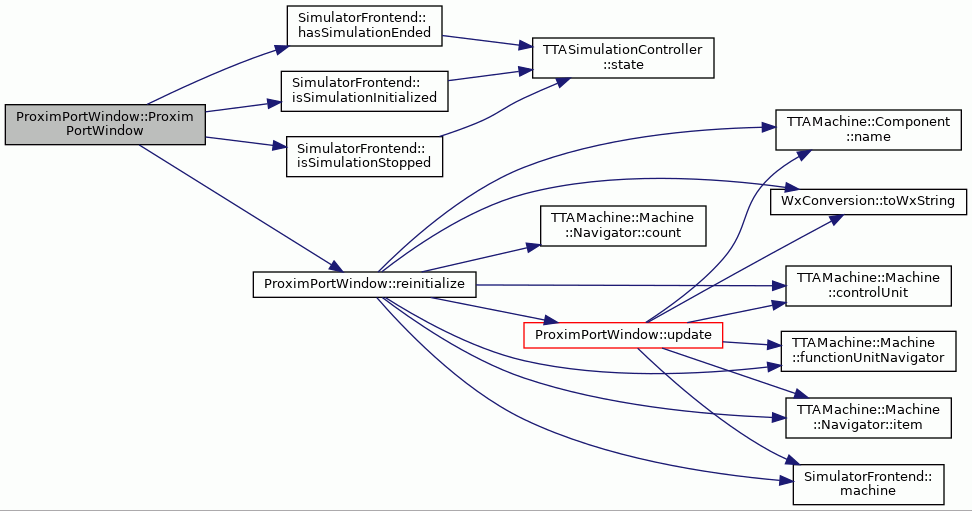

Here is the call graph for this function:

~ProximPortWindow()

ProximPortWindow::~ProximPortWindow ( )

virtual

Destructor.

Definition at line 83 of file ProximPortWindow.cc.

                                    {
}

Member Function Documentation

reinitialize()

void ProximPortWindow::reinitialize ( )

privatevirtual

Sets the available function unit selections in the function unit choice.

Reimplemented from ProximUnitWindow.

Definition at line 91 of file ProximPortWindow.cc.

                               {

    unitChoice_->Clear();

    string gcuName = simulator_->machine().controlUnit()->name();
    unitChoice_->Append(WxConversion::toWxString(gcuName));

    const TTAMachine::Machine::FunctionUnitNavigator& navigator =
    simulator_->machine().functionUnitNavigator();

    for (int i = 0; i < navigator.count(); i++) {
    string fuName = navigator.item(i)->name();
    unitChoice_->Append(WxConversion::toWxString(fuName));
    }

    unitChoice_->SetSelection(0);

    update();
}

References TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), SimulatorFrontend::machine(), TTAMachine::Component::name(), ProximUnitWindow::simulator_, WxConversion::toWxString(), ProximUnitWindow::unitChoice_, and update().

Referenced by ProximPortWindow().

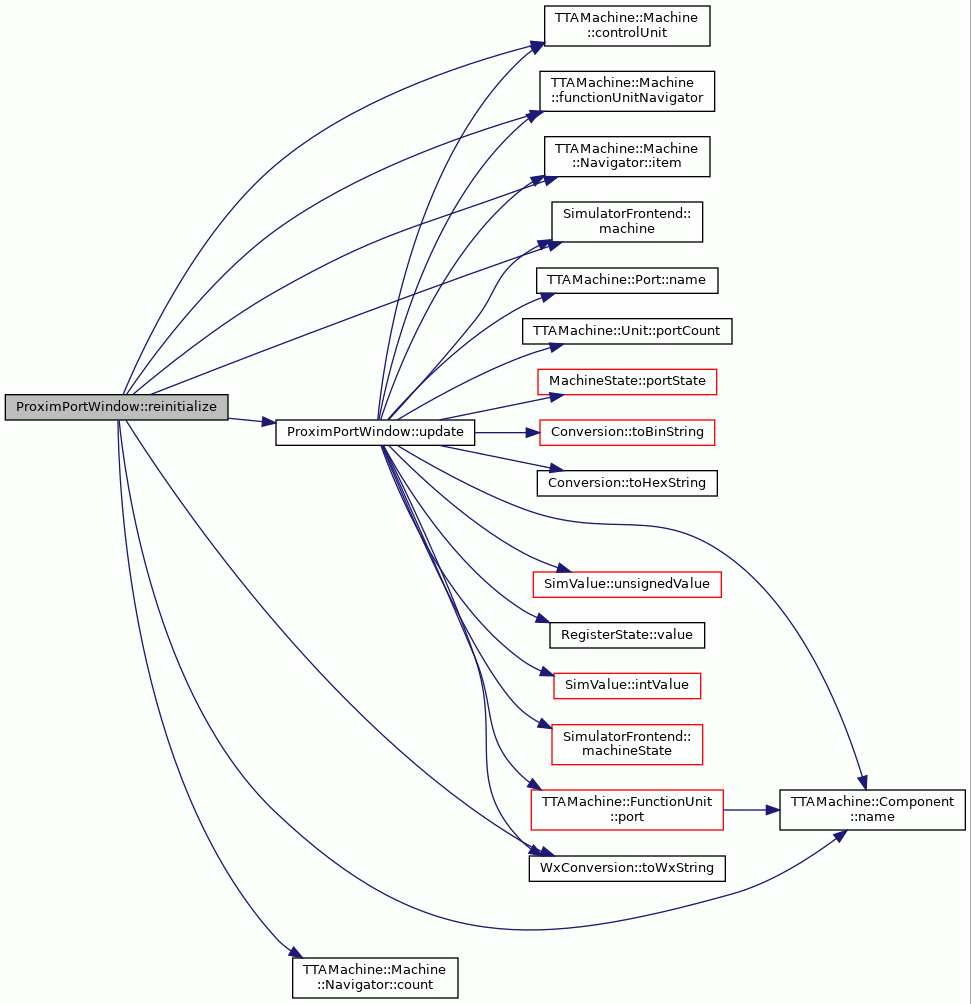

Here is the call graph for this function:

showFunctionUnit()

void ProximPortWindow::showFunctionUnit

(

const std::string &

name

)

Changes unit selection to function unit with given name.

Parameters

name	Name of the function unit to select.

Definition at line 117 of file ProximPortWindow.cc.

                                                        {
    unitChoice_->SetStringSelection(WxConversion::toWxString(name));
    update();
}

References WxConversion::toWxString(), ProximUnitWindow::unitChoice_, and update().

Referenced by ProximShowPortsCmd::Do().

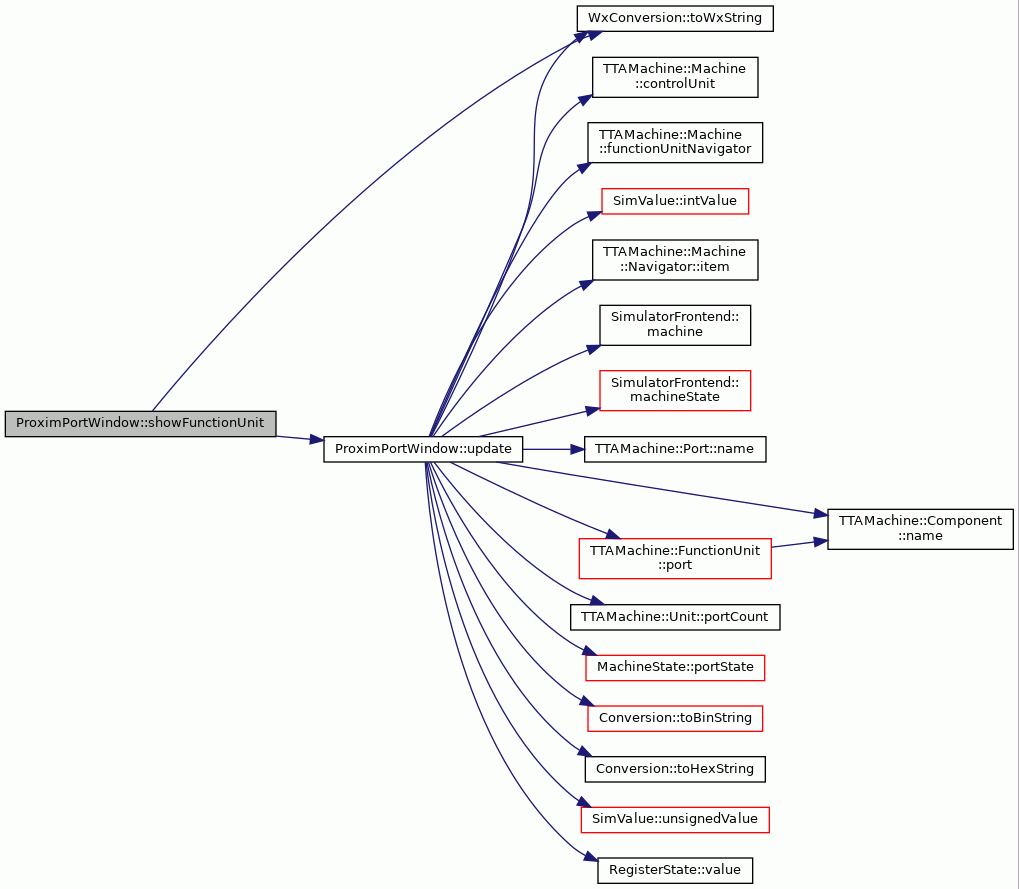

Here is the call graph for this function:

update()

void ProximPortWindow::update ( )

privatevirtual

Updates the value list with port values of the selected function unit.

Reimplemented from ProximUnitWindow.

Definition at line 126 of file ProximPortWindow.cc.

                         {

    valueList_->DeleteAllItems();

    MachineState& machState = simulator_->machineState();
    const TTAMachine::Machine::FunctionUnitNavigator& navigator =
    simulator_->machine().functionUnitNavigator();

    int fuIndex = unitChoice_->GetSelection();
    FunctionUnit* fu = NULL;

    // FU Choice item with index 0 is the control unit.
    if (fuIndex == 0) {
    fu = simulator_->machine().controlUnit();
    } else {
    fu = navigator.item(fuIndex - 1);
    }

    // Append all ports of the function unit to the port list.
    for (int i = 0; i < fu->portCount(); i++) {

    string portName = fu->port(i)->name();
    const PortState& state = machState.portState(portName, fu->name());

    wxString value;

        wxString mode = modeChoice_->GetStringSelection();

        if (mode == MODE_UNSIGNED) {
        value = WxConversion::toWxString(state.value().unsignedValue());
        } else if (mode == MODE_INT) {
            int intValue = state.value().intValue();
        value = WxConversion::toWxString(intValue);
        } else if (mode == MODE_HEX) {
        value = WxConversion::toWxString(
                Conversion::toHexString(state.value().unsignedValue()));
        } else if (mode == MODE_BIN) {
            int intValue = state.value().unsignedValue();
        value = WxConversion::toWxString(
                Conversion::toBinString(intValue));
        }

    valueList_->InsertItem(i, WxConversion::toWxString(portName));
    valueList_->SetItem(i, 1, value);
    }
}

References TTAMachine::Machine::controlUnit(), TTAMachine::Machine::functionUnitNavigator(), SimValue::intValue(), TTAMachine::Machine::Navigator< ComponentType >::item(), SimulatorFrontend::machine(), SimulatorFrontend::machineState(), ProximUnitWindow::MODE_BIN, ProximUnitWindow::MODE_HEX, ProximUnitWindow::MODE_INT, ProximUnitWindow::MODE_UNSIGNED, ProximUnitWindow::modeChoice_, TTAMachine::Component::name(), TTAMachine::Port::name(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), MachineState::portState(), ProximUnitWindow::simulator_, Conversion::toBinString(), Conversion::toHexString(), WxConversion::toWxString(), ProximUnitWindow::unitChoice_, SimValue::unsignedValue(), RegisterState::value(), and ProximUnitWindow::valueList_.

Referenced by reinitialize(), and showFunctionUnit().

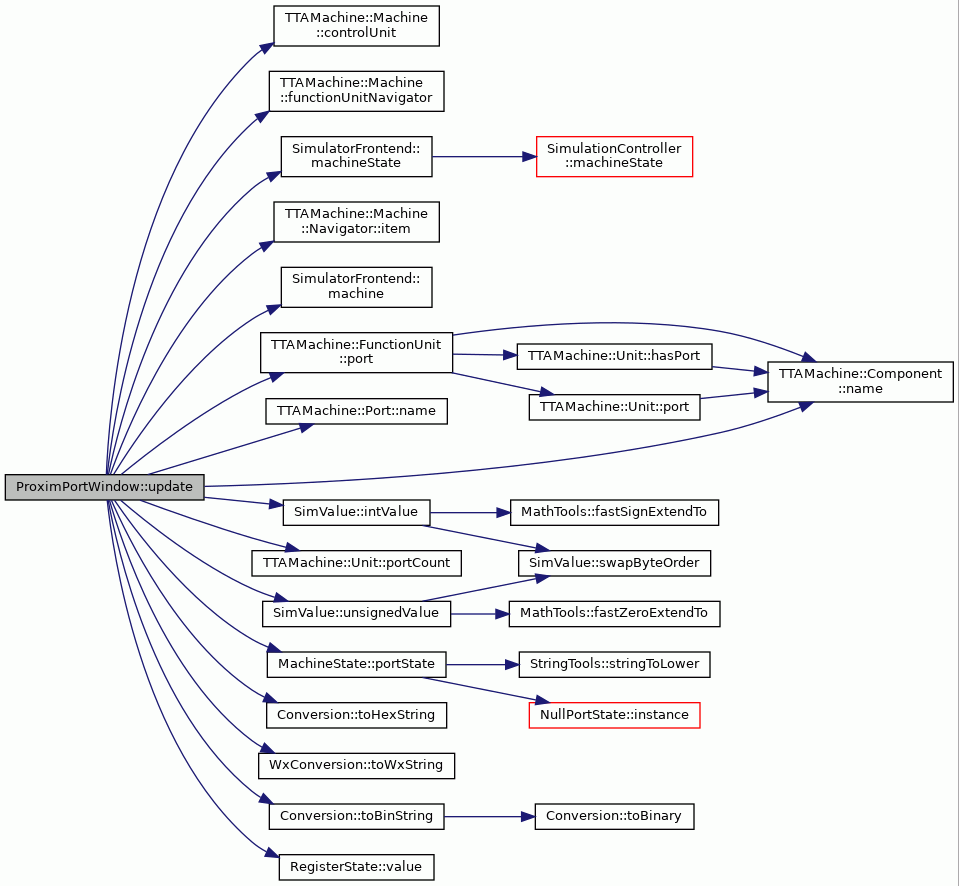

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ProximPortWindow.hh
• ProximPortWindow.cc
